18W Round Indoor Ceiling Recessed Downlight Down LED Panel Light
Product Description
Basic Specifications
Model
LDP1- 18W
Emitting Color
Ww/Nw/Cw
Appearance
Round
Type
Recessed
Voltage
85V-265V
Beam Angle
120°
Wattage
18W
Ra (CRI)
>80
Material
Aluminum Frame + PS LGP
Warranty
3 Years
Lumen
>90lm/W
Cut-out
205mm
Size
Dia. 225mm
Certification
CE, RoHS, ISO9001, SAA, CCC
Product Description
18W Round Indoor Ceiling Recessed SMD LED Panel Light – Ideal for residential washrooms, bathrooms, kitchen cabinets, balconies, porches, garages, hotels, offices, and retail stores.
- Ultra slim recessed LED panel design for sleek aesthetics.
- High-quality side SMD2835 Led chips ensuring superior CRI and brightness.
- Eco-friendly: No UV or IR radiation, no-glare, soft and tender light output.
- Reliable constant current driver with Triac, 0~10V, or DALI dimmable options.
- Instant start with no flickering, humming, or electric wave interference.
- Premium PS light guide plate for high lumen output without dark spots.
- Robust aluminum alloy housing for excellent heat dissipation.
- Long lifespan up to 20,000 hours with less than 5% light decay in 10,000hrs.
Technical Parameters
| Model | Power | Dimension (mm) | Cut-size (mm) | LED Qty | Material | Lumen | Packing (Pcs/Ctn) |
|---|---|---|---|---|---|---|---|
| LDP1-3W | 3W | Ø83 | Ø70 | 15pcs | Al | 22-25lm | 100 |
| LDP1-6W | 6W | Ø115 | Ø100 | 30pcs | Al | 22-25lm | 100 |
| LDP1-9W | 9W | Ø145 | Ø130 | 45pcs | Al | 22-25lm | 40 |
| LDP1-12W | 12W | Ø165 | Ø150 | 60pcs | Al | 22-25lm | 40 |
| LDP1-15W | 15W | Ø190 | Ø175 | 75pcs | Al | 22-25lm | 30 |
| LDP1-18W | 18W | Ø225 | Ø205 | 90pcs | Al | 22-25lm | 30 |
| LDP1-24W | 24W | Ø290 | Ø280 | 120pcs | Al | 22-25lm | 20 |

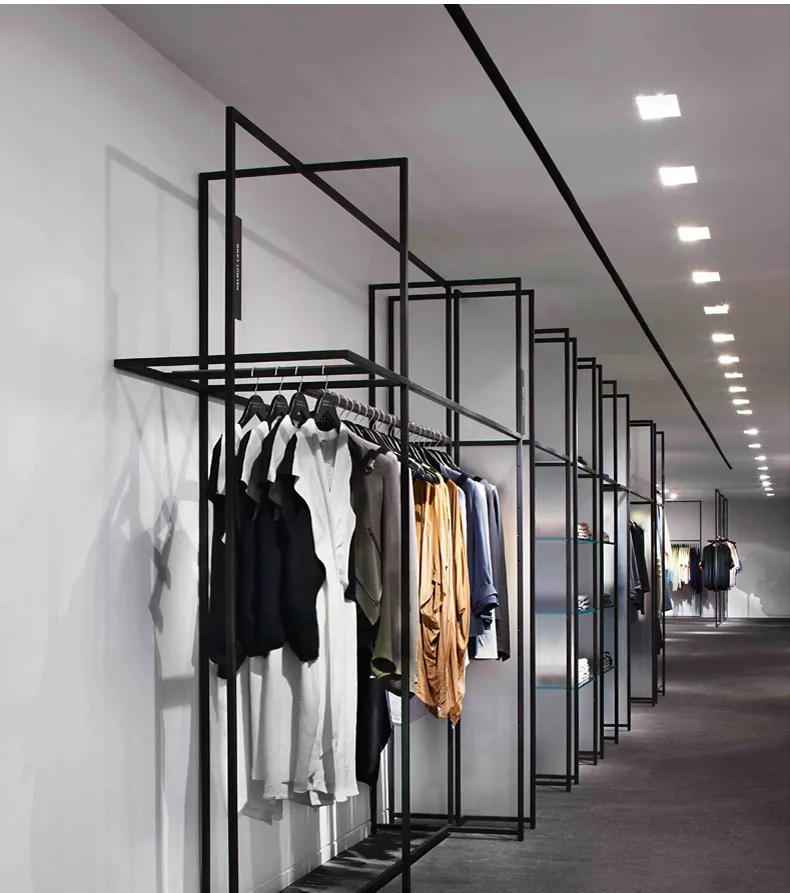

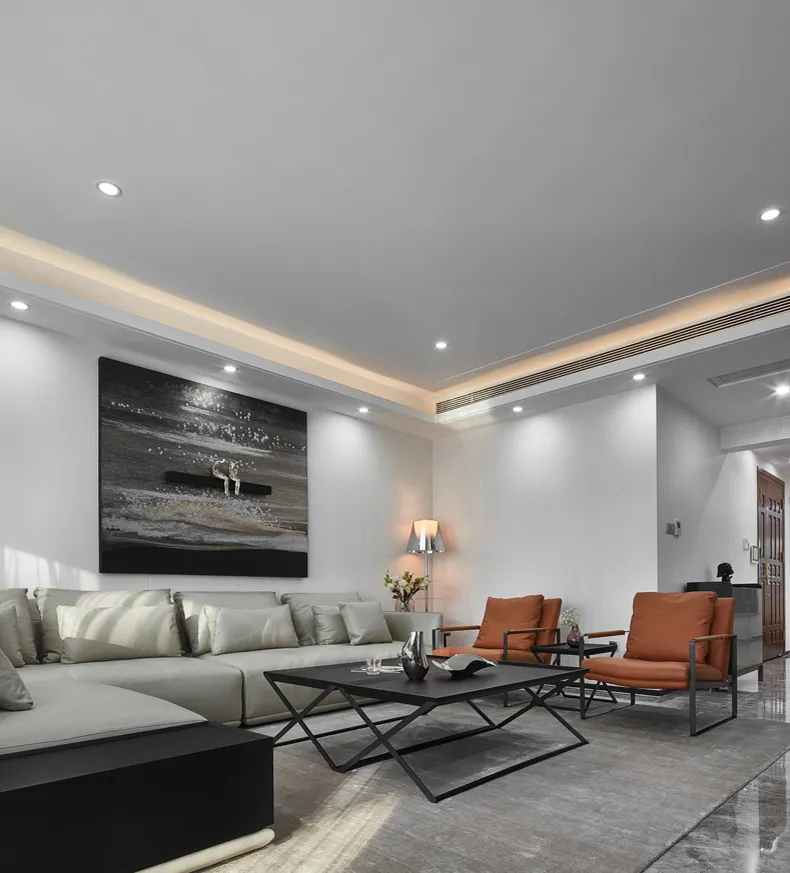

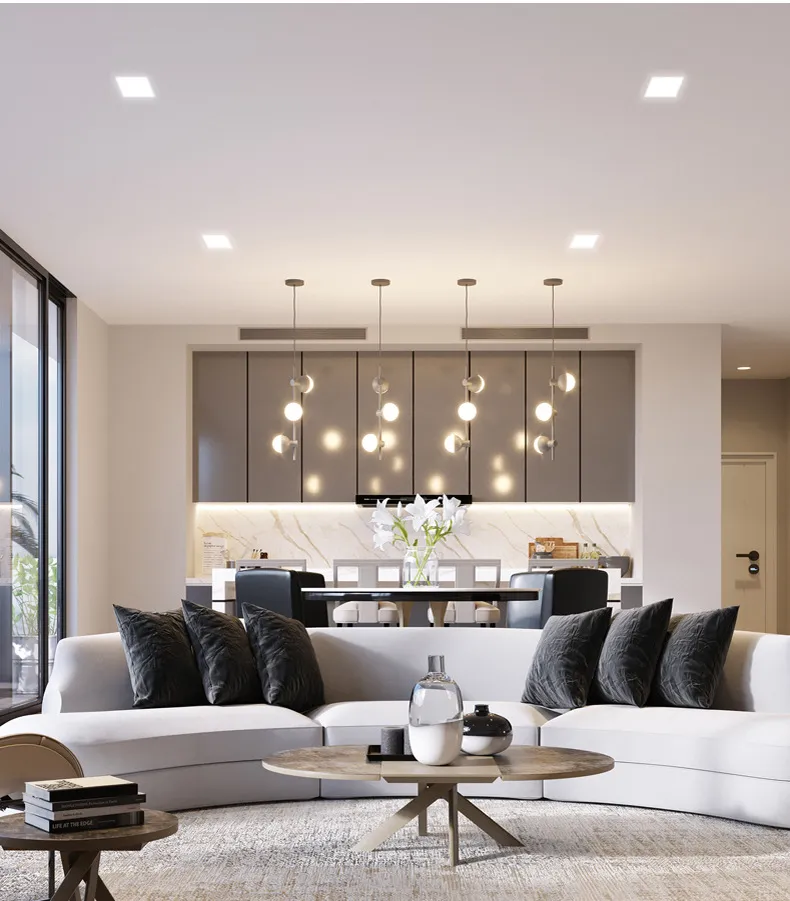

Product Showcase
Frequently Asked Questions
Are you a professional factory manufacturer?

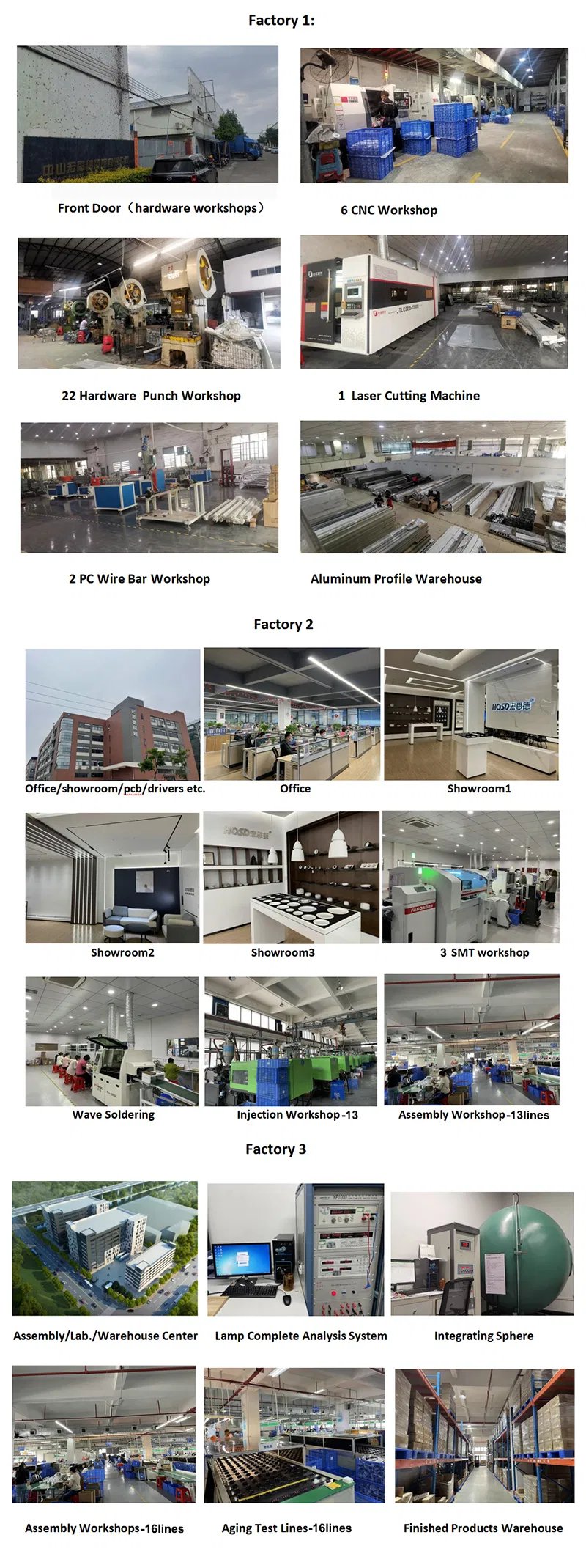

Yes, we are a professional original manufacturer with three specialized factories for lighting production.
Do you have the ability to develop OEM new products?
Yes, our structural engineers can create CAD and 3D drawings to develop new products based on client requirements. We have on-site workshops for punching, injection, and die-casting to speed up the sampling process.
What is the lead time for samples and bulk orders?
Sample orders typically take 3-5 days, while bulk batch orders are fulfilled within 2-4 weeks.
How is the quality control handled for your lighting products?
Our facilities are ISO9001 certified. 100% of finished products undergo aging tests before packing. We offer a 2-5 year guarantee on our products.
How do you handle products that fail within the warranty period?
For individual parts, we provide free replacements with your next order. For batch failures, we repair and resend the items or negotiate the most suitable solution.
What type of test reports can you provide?
We have our own laboratory and can provide IES reports, Photometric reports, and LM80 reports among others.
