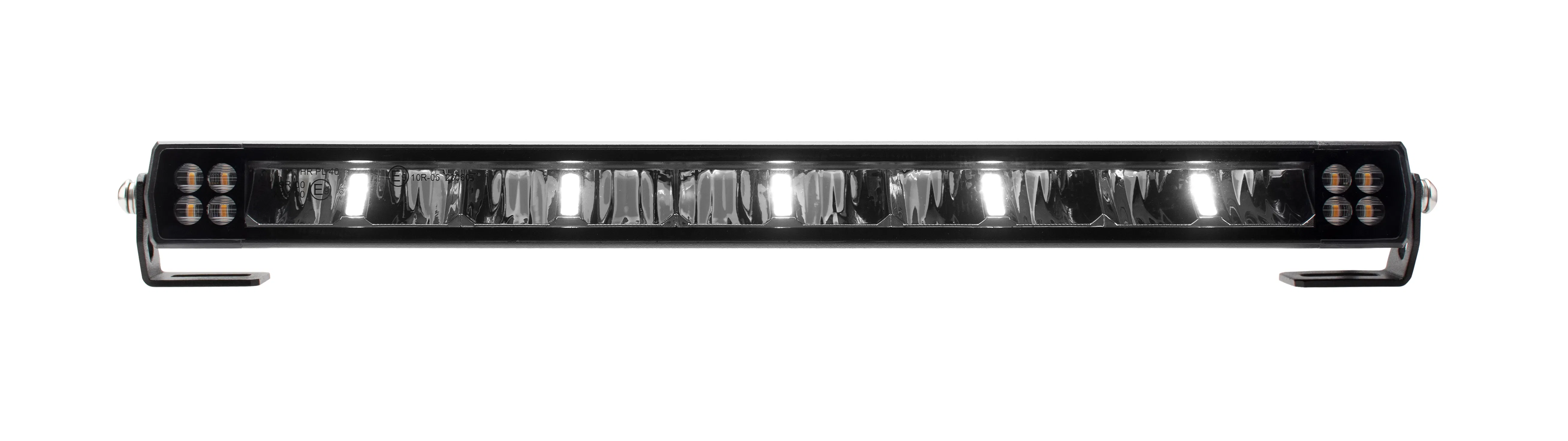

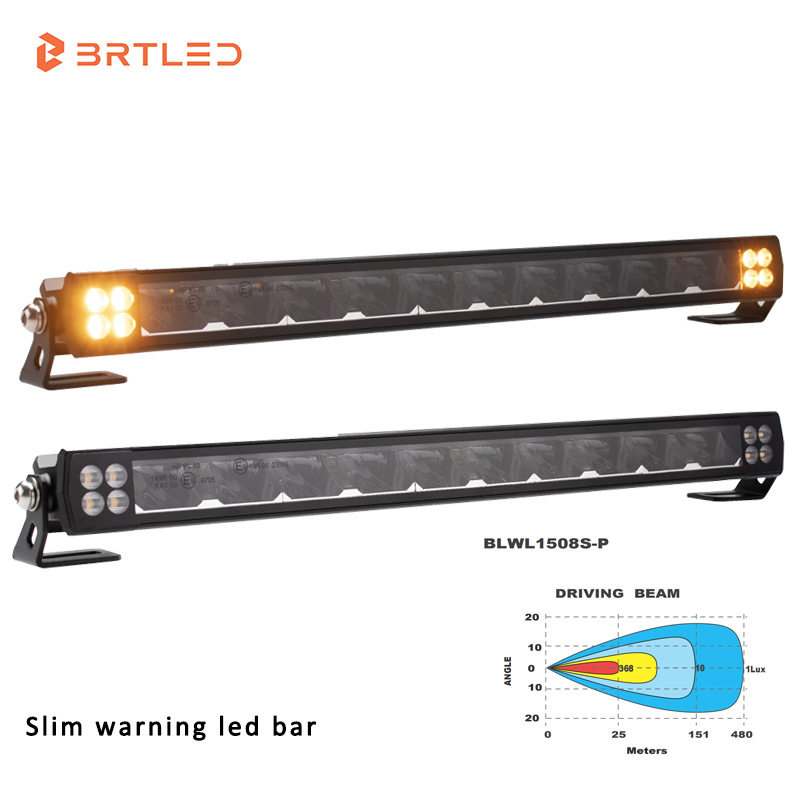

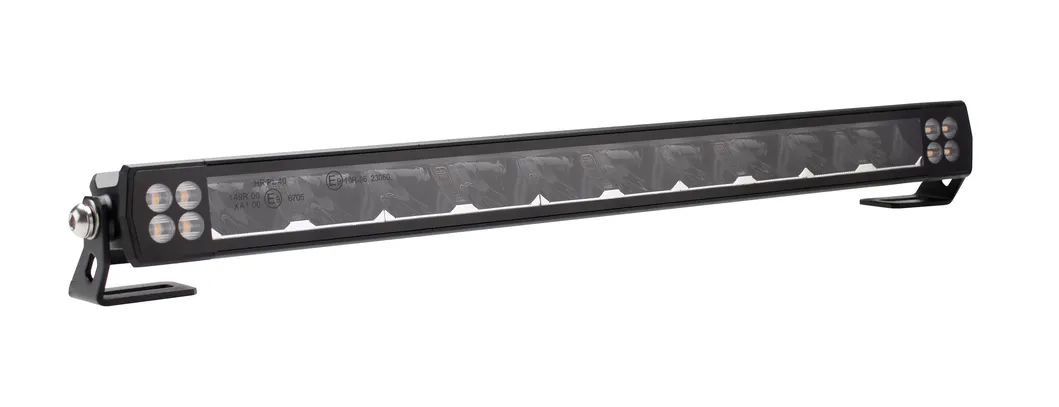

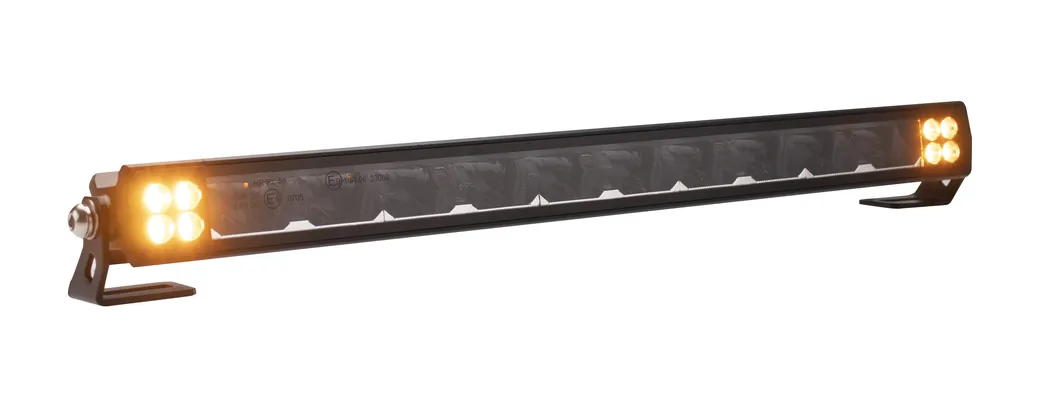

Straight Slim Light Bars 19 Inch Driving Beam White Amber DRL LED Lights for Car off Road Truck Warning Emergency Light Bar
Product Description
i
Basic Specifications
Model NO.
BLWL1508S-P
Certification
RoHS, CE, ISO, ECE R10, R112, R7, R65, SAE595
Voltage
DC9-36V
Light Color
White
Application
Car, Universal Vehicle, Off-Road
Type
LED Light Bar
Size
19inch (484*40.5*52.5mm)
Watts
100W
Luminous Flux
11000lm
Beam Pattern
Driving Beam (35°) + Amber White DRL
Color Temp
6000K
Protection
Electronic Thermal Management (ETM)
P
Product Presentation
| Model Details | BLWL1508S-P Specs |
| LED Configuration | 10 PCS * 10W LEDs |
| Raw Lumens | 11000 Lm |
| Effective Lumens | 9800 Lm |

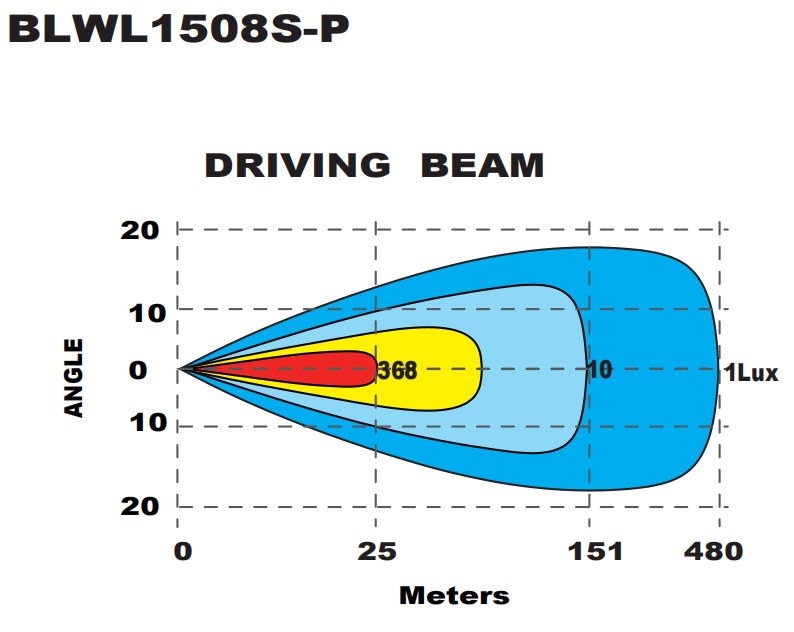

| Light Intensity | 1Lux @ 480m |
| Waterproof Rate | IP68 / IP69K |
| Optic System | Side-Reflecting Optic System |
| Dimensions | 484 * 40.5 * 52.5 mm |
★
Key Features & Highlights
- Ultra Slim Design: Total height only 40.5mm for discreet mounting.

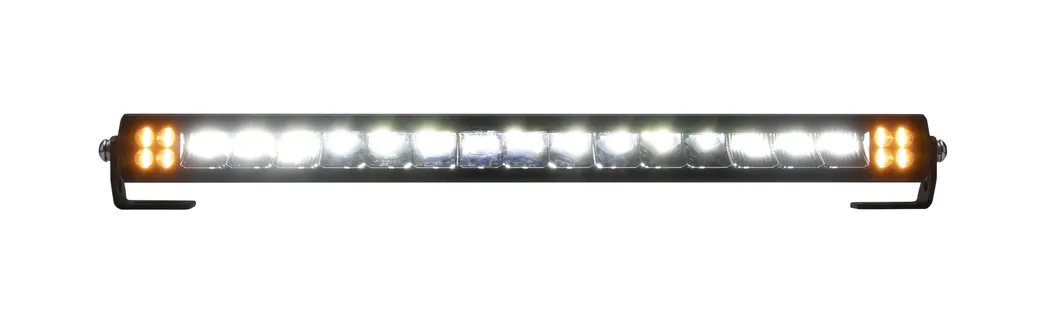

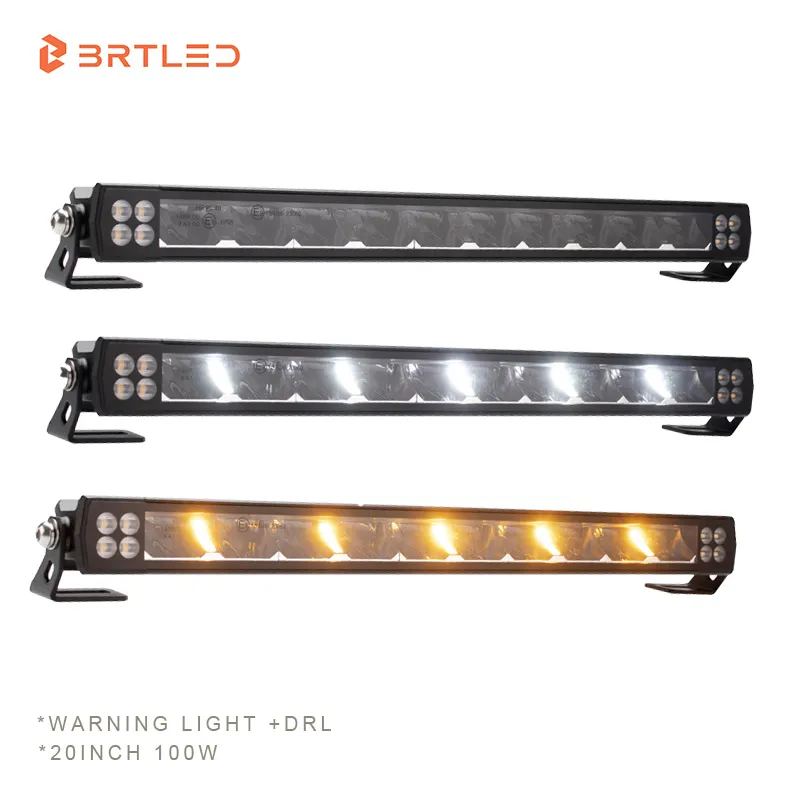

- Dual Function: Combines driving beam with amber/white DRL and warning functions.
- Advanced Cooling: Integrated Electronic Thermal Management (ETM).
- Durability: Anti-rust, corrosion resistance, and freezing resistance.
- Certified Quality: Approved by ECE R10, R112, R7, R65, and SAE595.
- Robust Build: High-grade side-reflecting optic system.
📦

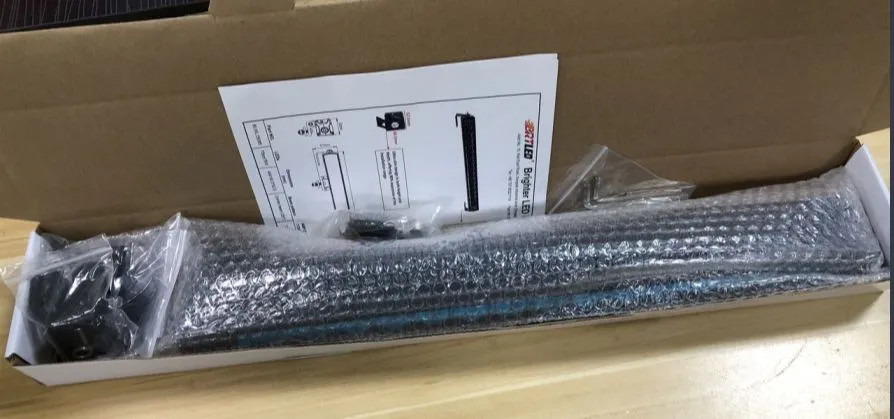

Packing & Delivery
⚙

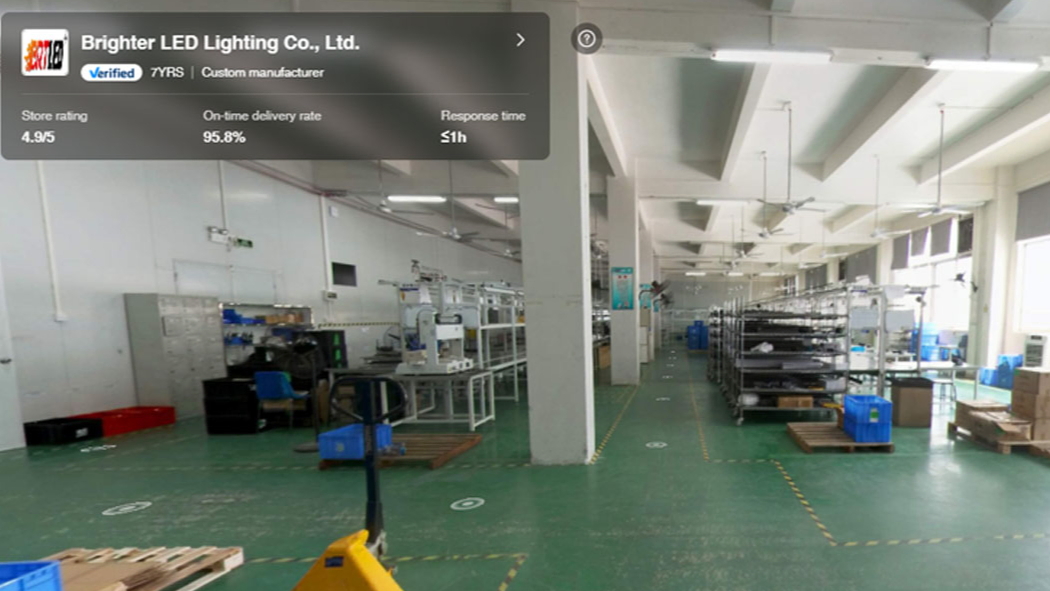

Manufacturing & Compliance
?
Frequently Asked Questions
What is the input voltage range for this LED bar?
The light bar supports a wide input voltage range from DC 9V to 36V, making it suitable for most cars, trucks, and off-road vehicles.
Is this product waterproof for off-road use?
Yes, it complies with IP68 and IP69K ratings, ensuring complete protection against dust and high-pressure water jets.
What certifications does the BLWL1508S-P carry?
This model is fully certified with ECE R10, R112, R7, R65, CE, RoHS, and SAE595, meeting strict international safety and quality standards.
What is the advantage of Electronic Thermal Management (ETM)?
ETM automatically monitors and adjusts the temperature of the LEDs to prevent overheating, significantly extending the lifespan of the light bar.
How slim is the light bar for installation?
The bar is designed to be ultra-slim with a total height of only 40.5mm, allowing for sleek installations in tight spaces like grilles or roof racks.
What beam pattern does this light provide?

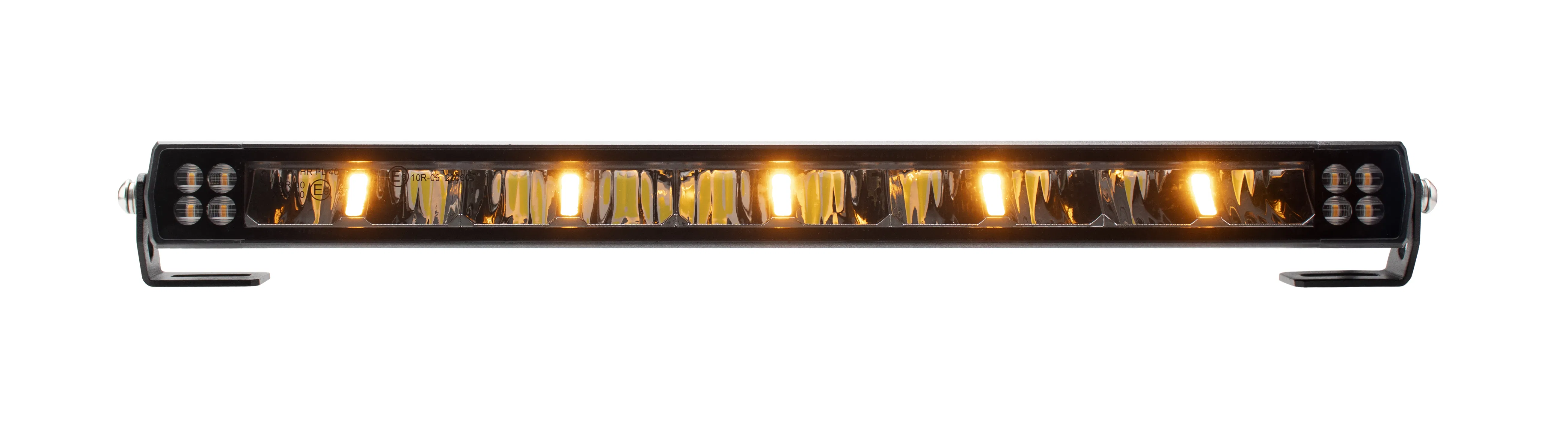

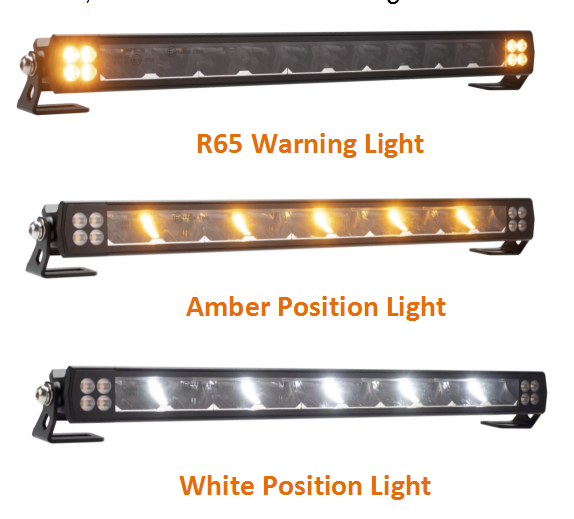

It features a 35° Driving Beam for long-distance visibility, combined with Amber and White DRL (Daytime Running Light) and warning functions.
