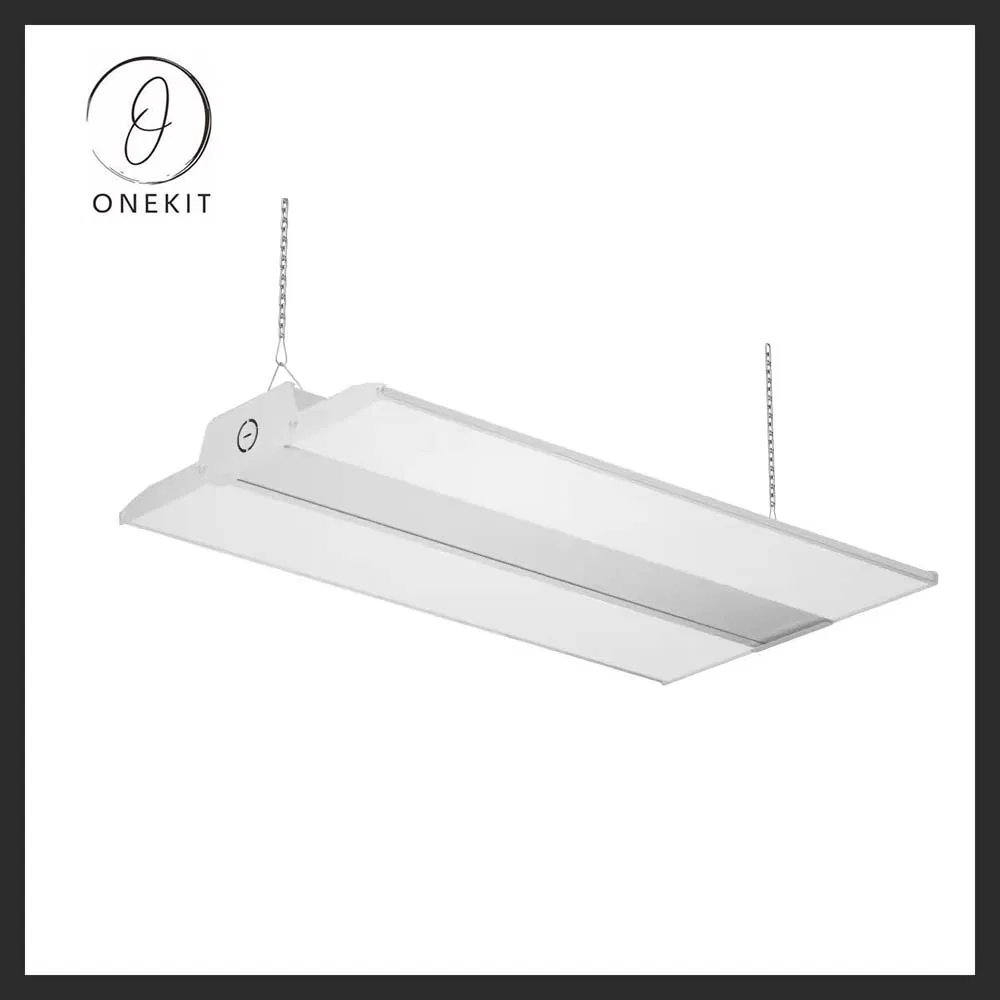

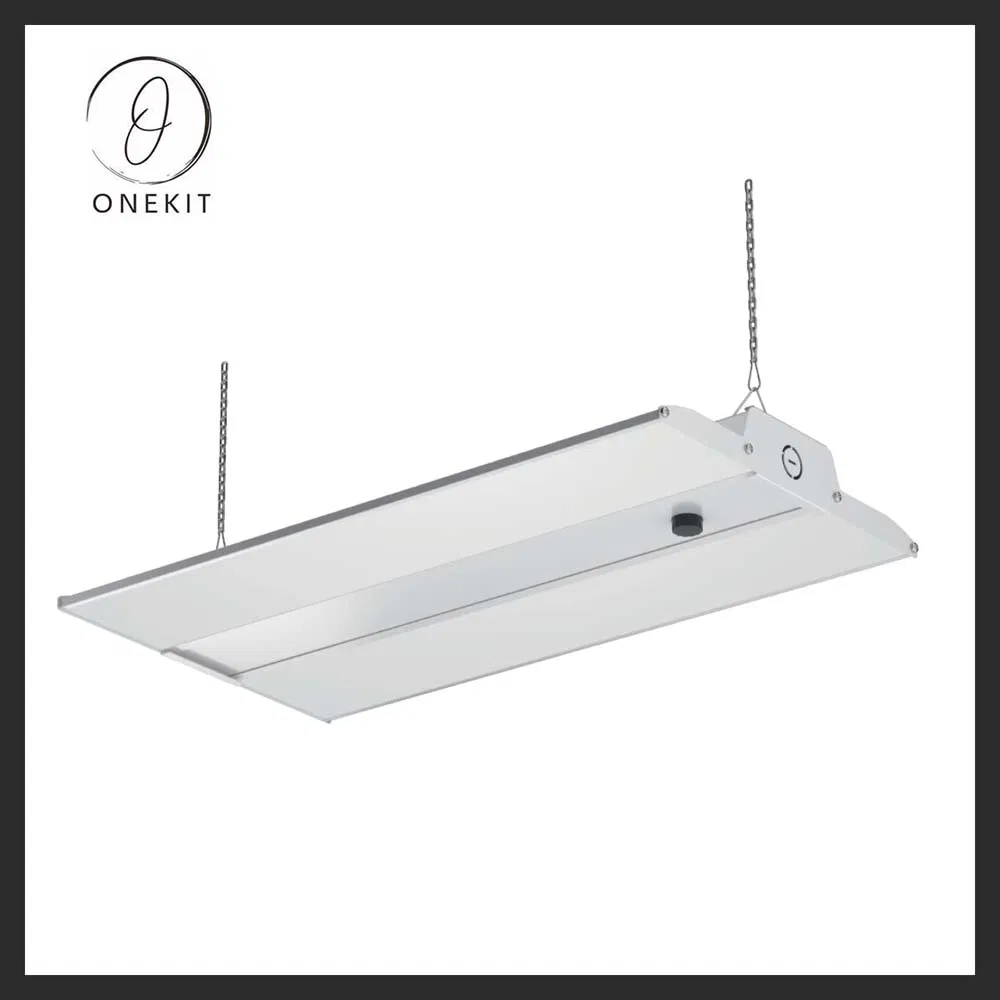

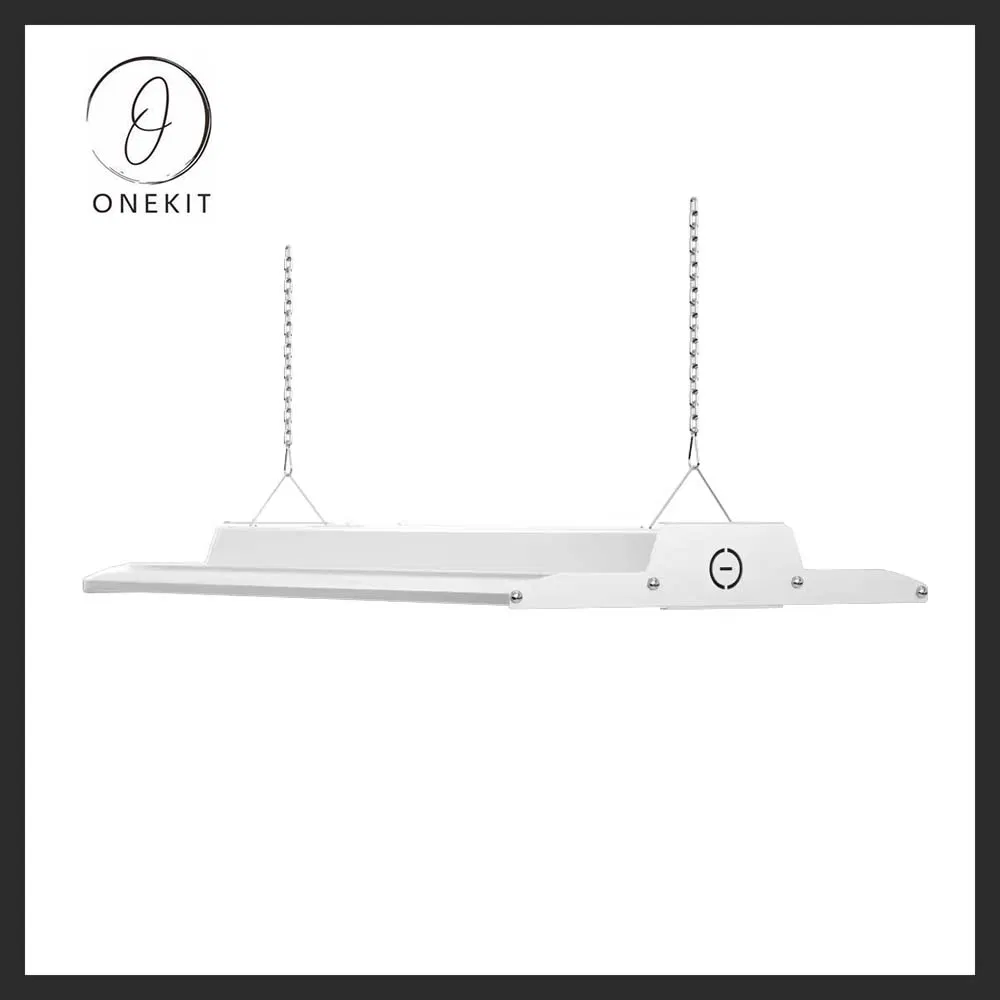

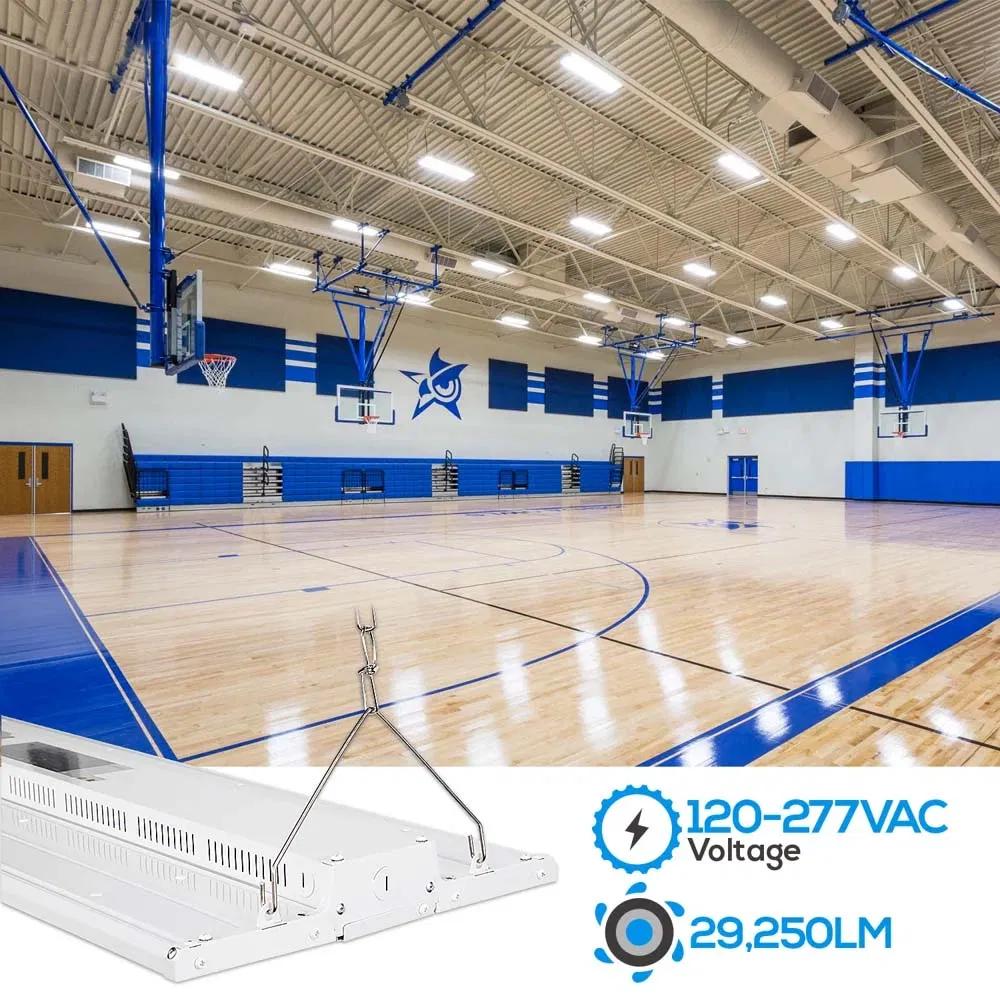

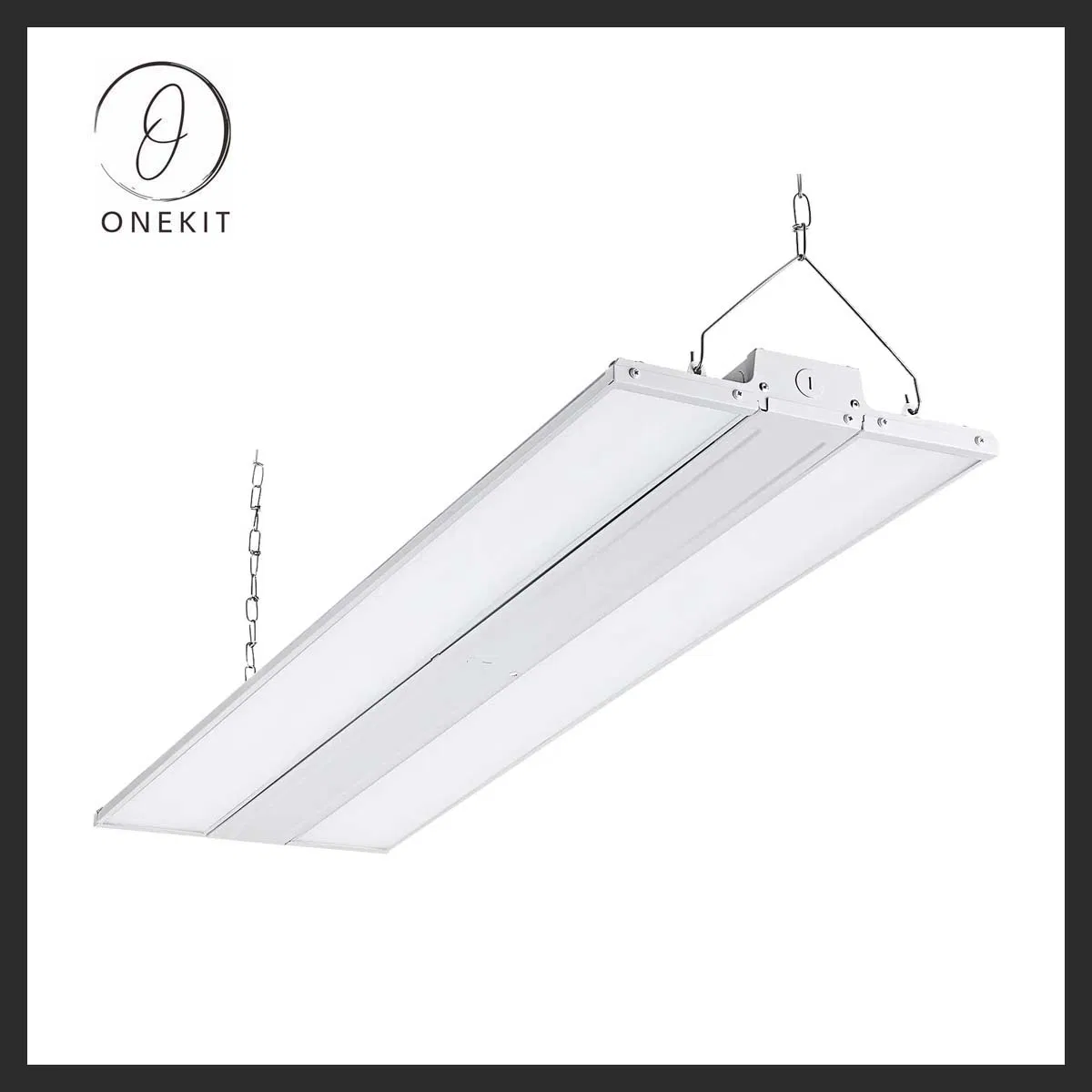

Premium 2X4 Feet 100W 200W LED Linear High Bay Light for Gym Warehouse
Product Description
Basic Specifications
Model NO.
Linear LED High Bay Light
Power
100W 150W 200W 250W 300W 320W
Usage
Gymnasium, Shipyard, Warehouse, Factory, Garage
Lifespan
≥50000H
IP Rating
IP65
Beam Angle
120°
LED Chips
Osram
Dimmable
0-10V, 1-10V
CCT Range
3000K - 6000K
Size Option
2FT / 4FT
Packaging & Delivery
Package Size
125.00cm * 40.00cm * 25.00cm
Gross Weight
14.000kg
Protection
Fully Protection for Each Lamp
Product Description
A linear LED high bay light is a premium lighting fixture designed for high ceiling applications, offering superior illumination for industrial and commercial environments.
📏
Slim ProfileSleek and slim design, visually appealing and easy to install in spaces with limited clearance.
💡
High Lumen OutputProduces bright and uniform illumination across large areas with high efficiency.
🏗️
Durable ConstructionConstructed with robust materials like aluminum, resistant to impact and vibration.
🔋
Energy EfficiencyHighly efficient LED technology results in significant energy savings over time.
⚡
Instant On/OffImmediate full brightness without any warm-up time, ideal for rapid lighting needs.
Technical Specifications
| Model | Wattage | Input Voltage | Light Efficiency | CCT | CRI | Beam Angle | Dimensions |
|---|---|---|---|---|---|---|---|
| LHB-W50 | 50W-100W | AC 85-265V | >130 lm/w | 2700-6500K | Ra>80 | 60°/120° | 300x340x50mm |
| LHB-W100 | 100W-200W | AC 85-265V | >130 lm/w | 2700-6500K | Ra>80 | 60°/120° | 600x340x50mm |
| LHB-W150 | 150W-250W | AC 85-265V | >130 lm/w | 2700-6500K | Ra>80 | 60°/120° | 900x340x50mm |
| LHB-W200 | 200W-340W | AC 85-265V | >130 lm/w | 2700-6500K | Ra>80 | 60°/120° | 1200x340x50mm |

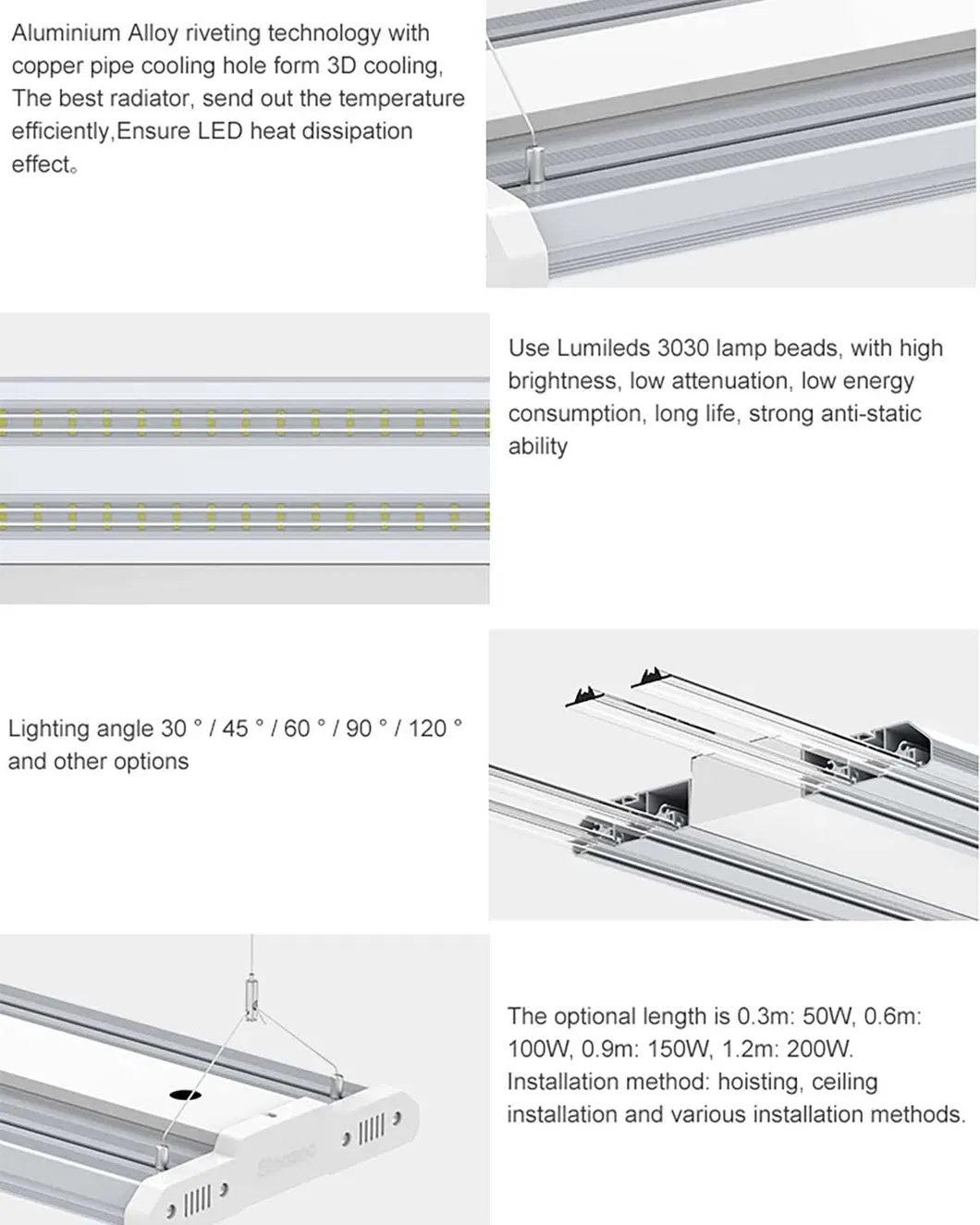

Product Details

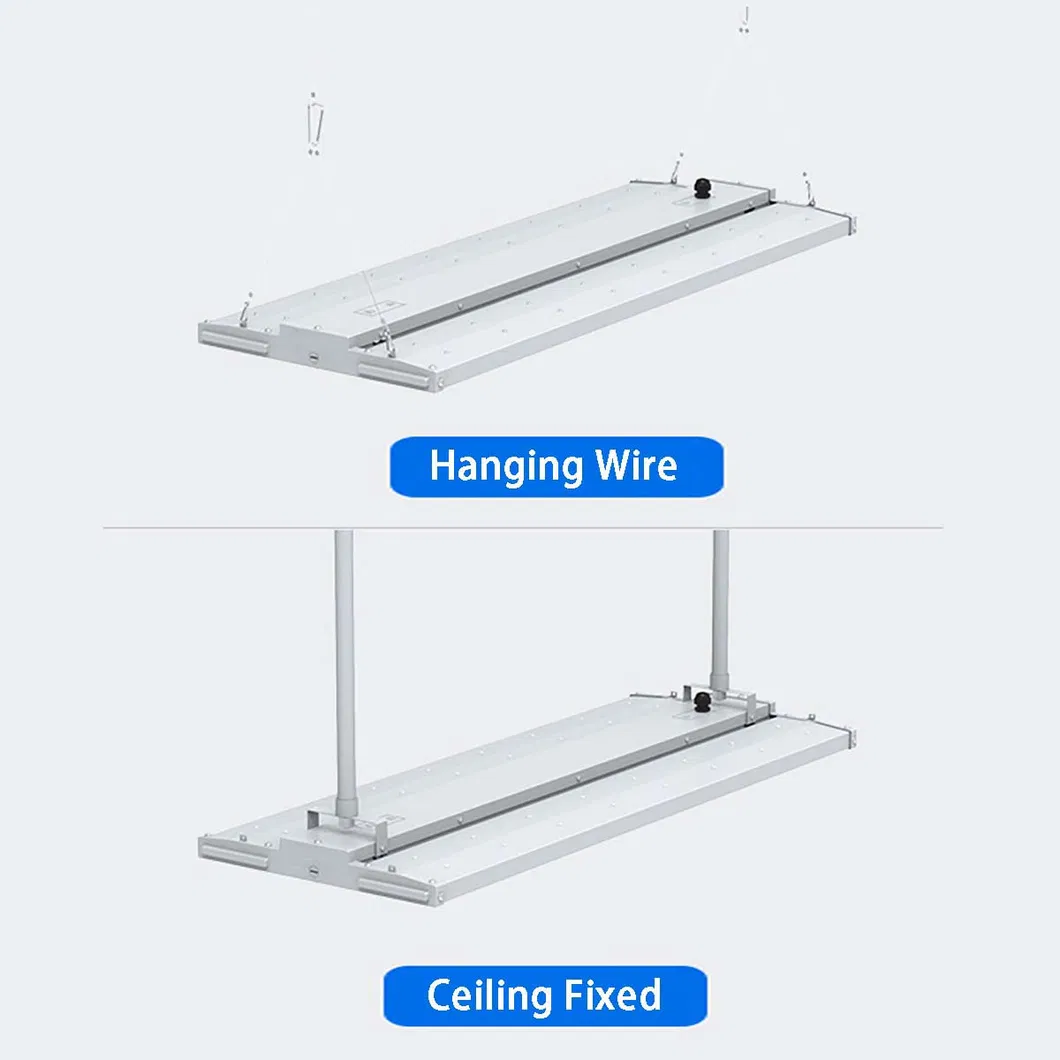

Installation Instructions

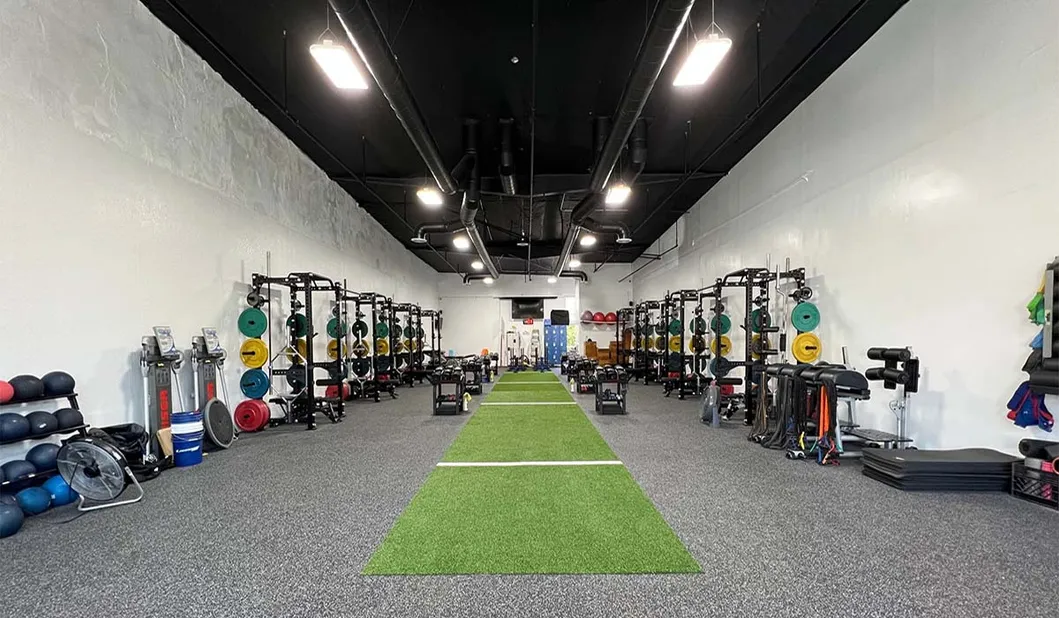

Applications
Versatile fixtures suitable for a wide range of commercial and industrial applications where high ceilings and broad area illumination are required.

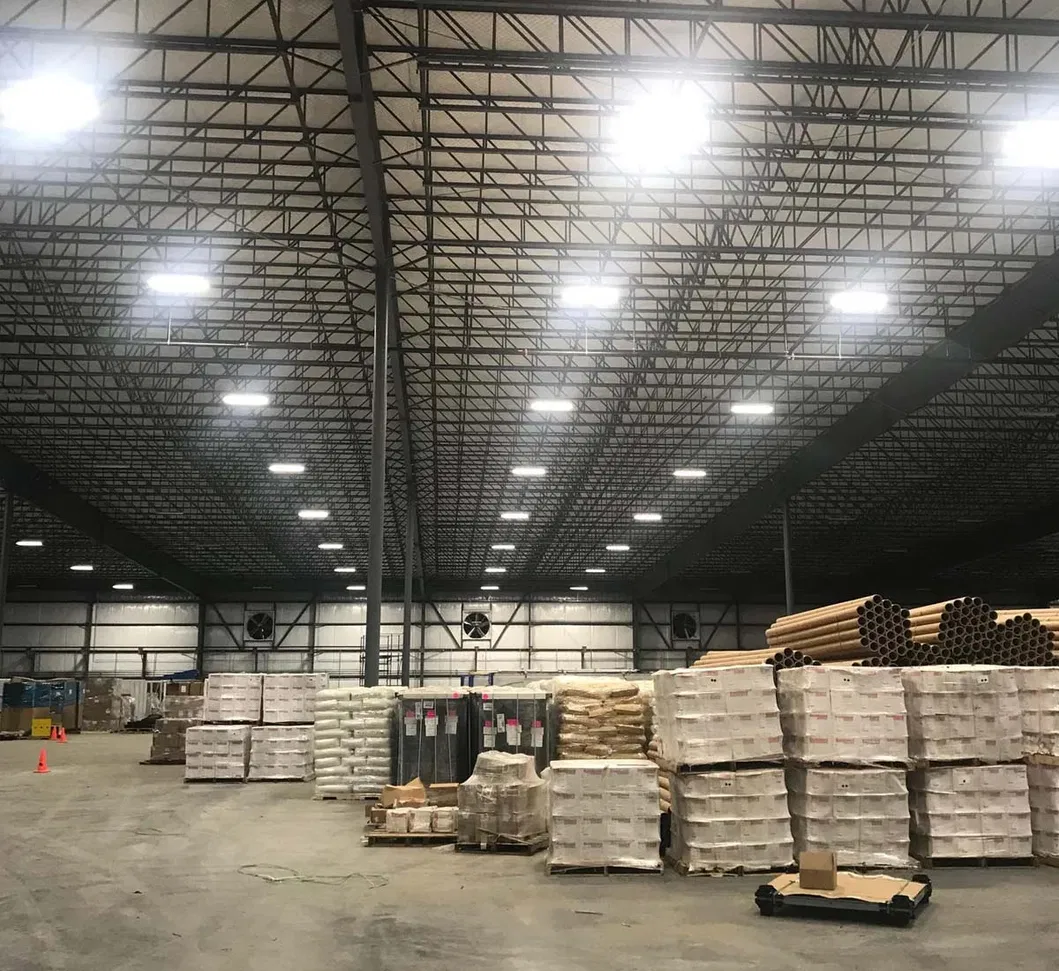

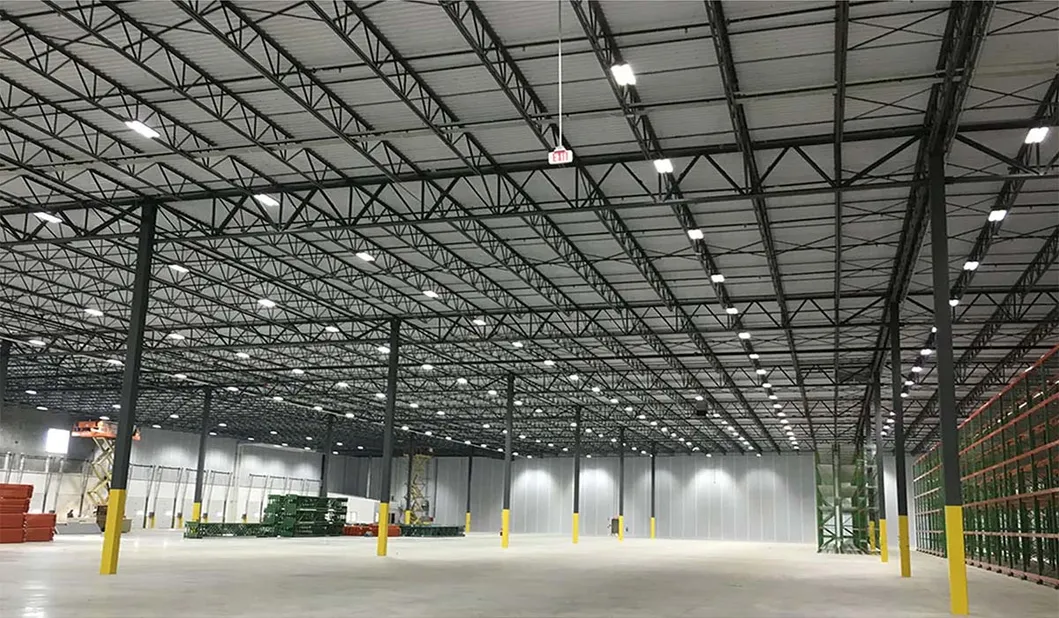

Warehouses
Manufacturing
Gyms & Sports
Retail Stores
Exhibition Halls
Airplane Hangars
Cold Storage
Supplier's Commitments
✅
Quality Assurance100% new raw materials; 24-hour aging test; strict QC procedures before delivery.
📦
Safety PackagingIndividual PE bag packing; strong foaming protection in every box.
🚀
Fast DeliverySamples ready in 2-4 days; standard production within 15 working days.
🛠️
Post Sales SupportFree replacement for manufacturing defects; active coordination for concerns.
Frequently Asked Questions
What is the advantage of a linear LED high bay over a round UFO high bay?
Linear high bays provide a more rectangular light distribution, which is ideal for aisles in warehouses or long racks, reducing light waste and providing better uniformity.

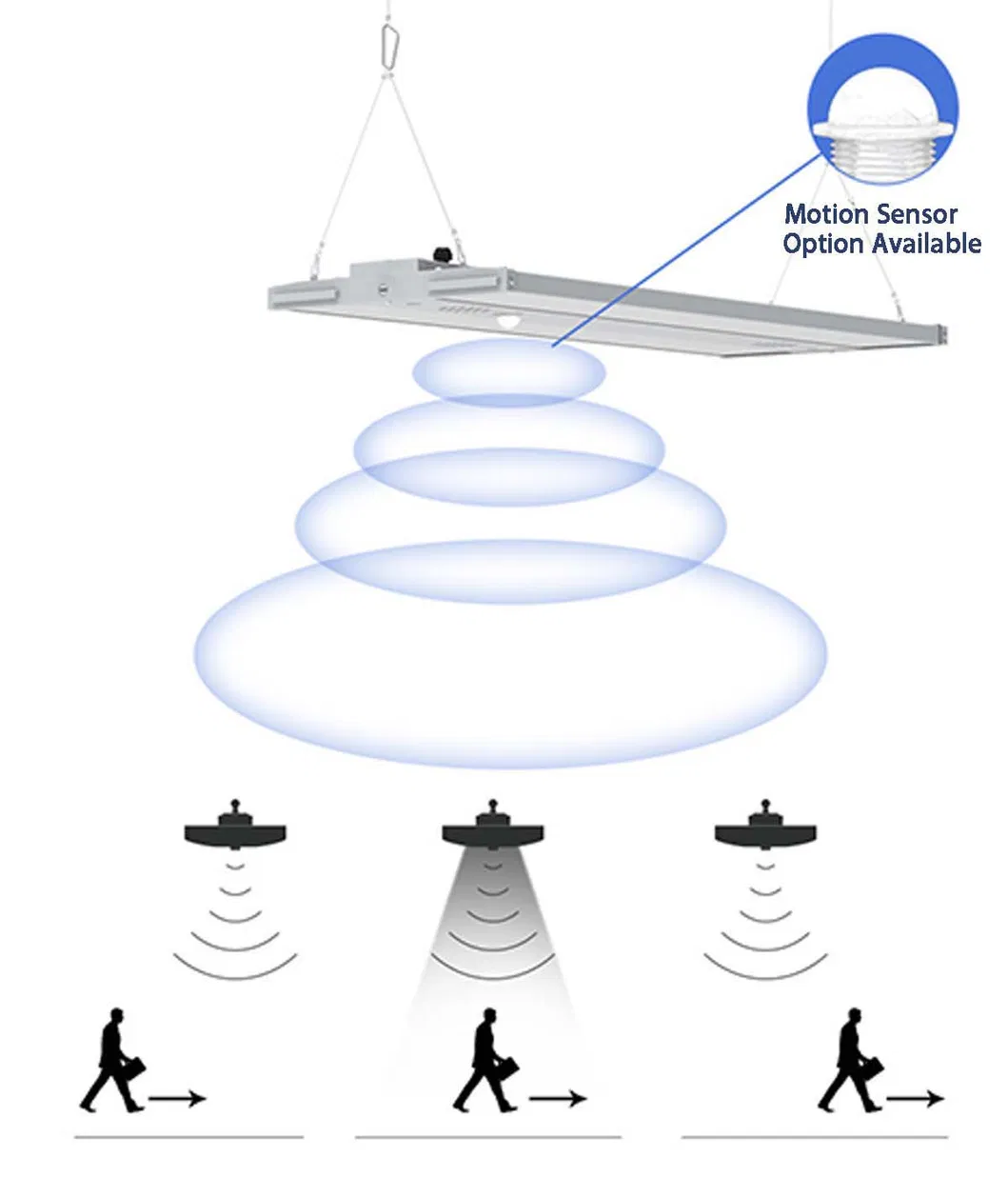

Are these lights compatible with motion sensors?
Yes, options for Motion Sensors, PIR Sensors, and Microwave sensors are available to maximize energy savings.
What dimming systems do they support?
Our linear LED high bays support standard 0-10V and 1-10V dimming systems for flexible brightness control.
Can they be used in outdoor or wet areas?
These fixtures are IP65 rated and suitable for damp locations, making them resistant to moisture and dust.
What is the typical mounting height for these lights?
Depending on the wattage (100W-320W), they are typically installed at heights ranging from 15 to 40 feet.
Do the lights come with mounting accessories?
Yes, they are designed for suspended installation and typically include or support hanging chains and ceiling mounting hardware.
