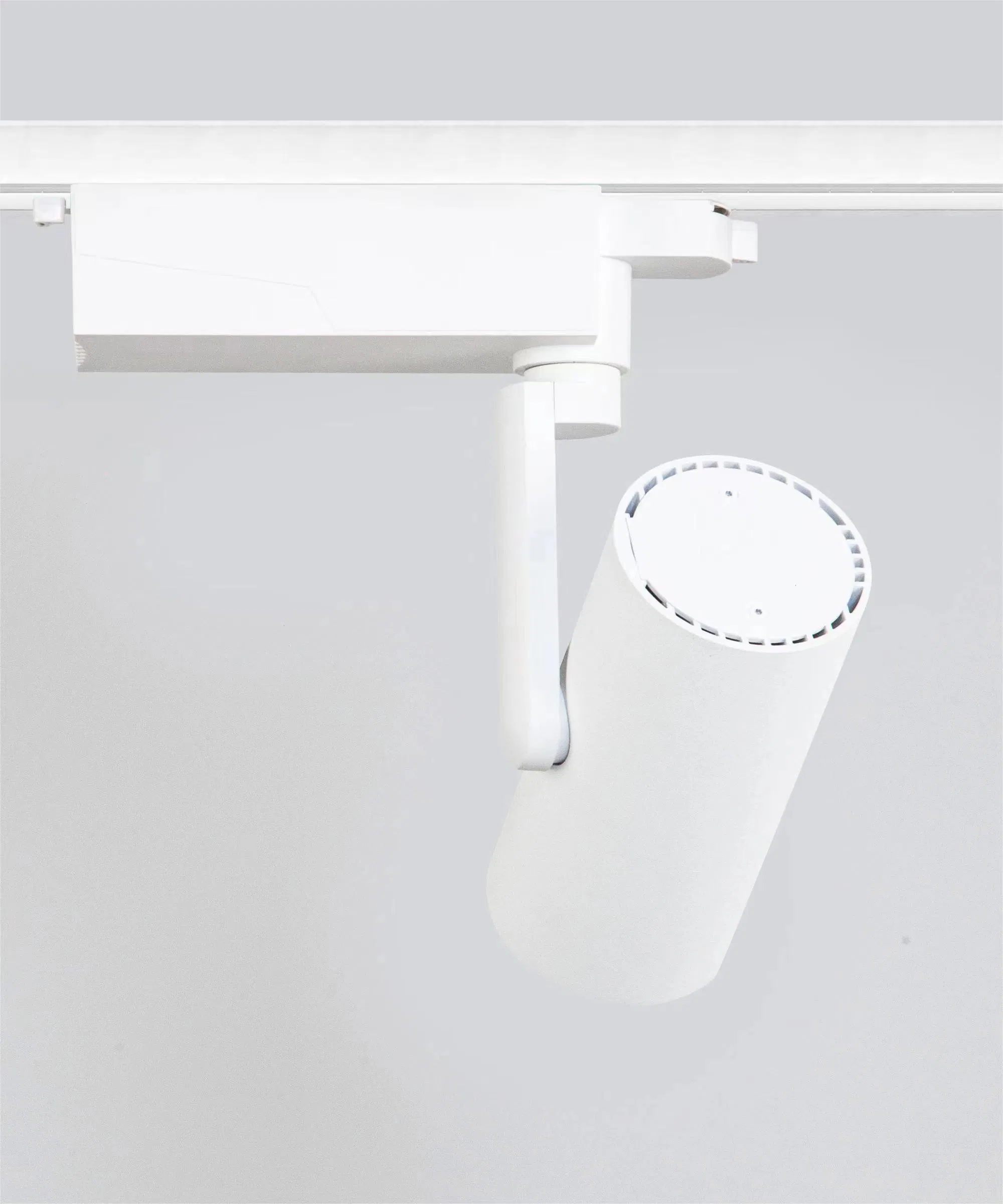

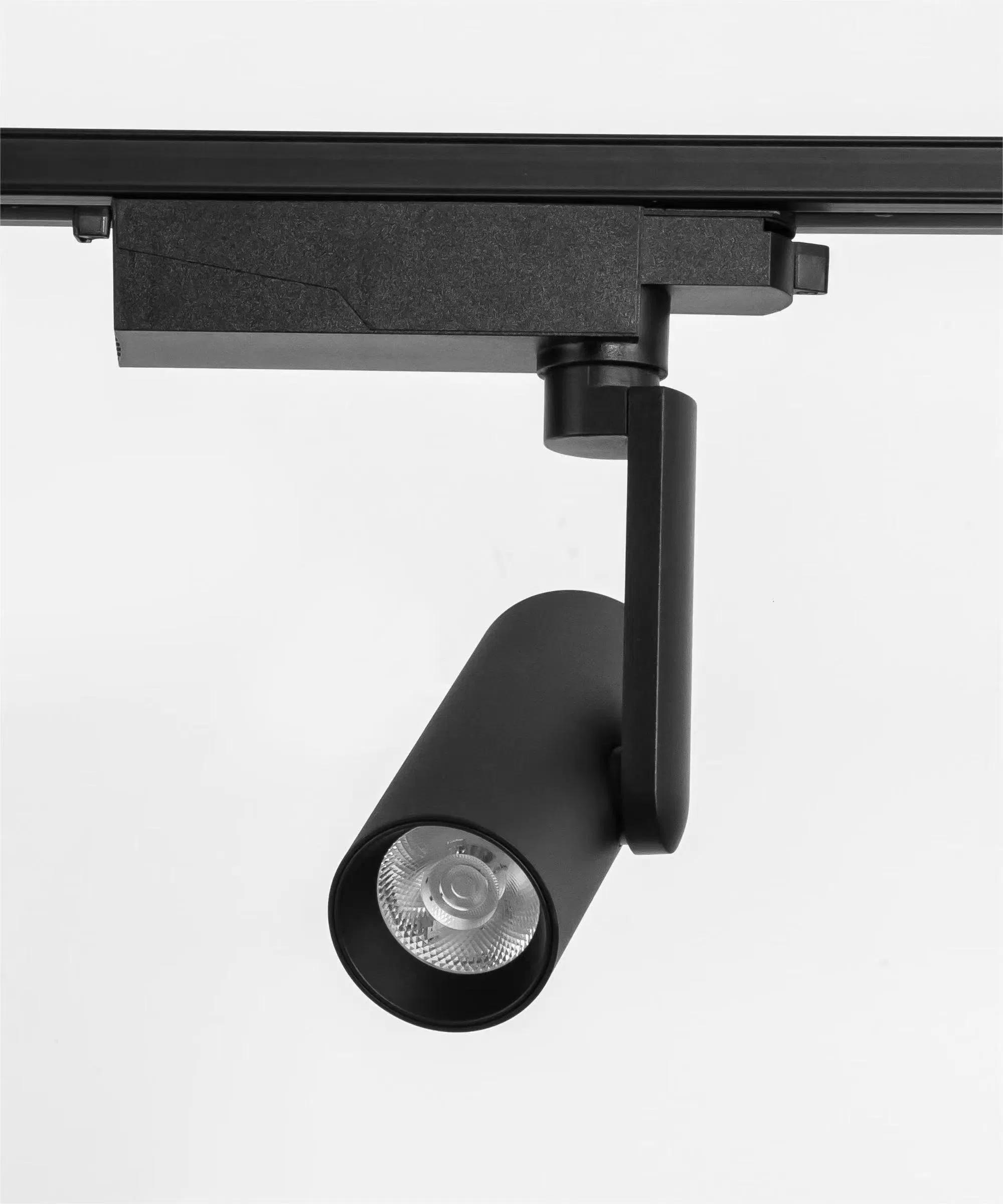

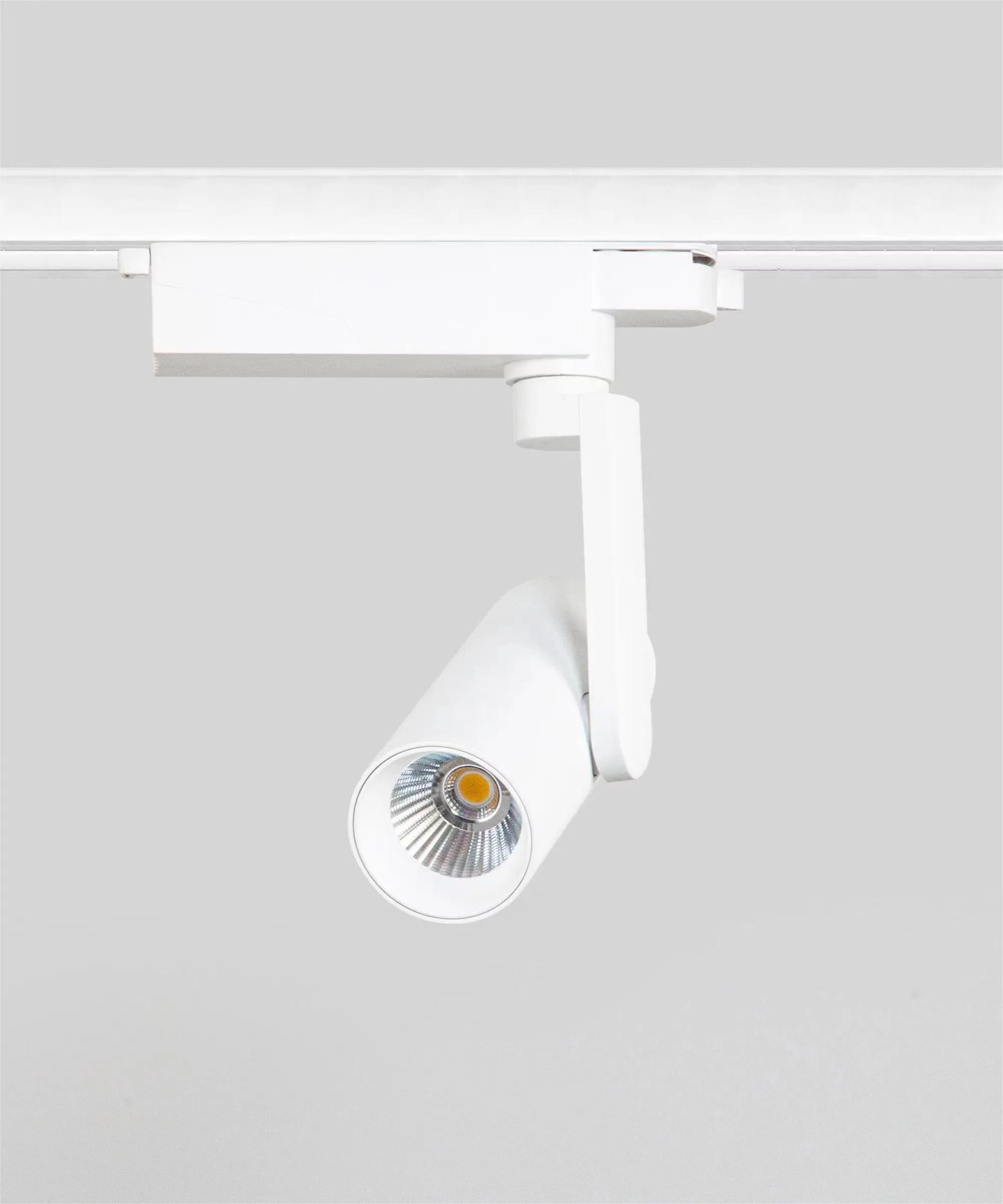

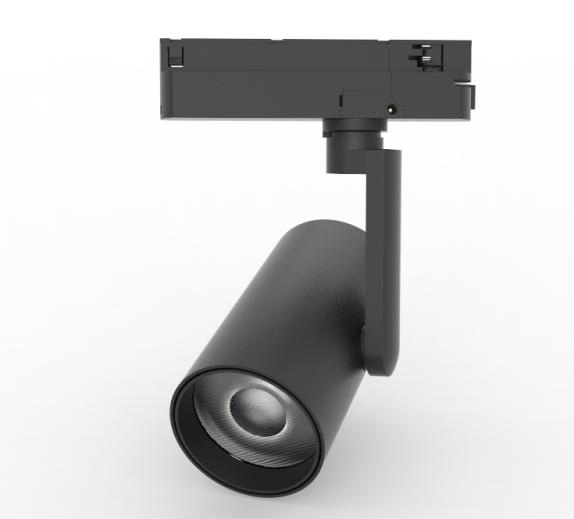

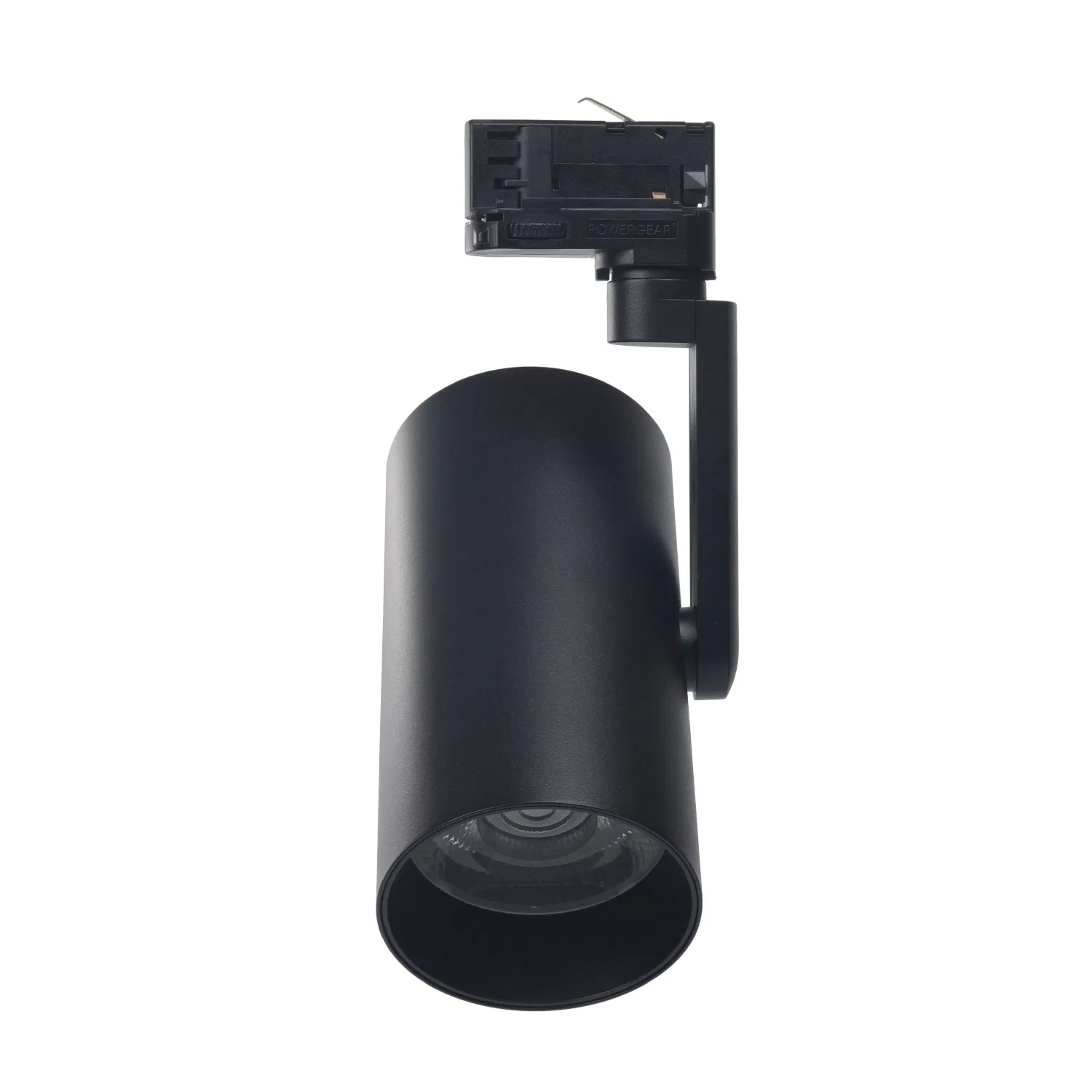

30W LED Track Light LED Light LED Track Spotlight
Product Description
📋
Technical Specifications
Model
ST-T3006
Power
21-30W
Emitting Color
2700K-6000K
Base Type
Track Rail
Wire Options
2 / 3 / 4 / 6 Wires
IP Rating
IP33
Certification
CE, EMC, LVD, RoHS
Input Voltage
220V
LED Brand
Citizen; Luminus; CREE
Lumens
3000-3500lm
CRI
90 / 95 / 97
Dimming
Triac; 0-10V; DALI; On/Off
Housing Color
White; Black; Custom
Beam Angle
15°; 24°; 36°; 50°
💡
Product Features
This track light features a built-in driver design, achieving a compact and sleek aesthetic. Unlike standard built-in drivers that often struggle with heat, this model utilizes a high-performance, heat-resistant driver specifically engineered for integrated track systems. This ensures a long lifespan of up to 50,000 hours and a reliable 5-year performance.

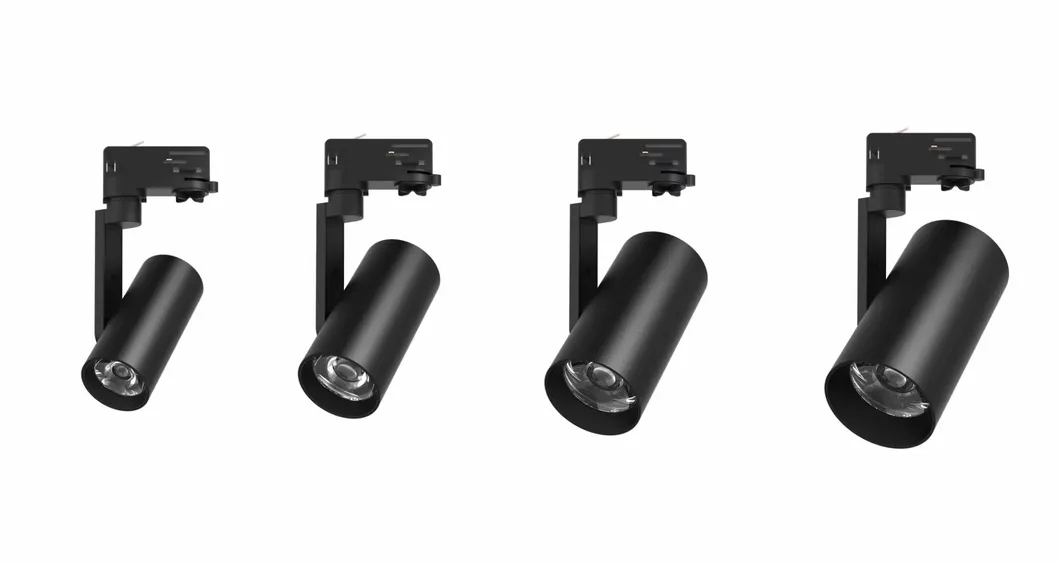

| Specification | ST-T1006 | ST-T2006 | ST-T3006 |
|---|---|---|---|
| Power (W) | 10W | 20W | 30W |
| Lumen Output | 1000-1300lm | 1900-2150lm | 3000-3500lm |
| Size | 65*145mm | 75*155mm | 85*165mm |
| Beam Angle | 15° / 24° / 36° / 50° | ||
| LED Brand | Bridgelux / Citizen / Luminus / CREE | ||
| CRI | Ra>90 / Ra>95 / Ra>97 | ||
| Material | Cold Forging #1070 Aluminum | ||
Custom Options:
* DALI dimming available for 4-wire and 6-wire systems.
* Zoomable beam angles (15-60°) available.
* Tunable CCT via DIP switch available.
* DALI dimming available for 4-wire and 6-wire systems.
* Zoomable beam angles (15-60°) available.
* Tunable CCT via DIP switch available.
🚀
Key Advantages

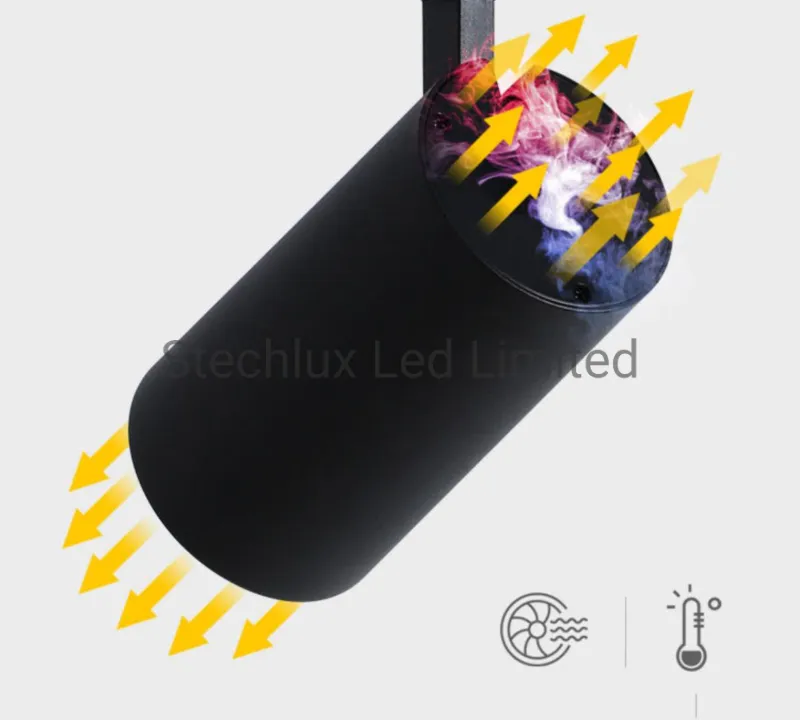

1. Advanced Thermal Management: Cold Forging Aluminum #1070
The heatsink utilizes #1070 pure aluminum. Its cooling efficiency is 30% higher than #6063 profile aluminum and 200% better than die-cast ADC12 aluminum.
The heatsink utilizes #1070 pure aluminum. Its cooling efficiency is 30% higher than #6063 profile aluminum and 200% better than die-cast ADC12 aluminum.

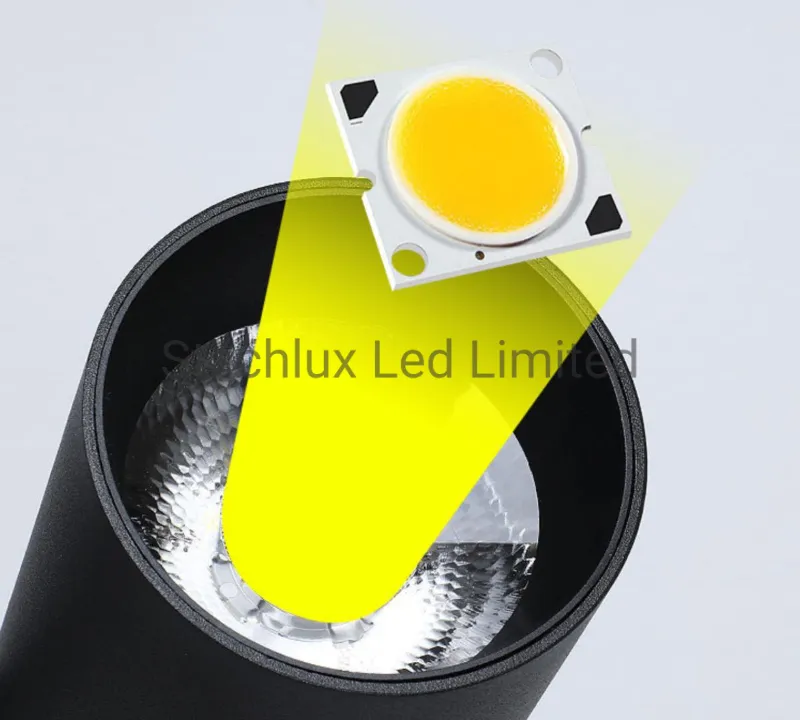

2. High-Efficiency LED Chips
We utilize original Citizen or Luminus COB chips, providing high CRI and exceptional light efficiency (up to 137lm/W at 3000K CRI90).
We utilize original Citizen or Luminus COB chips, providing high CRI and exceptional light efficiency (up to 137lm/W at 3000K CRI90).

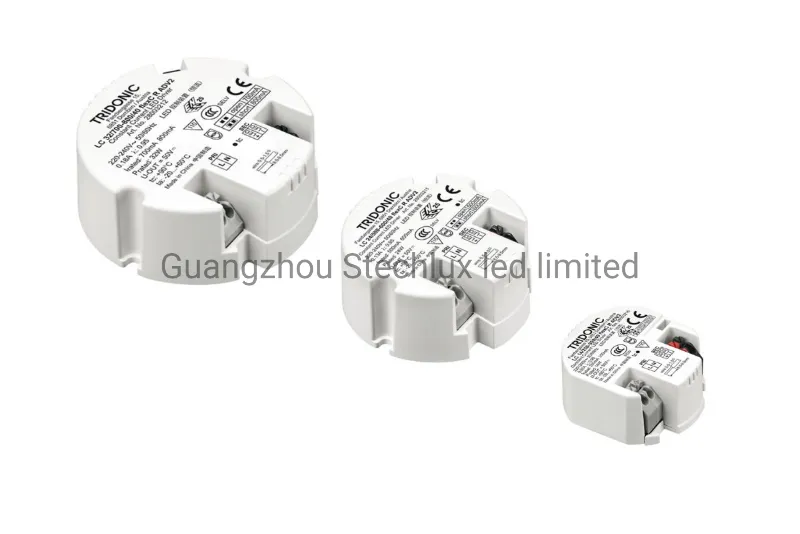

3. Professional Glued Driver
The built-in drivers are a glued-type to ensure high-temperature resistance (Tc >90ºC), ensuring flicker-free operation and high power factor (PF >0.95).
The built-in drivers are a glued-type to ensure high-temperature resistance (Tc >90ºC), ensuring flicker-free operation and high power factor (PF >0.95).
🏠

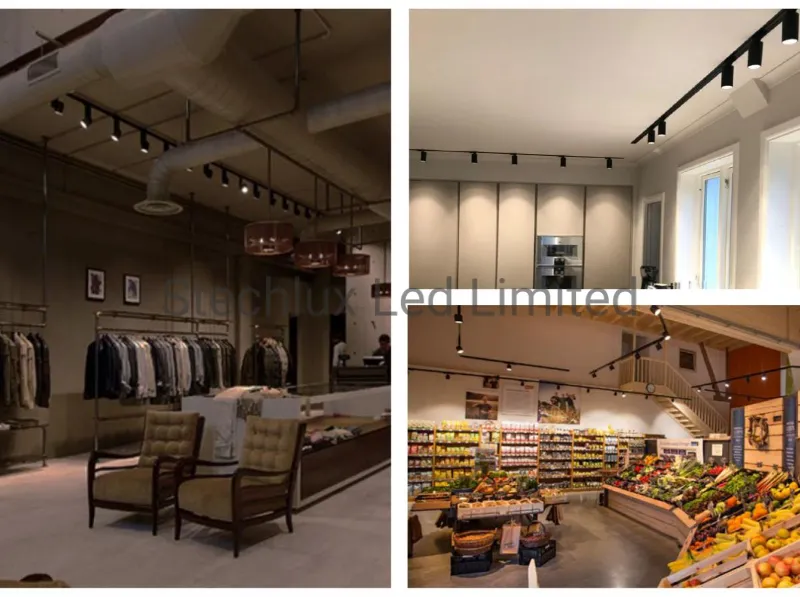

Application Scenarios
Perfectly suited for high-end environments including luxury hotels, villas, mansions, and commercial showrooms requiring comfortable and healthy lighting.
📦
Packaging & Delivery
Package Size
9.50cm * 9.50cm * 27.00cm
Gross Weight
0.800kg
Transport Package
Standard Carton
🏭

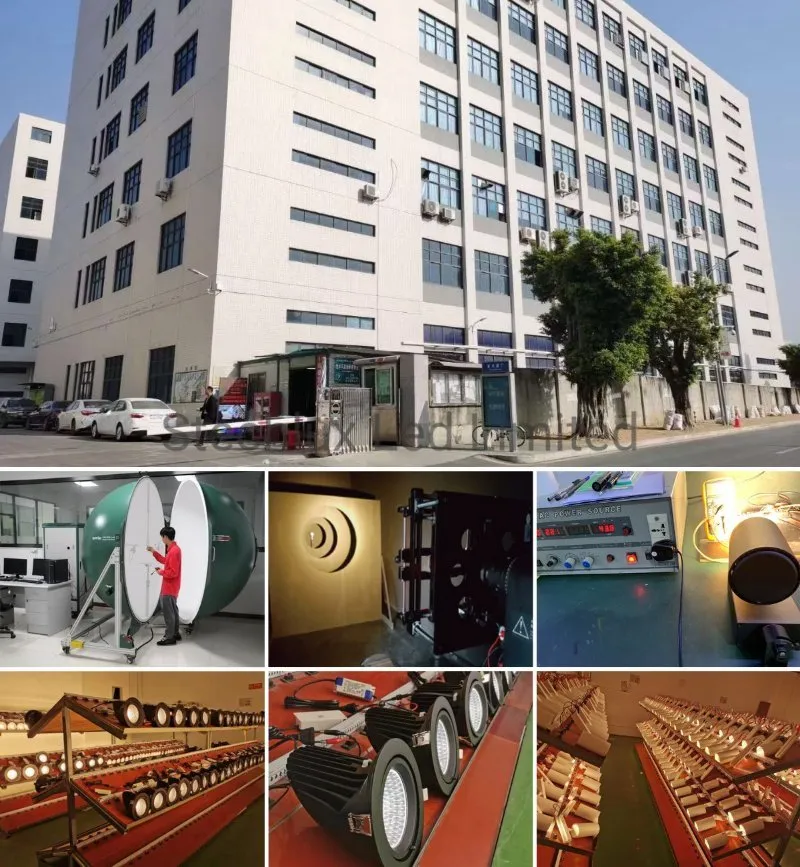

Manufacturing Excellence
Our manufacturing lines focus exclusively on commercial and hospitality lighting. We operate professional facilities in key industrial hubs to provide high-quality, cost-effective products. By optimizing technological processes, we ensure top-tier quality while maintaining competitive production costs for new projects and renovations.
❓
Frequently Asked Questions
Can I request samples for quality evaluation?
Yes, we welcome sample orders for quality checks. Mixed samples are acceptable.
What is the standard lead time for orders?
Approximately 3-5 days for samples and 7-15 days for formal bulk orders.
Is logo customization available?
Yes, please provide your logo in an editable format before production begins.
What is your product warranty policy?
We offer a 3-5 year warranty. Our defect rate is strictly controlled below 0.3%.
How are the goods typically shipped?
We usually ship via Express (DHL, FedEx, etc.), which takes 3-5 days. Air, sea, and rail options are also available.
How do I start a professional inquiry?
Select your required items and send an inquiry with your project details. We will provide a tailored offer promptly.
