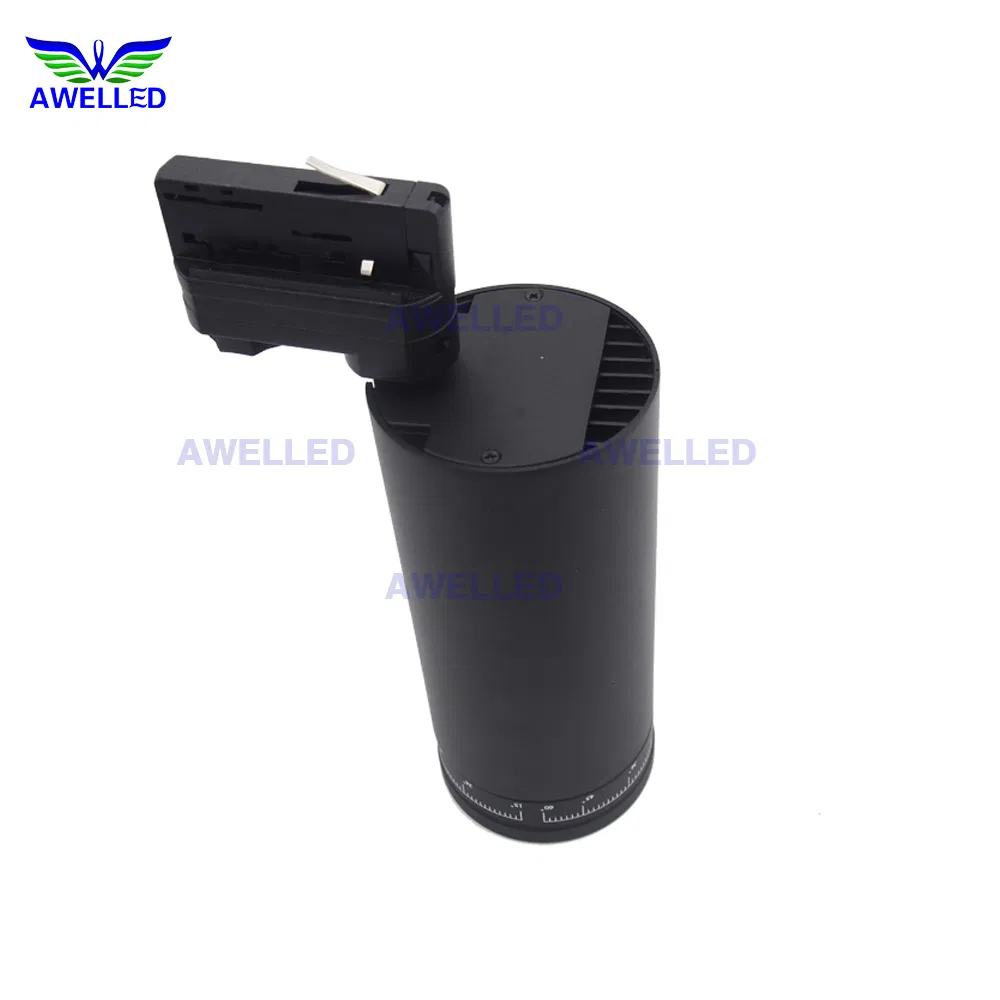

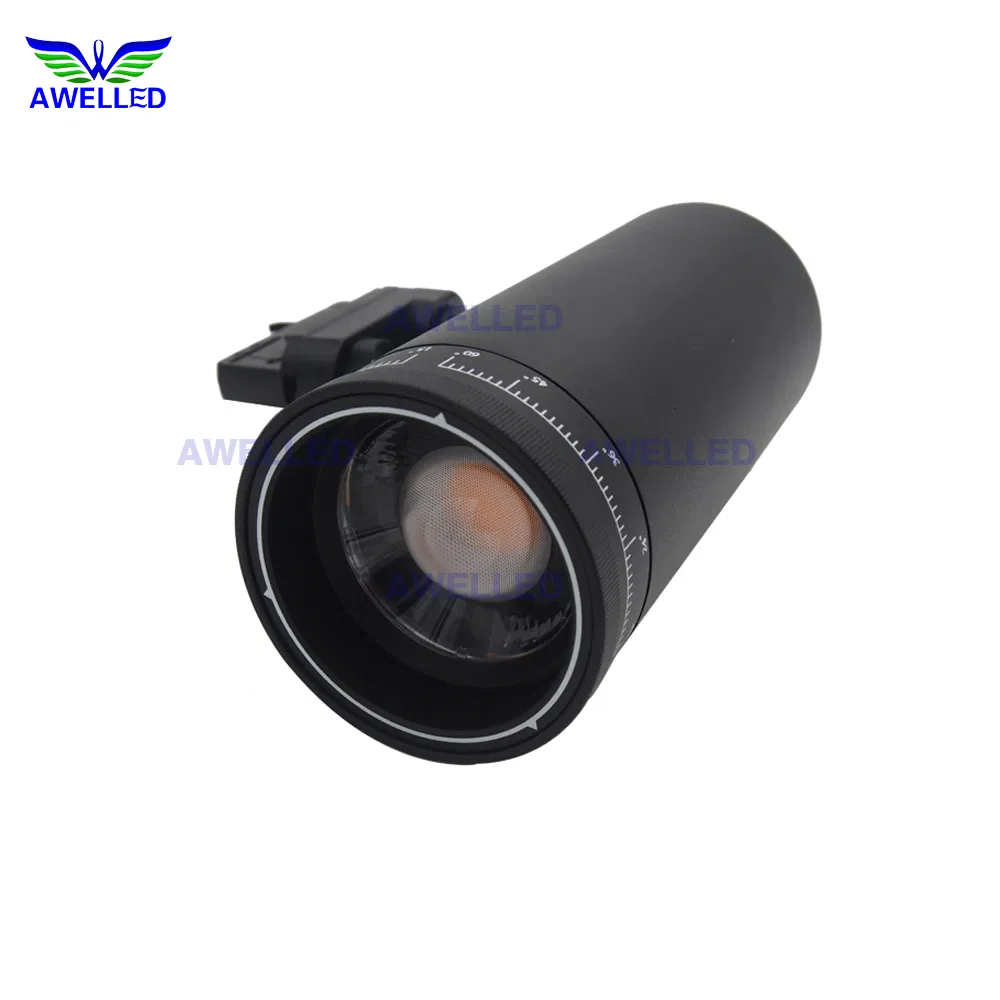

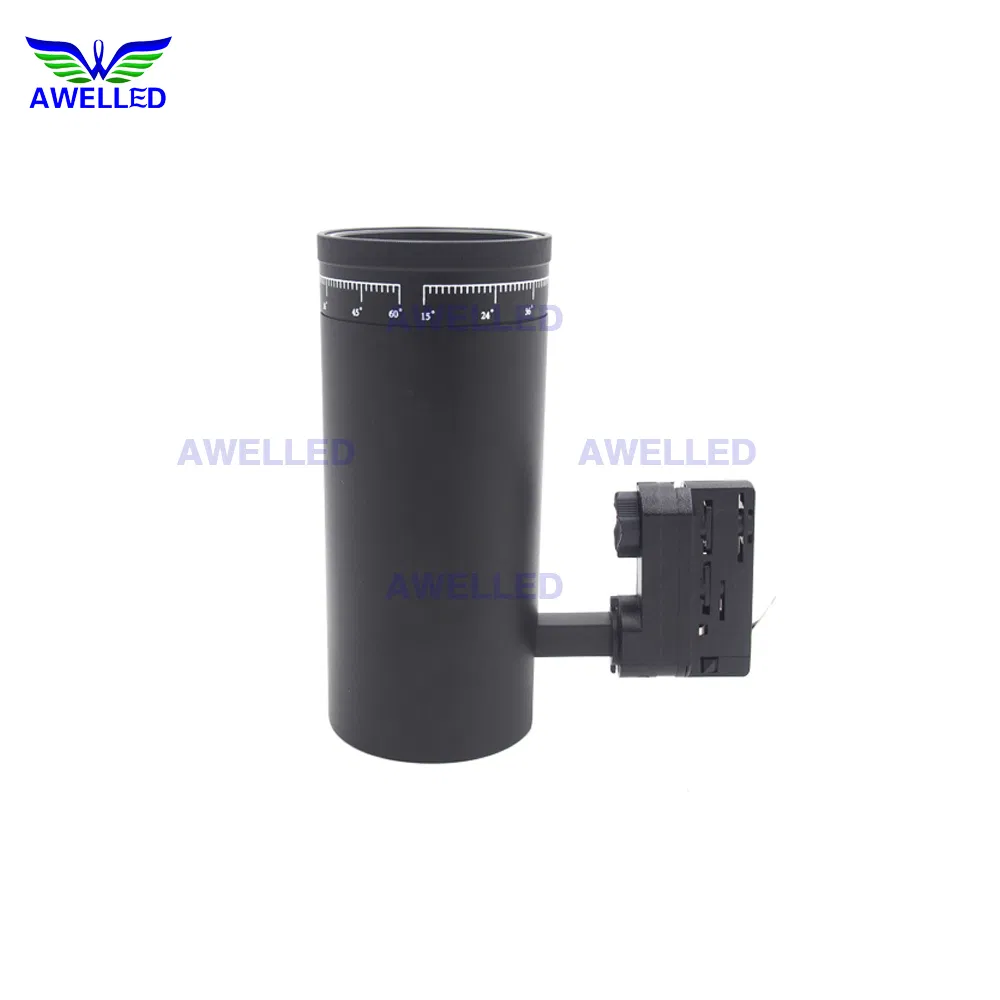

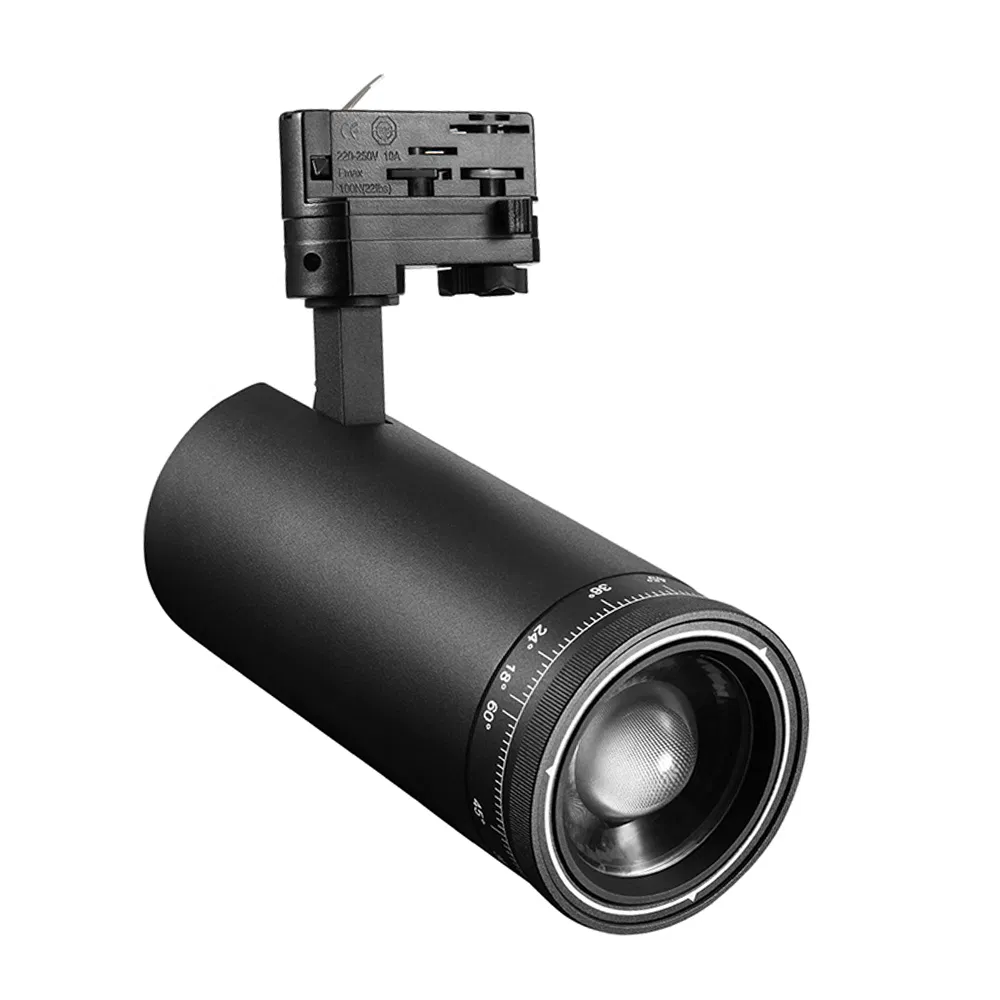

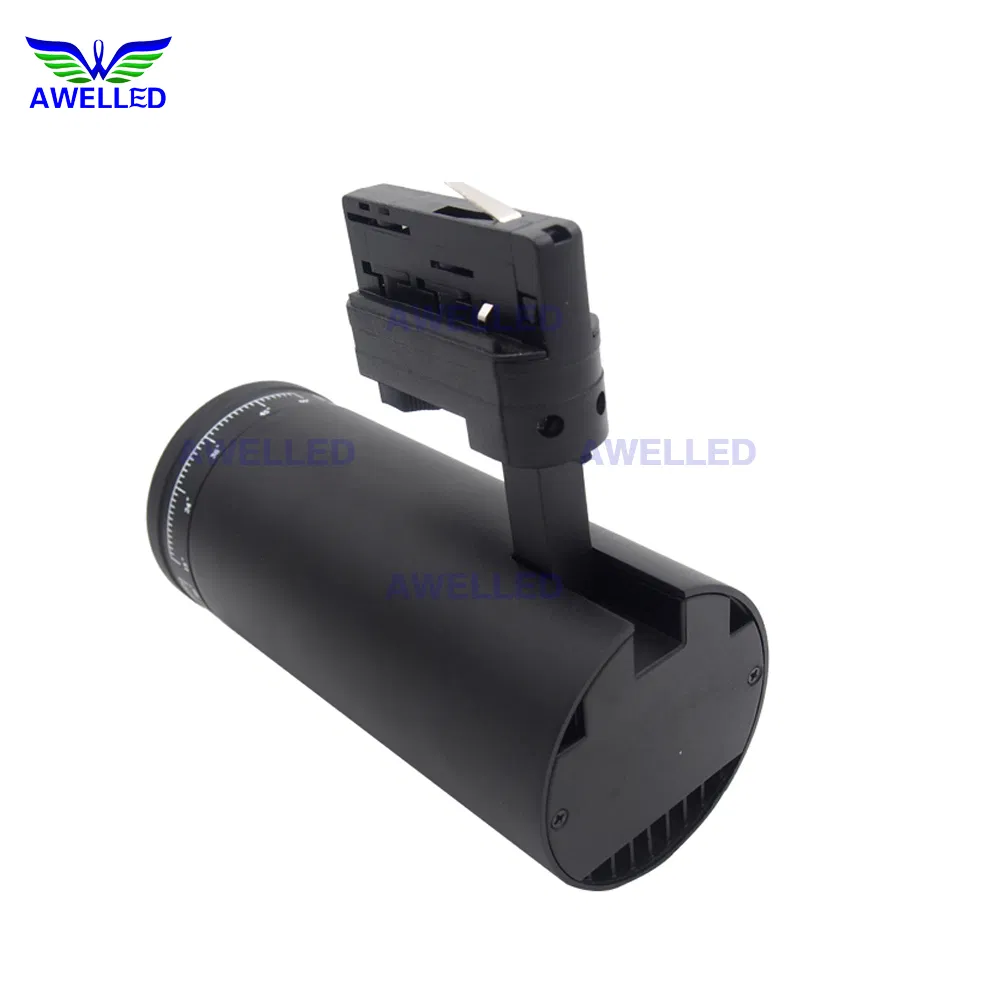

High-Quality 35W 4wires 3 Phase LED Track Light with Adjustable Zoom

1 / 5

High-Quality 35W 4wires 3 Phase LED Track Light with Adjustable Zoom

Customization:	Available
Color Temperature:	Warm White
Lamp Body Material:	Aluminum Alloy

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

AW-TL35D92Z

Power

31-40W

Emitting Color

Warm White

Base Type

4 Wires 3 Phase

IP Rating

IP44

Certification

CE, EMC, ETL, LVD, RoHS

LED Chips

Citizen

Beam Angle

15°-60° Zoomable

CRI

>92

Warranty

5 Years

Packaging & Delivery

Package Size	41.00cm * 31.00cm * 31.00cm	Gross Weight	1.500kg

Package Size

41.00cm * 31.00cm * 31.00cm

Gross Weight

1.500kg

Product Description

The zoomable LED track light kits provide a full line of perfect replacements for halogen track light fixtures. Due to their 100LM/W energy efficiency and advanced optics design, they offer desired quality lighting with great savings and long-life benefits. Available in modular design with removable and interchangeable lighting components, there is very easy access to customizable and diverse lighting solutions.

Compatible with systems of 4 wire, 3 circuits, 2 wires, single circuit and one-phase, these 35W LED overhead light fixtures can fit in with varieties of architectural layouts. Ideal for retail stores, art galleries, residential areas, schools, museums, offices, hospitality, and healthcare environments.

Key Features

Light effect efficiency up to 100lm/w
Multiple installation: Ceiling-mounted, pendant, wall-mounted or track-mounted
High-quality Citizen COB LED (standard)
Flicker-free driver ensures perfect lighting effect
Continuous 350° rotation and 90° pivot adjustment
Beam angle: 15-60° adjustable
High CRI >92 (97 available for specialized needs)
Triac Dimming (0-100% brightness)

Product Parameters

Core Electrical & Structural

Parameter	Specification
Model	AW-TL35D92Z
Rated Power	35W (±5%)
Input Voltage	AC200-240V / AC90-130V
Housing Material	Die-Cast Aluminum Alloy
Dimensions	Ø92×210mm
Housing Color	Black / White (RAL 9005 / 9010)

Optical Performance

Parameter	Specification
Light Source	Citizen COB LED (Japan, 3rd Gen)
CCT Options	3000K/4000K/5000K
CRI (Ra)	80+ / 90+ / 97+
Luminous Efficiency	80-100lm/W
Beam Angle	15°-60° Zoomable

Applications

Perfect for retail shops, hotels, museums, restaurants, art galleries, showrooms, and commercial spaces like fashion stores, jewelry shops, shopping malls, and exhibitions.

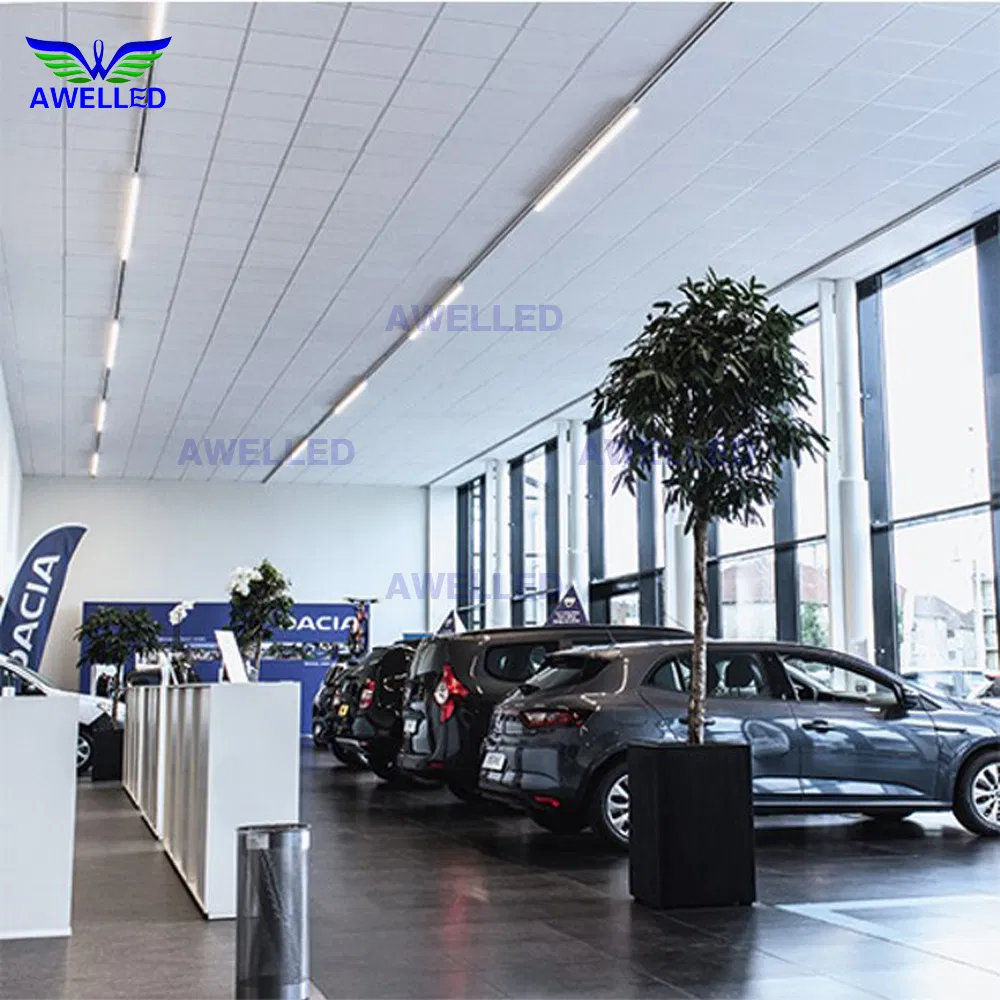

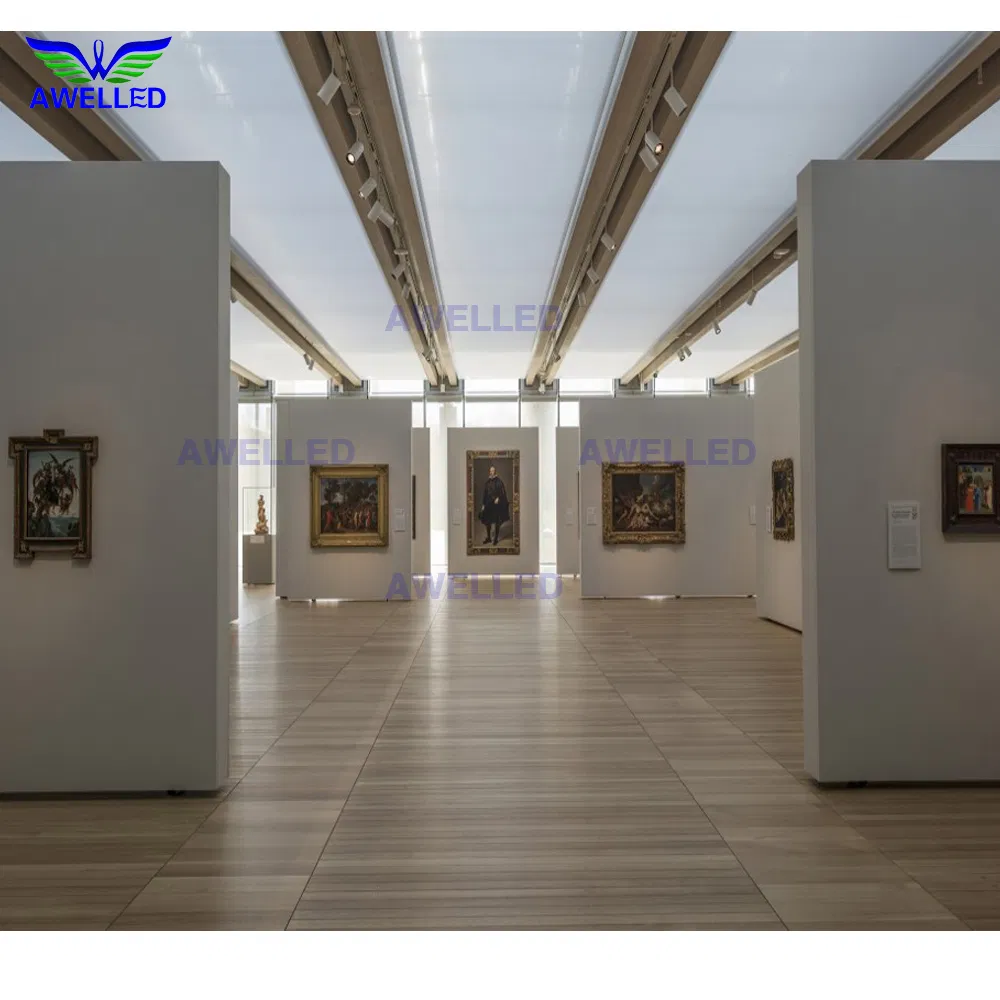

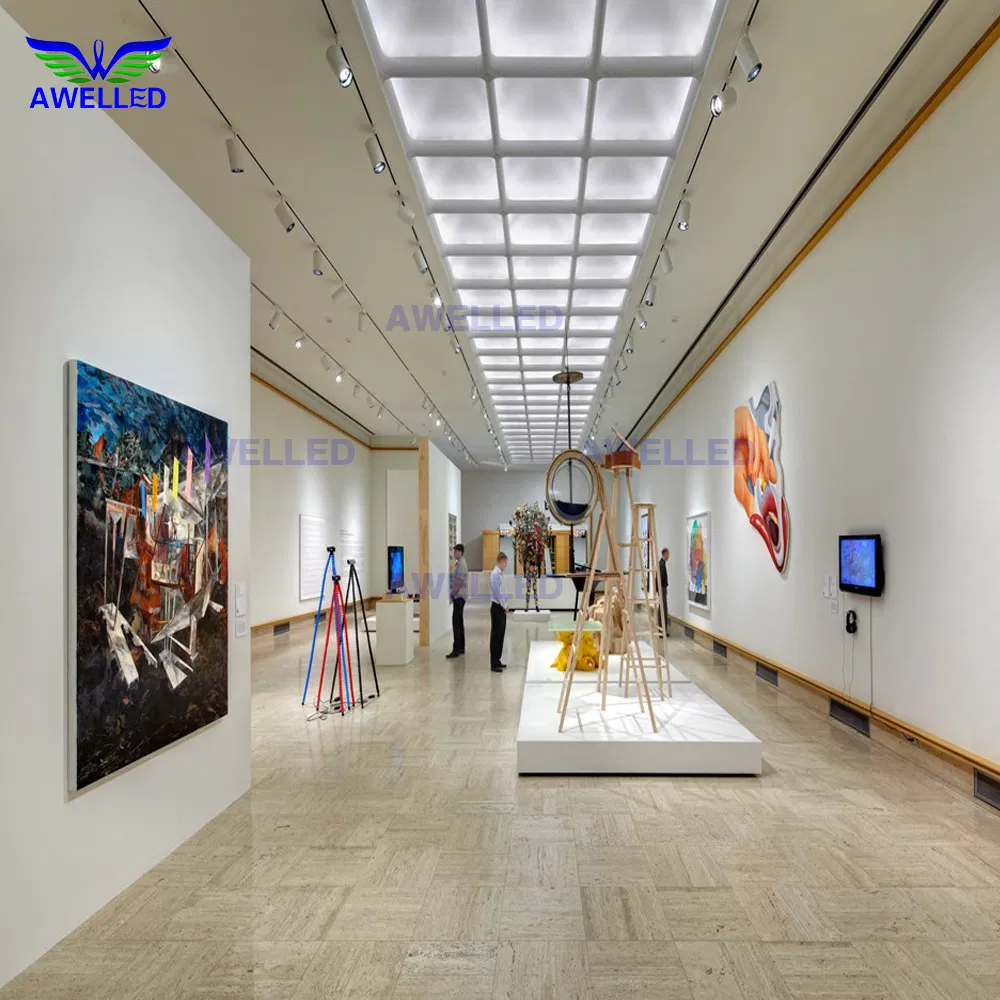

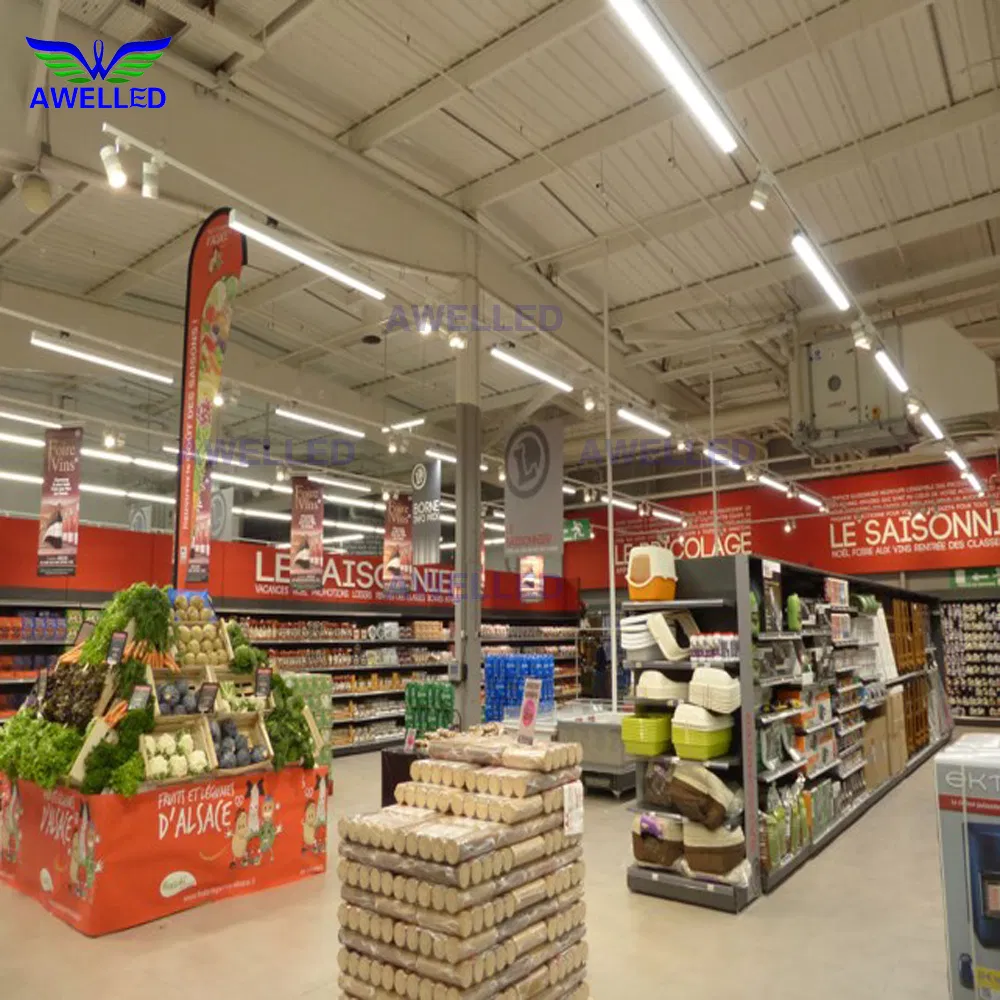

Classic Projects

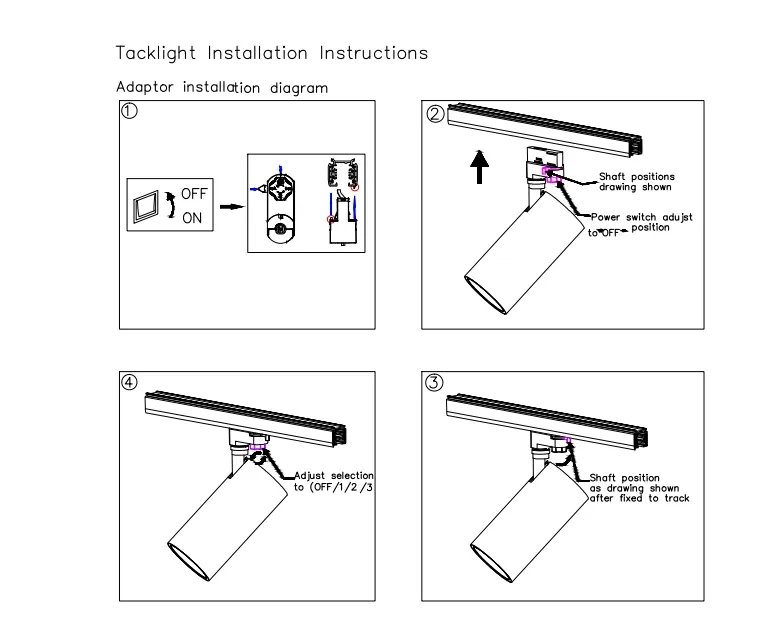

Installation Instructions

Frequently Asked Questions

How to proceed with an order for zoomable LED track lights?

Firstly, let us know your requirements. We provide a quote based on your needs. Once samples are confirmed and deposit is placed, we arrange production and provide tracking information upon shipment.

What is your MOQ and delivery time?

We do not have a strict MOQ; 1 sample is available. Samples take 1-3 days, while bulk orders typically take 7-15 days.

What payment methods do you accept?

We accept PayPal for sample orders and TT (Telegraphic Transfer) for normal bulk orders.

Is custom LOGO branding available?

Yes, we can place your logo on stickers for the lamp and box. Laser or silk printing on the lamp is also available for qualified quantities.

How do you handle faulty products?

Our products have a strict quality control system with a defect rate under 0.3%. If a quality issue occurs during the warranty period, we provide free replacements or new items in advance.

How are the goods shipped?

We usually ship via DHL, UPS, FedEx, or TNT, taking 3-7 working days. Airline and sea shipping are also optional.
