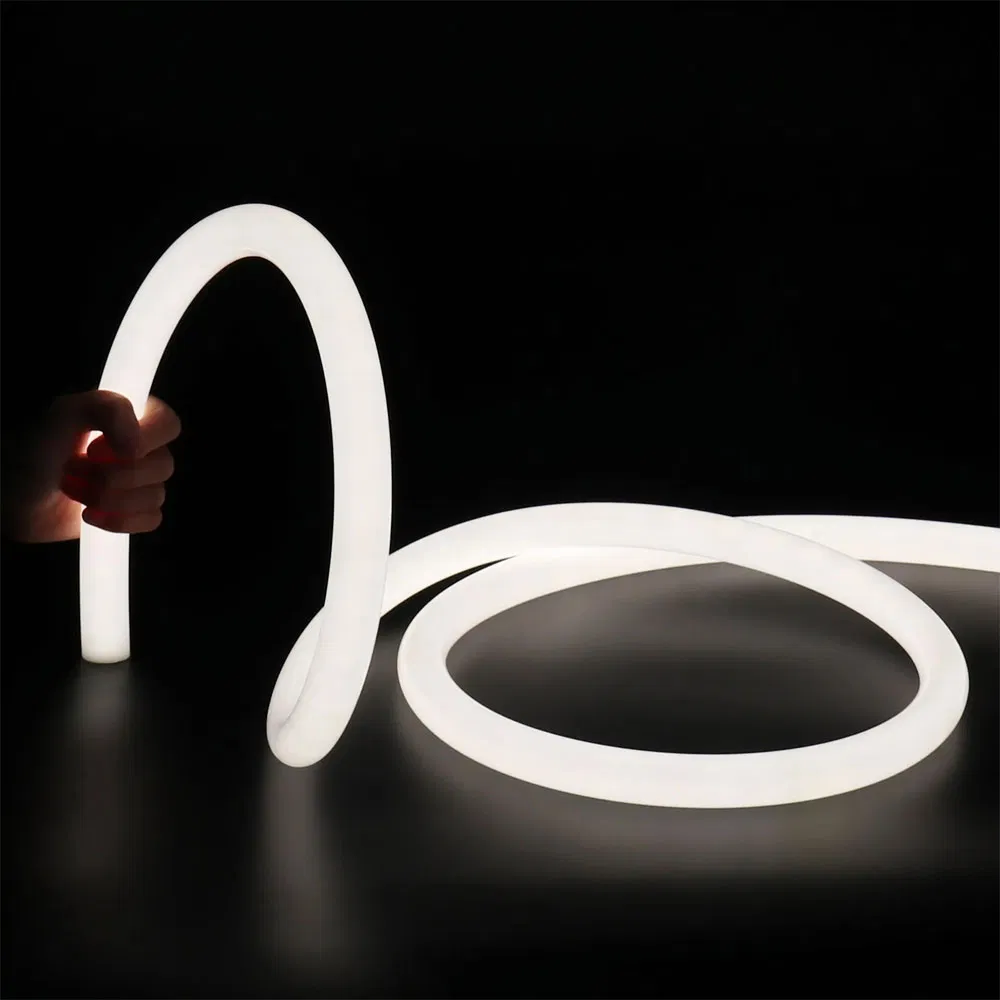

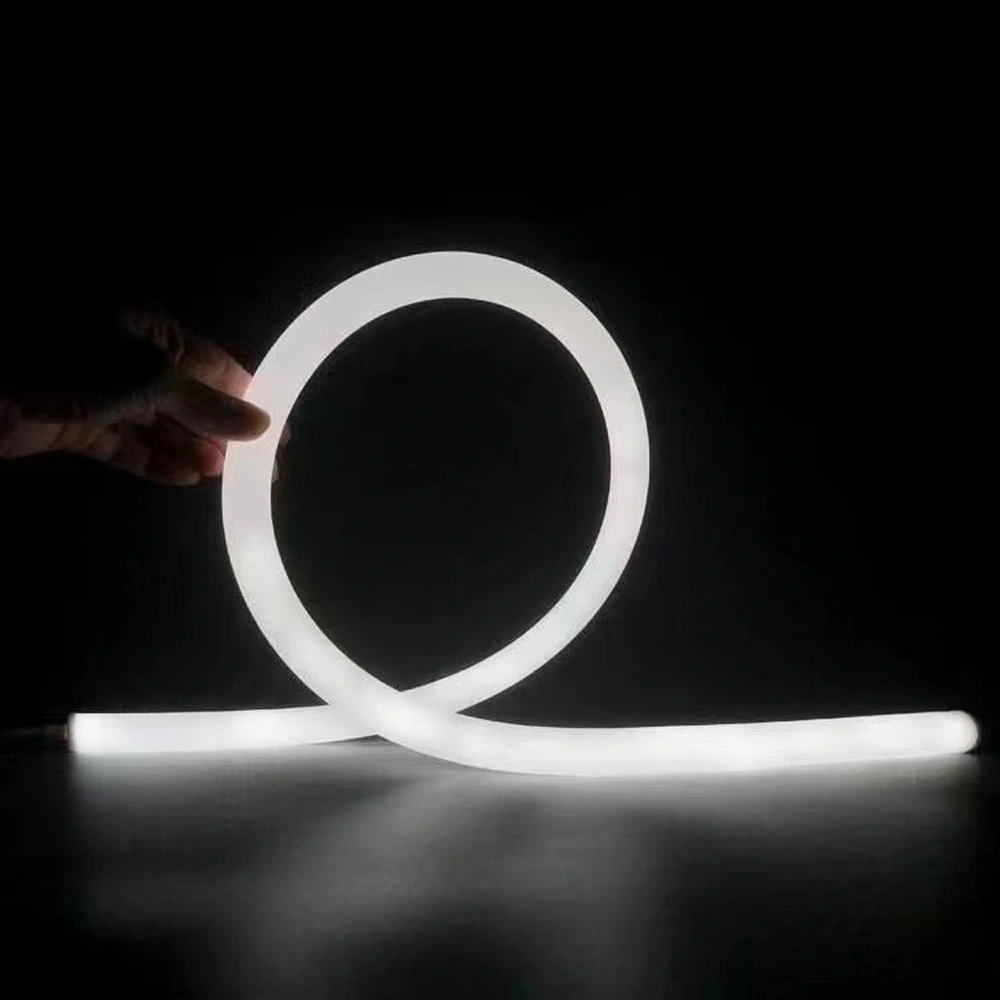

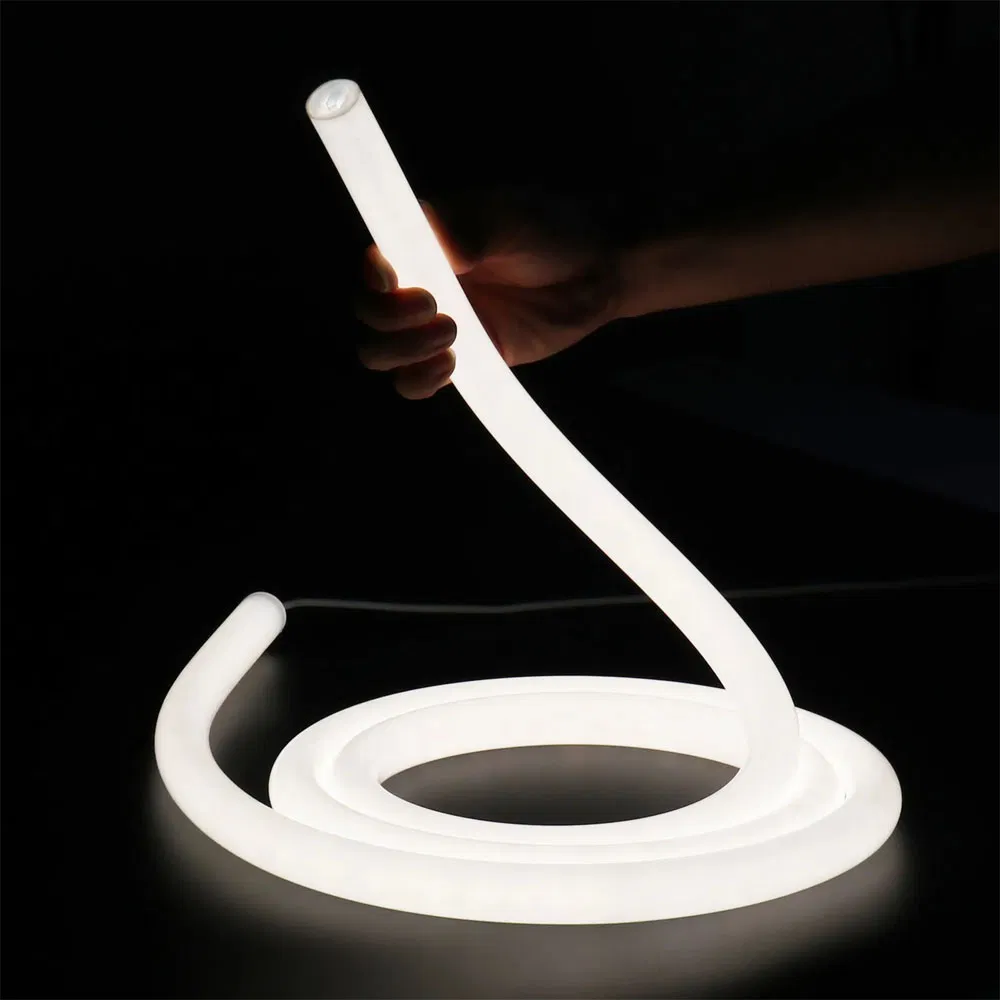

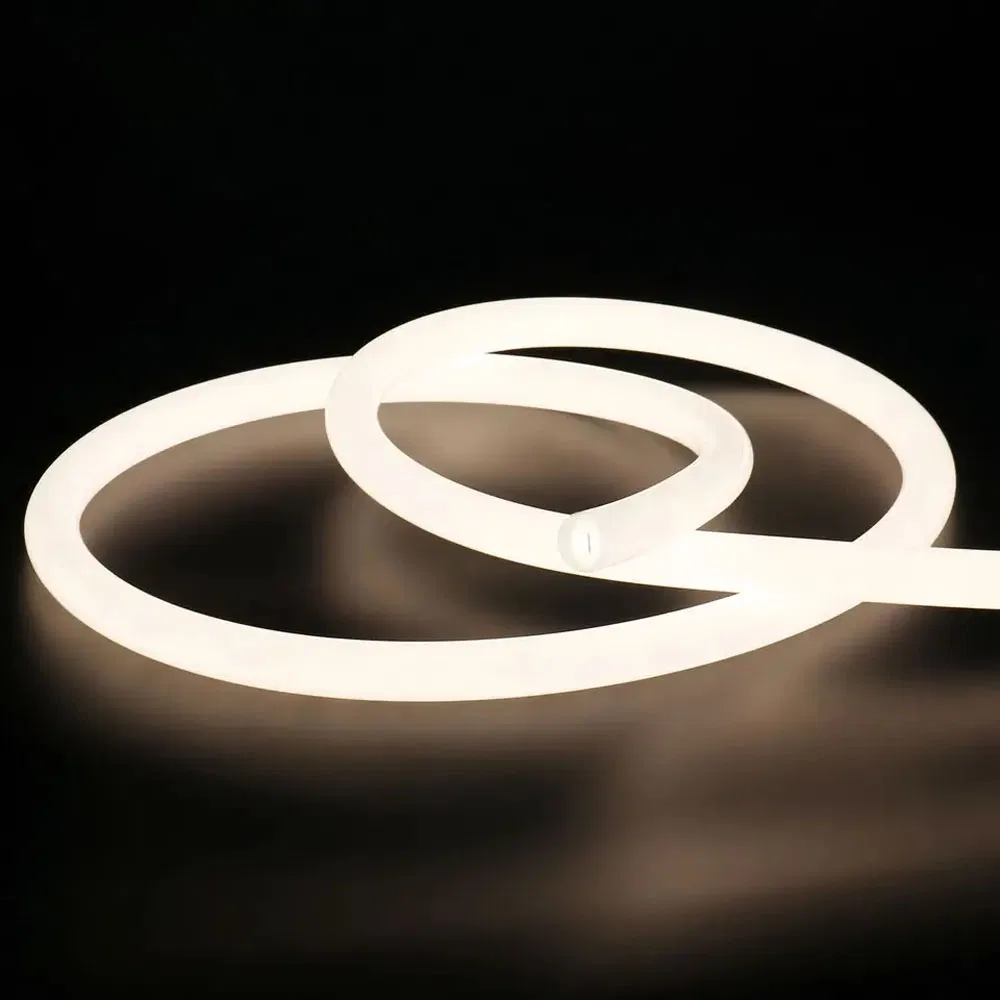

360 LED Flexible Neon Strip 22/25/30/40mm Neon Strip Flexible Neon Tubes 24V/12V/5V DC 360 Degree Emitting Silicone Round LED Neon Strip Light
Product Description
i
Basic Specifications
Model NO.
ATA-NS22D08240
Emitting Color
White
Voltage
DC24V 12V 5V
IP Rating
IP67
LED Type
3528 / 2835 / 5050 SMD
Lumen
30lm/LED
CRI
Ra90
Viewing Angle
360 Degree
Warranty
2 Years
Production Capacity
500,000 Meters/Month
⚙
Technical Parameters
- Beam Angle: 360 degrees uniform and soft lighting
- Working Voltage: DC12V, DC24V options
- Color Options: White, Warm white, Natural white, Red, Green, Blue, Yellow, RGB
- PCB Width: 8mm, 10mm available
- Waterproof Grade: IP65, IP67, IP68 (Surface Epoxy, Silicone Pipe, Full Silicone Gel)
- Working Temperature: -20 ~ +60 Celsius degree
📋
Product Comparison Table
| LED QTY/M | Max.W/M | Voltage | CRI | FPCB (mm) | Size (mm) | M/Roll | Colour Temp | Cut Size | Item No. |
|---|---|---|---|---|---|---|---|---|---|
| 240 | 20W | DC24V | ≥90 | 8mm | D22 | 5M | 2700K-6500K | 50mm | ATA-NS22D08240XX |
| 240 | 20W | DC24V | ≥90 | 8mm | D25 | 5M | 2700K-6500K | 50mm | ATA-NS25D08240XX |
| 240 | 20W | DC24V | ≥90 | 10mm | D30 | 5M | 2700K-6500K | 50mm | ATA-NS30D10240XX |
💎

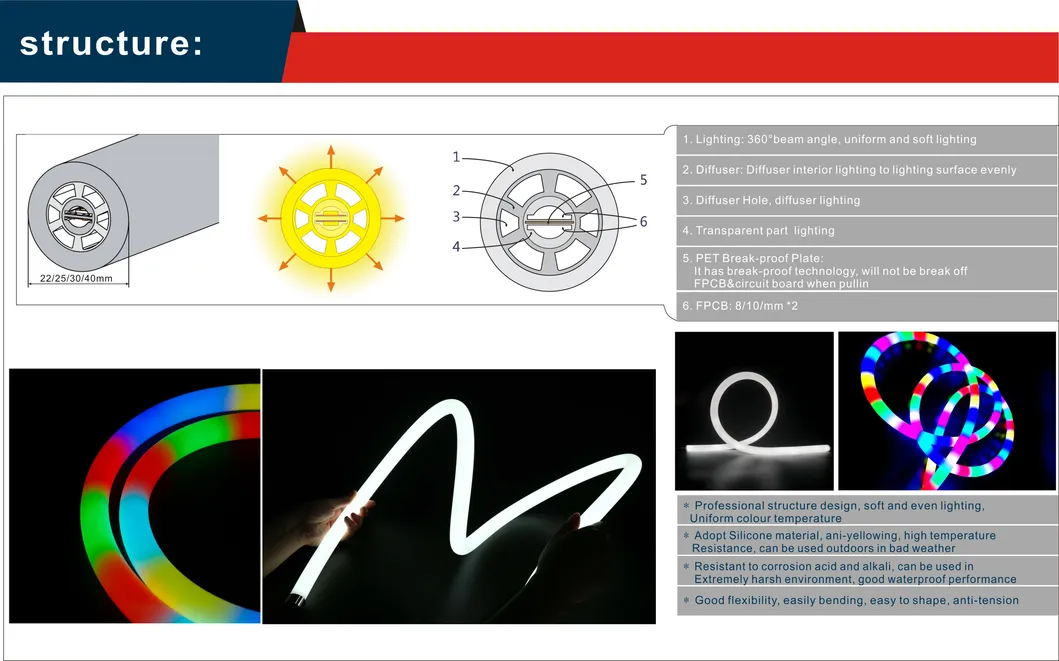

Professional Structure & Features
- 360° Light Output: Professional structure design for uniform color temperature and no dark spots.
- Premium Silicone Material: Anti-yellowing, high temperature resistance, and extreme weather durability.
- Break-proof Technology: Features a PET Break-proof Plate to protect FPCB and circuit boards during installation.

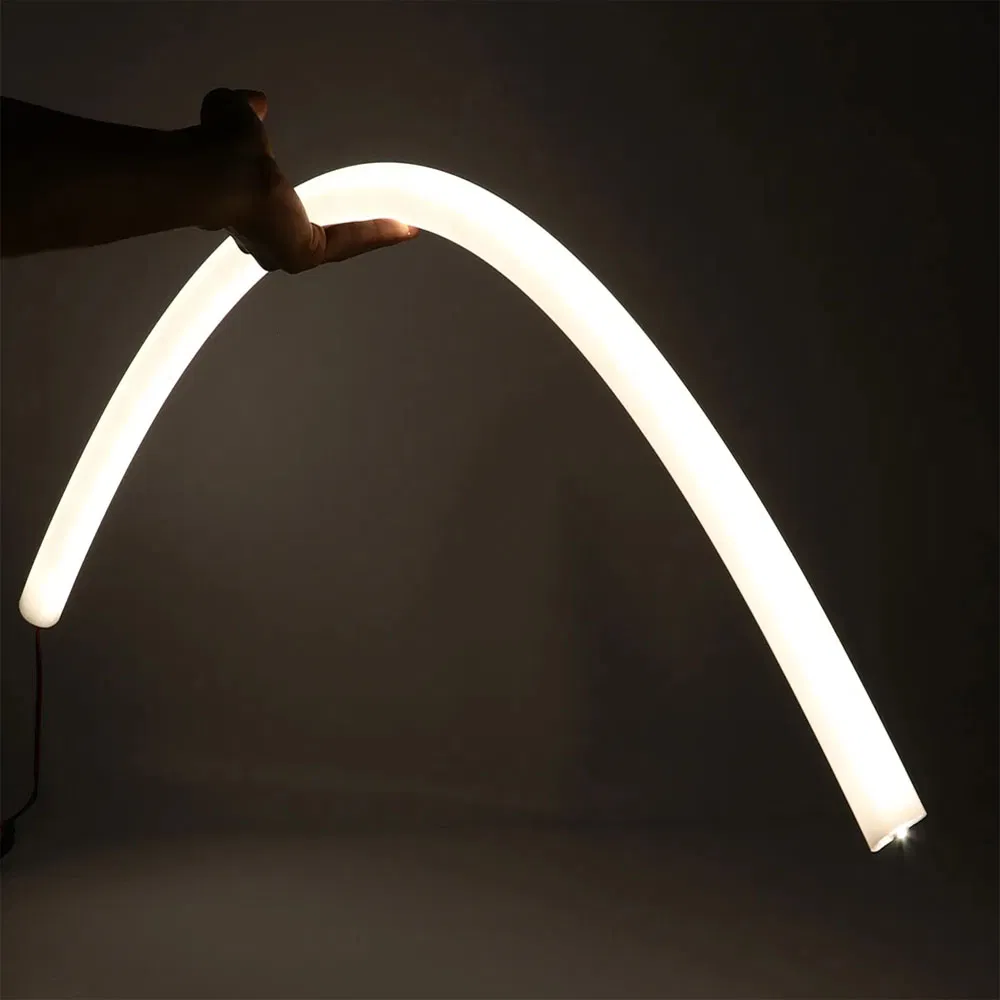

- High Flexibility: Easily bending and shaping for complex architectural contours.
- Certifications: Compliant with UL, TUV, GS, CB, SAA, LVD, EMC, FCC, CE, RoHS standards.
🛠

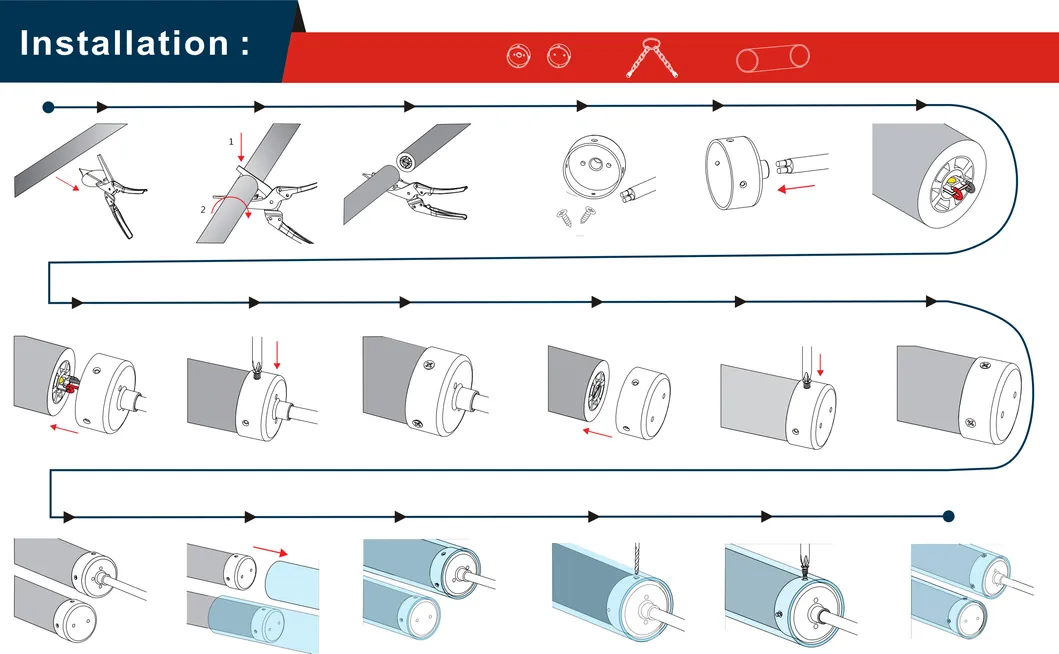

Installation & Applications

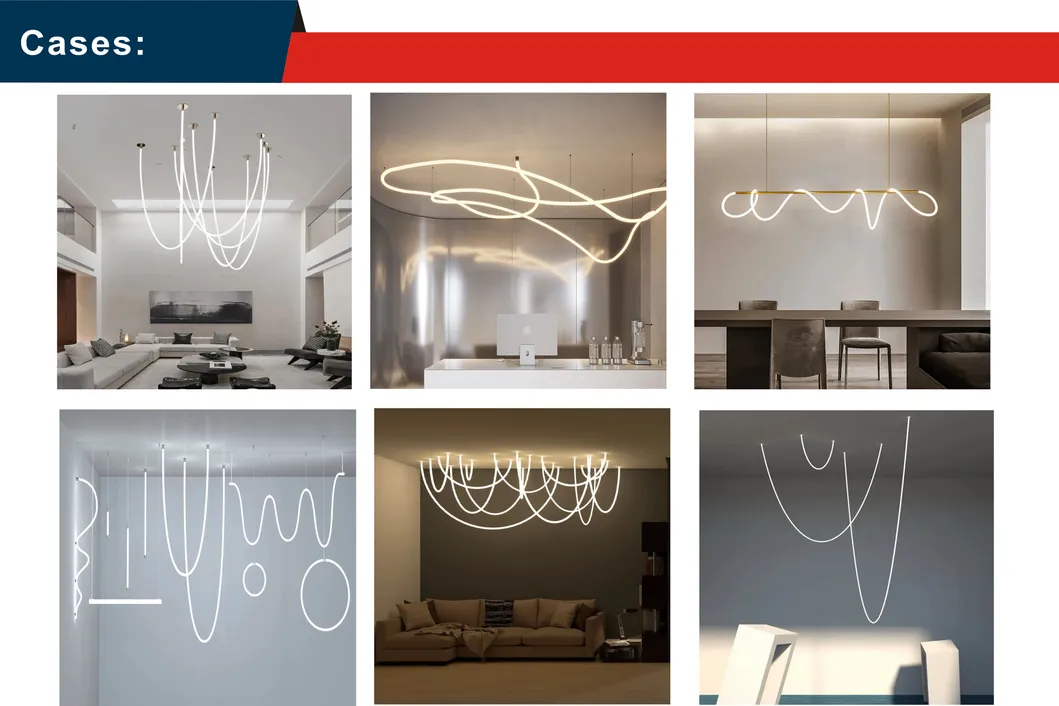

Ideal Applications:
• Indoor & Outdoor decoration
• Advertisement & Light boxes
• Landscape & Building outlines
• Villa, Hotel, & Restaurant lighting
• Festival & Path lighting
• Cabinet & Furniture lighting
🏭

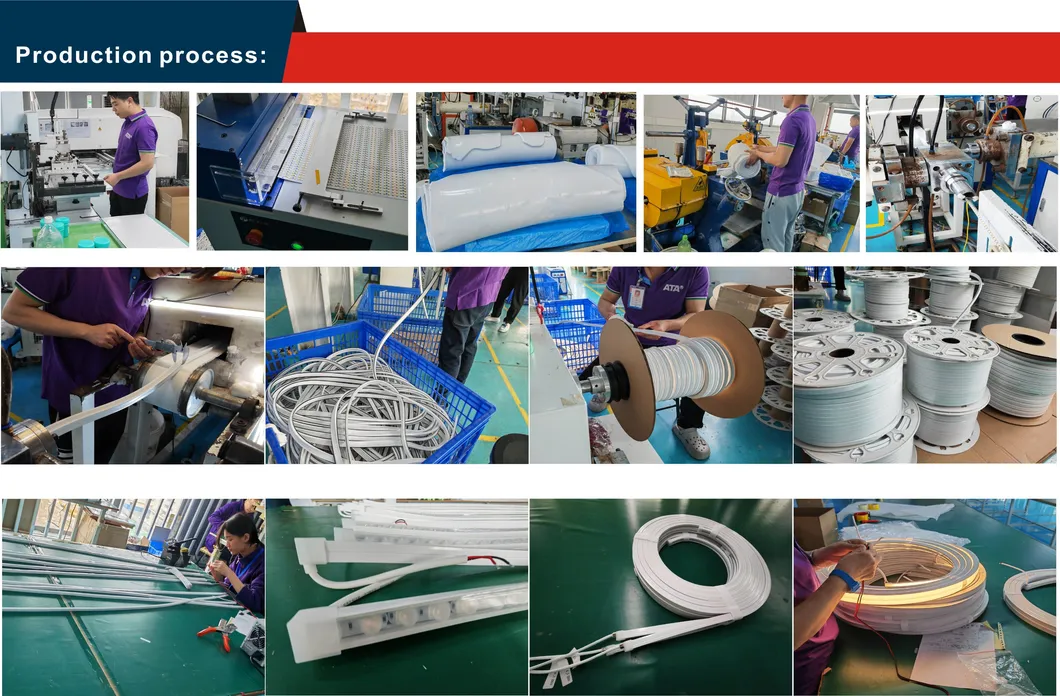

Quality Control & Production
- Stability Test: 100% aging test for at least 48 hours.
- Lighting Test: 100% inspection before final packing.
- Drop Test: Ensures protection during transport.
❓
Frequently Asked Questions
What is the beam angle of this LED neon strip?
This neon strip features a professional 360-degree emitting angle, providing uniform and soft lighting in all directions.
Can these lights be used in outdoor or harsh environments?
Yes. Made from high-quality silicone, these strips are resistant to corrosion, acid, alkali, and UV. With ratings up to IP68, they perform well in extreme weather.
What is the cutting unit for the 240 LED/m version?
For the DC24V 240LED/m configuration, the strip can be cut every 50mm (6 LEDs per unit) for precise installation.

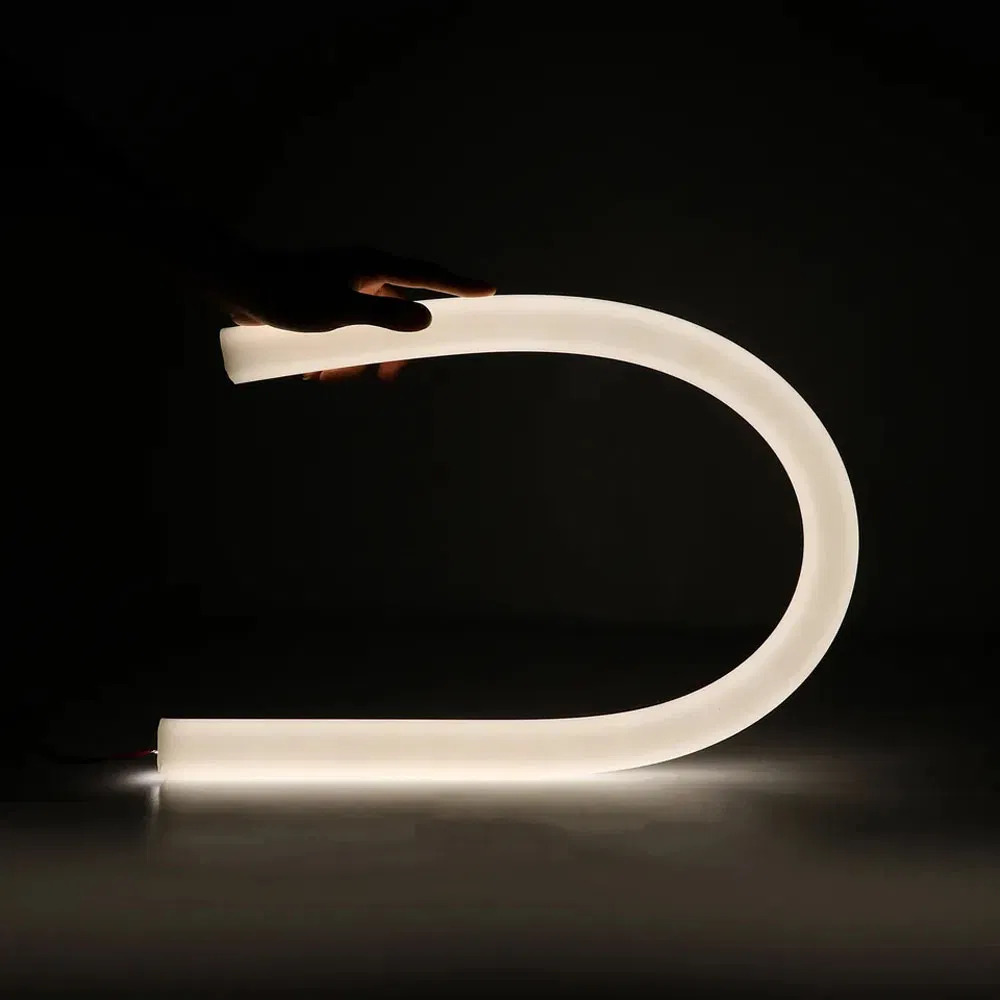

Is the neon strip flexible enough for complex shapes?
Absolutely. It has excellent flexibility, making it easy to bend, shape, and install in narrow or curved architectural spaces.
What safety precautions should be taken during installation?
Ensure the power is off before starting. Observe correct electrical polarity and use a power supply with adequate wattage for the total load. Parallel connection is highly recommended.
What certifications do these LED strips hold?
The product is certified by UL, TUV, GS, CE, RoHS, FCC, and others, ensuring high safety and quality standards.
