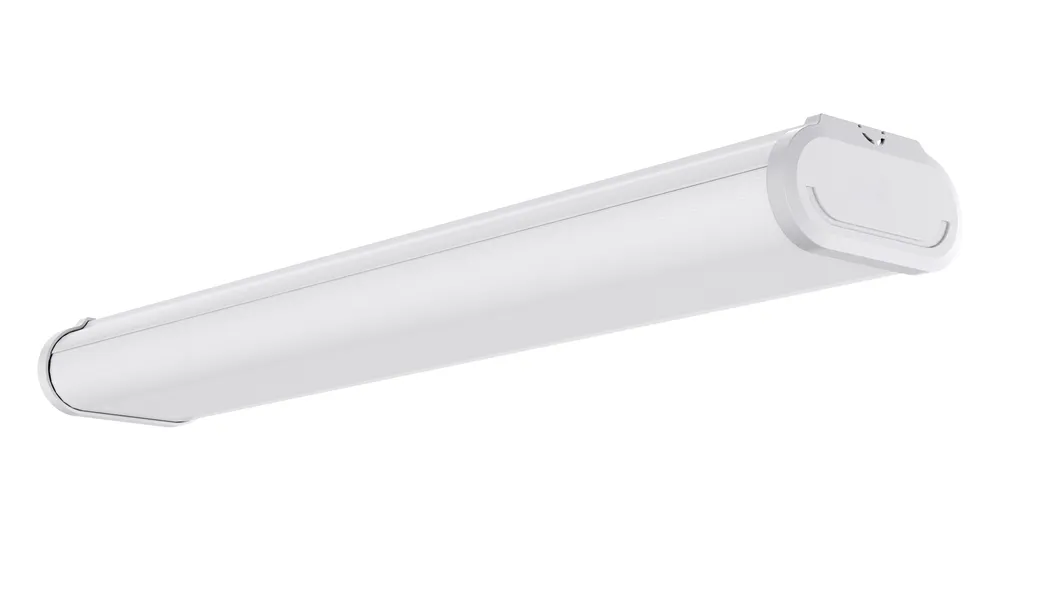

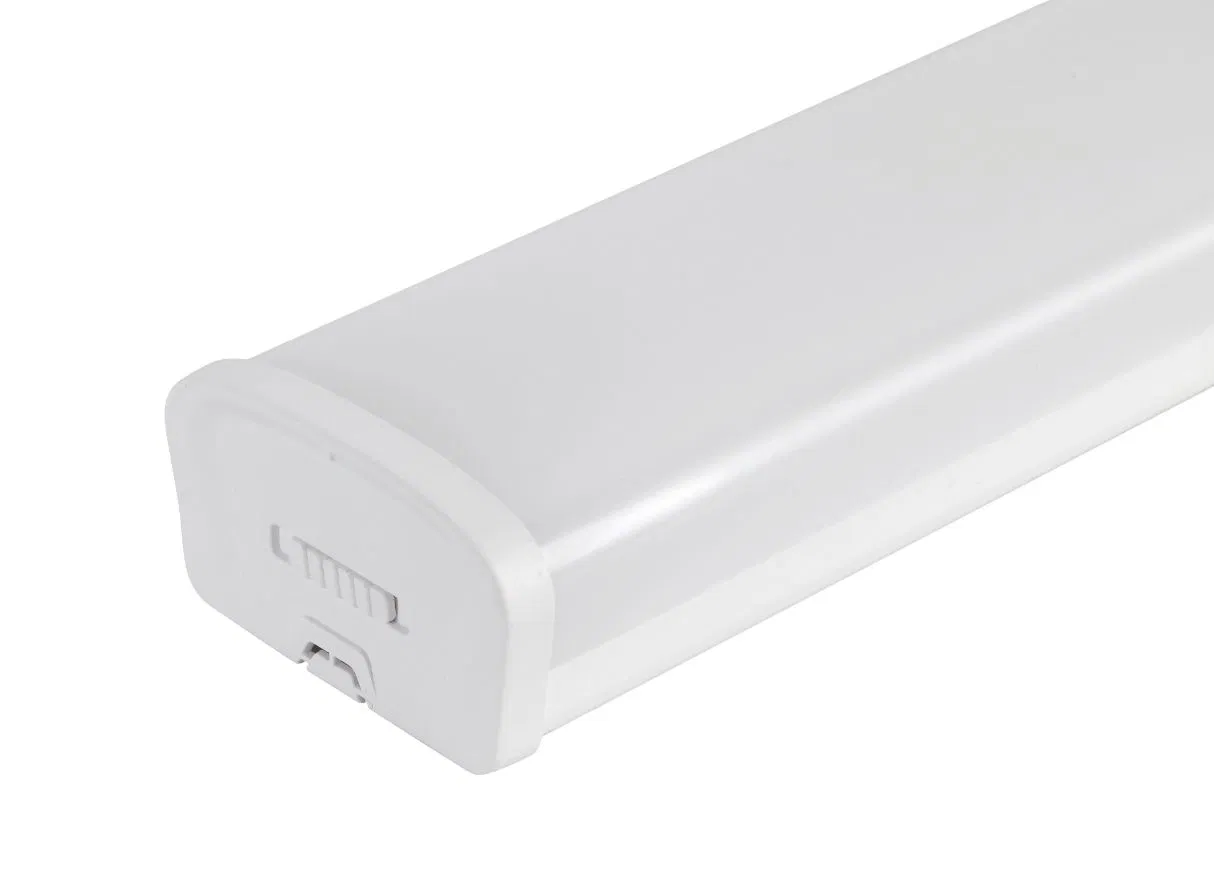

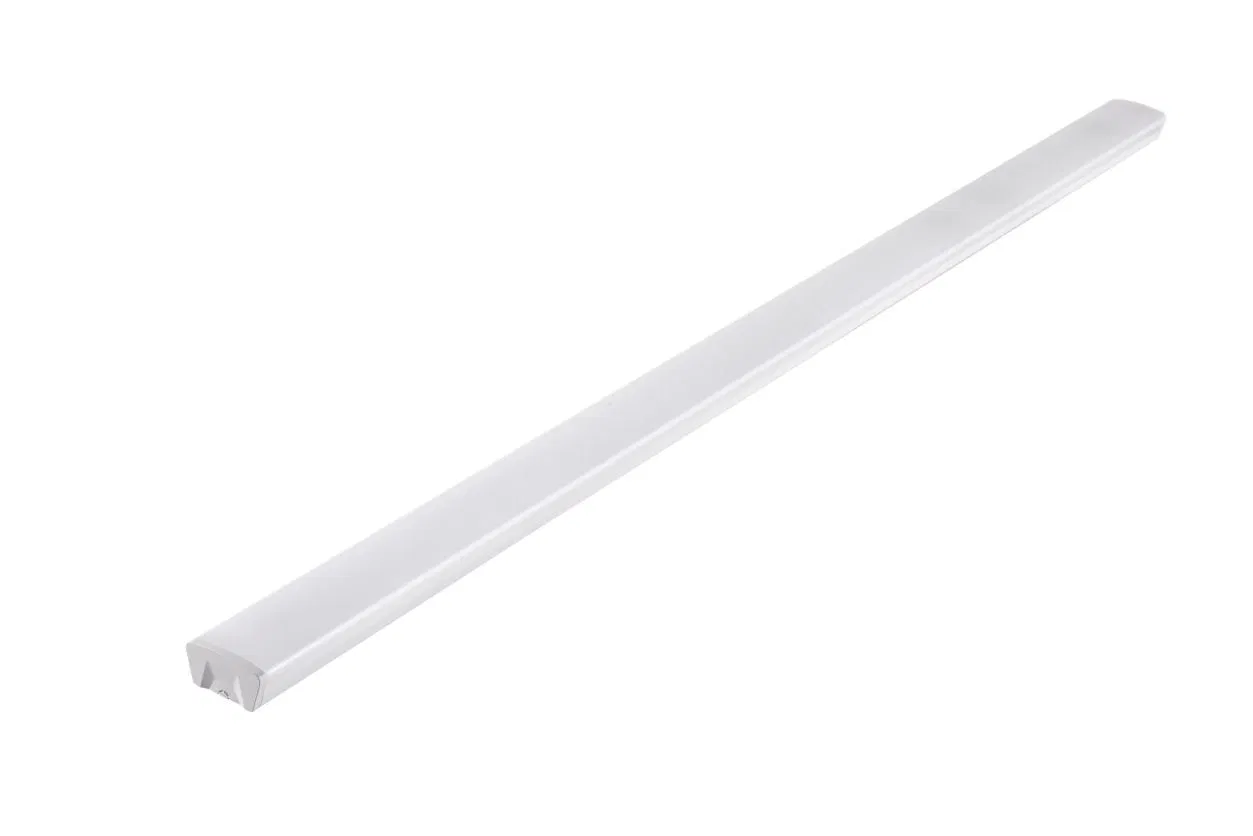

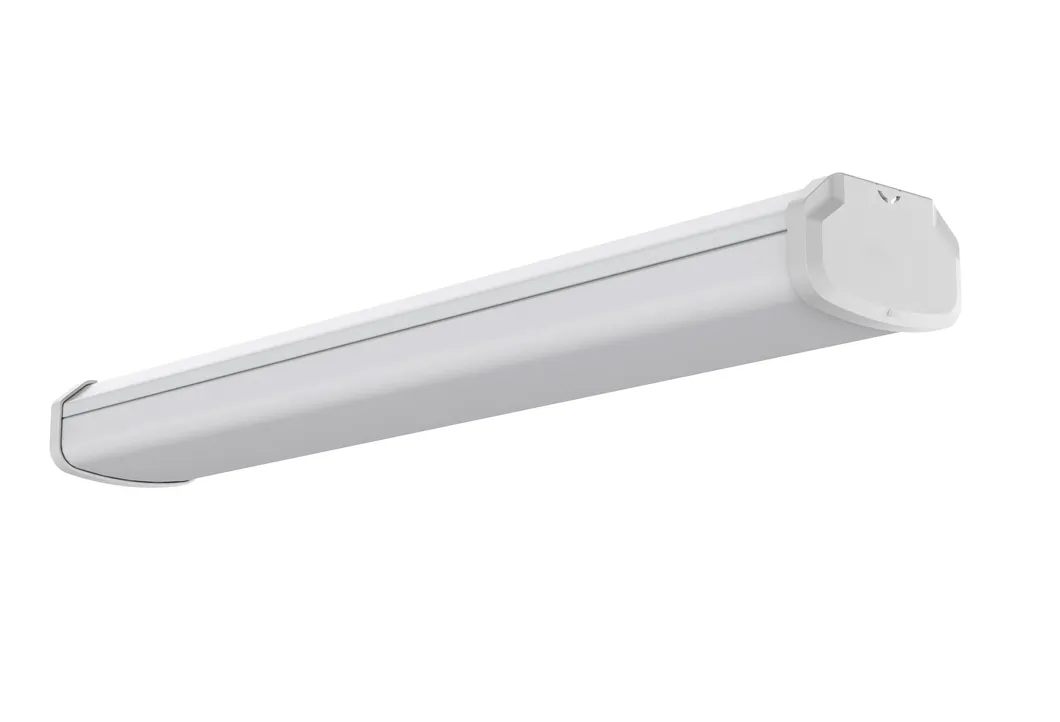

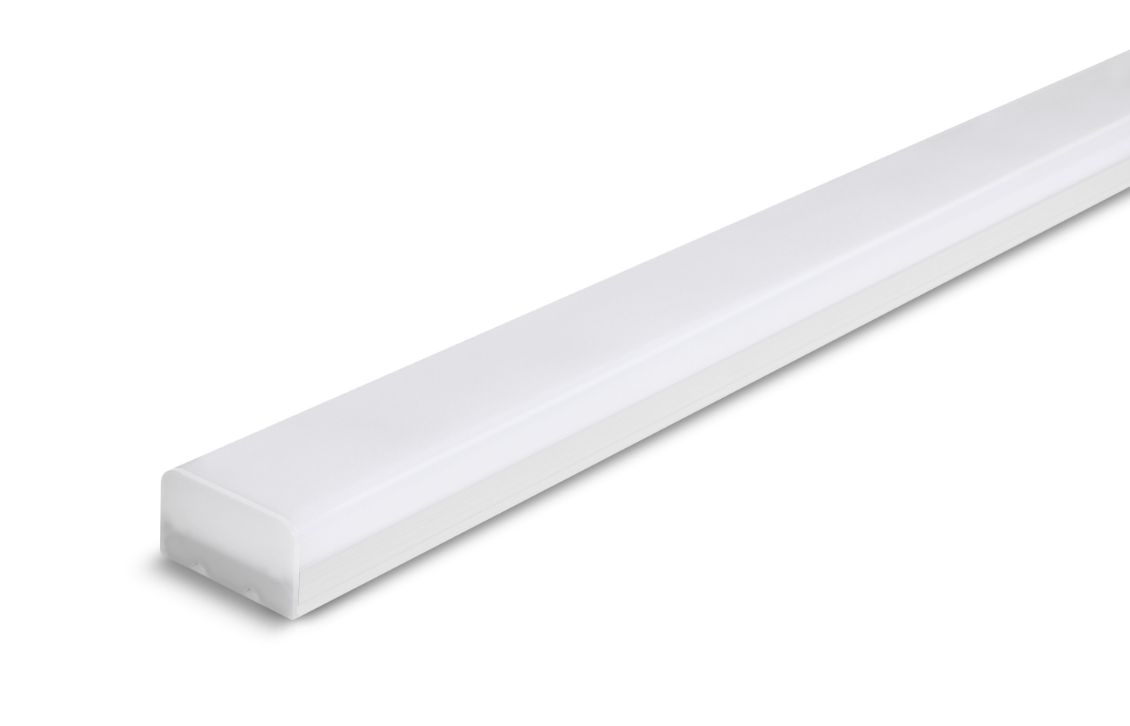

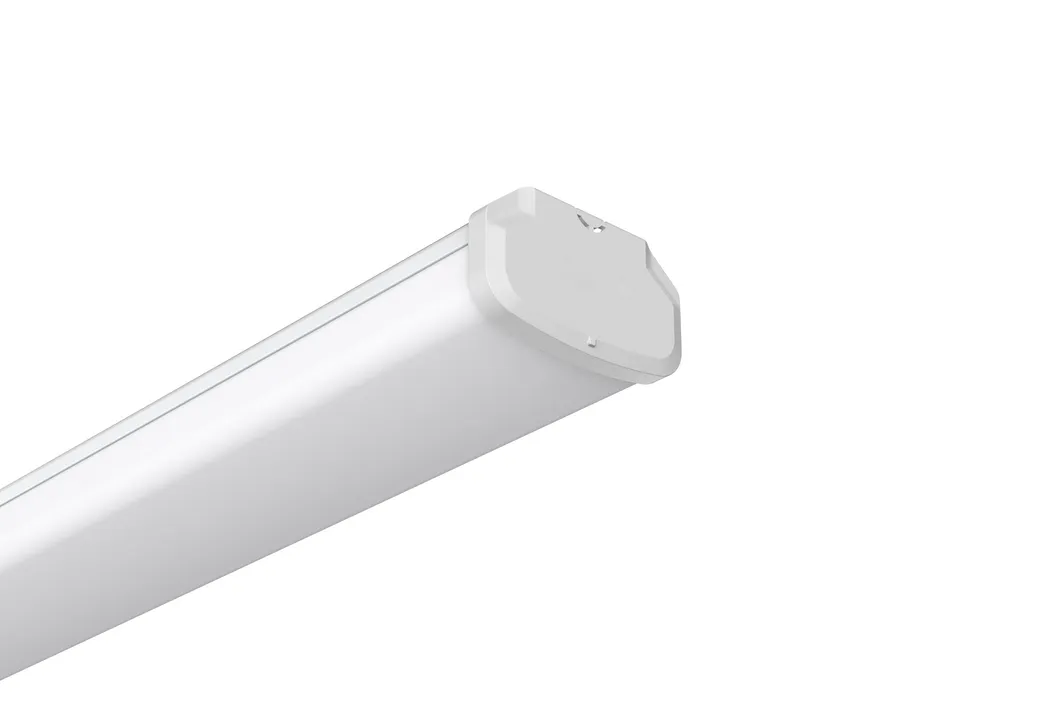

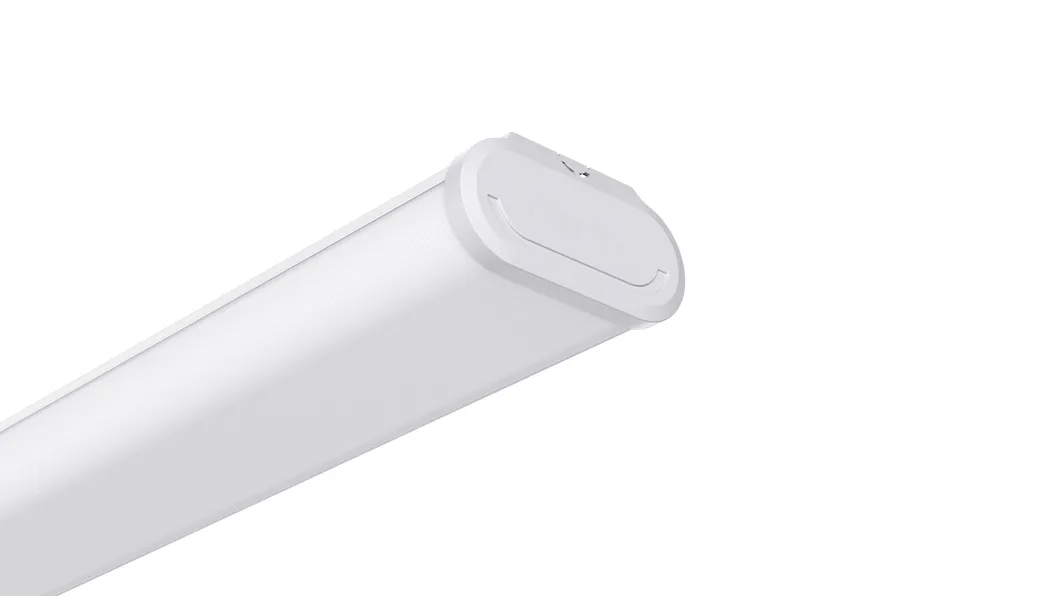

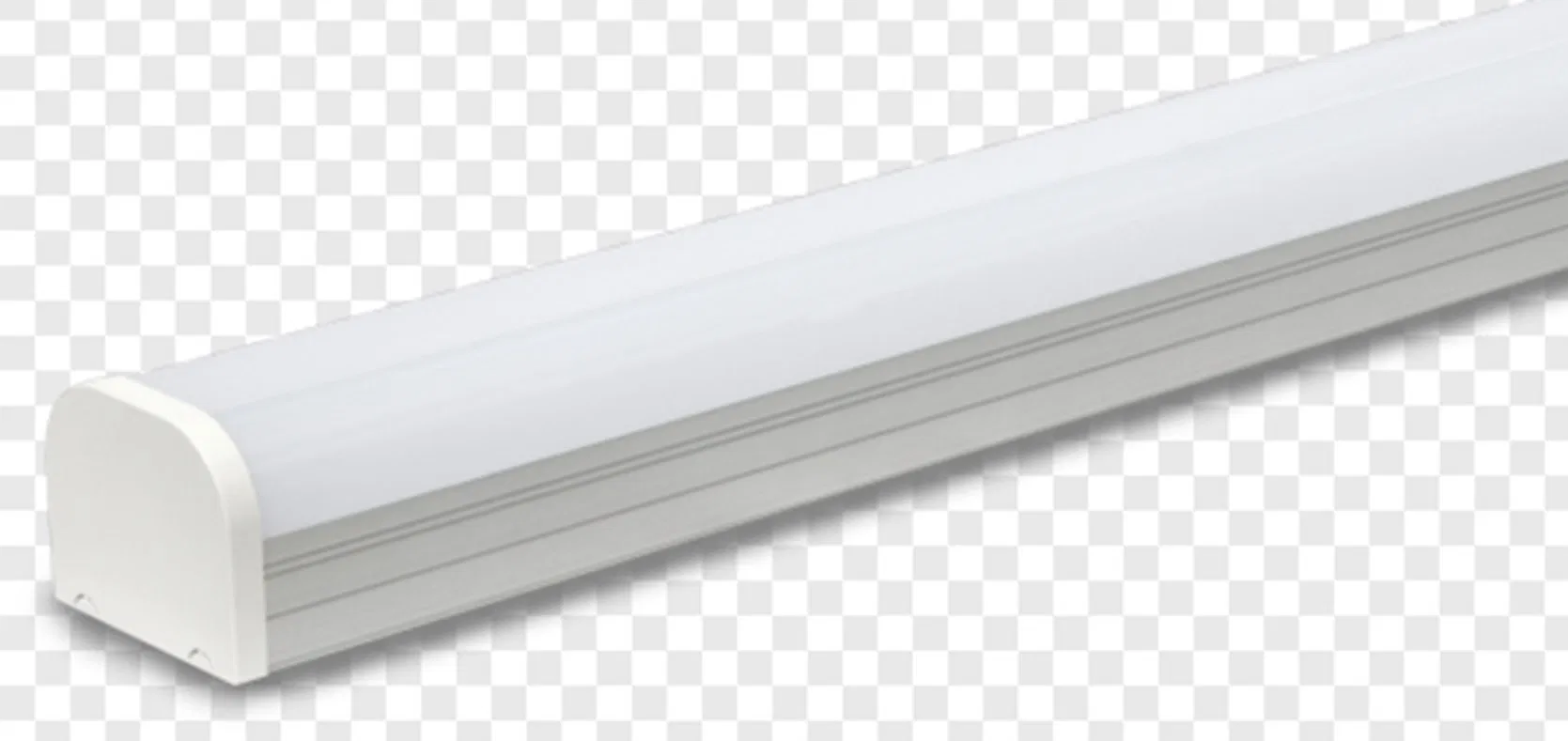

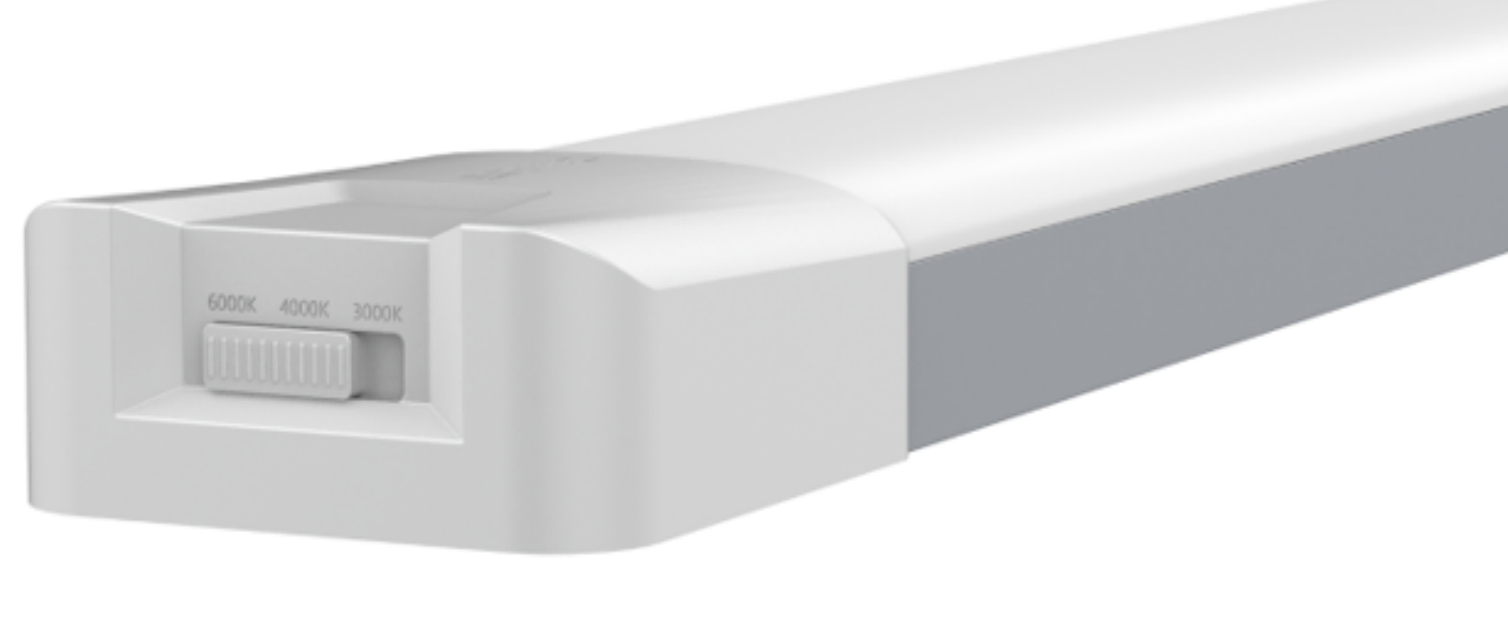

3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
Product Description
◈ Basic Info.
Model NO.
LL-7231-60W
IP Rating
IP20
CCT
3000K, 4000K, 6000K
Driver
No-Isolated Driver
Lumen
100lm/W
Certificates
CE-EMC, CE-LVD, RoHS, En62471
Wattage
80W
CRI
>80
Sdcm
<6
Warranty
2~3 Years
Transport Package
1PCS/Box
Specification
Indoor light
Origin
China
HS Code
9405429000
Production Capacity
100000PCS/Month
📦 Packaging & Delivery
Package Size
48.00cm * 48.00cm * 30.00cm
Gross Weight
7.000kg

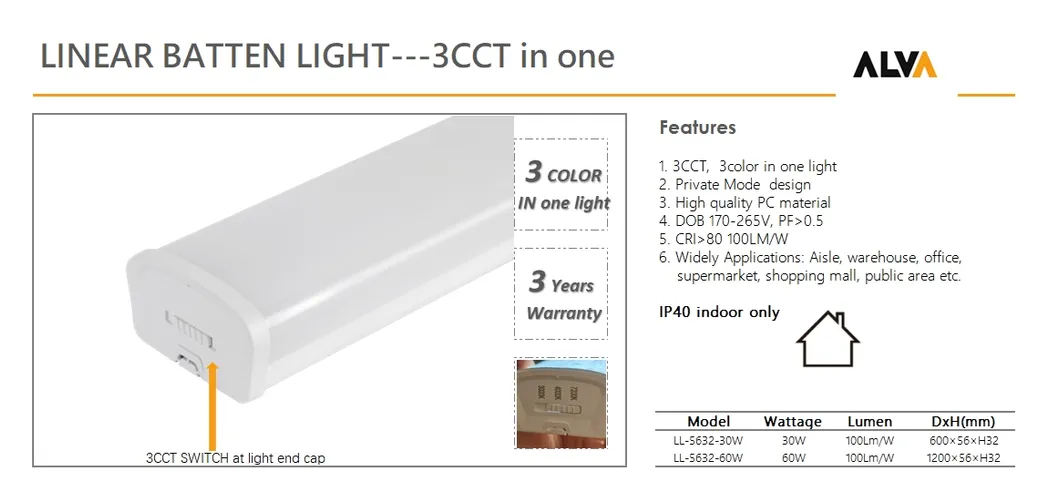

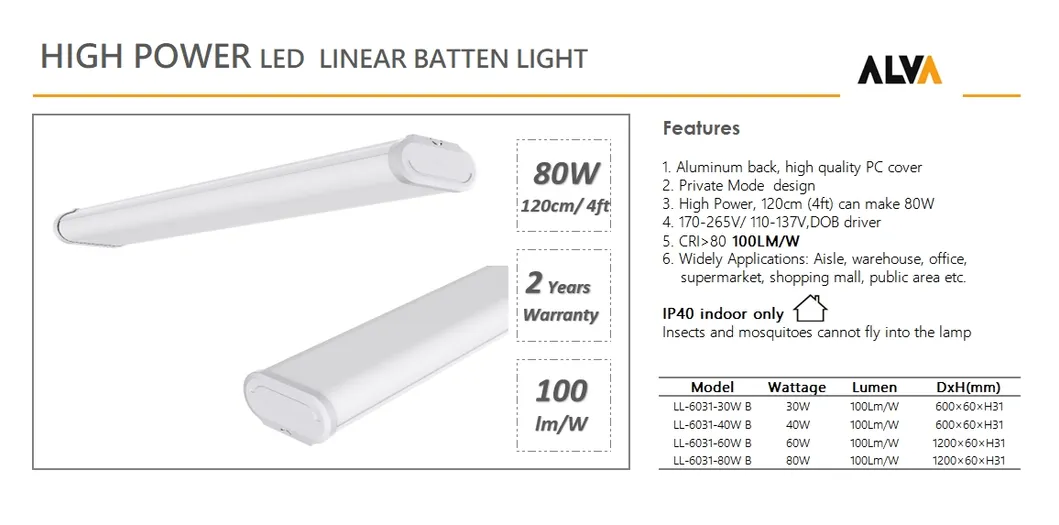

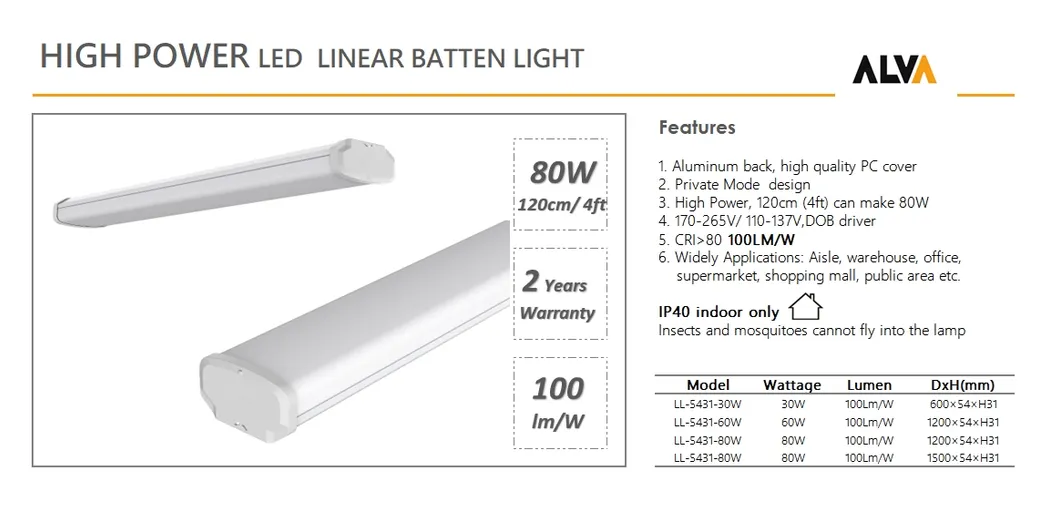

✨ Product Features
1. Premium Build: Aluminum back with high quality PC cover.
2. Design: Exclusive Private Mode design.
3. High Power: Up to 80W output for 120cm (4ft) models.
4. Driver: 170-265V/ 110-137V DOB driver.
5. Performance: CRI>80 and high efficiency of 100LM/W.
6. Protection: IP40 rating; designed to prevent insects and mosquitoes from entering.
🖼️ Product Gallery
📊 Technical Parameters
| Item No | Watts | Voltage(V) | PF | Surge | Color | Ra | Lm/W | IP | Dimension(mm) | QTY/CTN | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LL-7231-18W | 18W | 170-265V | 0.5 | 2.5KV | 3CCT | 80 | 135Lm/W | IP20 | 600×72×H31 | 20 | 3years |
| LL-7231-36W | 36W | 170-265V | 0.9 | 2.5KV | 3CCT | 80 | 135Lm/W | IP20 | 1200×72×H31 | 20 | 3years |
| LL-7231-60W | 60W | 170-265V | 0.9 | 2.5KV | 3CCT | 80 | 135Lm/W | IP20 | 1500×72×H31 | 20 | 3years |
| LL-6031-80W | 80W | 170-265V | 0.5 | 2.5KV | 6500K | 80 | 100Lm/W | IP20 | 1200×60×H31 | 30 | 2years |
| LL-5842-60W | 60W | 175-265V | 0.9 | 2.5KV | 6500K | 80 | 100Lm/W | IP20 | 1200*58*H42 | 20 | 3years |
| LL-7523-120W | 120W | 175-265V | 0.5 | 2.5KV | 80 | 80 | 100Lm/W | IP20 | 1200*85*H23 | 20 | 2years |
🏠 Applications

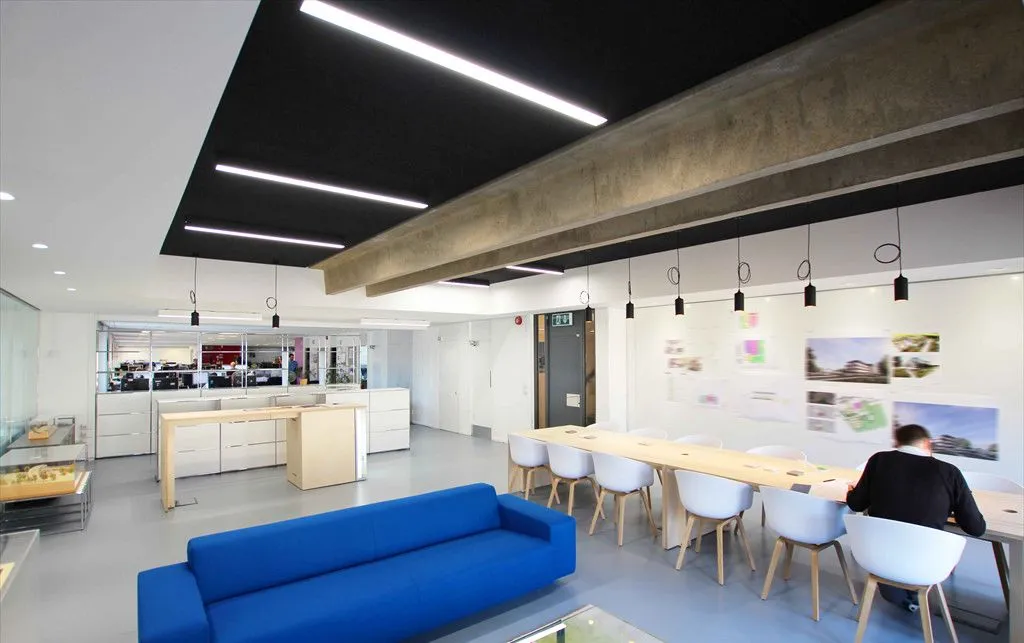

Ideal for a wide range of environments including Aisle, Warehouse, Office, Supermarket, Shopping Mall, and other Public Areas.

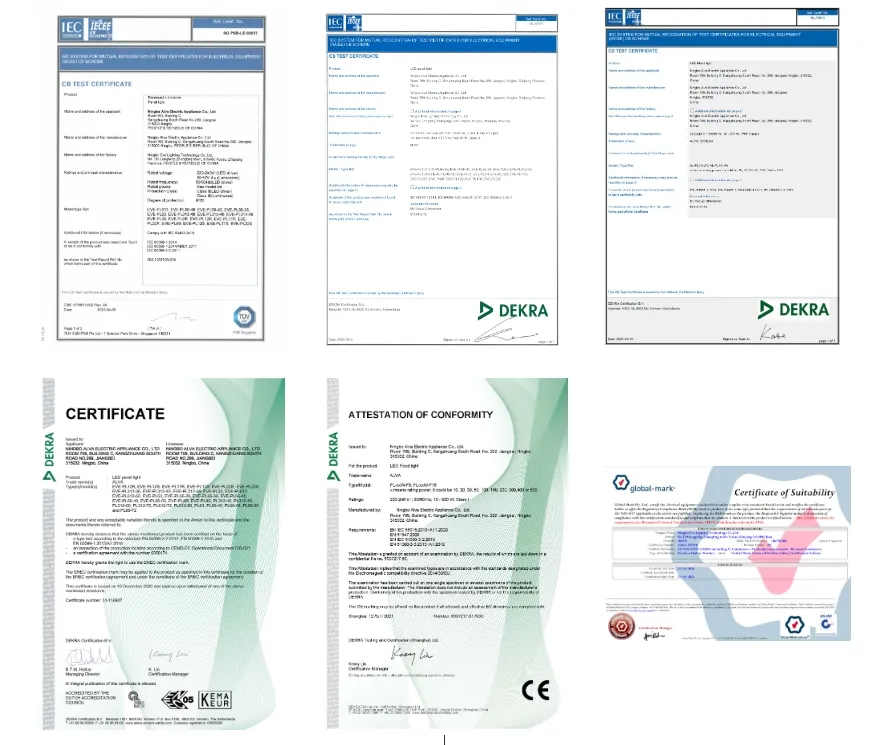

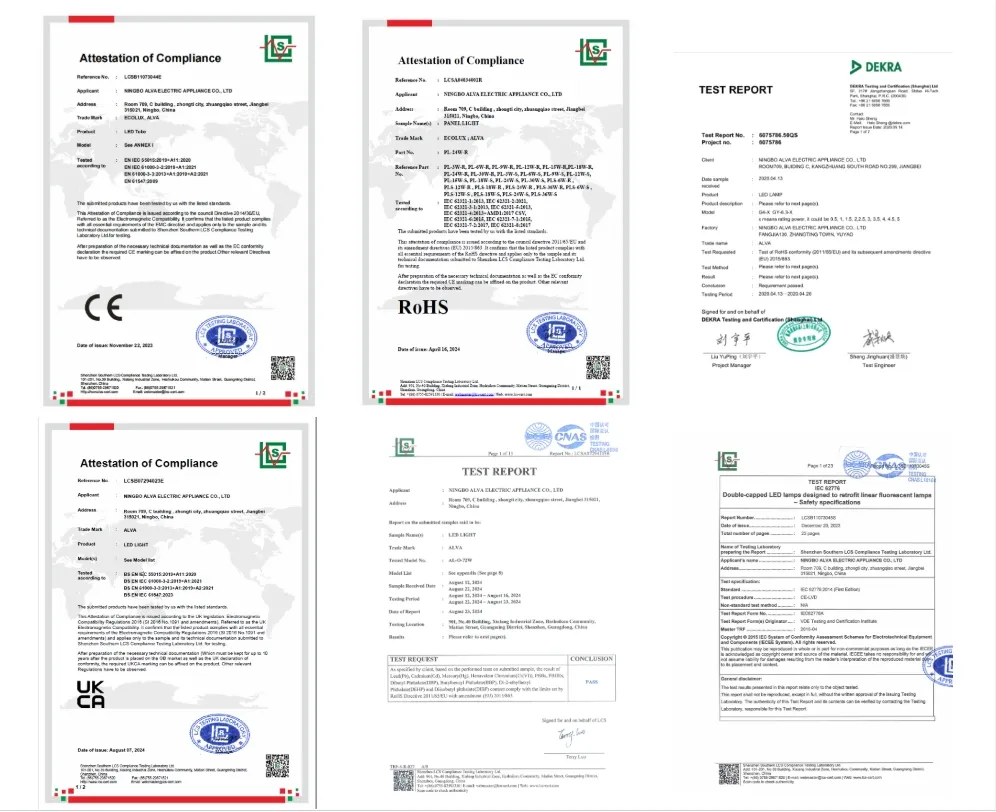

🛡️ Quality Control & Certificates
❓ Frequently Asked Questions
1. What are your payment terms for sample and bulk orders?
For samples, we require 100% payment in advance via Bank TT. For bulk orders, a 30% deposit is required via Bank TT, with the remaining 70% balance settled before shipment.
2. How long does delivery typically take?
Sample orders are usually processed within 3-7 working days, while bulk orders typically take between 30 to 40 working days depending on the order volume.
3. What shipping methods do you offer?
We offer Express (DHL, UPS, Fedex - 3-5 days), Air Cargo (5-7 days), and Sea Freight for large, non-urgent shipments. We can also work with your designated shipping agent.

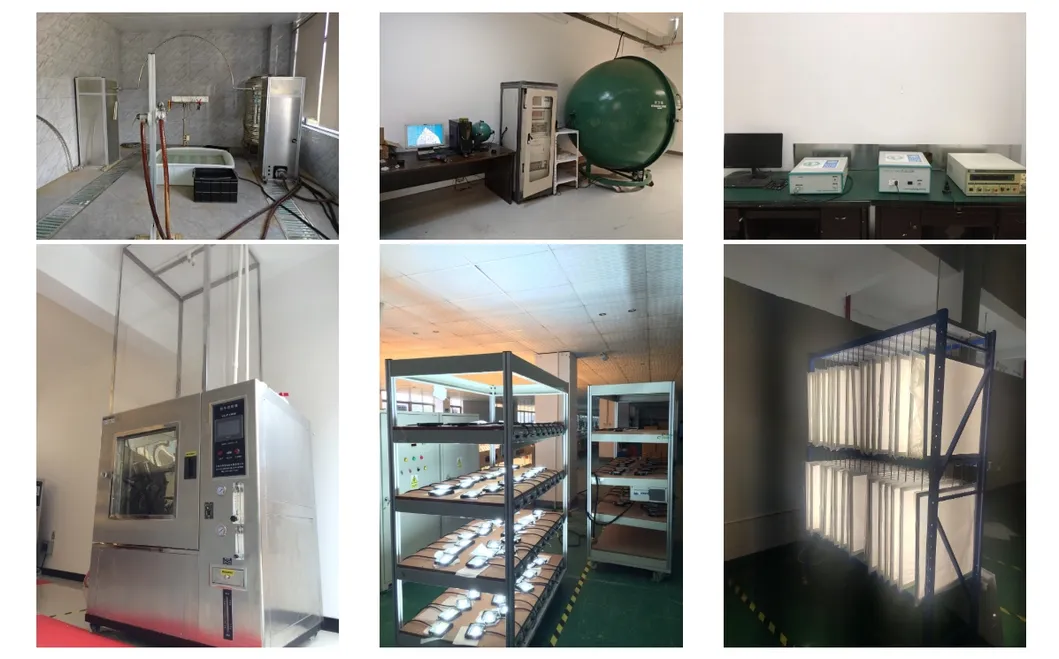

4. How do you ensure the quality of your lighting products?
100% of our lamps undergo reliability testing, including a 24-hour lighting test and temperature check. Each unit must pass all QC procedures before being shipped to customers.
5. Do you offer OEM services or customization?
Yes, we provide full OEM services including printing your logo on products and customizing retail box packaging. Our experienced R&D engineers can handle complex OEM requirements.
6. What is the warranty policy for these lights?
We offer flexible warranty options of 1, 2, 3, or 5 years depending on your specific request. If any quality issues arise, we provide free replacements.
