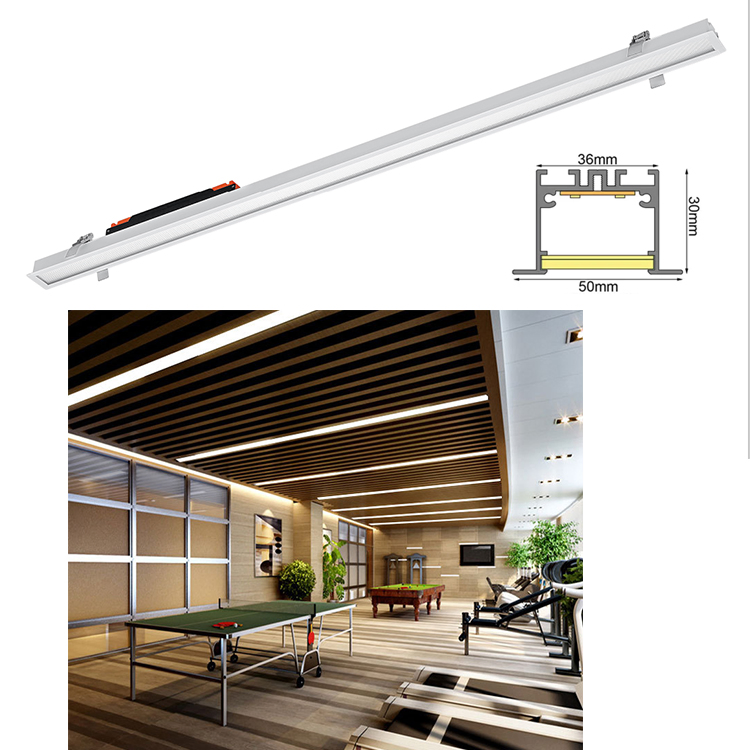

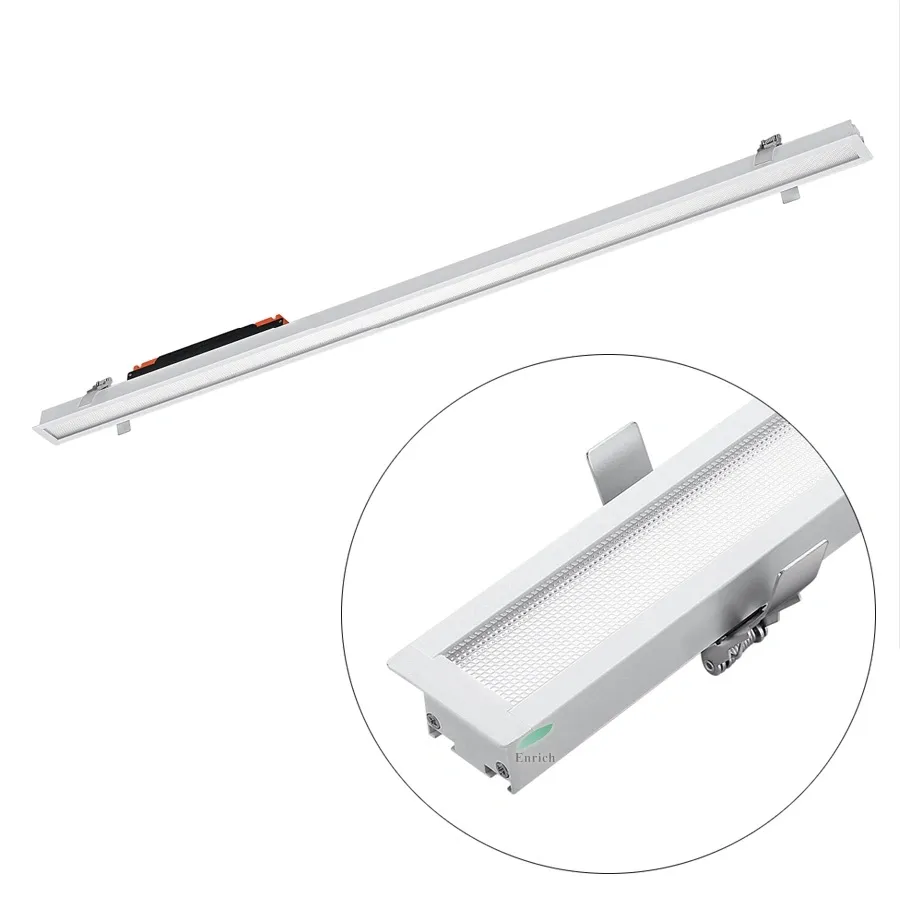

5030 Series Ceiling Recessed with Anti-Glare Reflector Linear Light LED Linear Pendant Light for Office/Supermarket
Product Description
📋
Basic Information
Model NO.EN-5030A-LE40W12
IP RatingIP33
Wattage40W
Luminous Efficiency4000lm
CRI>80
Working Temp.0℃ - +50℃
StyleEuropean
CertificationCE, EMC, RoHS, SAA, UL
Color Temp.3000K/4000K/6000K
MaterialAluminum + PC
VoltageAC85-265V
Beaming Angle120°
LED ChipsEpistar SMD 2835 - 504PCS
SpecificationL1200*W50*H30mm
OriginChina
HS Code9405110000
📦
Packaging & Delivery
Package Size125.00cm * 25.00cm * 25.00cm
Gross Weight1.500kg
Transport PackageCarton Outside
Production Capacity20000 Pieces/Year
💡
Product Description
Specifications Detail:
| Model Number | Dimension | Power | Input Voltage | CCT | Shell Color |
|---|---|---|---|---|---|
| EN-5030A-LE20W06 | L615*W50*H30mm | 20W | AC85-265V | 3000K 4000K 6000K |
Black White Silver |
| EN-5030A-LE40W12 | L1205*W50*H30mm | 40W | AC85-265V | ||
| EN-5030A-LE60W18 | L1800*W50*H30mm | 60W | AC85-265V | ||
| EN-5030A-LE80W24 | L2395*W50*H30mm | 80W | AC85-265V |
⭐
Key Features
- Connect with seamless, form with line shape.

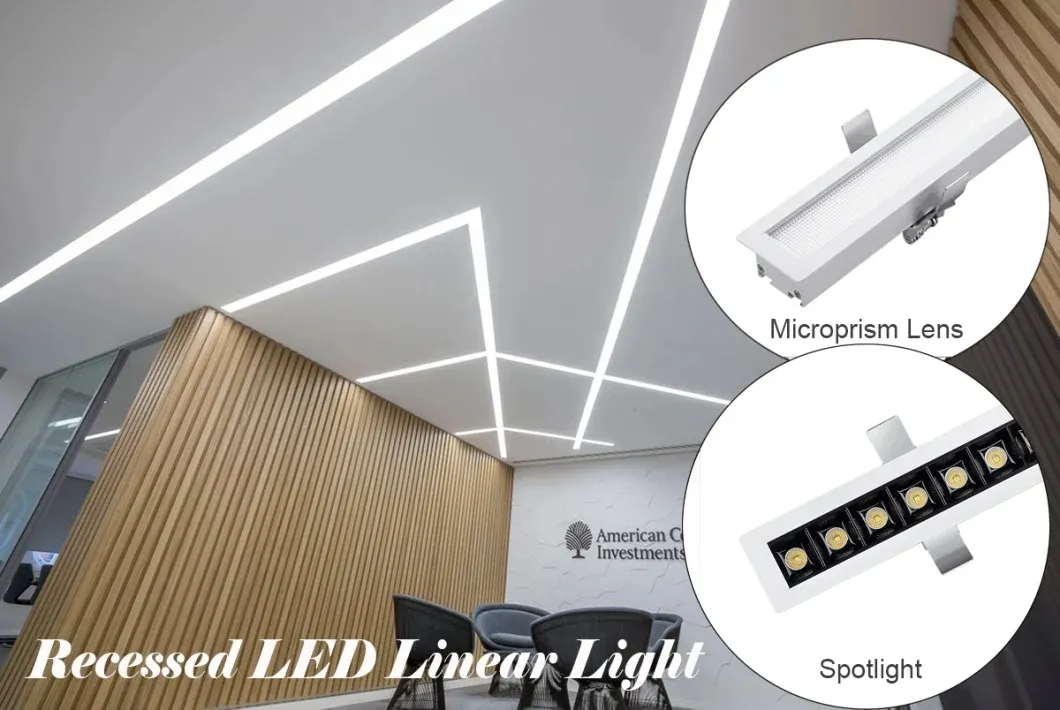

- Versatile Installation: Hanging, surface mounted, or recessed installation.

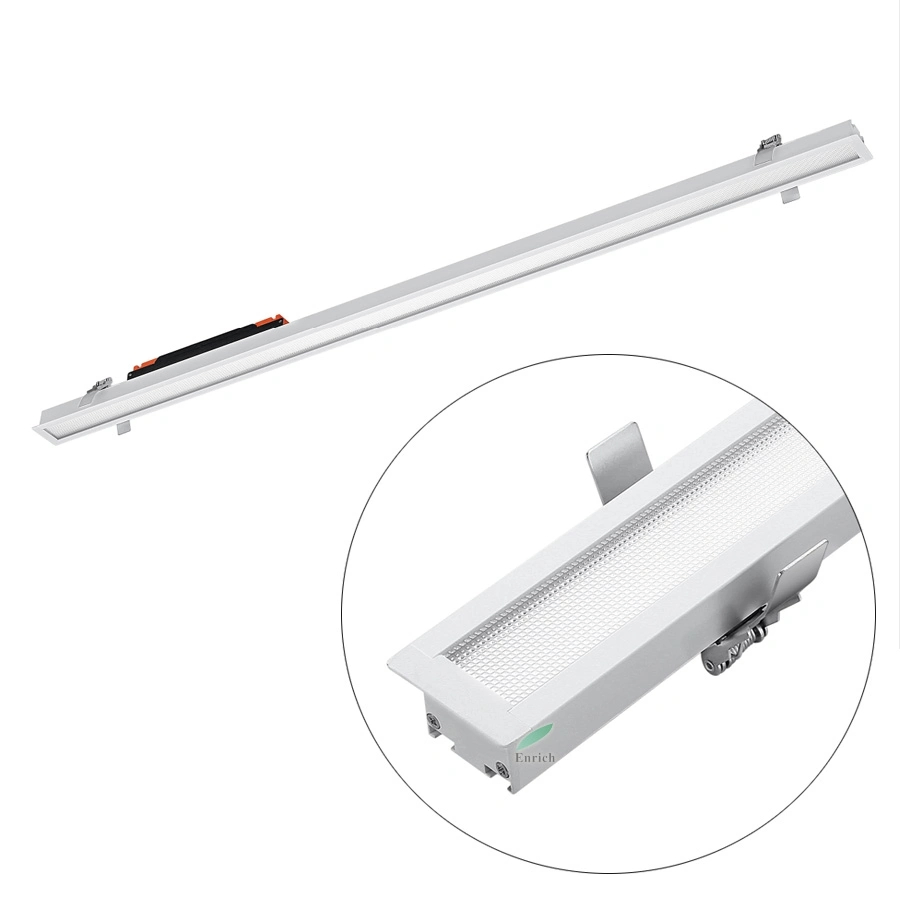

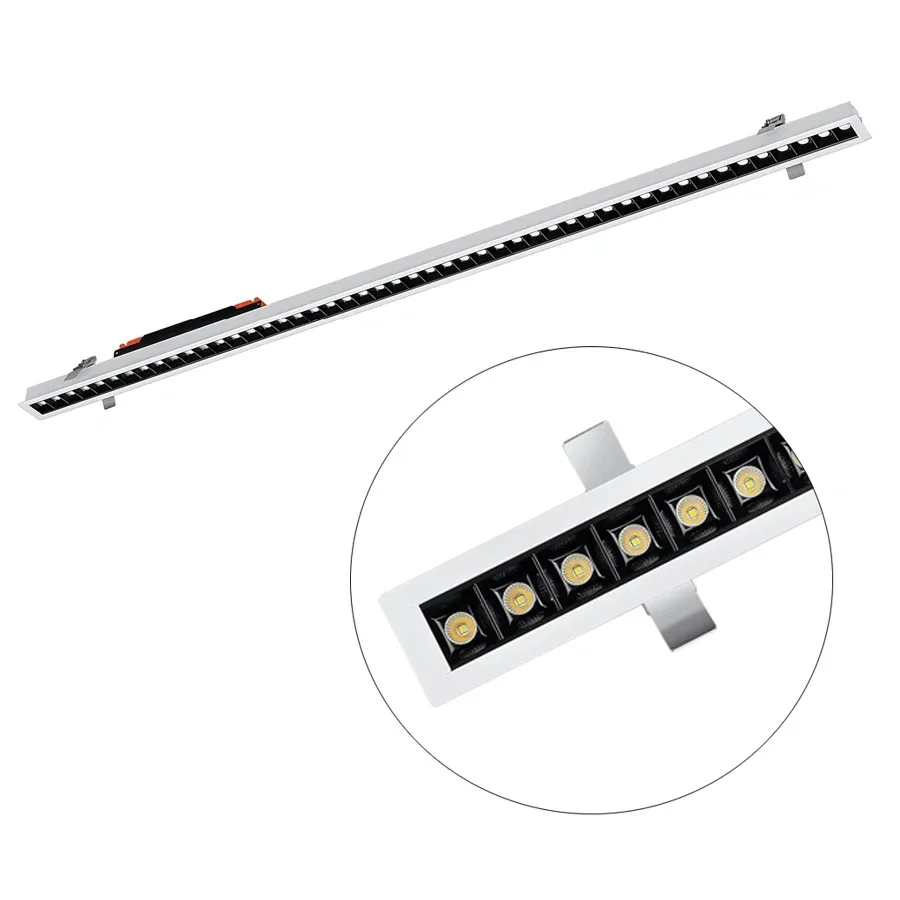

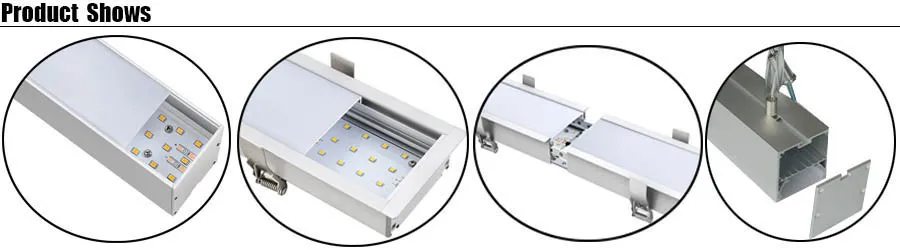

- Cap with Microprism Cover and Reflector Cap moulding prevents light leakage.
- Aluminum PCB with no-facula design, easy rotate installation.
- High efficiency: Cover transmitting rate reaches 86%, luminous efficiency up to 110lm/w.
- IC driver: No flicker, No glaring, CRI ≥ 80, PF ≥ 0.9.
- Certified quality: Passed CE and RoHS certifications.

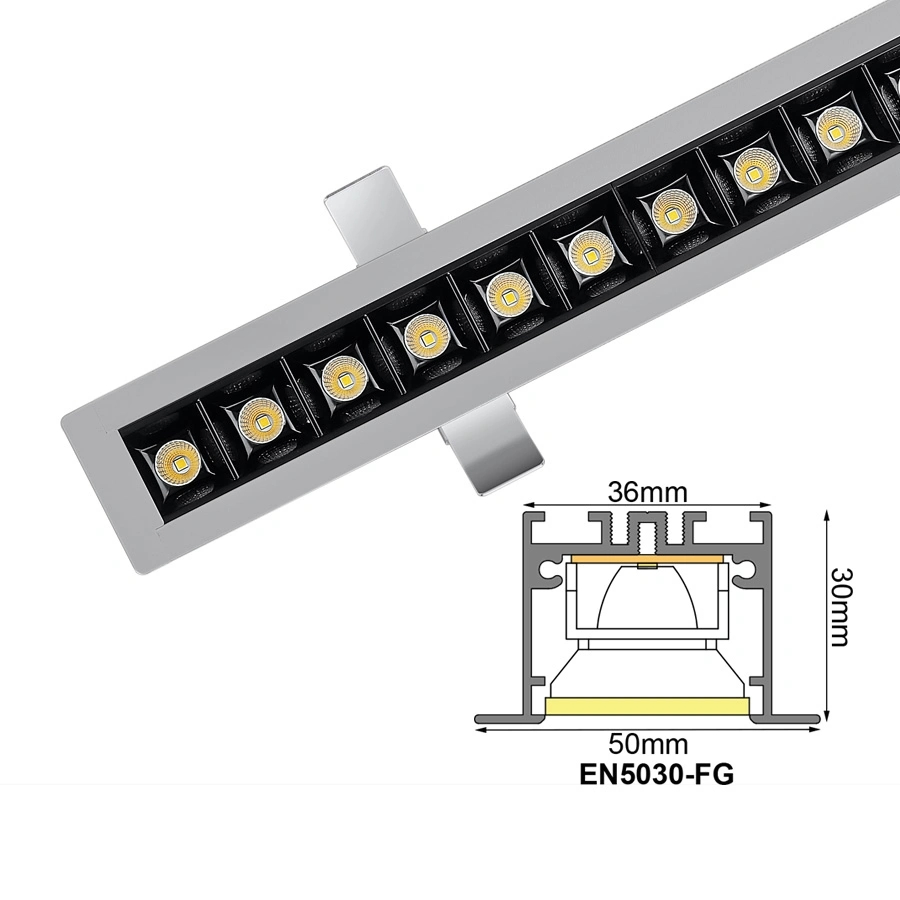

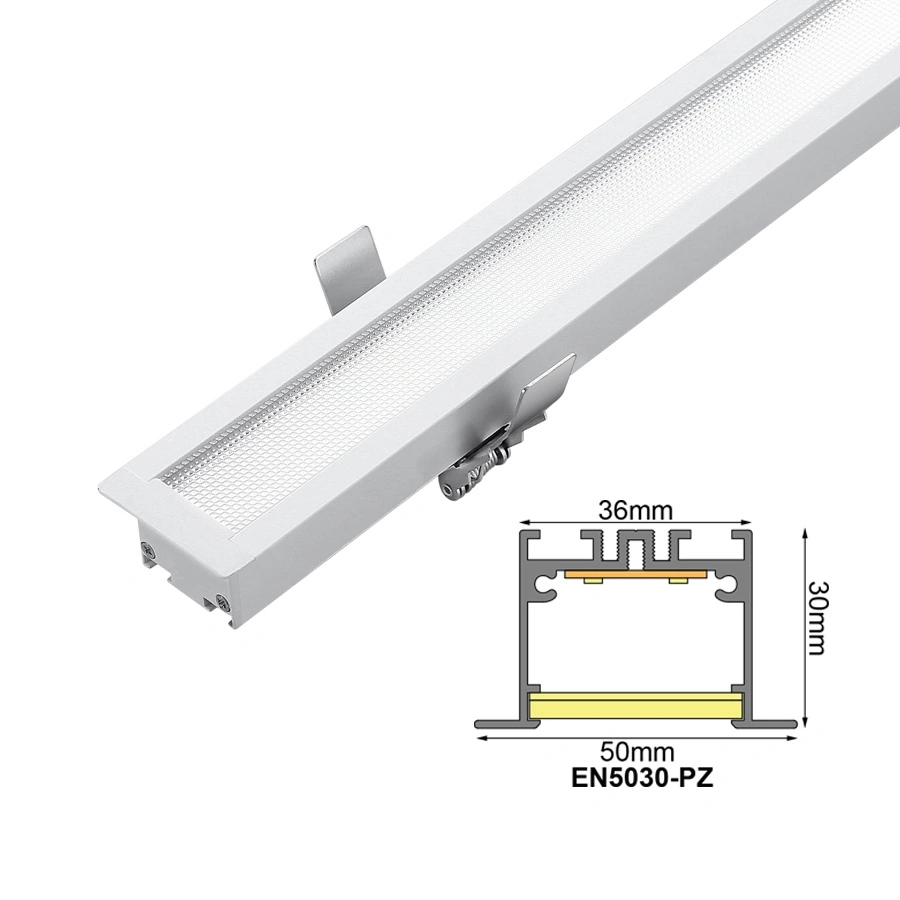

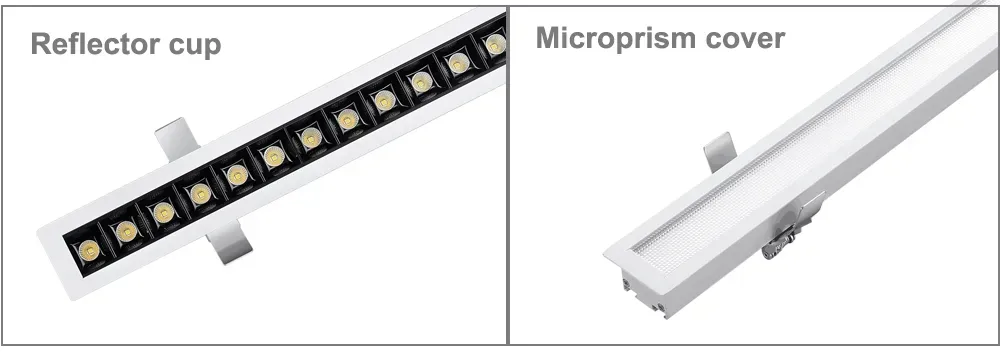

- Dual shade options: Microprism and reflector shades for anti-glare eye protection.

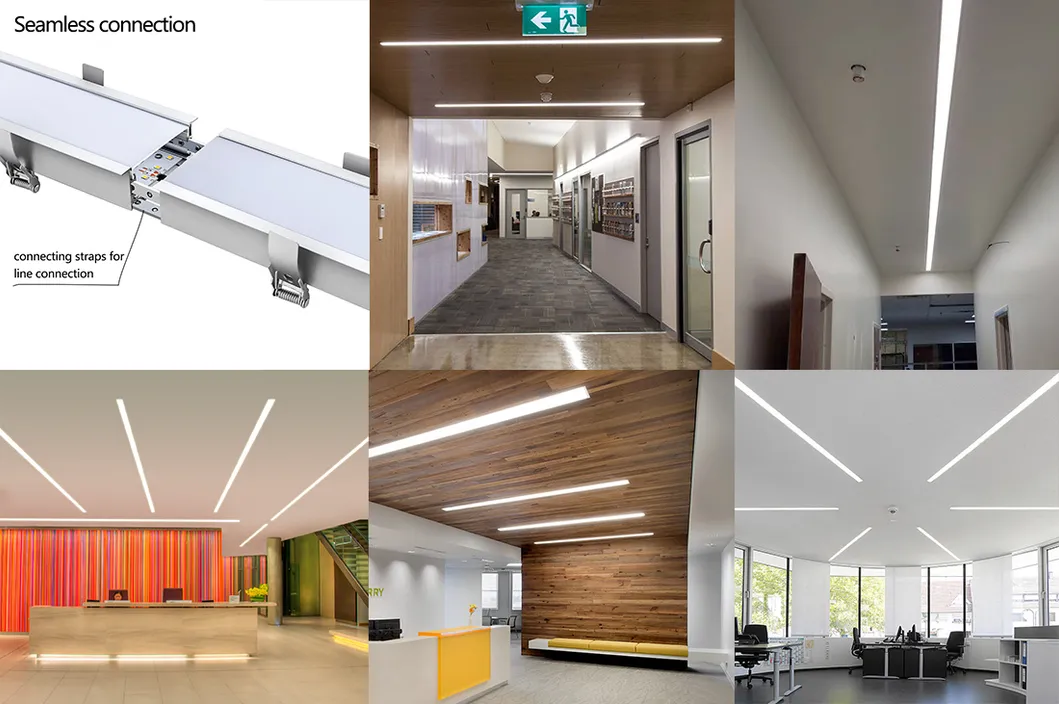

Simple Straight Line Installation
Utilizing 4pcs metal straps for a tight fix with no gap and no light leakage. Standard lengths available: 0.6m, 1.2m, 1.8m, 2.4m (2ft, 4ft, 6ft, 8ft). Seamlessly connectable.

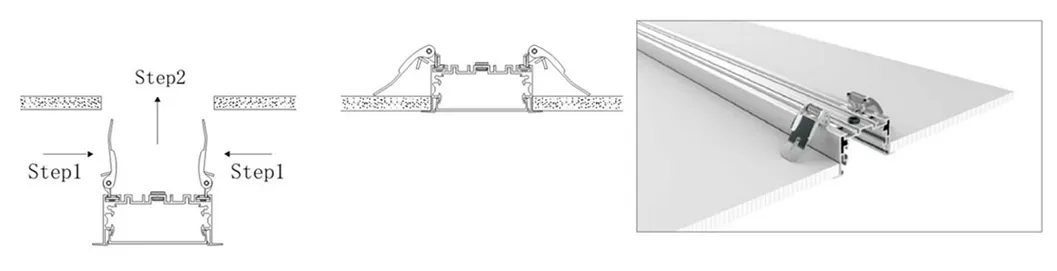

Installation Guide:
🏢

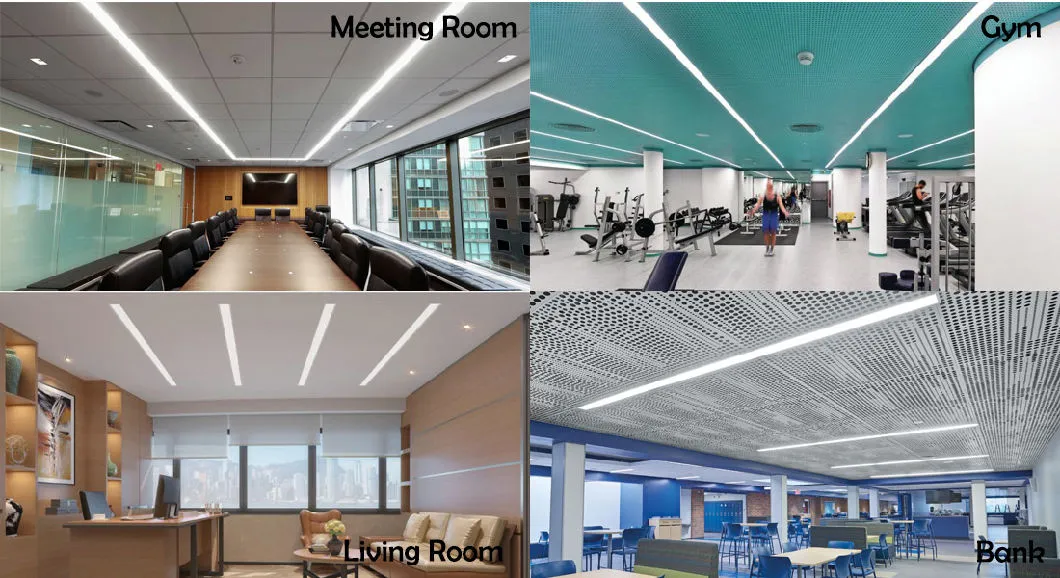

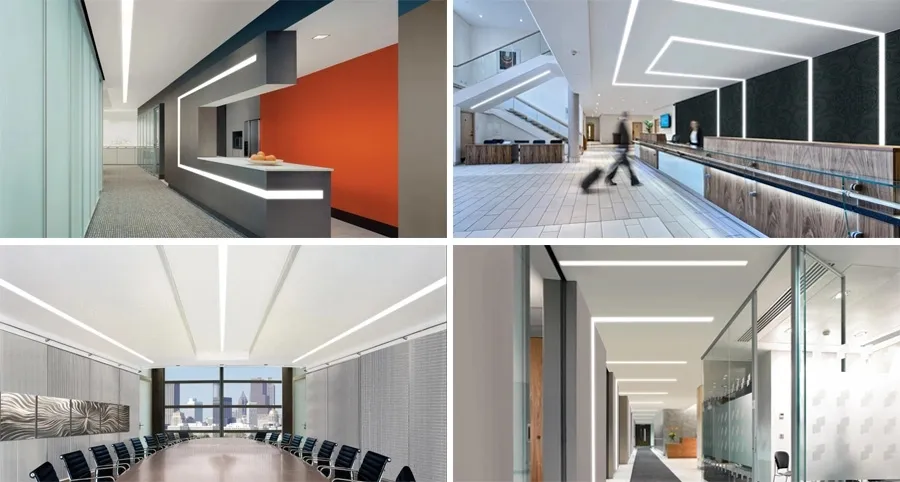

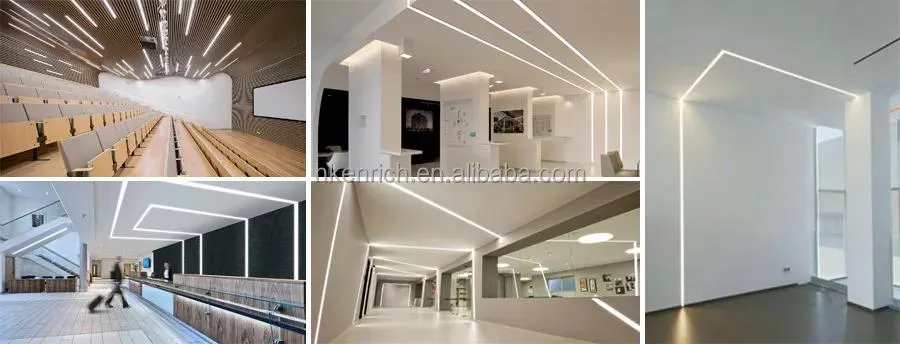

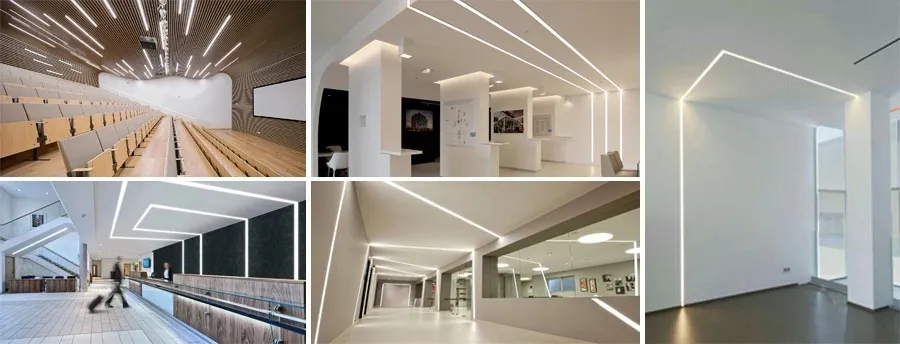

Applications
❓
Frequently Asked Questions
Q1: What installation methods are supported for this linear light?
A: This product is highly versatile and supports hanging (pendant), surface mounted, and recessed installation to fit various architectural needs.
Q2: Can multiple units be connected together?
A: Yes, the lights are designed for seamless connection. Using metal straps, they fix tightly together with no gaps, ensuring no light leakage between units.
Q3: Does the light flicker or cause glare?
A: No. It uses a high-quality IC driver that ensures no flicker. Additionally, it features microprism and reflector shade options to prevent glaring and protect the eyes.
Q4: What are the standard lengths available?
A: We offer four standard lengths: 0.6 meters (2ft), 1.2 meters (4ft), 1.8 meters (6ft), and 2.4 meters (8ft).
Q5: Is the product energy efficient?
A: Yes, it boasts a luminous efficiency of 110lm/w and a cover transmitting rate of 86%, providing high brightness with low power consumption.
Q6: What certifications does this light have?
A: This linear light has passed multiple international certifications, including CE, EMC, RoHS, SAA, and UL.
