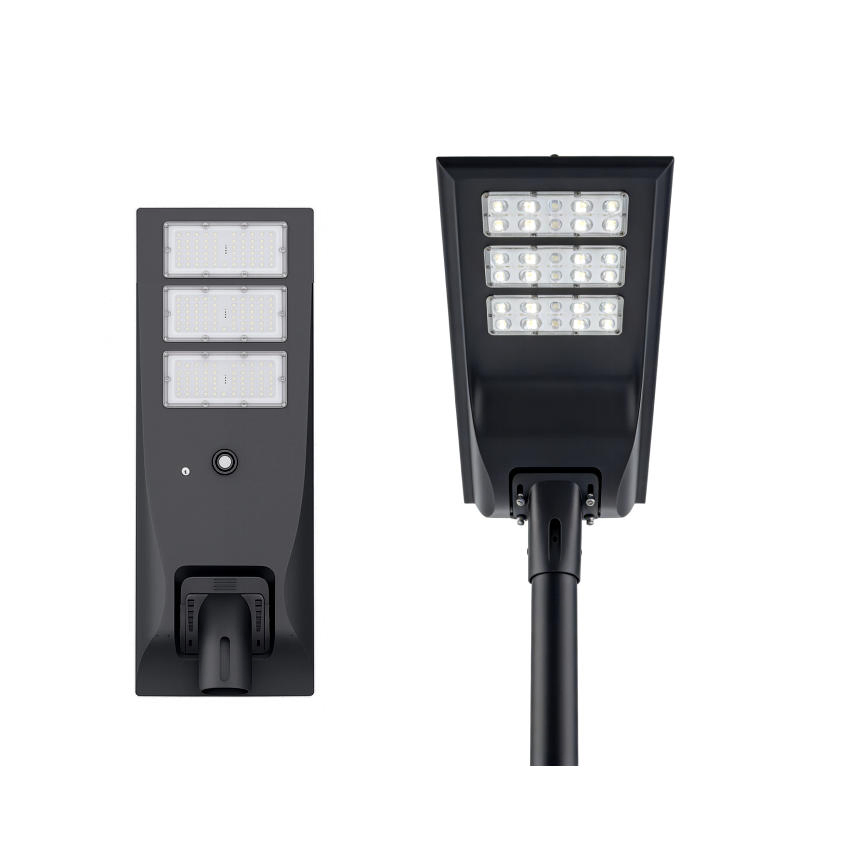

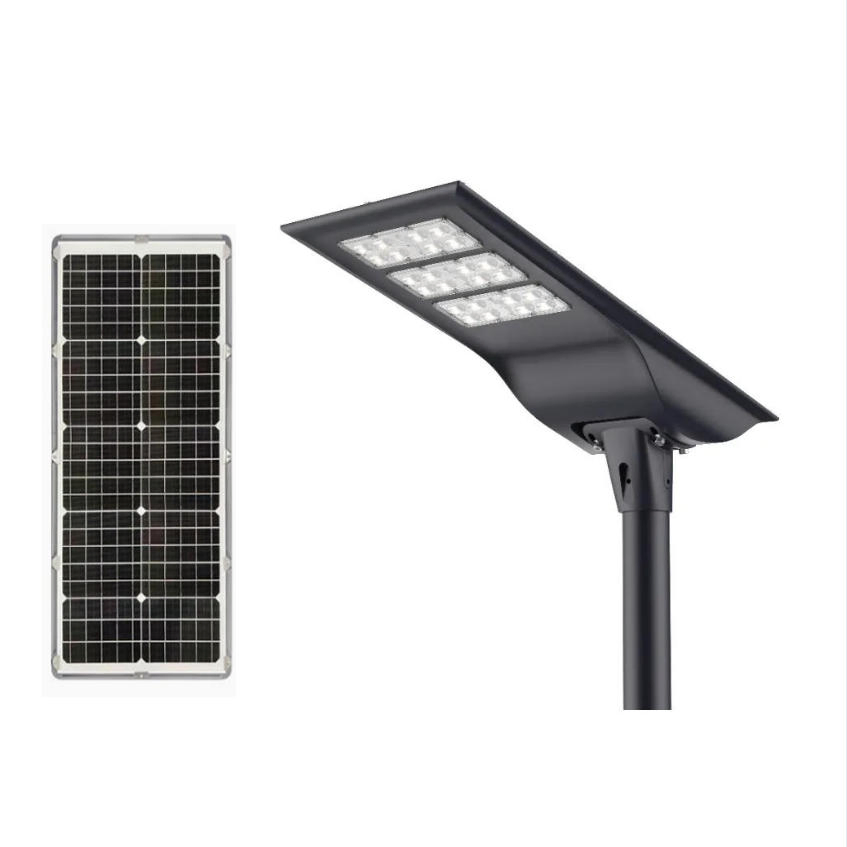

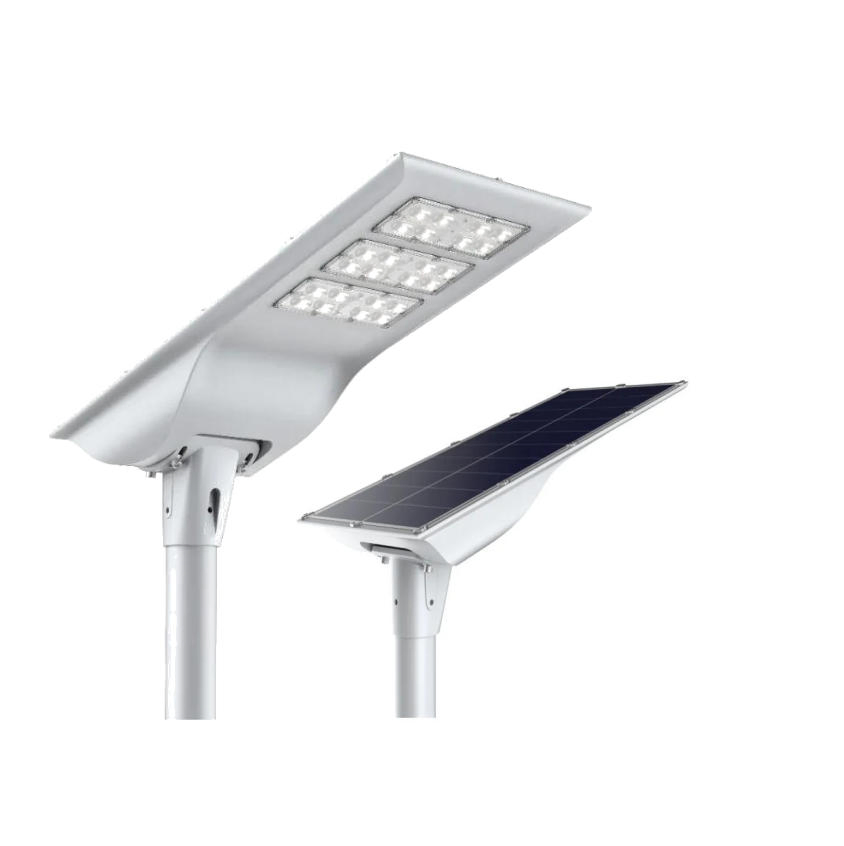

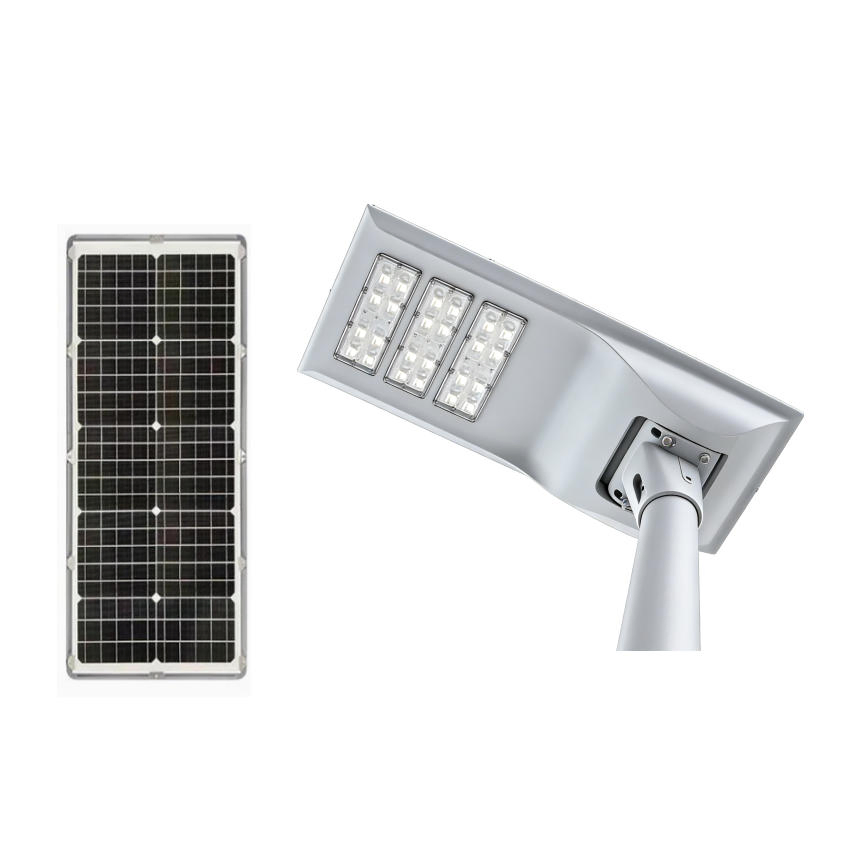

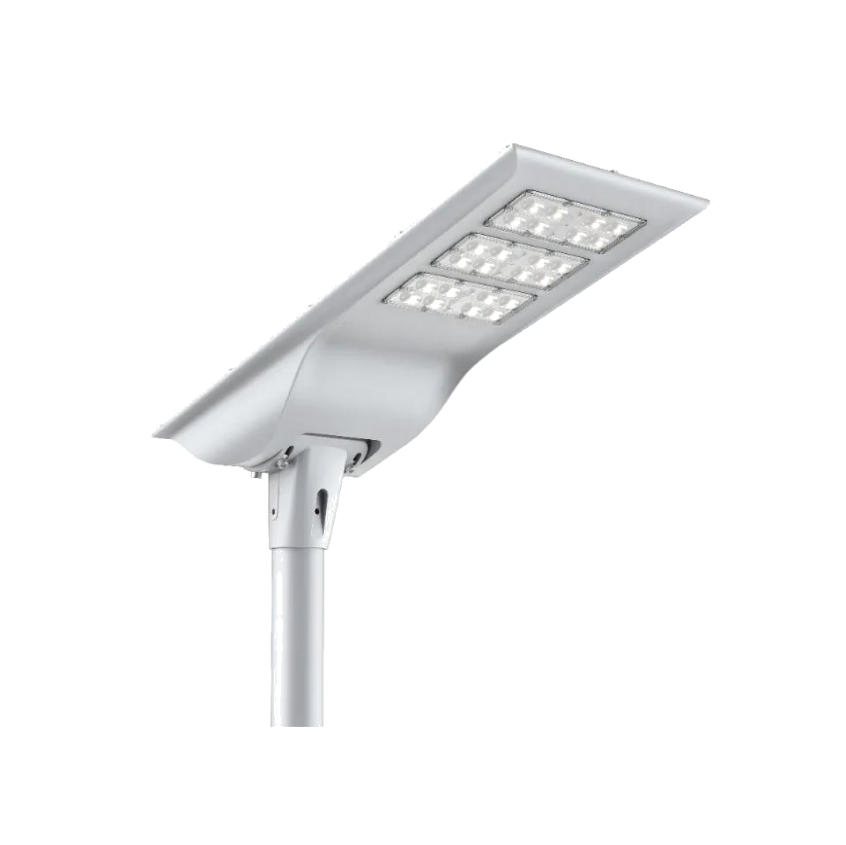

60W Commercial Lighting off-Grid LED Solar Street Light All in One Design for Road Lighting
Product Description
Basic Specifications
Model NO.
SSTL-027-60
Lamp Body Material
Aluminum Alloy
Light Type
Solar
Color Temperature
Cool/Warm/Pure White
Power
60W
Illumination Time
12h
Cell Type
LiFePO4
IP Rating
IP65
Solar Panel
50W Mono
Beam Angle
150°×80°
Installation Height
6-7m
Charging Time
6-8 Hours
Product Description

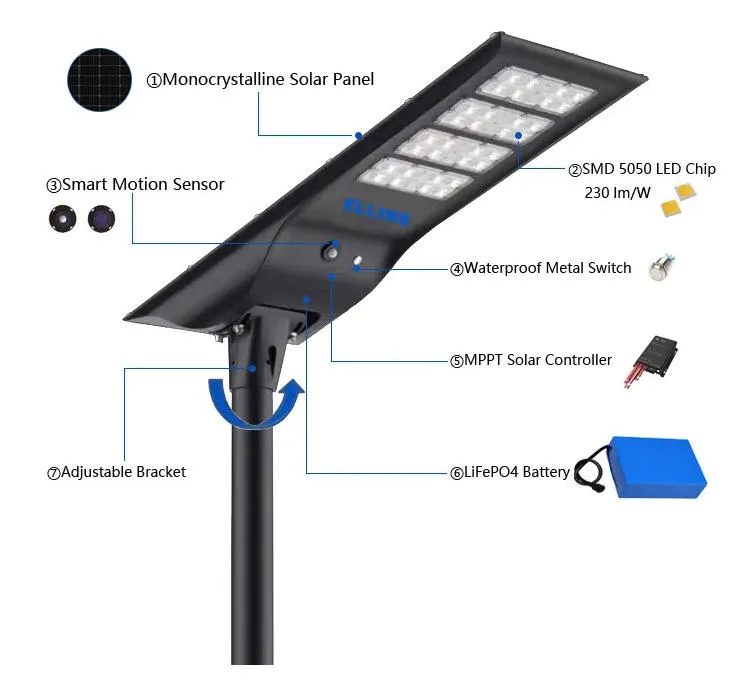

The 027 series All-in-one solar street light combines modern design with advanced photovoltaic technology. It integrates the luminaire, monocrystalline solar panel, and A1-grade LiFePO4 battery into a single, cable-free housing that simplifies installation and enhances aesthetic appeal.
Crafted from die-cast aluminum with a nano-coated finish, this system provides superior corrosion resistance. Delivering over 160 lm/W, its high-lumen LEDs project a precision bat-wing light distribution for uniform, comfortable illumination with minimal glare. The smart MPPT controller optimizes solar energy capture even on cloudy days.
Features & Advantages
Integrated DesignStreamlined all-in-one housing ensures broad compatibility and tool-free installation.
Durable Construction6063-T5 aluminum alloy provides high strength and excellent corrosion resistance.
Smart ControlBuilt-in light sensor enables automatic on/off and adaptive dimming for energy efficiency.
Long-Life BatteryLiFePO4 battery ensures stable cycling and extended service life up to 3000 cycles.
Technical Specifications
| Model | ZD-SSTL-027-040 | ZD-SSTL-027-060 | ZD-SSTL-027-080 |
|---|---|---|---|
| Power | 40W | 60W | 80W |

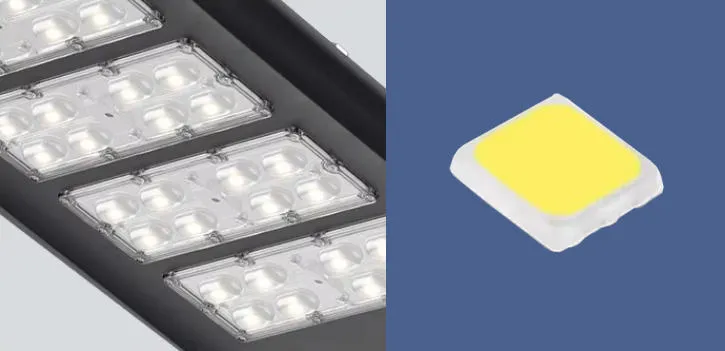

| LED Quantity | 3030SMD×100PCS | 3030SMD×150PCS | 3030SMD×200PCS |
| Color Temp | 6000-6500K | 6000-6500K | 6000-6500K |
| Solar Panels | 40W Mono | 50W Mono | 65W Mono |
| Battery Capacity | 116WH 3.2V | 192WH 3.2V | 240WH 3.2V |
| Working Mode | Microwave induction + Segmented time control + Intelligent control | ||
| Discharge Time | Full power: >14H | Induction mode: 48H | ||
| Product Size | 697×361×209mm | 846×361×209mm | 1096×361×209mm |

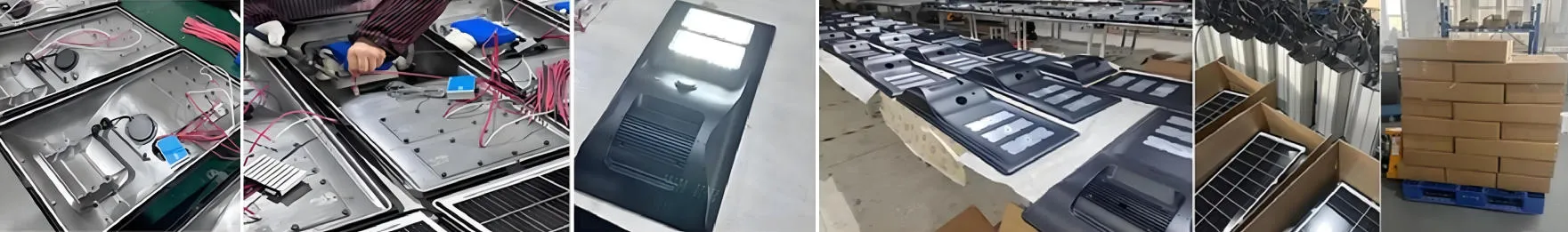

Manufacturing & Packing
Package Gross Weight
11.800kg (60W Model)
Lead Time
30 days (1 - 1000 Pieces)
Frequently Asked Questions
What is an all in one solar street light?
An all in one solar street light is an integrated lighting system that combines the solar panel, lithium battery, charge controller, and LED light source into a single compact unit. It is easy to install and requires no external wiring.
How many hours can the solar street light work at night?
Depending on battery capacity and sunlight conditions, it can provide 8–24 hours of continuous lighting after being fully charged.
Can it work during rainy or cloudy days?
Yes. The built-in lithium battery is selected to support 2–5 consecutive rainy or cloudy days depending on the specific configuration.
What installation height is recommended?
The recommended height usually ranges from 5 to 12 meters, depending on the wattage and road width requirements.
Does it support motion sensors?

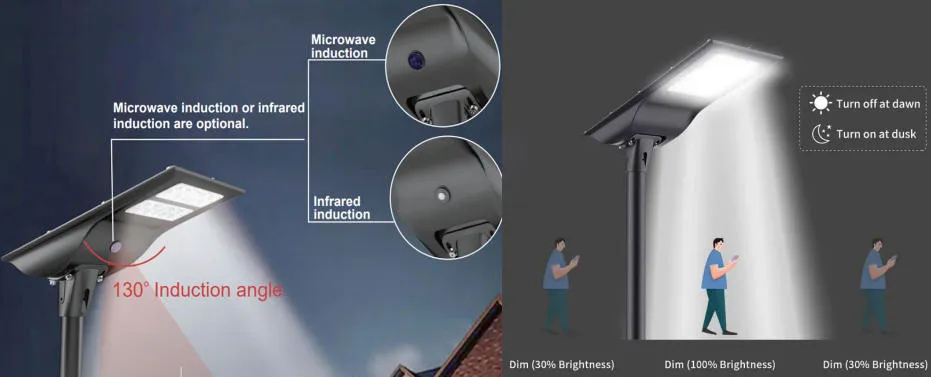

Yes, these units support PIR/Microwave motion sensors and intelligent dimming to maximize energy efficiency throughout the night.
