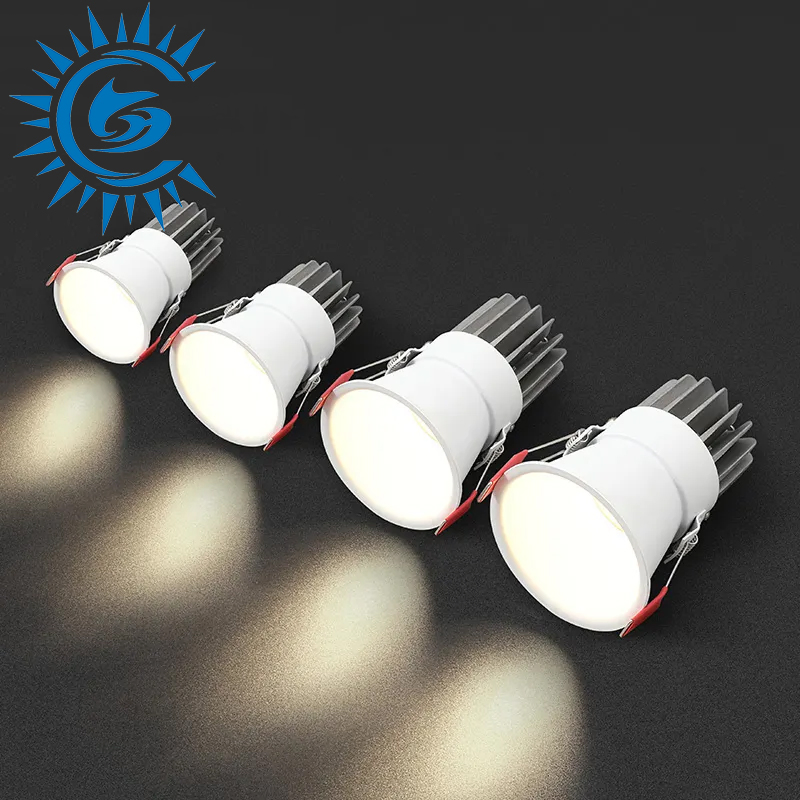

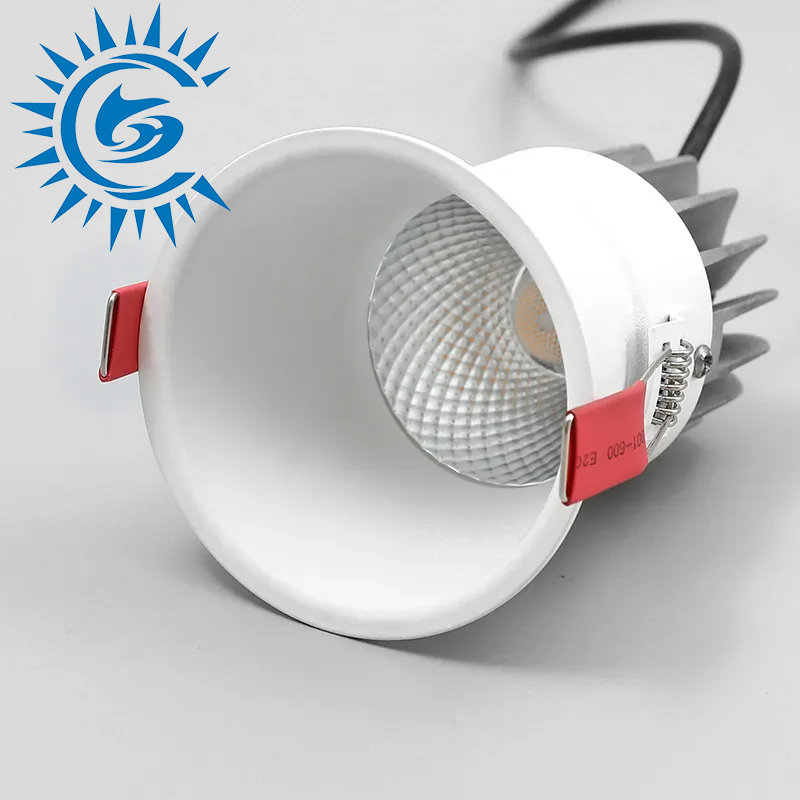

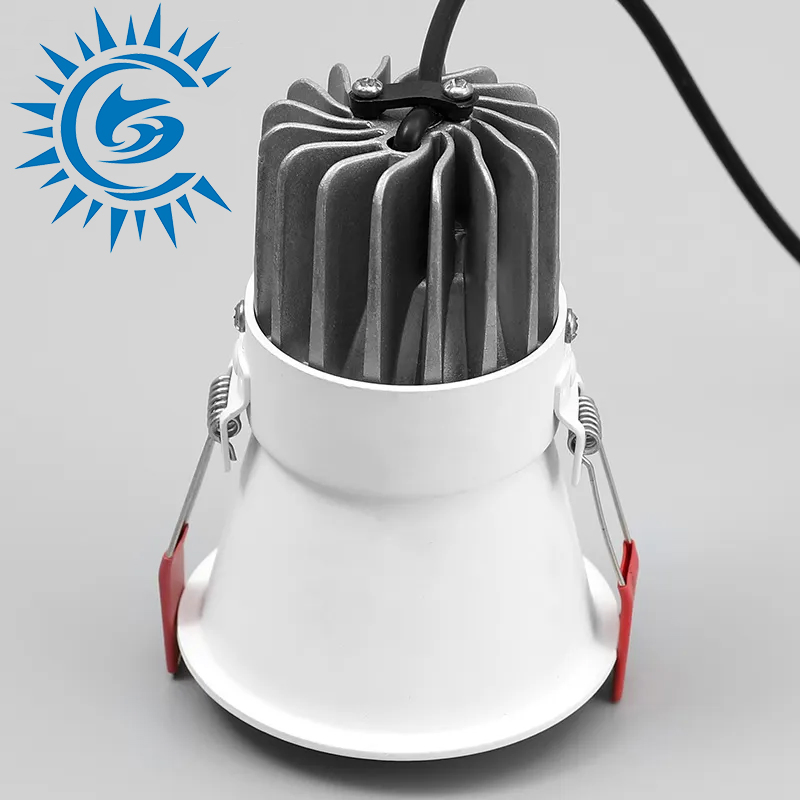

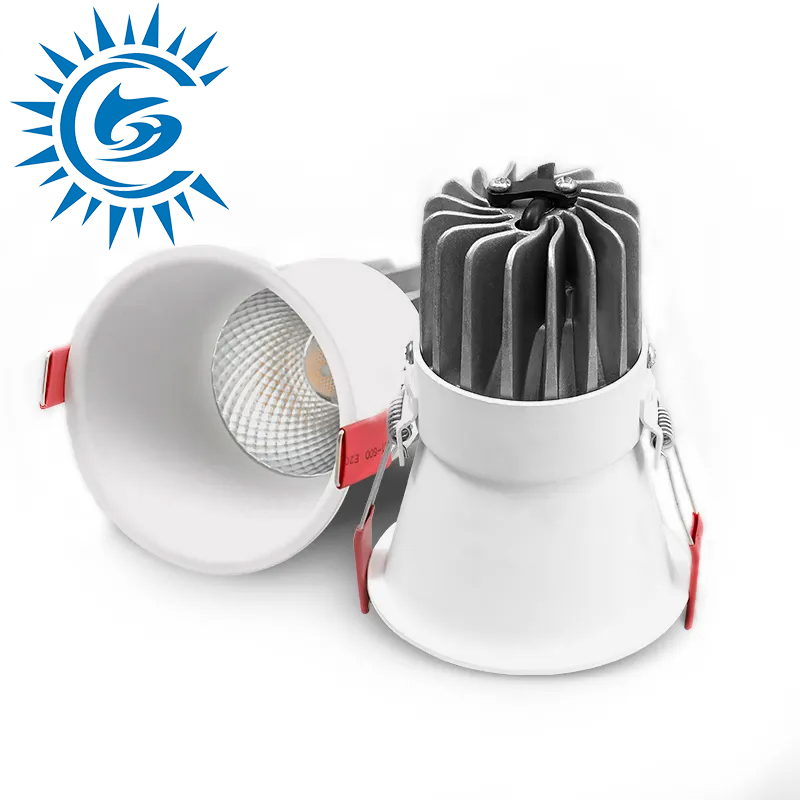

LED Spot Light Downlight 10W 20W Ceiling Recessed Adjustable COB
Product Description
i
Basic Information
Model NO.
YH-DL-016
Power
5W / 10W / 15W / 20W
CCT
2700K - 6000K
Material
Aluminum Alloy

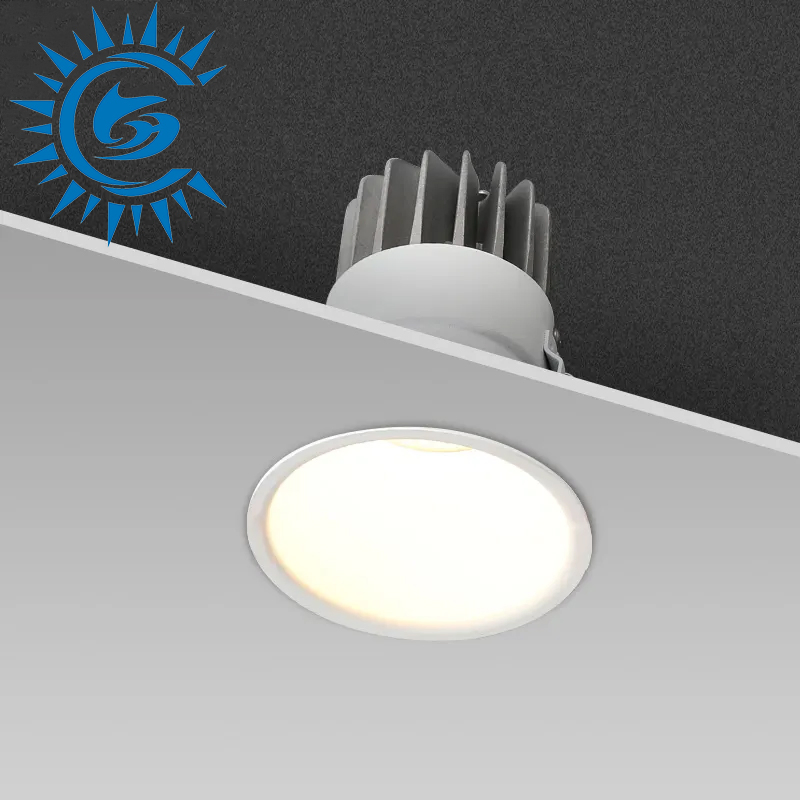

Installation
Recessed
Switch Type
Touch On/Off Switch
Warranty
5 Years
IP Rating
IP44
Efficiency
80lm/W
CRI (Ra)
90
LED Source
COB Chip
Certificates
CE, EMC, LVD, RoHS
D
Product Description
LED Spot Light Downlight 10W 20W Ceiling Recessed Adjustable COB
| Model | YH-DL-016 | |||
|---|---|---|---|---|
| Type | LED Spotlight / LED Downlight | |||
| Power | 5W | 10W | 15W | 20W |

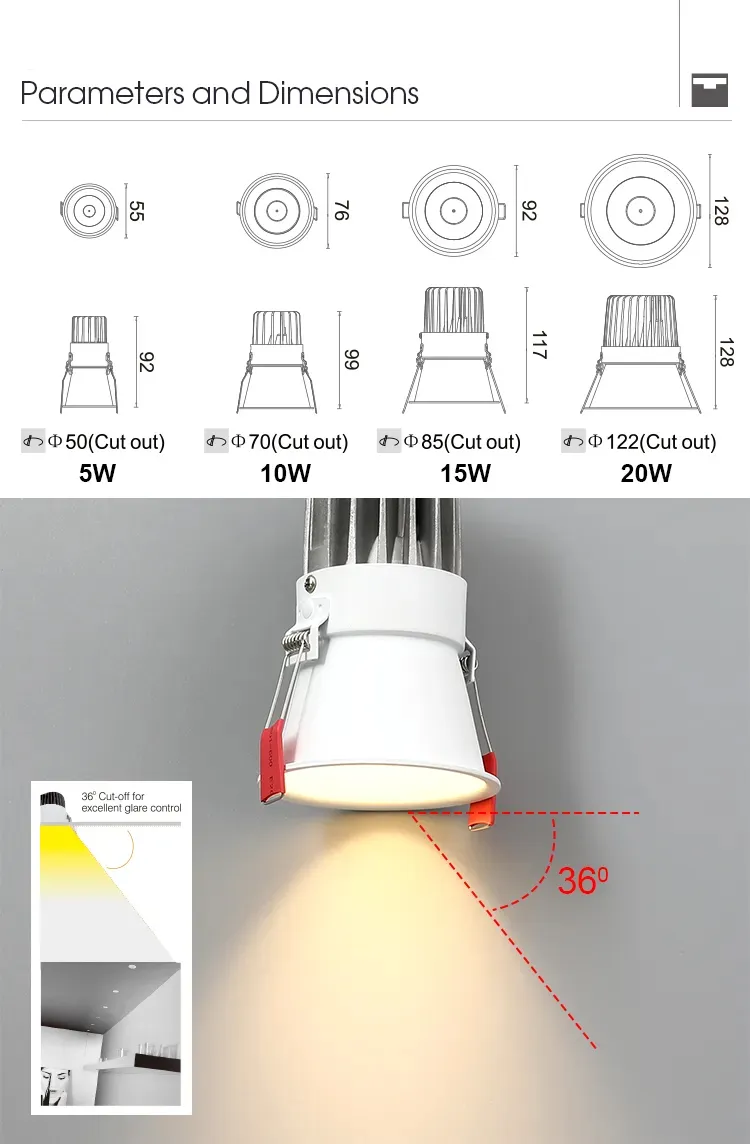

| Size(mm) | Ø92*55mm | Ø99*76mm | Ø177*92mm | Ø128*128mm |
| Cutout(mm) | Ø50mm | Ø70mm | Ø85mm | Ø122mm |
| Lumen (lm) | 370lm | 750lm | 1180lm | 1620lm |
| Beam Angle | 12° / 24° / 40° / Custom | |||
| Luminous Flux | 80-120LM/W | |||
S
Our Service
Fast Response
Inquiry related to products or prices replied in 24hrs.
Inquiry related to products or prices replied in 24hrs.
Professional Team
Well trained sales & after-sales staff in English.
Well trained sales & after-sales staff in English.
OEM/ODM Service
Customized products, packing, and R&D projects.
Customized products, packing, and R&D projects.
?
Frequently Asked Questions
What is the warranty period for this LED downlight?

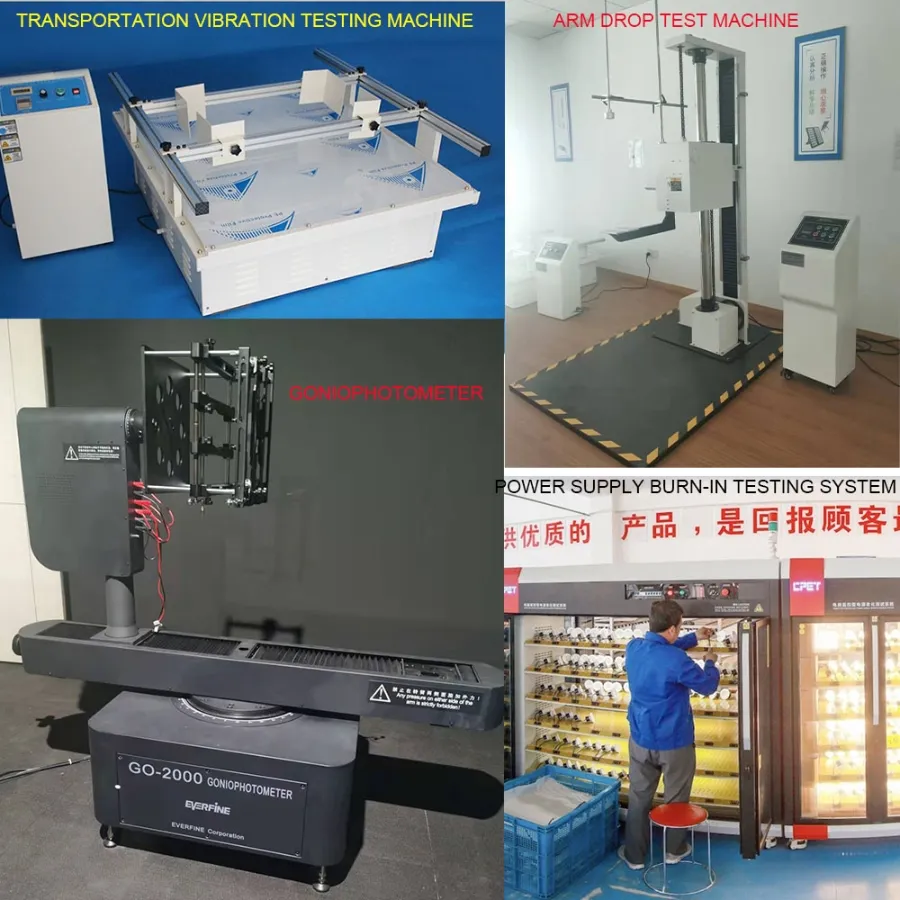

We provide a comprehensive 5-year warranty. All products undergo strict testing by our experienced QC team before shipment to ensure top quality.
Is the light dimmable?
Yes, this model supports dimming functions, allowing you to adjust the brightness to suit different environments and needs.
What are the main materials used in the lamp body?
The lamp body is constructed from high-quality Aluminum Alloy, providing excellent heat dissipation and durability.
What is the IP rating, and where can it be installed?
It has an IP44 rating, making it suitable for home furnishing, commercial spaces, and engineering projects where protection against moisture and dust is required.

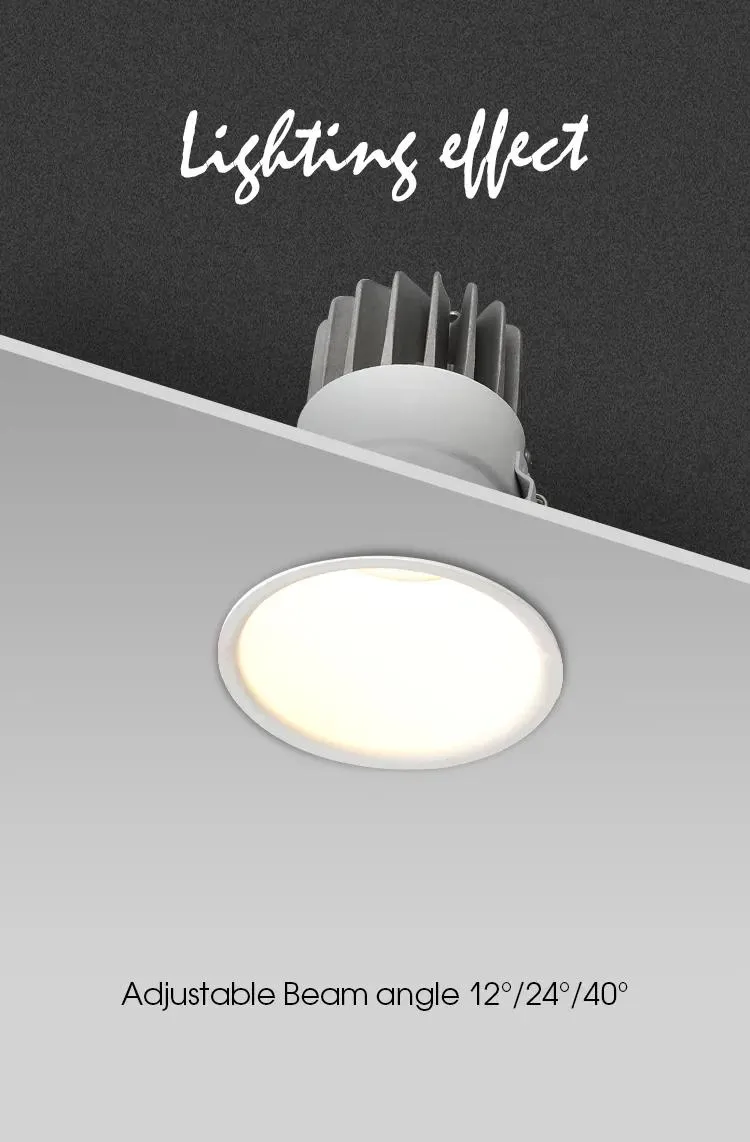

Can I customize the beam angle for my project?
Standard beam angles are 12°, 24°, and 40°. However, we also offer customization options to meet specific lighting design requirements.
What is the lead time for mass orders?
Samples are available within 5-7 working days. For mass production orders, the standard lead time is 30-35 days after receiving the deposit.
