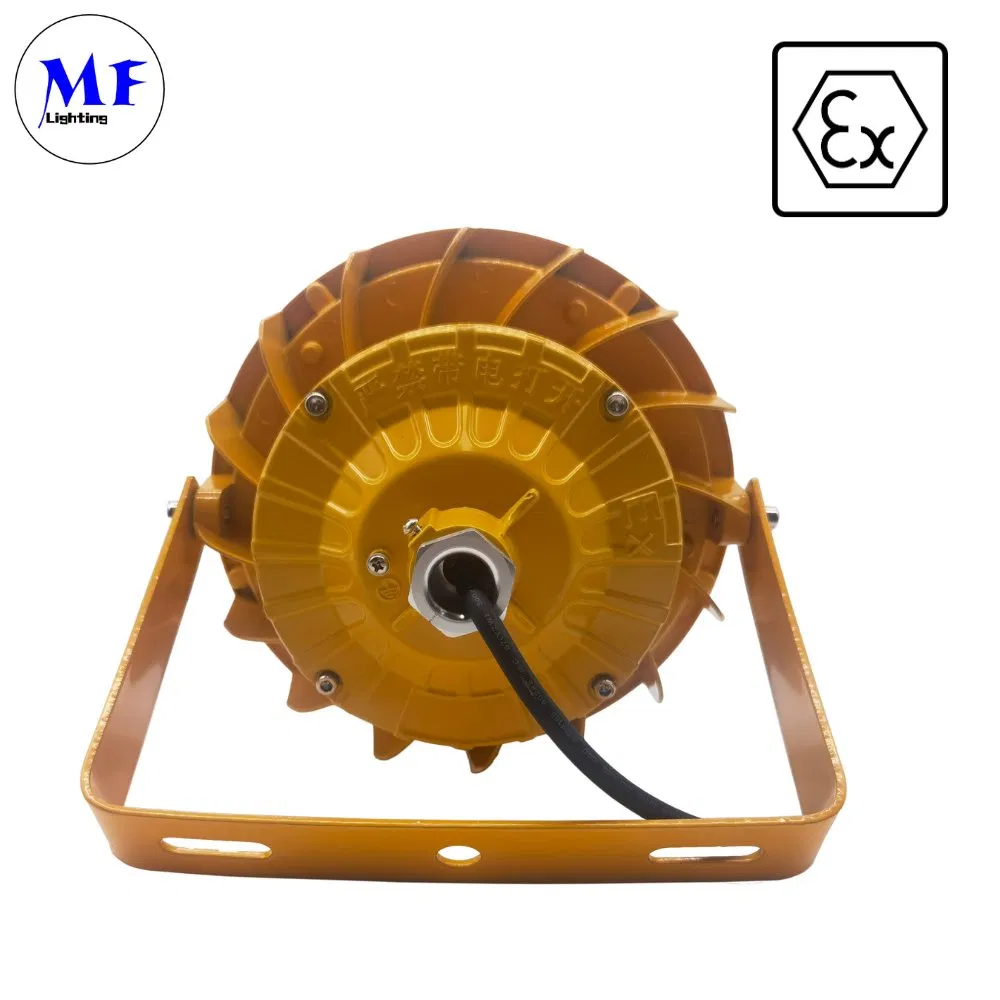

Factory Price 50W/100W/150W/200W/300W Atex Approved LNG Light Oil Gas Industry Light Residential Industrial Filed LED Explosion-Proof Light
Product Description

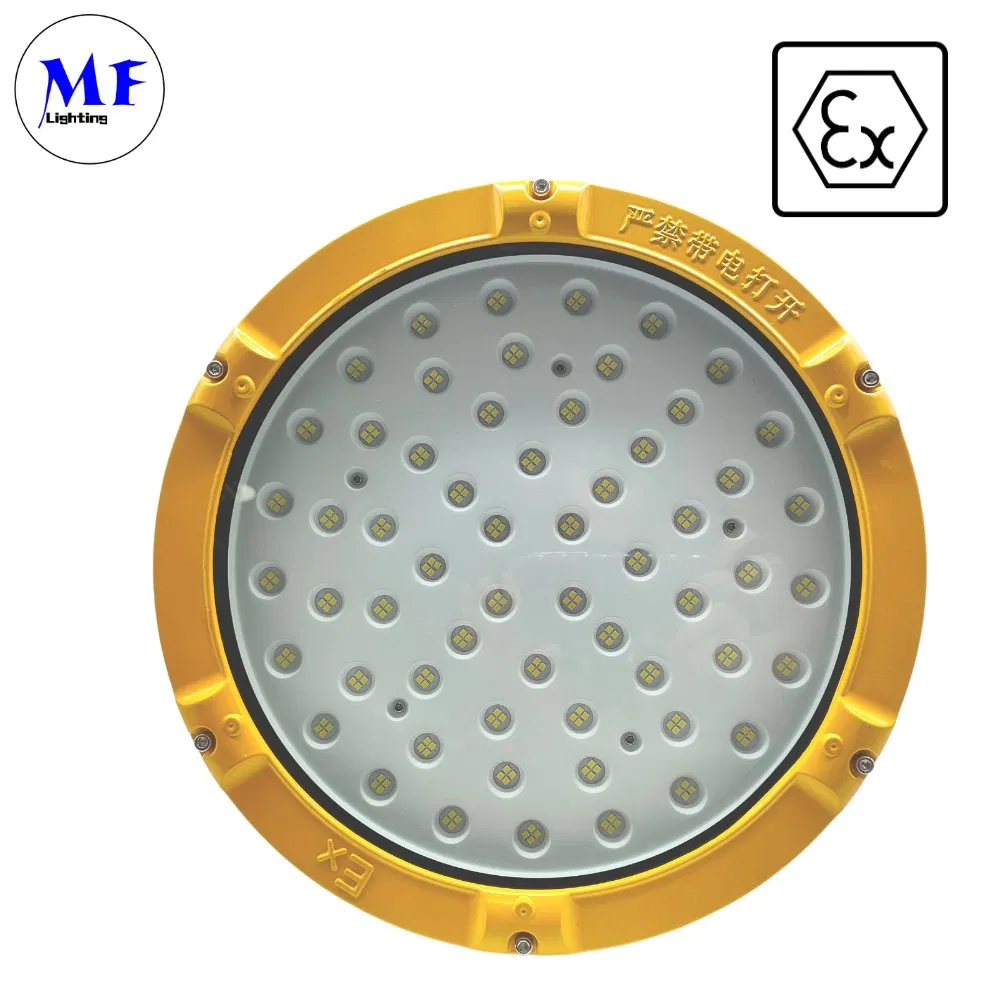

Atex Approved LED Explosion-Proof Light
Ideal for LNG Stations, Oil & Gas Industry, and Industrial Facilities
🛡️
ATEX II 2 G Ex nr IIC T6 GC
IECEX Ex nr IIC T6 GC
IP66 Waterproof
IK10 Impact Proof
Technical Classification:
- • II 2 G Ex nr IIC T6 GC
- • II 2 D Ex tb IIIC T80 Db IP66
📋Basic Specifications
Model:EX-XXWQ1ZDA
Input Voltage:AC100-277V 50/60Hz
Power Range:60W - 200W
Color Temp:3000K/4000K/5000K/5700K
Luminous Flux:140lm/W
Beam Angle:120°
CRI:80ra+
Warranty:5 Years
Operating Temp:-30~50ºC
Housing Color:Silver / Orange
📊Performance Table
| Item | Power | Color Temp | Voltage | Lumens | Warranty |
|---|---|---|---|---|---|
| EX-50W Q1YZDA | 50W | 2200K-7000K | AC100-277V | 7000 | 5 Years |
| EX-100W Q1YZDA | 100W | 14000 | |||
| EX-150W Q1YZDA | 150W | 21000 | |||
| EX-200W Q1YZDA | 200W | 28000 | |||
| EX-300W Q1YZDA | 300W | 42000 |
*Product code info: "Y"=Dimmable/Non-dimmable, "Z"=CCT, "D"=Beam Angle (D40/D60/D90/D120)
🛠️Installation Options

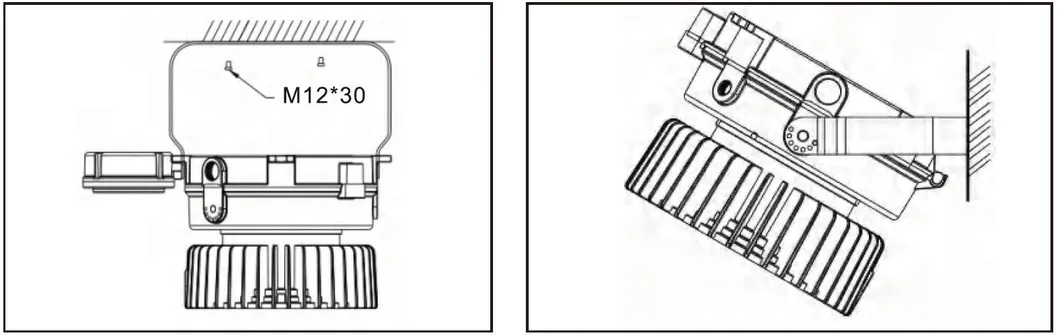

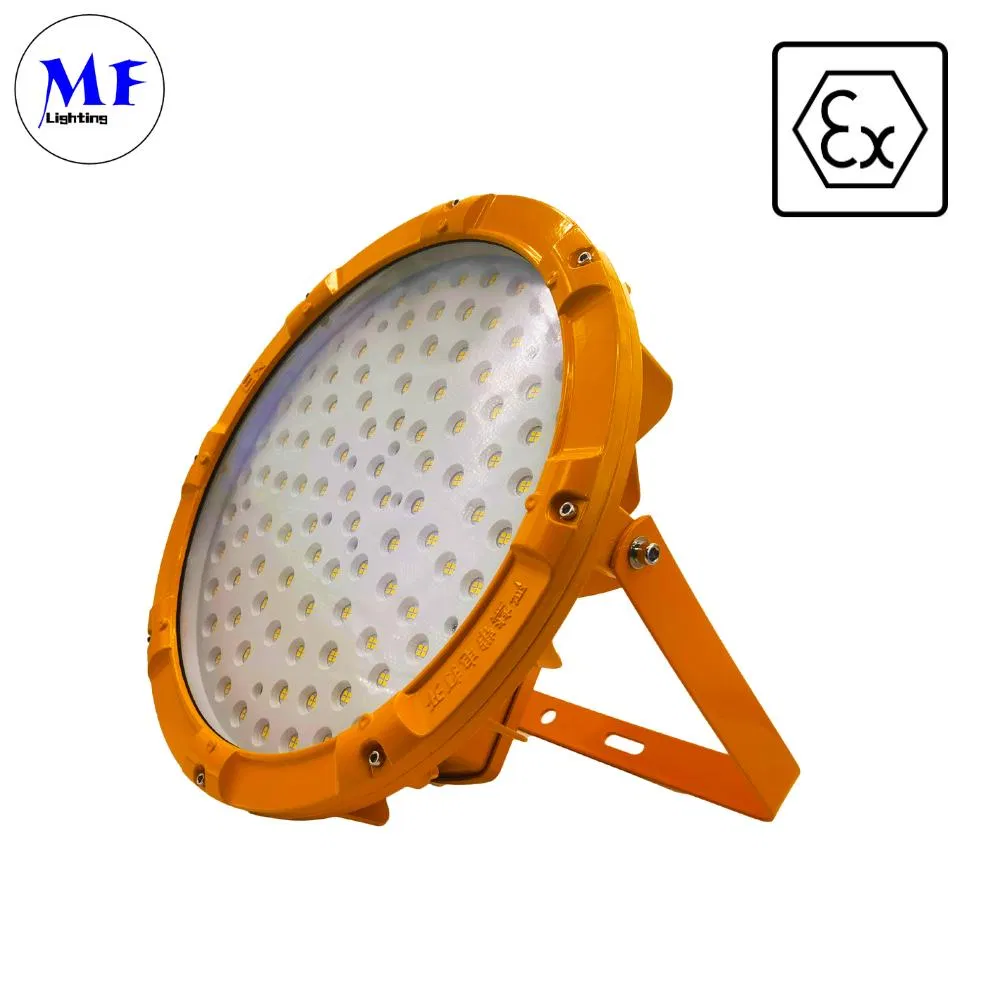

Bracket Ceiling & Wall Mounting

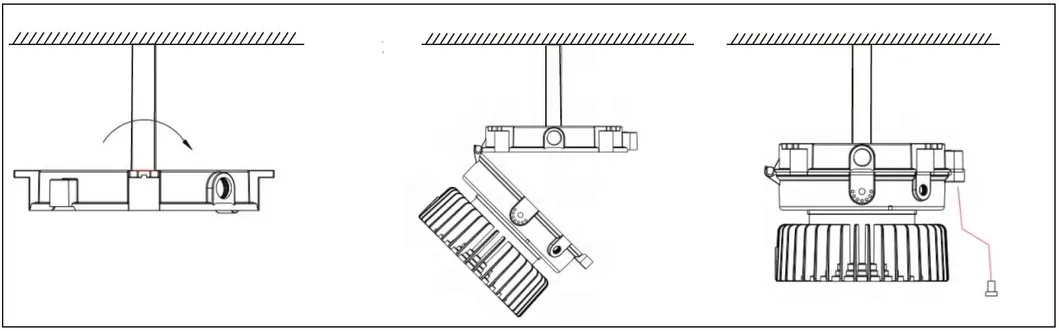

Pole Mounting

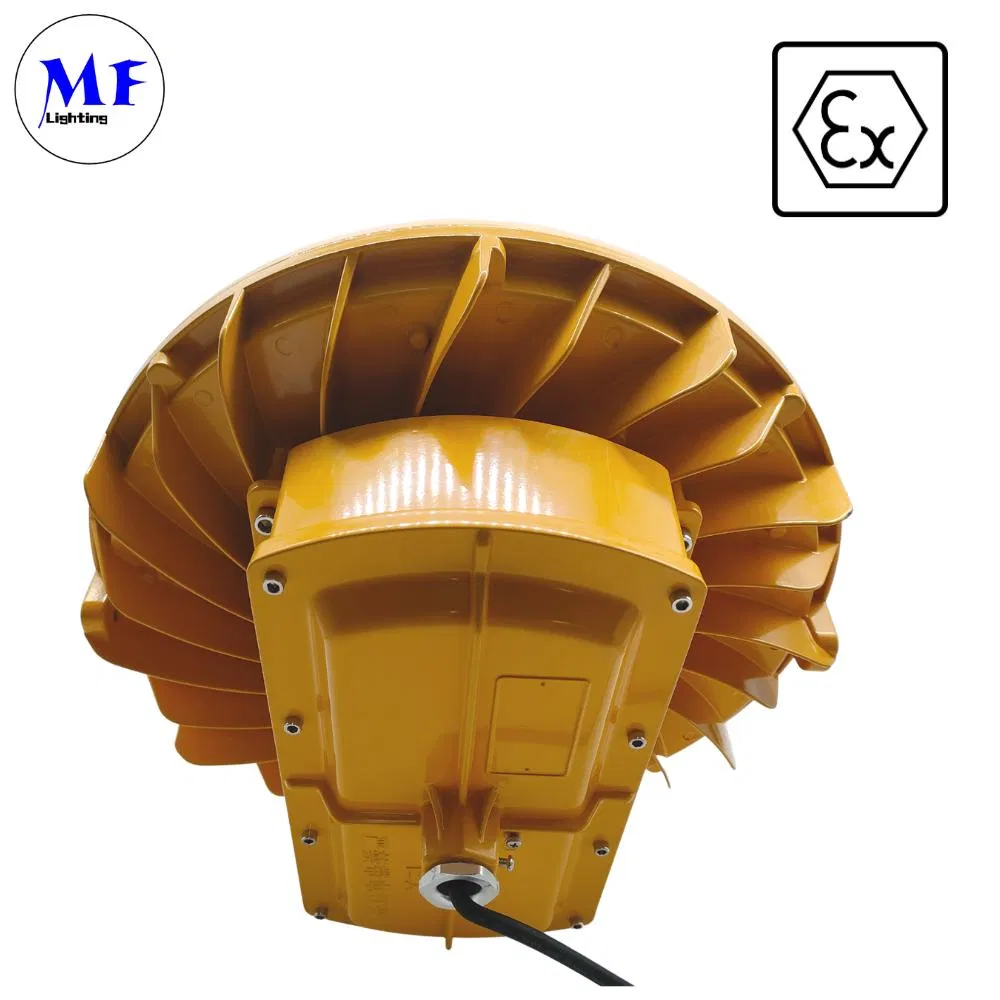

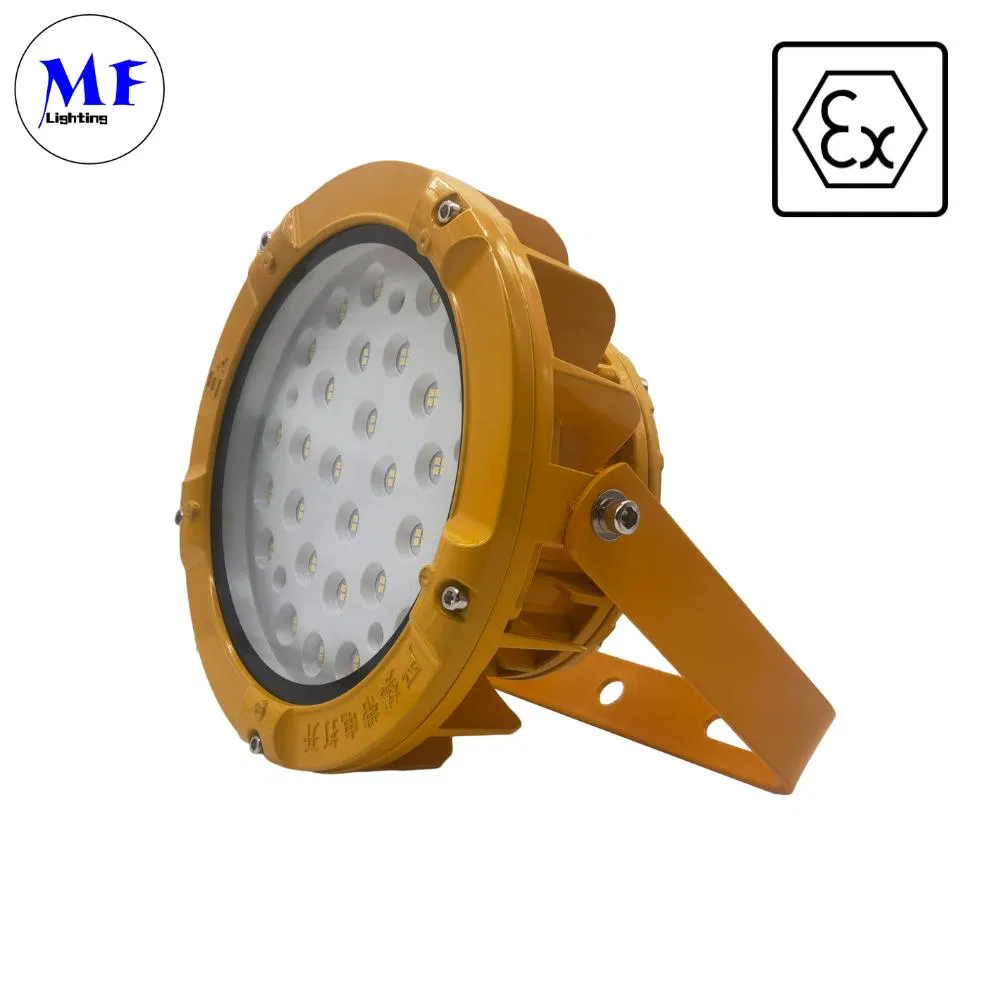

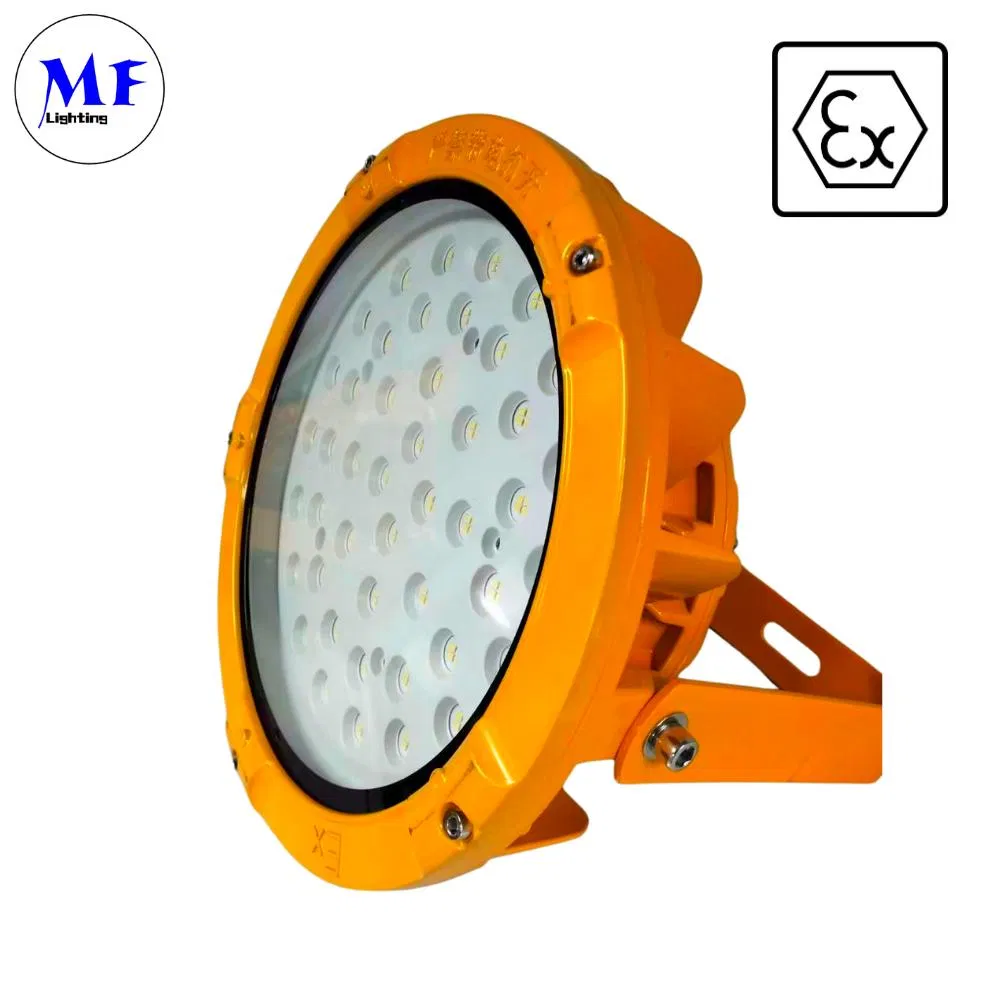

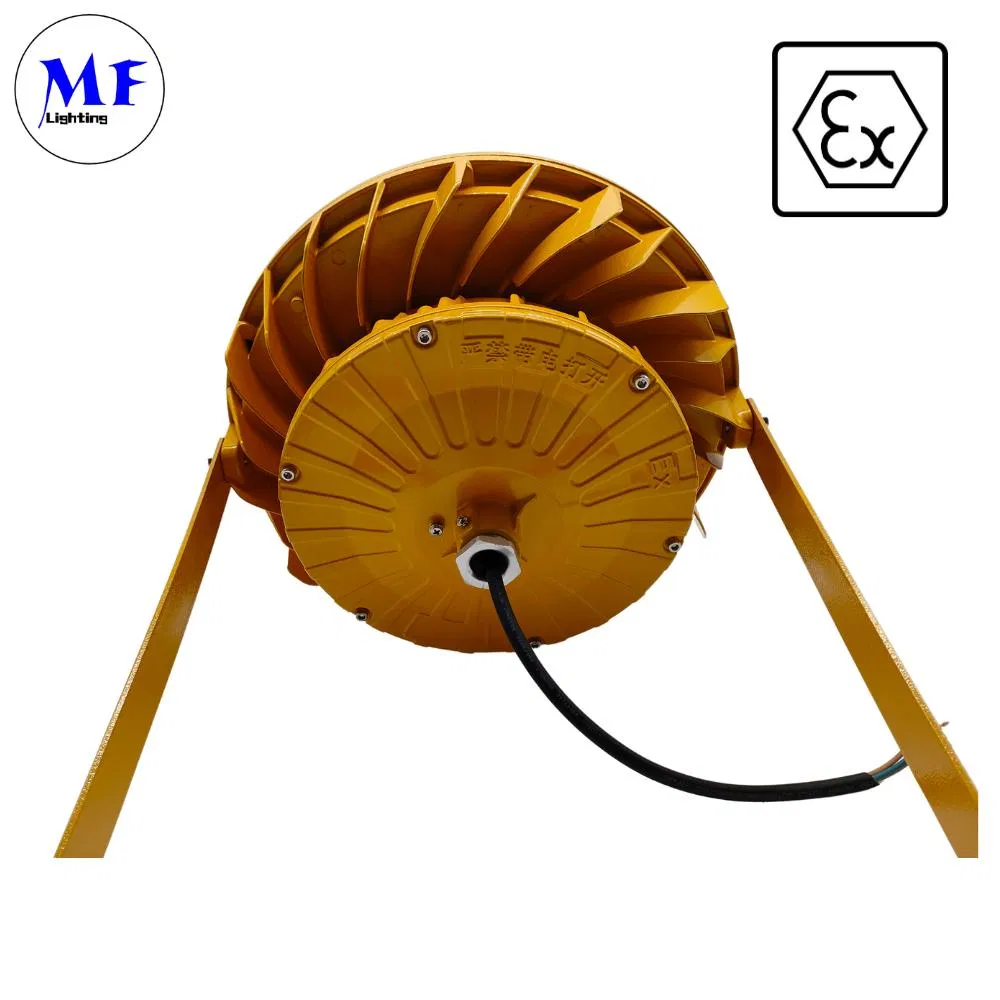

🔍Detailed Product Views

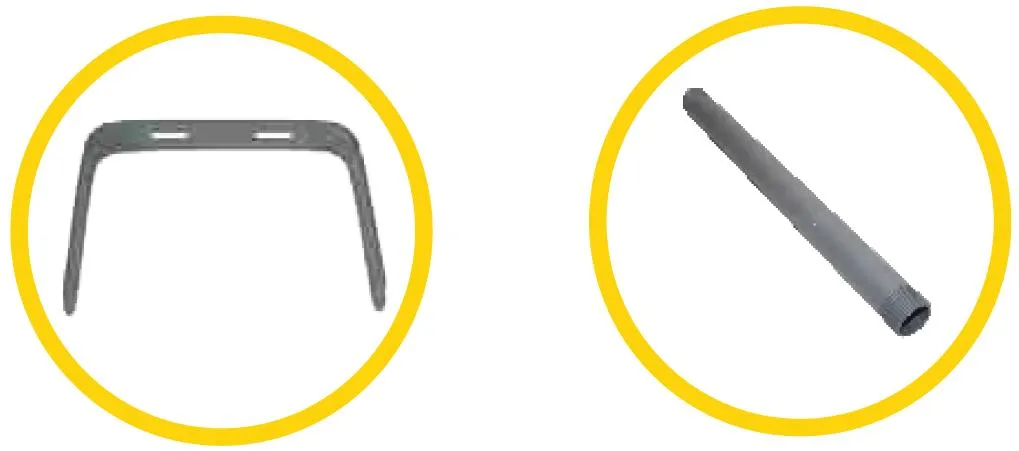

Accessories: Bracket & Straight Pipe

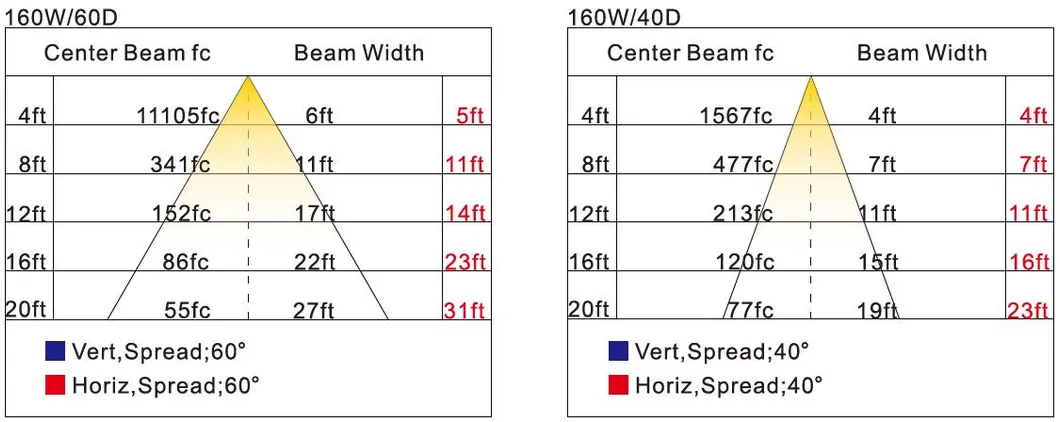

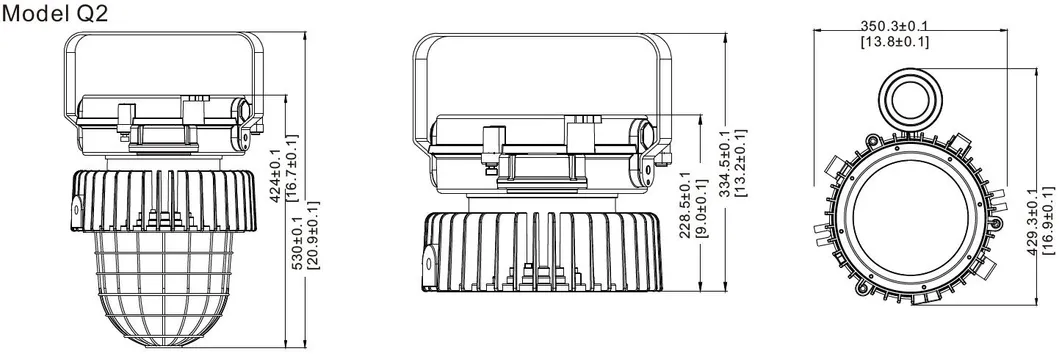

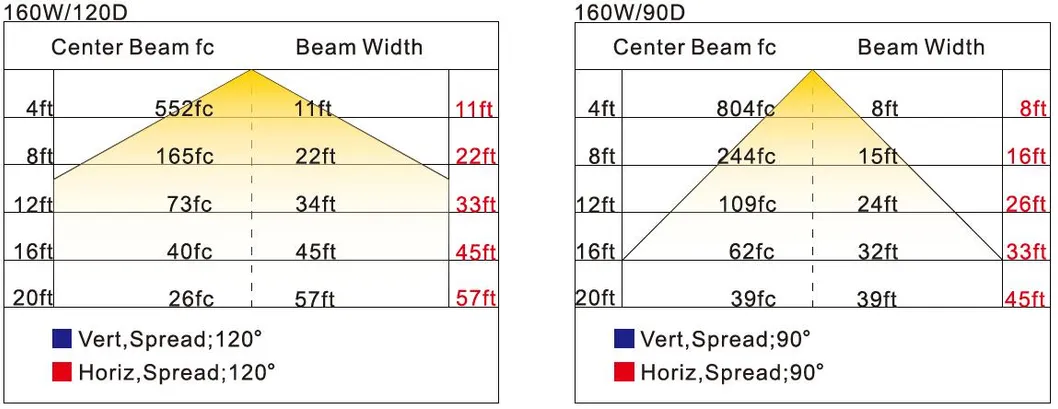

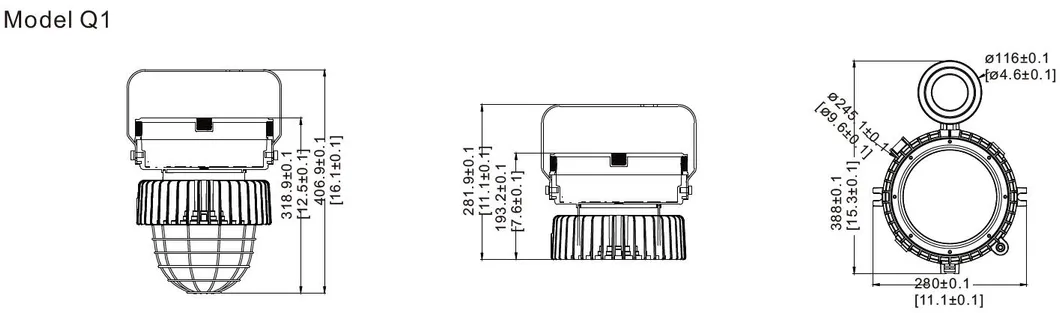

📐Dimensions & Photometry

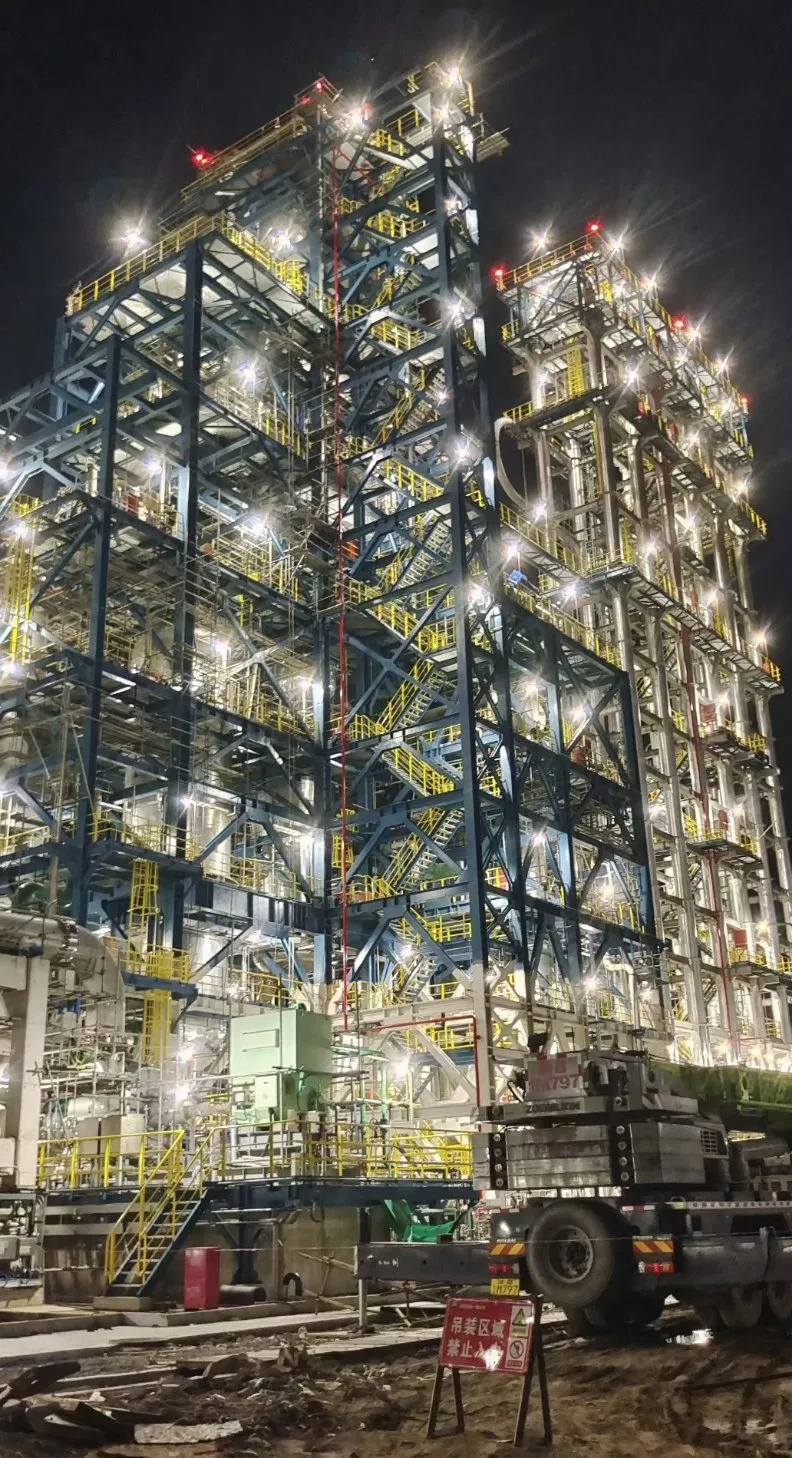

🌍Applications
- Refineries & Fuel Depots: Resistant to flammable gases and vapors.
- Marine Vessels: Durable and long-lasting in harsh marine environments.
- Chemical Processing: Withstands corrosive chemicals and extreme conditions.
- Food Processing: Resistant to moisture and high-pressure washdowns.
- Mining Operations: Ideal for underground mining where safety is critical.
- Dusty & Humid Areas: Engineered for places with high humidity and dust.
📦Packaging & Shipping
| Item | Qty/Carton | Packing Size (mm) | N.W (KG) | G.W (KG) |
|---|---|---|---|---|
| Q1 | 1 | 530*520*380 | 10.5 | 12.5 |
| Q2 | 1 | L512*W432*H345 | 12.6 | 15.0 |
Supports Sea, Air, Rail Transportation and International Express
Frequently Asked Questions
Q1: What are the specific explosion-proof ratings for this light?
A: This light is ATEX and IECEx certified with ratings of II 2 G Ex nr IIC T6 GC and II 2 D Ex tb IIIC T80 Db IP66, making it safe for both gas and dust hazardous environments.
Q2: Can the wattage be customized for different project requirements?
A: Yes, we offer a wide range of power options including 50W, 60W, 80W, 100W, 120W, 150W, 180W, 200W, and up to 300W to suit various installation heights and brightness needs.
Q3: What is the lifespan and warranty of these LED lights?
A: These units come with a 5-year warranty. The high-efficiency LED chips and robust housing ensure long-term stability even in temperatures ranging from -30°C to 50°C.
Q4: Are these lights suitable for outdoor marine use?
A: Absolutely. With an IP66 waterproof rating and corrosion-resistant housing, these lights are designed to withstand the harsh conditions of marine vessels and offshore platforms.
Q5: What mounting methods are supported?
A: The lights support multiple installation methods, including bracket-based ceiling mounting, wall mounting, and pole mounting, providing flexibility for different industrial layouts.
Q6: What is the input voltage range?
A: The standard input voltage is AC100-277V (50/60Hz), which covers most global industrial power standards.
