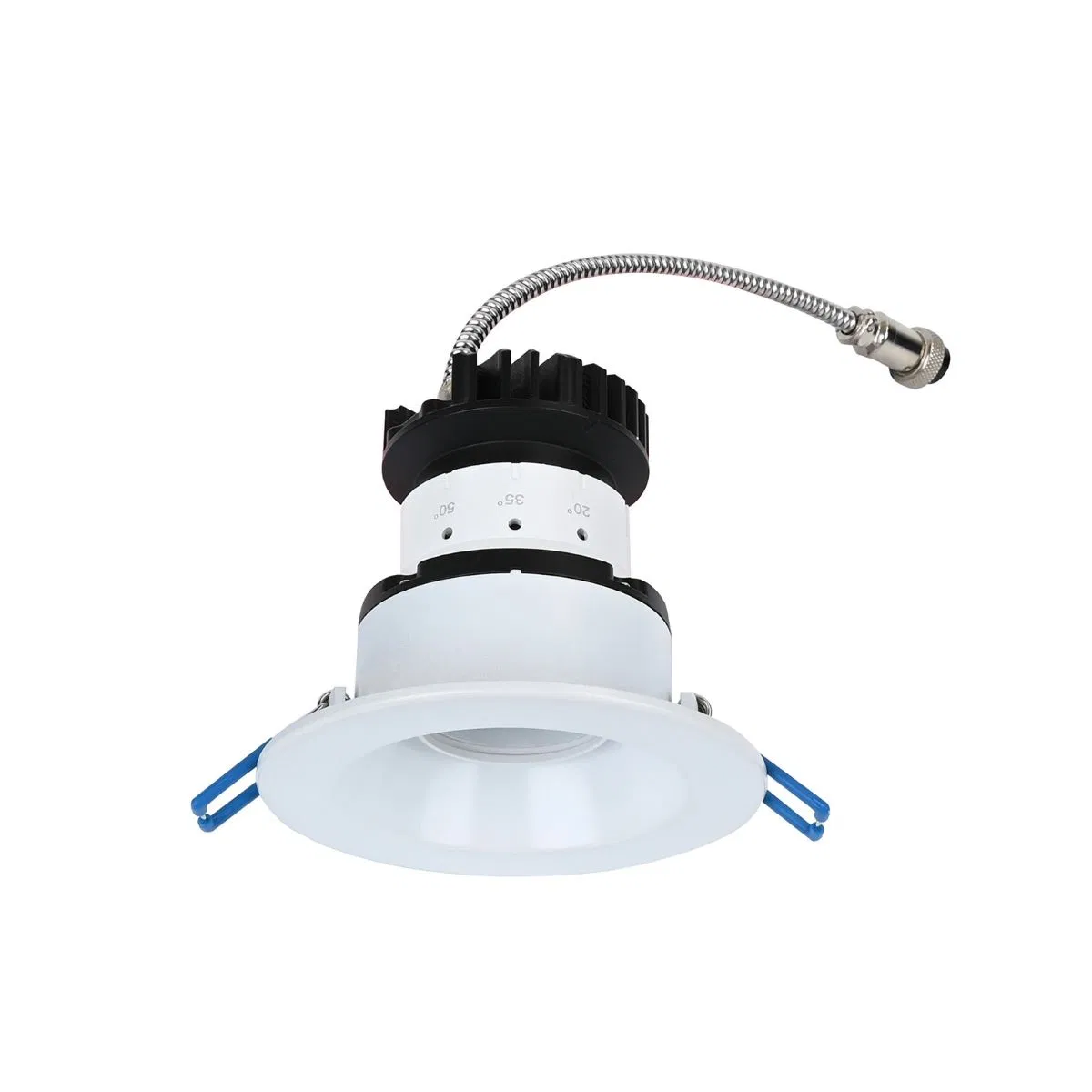

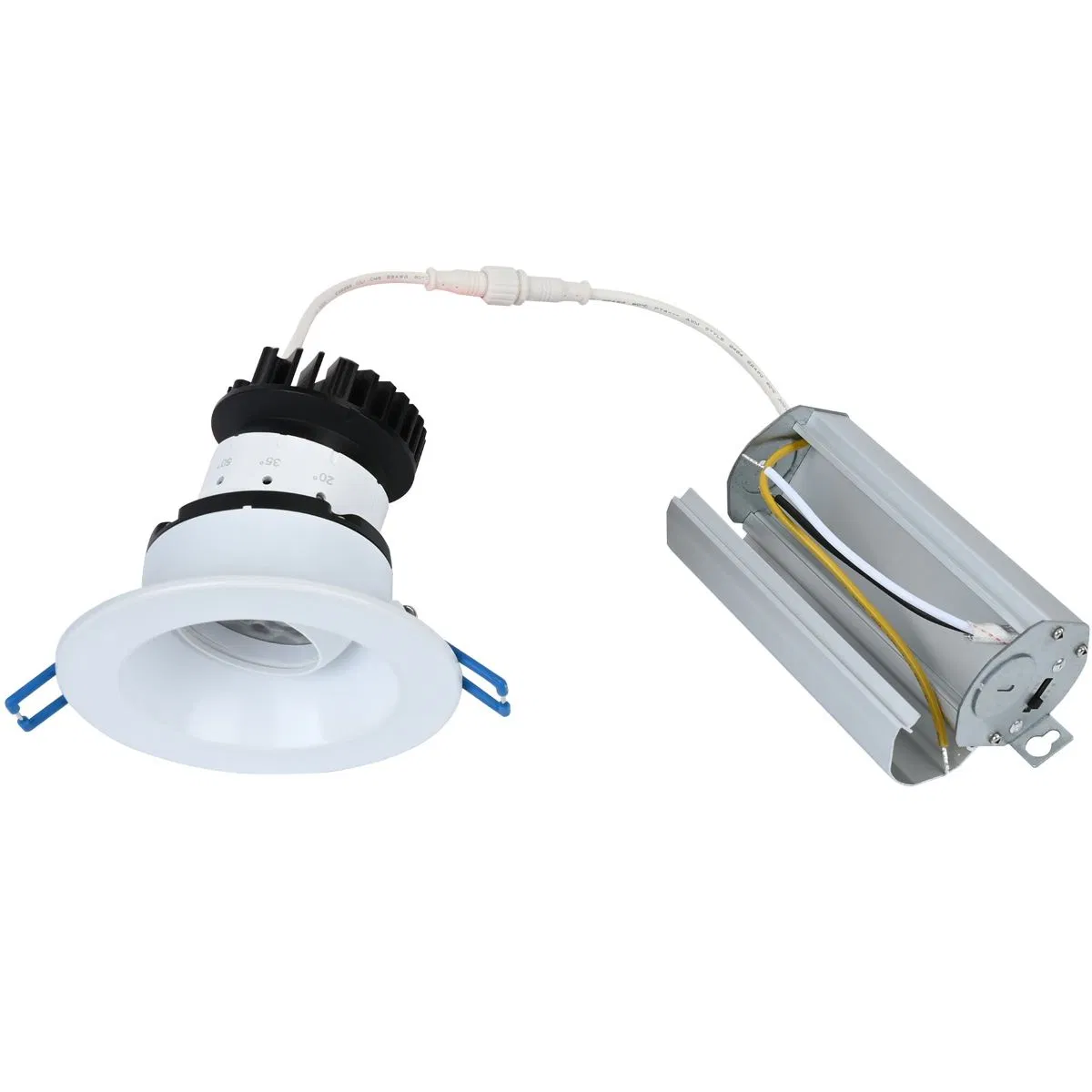

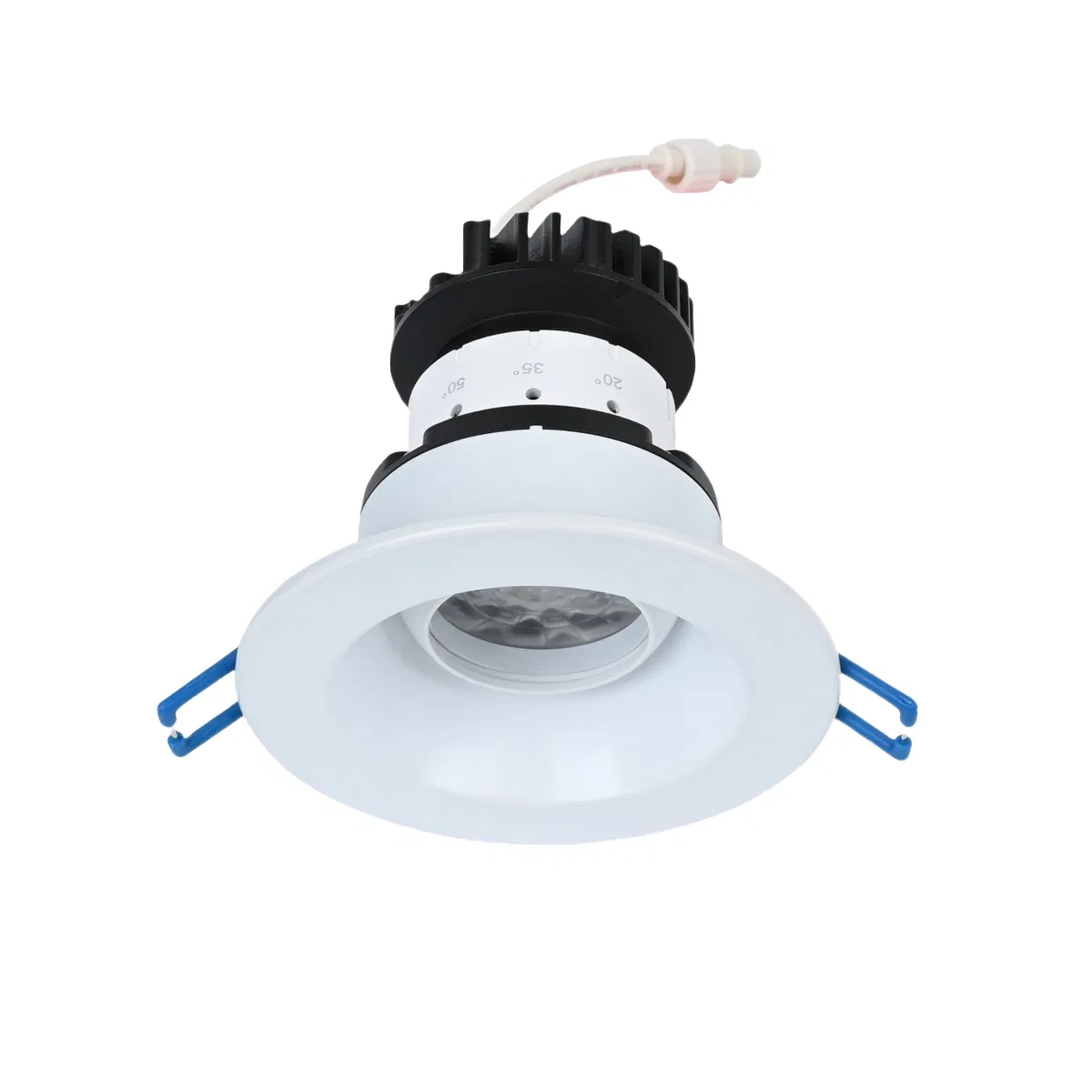

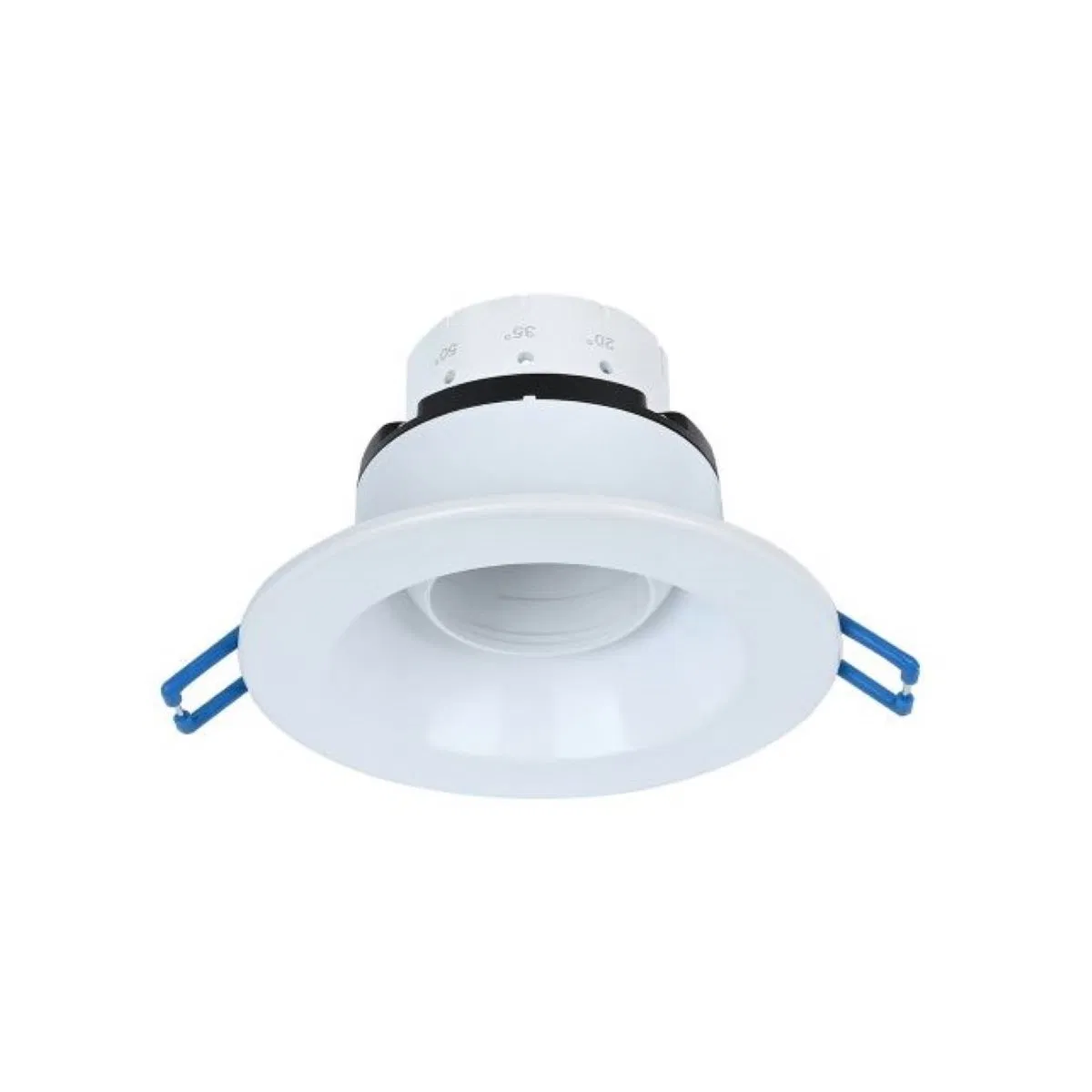

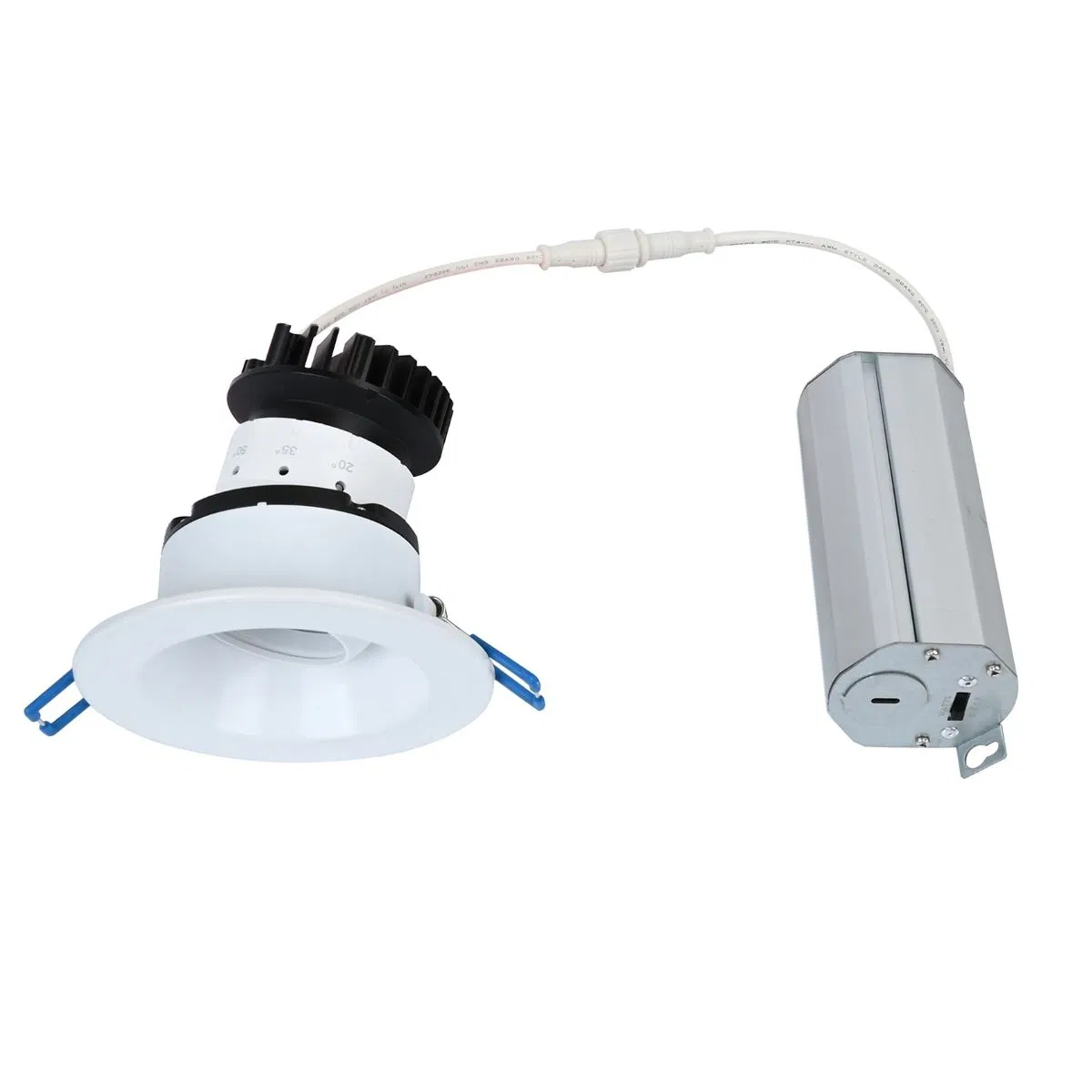

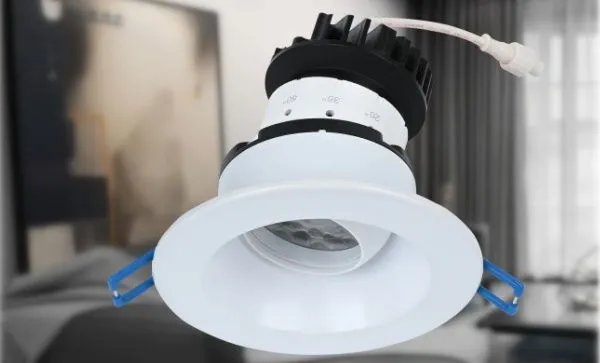

Beam Angle Adjustable Factory Price 2025 New LED Recessed Round White Black Color 5CCT Down Light Ceiling Light for Indoor Light
Product Description
📋
Product Overview
Model NO.
KG3R-ABA
Power
5-12W Adjustable
Color Temperature
5CCT Adjustable
Material
Aluminum
Installation
Recessed
IP Rating
IP54
Warranty
5 Years
Certification
CE, EMC, Energy Star, ETL, FCC, RoHS
💡
Product Description
⚙️
Innovative Mechanics: Patent-pending adjustable beam angle downlight combines modular design to enable effortless beam angles adjustments between 20° and 50°.
Featuring functions of 360° rotation and 20° tilt, it enables users to tailor light distributions for any space. Ideal for residential, commercial, and architectural applications.

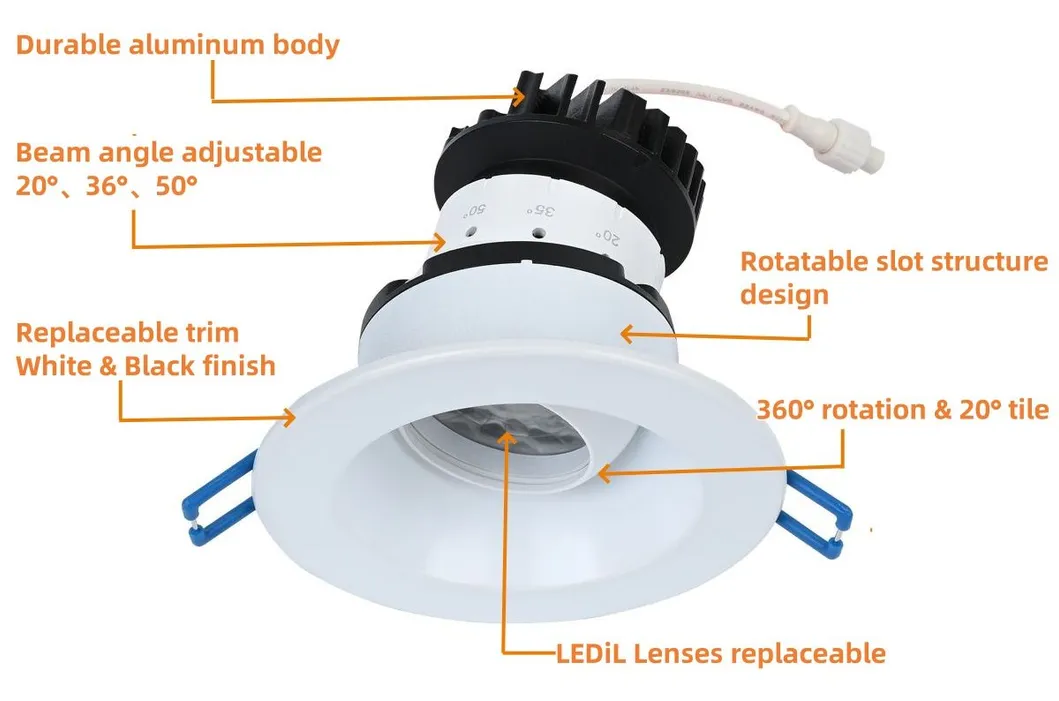

Core Features
- Durable Aluminum body for superior heat dissipation
- Beam angle adjustable effortlessly between 20°-50°
- 360° rotation and 20° tilt for precise aiming
- LEDiL Lens interchangeable for low glare or wall washing effects

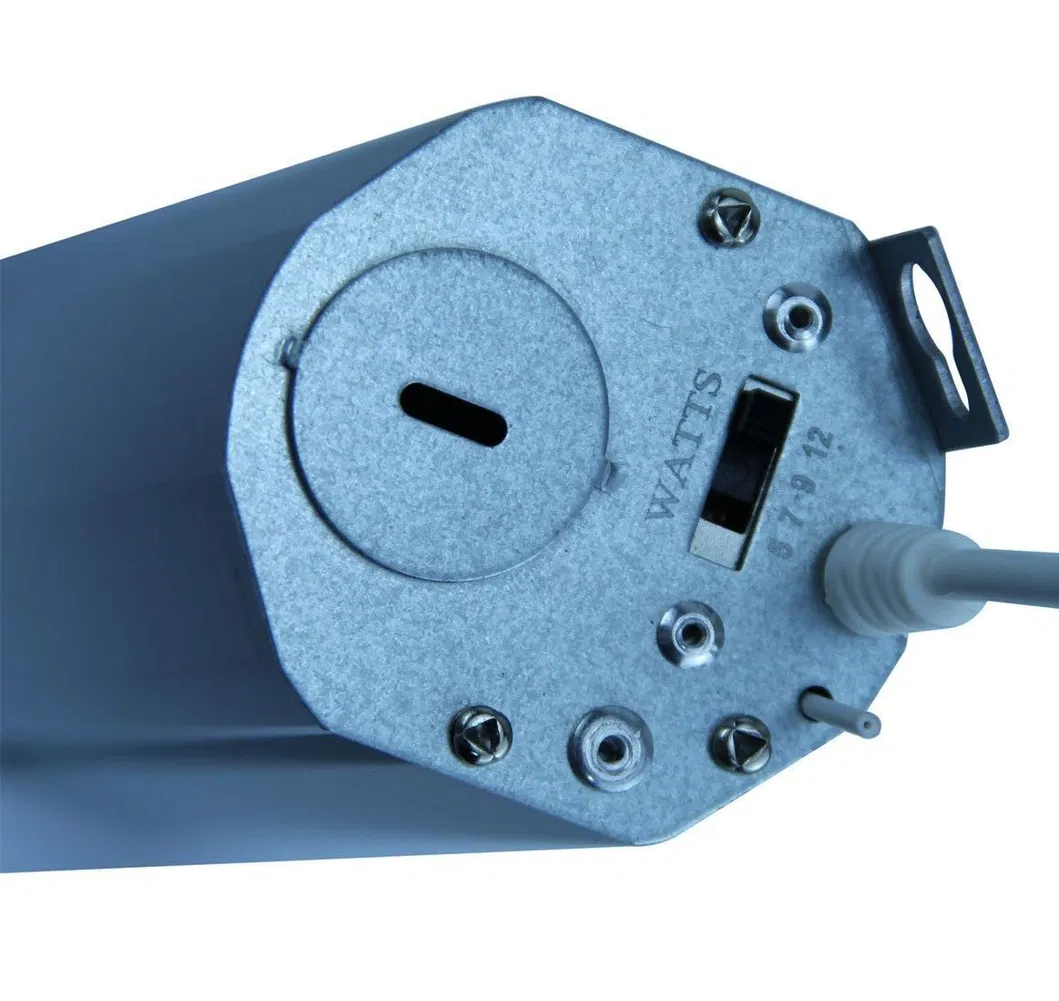

- Wattage selectable: 5W/7W/9W/12W
- 5CCT-adjustable and compatible with TRIAC dimmer
- High-efficiency Bridgelux LED, CRI > 90+
📊
Technical Specifications
| Model | KG3R-ABA |
|---|---|
| Input Voltage | 120V-277V AC 50/60 Hz |
| CCT | 5CCT (2700K/3000K/3500K/4000K/5000K) |
| Beam Angle | Adjustable 20°/36°/60° |
| Power Factor | >0.9 |
| Air Tight | Yes |
| Dimension | φ110*H100mm |
| Cutout Hole | 90mm |
| Finish Color | White/Black/Bronze |
📸

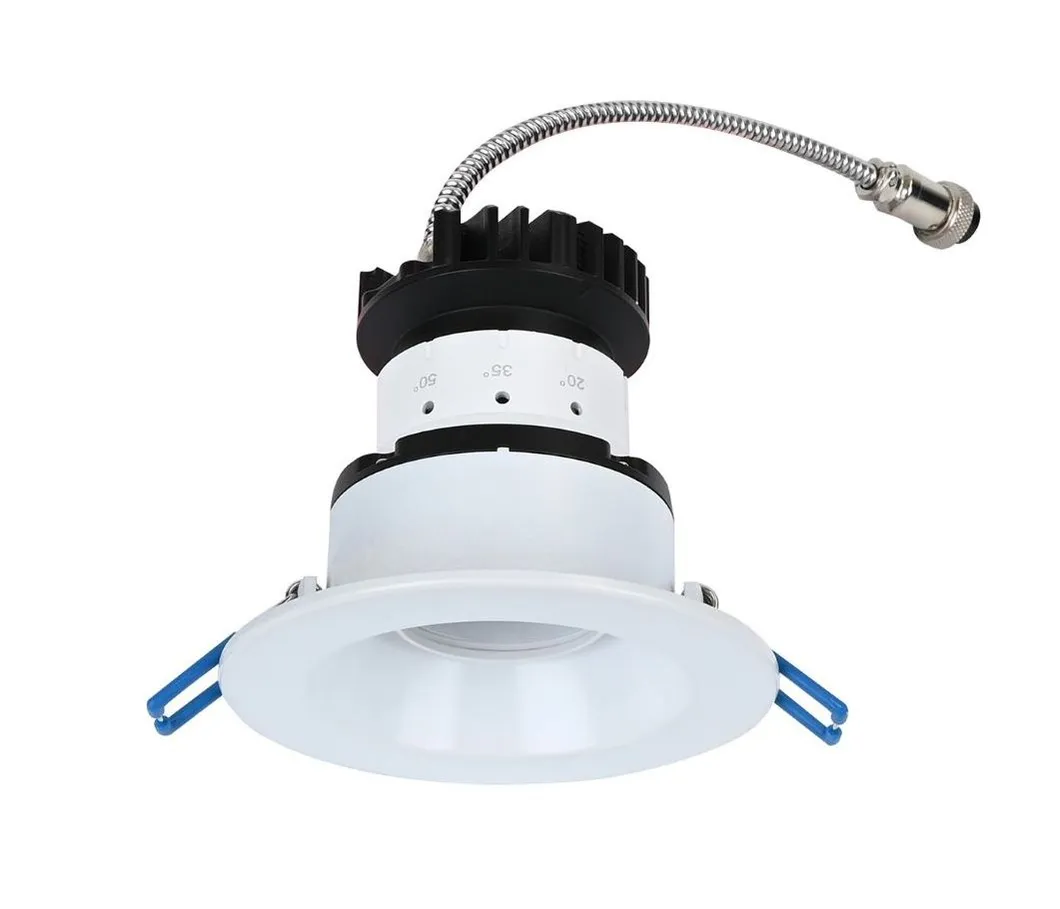

Product Details

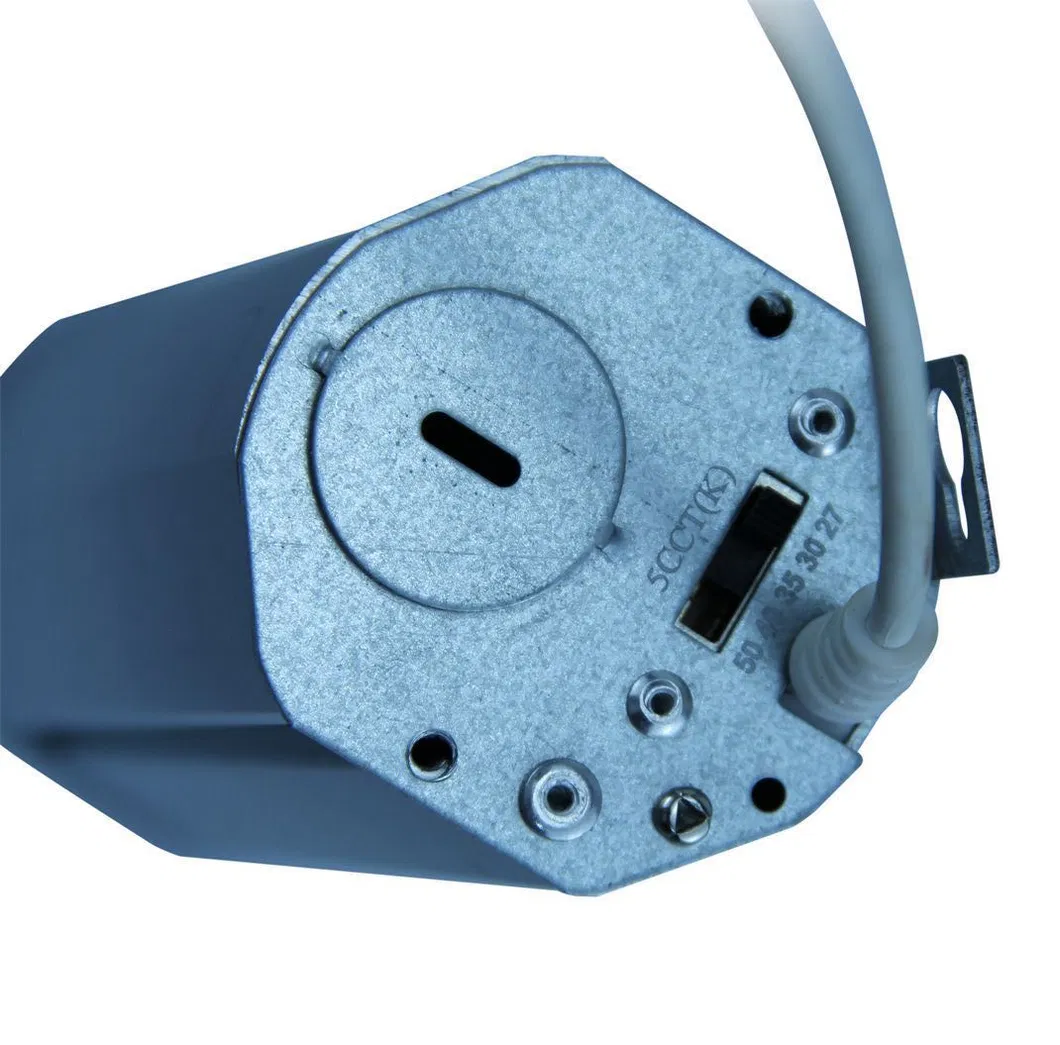

5CCT Selectable Range
Available Beam Angles: 20° / 36° / 60°
🏠

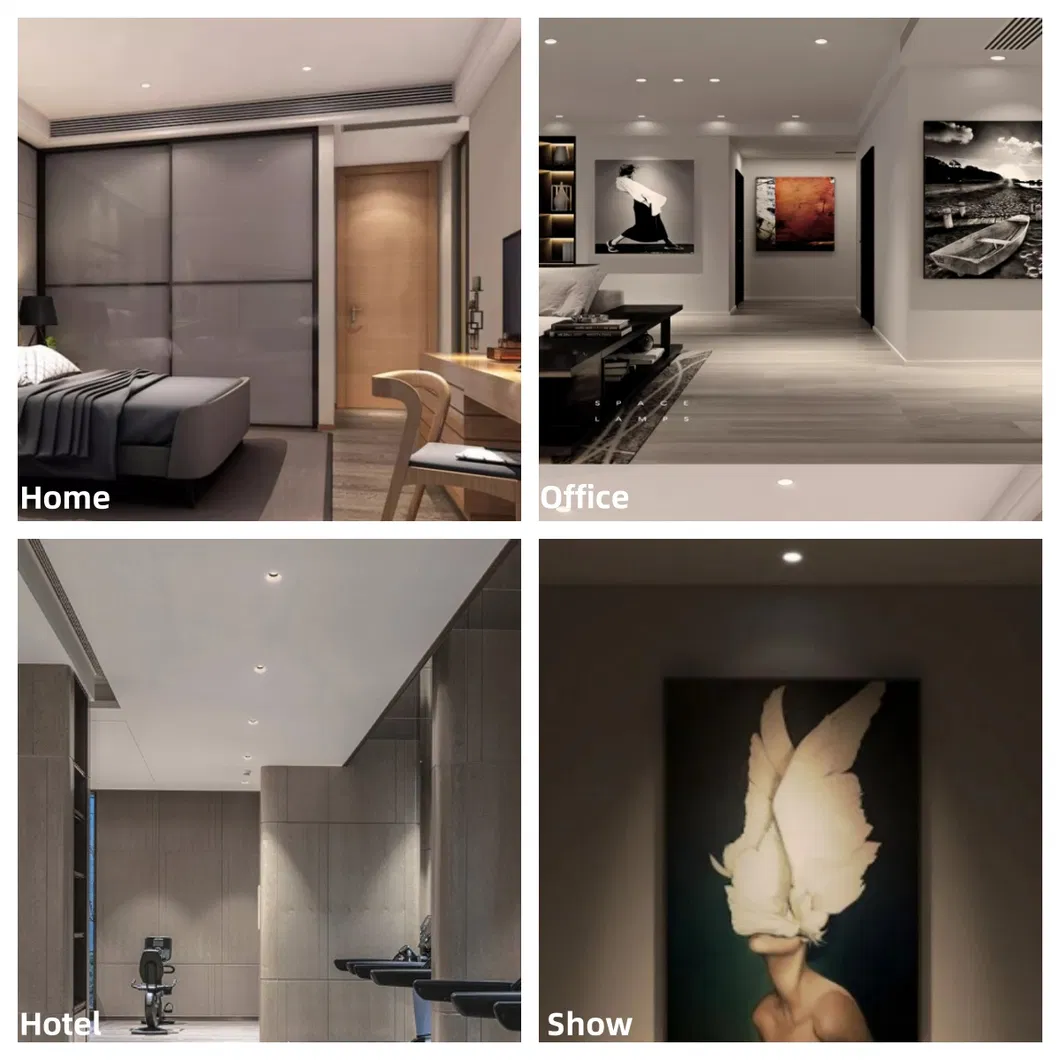

Applications
🏭

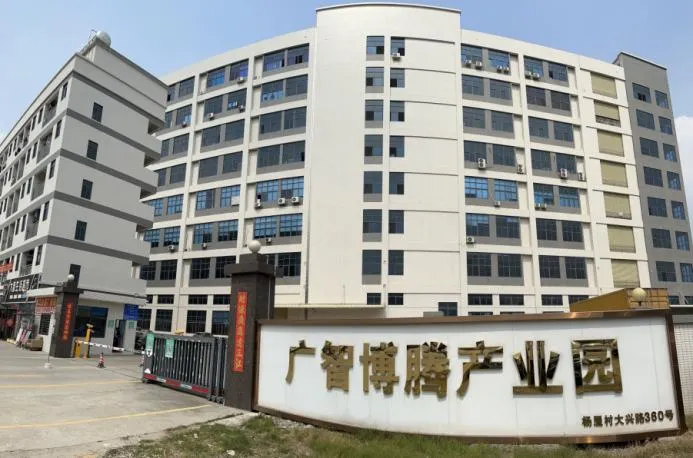

Manufacturing Excellence
Our facilities include advanced LED manufacturing equipment such as auto soldering machines, SMT machines, and electric testing devices including integrating spheres and distribution photometers. We strictly implement ISO9001 management processes with 48-hour aging tests before shipping.
📦
Packaging & Shipping
Cardboard packaging is robust enough for long-distance transportation. We offer a wide range of logistics options: world express, sea, air, or land freight.
❓
Frequently Asked Questions
Can I adjust the beam angle after installation?
Yes, our patent-pending design allows for effortless beam angle adjustments between 20° and 50° to suit your changing lighting needs.
What color temperatures (CCT) are available?
This light features 5CCT adjustable settings, allowing you to choose between 2700K, 3000K, 3500K, 4000K, and 5000K.
What is the warranty period for this product?
We provide a 5-year warranty on this recessed light, ensuring long-term reliability and performance.
Is the downlight dimmable?
Yes, it is compatible with most TRIAC dimmers and we also offer optional 0-10V dimmable drivers.
What is the production lead time?
For small quantities, production typically takes 5-7 days. Bulk orders are scheduled based on the specific quantity.
How do you ensure product quality before shipping?
All products undergo a strict 48-hour aging test and full inspection before they are packed for international transport.
