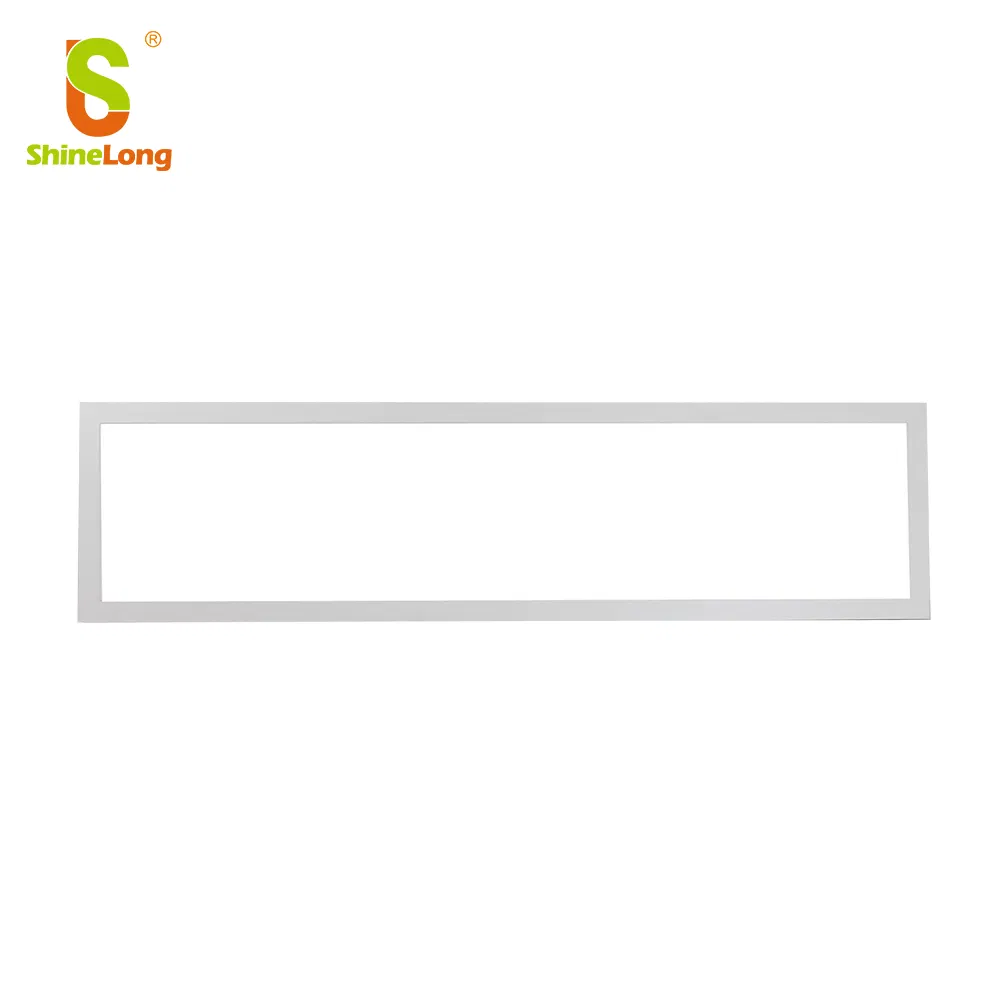

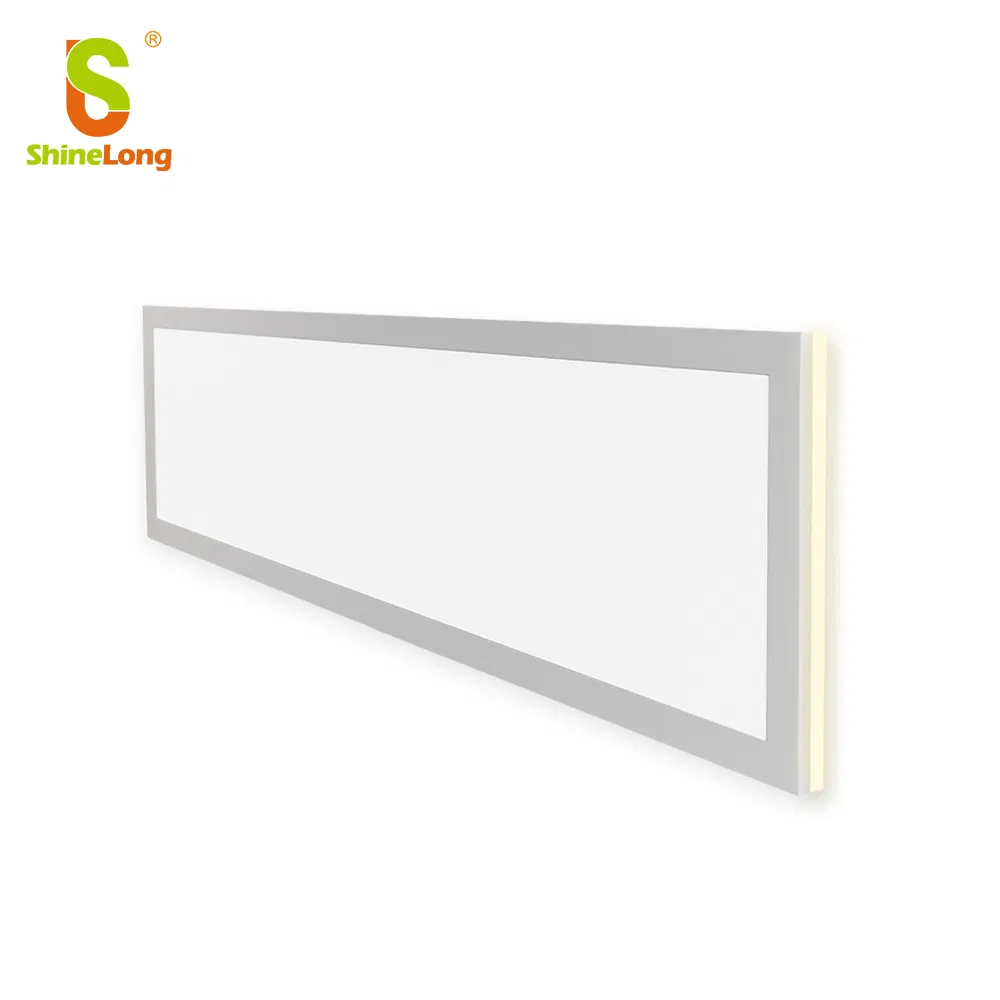

Bluetooth Smart LED Panel Light with on/off Switch 5 CCT Adjustment
Product Description
📋
Basic Info
Model NO.
SL-P2240-X-28E
Emitting Color
White
Dimmable
With Dimmable
Appearance
Square
Type
Ceiling
Base Material
Metal
Certification
CE, RoHS, ISO9001
Voltage
200-240V
Beam Angle
120°
Product Name
Smart Internal Driver LED Panel Light
Shape
Square Shape
Power
20W/40W/60W
Size
612*612/312*1222/612*1222
Color
3000K/4000K/5000K/6000K
Material
Aluminum + PMMA
Installation
Suspending & Ceiling Mounted & Recessed
HS Code
9405110000
Production Capacity
2000PCS/Month
📦
Packaging & Delivery
Package Size
71.00cm * 28.00cm * 71.00cm
Package Gross Weight
19.000kg
💡
Product Description
Bluetooth Smart LED Panel Light with on/off switch 5 CCT Adjustment
- Ultra-thin 23mm Smart internal driver led panel light
- CE, RoHS Certified, IK06 IP40 approved
- Efficacy (IES): 100lm/w ±10%
- Input voltage: AC200-240V/AC100-277V 50/60Hz

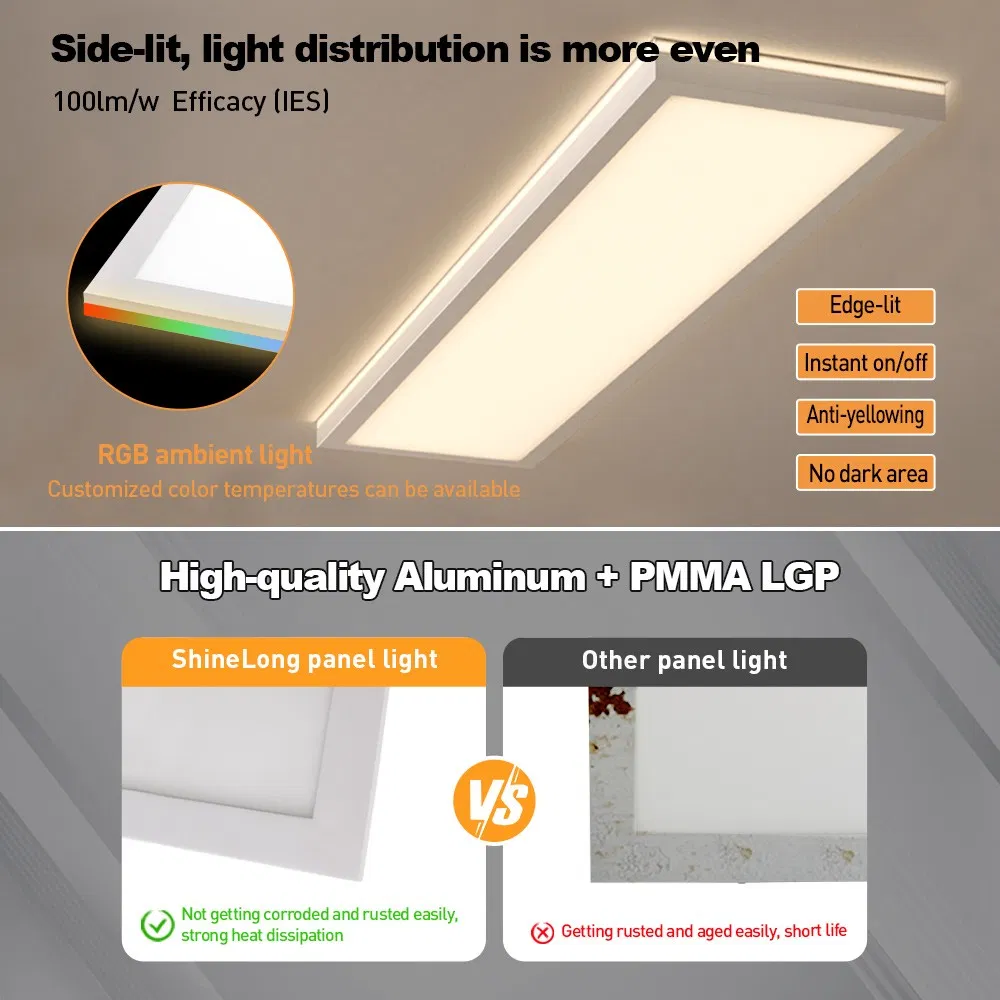

- Material: High-quality Aluminum + PMMA LGP

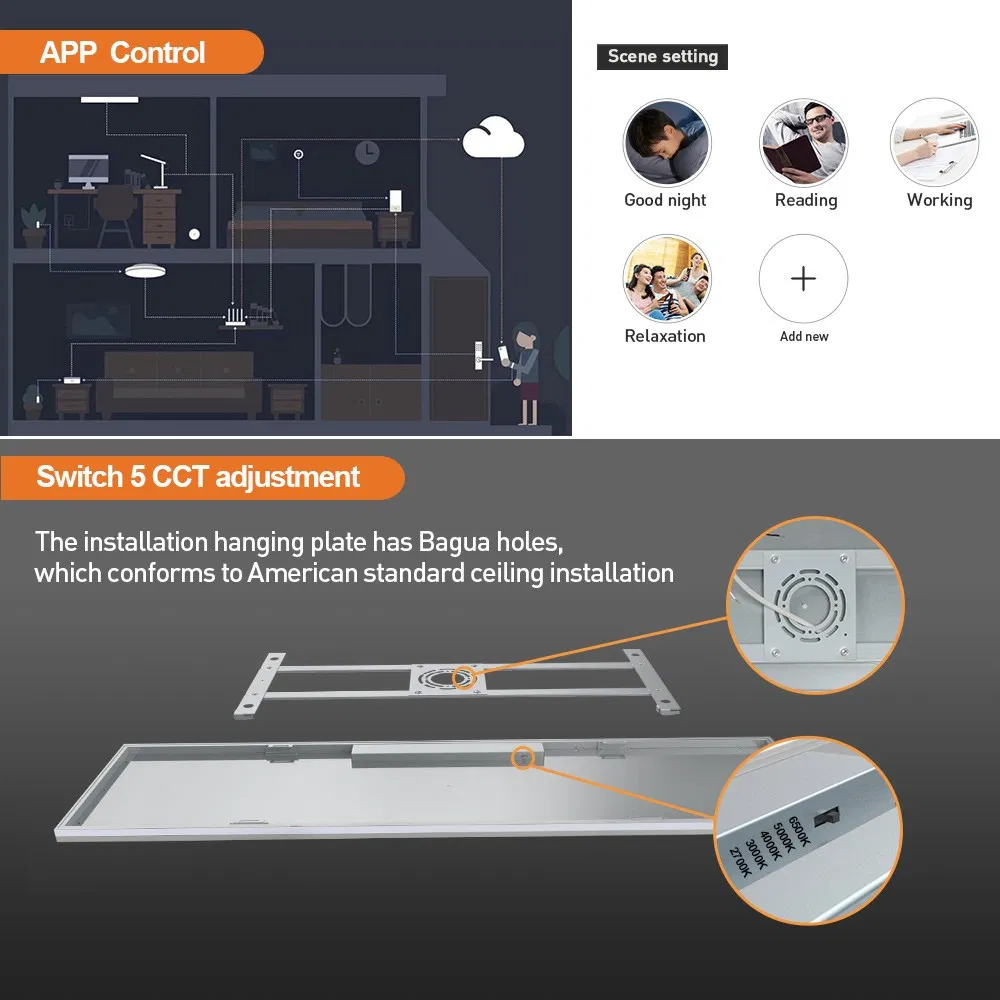

- Support On/Off switch 5 CCT adjustment + Ambient light

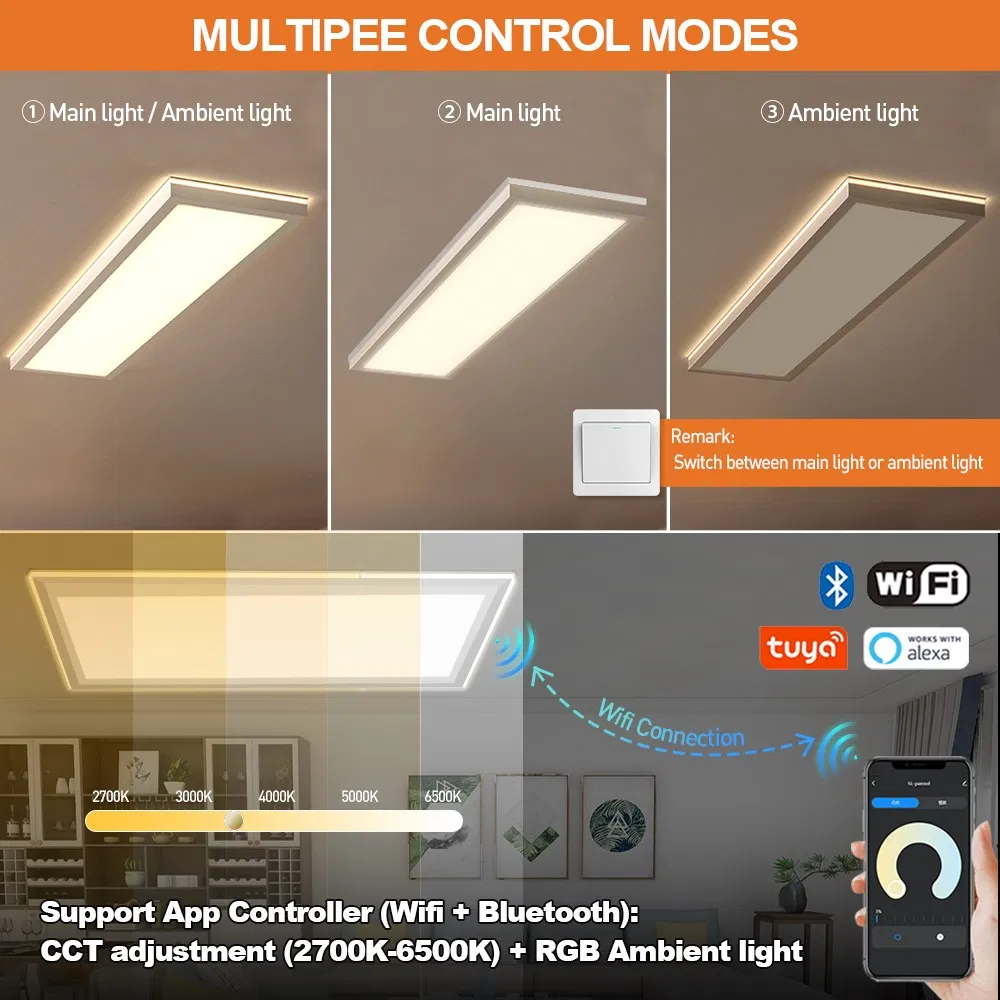

- Support CCT adjustment + RGB Ambient light (Wifi + Bluetooth, APP controller)
- High CRI: Ra>80, SDCM<4, High power factor: >0.95

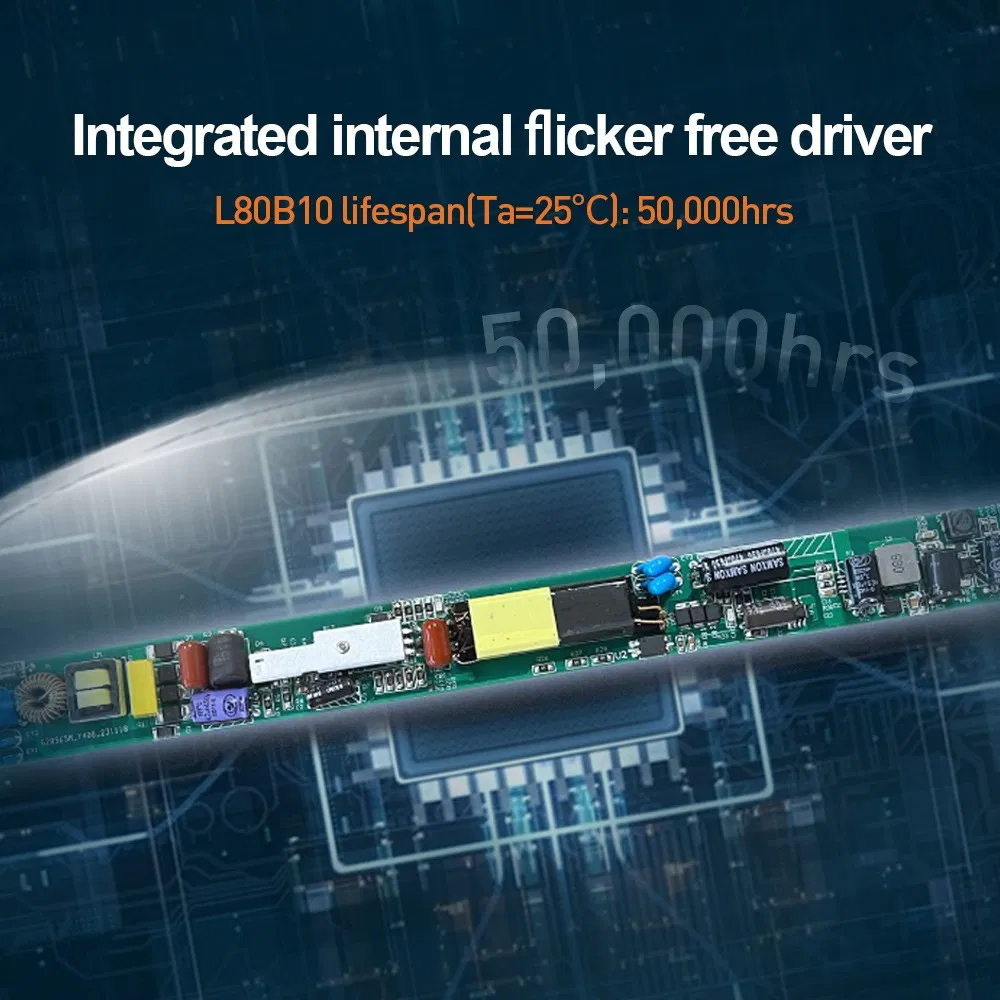

- Integrated internal flicker free driver
- L80B10 Lifespan(Ta=25ºC): 50,000hrs, Warranty: 5 years
- CCT Options: (3000K/4000K/5000K) & (4000K/5000K/6000K)
- Installation: Ceiling mounting / Surface mounting without frame

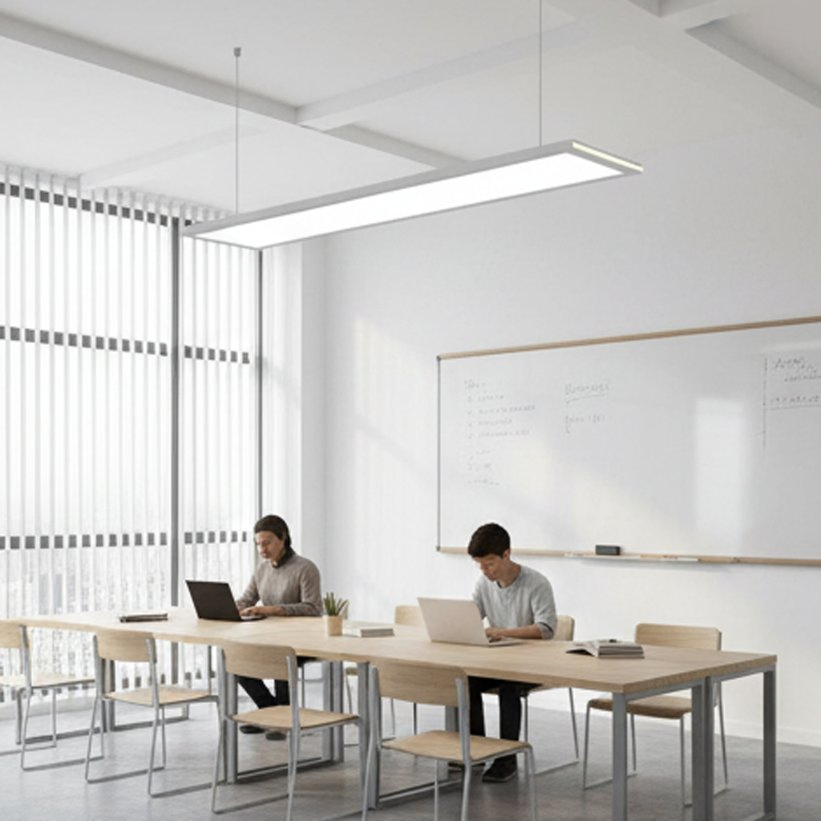

- Application: Office/Hospital/University/School/Supermarket/Show room/Exhibition hall
🖼️

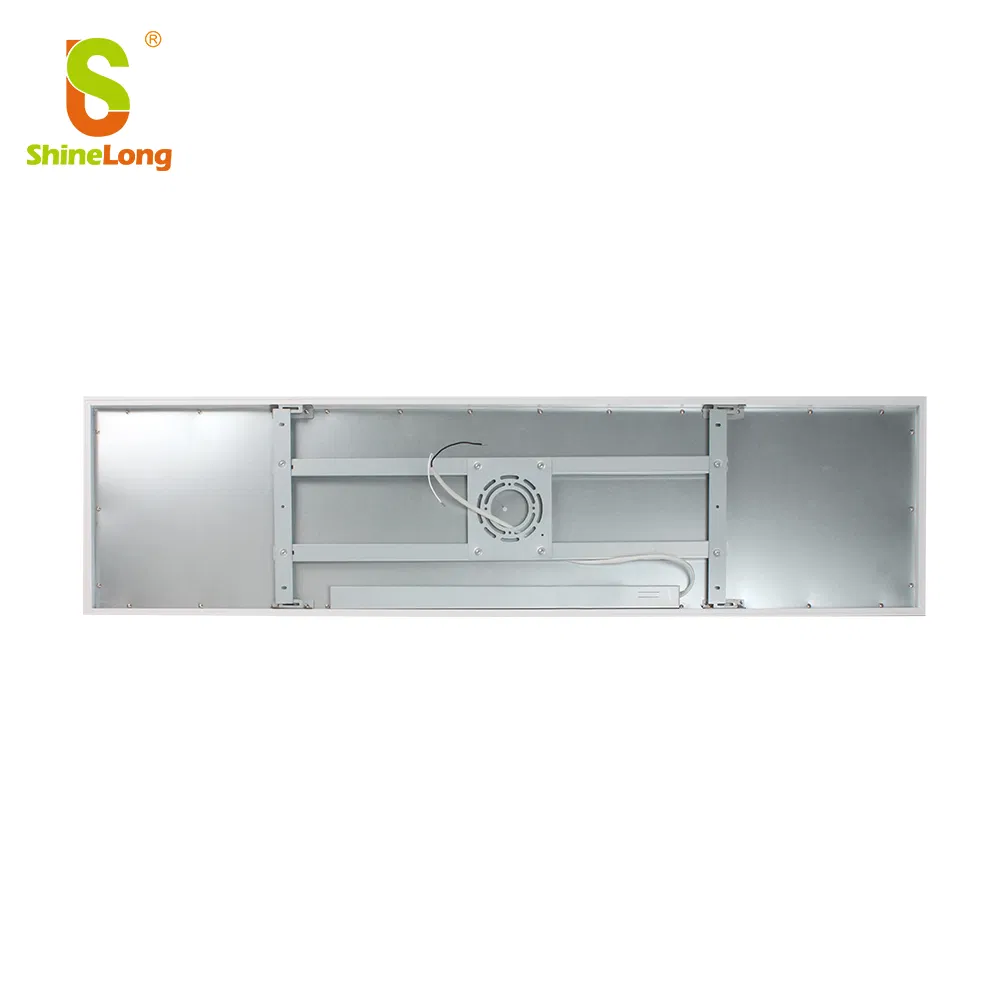

Detailed Photos
📊
Product Parameters
| Parameter | Details |
|---|---|
| Size | 1*1Ft, 2*2 Ft, 2*4 Ft, 1*4Ft, Custom project sizes available. |
| Watt | 20w, 30w, 40w, 50w, 60w High Brightness, No Flicker. |
| Material | High-quality Aluminum + PMMA Anti-yellowing. |
| Function | IP40 waterproof, IK05 impact resistance. |
| Application | Office, Hospital, University, Supermarket, Exhibition hall. |
| Package | 2~6 PCS per standard carton. |
| Lead Time | Sample: 3-5 working days; Bulk: 10-15 working days. |
| Other Services | Free IES testing. |
📜
Certifications & Profile
❓
Frequently Asked Questions
How do you guarantee the quality of your LED products?
Quality is ensured through pre-production samples before mass manufacturing and a rigorous final inspection before every shipment.
What types of LED lighting do you offer?
Our core product range includes LED Tri-Proof Lights, LED Panel Lights, LED Tube Lights, and various LED Outdoor Lighting solutions.

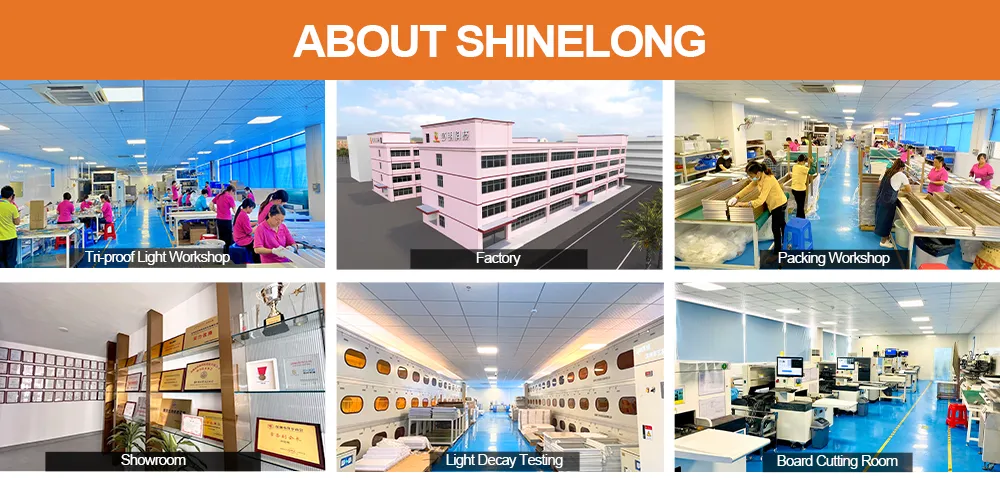

What are your manufacturing capabilities?
We operate vertically integrated production lines covering SMD packaging, SMT mounting, power supply production, and custom molding.
Which payment terms and currencies do you accept?
We accept USD, EUR, and CNY via T/T, L/C, Western Union, and other standard payment methods. Delivery terms include FOB, CFR, CIF, EXW, and DDP.
What is the lifespan and warranty for the Smart LED Panel?
The panel light has an L80B10 lifespan of 50,000 hours at 25ºC and comes with a comprehensive 5-year warranty.
Can the CCT and brightness be adjusted?
Yes, the panels support 5-level CCT adjustment via switch or full CCT and RGB control through WiFi and Bluetooth APP controllers.
