Commercial COB Spotlight 30W Adjustable Smart LED Track Light
Product Description
Basic Info.
Product Description

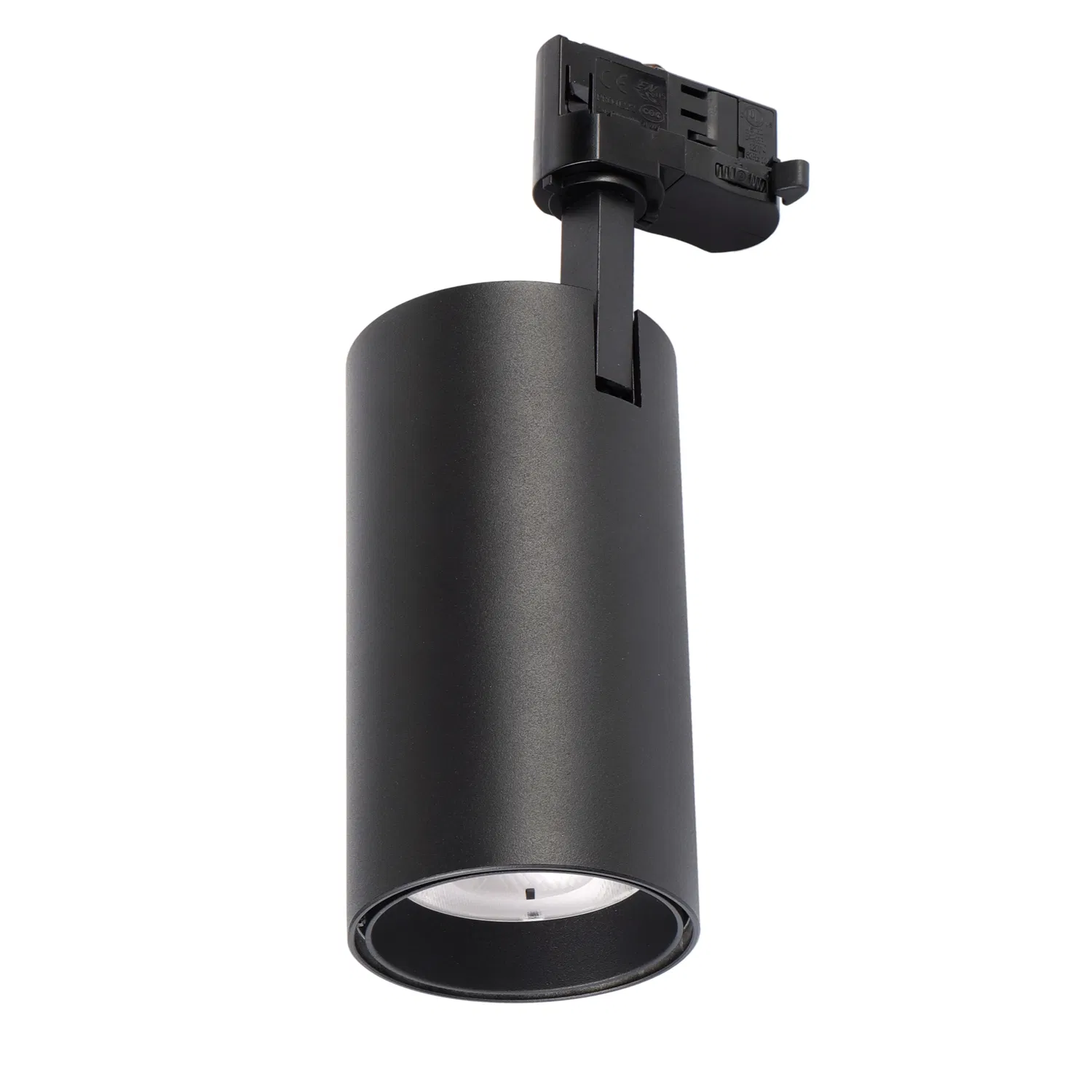

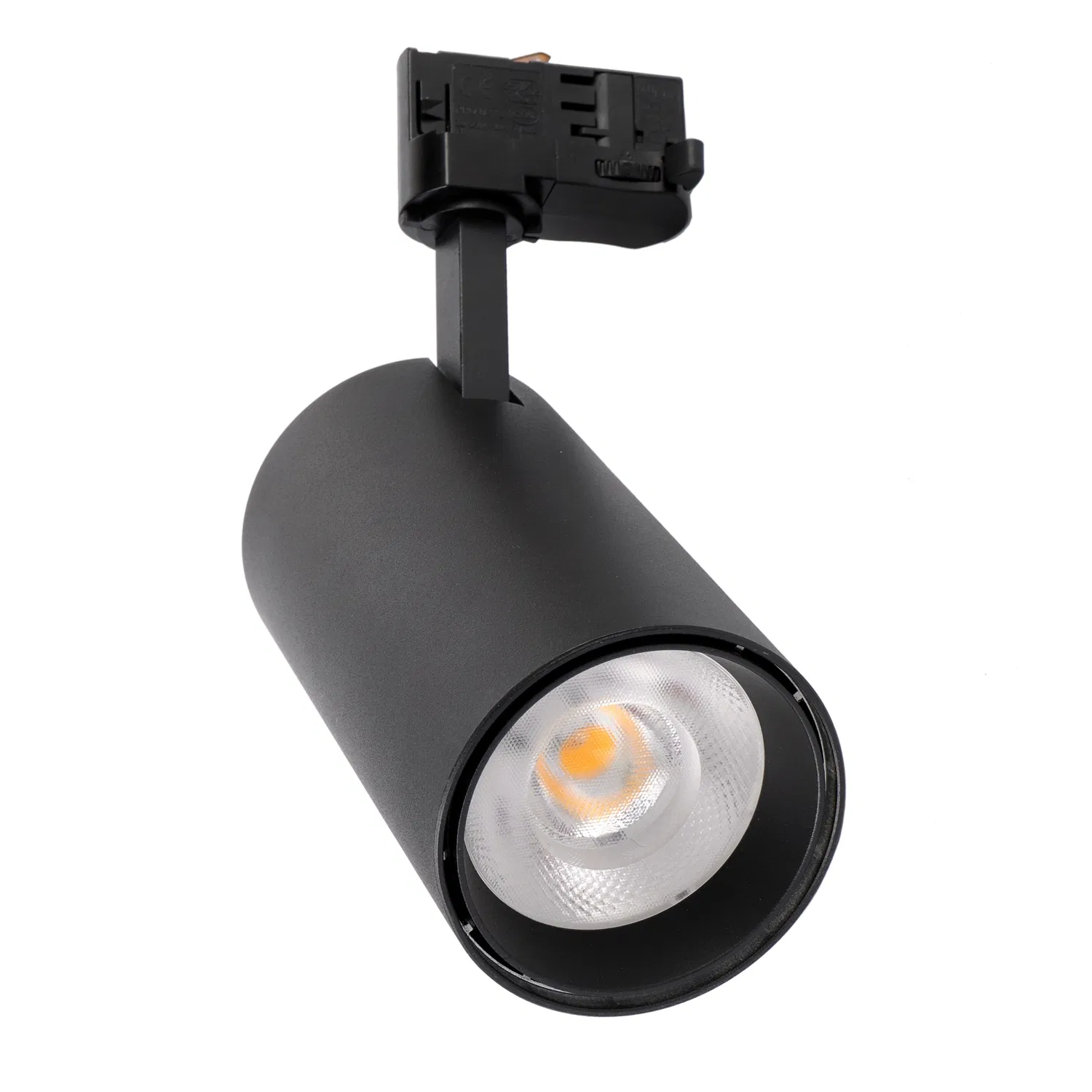

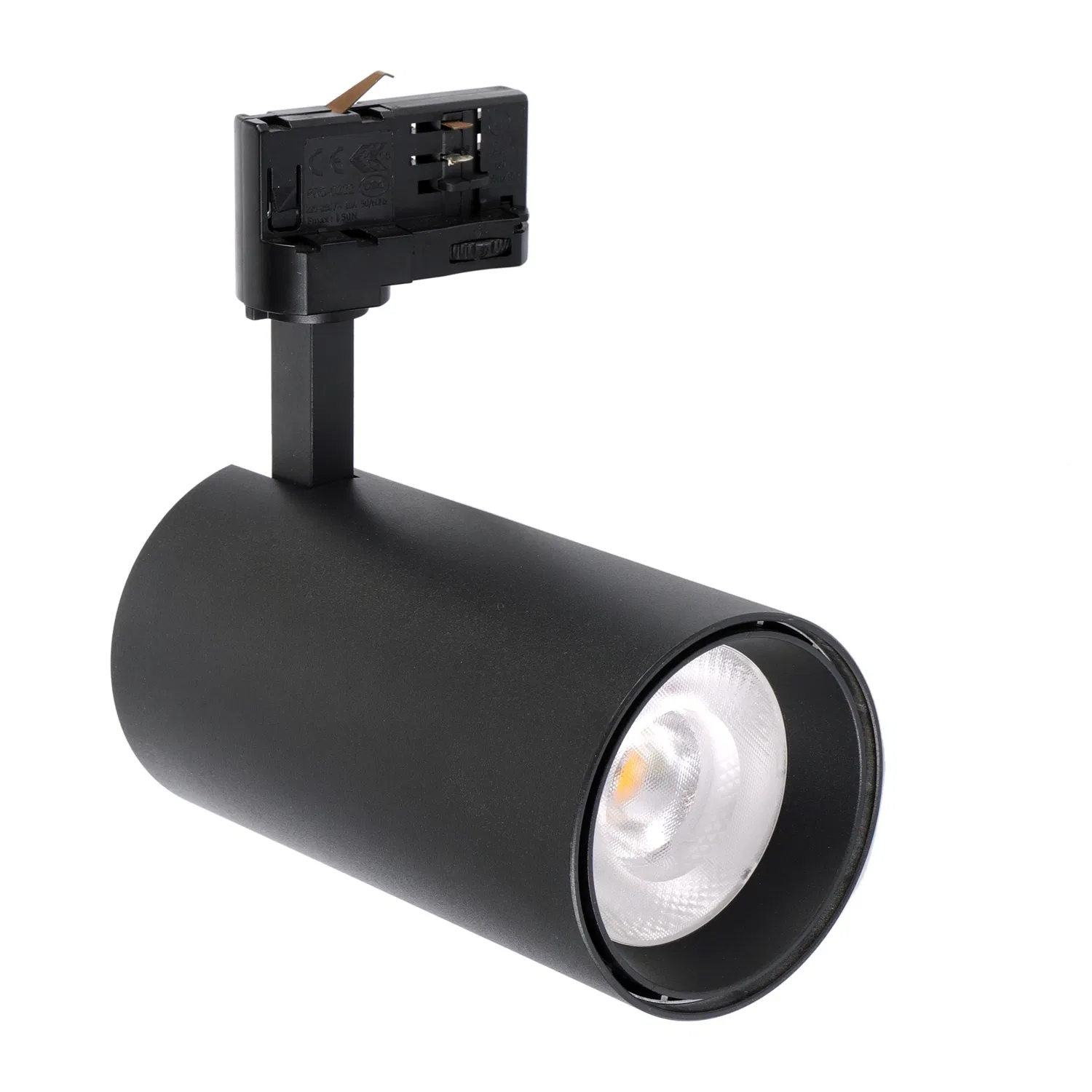

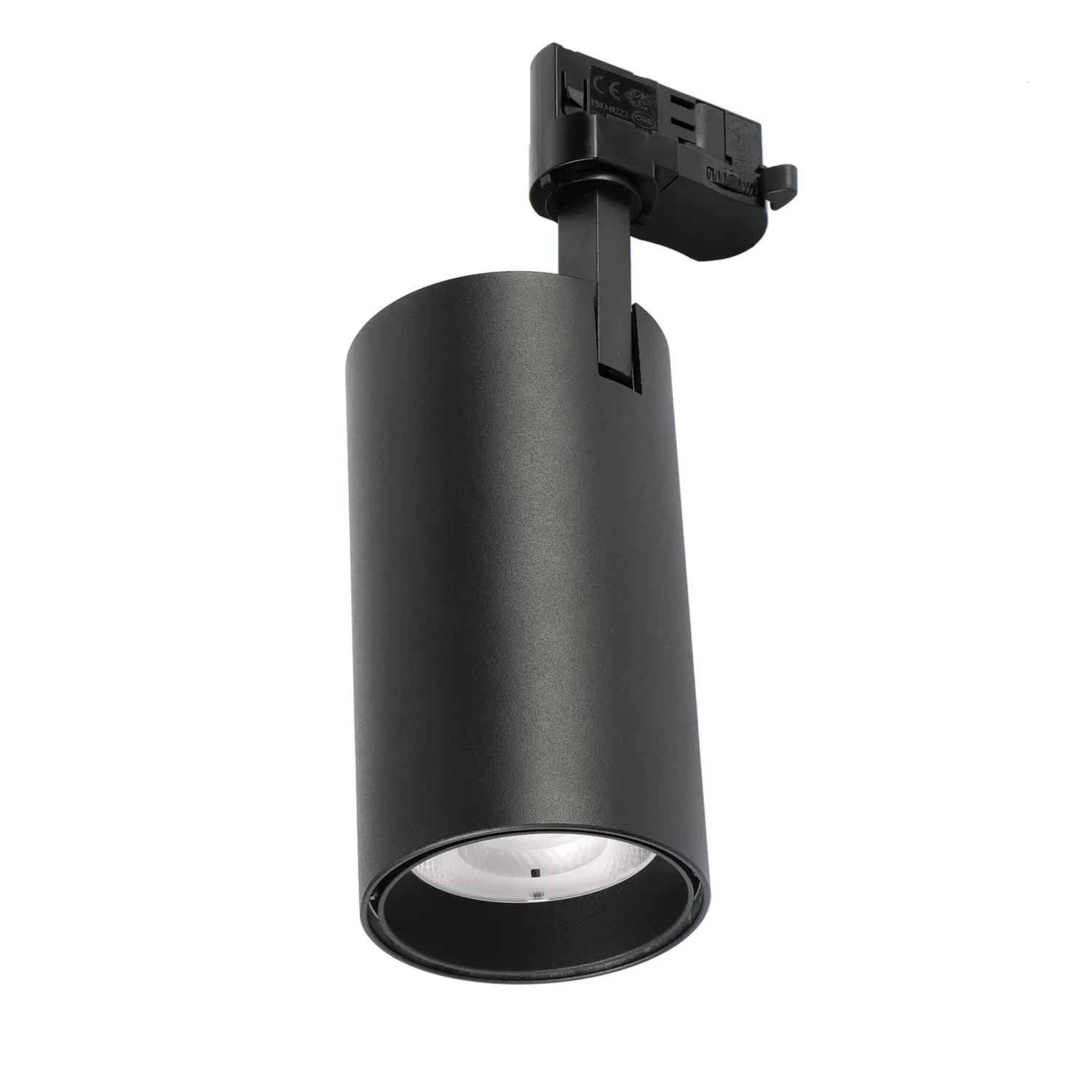

Commercial COB Spotlight 30W Adjustable Smart LED Track Light
This track light is with driver built-in, which makes it look very compact. Most led track lights with build-in drivers on the market have the problem of poor heat dissipation. But this one uses a high-performance driver, which is specially developed for built-in track lights and has high-temperature resistance. Though the driver is the built-in type, it also ensures a long lifespan of 50000 hours and a real warranty 5 years.
This series of track lights adopts Tridonic, Lifud, and Boke driver for non-dim; HEP driver for 0/1-10V dimming; Rxpower driver for DALI dimming.
Specification of LED Tracklight ST-T**04
| Parameter | ST-T1004 | ST-T2004 | ST-T3004 |
|---|---|---|---|
| Power (W) | 10W | 20W | 30W |
| Lumen Output | 1000-1200lm | 1900-2200lm | 3300-3800lm |
| Beam Angle | 15° / 24° / 36° / 50° | 15° / 24° / 30° / 55° | 15° / 30° / 45° / 60° |
| Size | 65*130mm | 75*160mm | 85*160mm |
| LED Brand | Citizen / Luminus / CREE | ||
| Color Temp (CCT) | 2700K / 3000K / 4000K / 5000K / 6000K | ||
| CRI | Ra>90 / Ra>95 / Ra>97 | ||
| SDCM | <3 | ||
| Driver Brand | Philips / Osram / TCI / Powergear | ||
| Dimmable | non-dim / Triac-dim / 0-10V dim / DALI dim | ||
| Material | cold forging #1070 aluminum | ||
* Zoomable beam angle 15-60° is available.
* Turnable CCT by DIP switch is available.
Product Advantages

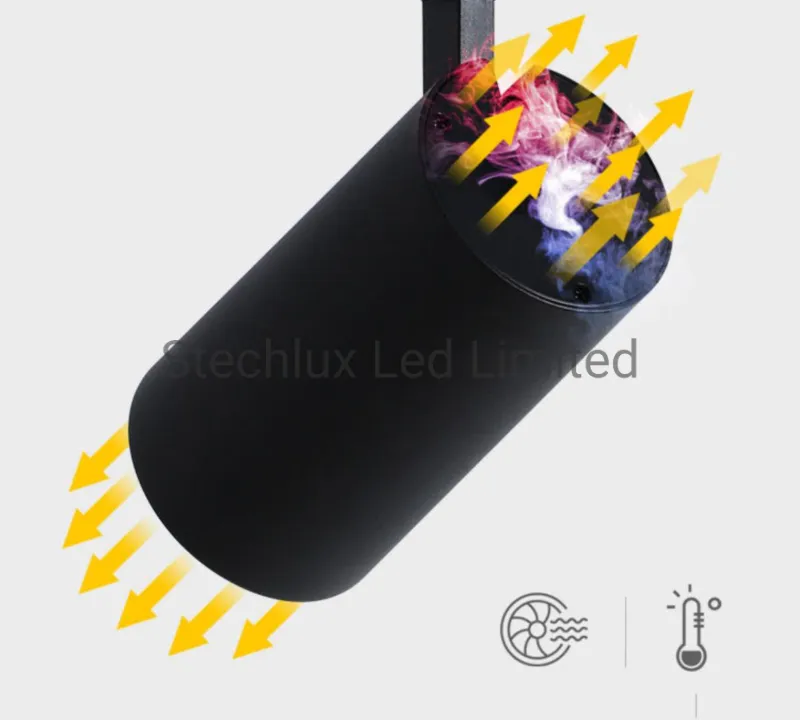

The lamp body uses purer aluminum #1070. The cooling effect is 30% higher than #6063 profile aluminum and 2 times better than die ADC12 aluminum.
Thermal conductivity: Cold forging (#1070): 226 w/m.k | Profile (#6063): 180 w/m.k | Die casting (#ADC12): 98 w/m.k.

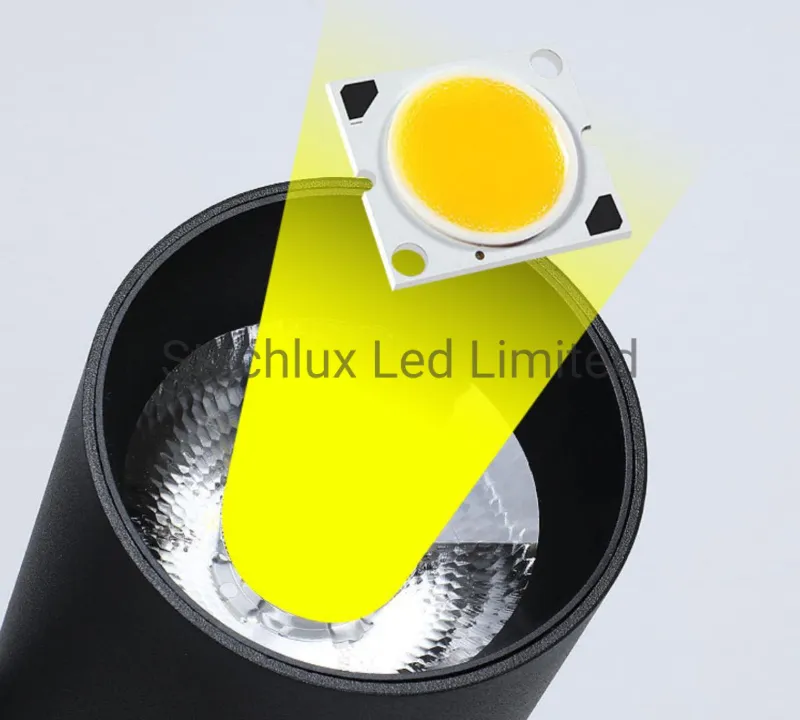

Original LED chip Citizen or Luminus COB. Higher CRI (90/95) better restores original colors. Energy-saving: 30W can reach 137lm/W at 3000K CRI90.

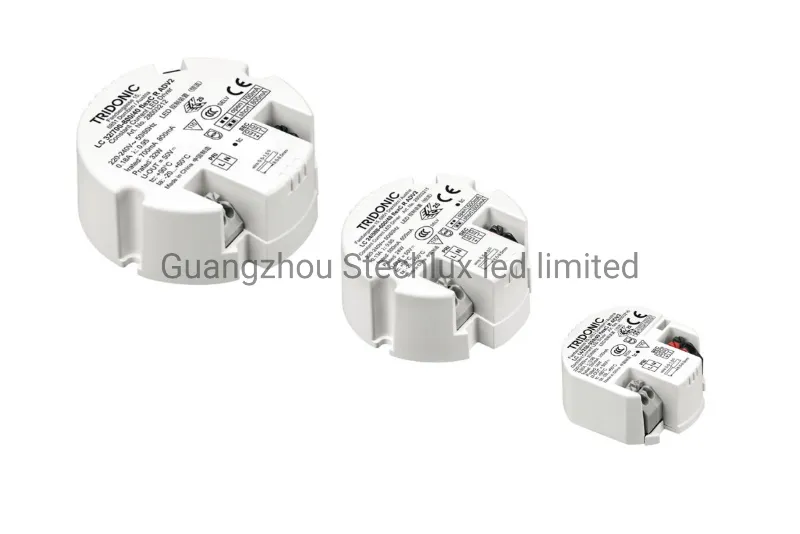

The built-in driver is a glued type for heat resistance. Tridonic driver used has Tc >90ºC. PF>0.95 and flicker-free.

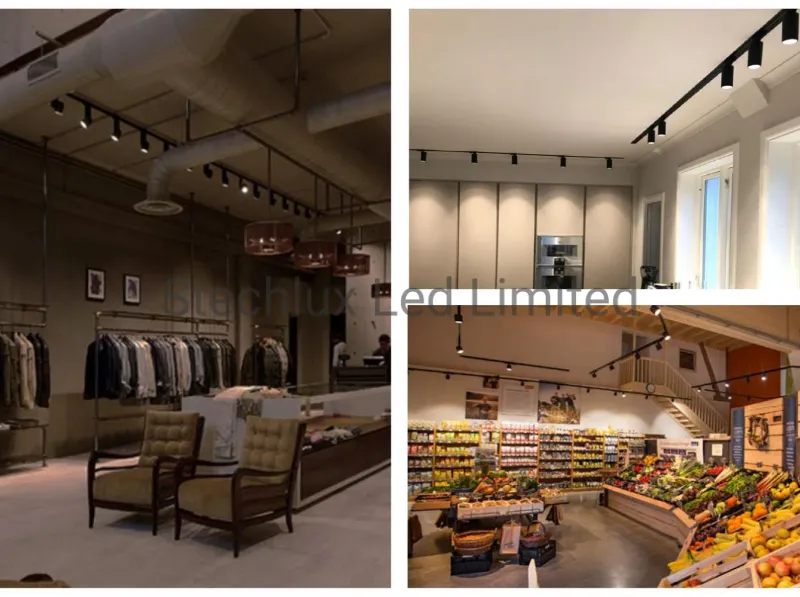

Applications

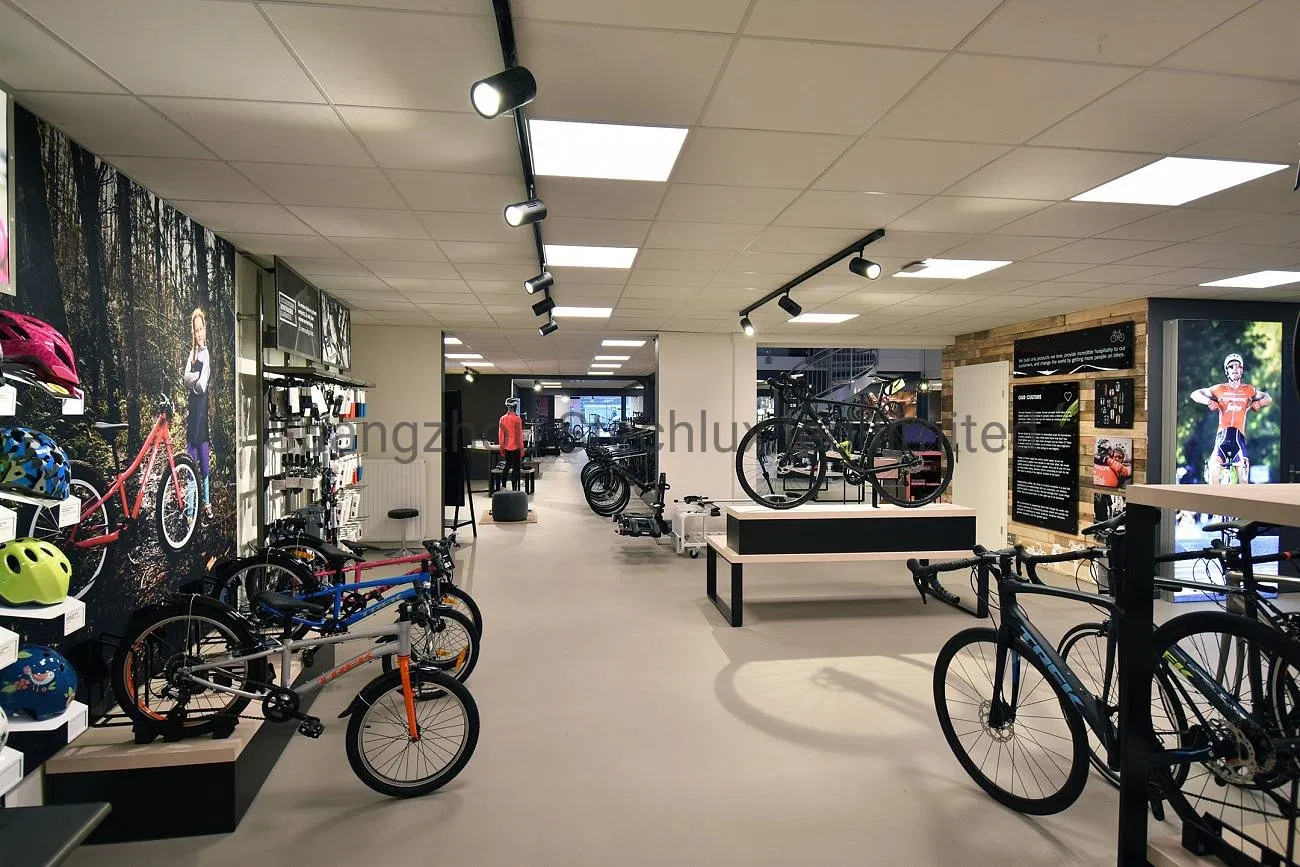

Perfectly suitable for use in high-end hotels, villas, mansions, and commercial showrooms. Provides a comfortable and healthy lighting space.
