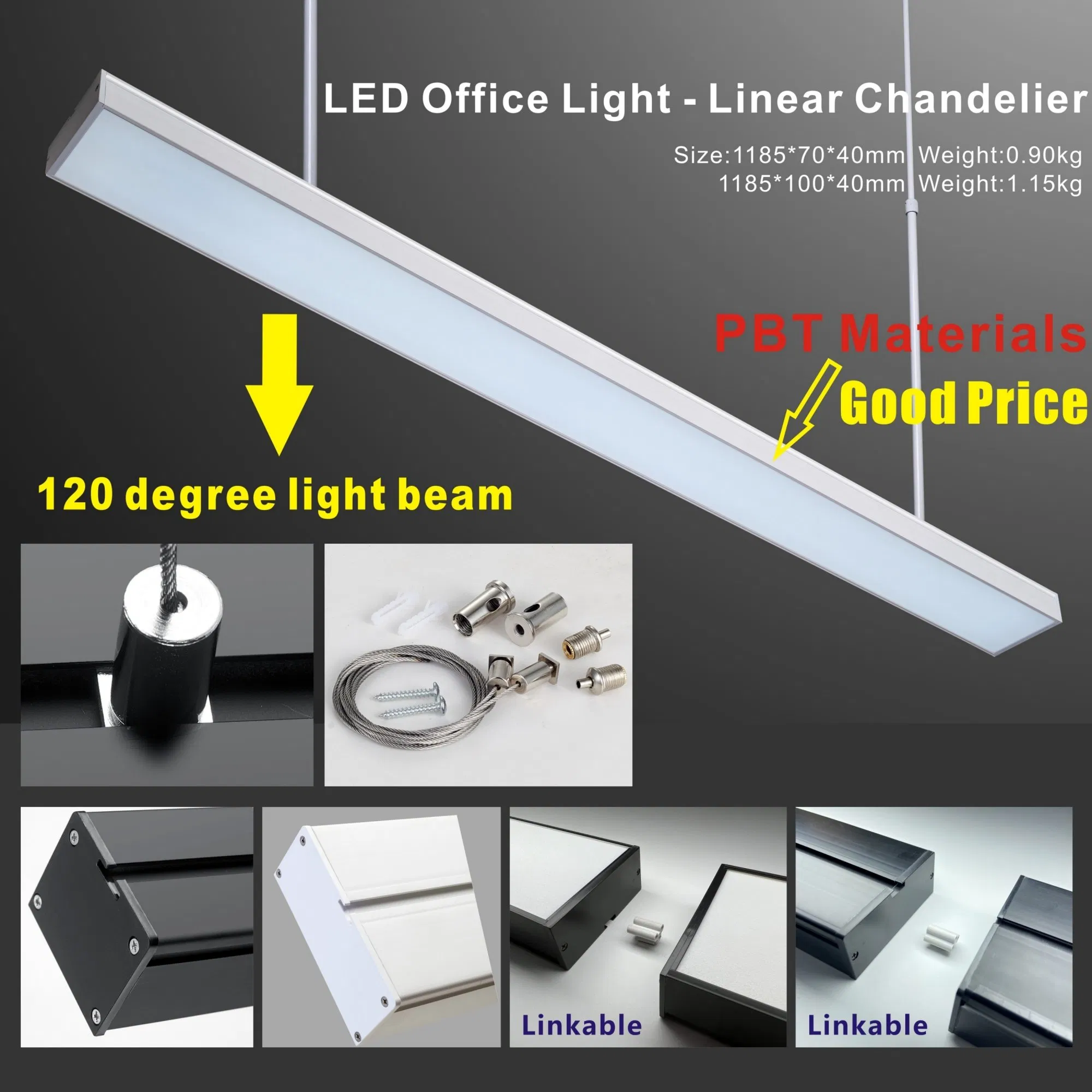

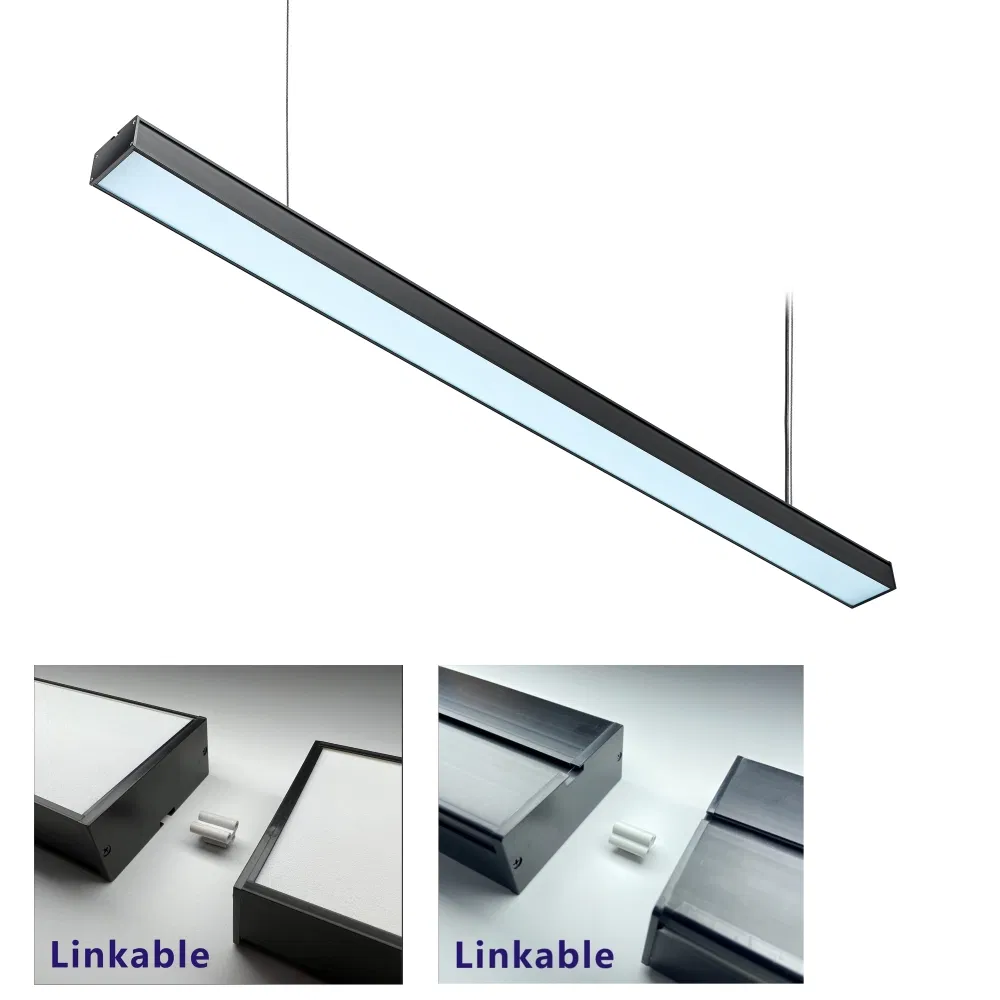

Commercial Indoor Lighting Linkable T8 Tube Chandelier Lamp Plastic Housing Surface Mounted Ceiling Suspended Batten Pendant LED Linear Light
Product Description
📋
Basic Specifications
Model NO.
WD-DLX01-120B-48W
Cover Material
PC Cover
Style
Modern simplism style
Shape
Square
Base Material
PBT
Voltage
100~240V
Light Source
Included (SMD2835)
Beam Angle
120~180°
Certification
CE, RoHS
Power
36W / 46W
CCT
3000K-6000K Adjustable
HS Code
9405429000
Commercial Indoor Home Office Classroom School Corridor Lighting Linkable Tube Chandelier PBT Housing Ceiling Suspended LED Linear Pendant Light
✨
Key Features

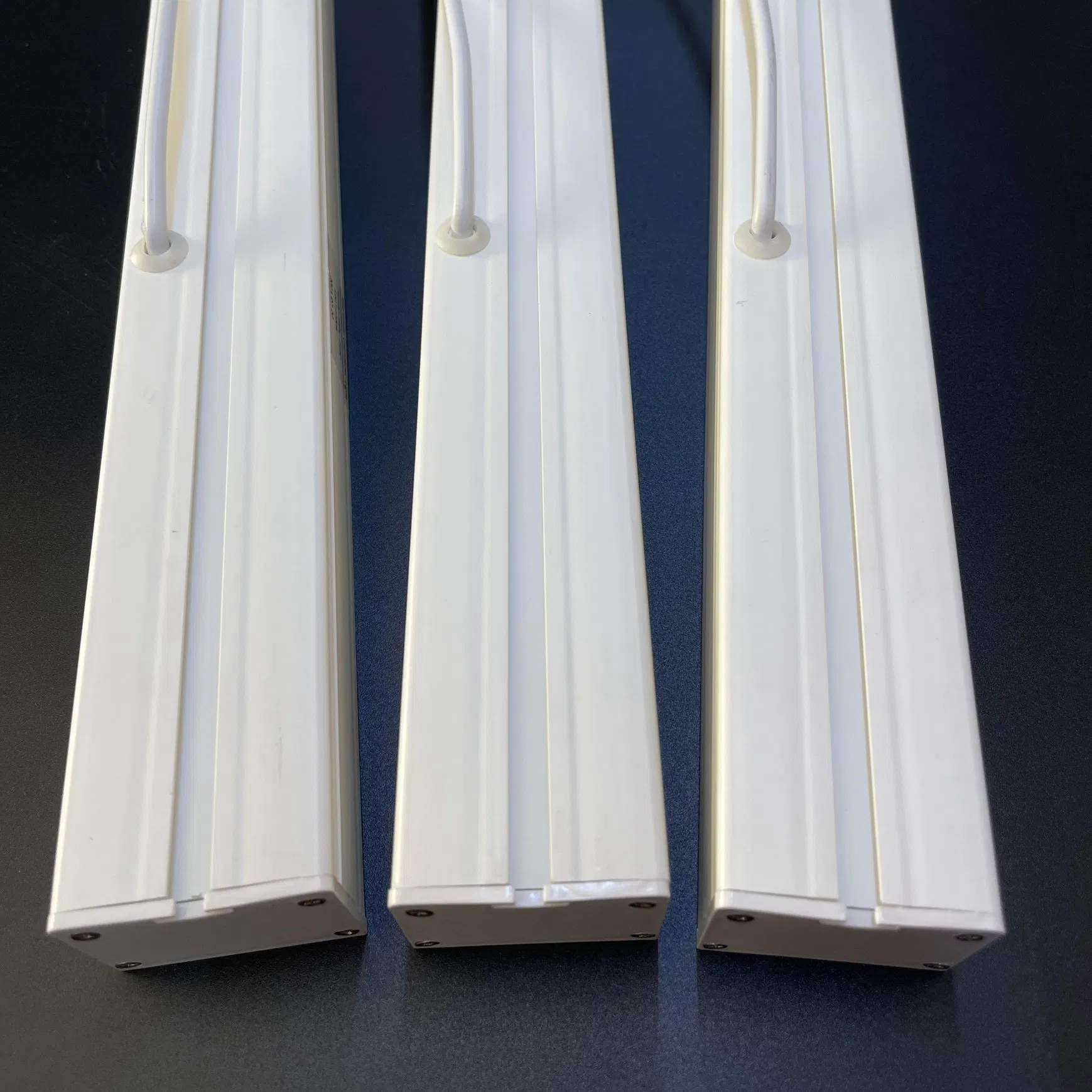

- PBT materials housing: Lighter and more cost-effective than aluminum.
- High-quality PC diffuser cover for uniform light distribution.
- Simple DIY installation to significantly lower labor costs.
- Modern & fashion design, ideal replacement for T5/T8 tubes.

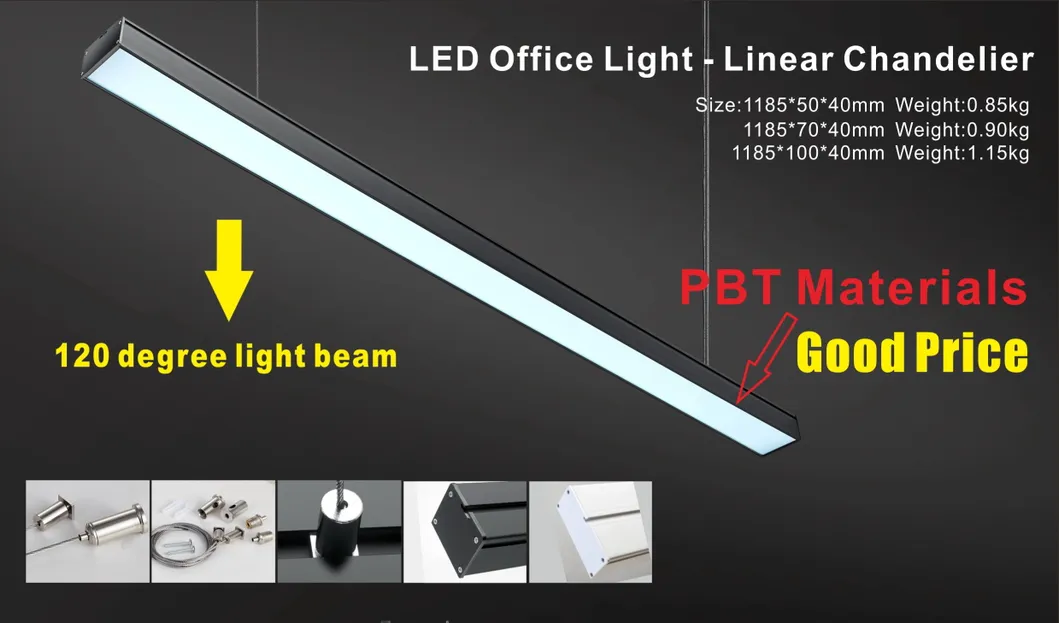

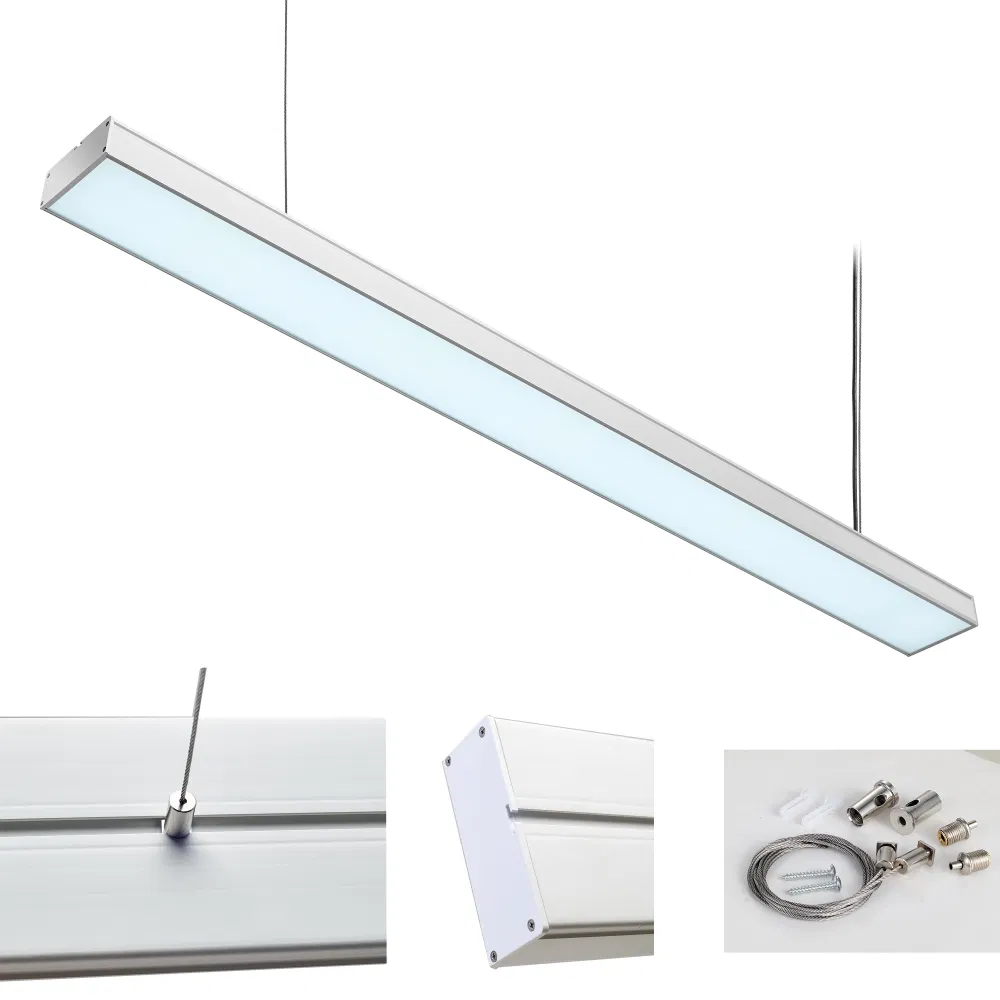

- Versatile installation: Suspended or Surface mounted.
- Wide Voltage: AC 100~240V plug & play system.
- Housing colors available in sleek Black or White.
- High Color Rendering: CRI > 80.
- Luminous Efficiency: 85~90 LM/W.
📊
Technical Parameters
| Model No | Power / LED | Voltage | CCT (K) | Lumens | Dimensions | Housing Material |
|---|---|---|---|---|---|---|
| WD-DLX01-120-70 | 36W (240pcs SMD2835) | 100-240V | 2700-6500K | 3150 LM | 1185*70*40mm | PBT + PC |
| WD-DLX01-120-100 | 36W (240pcs SMD2835) | 100-240V | 2700-6500K | 3150 LM | 1185*100*40mm | PBT + PC |
| WD-DLX01-120-100-H | 46W (240pcs SMD2835) | 100-240V | 2700-6500K | 4180 LM | 1185*100*40mm | PBT + PC |
🏢

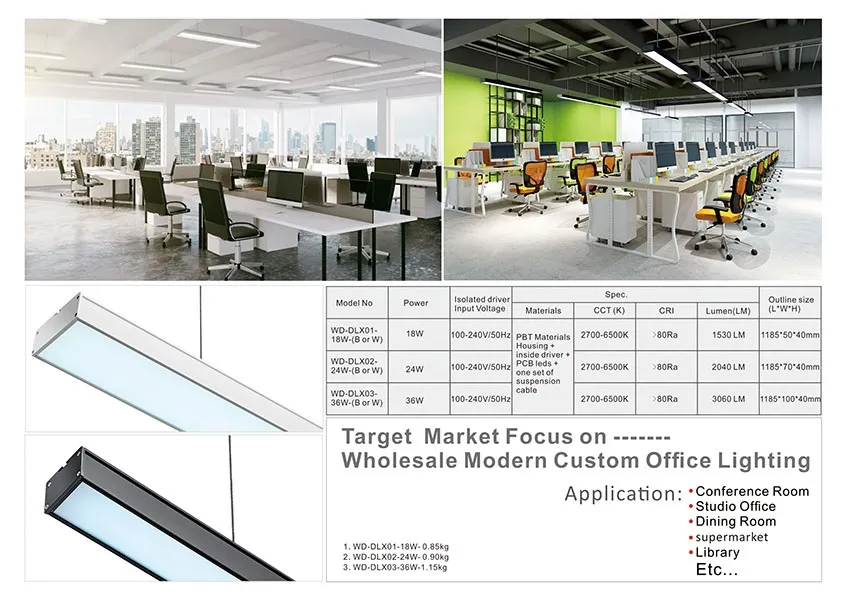

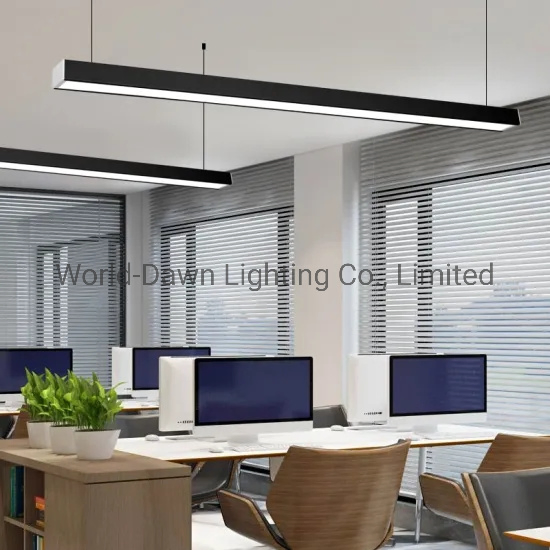

Wide Applications
This LED linear pendant light is widely used in supermarkets, retail stores, cabinets, ceilings, hotels, conference rooms, studio offices, dining rooms, libraries, and school corridors.
❓
Frequently Asked Questions
What are the advantages of PBT housing over aluminum?
PBT housing is much lighter in weight and significantly more cost-effective while still providing excellent durability and thermal performance for indoor lighting.

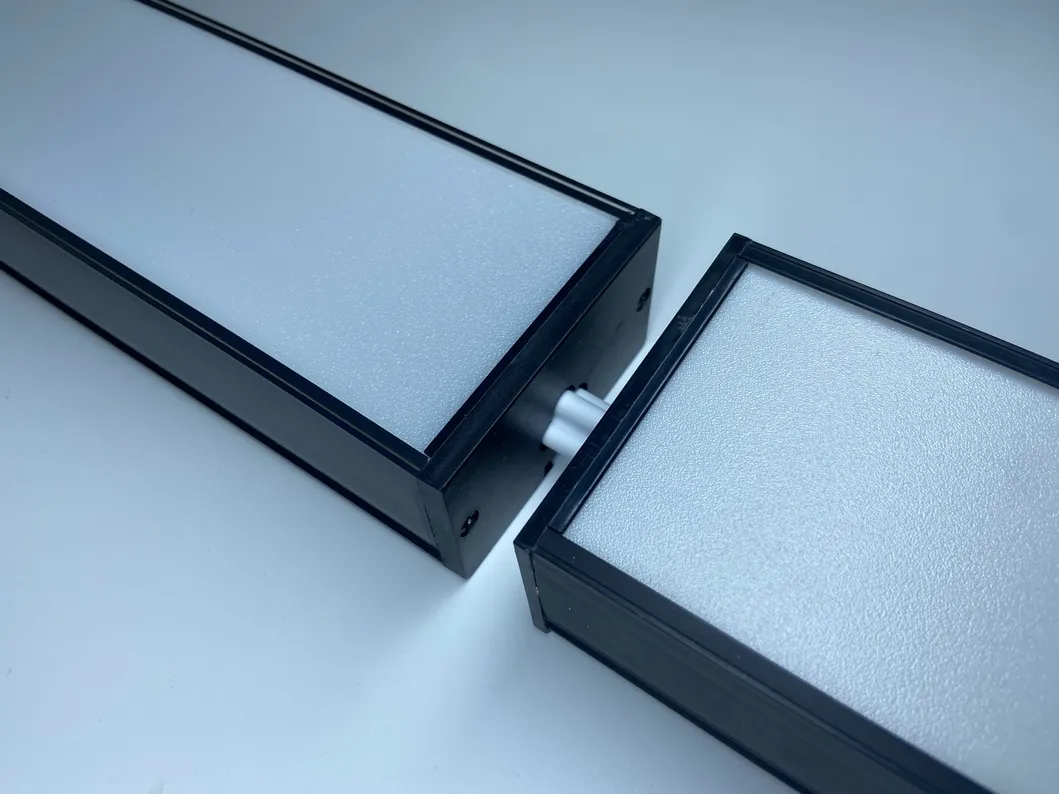

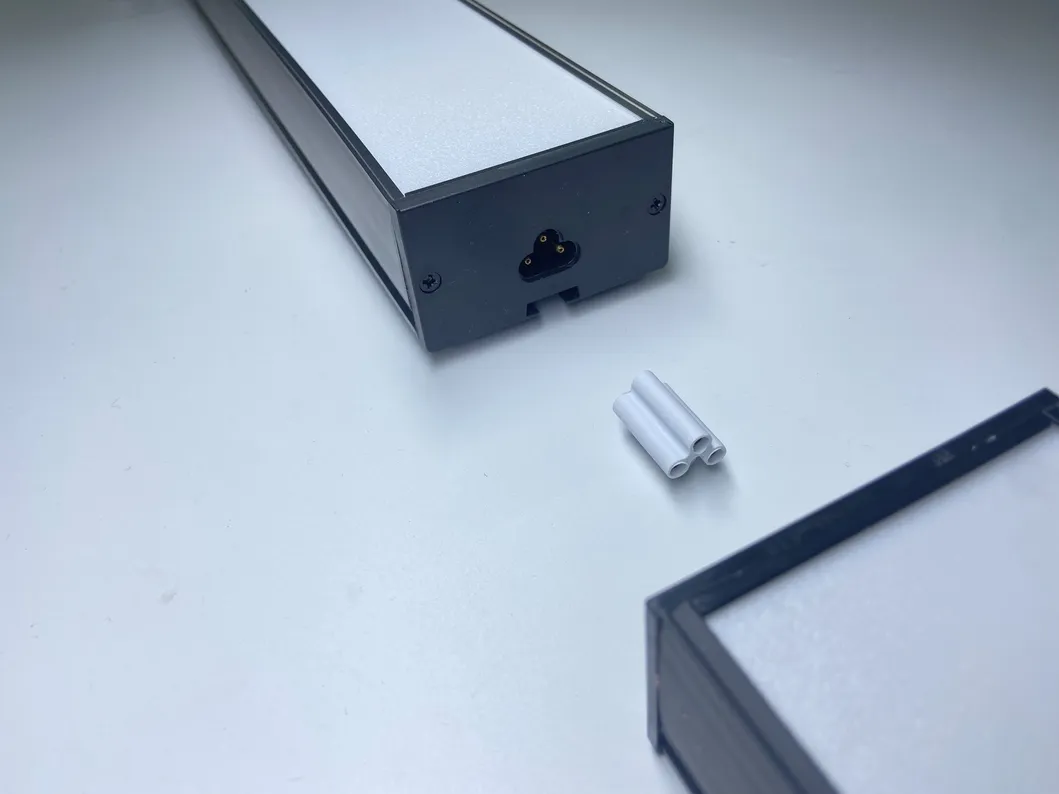

Can these lights be connected together?
Yes, these are linkable tube chandeliers designed for seamless connection to create long linear lighting runs.

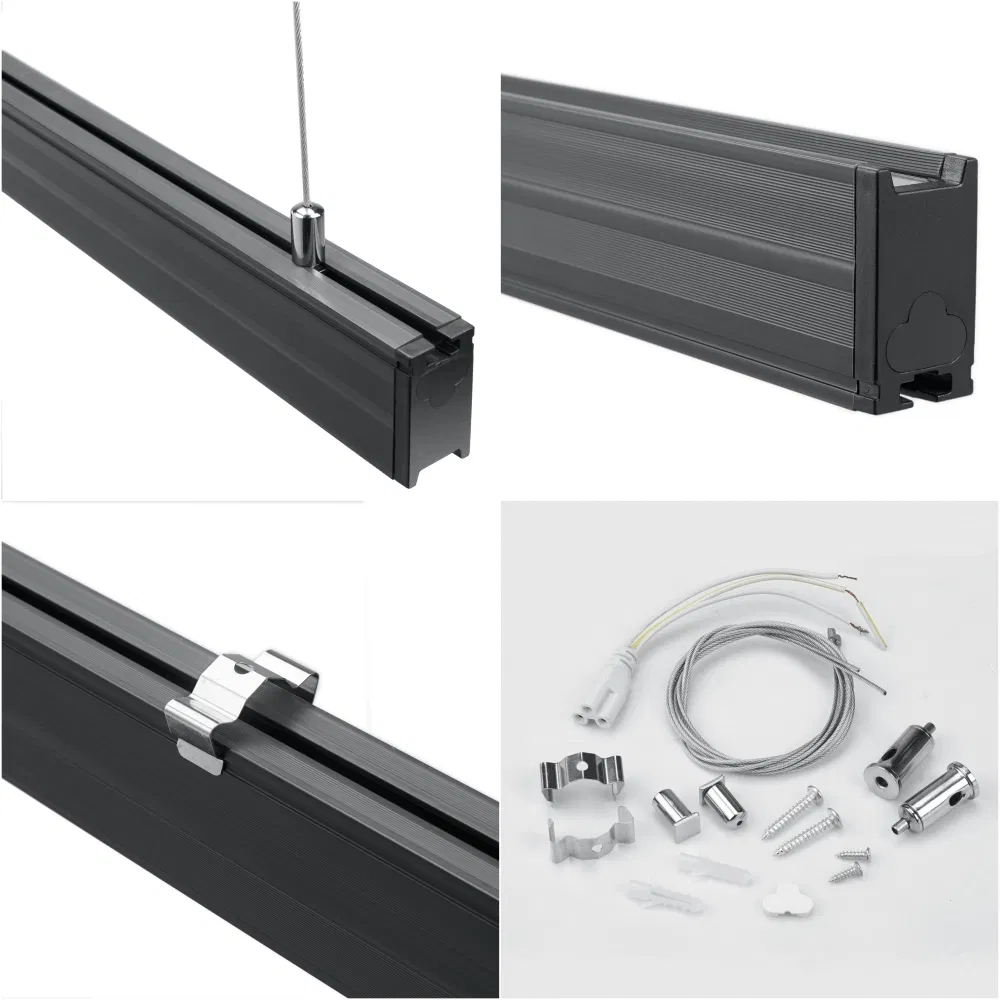

What installation options are available?
The fixture supports multiple installation methods, including suspended (hanging) or surface mounted on ceilings.
Does the light come with its own power driver?
Yes, the light includes an internal driver and supports a wide input voltage range of AC 100-240V for global compatibility.
Is the color temperature adjustable?
The light is available in a range from 3000K to 6000K, allowing for warm white to cool daylight options.
What is the light efficiency of this linear light?
The fixture provides high efficiency between 85 and 90 Lumens per Watt, ensuring bright illumination with low power consumption.
