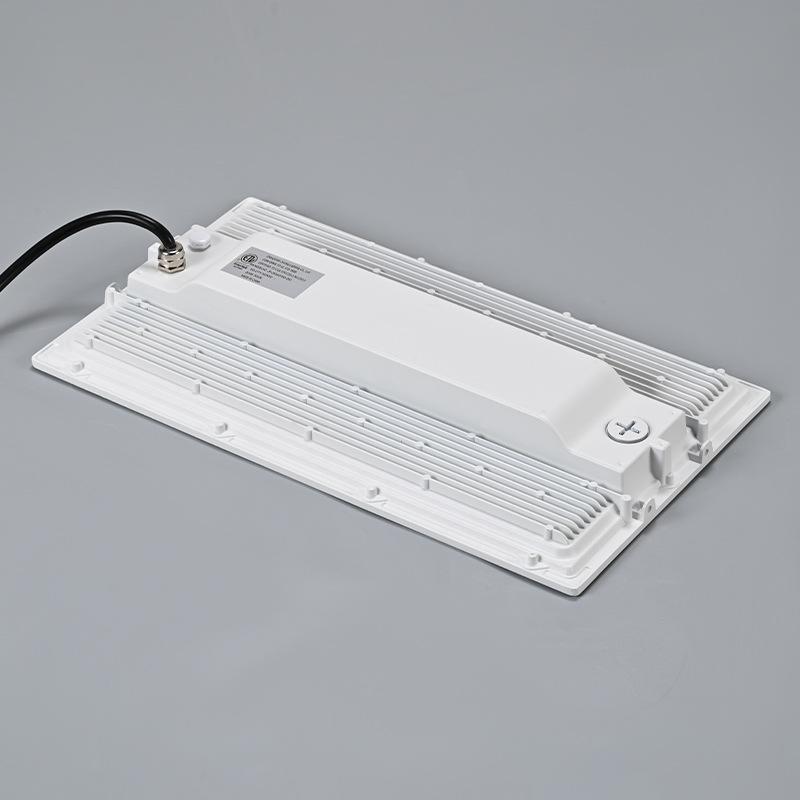

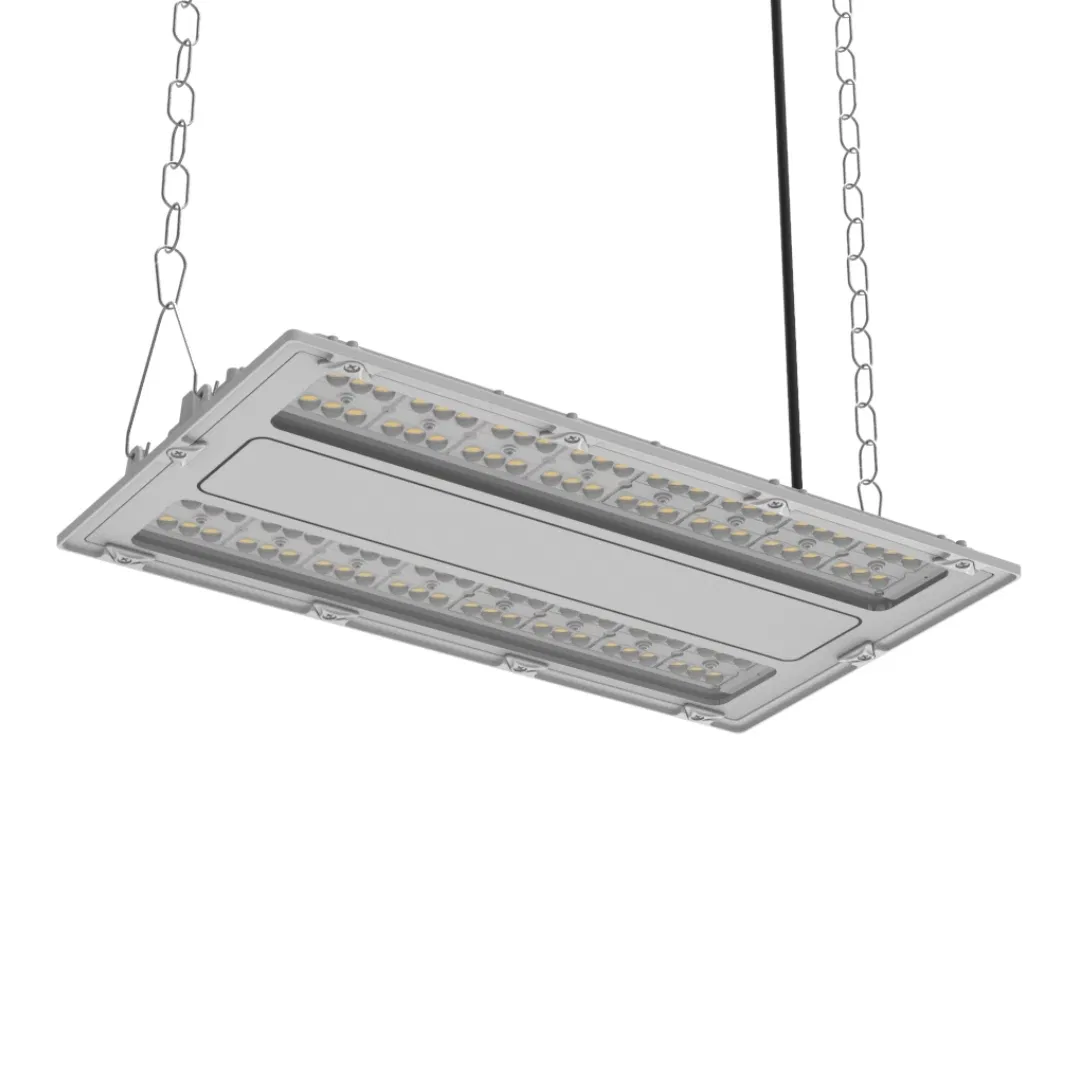

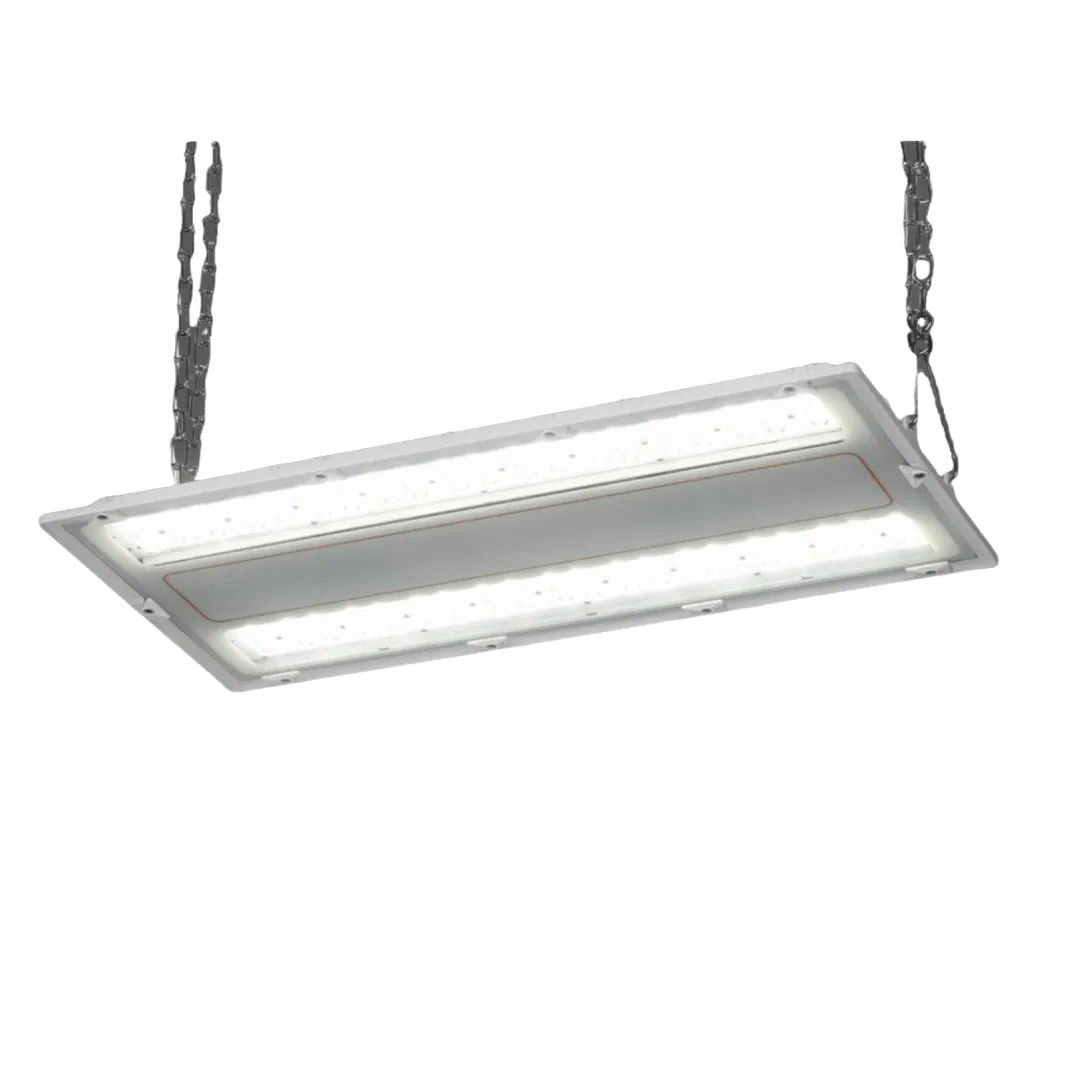

0-10V Dimming 260W 100W 200W Linear LED High Bay LED Light for Warehouse Lighting 170lm/W with ETL/cETL/FCC/CE
Product Description
Basic Specifications
Model NO.JR-ZKHB03A038-100D
Power100W
UsageGymnasium, Warehouse, Factory, Tunnel
Lifespan≥50000H
IP RatingIP65
CertificationCE, EMC, ETL, FCC, RoHS
Beam Angle120°
LED ChipsSanan

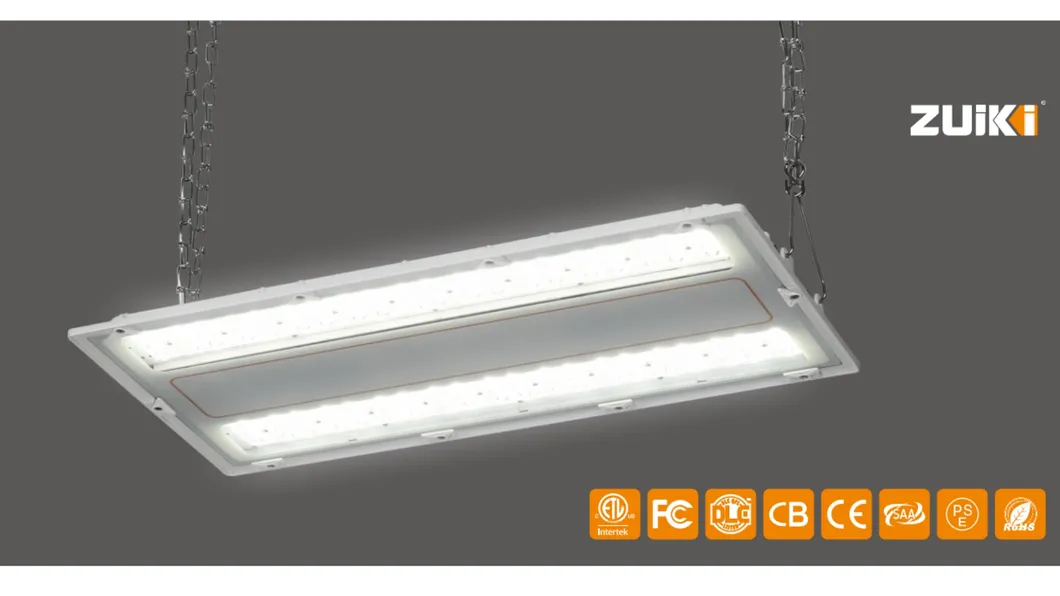

Product Overview
In industrial and commercial settings, excessive glare from high bay lights can significantly interfere with work operations and pose safety risks. The JR-ZKHB03A series LED linear high bay light is designed to provide uniform, low-glare, safe, and comfortable lighting solutions. This product is particularly suitable for environments such as parking lots, gymnasiums, workshops, clothing stores, supermarkets, and warehouse lighting.
Technical Specifications
| Parameter | Details |
|---|---|
| Input Voltage | AC100-277V 50/60Hz |
| Power Factor | PF>0.9 |
| Efficiency | 160-170lm/w |
| Color Index | Ra>83 |
| Operation Temp | -40°C ~ +50°C |
| Material | Aluminum + PC |
| CCT | 3000K - 6000K |
Key Features
✦
High Efficacy: Reaching up to 170 lm/w with 0-10V dimming standard.
✦

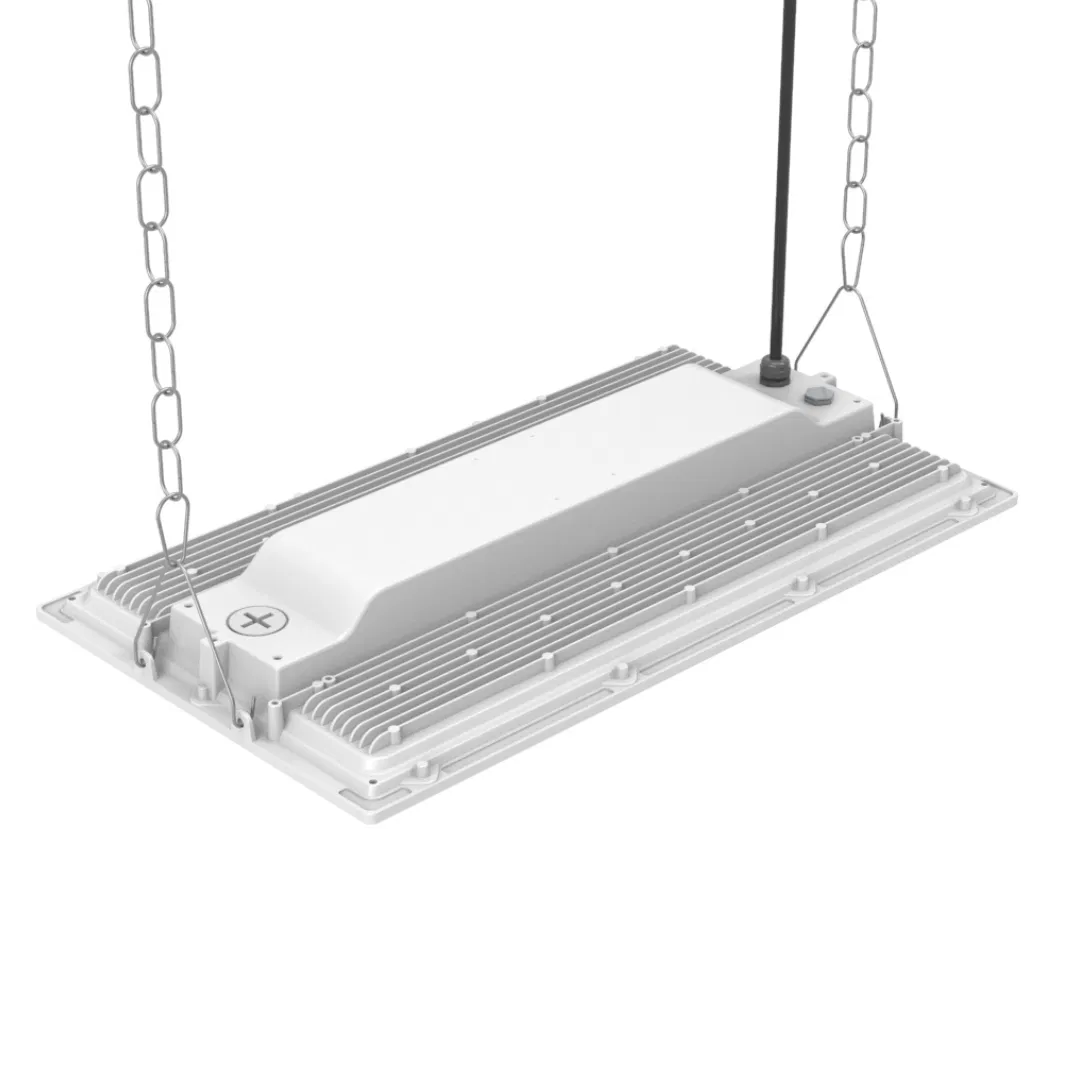

Robust Design: One-piece die-cast aluminum housing for superior heat dissipation.
✦

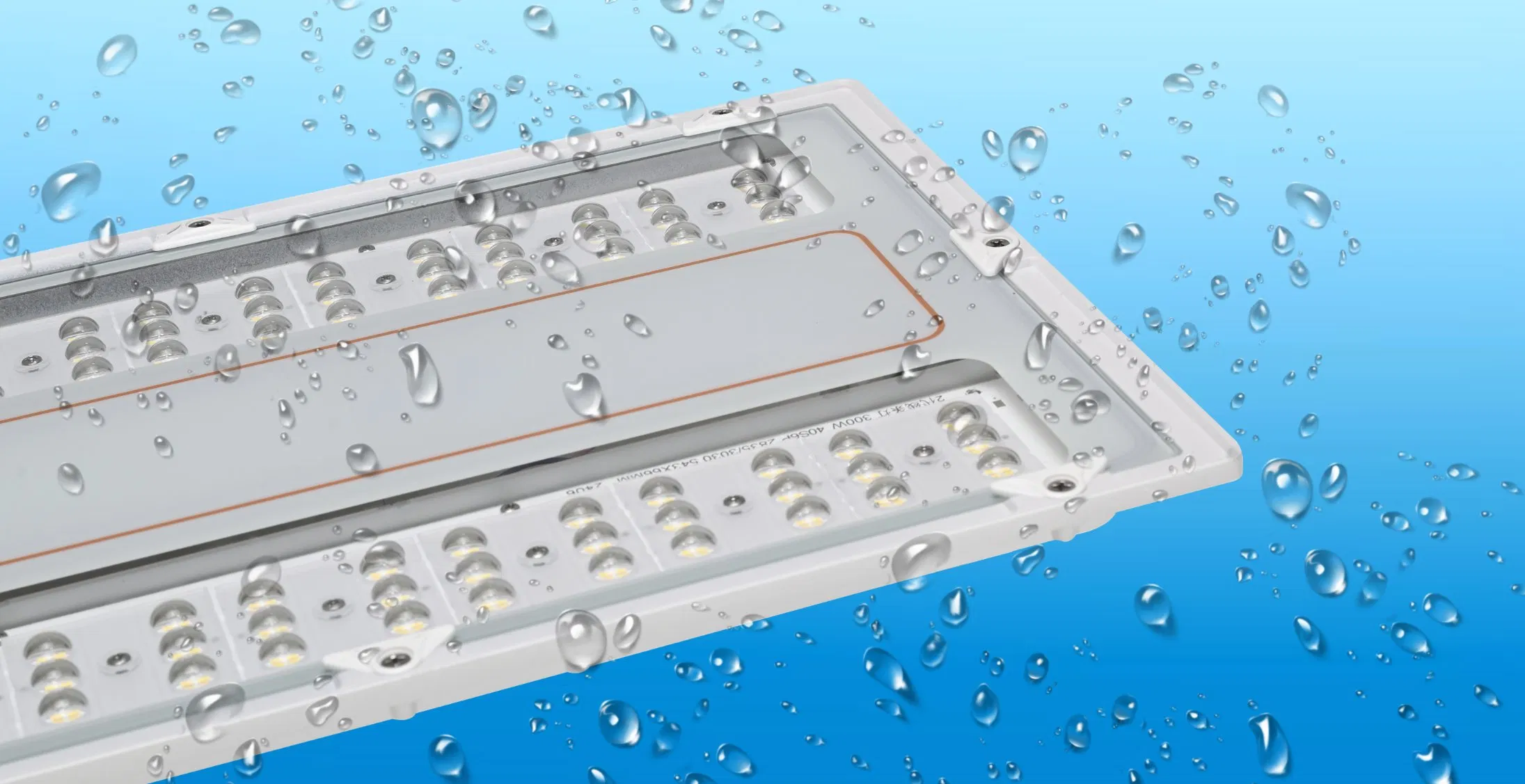

IP65 Protection: Carefully sealed for durability in various environments.
✦
Versatile Install: Supports both pendant and surface mounting with 304 stainless steel screws.
Product Variations
| Model | Power | Led type | Lumens (lm) | Dimensions |
|---|---|---|---|---|
| JR-ZKHB03A038-100D | 100W | SMD3030 | 16000 | 43*34*17 (cm) |
| JR-ZKHB03A048-200D | 200W | SMD3030 | 32000 | 53*34*17 (cm) |
| JR-ZKHB03A059-260D | 260W | SMD3030 | 41600 | 63.5*35*18 (cm) |

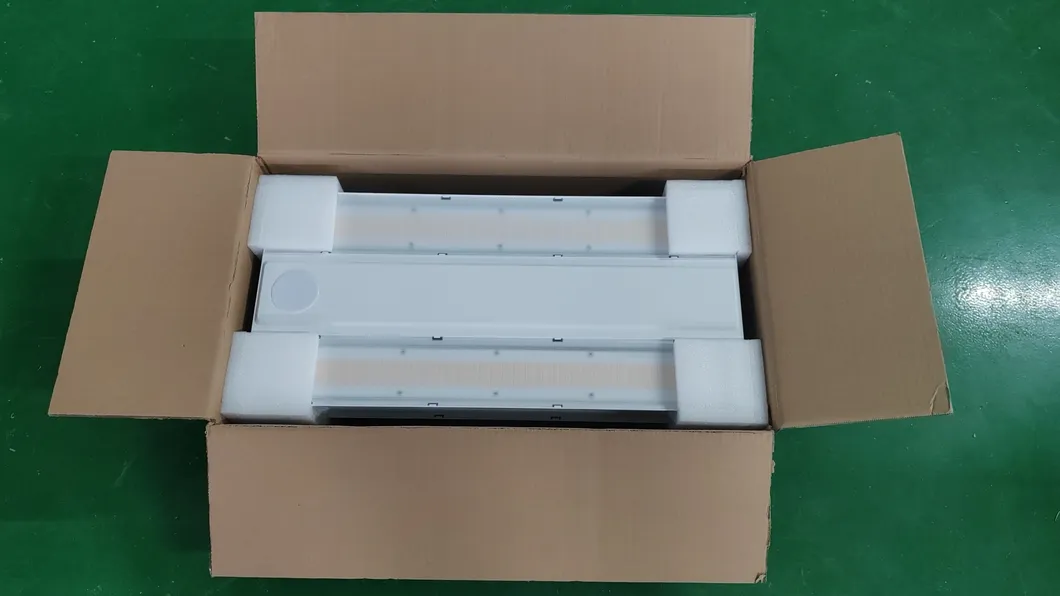

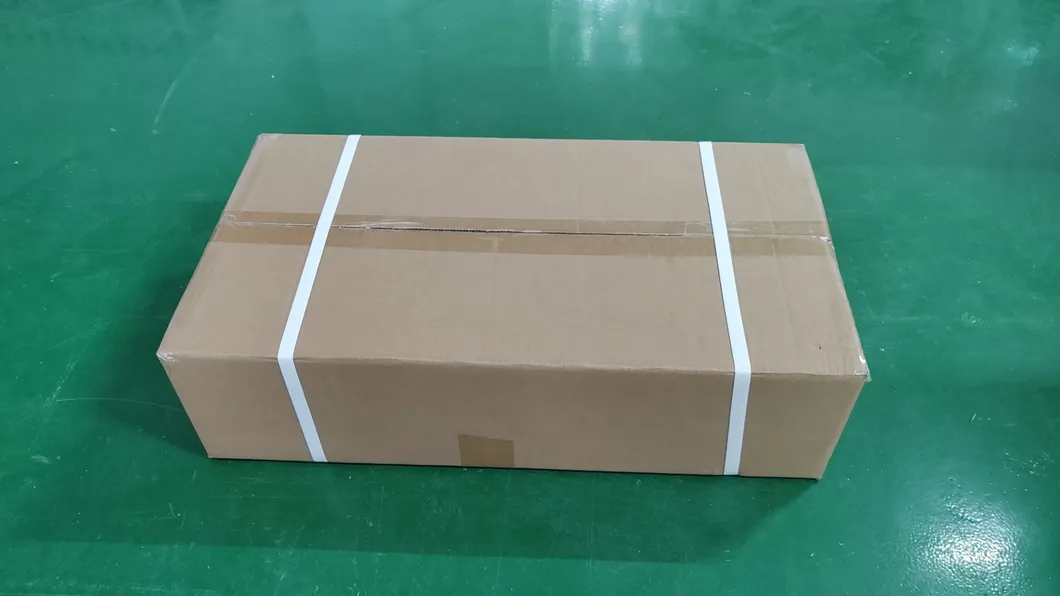

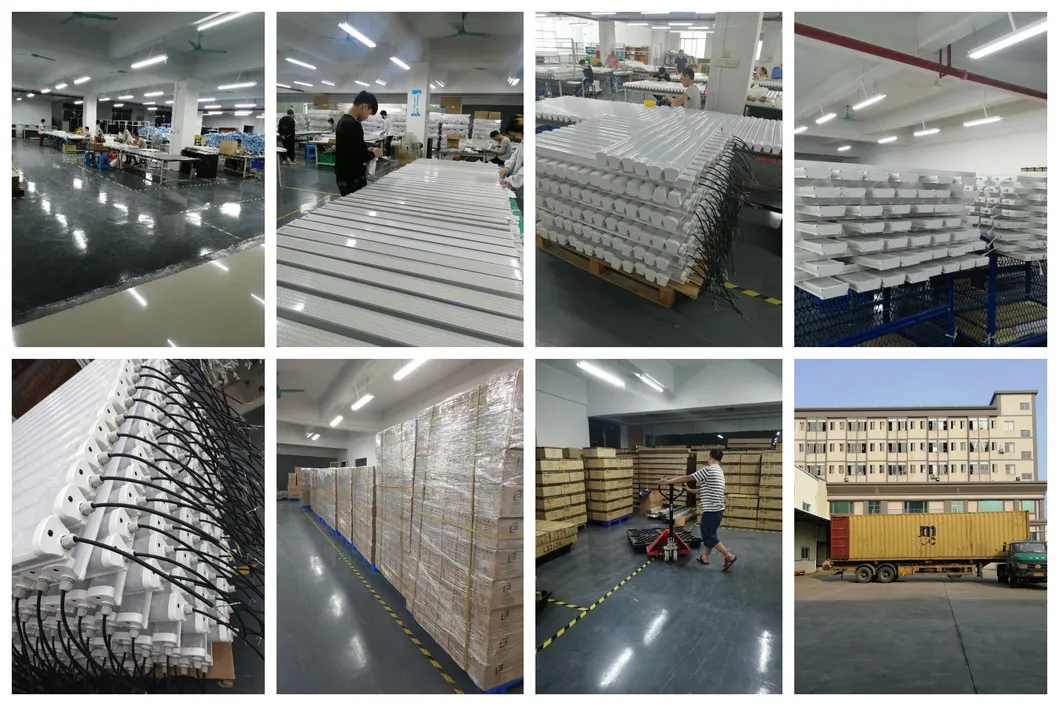

Dimension & Packaging

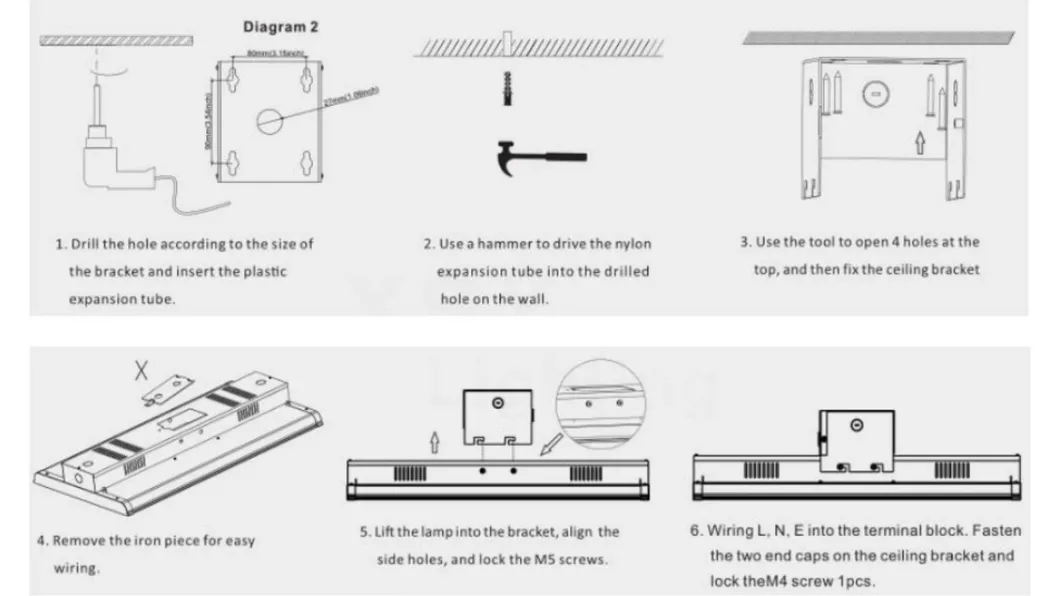

Installation Options

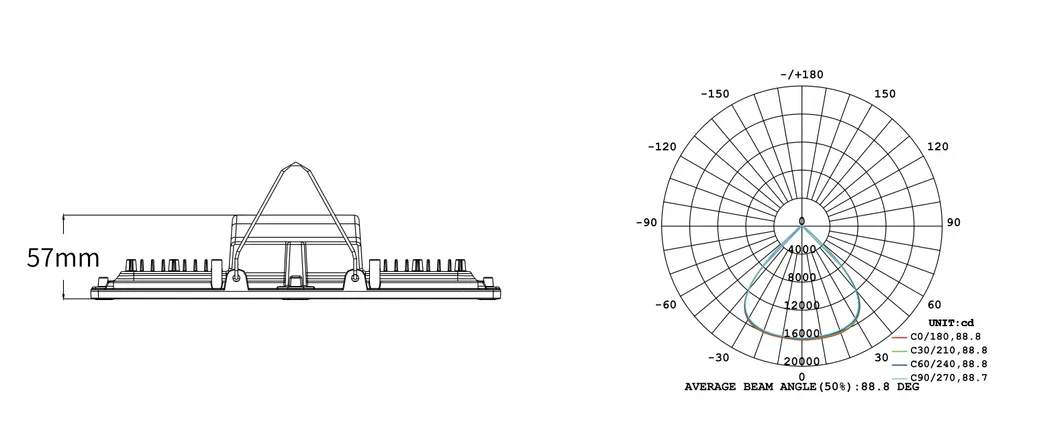

Technical Details
Safety Remarks:
- Maintenance must be performed by a qualified electrician.
- Ensure usage within specified input power range.
- Disconnect power prior to installation.
- Customized production (Emergency battery, sensors) is available.

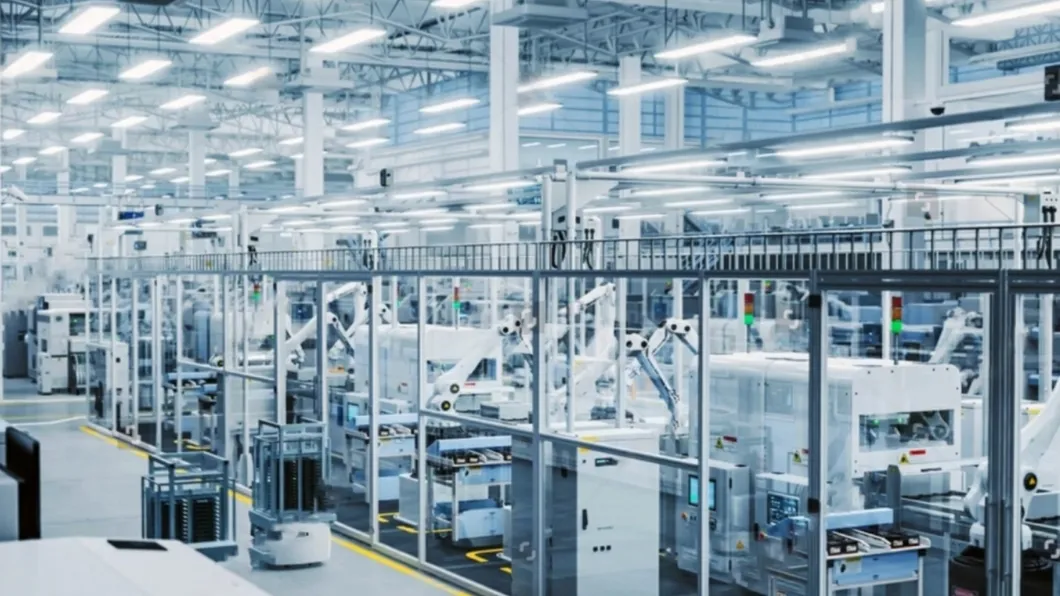

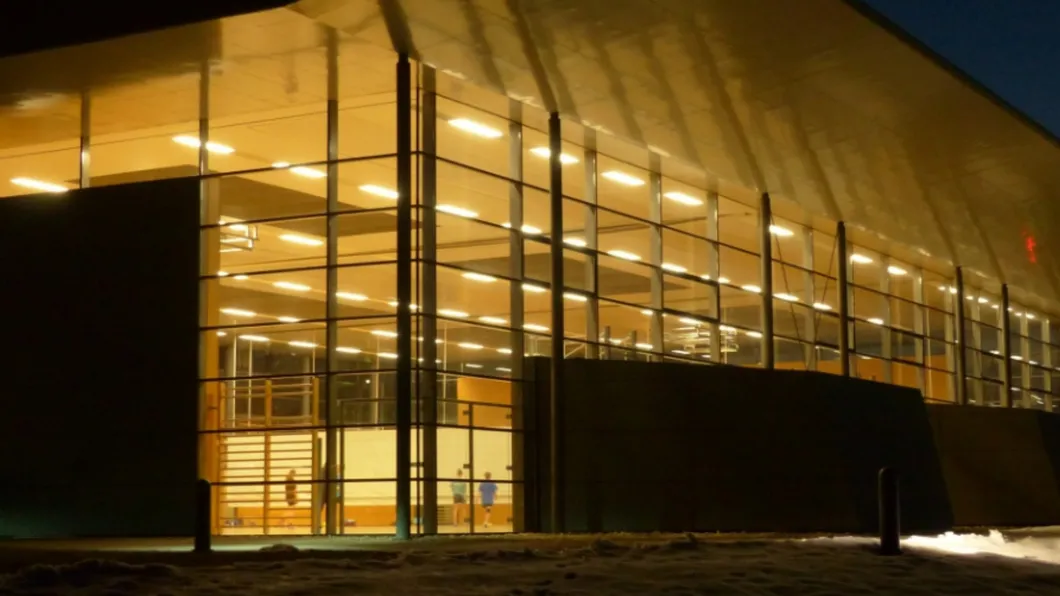

Applications at a Glance
OEM & ODM Services
We provide complete customization options, allowing you to tailor products to your brand's specific needs. This flexibility extends to power sources, optical lenses, and cutting-edge thermal management solutions.
Frequently Asked Questions
Can I have a sample order for LED light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What about the lead time?
3-5 working days for sample orders, and 12-20 working days for bulk orders depending on production plans.
Do you have any MCQ limit for LED light orders?
Low MOQ, 1pc for sample checking is available.
How do you ship the goods and how long does it take?
We usually ship by sea, DHL, UPS, or FedEx. It typically takes 3-10 days to arrive via express.
Is it OK to print my logo on the product?
Yes. Please inform us formally before production and confirm the design based on our sample.
What is the warranty for these products?
We offer a 3-5 year warranty on our LED high bay products.
