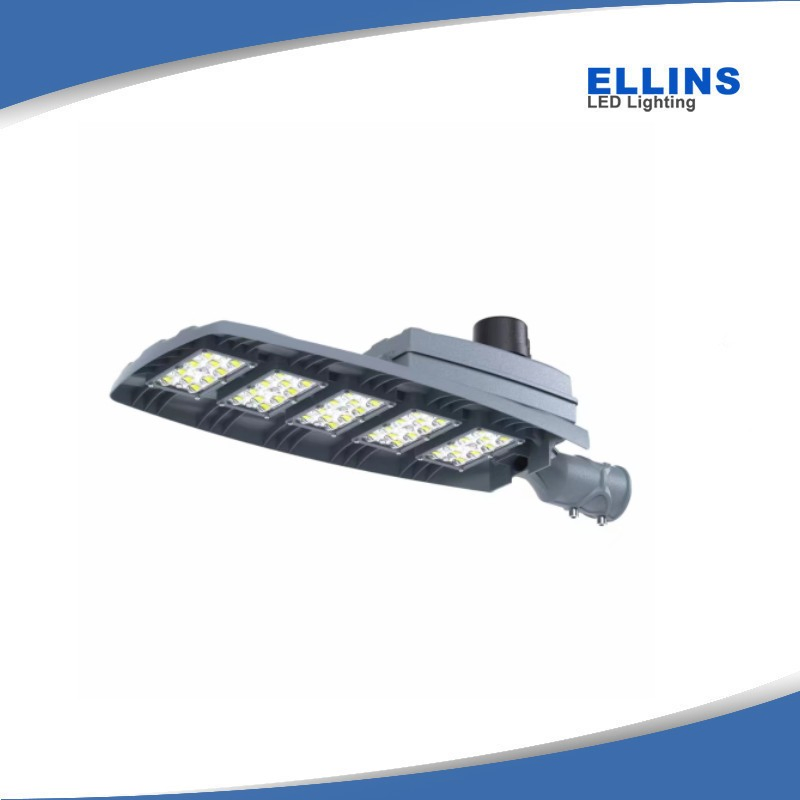

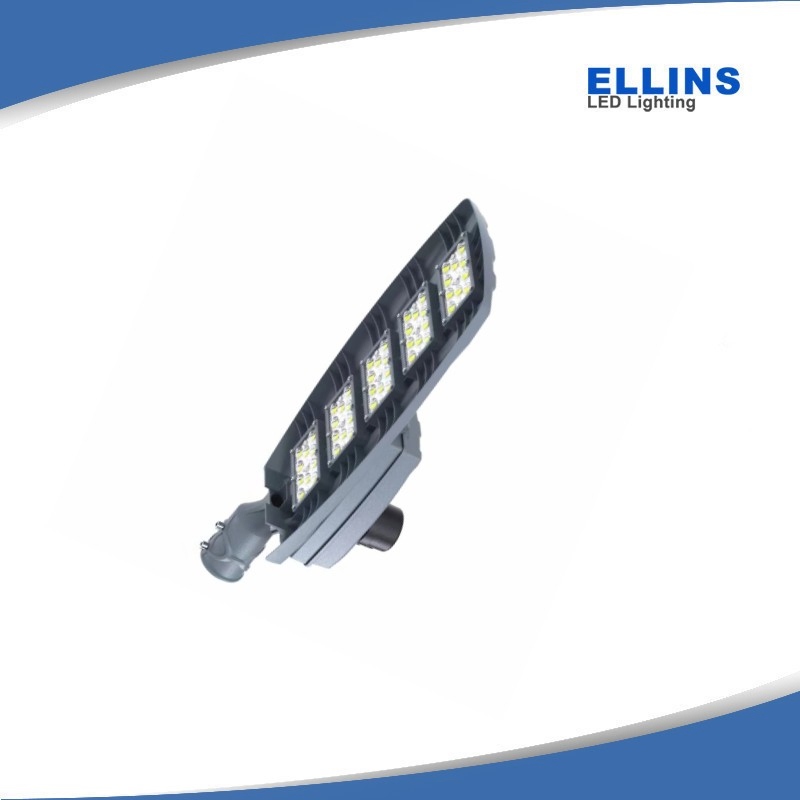

Dimmable LED Street Light 150W 300W Solar Wall Solar Lamp for Outdoor Public Lighting
Product Description
| Model NO. | ELS-ST05 |
|---|---|
| Lamp Body Material | Aluminum |
| Power Options | 50W, 100W, 150W, 200W, 240W, 300W |

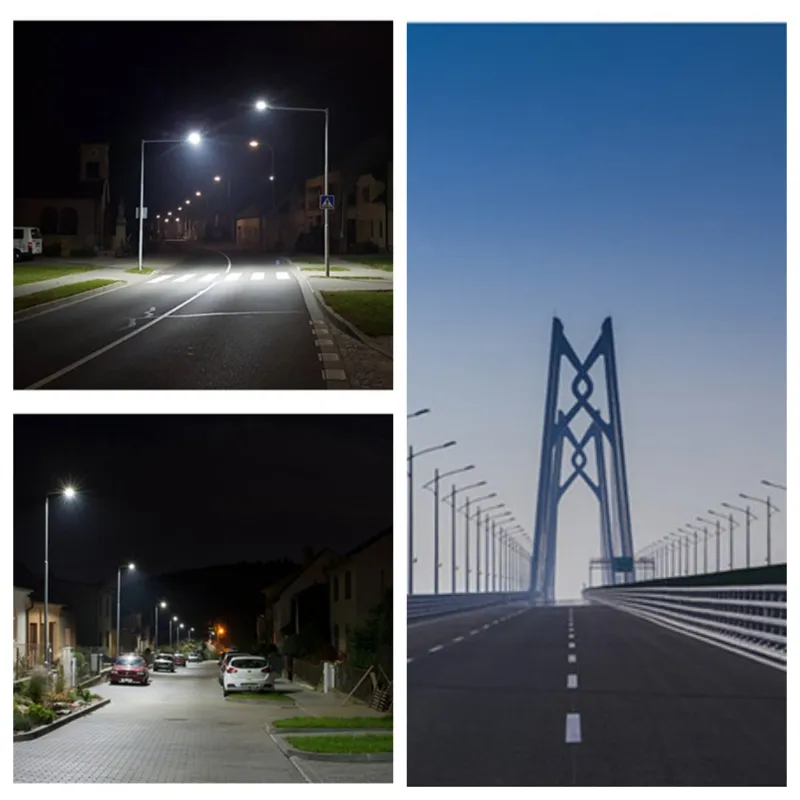

| Application | Square, Highway, Garden, Parking Lot, Boulevard |
| IP Rating | IP66 |

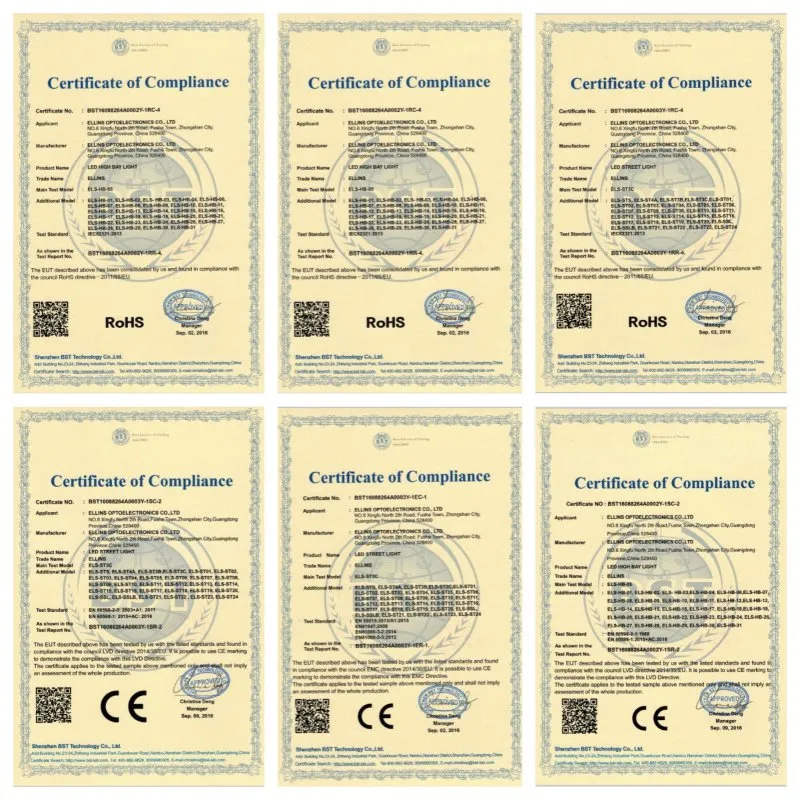

| Certification | CE, LVD, RoHS |
| Input Voltage | 100-277V |
| LED Chips Brand | CREE |
| LED Source Efficiency | 185lm/W |
| Driver Brand | Meanwell / Inventronics |
| Beam Angle | 140*70° |
| LED Life Span | >100,000 Hours |
| Working Temperature | -40~+55℃ |
| Dimmable Options | 1-10V, Dali, NEMA/ Zhga Base |
| Surge Protection | 10kv / 20kv |
| Warranty | 3 Years / 5 Years |

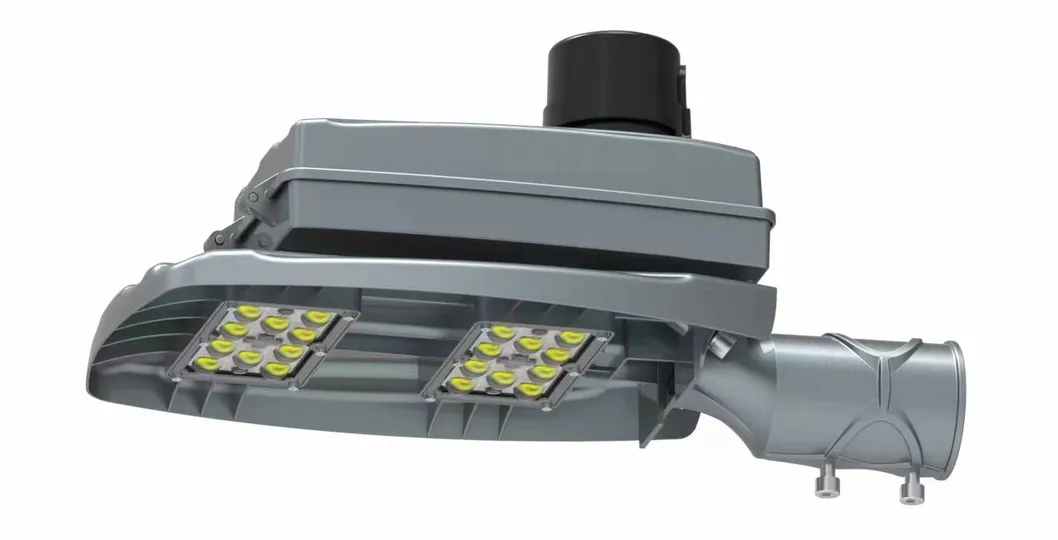

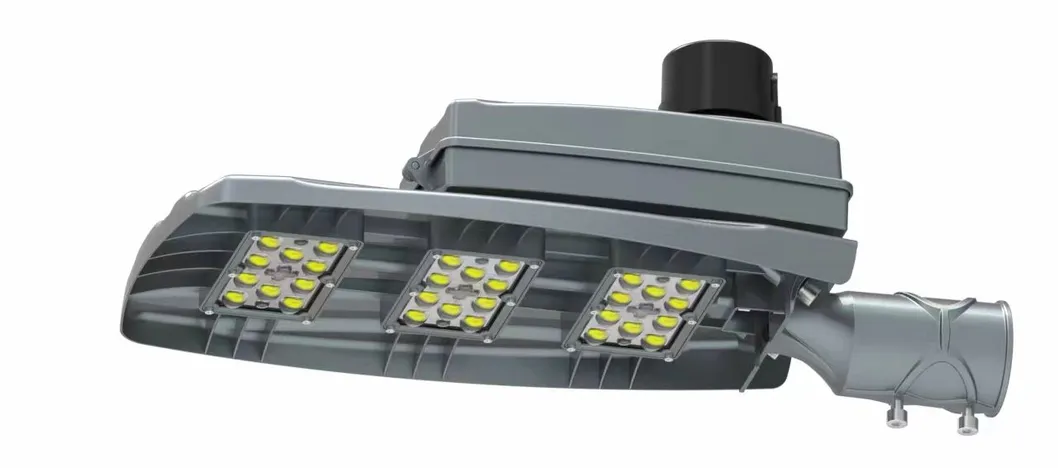

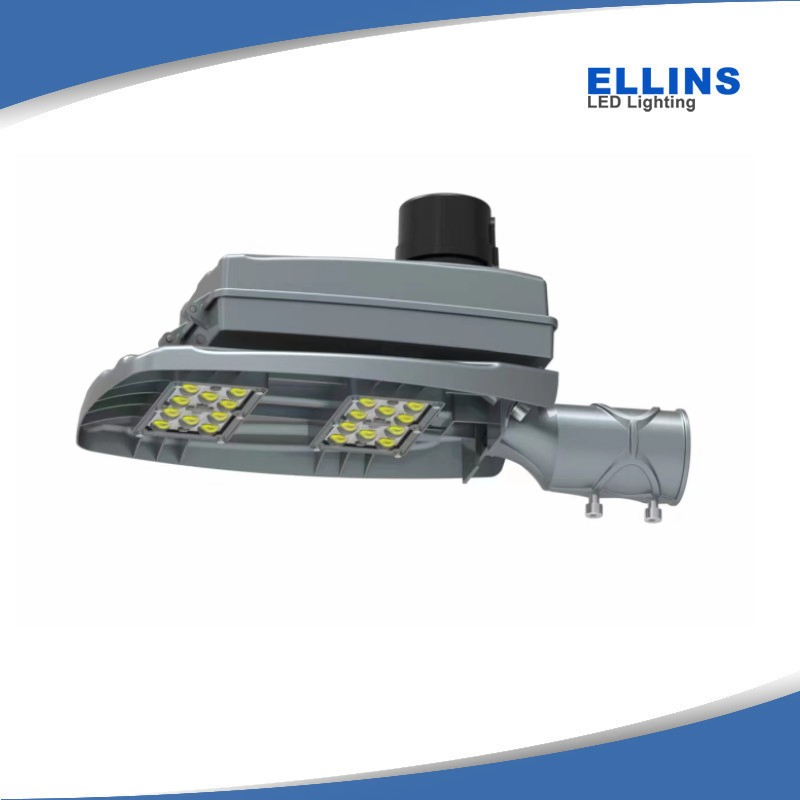

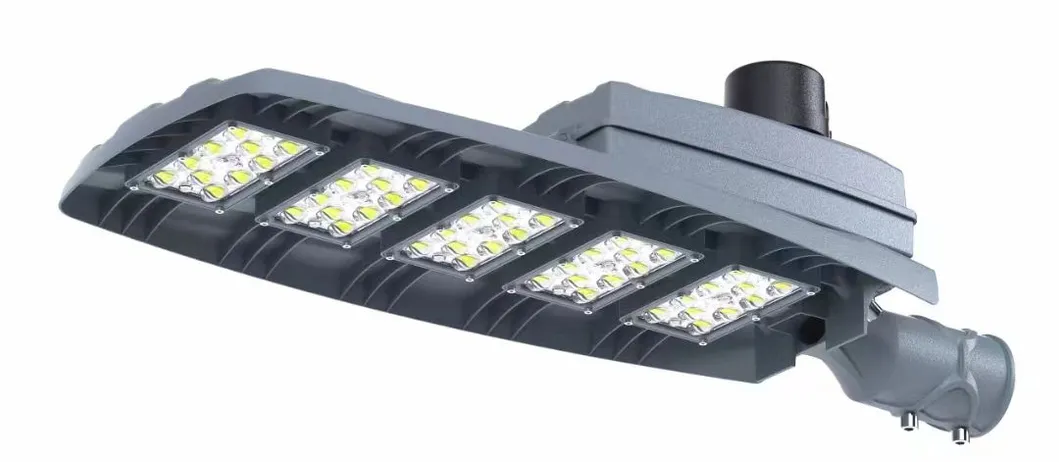

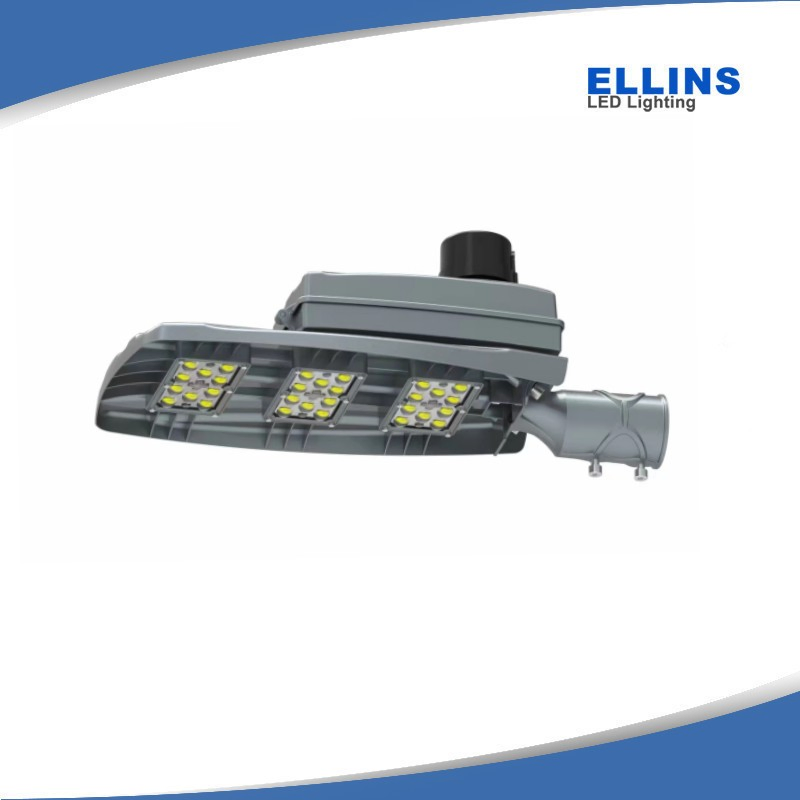

ST05 LED Street Light: Featuring a unique split design that isolates the heat of LEDs from the Driver. This advanced thermal dissipation structure reflects a sophisticated design style focused on longevity and performance.
The detachable driver box design ensures effortless replacement and maintenance, providing a versatile solution compatible with solar and DC-powered systems.

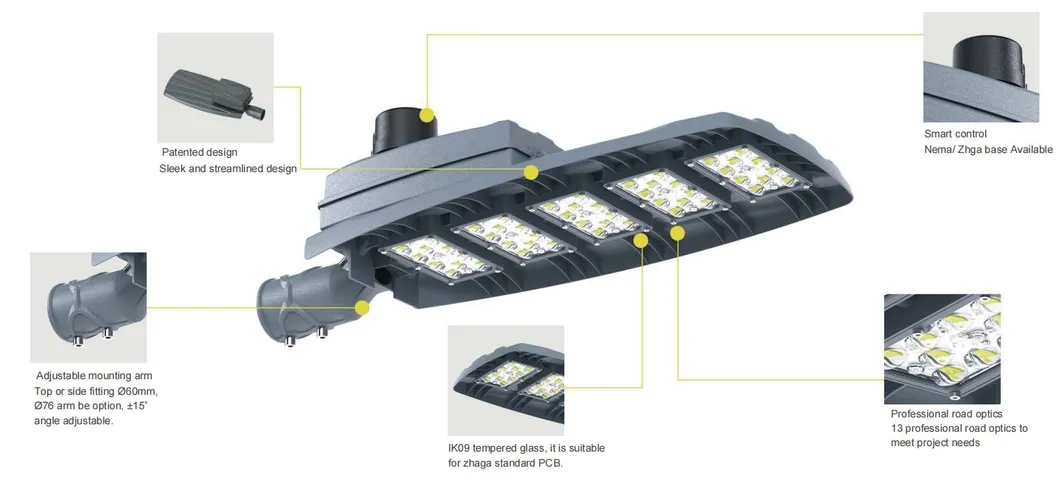

- Unique split design for superior heat dissipation and easy driver replacement.
- Robust die-casting aluminium body with super white tempered glass protection.

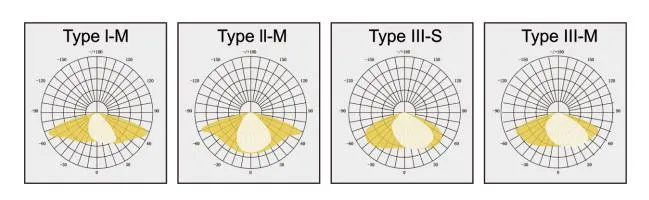

- High-comfort optics with uniform lighting distribution and multiple lens options.
- Premium LED chips and high-grade drivers with up to 20KV surge protection.
- Adjustable installation angles for top and side fixing (Ø48/Ø60mm).
- Smart control ready, compatible with remote management systems.
High Efficiency LED Driver
Conversion efficiency up to 97%, PF > 0.95, IP67 protection suitable for all environments.

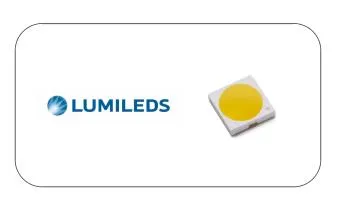

Famous LED Chip
SMD 7070 chips, high luminous efficiency, LM80 standard for long-term stability.

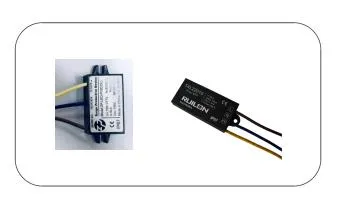

Surge Protection
Optional 10KV/20KV protectors to prevent damage from lightning or power surges.

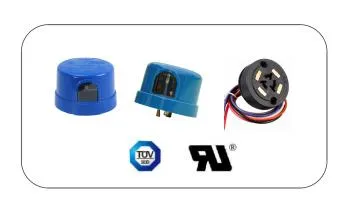

Photocell Sensor
Optional dusk-to-dawn sensors with 3/5/7 pin NEMA base options.
| Power Rating | 50W | 80W | 100W | 150W | 200W | 300W |
|---|---|---|---|---|---|---|
| LED Quantity | 20PCS | 20PCS | 20PCS | 30PCS | 30PCS | 50PCS |
| Lumen Output | 9,250lm | 14,800lm | 18,500lm | 27,750lm | 37,000lm | 55,500lm |
Shipping: Worldwide delivery via DHL, UPS, FEDEX, EMS, Air, or Sea. Items usually ship within 2-7 business days after payment. Buyers are responsible for local import duties and taxes.
Return & Warranty: 3-5 years manufacturer's limited warranty. All items are strictly tested before shipping. Defective items must be reported within the warranty period.
