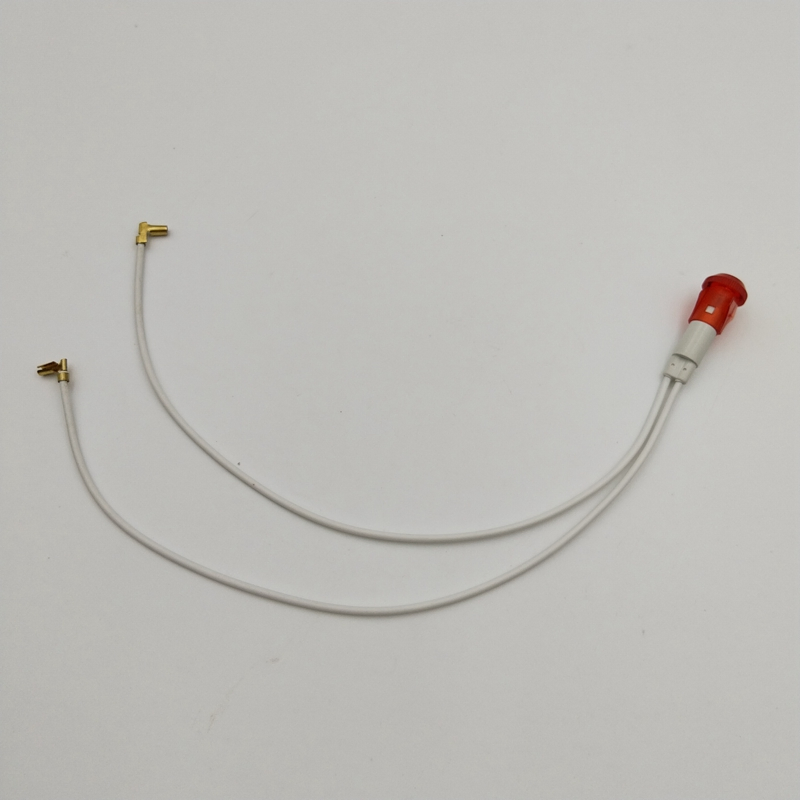

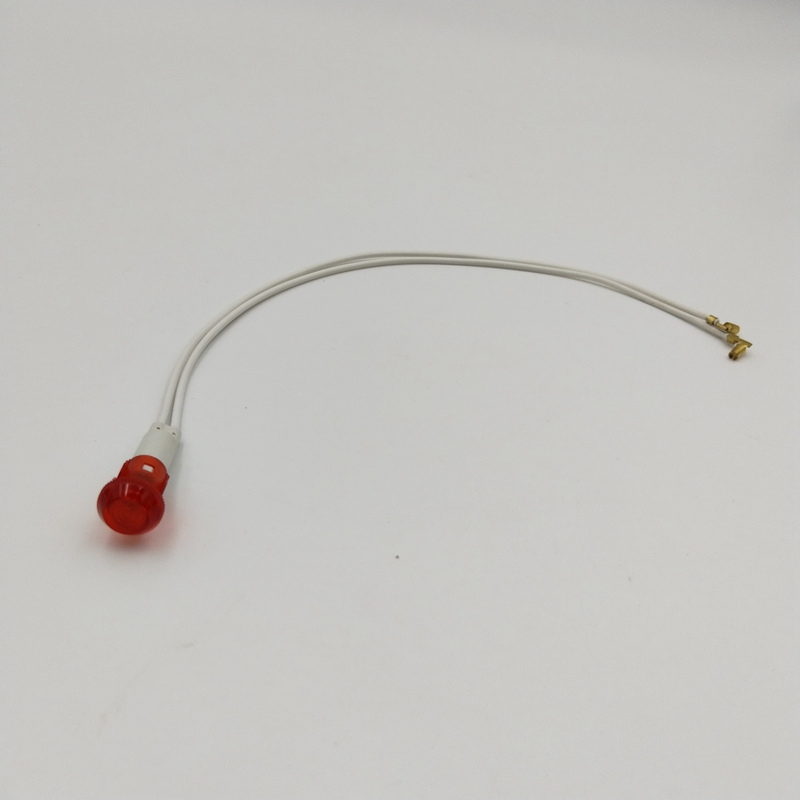

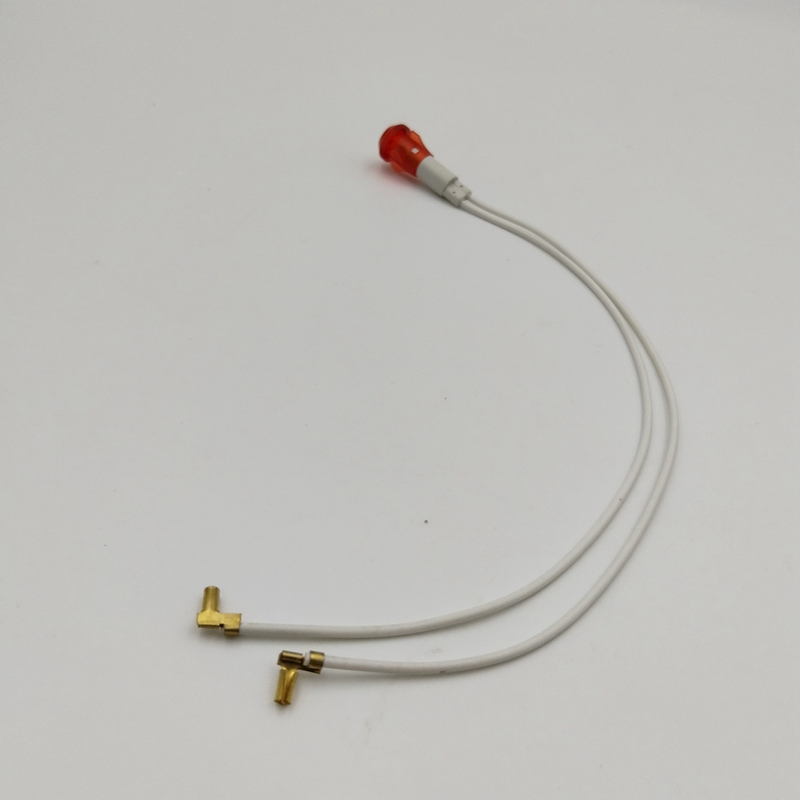

Energy-Saving Electric LED Lamp Wire Harness Power Signal Light Control Cabinet Wire Indicated Lamp
Product Description
Basic Information
Model NO.:IL-1102
IP Rating:IP65
Color Temperature:Warm White
Lamp Body Material:PC
Certification:CE, Reach, RoHS
Light Source:Neon Lamp/LED
Plastic Material:Nylon, PC
Voltage Range:220V (Customizable)
Source Power:0.06W
Rated Current:≤20mA
Frequency:50/60Hz
Mounting Hole:10mm
Temperature:-20℃~100℃
Service Life:≥25000h
Wiring Method:With Wire (Customizable)
Origin:China
Product Description
Energy-saving Electric Water Heater Power Signal Light Indicated Lamp with Wire
Classification by Shape
- Round indicator light: Small round head power indicator light, 10mm opening, plastic material. Available in red, green and other colors. Commonly used in freezers, water dispensers, and disinfection cabinets.
- Square indicator light: 22mm LED material, available in red, green and other colors with a wide voltage application range for distribution boxes.
Classification by Function
- Power signal light: Used to indicate power status (On/Off). Features high reliability and 12-24V or 220V options.
- Working signal light: Indicates equipment status (running, standby, fault) using different colors (red, green, yellow, white, blue).
Core Features:
- Round appearance for easy installation and low precision requirements.
- Square design for simple arrangement and modern appearance.
- High reliability across wide voltage ranges (AC/DC 6.3V-380V).
- Multi-color coding for rapid equipment status identification.

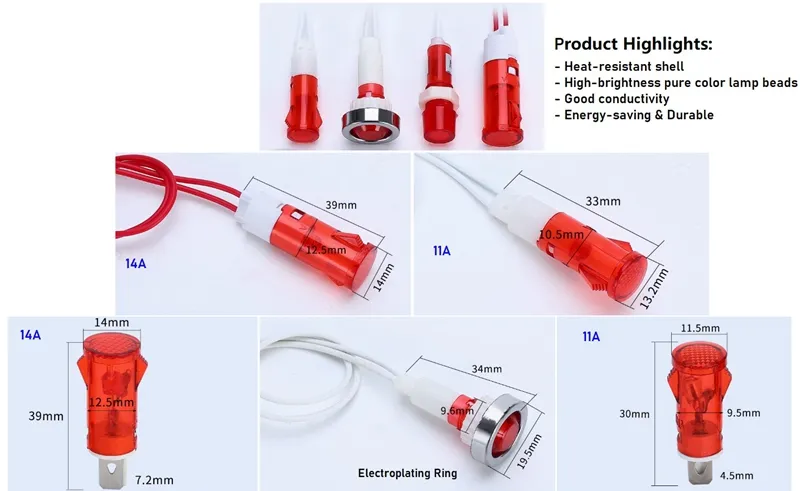

Specifications
| Product Name | Power Signal Light |
| Light Source Material | Neon Lamp/LED |
| Plastic Material | Nylon, PC |
| Voltage | 220V, customizable |
| Light Source Power | 0.06W |
| Frequency | 50/60Hz |
| Rated Current | ≤20mA |
| Mounting Hole Size | 10mm |
| Application Temp | -20℃~100℃ |
| Service Life | ≥25000h |
| Emitting Colors | Red, Yellow, Green, Blue, Orange, Transparent |
| Key Features | Heat-resistant, shock-resistant, dustproof, and leakage-proof. |

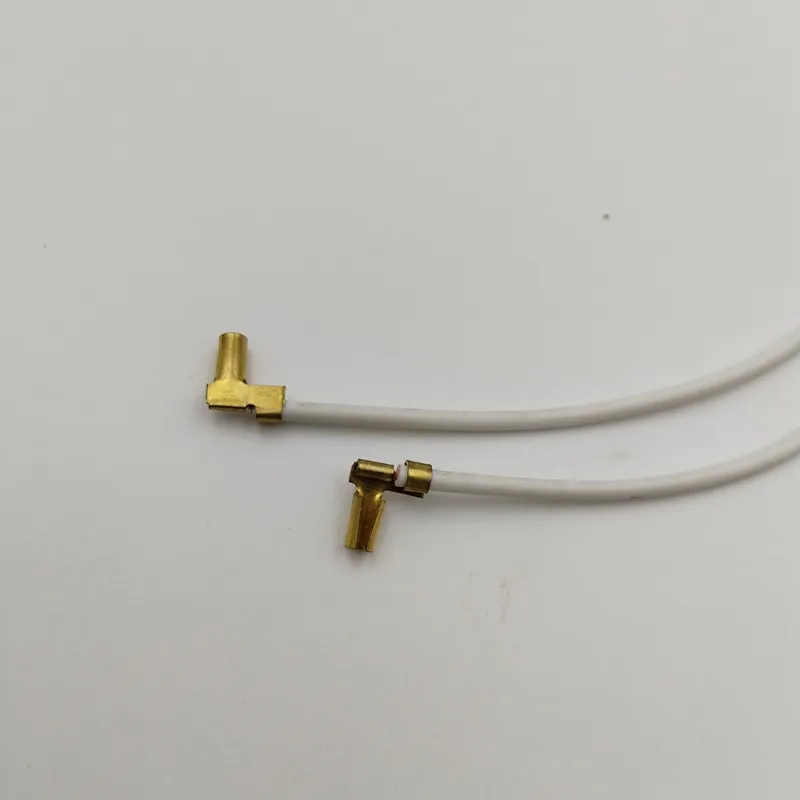

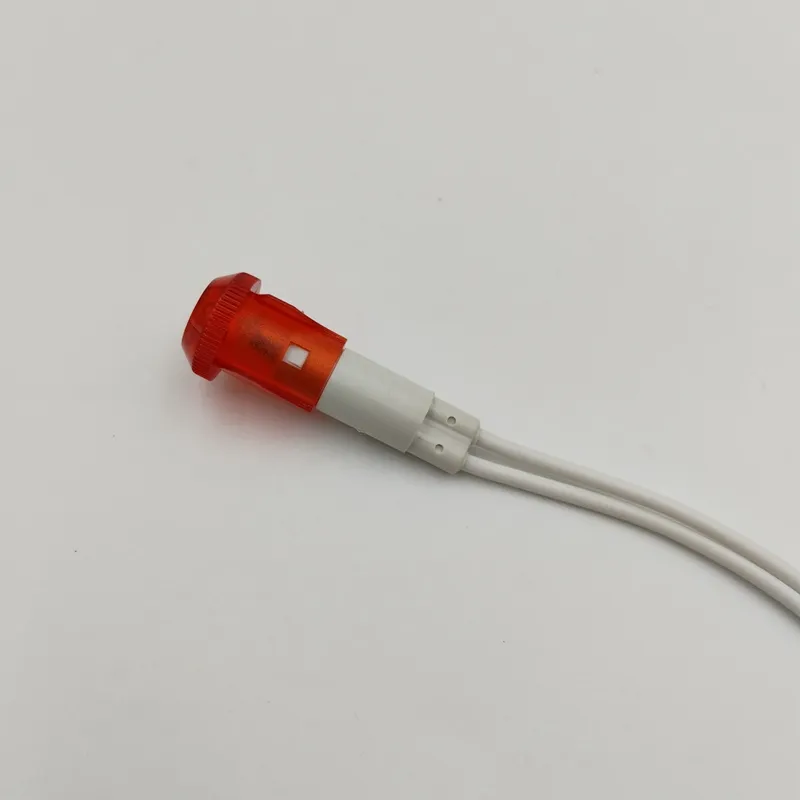

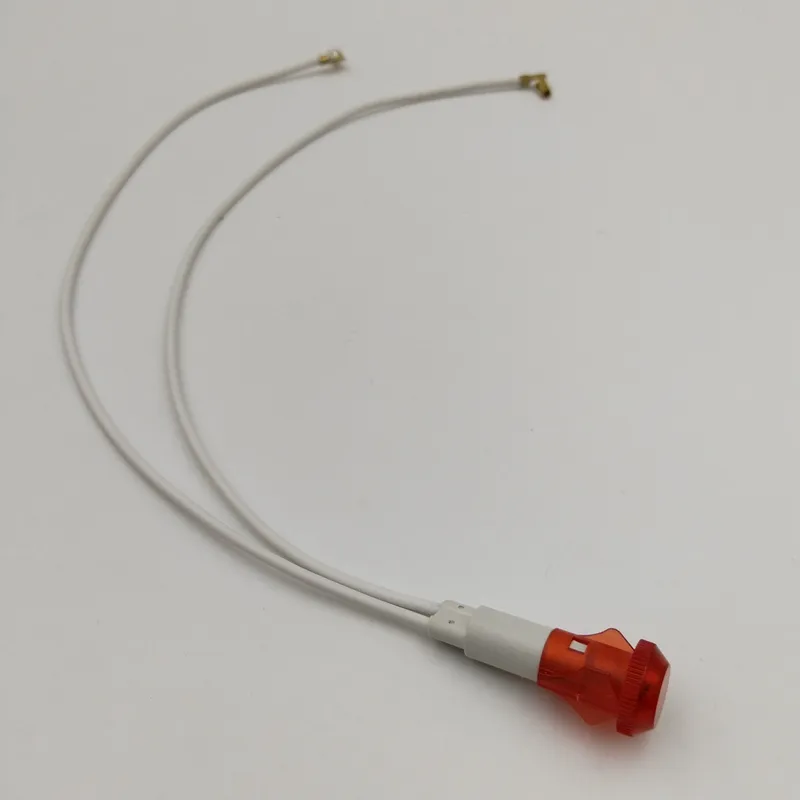

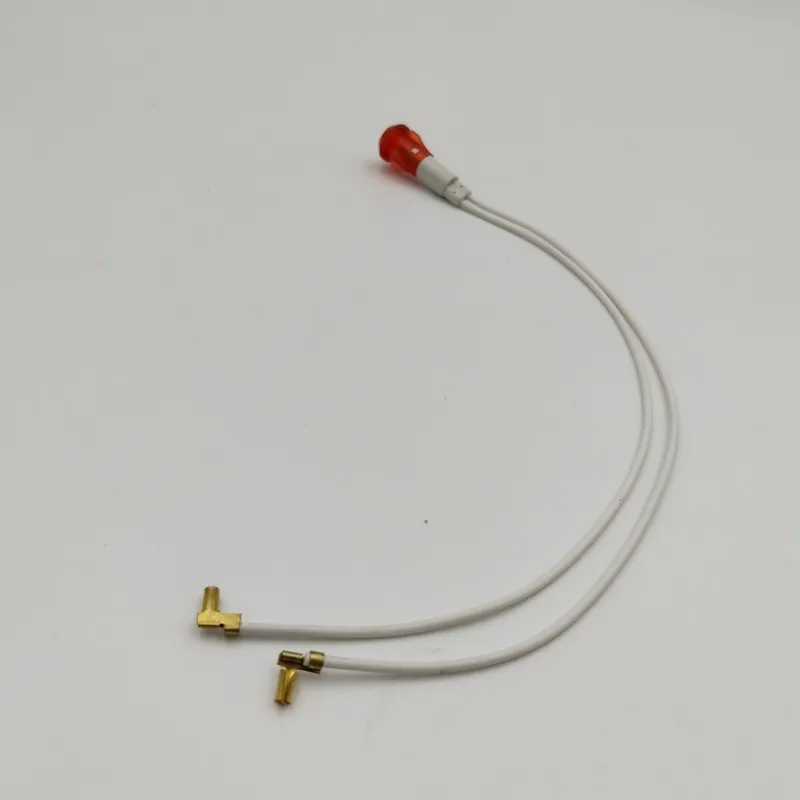

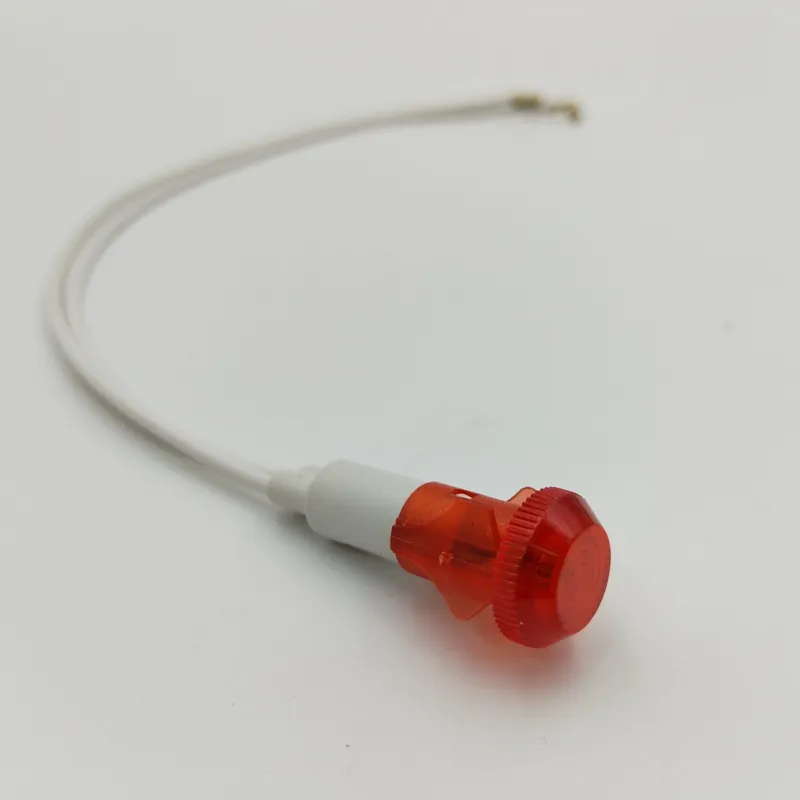

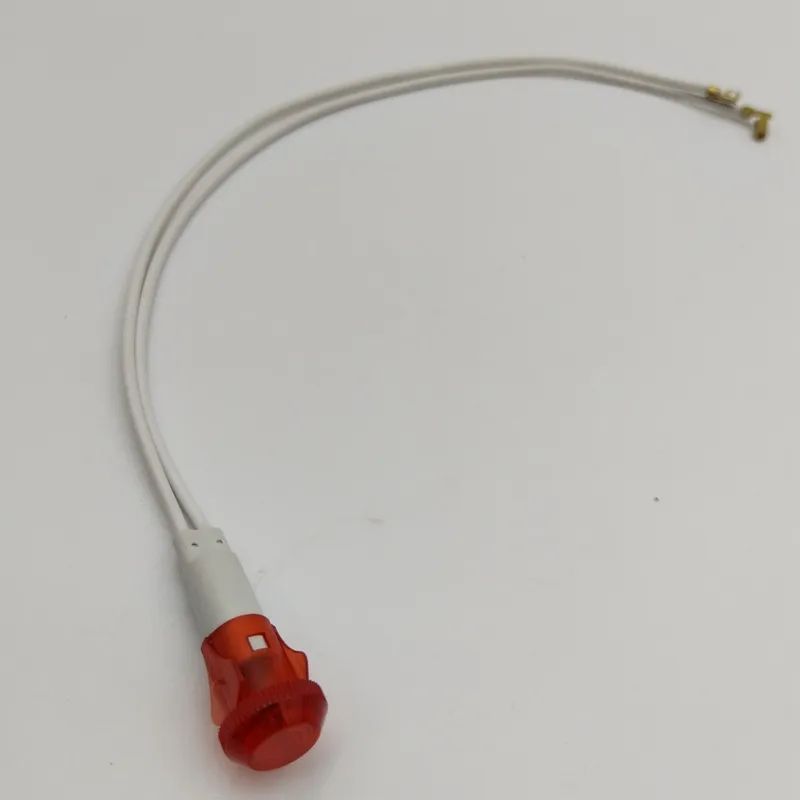

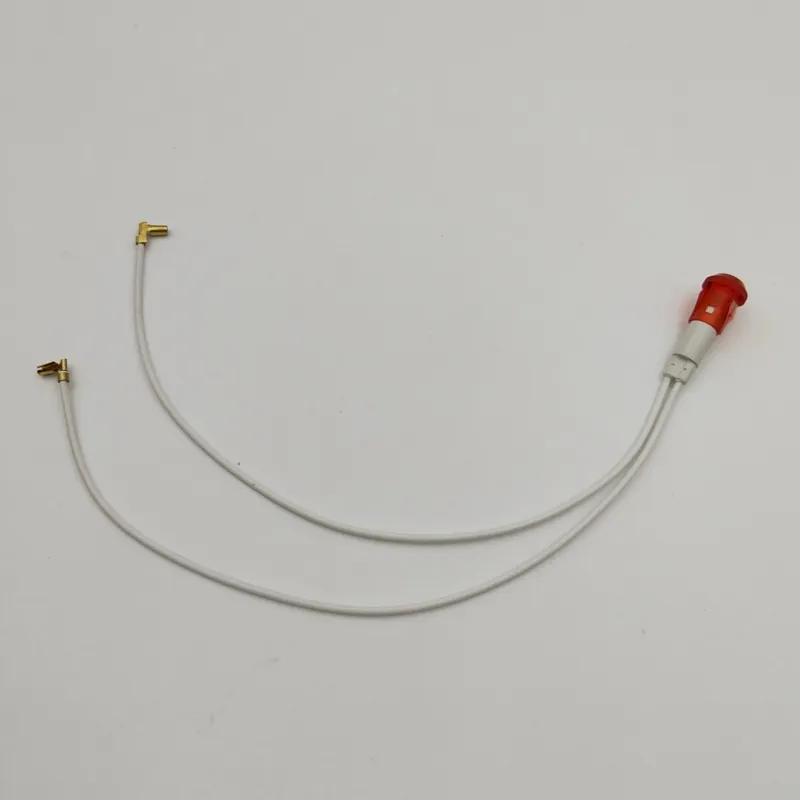

Product Gallery
Packaging & Shipping
Package Size:50.00cm * 45.00cm * 45.00cm
Gross Weight:20.000kg
Package Type:Carton Packaging
Certifications
Frequently Asked Questions
Are you a manufacturer or a trader?
We are a factory specializing in the production of high-quality signal lights and indicator lamps.
What is the lead time for an order of 5,000 pieces?
The typical lead time is approximately 20 days after the down payment is received.
What are your standard payment terms?
We accept LC, T/T (20% remittance + 80% before delivery), and DP.
Can we print our own logo on the products?
Yes, customization options including logo printing are available for our signal lights.
What kind of guarantee do you offer?
We offer a 1-year guarantee on our products to ensure quality and customer satisfaction.
What parameters can be customized for the indicator lights?
Voltage, emitting color, wiring material, and wire length can all be customized to meet your specific requirements.
