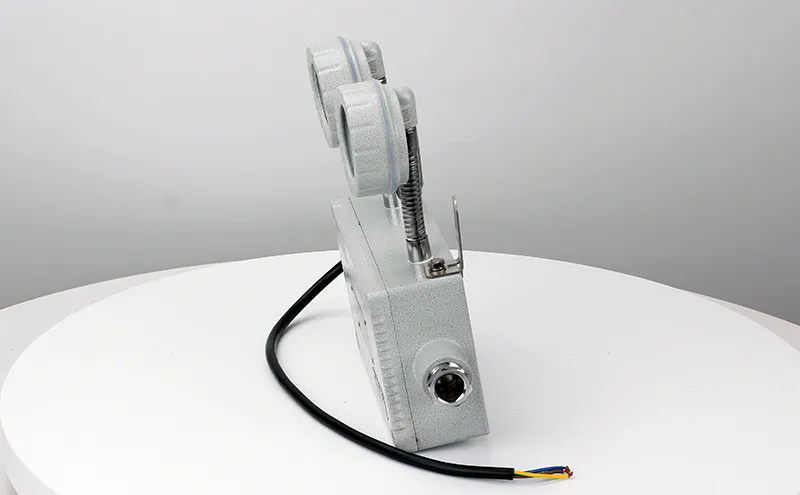

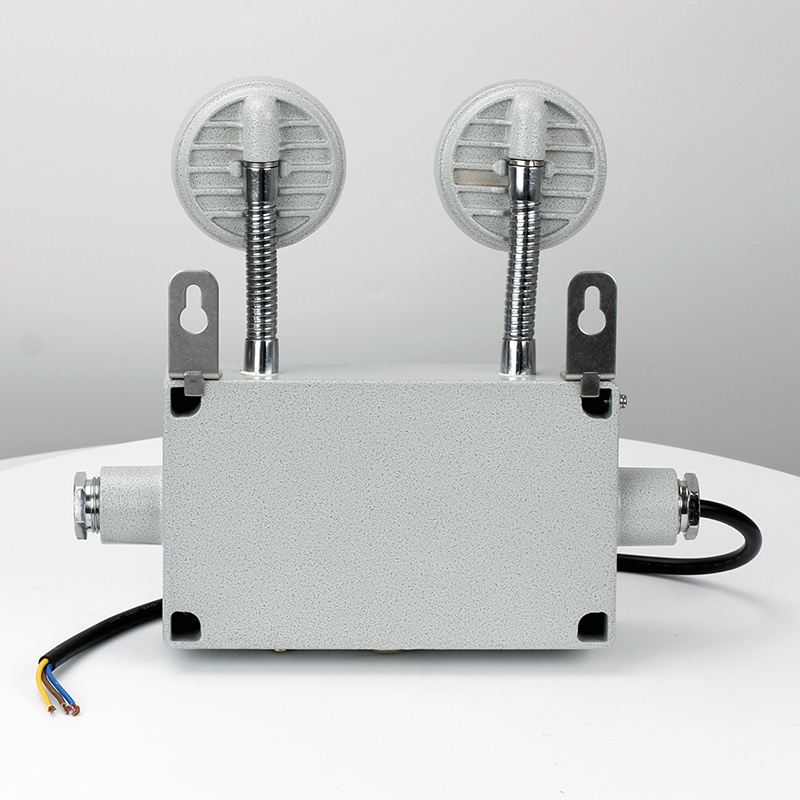

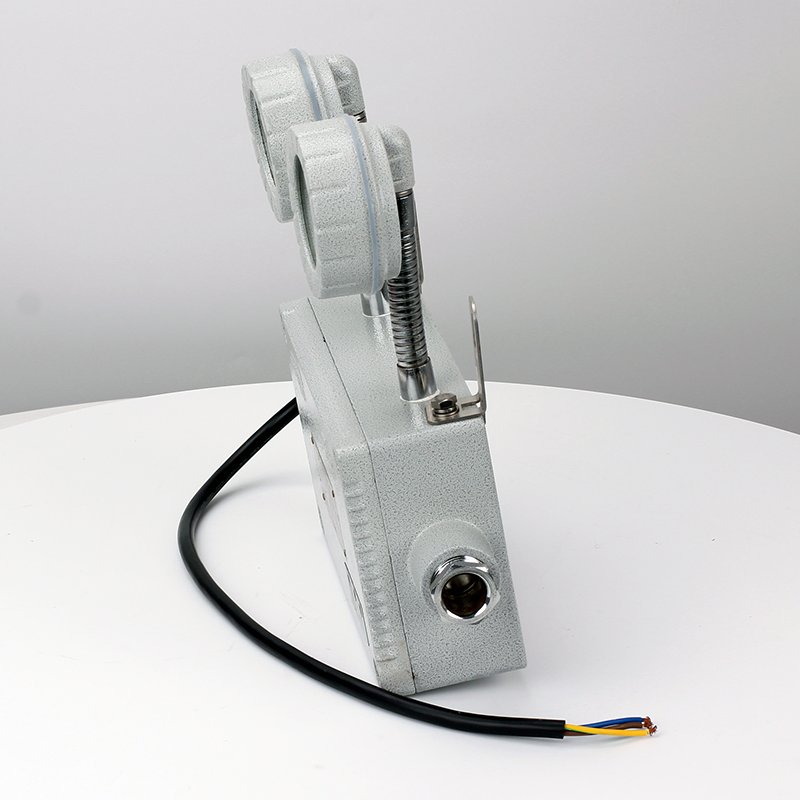

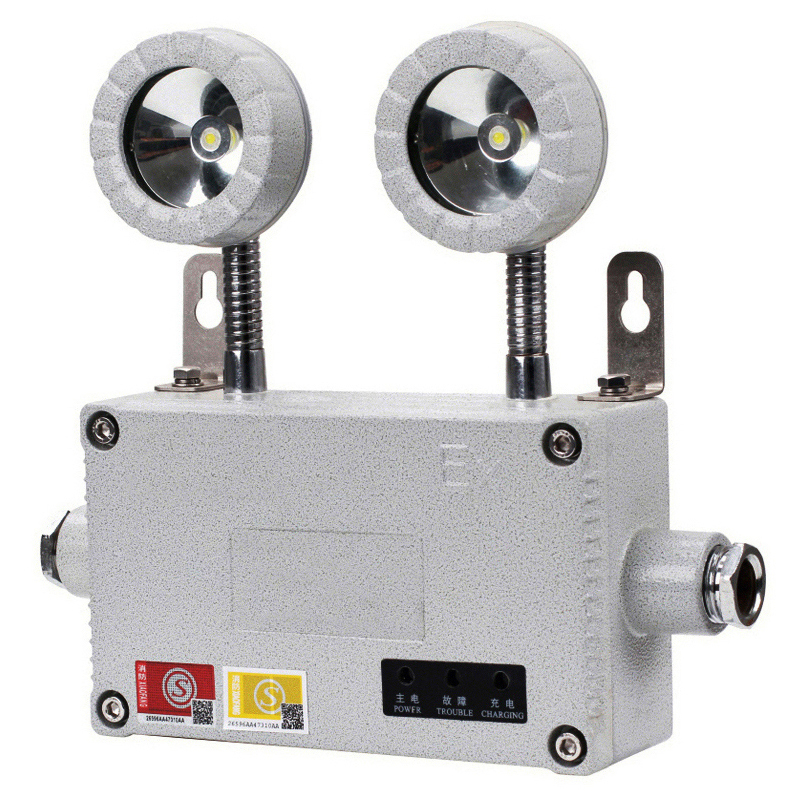

Explosion Proof IP54 Adjustable Double Heads Wall Mounted Rechargeable LED Exit Light Wenzhou Explosion Proof Emergency Lamp
Product Description
📊Basic Information
Model NO.
BCJ51 IIB/C
Battery Type
Lead-acid
Warranty
3-Year
Emitting Color
White
Sign Orientation
Out, Left, Right, Left and Right
Specifications
2*3W
Input Voltage
AC/DC 24V, 36V, AC 220V, 380V
Use
Inflammable and Explosive Places
Characteristic
Waterproof, Dustproof and Corrosion-Resistant
Luminous Efficiency
120 Lm/W
Color Temperature
2700-6500K
Protection
IP66 / WF2

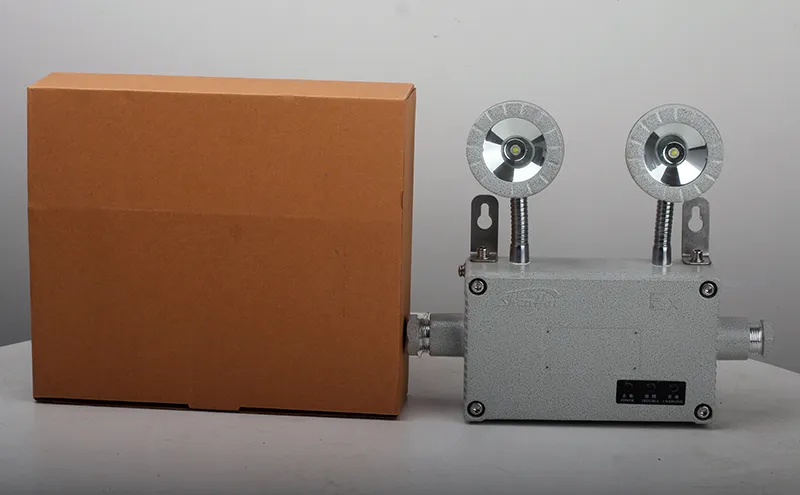

📦Packaging & Delivery
Package Size
33.00cm * 28.00cm * 32.00cm
Gross Weight
15.000kg
Transport Package
Carton Box / OEM Packing
⚙️Product Parameters

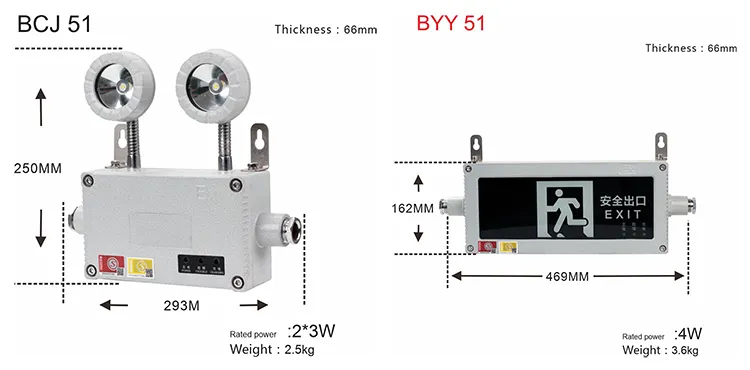

| Model | Explosion Proof Sign | Source | Power (W) | Charging (h) | Emergency (min) | Weight (kg) |
|---|---|---|---|---|---|---|
| BCJ51- | Ex db eb ib mb IIC T6 Gb Ex tb IIIC T80ºC Db |
LED | 2*3 | 24 | 120 | 2.5 |
| BCJ52- | LED | 2*3 | 24 | 120 | 2.5 | |

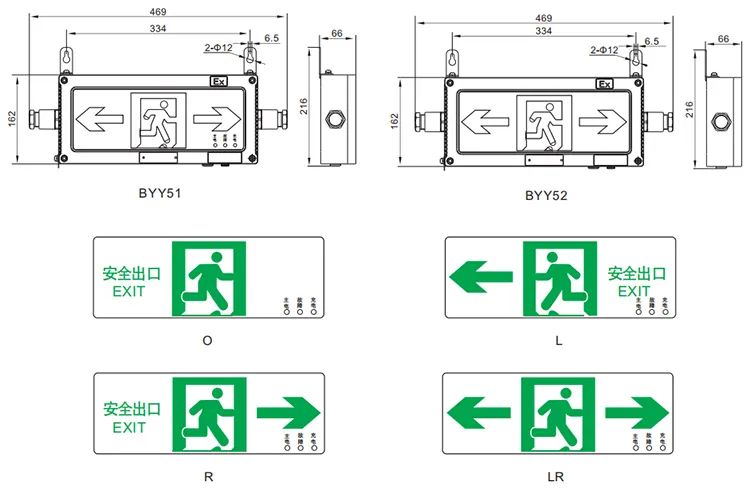

| BYY51- | LED | 4 | 24 | 120 | 3.6 | |
| BYY52- | LED | 4 | 24 | 120 | 3.6 |

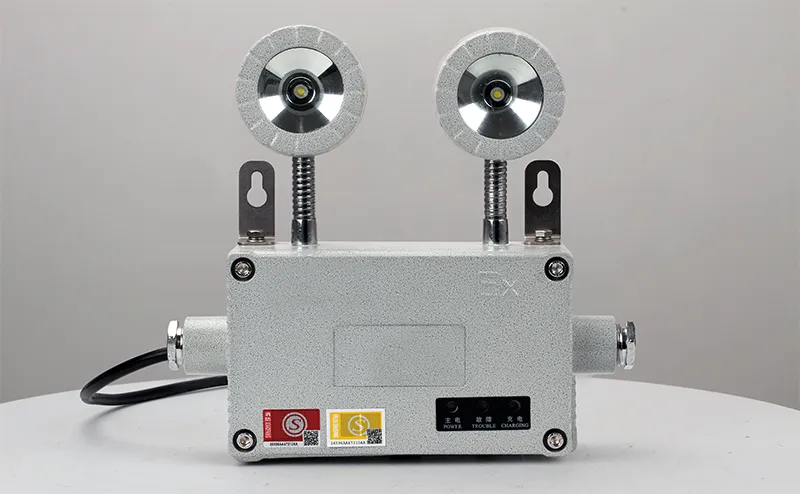

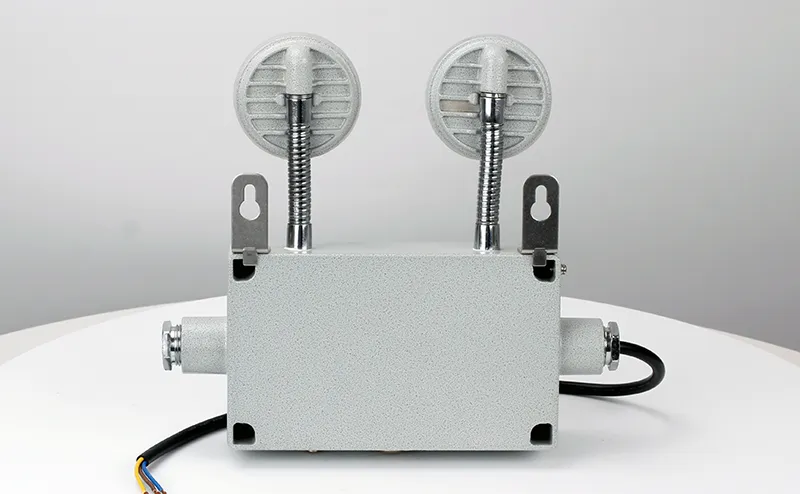

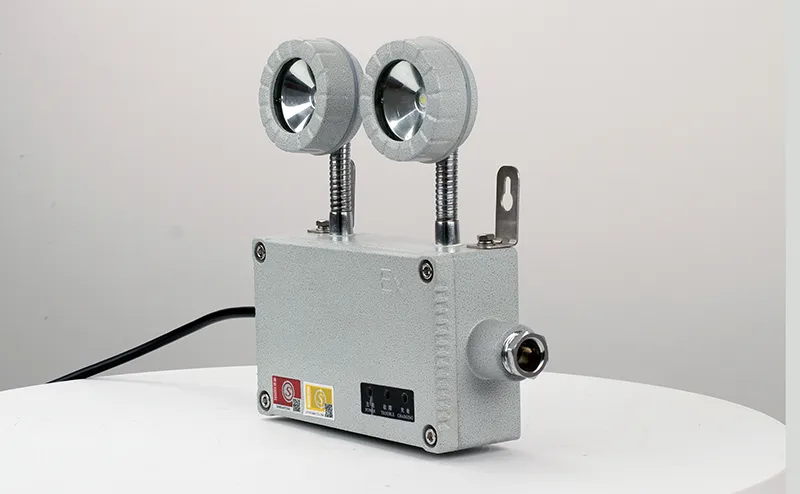

📝Product Description
- Non polar connection for easy installation.
- Handheld encoder coding support.
- Short circuit independent recoverable protection.
- Special cast aluminum alloy die-casting shell with high voltage static spraying.
- Exposed stainless steel fasteners with high corrosion resistance.
- Corrosion resistant and anti-aging surface treatment.
- Customizable evacuation signs available.
- Ultra high brightness LED light source, low power consumption, long service life.
- Automatic charging and emergency switching during power failure.
Applicable Scope: Zone 1, Zone 2, Zone 21, Zone 22; IIA, IIB, IIC Explosive Gas Environments.
Security Level: IP66, WF2, Ex db eb mb IIC T6 Gb.
Emergency Time Options: 30, 60, 90, 120, 180 Minutes.
Security Level: IP66, WF2, Ex db eb mb IIC T6 Gb.
Emergency Time Options: 30, 60, 90, 120, 180 Minutes.

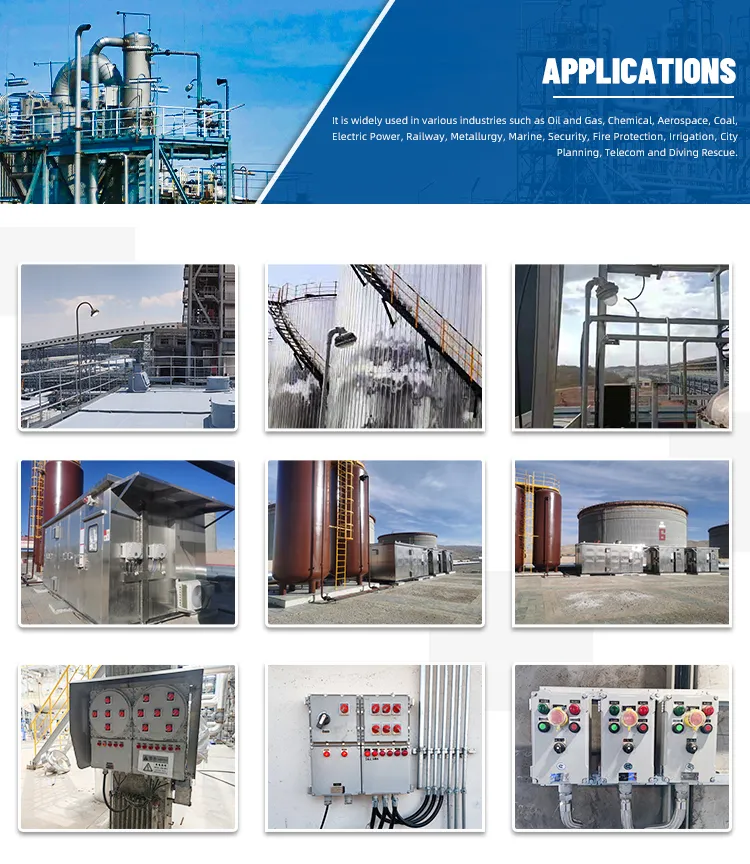

🏭Application Scope
- Explosive gas environments: Zone 1 and Zone 2.
- Combustible dust environments: Zone 21 and Zone 22.
- Suitable for IIA, IIB and IIC explosive gas environments.
- Temperature groups T1~T6.
- Ideal for petroleum exploitation, oil refining, chemical industry, and gas stations.

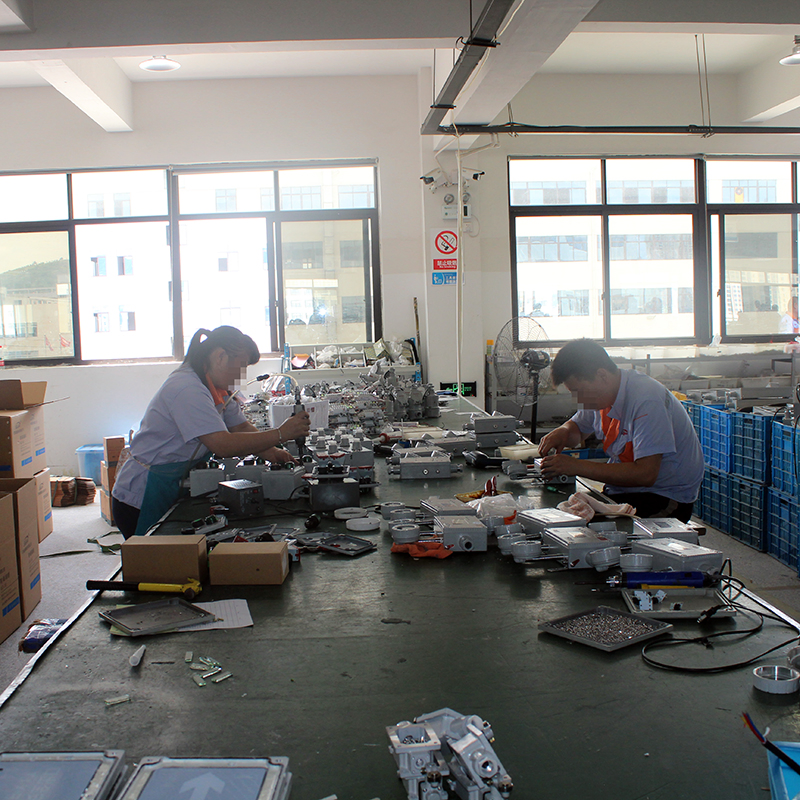

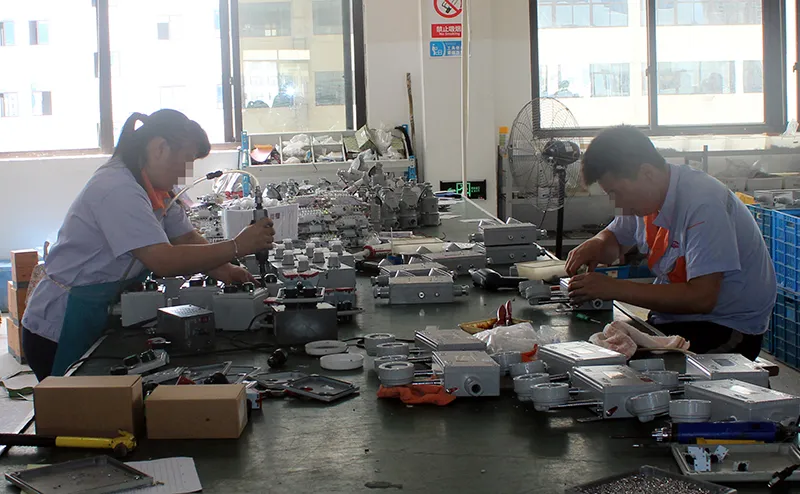

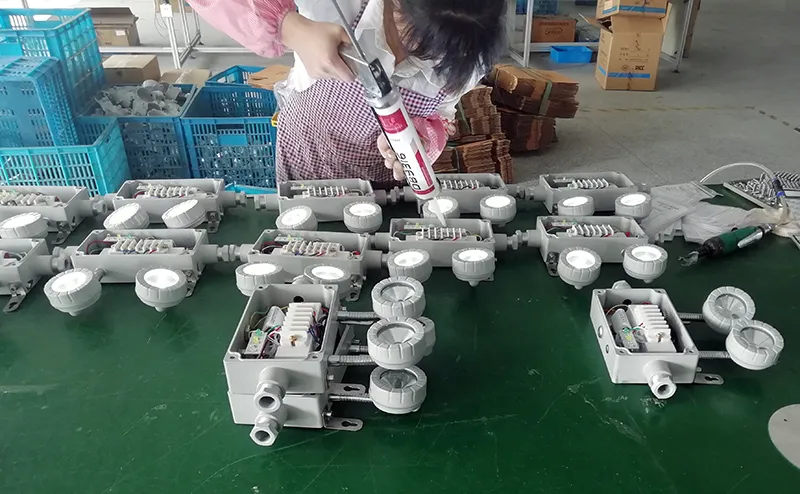

🏢About Our Factory
❓Frequently Asked Questions
1. Are you a manufacturer or a trading company?
We are a professional manufacturer providing OEM services. Our core focus includes explosion-proof lightings, distribution boxes, cable glands, fans, and waterproof lights.
2. What international certificates do your products hold?
Our products have successfully passed ATEX and IECEx certifications, along with numerous national patents for design and safety.
3. In which industries can these products be applied?
They are widely used in petrochemical, aerospace, electrical power, metallurgy, shipbuilding, medicine, fire fighting, and gas station industries.
4. Can I place a sample order for quality testing?
Yes, we welcome sample orders to test and verify quality. Mixed samples are also acceptable for initial evaluation.
5. Do you accept customized product designs?
Yes, we offer customization based on user requirements. Please contact us to confirm the design specifications based on our samples.
6. What is the standard emergency lighting time?
Our emergency lights offer multiple duration options, including 30, 60, 90, 120, and 180 minutes to meet different safety regulations.
