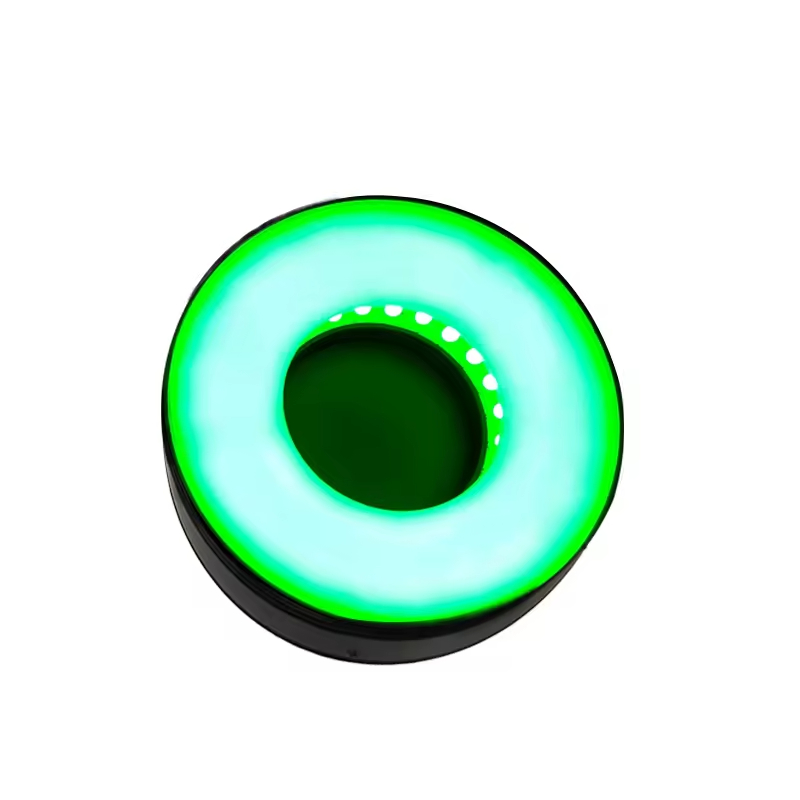

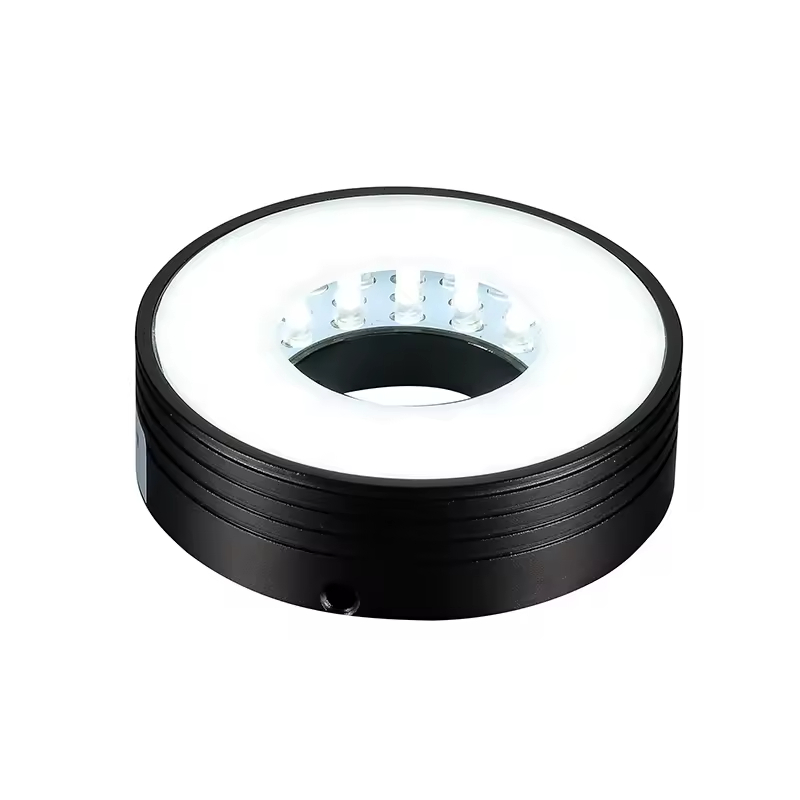

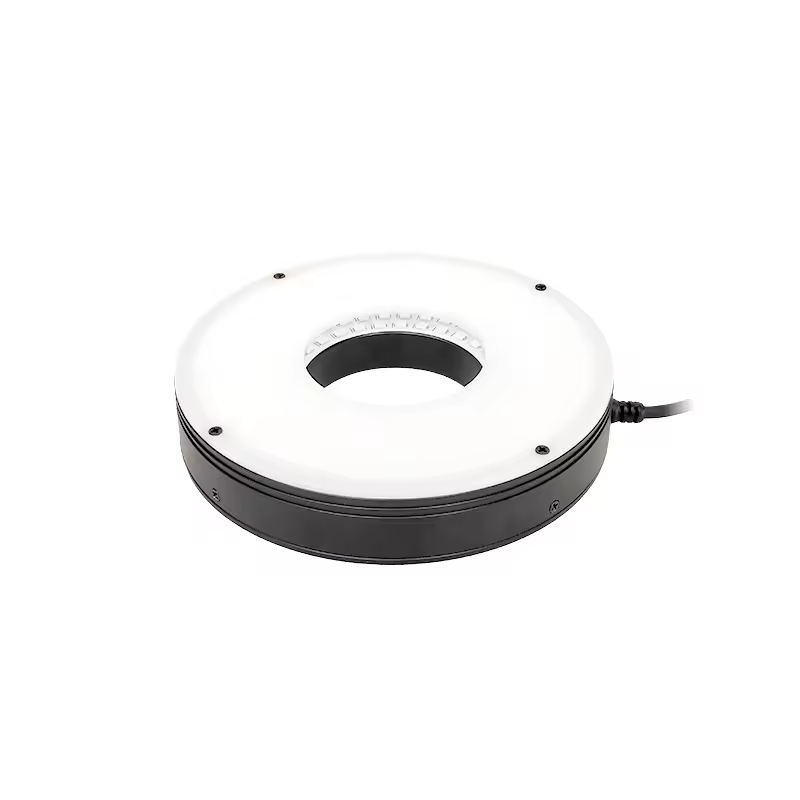

30 Degree High Brightness Uniform LED Light Source Machine Vision Ring Light DC 24V for CCD CMOS Camera Industrial Lead Frame Inspection PCB Board Inspection
Product Description
i
Basic Information
Model NO.HF-2RND6022A30
IP RatingIP54
Beam Angle(°)30
CRI (Ra>)90
Input Voltage(V)DC 24V
Luminous Efficiency110 Lm/W
Luminous Flux(Lm)825
Working Lifetime60,000 Hours
Working Temp0-40℃
MaterialAluminum Alloy + PMMA
External Diameter60mm
Internal Diameter22mm
★
Product Description

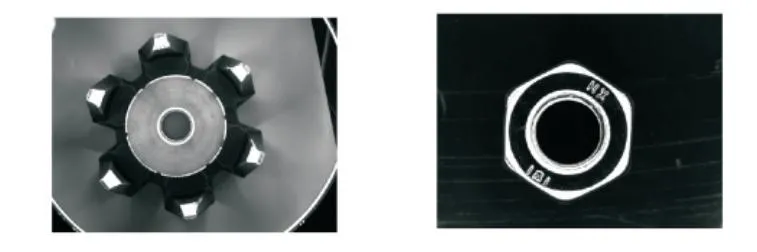

High quality material--Aluminum alloy and PMMA: This assures a long lifespan, good performance and duration. The ring light sources are low power consuming, energy-saving with high uniform brightness that can be an excellent luminous sources for cameras to detect defects/scratches, capture logo / barcode/ material outlines, etc. It is an excellent aid for various microscopes and industrial cameras.

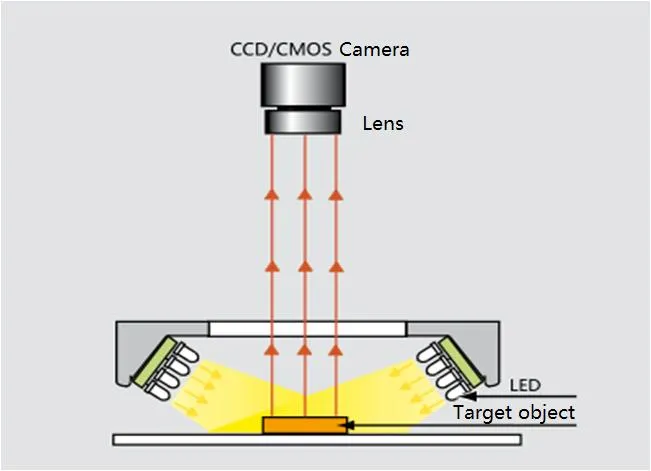

The highly bright ring light is composed of evenly distributed LED luminescence units, light emits from the bottom and is perfectly uniform and diffuse, it can effectively avoid the reflection of the LED light on the reflective surfaces. Custom design of power and light diameter etc. is available. The light intensity of this removable LED ring light can be easily controlled by extra connected light brightness controller.
📷

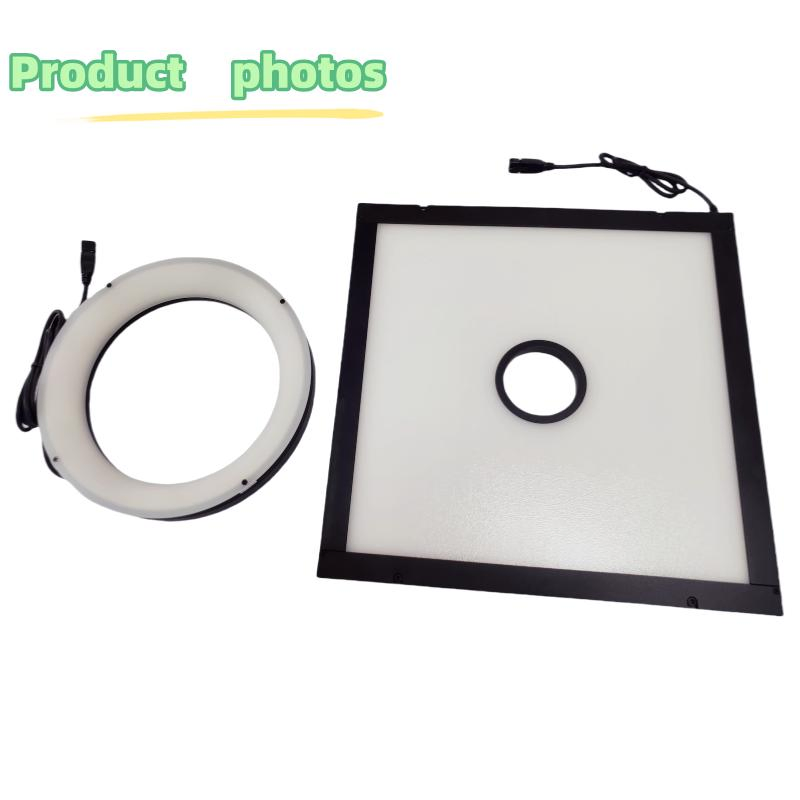

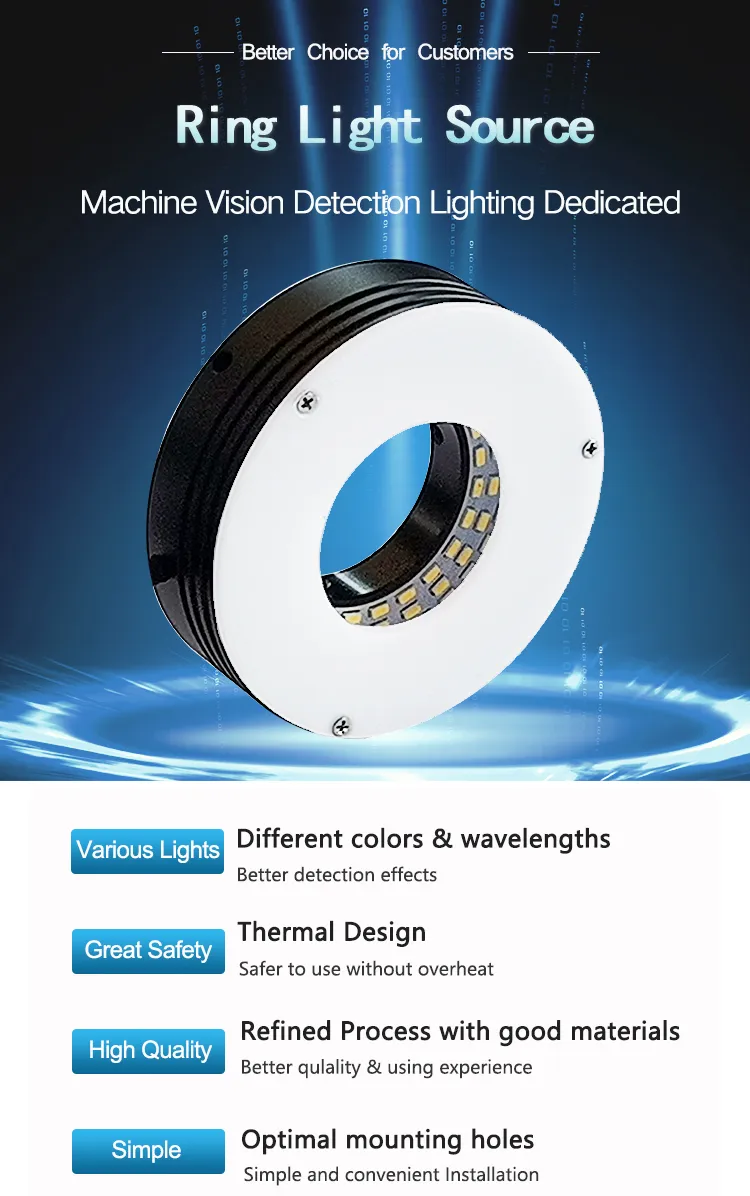

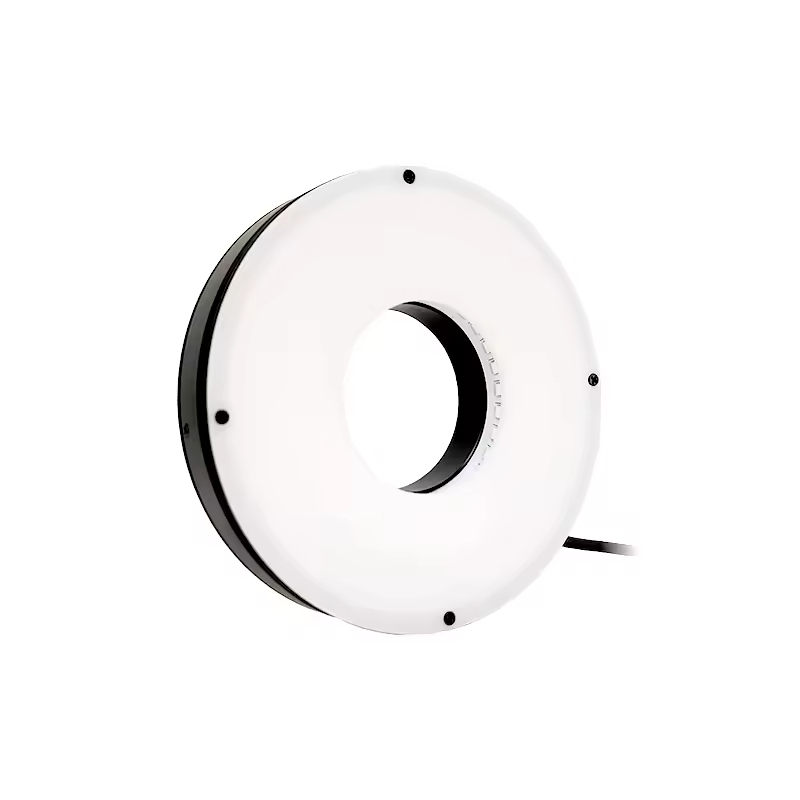

Detailed Photos
📊

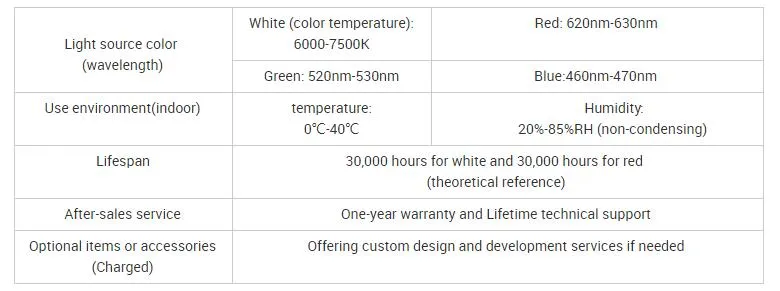

Product Parameters
| Diameters (outer, inner / mm) | Angle | Input Voltage |
|---|---|---|
| Φ60, Φ22 | 30° | 24V |
| Φ70, Φ35 | 30° | 24V |
| Φ80, Φ45 | 30° | 24V |
| Φ90, Φ45 | 30° | 24V |
| Φ100, Φ55 | 30° | 24V |
| Φ120, Φ75 | 30° | 24V |
| Φ150, Φ105 | 30° | 24V |
| Φ180, Φ130 | 30° | 24V |
📦
Packaging & Shipping
Package Size10.0cm * 10.0cm * 8.0cm
Gross Weight1.000kg
🏗️
Production Environment
Frequently Asked Questions
Q1: What is the main application for this LED ring light?

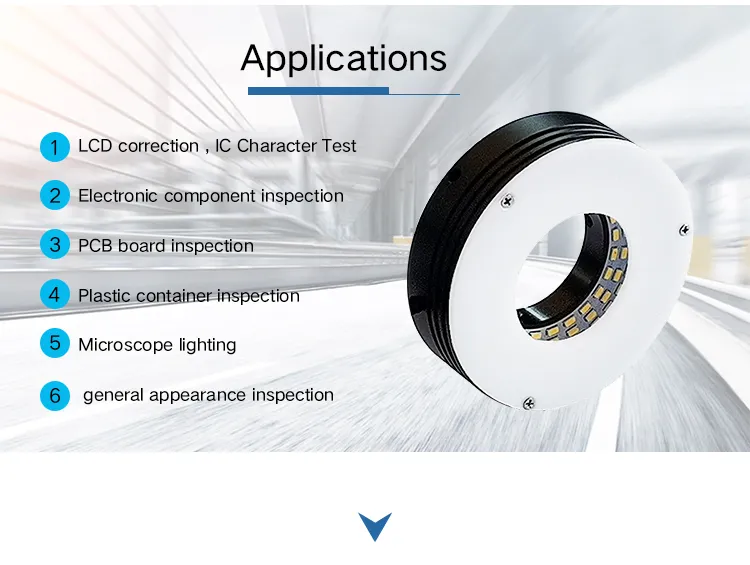

A: It is primarily used for machine vision, industrial camera inspection (detecting defects, scratches, logos), and as an illumination aid for microscopes and PCB board inspection.
Q2: Can the brightness of the LED ring light be adjusted?

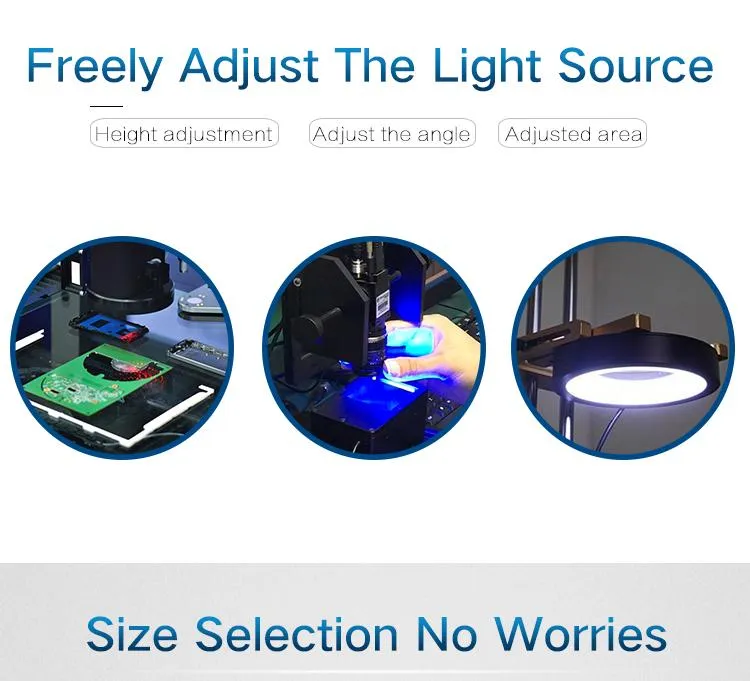

A: Yes, the light intensity can be easily controlled by connecting an additional external light brightness controller.
Q3: What materials are used in the construction of this light source?
A: The light is constructed using high-quality Aluminum Alloy for the body and PMMA for the optical components, ensuring durability and a long lifespan.
Q4: What are the input voltage and power requirements?
A: The standard input voltage is DC 24V with a power consumption of approximately 2.2W. Customized power options are also supported.
Q5: What is the expected lifespan of this industrial light?
A: The LED units are designed for energy efficiency and high durability, with an expected working lifetime of up to 60,000 hours.
Q6: Are different sizes and diameters available?
A: Yes, while the standard model shown has a 60mm outside diameter and 22mm inside diameter, we offer a range of sizes from Φ60 to Φ180 to suit various industrial requirements.
