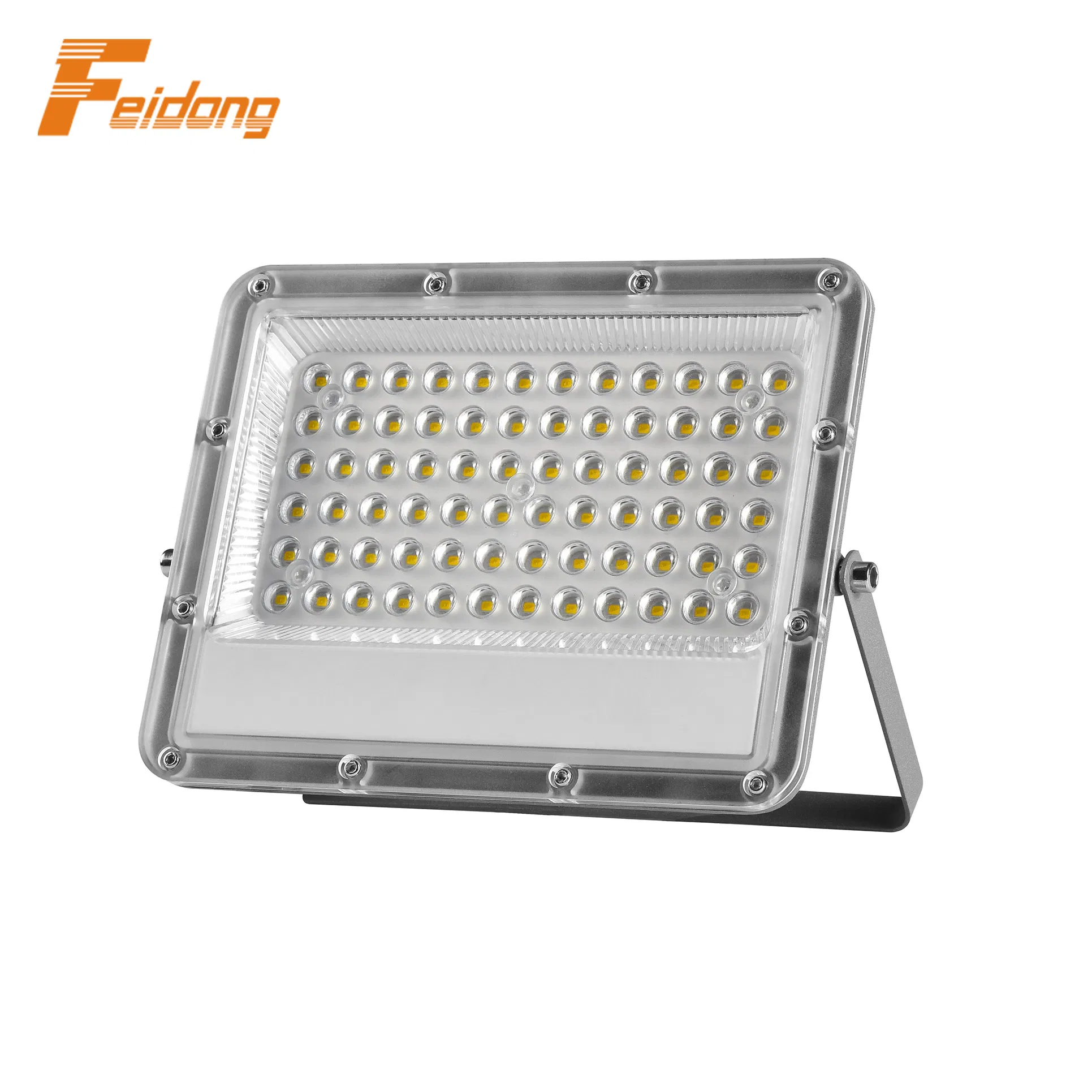

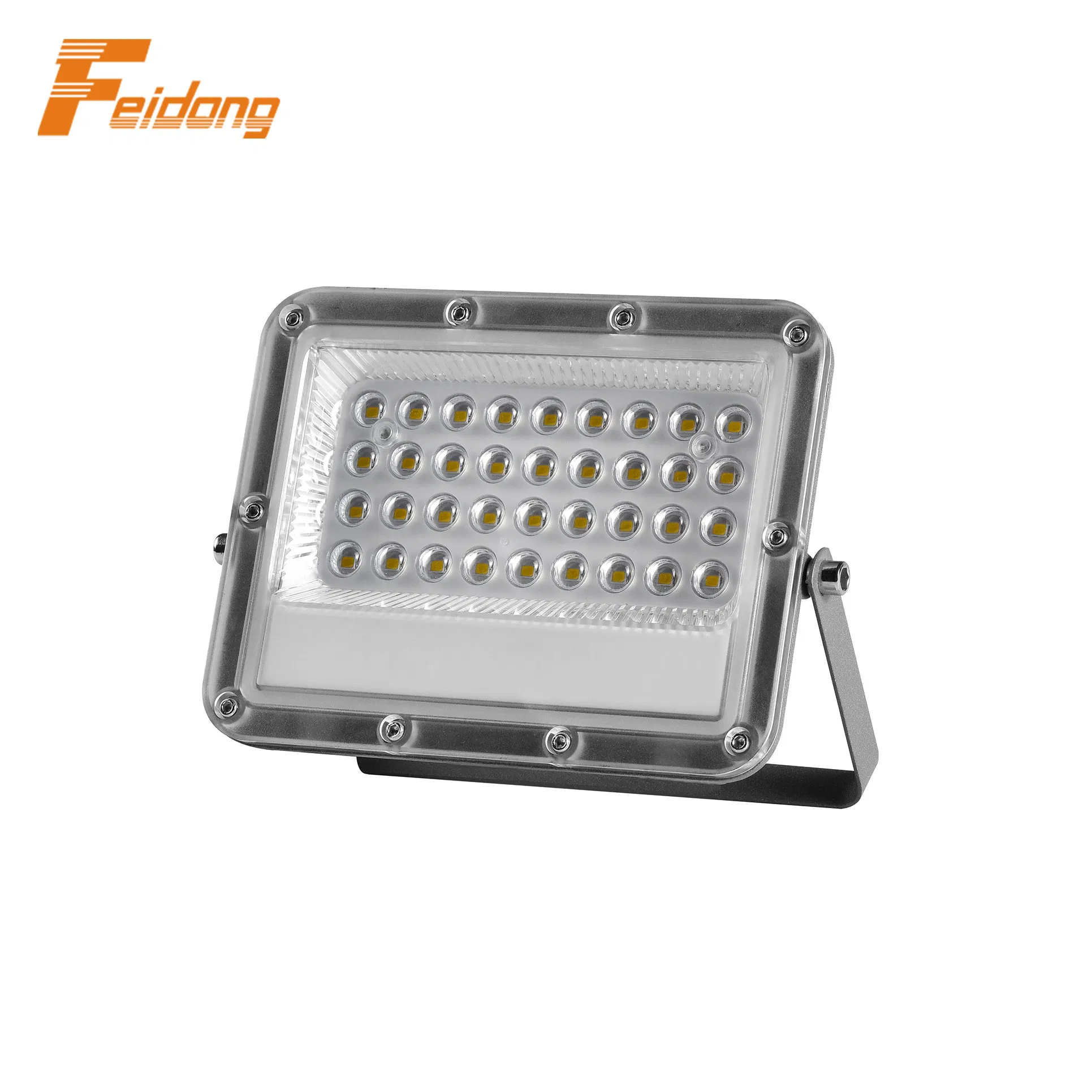

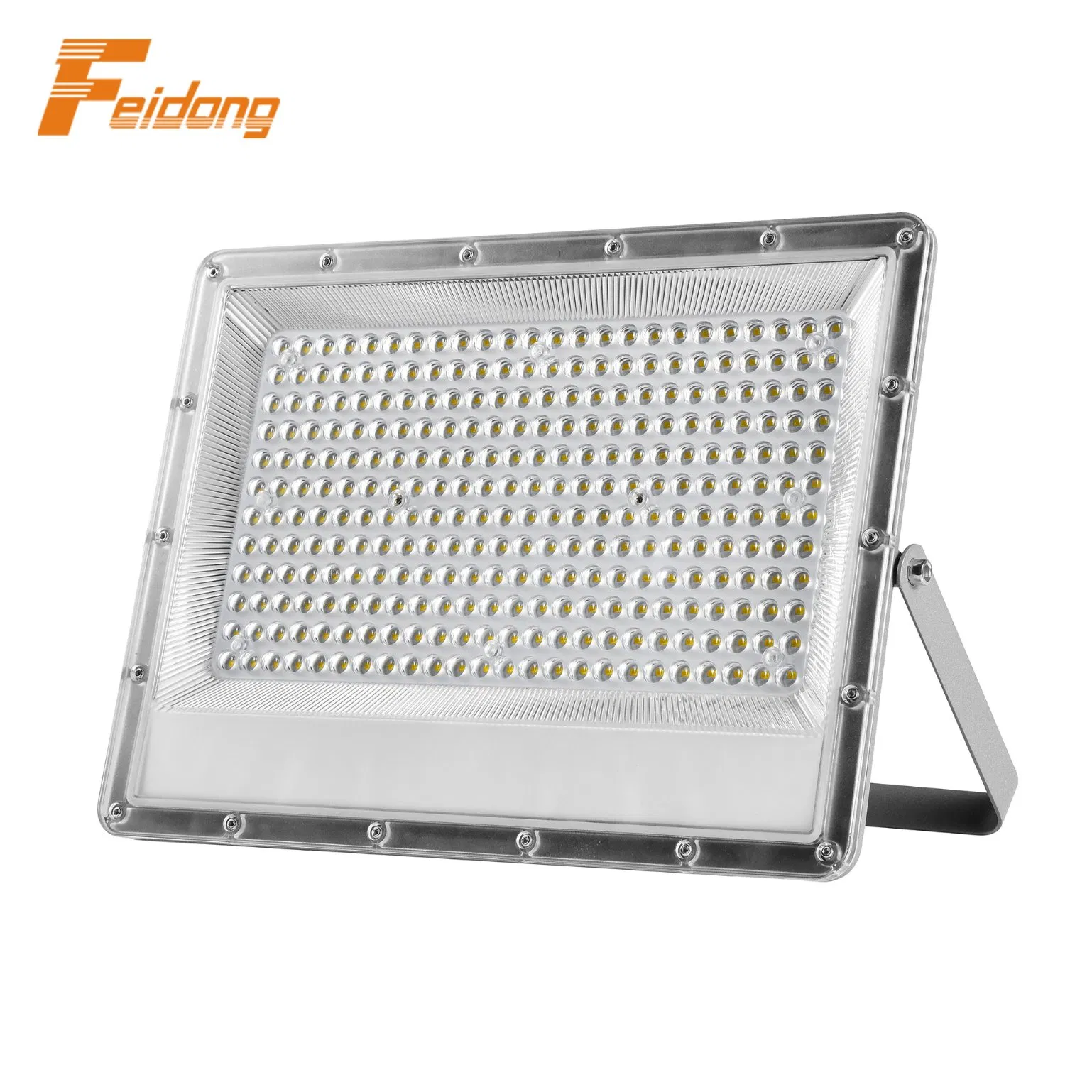

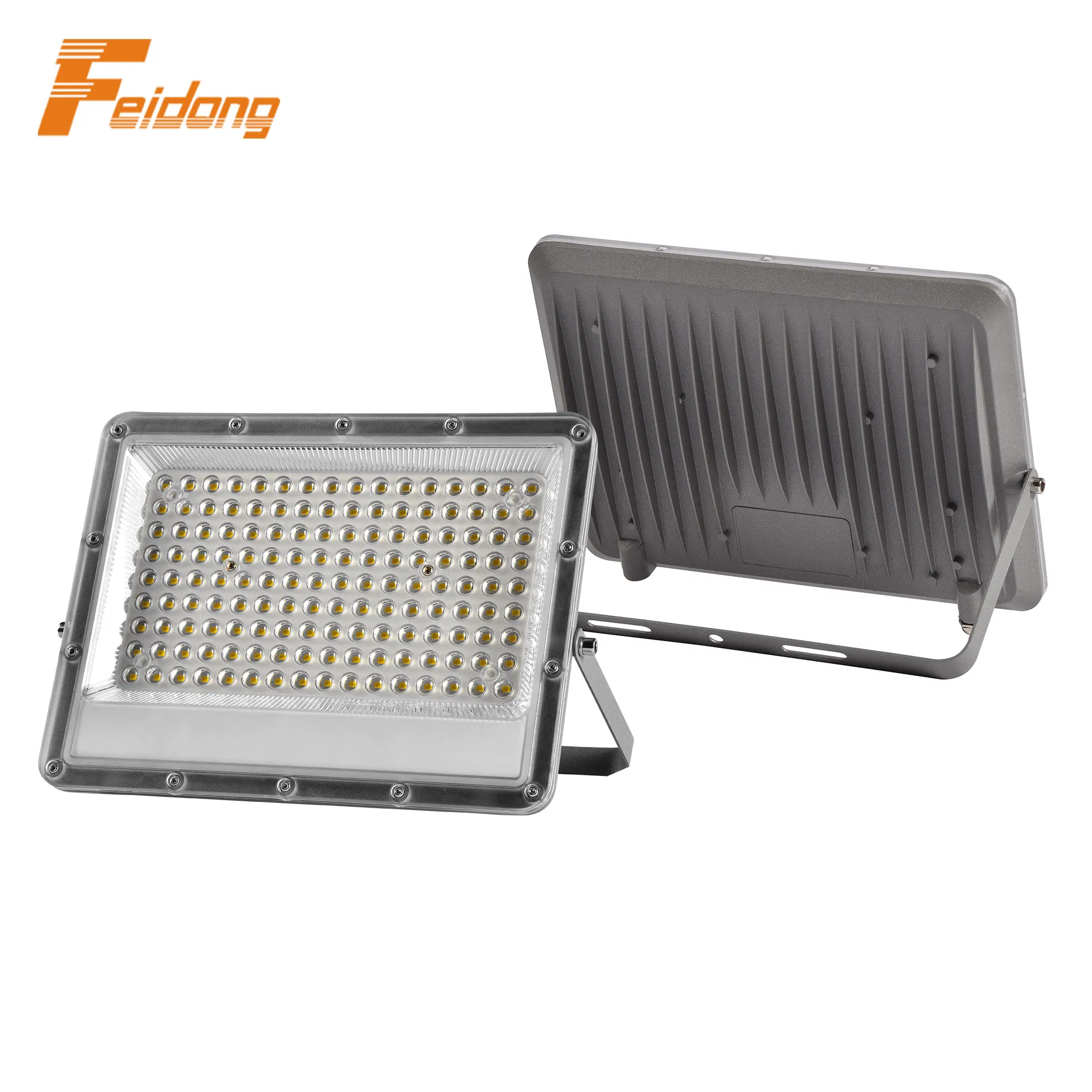

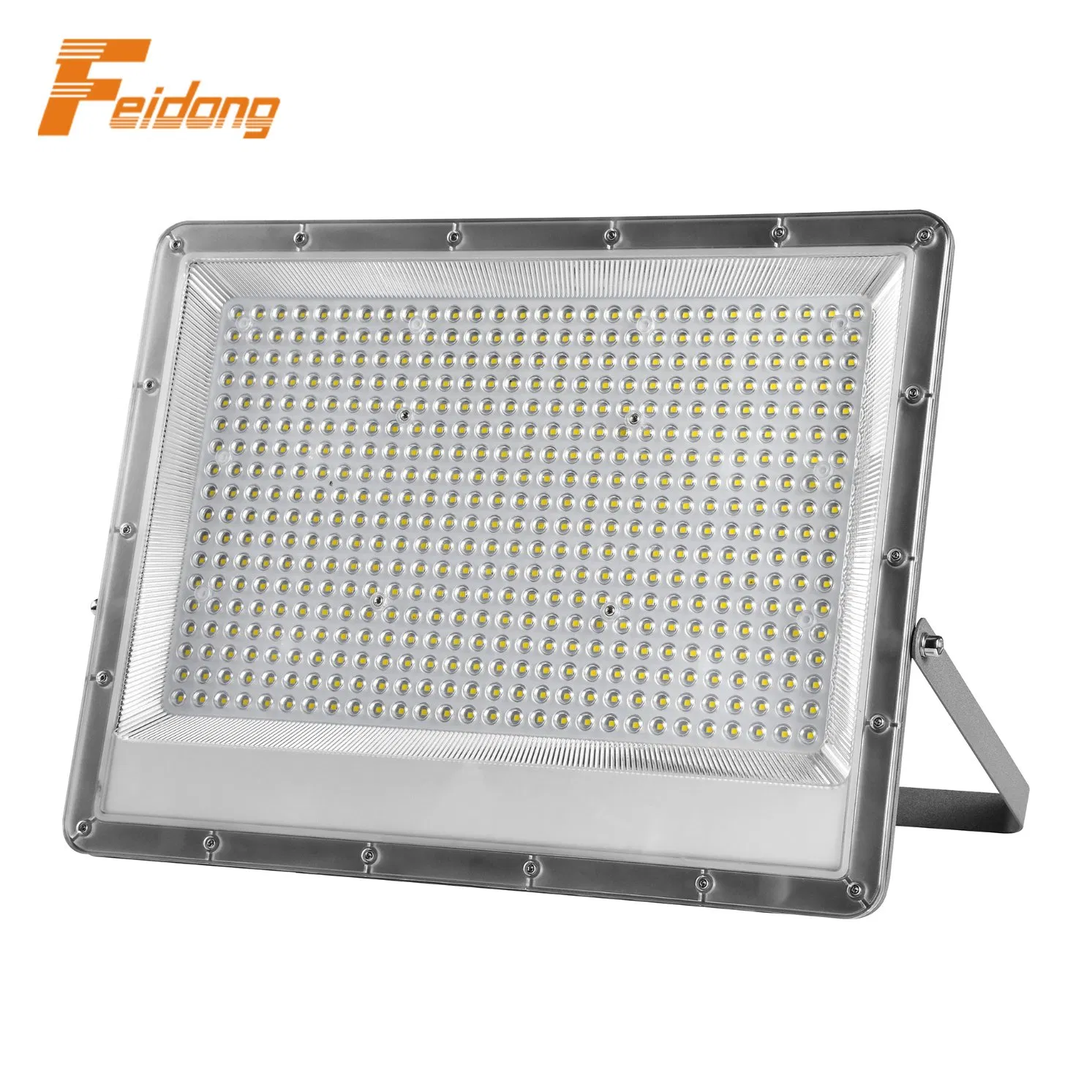

AC100-265V 30W-400W High Lumen Outdoor LED Floodlight
Product Description
i

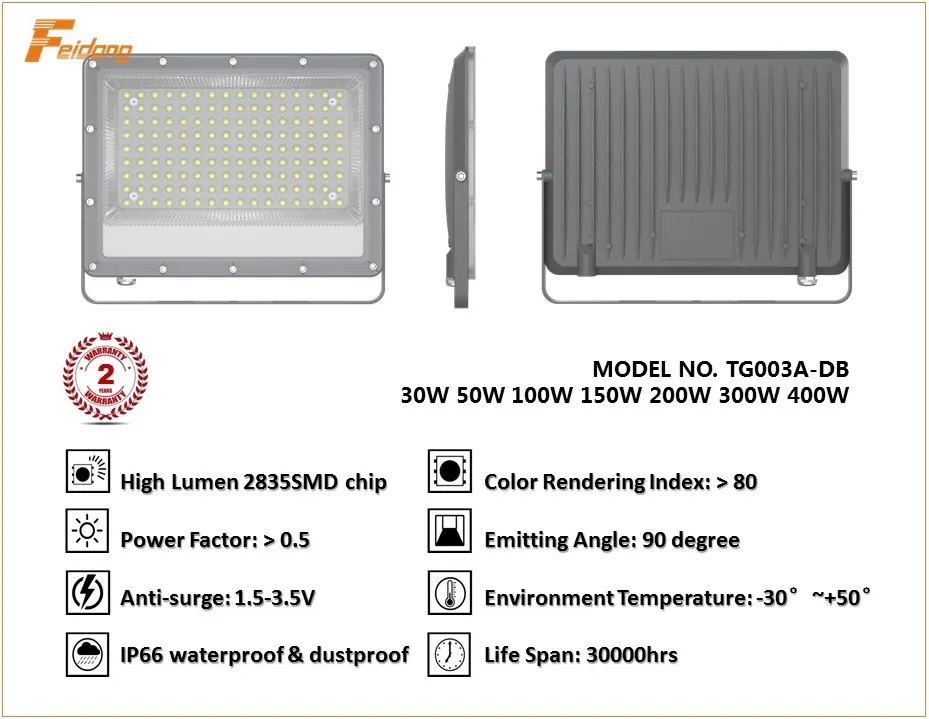

Basic Specifications
Model NO.
TG003
Power Range
30W - 400W
Application
Park, Square, Factory, Garden
IP Rating
IP66 Waterproof
Certification
CE, RoHS
Operating Voltage
AC100-265V
LED Chips Brand
Sanan
Lumen Efficiency
100-110lm/W
Housing Color
Black or Grey
Power Factor
>0.5 / 0.9
CRI
>80
Origin
Guangdong
★
Product Description
AC100-265V 30W-400W outdoor led floodlight with optical lens spot light emitting angle 90 degree led floodlight skd 100-110lm/w high lumen flood light led
Detailed Parameters

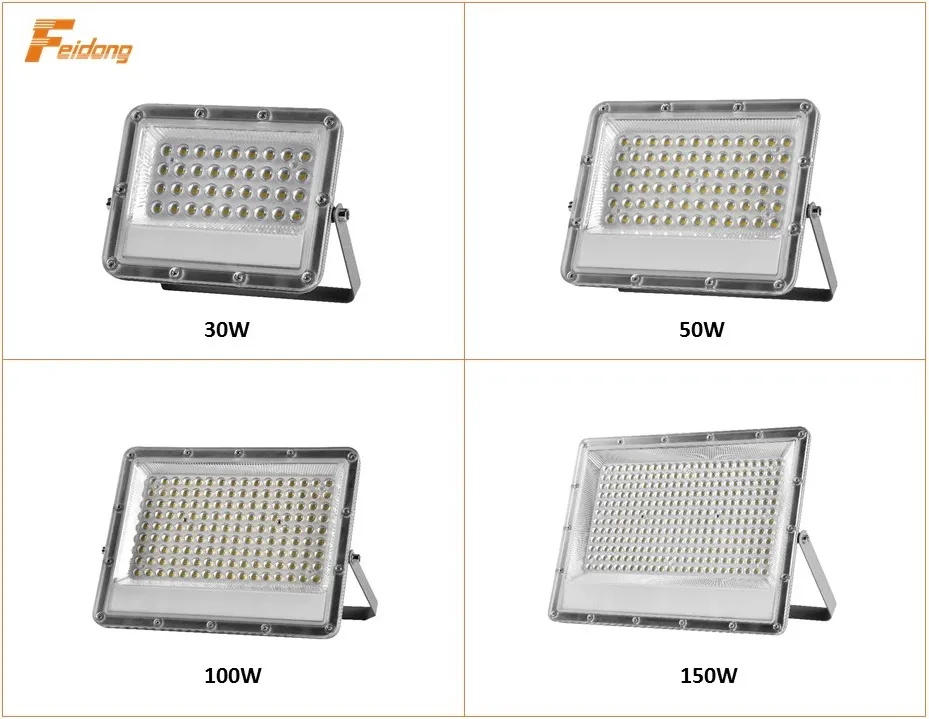

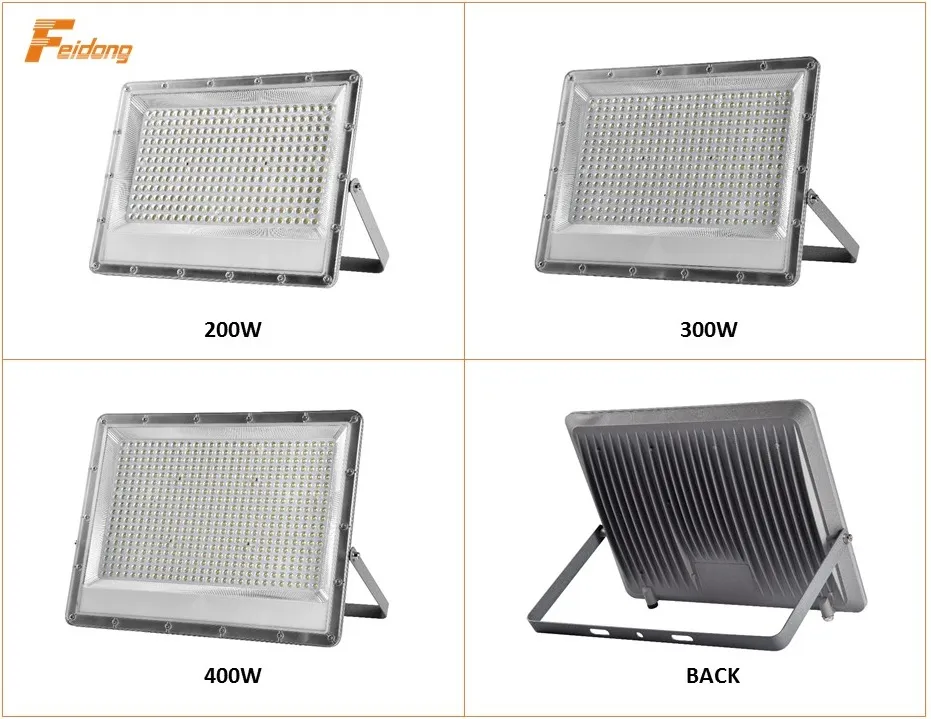

| MODEL | TG003A-30W-DB | TG003A-50W-DB | TG003A-100W-DB | TG003A-150W-DB | TG003A-200W-DB | TG003A-300W-DB | TG003A-400W-DB |
| POWER | 30W | 50W | 100W | 150W | 200W | 300W | 400W |
| LED QTY | 36PCS | 72PCS | 144PCS | 216PCS | 288PCS | 360PCS | 504PCS |
| Luminous Flux | 3000-3300LM | 100-110LM/W | |||||
| Input Voltage | DOB AC100-265V | ||||||
| Anti-surge | 1.5KV | 3.5KV | |||||
| IP Rating | IP66 | ||||||
| Beam Angle | 90° | ||||||
| Dimension (mm) | 155*125*25 | 210*160*25 | 270*208*25 | 335*250*33 | 380*282*33 | 455*328*35 | 485*368*35 |
🖼
Product Gallery
?
Frequently Asked Questions
What is the waterproof rating for this floodlight?
This outdoor LED floodlight features an IP66 rating, making it completely protected against dust and powerful water jets, ideal for outdoor use in various weather conditions.
Which LED chips are used in the TG003 model?
We use high-quality Sanan LED chips, which provide high luminous efficiency (100-110 lm/W) and a long lifespan of over 30,000 hours.
What is the range of power options available?
The TG003 series offers a wide range of power options from 30W for small garden spaces up to 400W for large industrial factories or squares.
Does the product come with a warranty?
Yes, this product includes a 2-year warranty covering manufacturing defects and performance stability.
Can this light operate under extreme temperatures?
Yes, the working temperature range is -30ºC to 50ºC, allowing it to function reliably in most global climates.

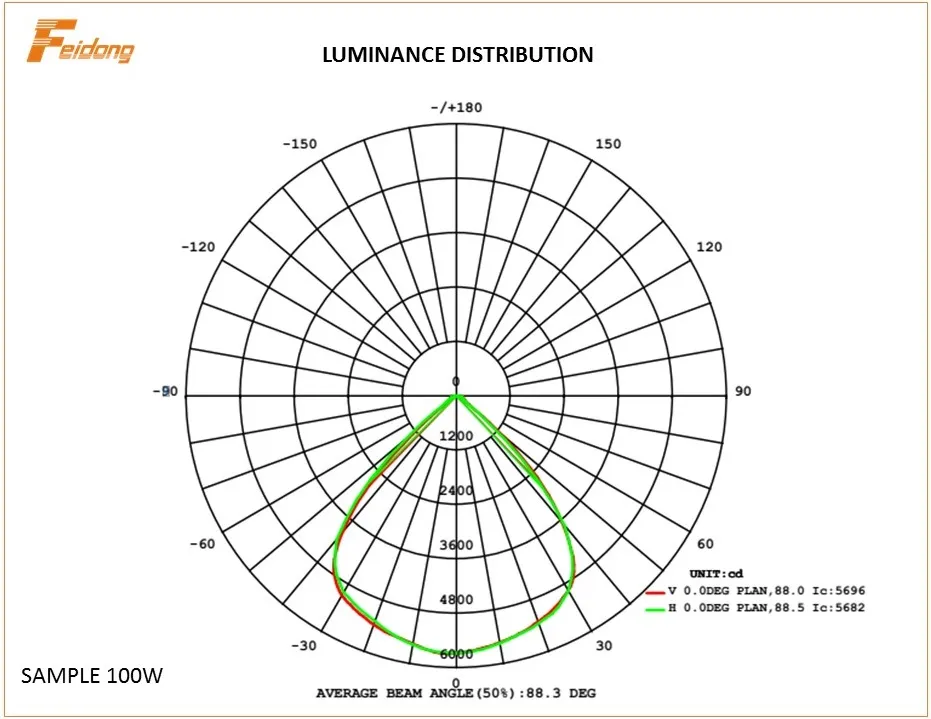

What is the beam angle of the lens?
The optical lens is designed with a 90-degree emitting angle, providing a focused yet wide enough beam for spot lighting applications.
