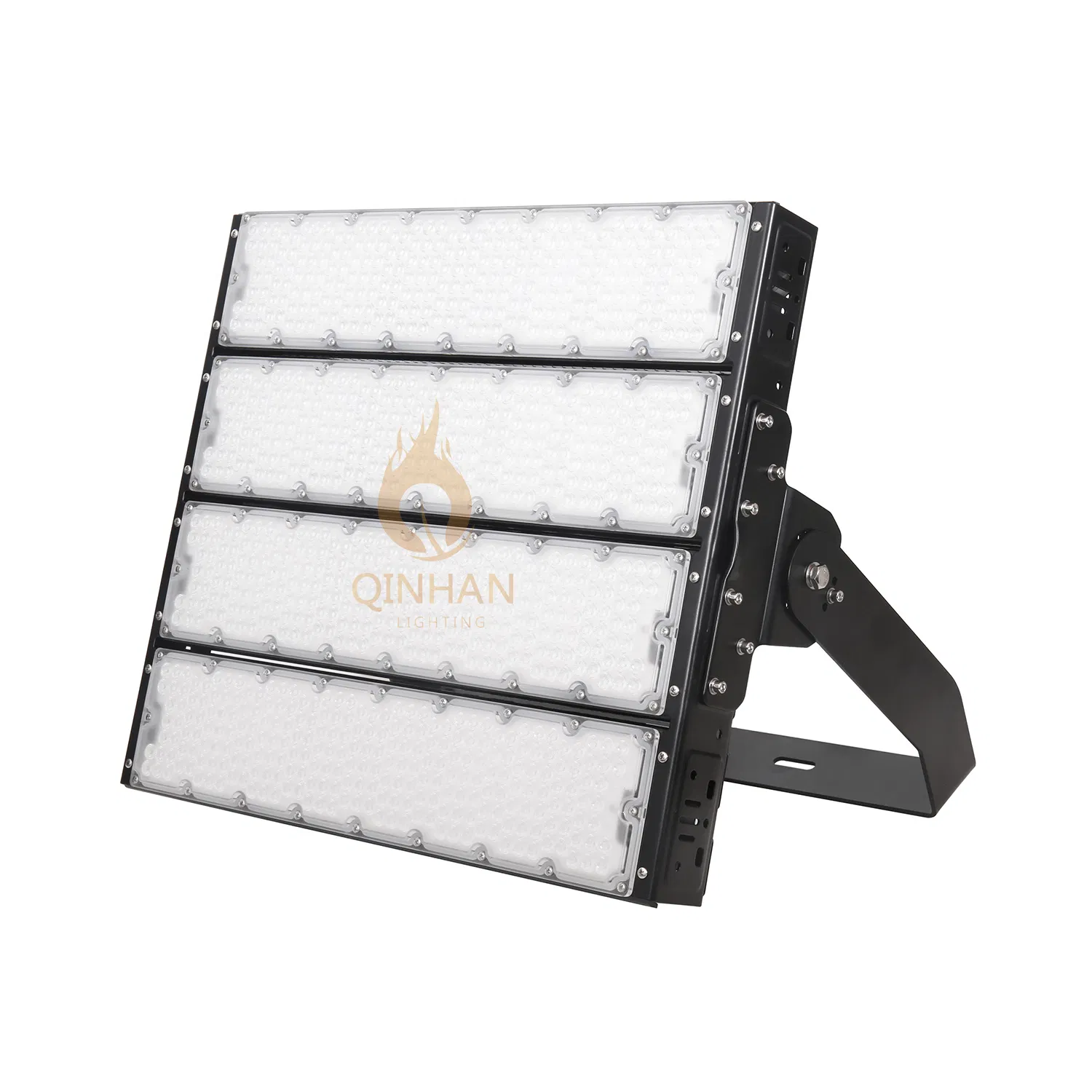

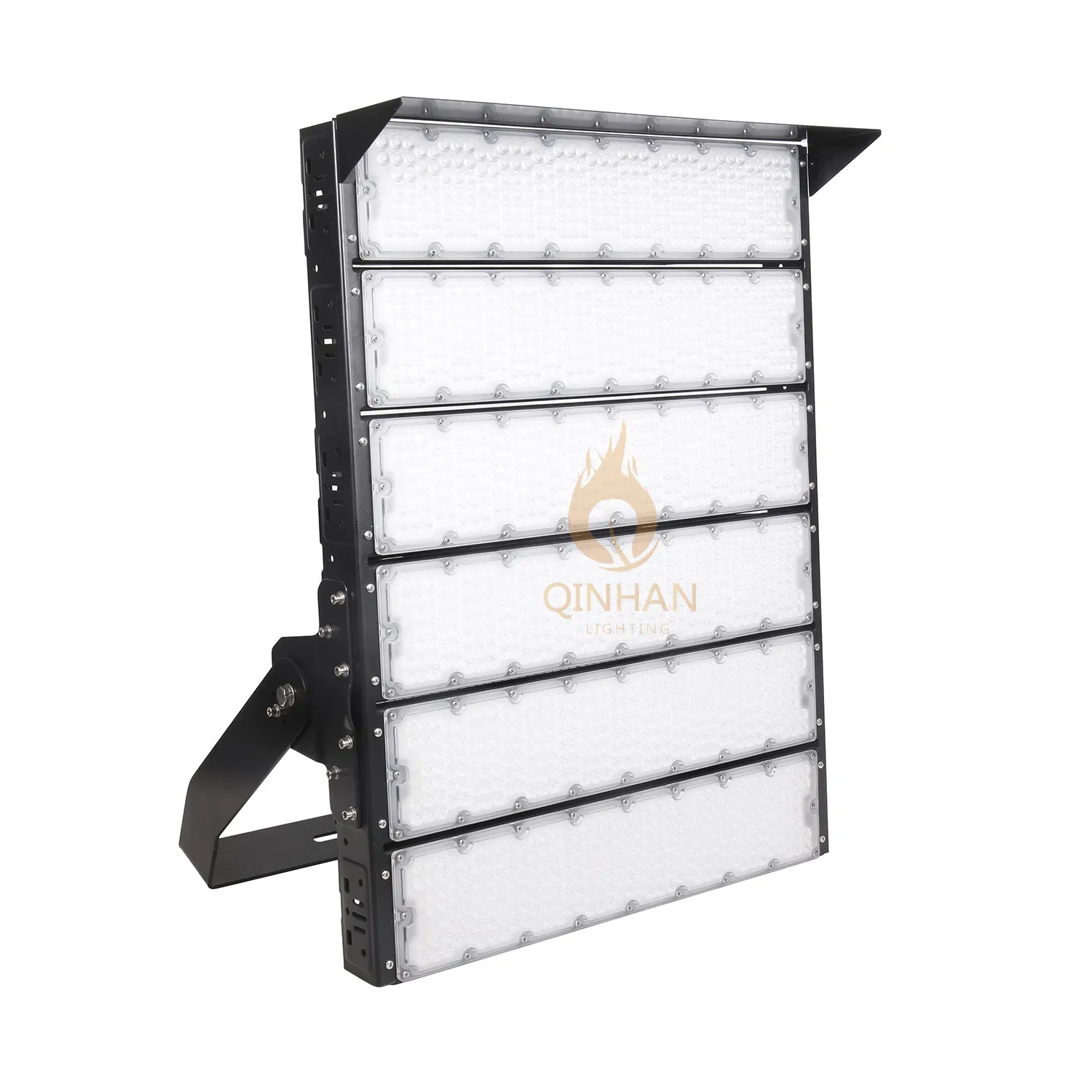

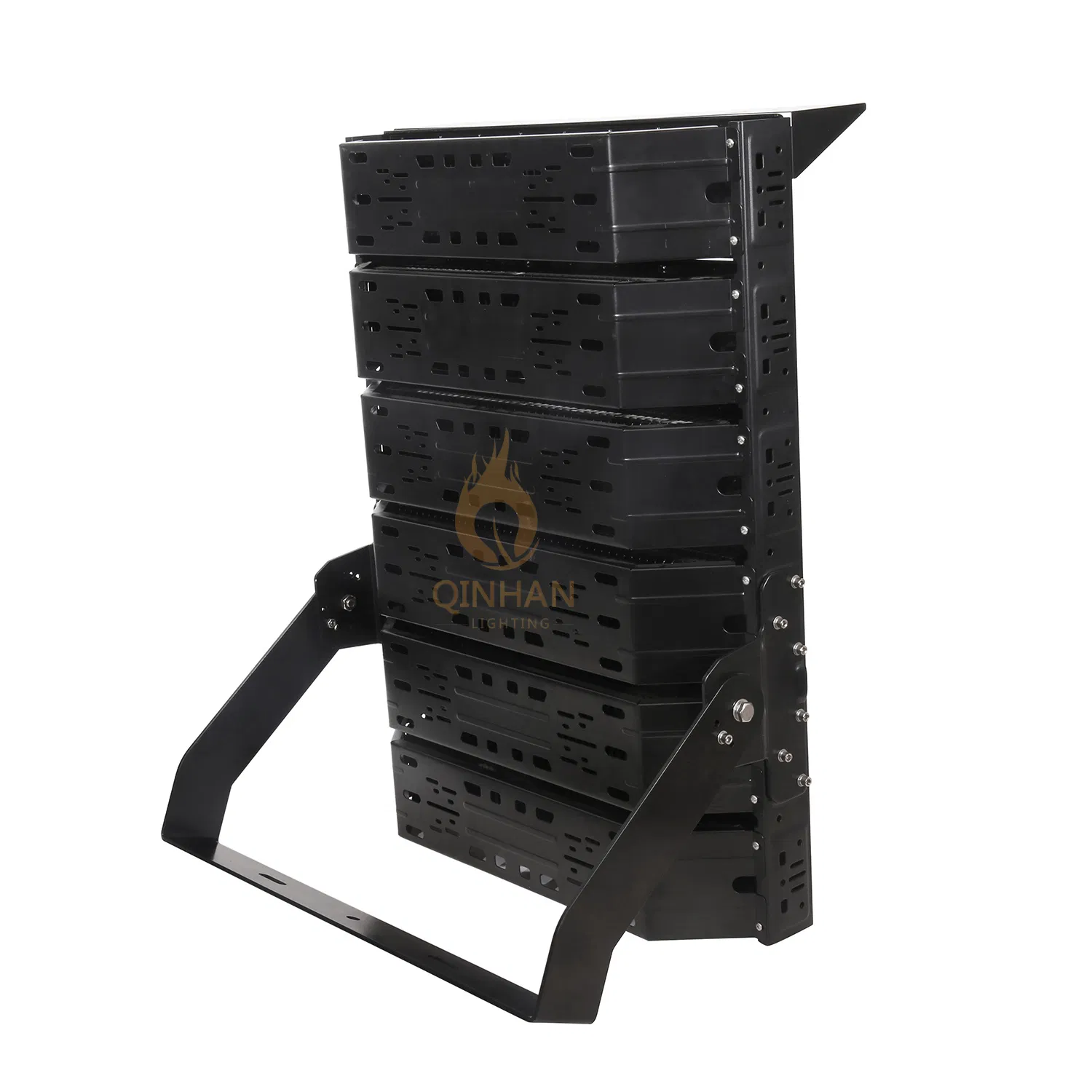

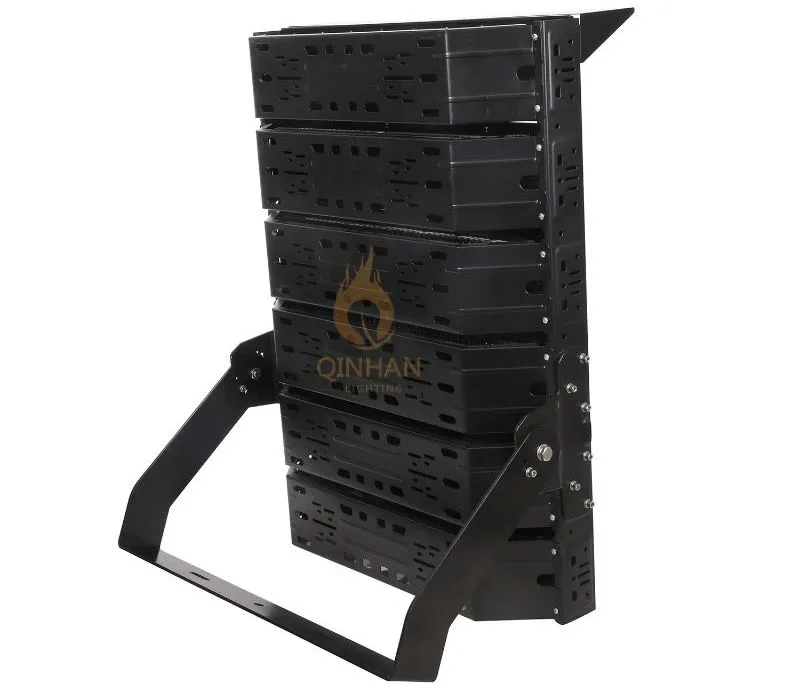

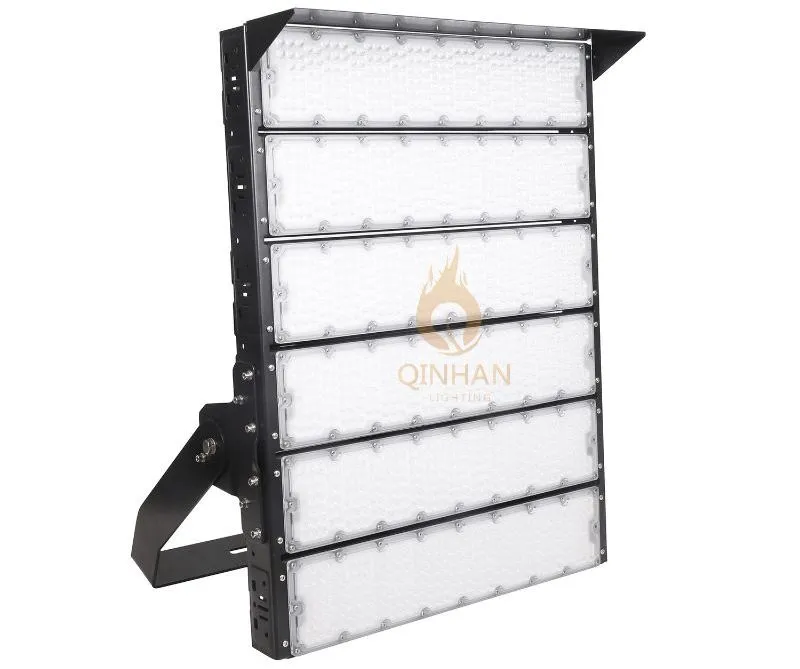

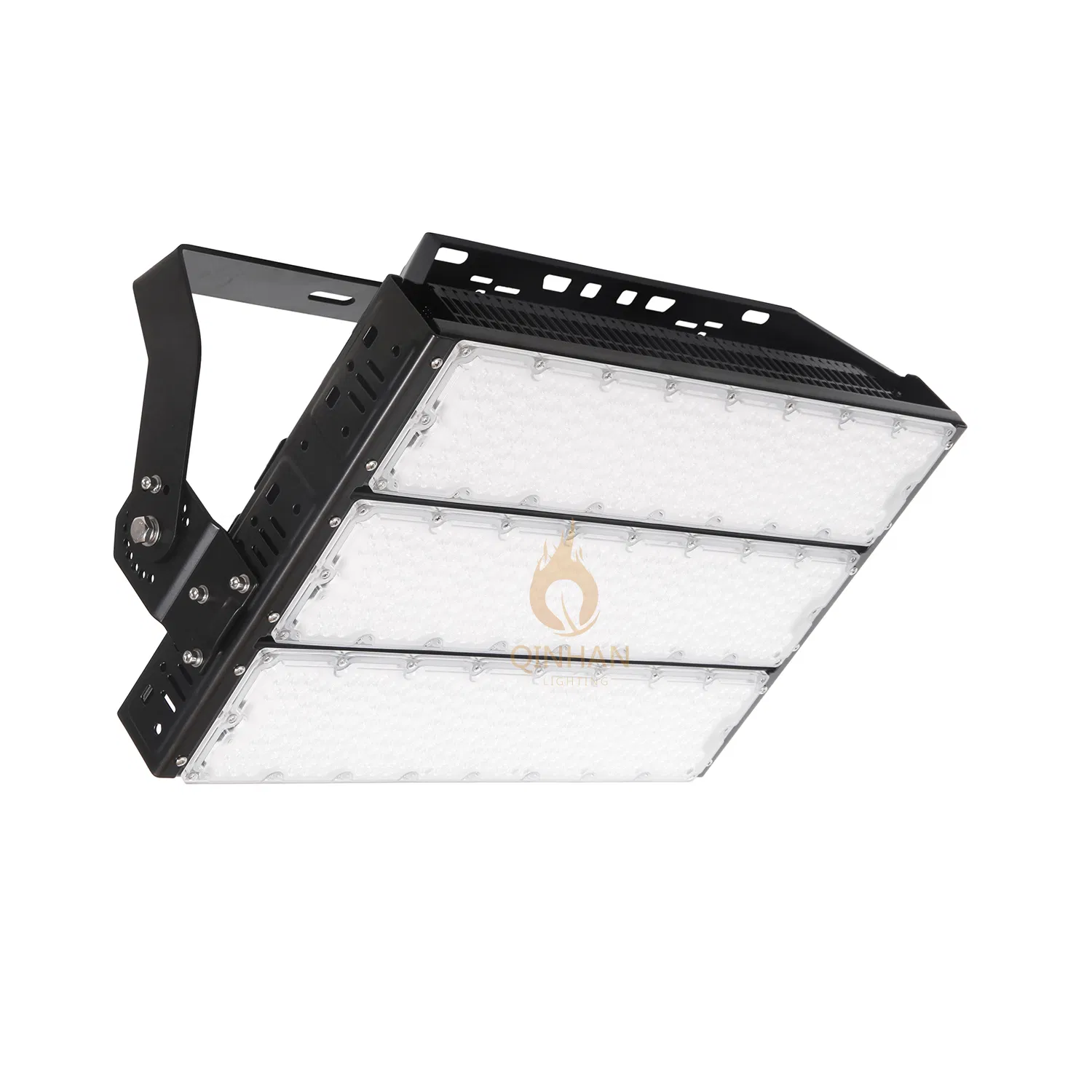

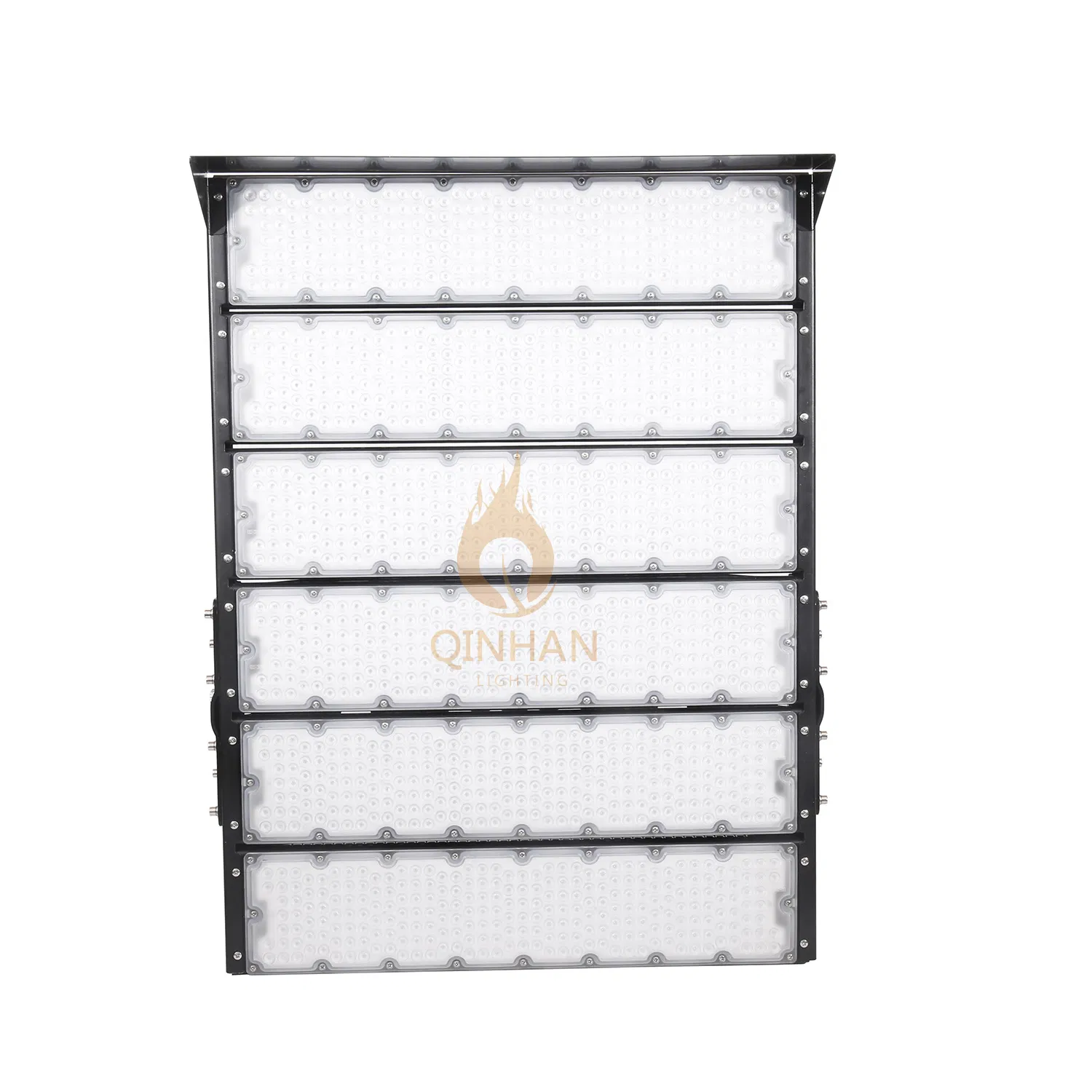

250W 500W 750W 1000W1500W IP66 High Mast LED Flood Projector Search Light for Outdoor Stadium Sport Court Lighting
Product Description
Basic Information
Model NO.
QH-FLMS-1500W
Power
1500W
Projection Distance
>35m
IP Rating
IP66
Certification
CE, EMC, ETL, FCC, LVD, RoHS, SAA, VDE
Operating Voltage
85-265V
LED Chips Brand
CREE
Driver
Meanwell or Inventronics
Warranty
5 Years
Emitting Color
Warm/Pure/Cool White
Body Material
Die-Casting Aluminum
Luminous Efficiency
150Lm/W
Product Overview
DALI DMX 0-10V dimmable high power 1500W outdoor IP66 stadium sport court high mast led flood projector search light. Supports AC 110V 240V 347V 480V input voltage.
Key Features
- IP66 rated waterproof for outdoor high mast application.
- Rotatable modules offering maximum customisation.
- Heavy duty stirrup mounting bracket for stability.
- Multiple optics: 20°/40°/60°/49*21°/30*70°.
- Equivalent to 250W-5000W metal halide fixtures.
- Instant-on, flicker-free cold start with 150Lm/W efficiency.
- Protractor scale integrated for easier aiming.
- 50,000-hour operating life for maintenance-free use.
- Unique heat extraction design prolongs fixture life.
- Lightweight design for easy retrofitting of HID installations.
- Advanced dimming: DALI, DMX, 0-10V, and PWM options.
Technical Datasheet

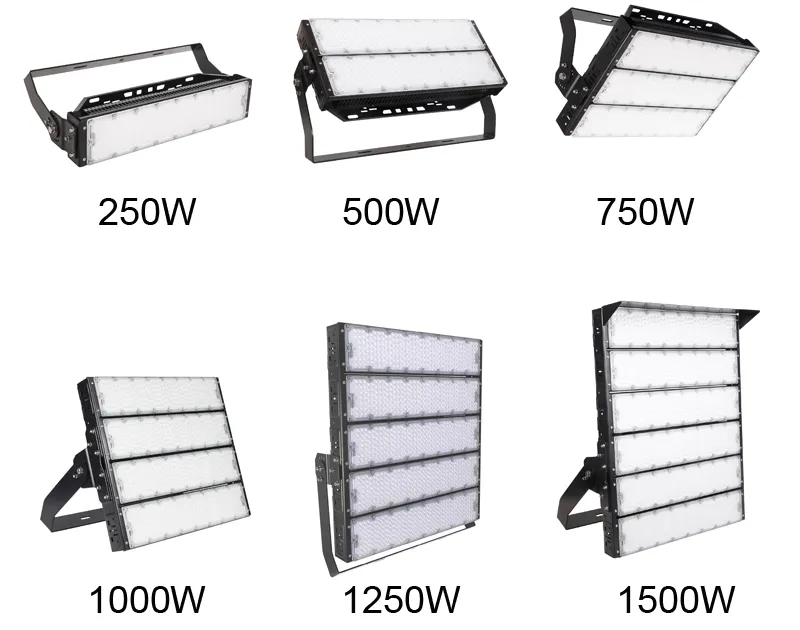

| Model Parameter | QH-FLMS-500W | QH-FLMS-750W | QH-FLMS-1000W | QH-FLMS-1500W |
|---|---|---|---|---|
| Luminous Flux | 150-160 LM/Watt | |||
| LED Source | 5050 SMD | |||
| LED Quantity | 192 pcs | 288 pcs | 384 pcs | 576 pcs |
| Input Voltage | 90-305V AC 50/60Hz | |||
| CRI | Typical CRI>80, Max CRI>95 | |||
| Beam Angle | 20°/40°/60°/49*21°/30*70° | |||
| Working Life | >50,000 Hours | |||
| Gross Weight | 6.5kg | 14.0kg | 18.4kg | 25.0kg |
Electrical & Material Information
| ELECTRICAL DATA | |
| Nominal Voltage | 100-240VAC / 100-277VAC / 180-528VAC |
| Power Factor | ≥0.97 (at full load) |
| Surge Protection | 6KV - 10KV (20KV Optional) |
| Control System | DALI / 1-10V / 0-10V / DMX512 Dimming |
| HOUSING & MATERIALS | |
| Housing | ADC 12 Die-Casting + AL 1070 Pure Aluminum |
| Finish | Powder spraying, corrosion resistance |
| Impact Resistance | IK08 (IK10 Optional) |
| Operating Temp | -40ºC ~ +90ºC |
Applications
Square & Parks
Ports & Airports
Shipyards
Golf Courses
Football Fields
Container Wharfs
Frequently Asked Questions
Q1: Can we customize our brand and logo on the product?
Yes, we provide branding services including logo printing, embossing on the fixture, and customized brand packaging boxes.
Q2: Are you a factory or a trading company?
We are a professional manufacturer specializing in smart LED lighting with over 10 years of experience and provide a 5-year warranty on our products.
Q3: How do you ensure product quality?
Quality is our priority. We maintain strict quality control throughout the production process. Our fixtures use premium components like CREE chips and Meanwell drivers.
Q4: What happens if I receive a defective light?
We stand behind our quality. If any lights fail to work upon receipt, we provide the same quantity of good lights as compensation in your subsequent order.
Q5: What certifications do your stadium lights hold?
Our products have gained multiple certifications including CE, DLC, ROHS, FCC, and ISO9001 authentication to meet global standards.
Q6: What are the available payment terms?
We accept various payment methods including T/T (Telegraphic Transfer), L/C at sight, and Western Union.
