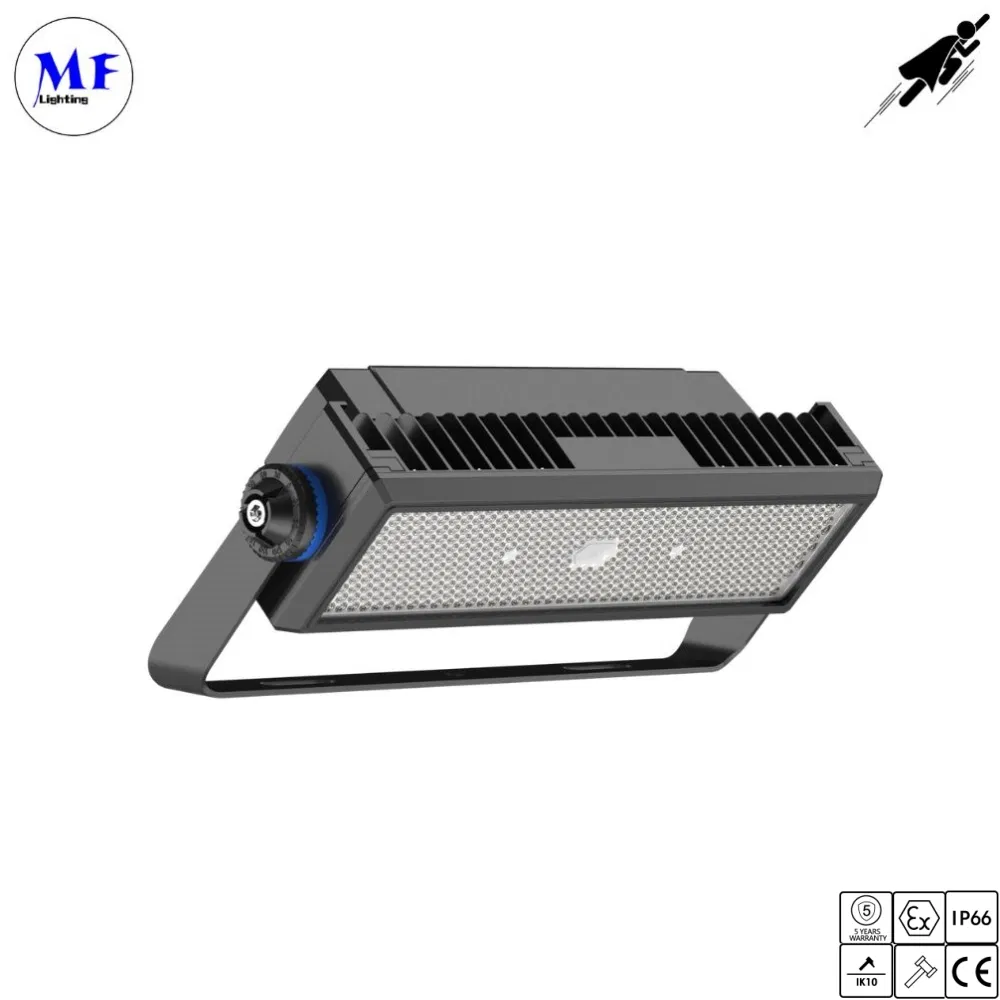

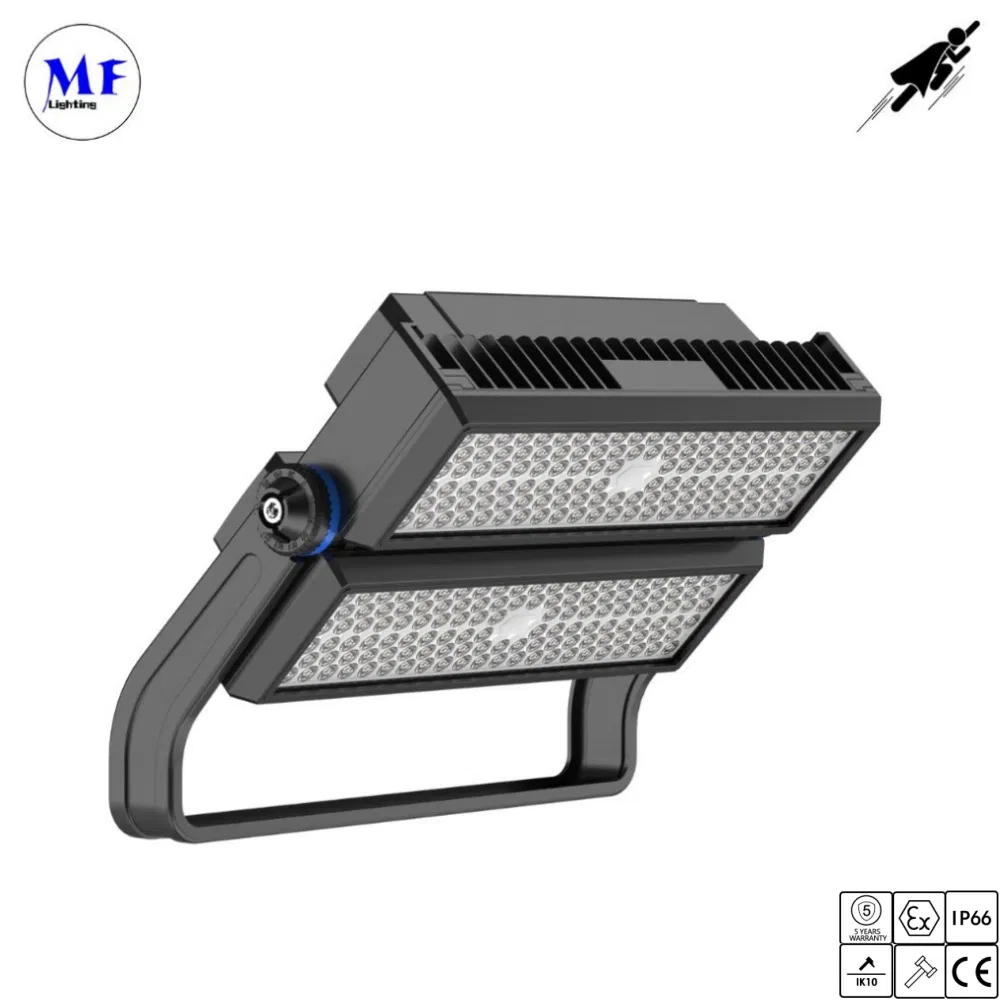

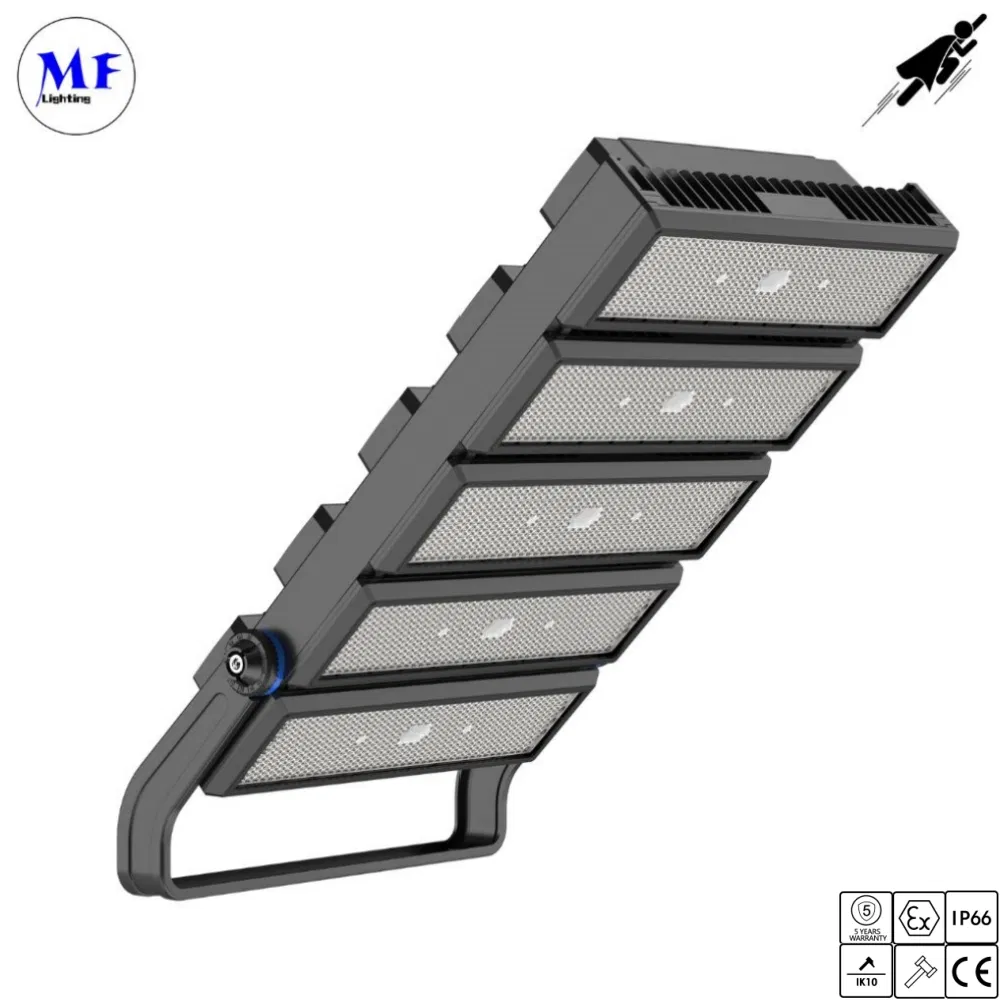

High Power Module 250W 500W 1000W 1250W 1500W Ik10 IP66 Outdoor Waterproof Tennis Sports LED Flood Light Stadium Light for Football Soccer Court
Product Description
| Model NO. | MF Superman II |
|---|---|
| Power Range | 250W / 300W / 500W / 600W / 750W / 900W / 1000W / 1200W / 1500W |
| Application | Stadium, Park, Square, Factory, Airport, Port |
| IP & IK Rating | IP66 / IK10 |
| Operating Voltage | AC85-277V (Input: 100-305VAC 50/60Hz) |
| LED Source | Osram / Lumileds (SMD2835/3030) |
| Driver Brand | Meanwell / Sosen |
| Light Performance | CRI >70/80/90 | Power Factor >0.95 | THD <10 |

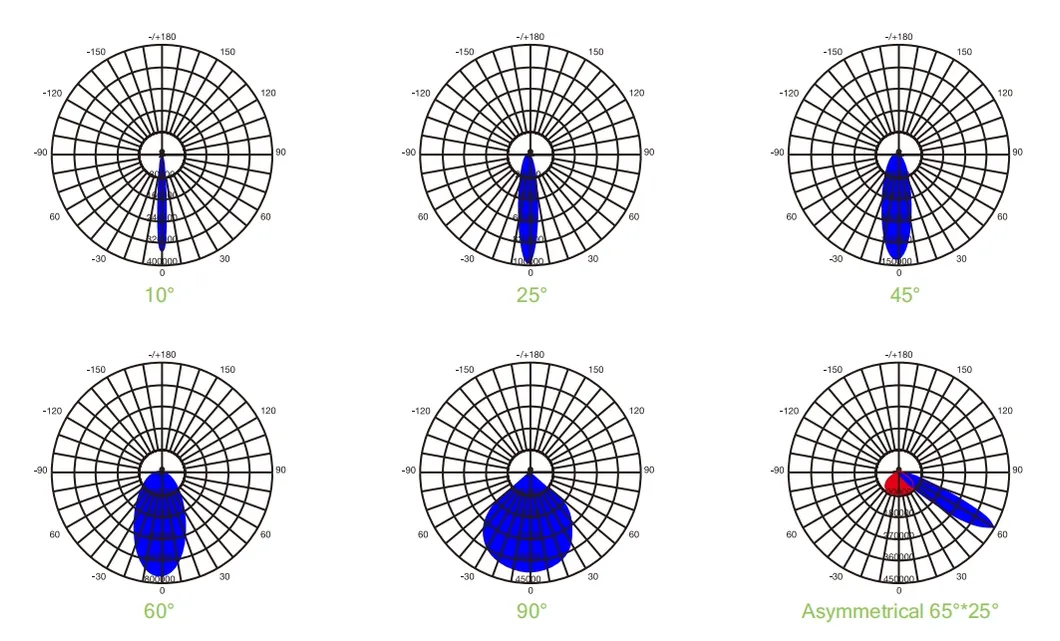

| Beam Angles | 10° / 25° / 45° / 60° / 90° / 65°*25° |
| Working Temp | -25°C ~ 50°C |
High Power Module LED Flood Light: Professional Stadium & Sports Lighting Solution
The new generation in LED sports and area lighting creates an unbelievable combination of world-class performance, energy saving, cutting-edge optical and thermal management technology in one sleek package solution. Ideal for tennis courts, football soccer fields, and large outdoor arenas.
Designed for high-definition 4K camera technology. With high-quality power supplies, it completely achieves a flicker-free effect, meeting the needs of 2000fps slow-motion recording for professional sports broadcasting.

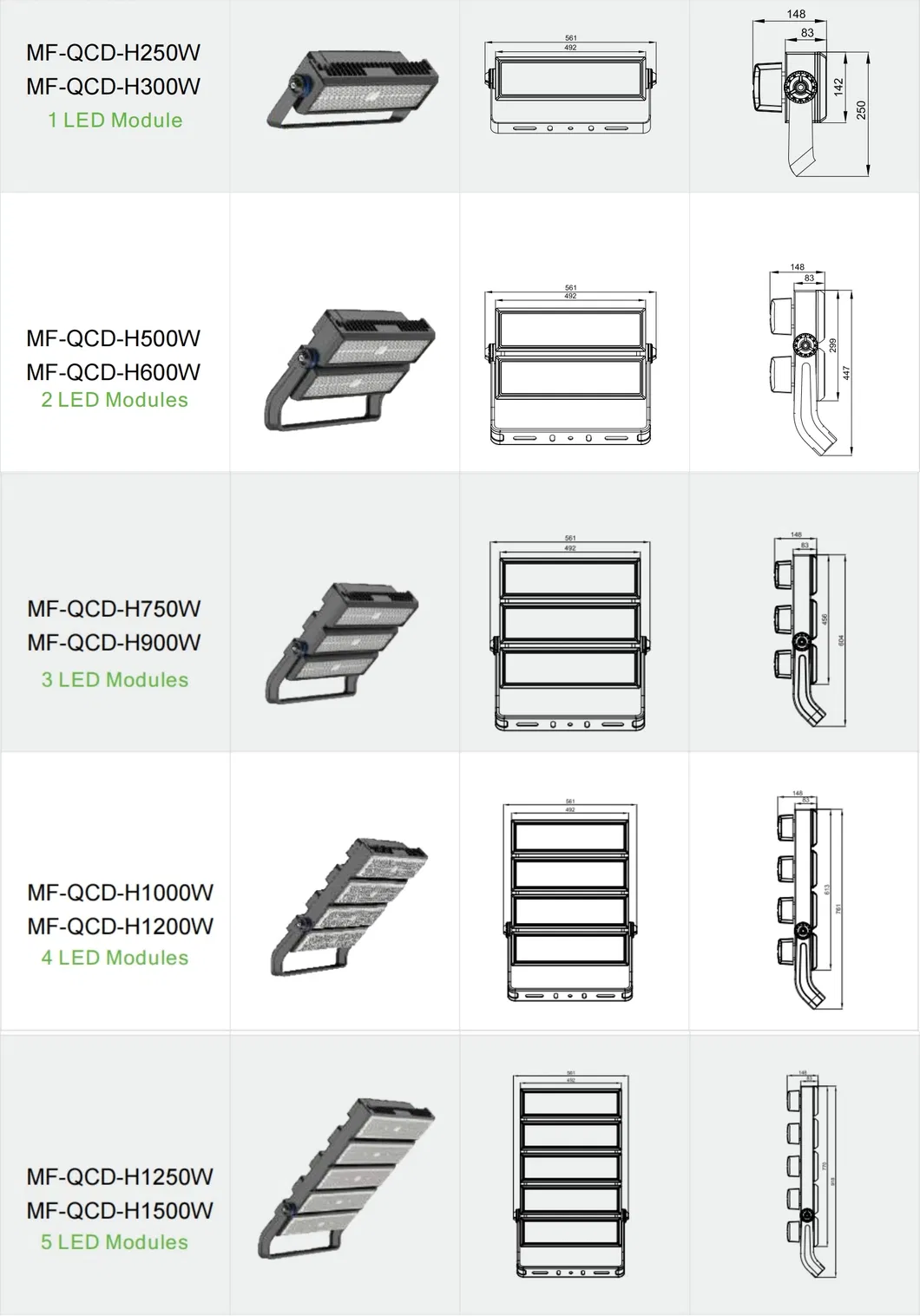

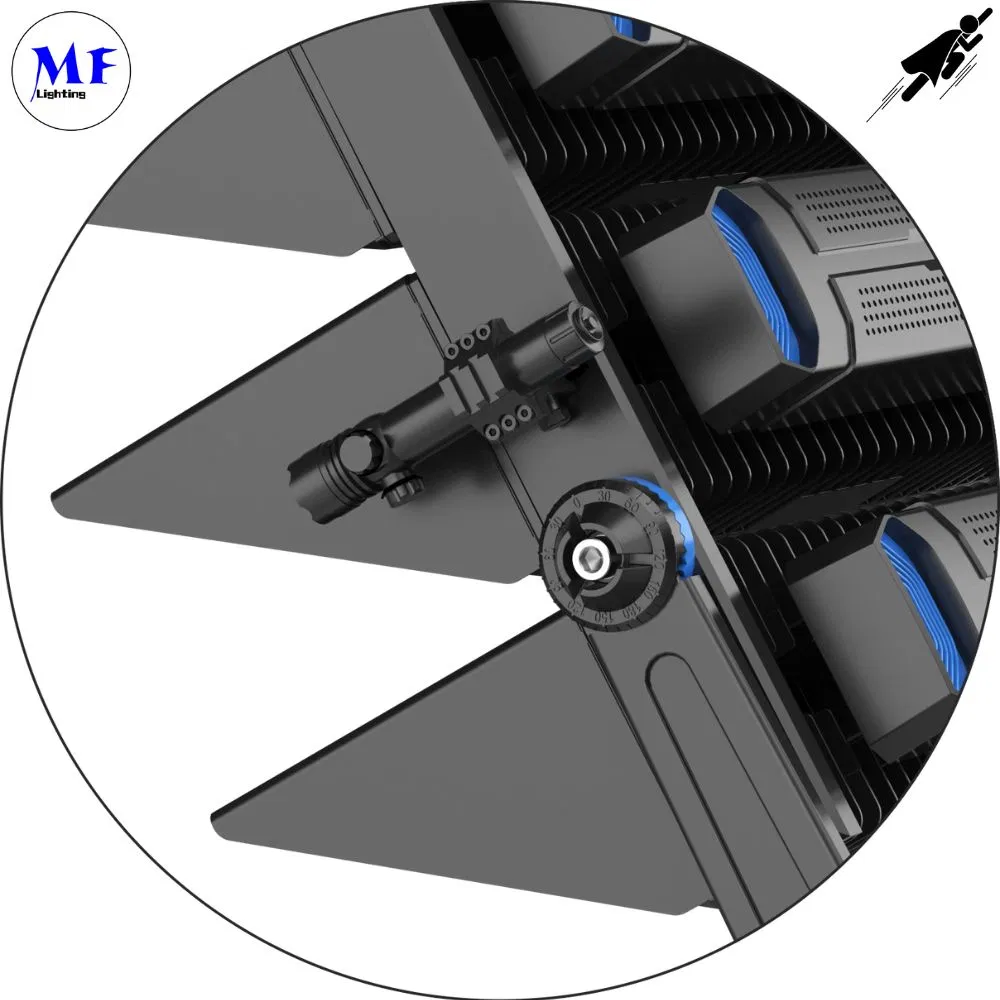

Adopts a modular concept (250-300W per module), scalable up to 1500W. Racked angles allow flexible light control, and laser aimers ensure precise aiming on the field.

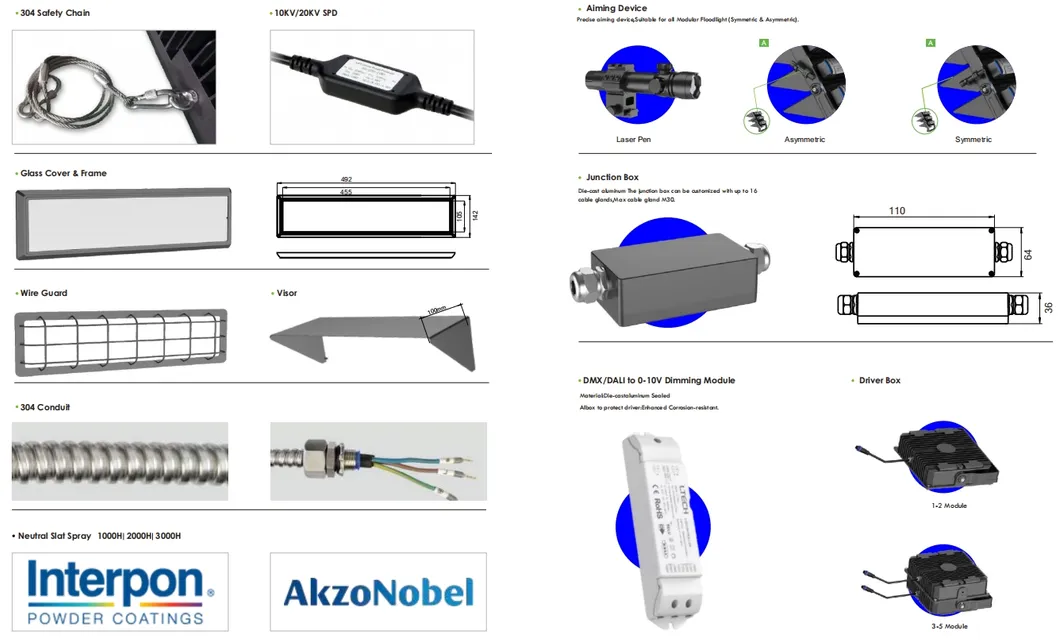

The semi-open modular design reduces EPA. Rated IP66 and IK10, equipped with wire guards for ball-proofing and safety ropes for double protection. Built-in 10KV/20KV surge protection.

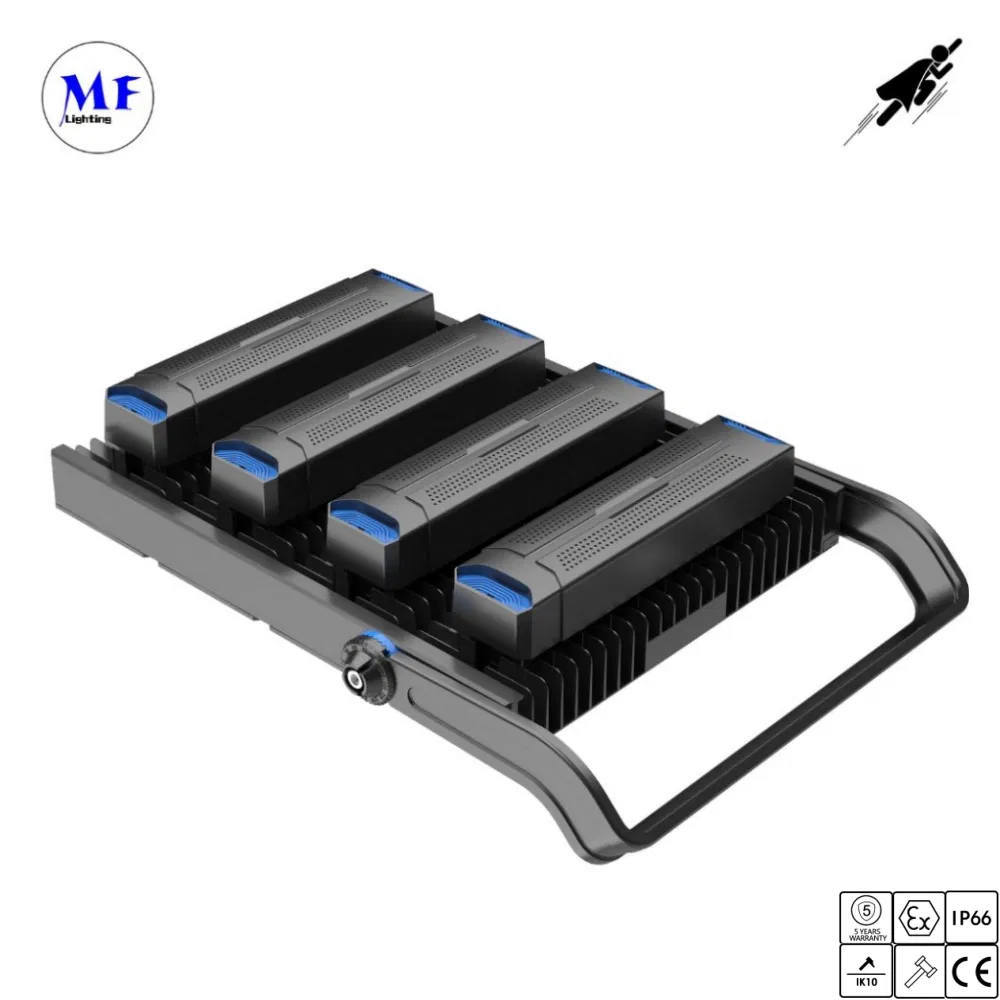

Utilizes three passive cooling methods: conduction, radiation, and convection. Fin-design increases heat dissipation areas to ensure node temperature control and long lifespan.
Asymmetrical optical lenses focus light on the sports ground, preventing spill light into residential areas. Integrated visors provide a glare-free experience for players and audience.
Treated with AkzoNobel powder coating and electrophoresis to withstand 1000-3000 hours of neutral salt spray, making it perfect for coastal seaports and wharves.
| Model No. | MF-QCD-H250W | MF-QCD-H500W | MF-QCD-H750W | MF-QCD-H1000W | MF-QCD-H1250W |
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
| Luminous Flux | 36,000 lm | 72,000 lm | 108,000 lm | 144,000 lm | 180,000 lm |
| LED Brand | Lumileds / OSRAM | ||||
| IP Class | IP66 | ||||
| Net Weight | 7kg | 14kg | 20kg | 26kg | 32kg |
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
| Luminous Flux | 40,800 lm | 81,600 lm | 122,400 lm | 163,200 lm | 204,000 lm |
| Rated Power | 300W | 600W | 900W | 1200W | 1500W |
| Luminous Flux | 45,000 lm | 90,000 lm | 135,000 lm | 180,000 lm | 225,000 lm |
LED High Mast Flood Lights are essential for high-intensity illumination over large areas. Key applications include:

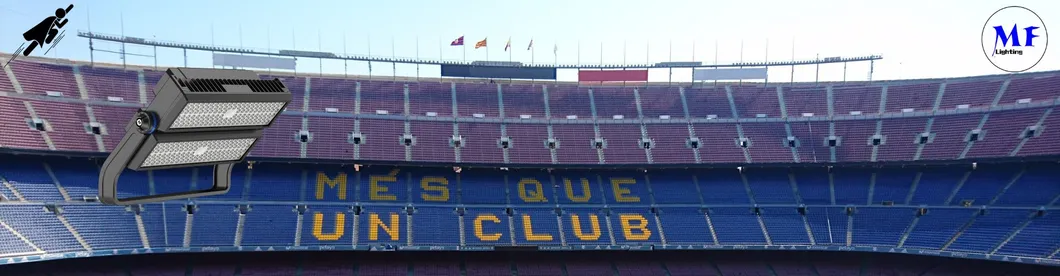

- 🏆 Sports Venues: Football, basketball, soccer, tennis courts, and golf courses.
- 🚢 Industrial & Marine: Seaports, wharfs, dockyards, and shipping yards.
- ✈️ Transport Hubs: Airports runways, aprons, and large parking lots.
- 🏗️ Infrastructure: Construction sites, tower cranes, bridges, and monuments.
1. Installation must be performed by a certified electrician according to local regulations.
2. Always turn off power and allow the lamp to cool before maintenance or replacement.
3. Verify local voltage requirements before installation (AC100-305V).
4. Clean using a soft cloth and PH neutral detergent; maintain stainless steel parts regularly.
5. Do not cover the fixtures with flammable materials.
