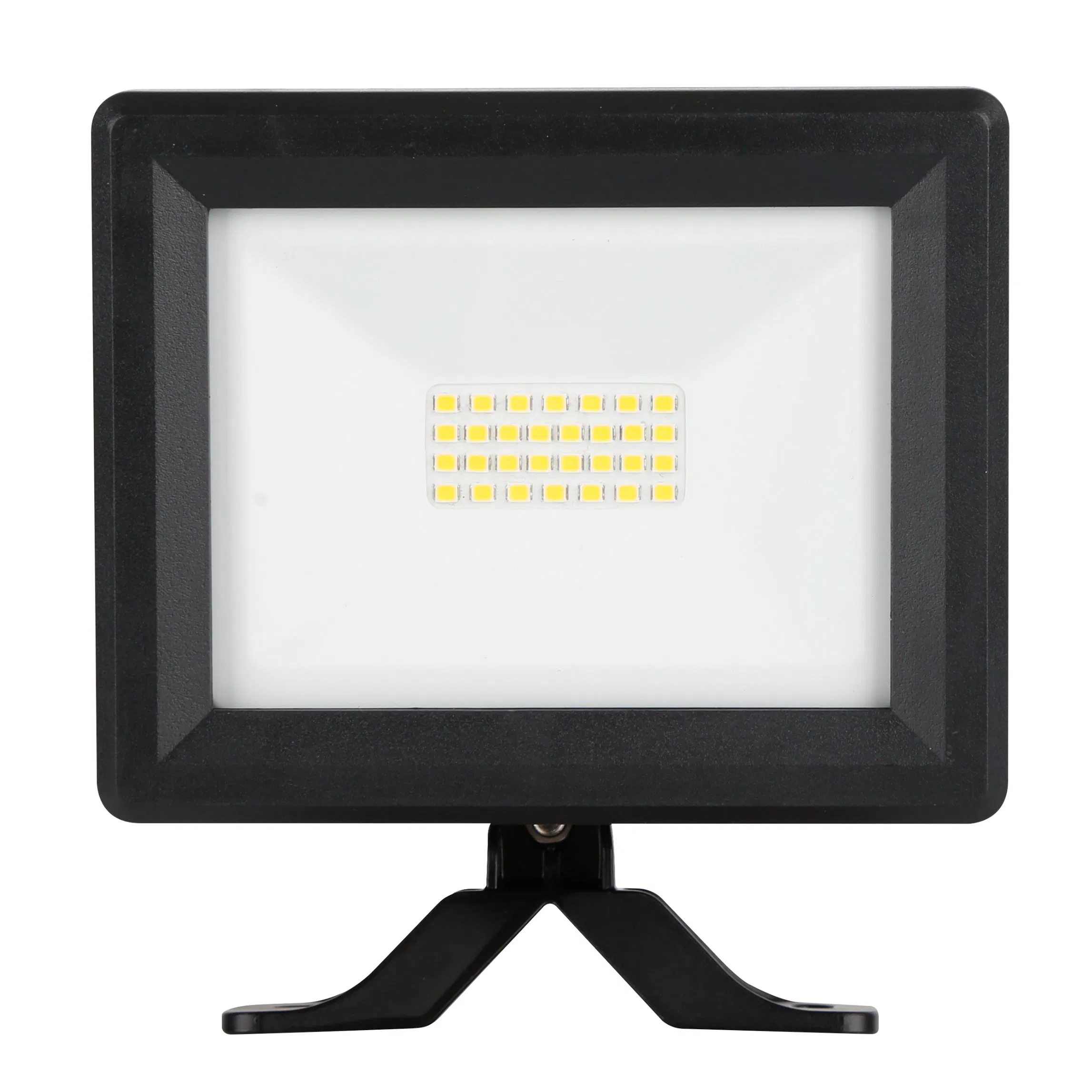

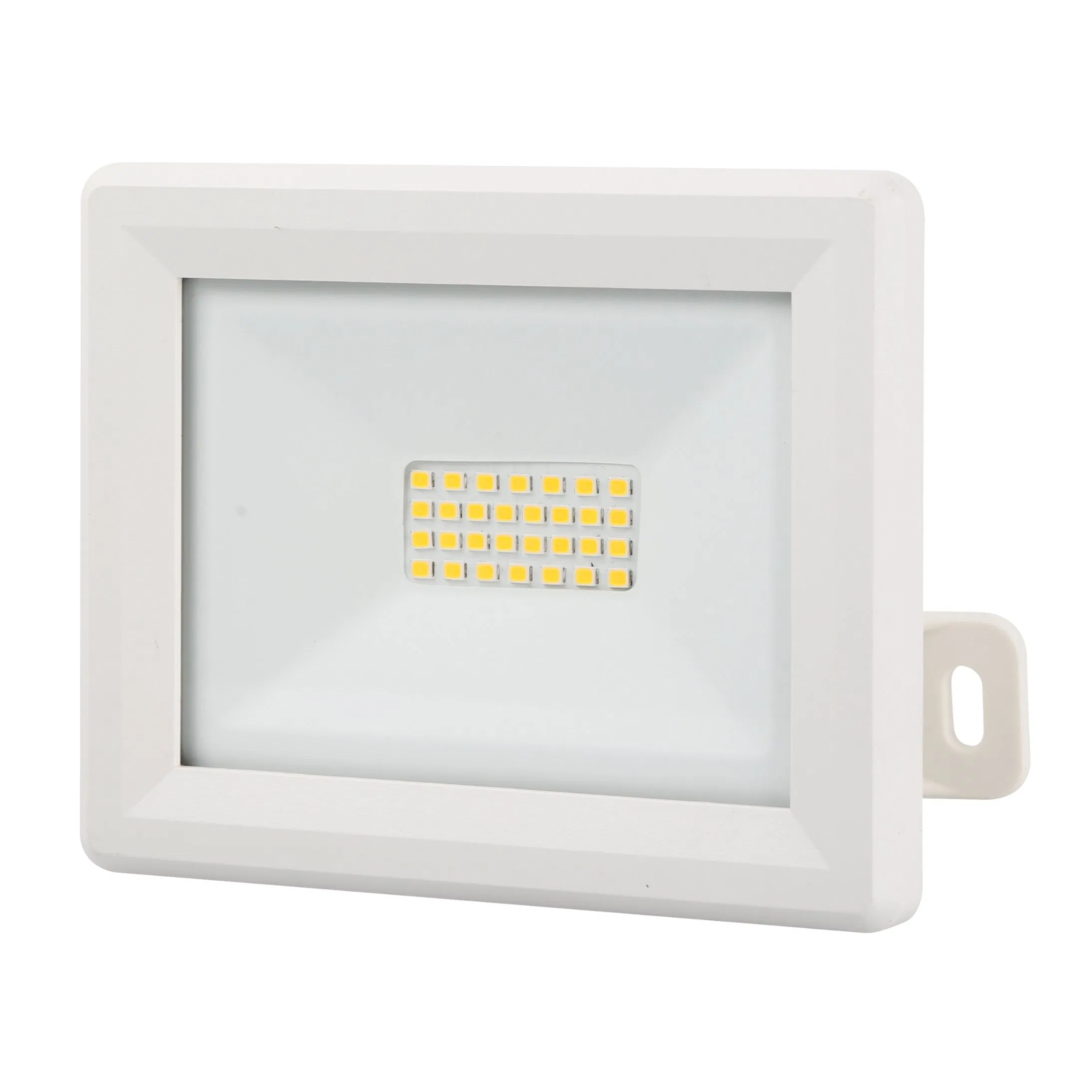

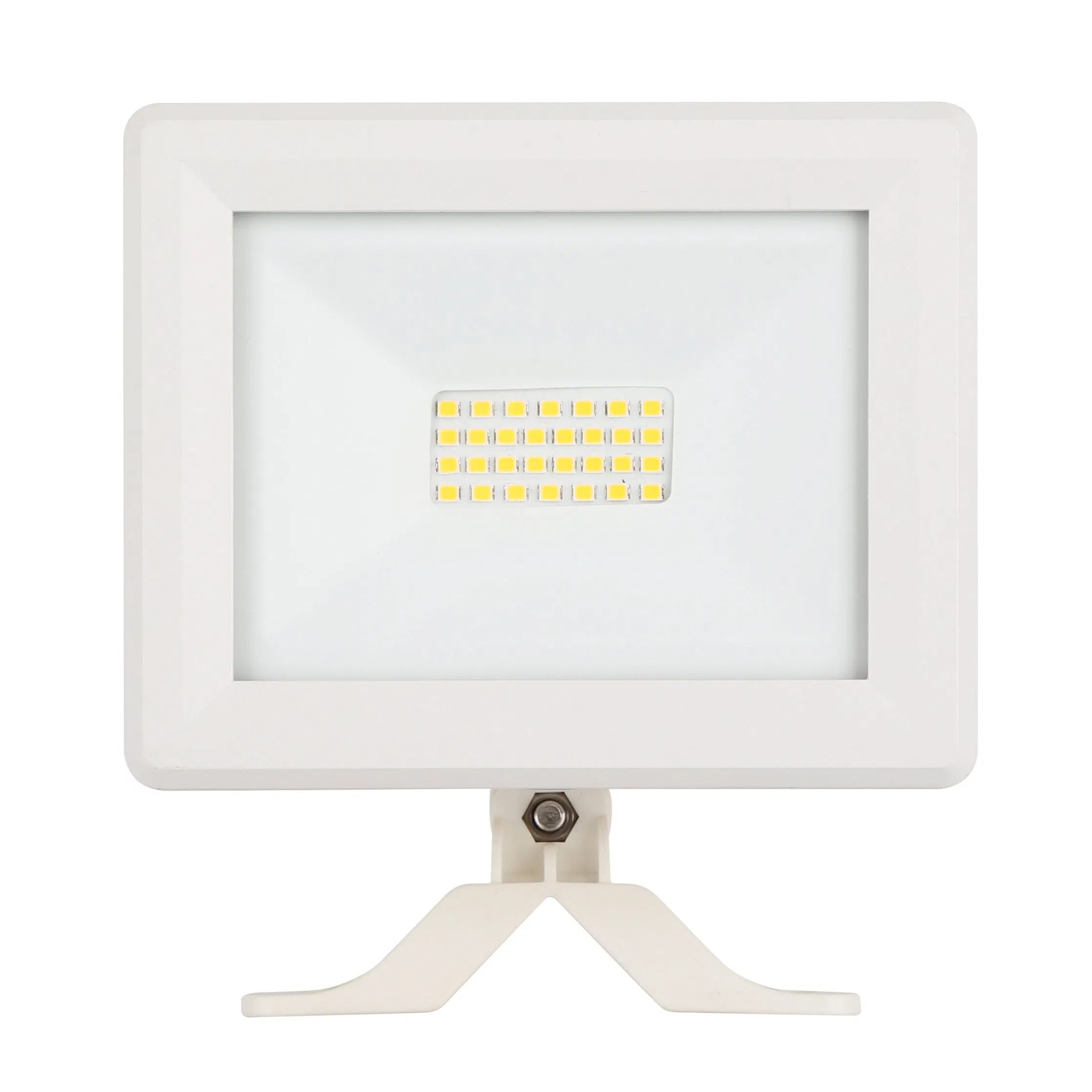

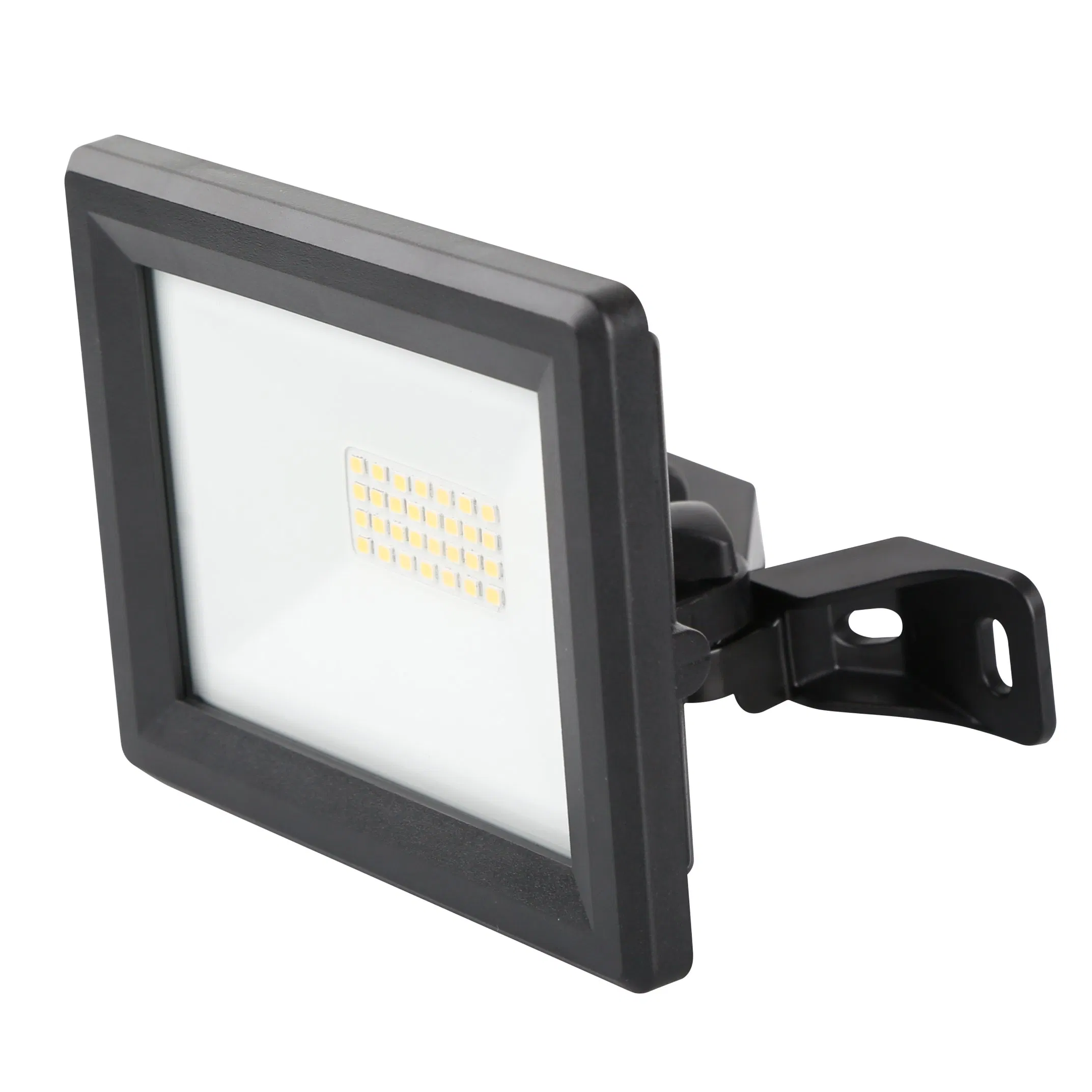

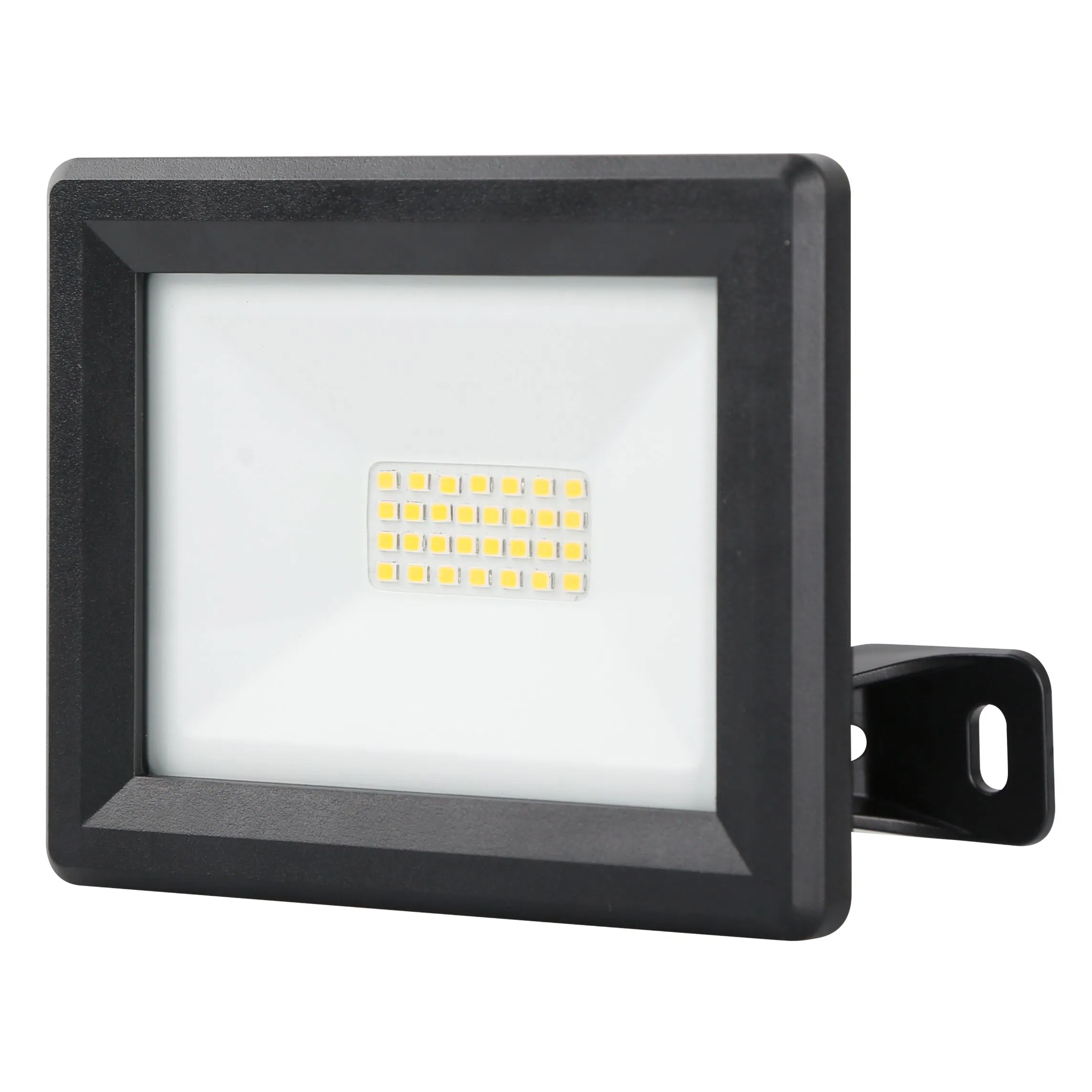

GS CE Standard Industrial IP65 20W 3D Black Bracket LED Wall Lamp Flood Light 3000K 4000K 6000K CCT High Quality Factory
Product Description
📋
Basic Information
Model NO.TBC220SXJ2-A
Power10-29W
Projection Distance>35m
ApplicationPark / Industrial
IP RatingIP65
CertificationGS, CE, EMC, LVD, RoHS, SAA
Voltage220-240V
LED Chip2835 SMD
Number of LEDs30 PCS
Housing MaterialAluminum Die-casting
⚙️
Product Parameters
1. Aluminum die-casting housing + tempered glass+ ABS frame
2. Voltage: AC 220-240V, 50Hz
3. Linear Driver (DOB)
4. LED chip: 2835 SMD
5. Color temperature: 3000K/4000K/6500K
6. Lumen efficient: Module 110lm/w, Whole lamp 100lm/w
7. CRI(Ra): ≥80 | DF: ≥0.9
8. Beam angle: 110°±10°
9. Life time: 25,000 hours
10. Warranty: 3 years
11. PIR sensor: 120° Angle, 4m-10m Distance
📦
Packaging & Shipping
Package: Color box + Carton
Color Box Size: 135x70x145mm
Quantity: 20pcs/CTN
Carton Size: 37x28.5x31cm
N/W & G/W: 7.3kg / 6kg
🖼️
Detailed Photos
🏢
Profile

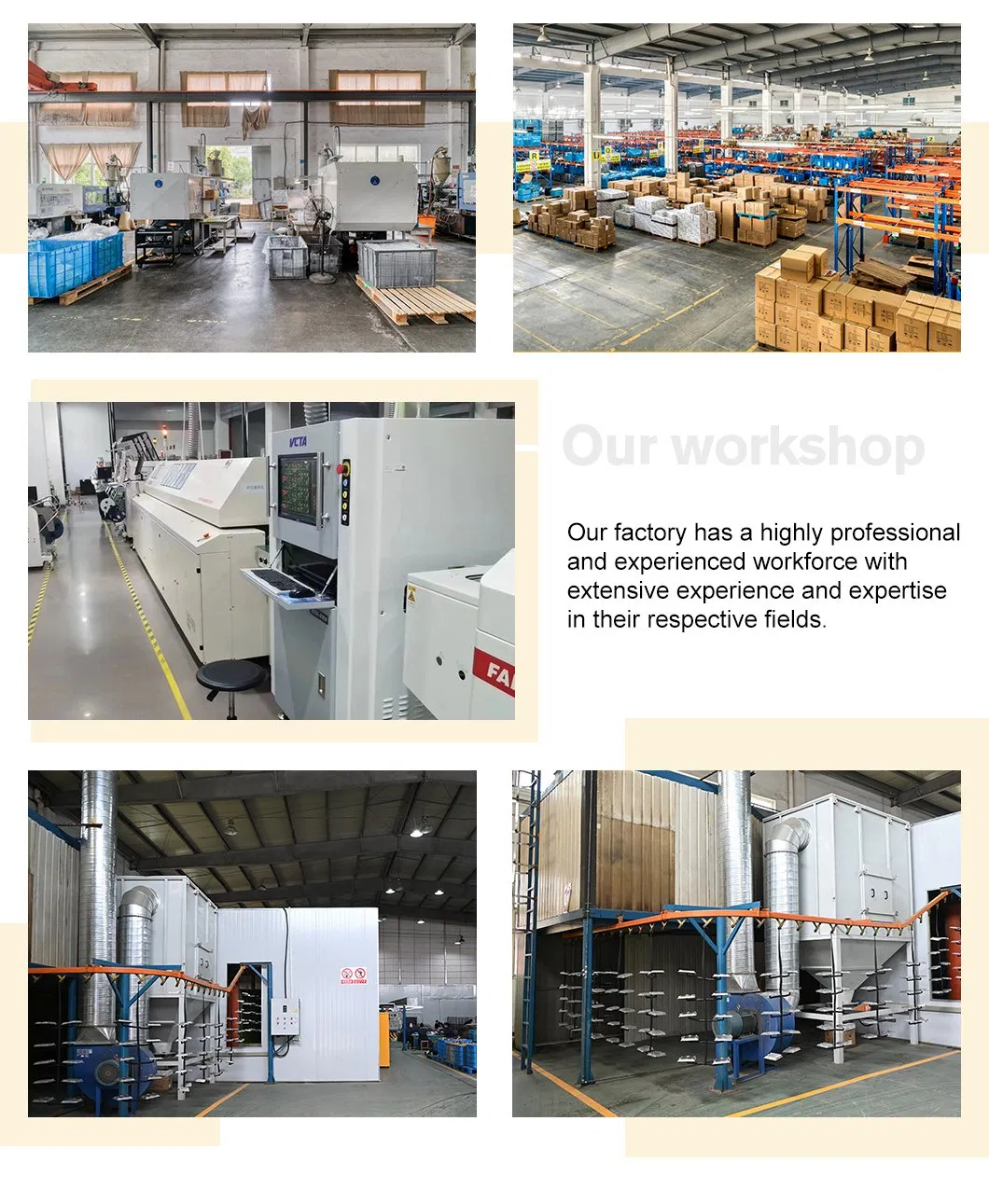

Our products have received positive market feedback due to their scientific, aesthetic design and excellent quality, offering very high cost performance. We are a professional manufacturer integrating R&D, production, and sales. Established in 2012, our facilities are strategically located to ensure efficient global shipping and logistics.
❓
Frequently Asked Questions
What is the IP and IK rating of this light?
This flood light is IP65 rated, making it fully protected against dust and low-pressure water jets. It also carries an IK05 impact protection rating.
Does this light support corner installation?

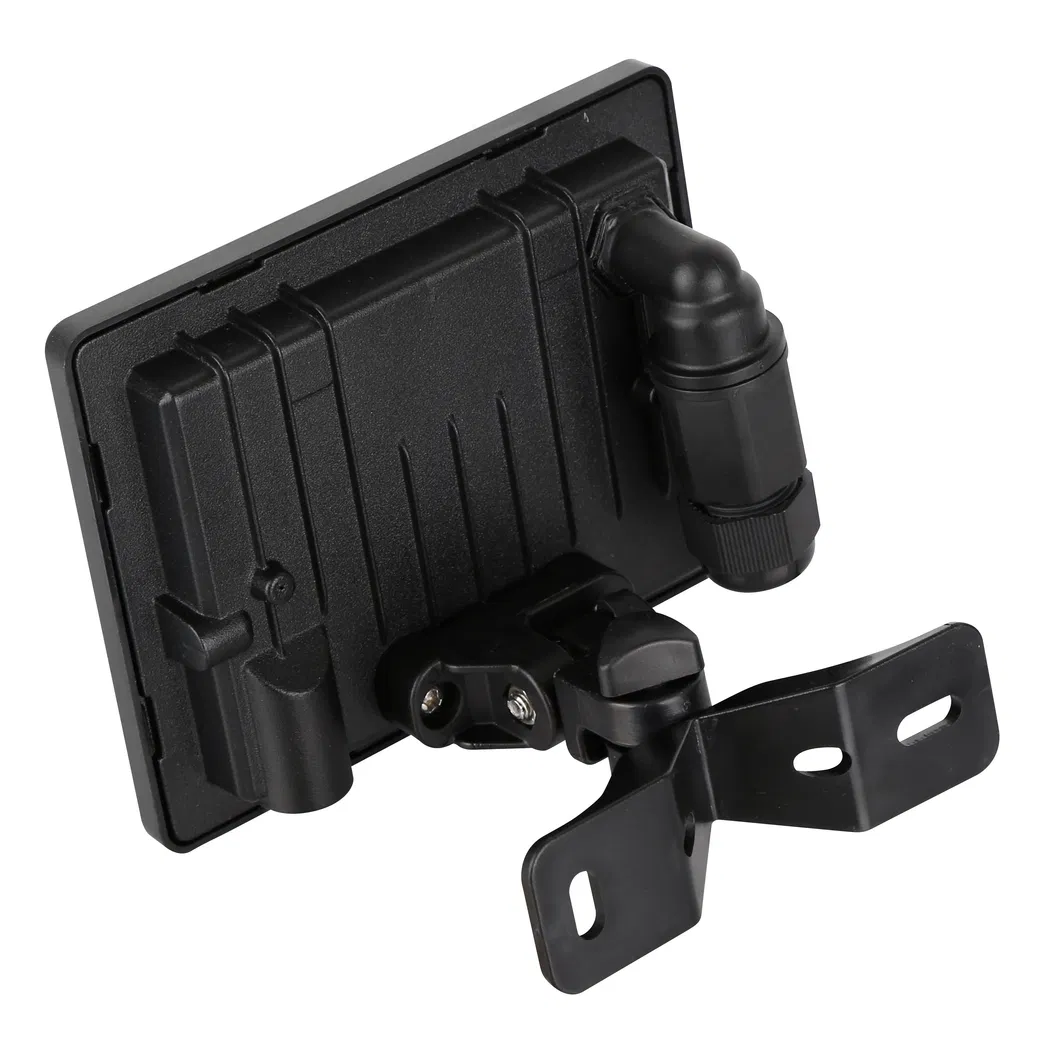

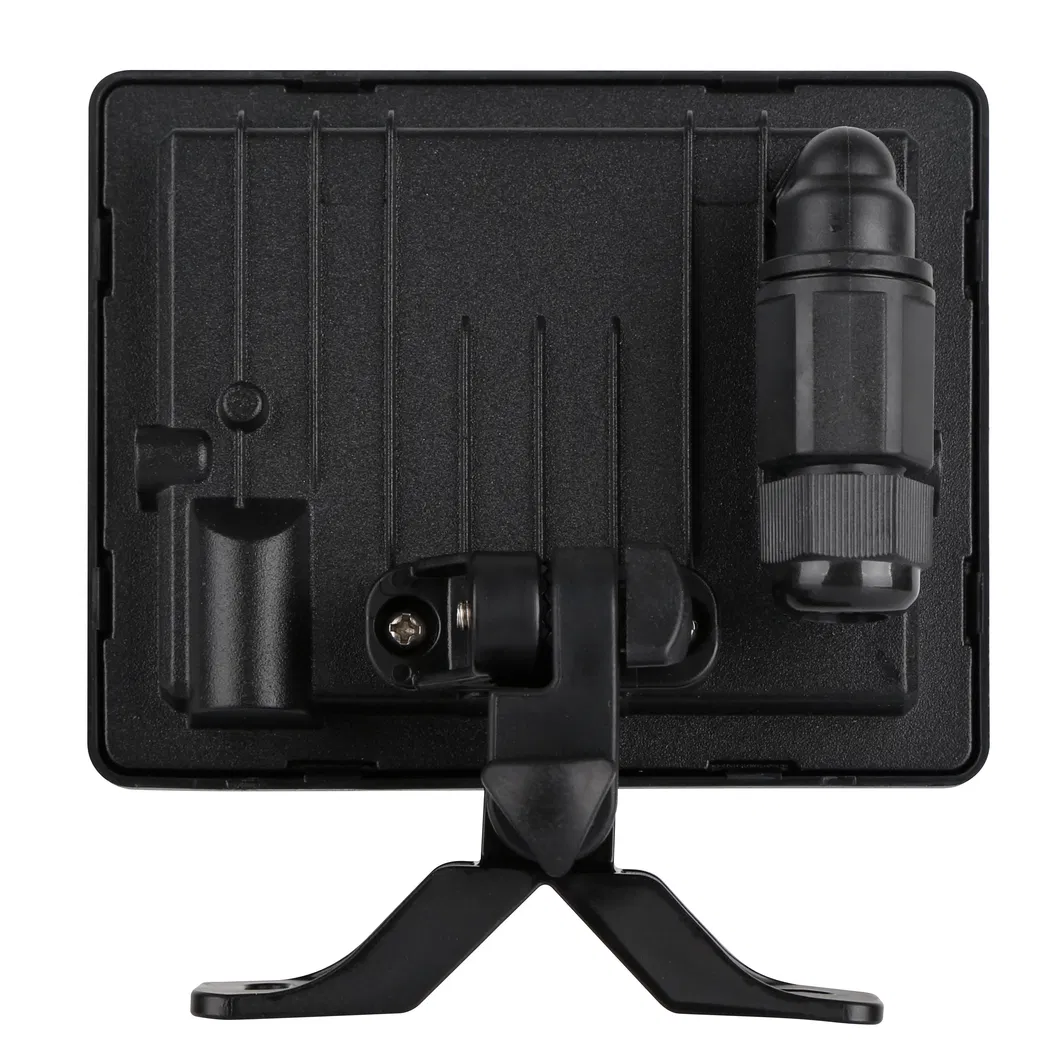

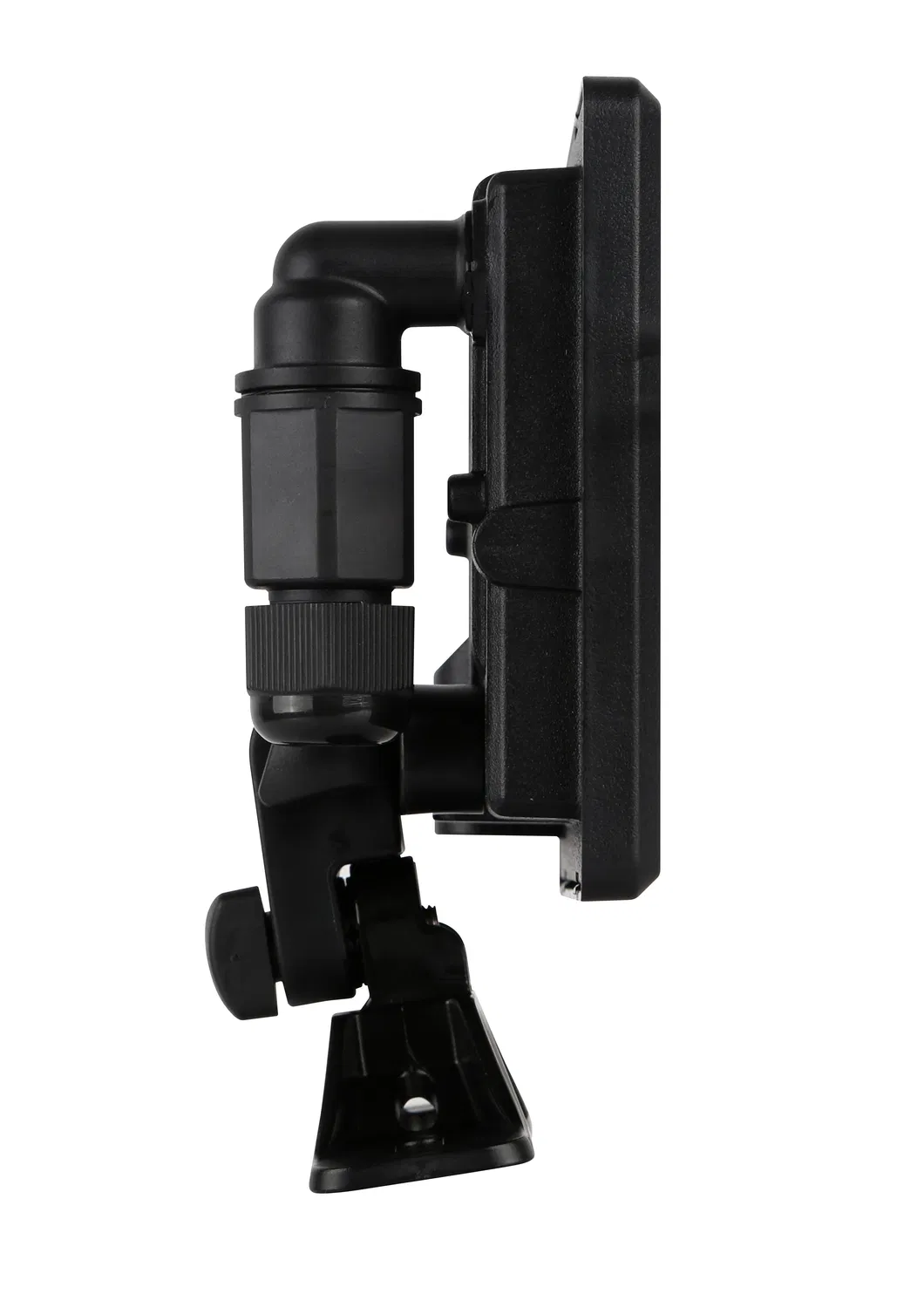

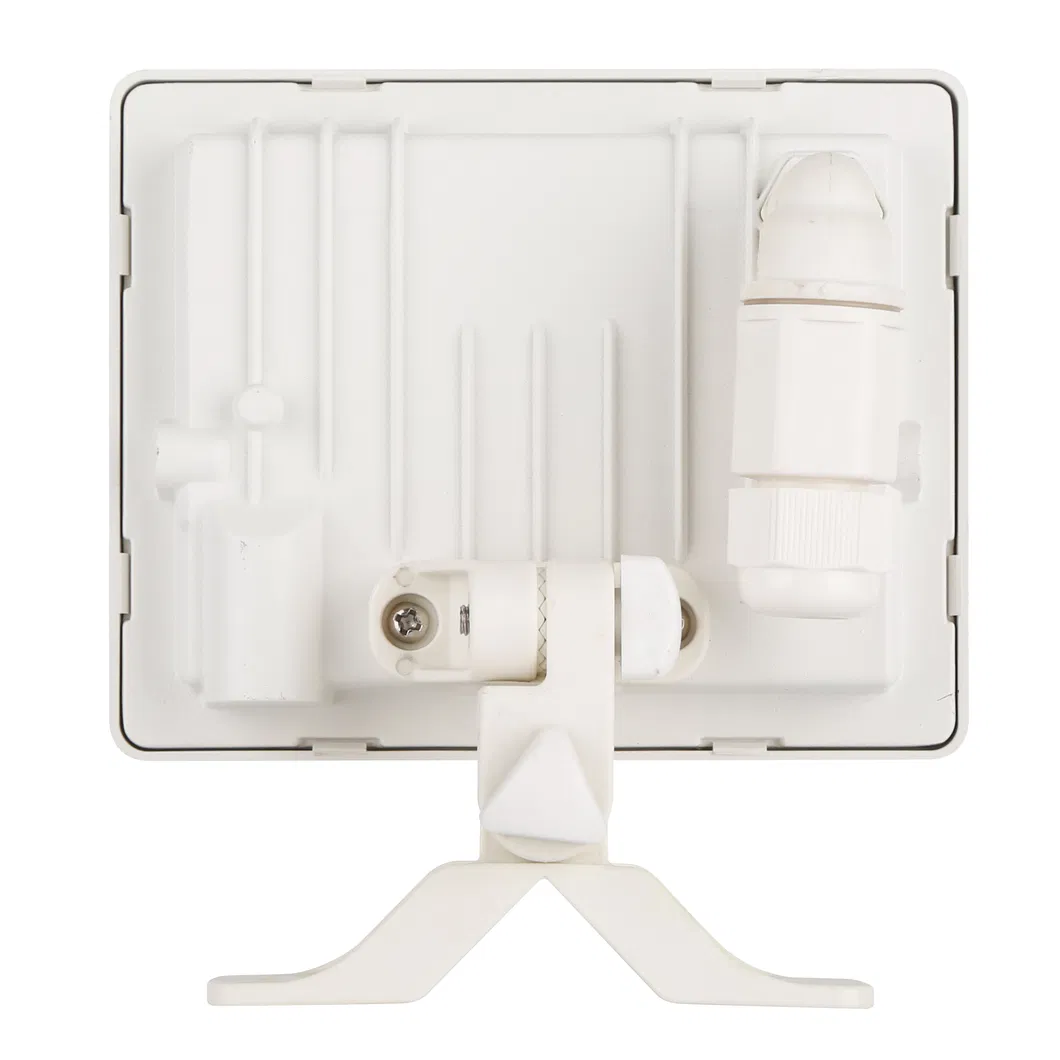

Yes, it comes with a specialized 3D bracket designed for both flat wall and corner installations.
What color temperatures are available?
The product is available in three color temperatures: 3000K (Warm White), 4000K (Natural White), and 6500K (Cool White).
What are the PIR sensor capabilities?
The PIR sensor version features a detection angle of 120°, a detection distance of 4m to 10m, and adjustable lighting delays from 10 seconds to 10 minutes.
What is the warranty period for this product?
We provide a 3-year warranty for this LED flood light, which has a rated lifetime of 25,000 hours.
Is the driver integrated into the light?
Yes, it utilizes a Linear Driver (DOB - Driver on Board) technology for a more compact and efficient design.
