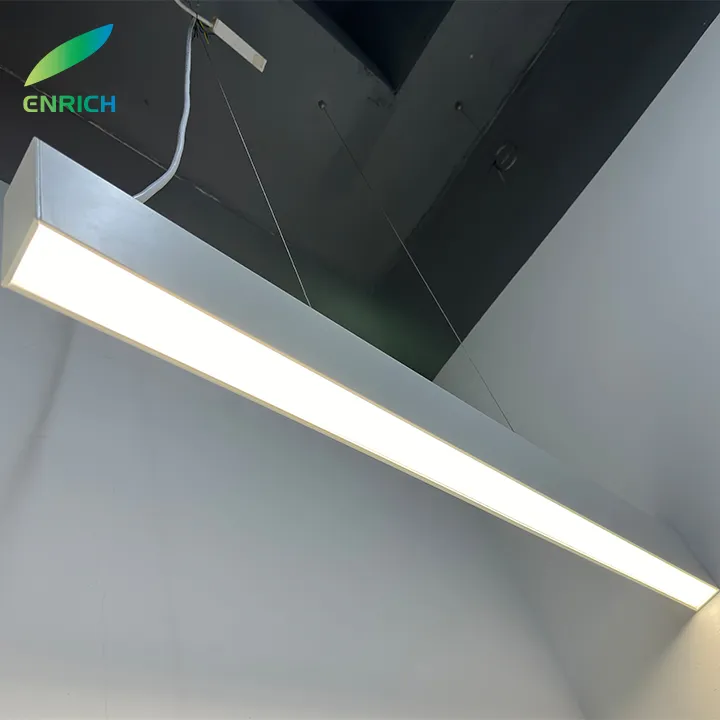

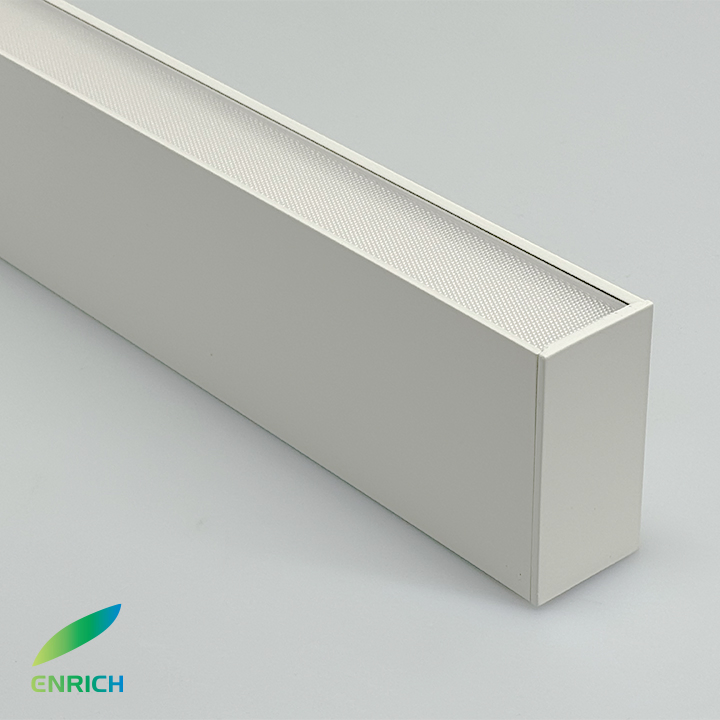

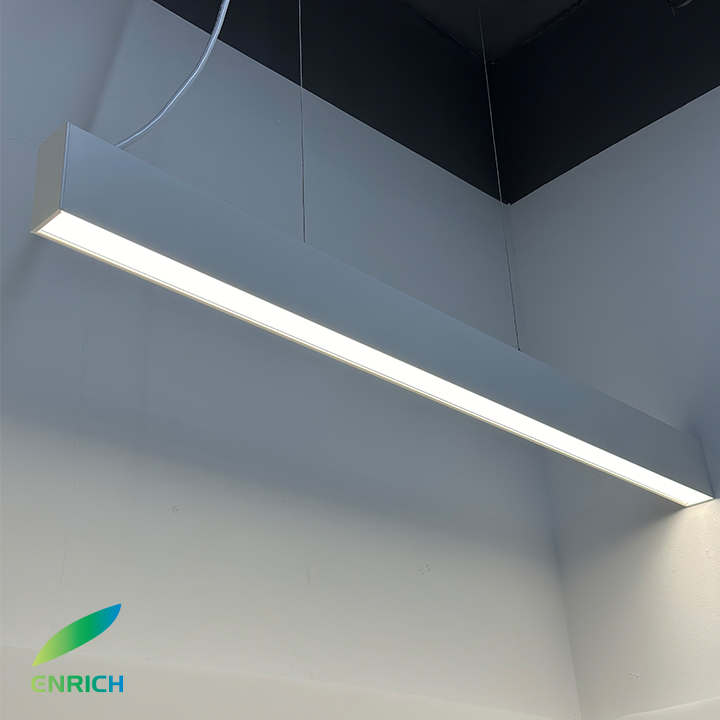

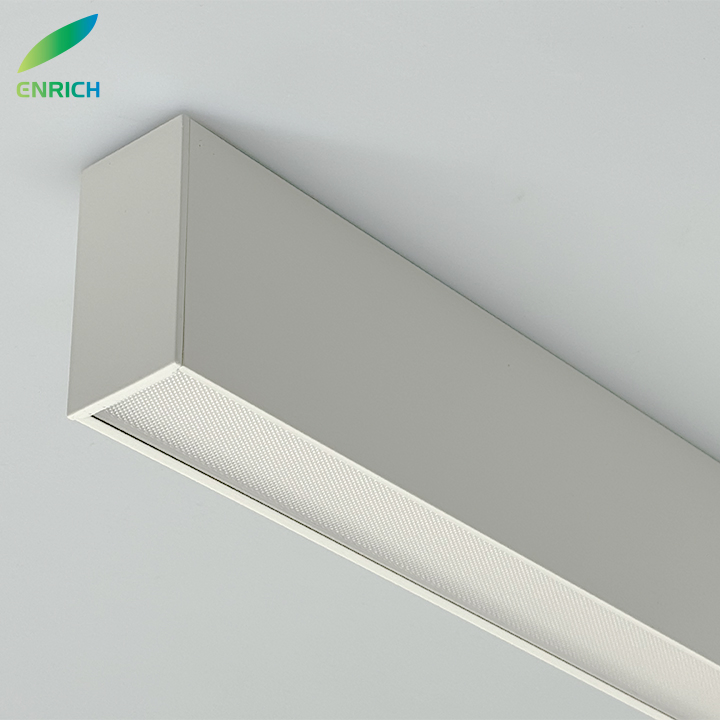

Industrial Ceiling Office Indoor Shop Suspended 4FT 8FT Pendant Linear LED Linear Light
Product Description
⚙
Technical Specifications
Model NO.EN50100DFZ20W1194
Emitting Color3000K/4000K/6000K
VoltageAC220-240V/AC100-277V
IP RatingIP20
Dimming0-10V/Dali/Triac Dimmable
Beam Angle120°
LED ChipEpistar SMD 2835 - 240PCS
Luminous Flux2400lm
CRI>80
MaterialAluminum + PC
SizeL1194*W50*H100mm
HS Code9405110000
Capacity50000 Pieces/Month
💡

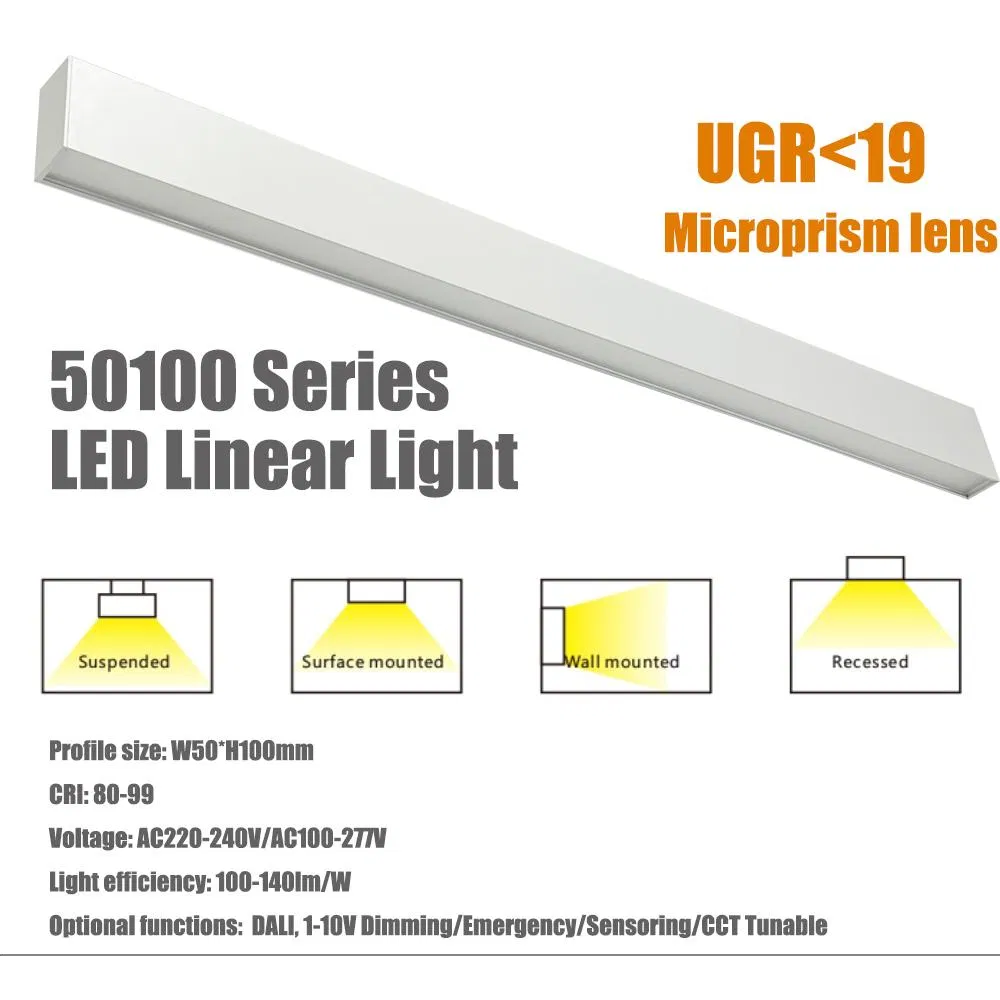

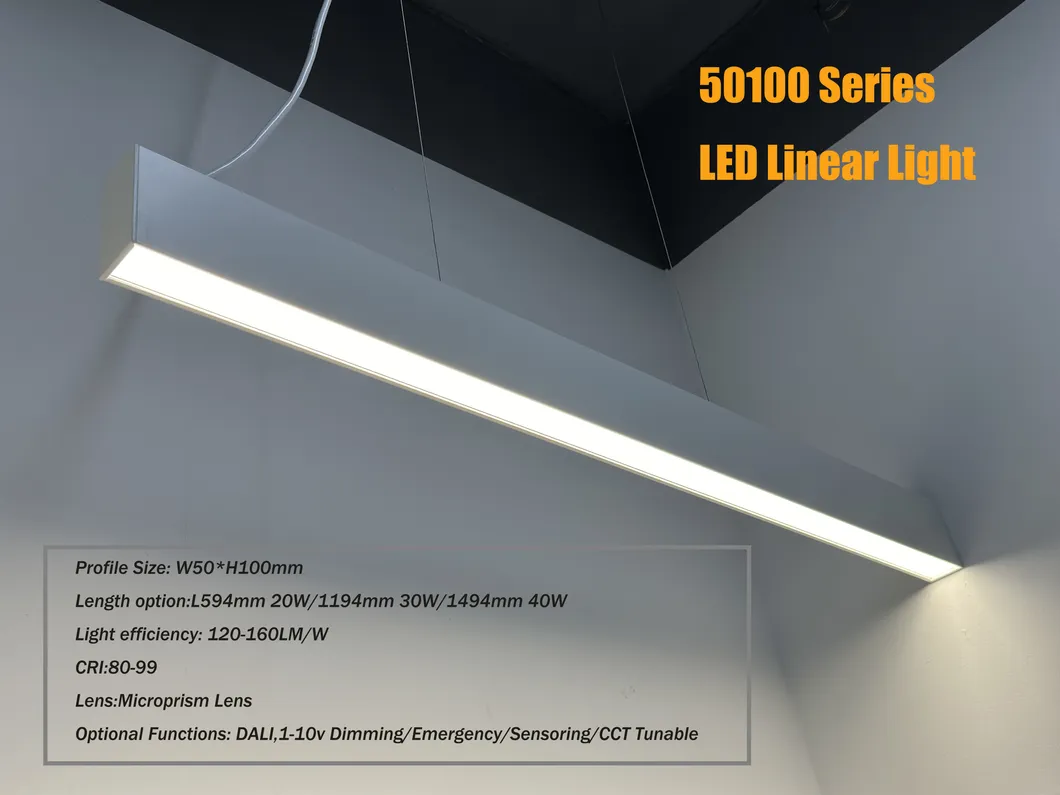

50100 Series LED Linear Light
Key Features

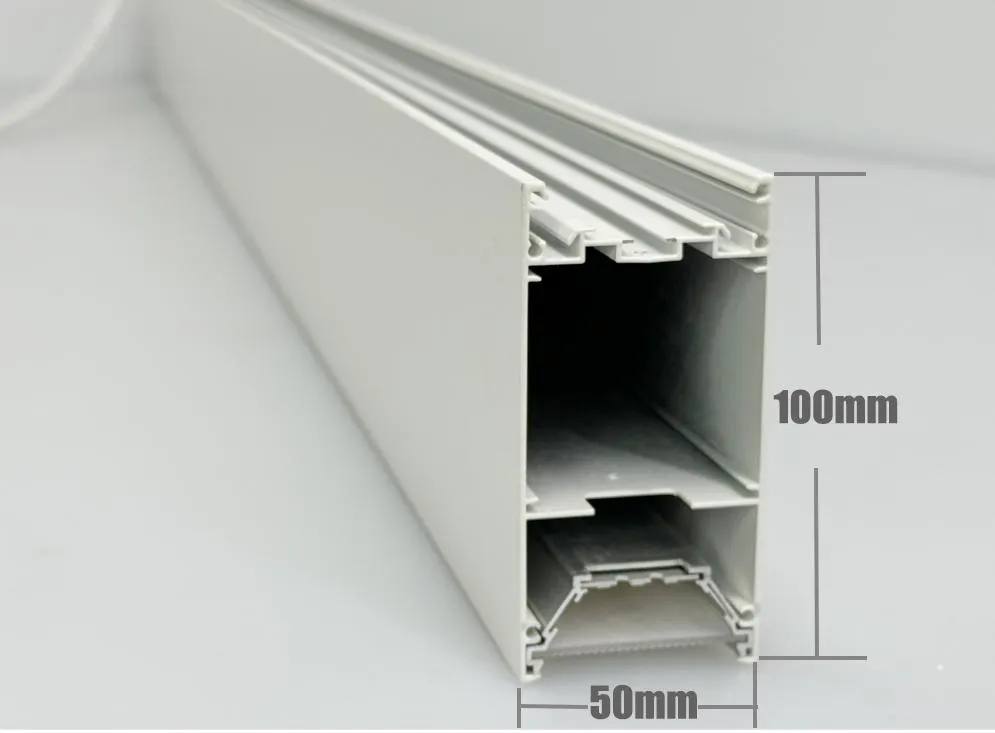

- Popular Design: Aluminum profile size W50mm x H100mm, widely favored in the European market.
- Flexible Lengths: Options include L594mm (20W), L1194mm (30W), L1494mm (40W), and customizable OEM lengths.
- High Efficiency: 120-160lm/W ultra-high light efficiency ensures bright and effective illumination.

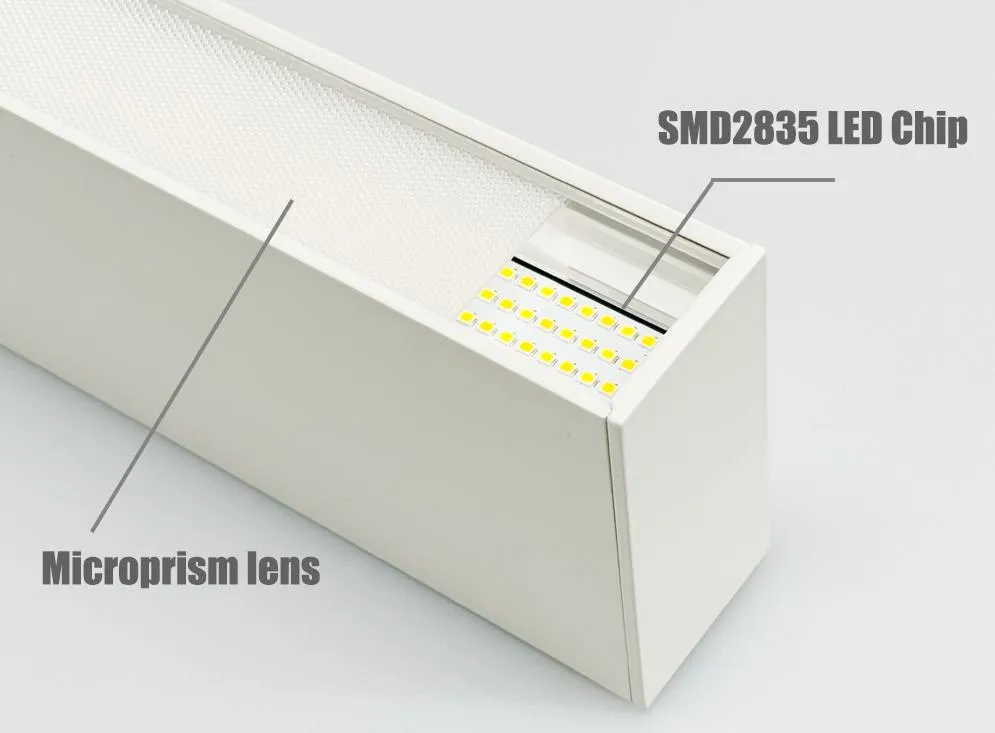

- Anti-Glare Technology: Equipped with a microprism lens to eliminate dazzle and eye strain.
- Premium Construction: Robust 1.5mm thickness aluminum body with steel wire suspension (2.0m length).
- Color Options: Available in Black or White finishes with CCT options: 3000K, 4000K, 6000K, and Tunable White.
- Reliability: Backed by a comprehensive 5-year warranty.

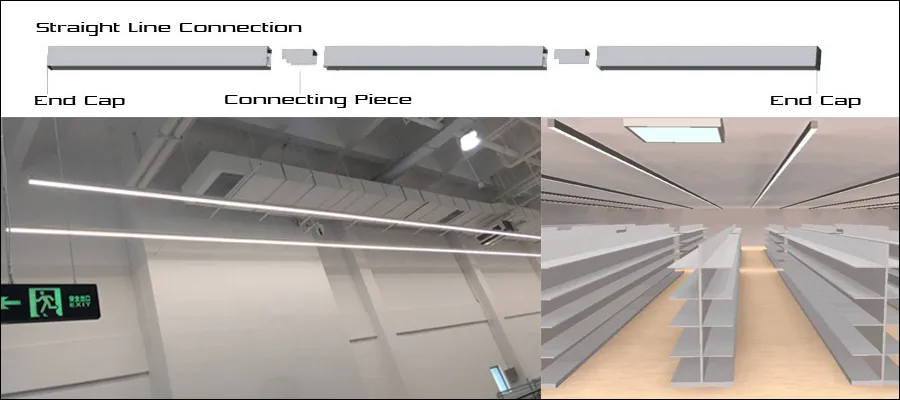

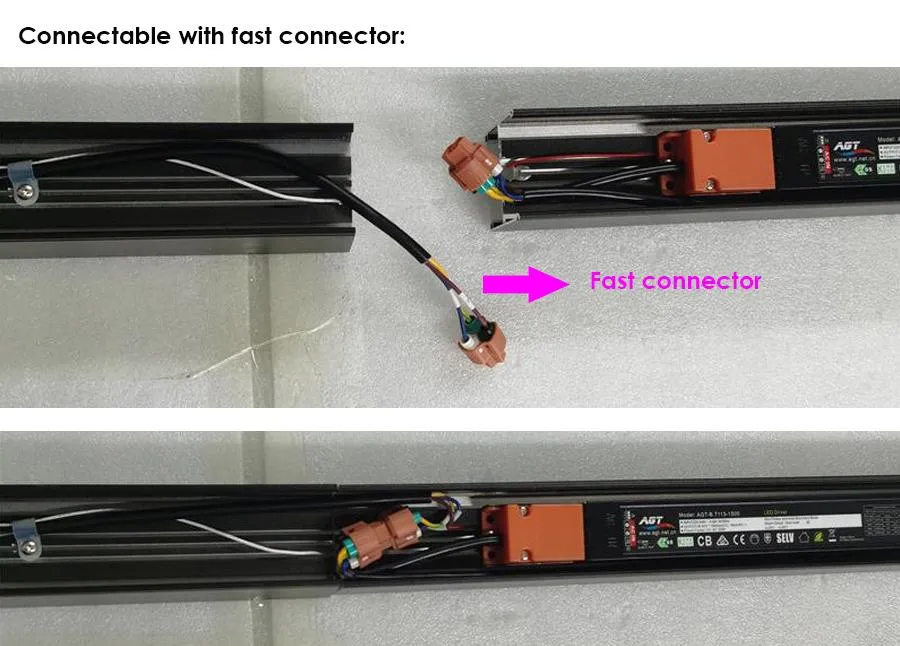

Seamless Connection & Fast Wiring
Achieve perfectly straight continuous runs with 4 metal pillars for a tight, seamless body connection. Features plug-in fast wiring connectors on both ends, allowing power to be supplied only to the first lamp in the series.
Product Datasheet
| Model Number | Dimension | Power/Efficiency | Input Voltage | CCT | Shell Color |
|---|---|---|---|---|---|
| EN50100DFZ20W1194 | L1194*W50*H100mm | 20W, 120LM/W | AC100-277V | 3000K / 4000K / 6000K | Black / White |
| EN50100DFZ36W1494 | L1494*W50*H100mm | 36W, 120LM/W | AC100-277V | ||
| EN50100DFZ40W2388 | L2388*W50*H100mm | 40W, 120LM/W | AC100-277V |

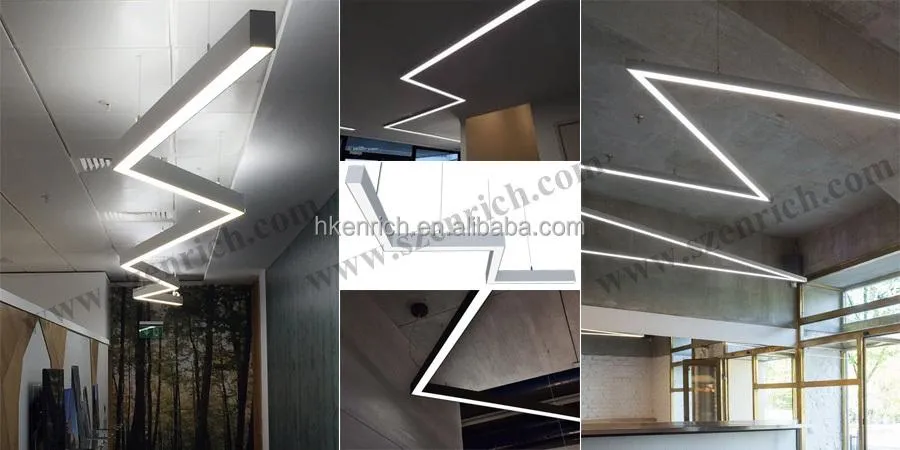

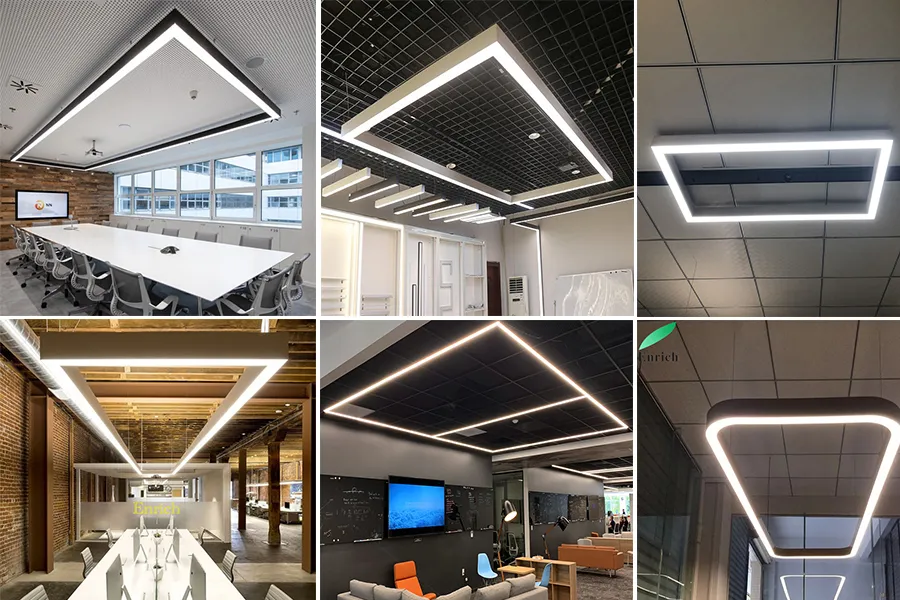

Versatile Installation
Supports multiple configurations including continuous straight lines, square/rectangular layouts, and customized Zig Zag patterns.

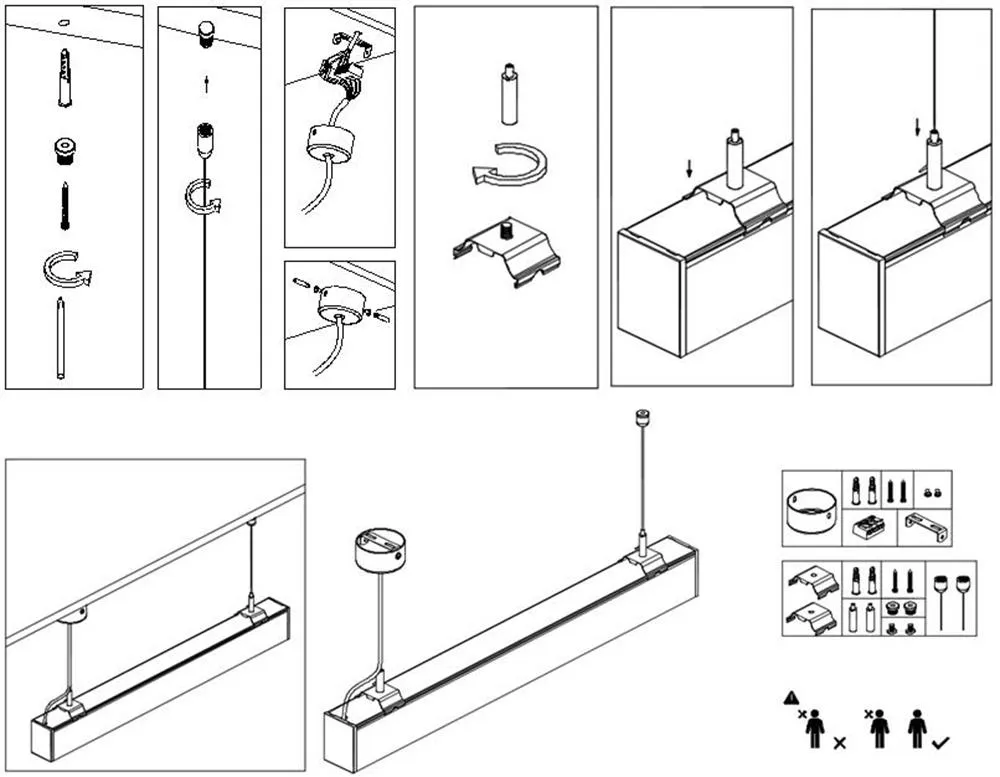

Mounting Guide

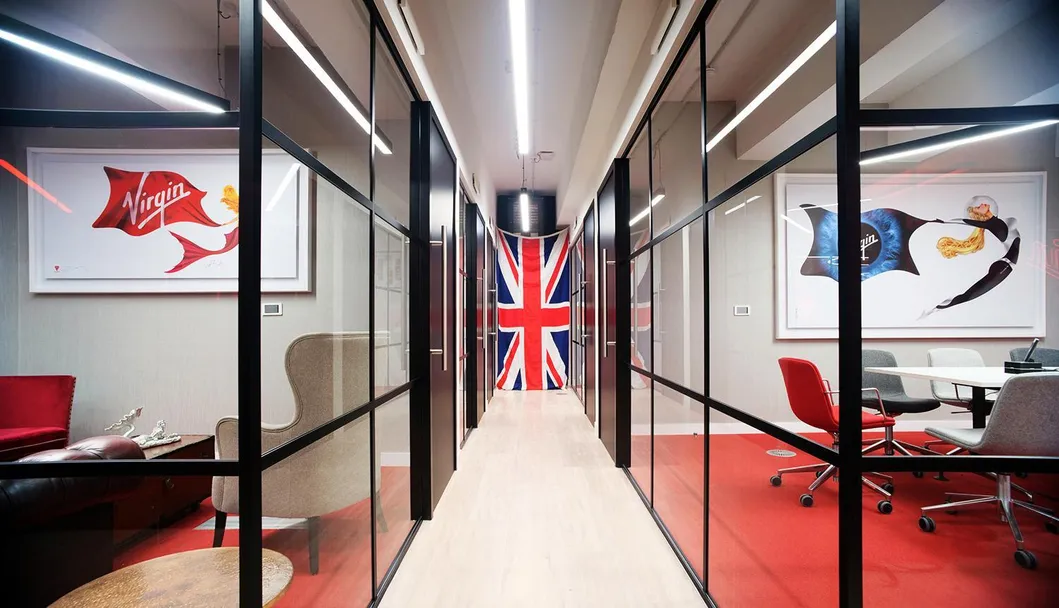

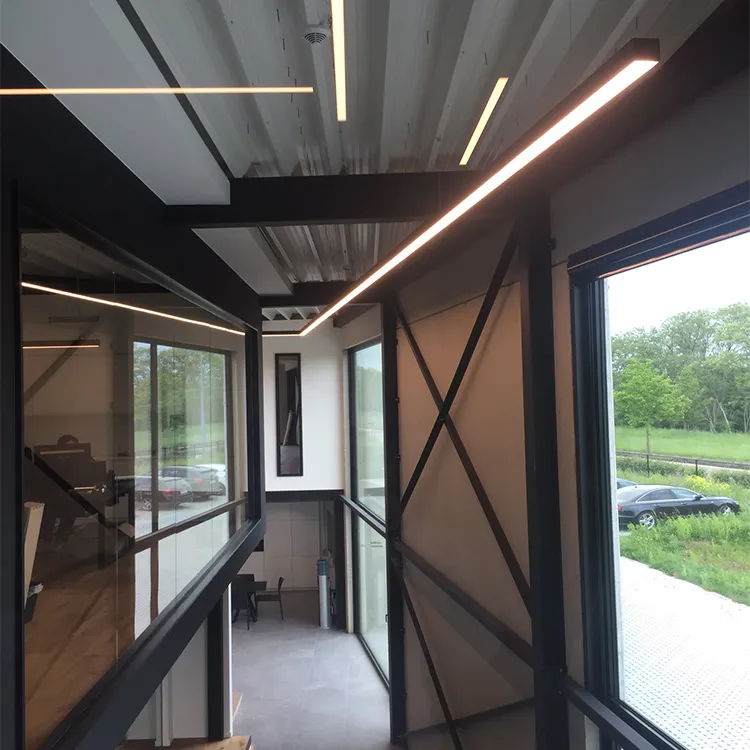

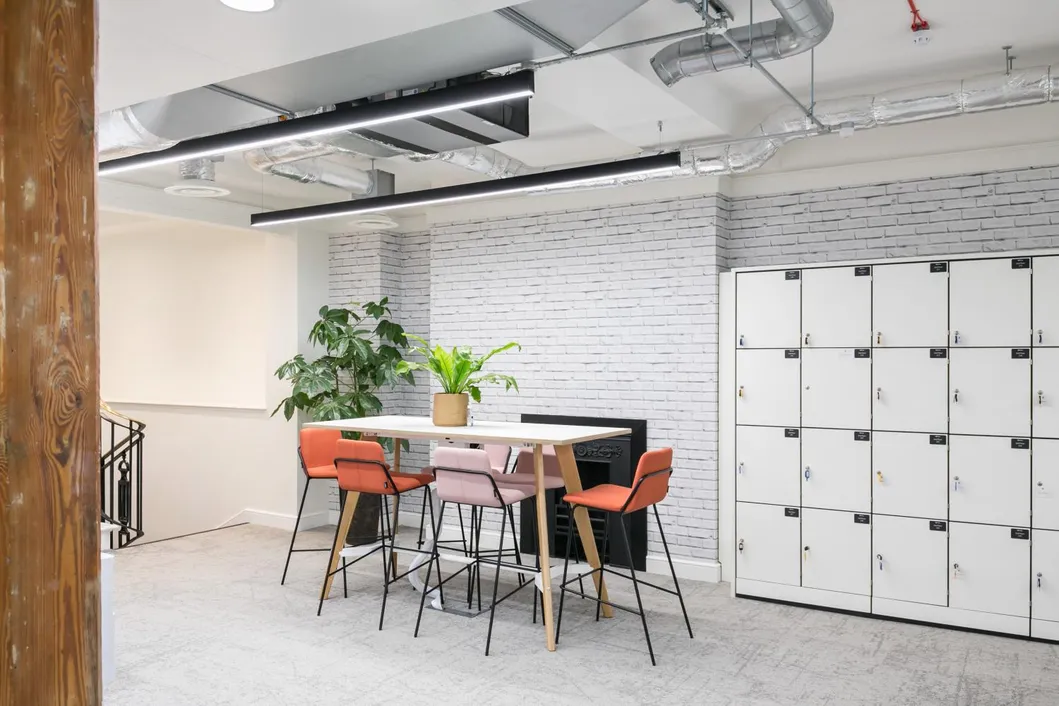

Real-World Applications
An excellent choice for modern offices, restaurants, studios, retail stores, schools, hotels, and banks.
Global Presence & Packaging
❓
Frequently Asked Questions
Q1: What are the main benefits of the microprism lens?
A: The microprism lens is designed for anti-glare performance, providing a soft and comfortable light output that reduces eye fatigue in office and commercial environments.
Q2: Can I connect these lights to form a long continuous line?
A: Yes, these lights support seamless connection using metal pillars and fast-wiring connectors, allowing for long, straight runs with power only needed at the start.
Q3: What dimming options are available for this series?
A: We offer multiple dimming solutions, including 0-10V, DALI, and Triac dimmable drivers to suit various control systems.
Q4: What is the warranty period for the LED linear lights?
A: All products in the 50100 series come with a 5-year warranty, ensuring long-term reliability and performance.
Q5: Are custom lengths available for specific project needs?
A: Yes, while we have standard lengths like 0.6m, 1.2m, and 1.5m, we also provide OEM customized lengths to meet your specific architectural requirements.
Q6: Is the light flicker-free?
A: Yes, our lights use high-quality certified drivers that ensure flicker-free operation, making them ideal for high-productivity environments like offices and schools.
