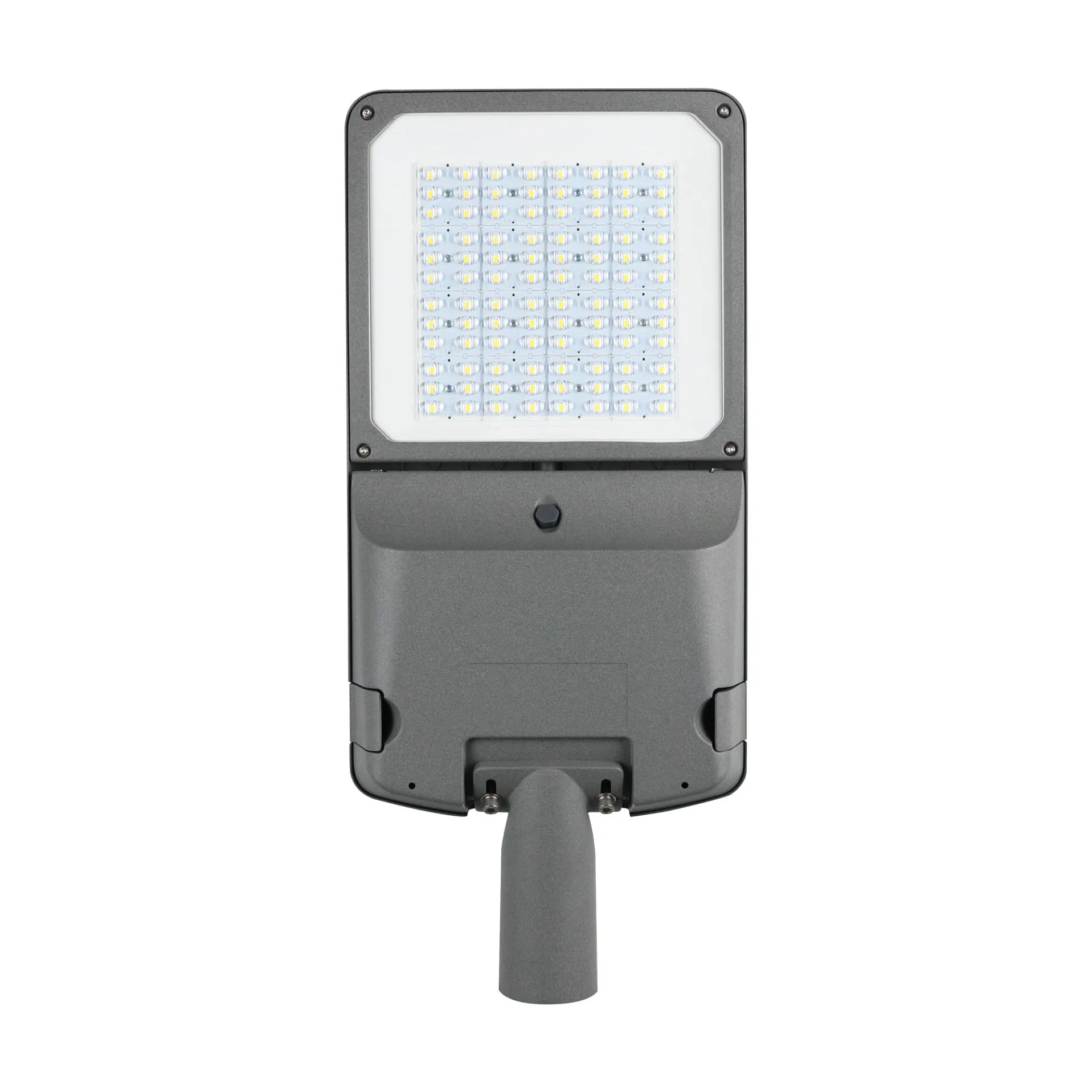

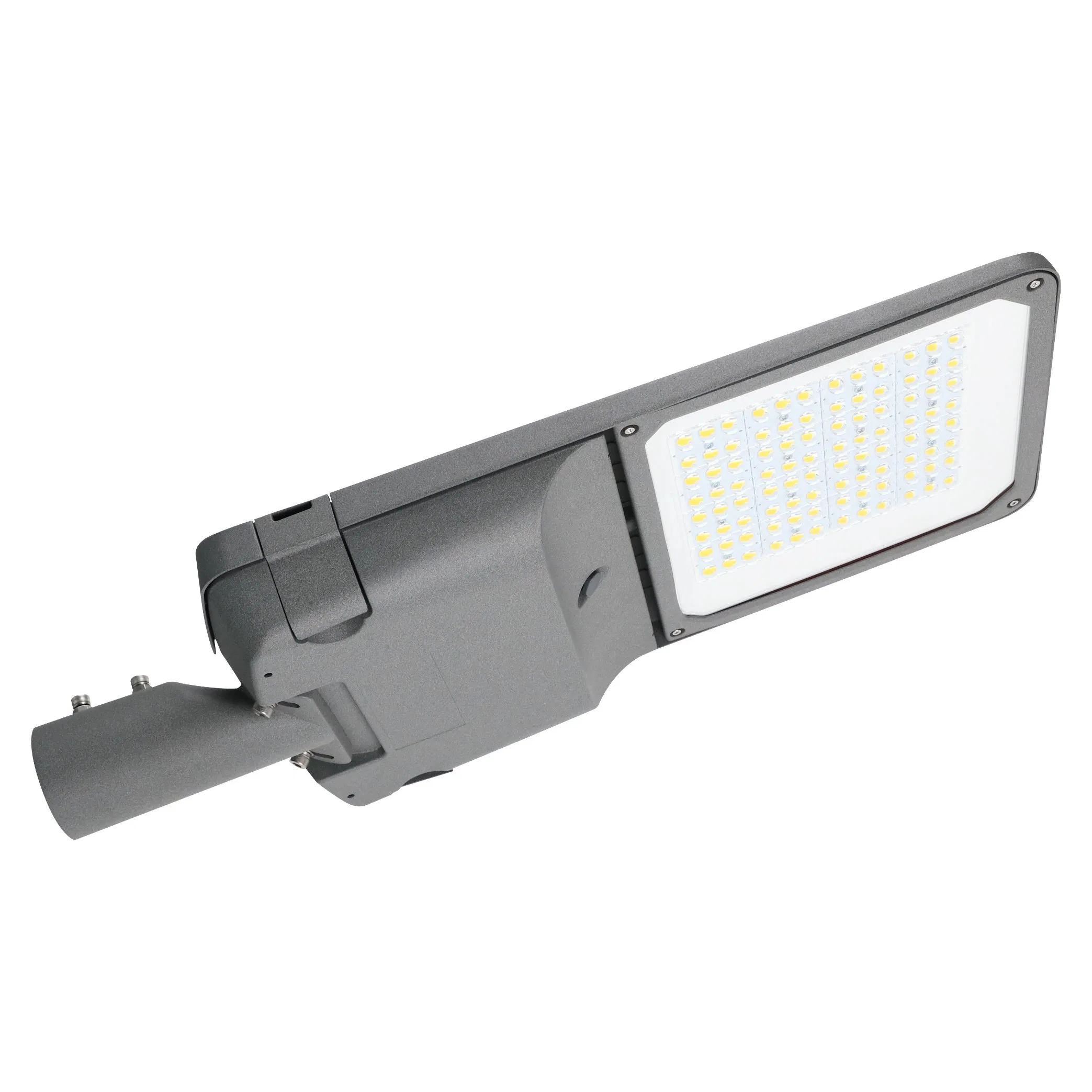

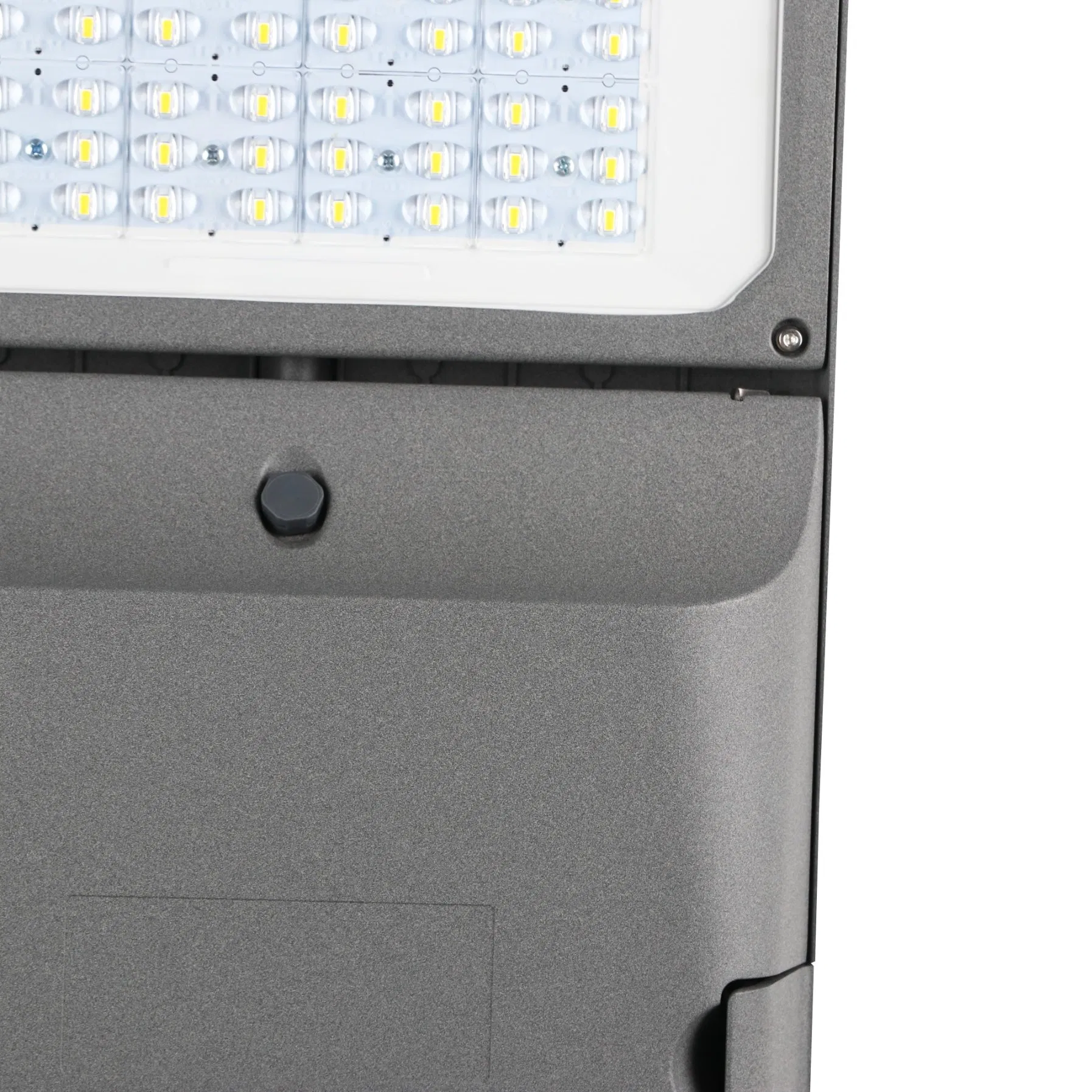

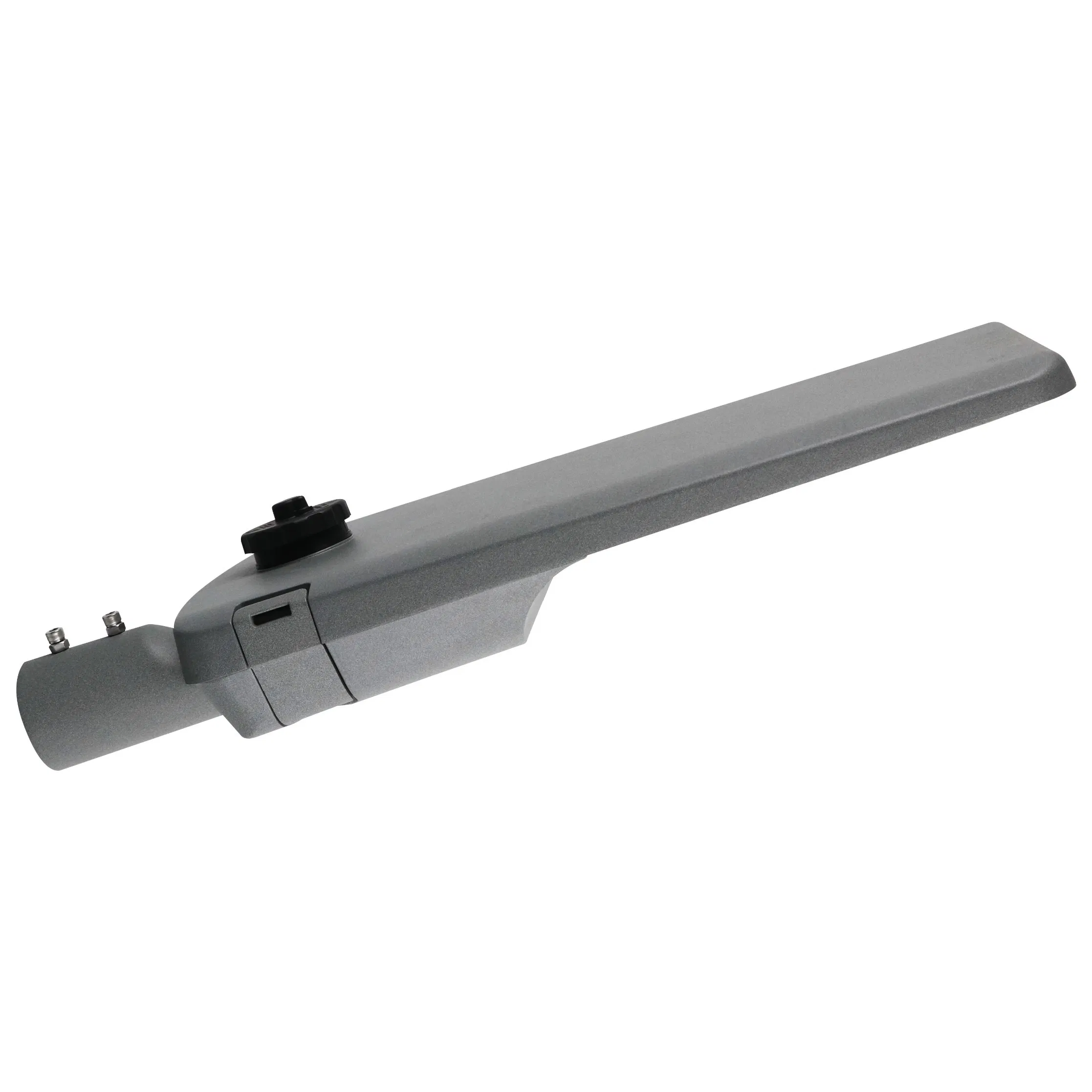

New Design Waterproof IP65 LED Street Lamp 150W LED Street Light for Outdoor
Product Description
ℹ Basic Information
Model NO.SLR29-150W
Lamp Body MaterialAluminum
Lamp Power100W
Power SupplyAC
Average Life>50000h
ApplicationHighway, Square, Garden
IP RatingIP66
CertificationCE, RoHS
Voltage100-277V
Power Efficiency>0.90
Color Temperature4000K
Warranty5 Years
CRI>70
LED Qty144/54
Lens4
Lumen130-160lm/W
Specification71*32*9cm
Production Capacity10000pieces/Year
📊 Model Specifications

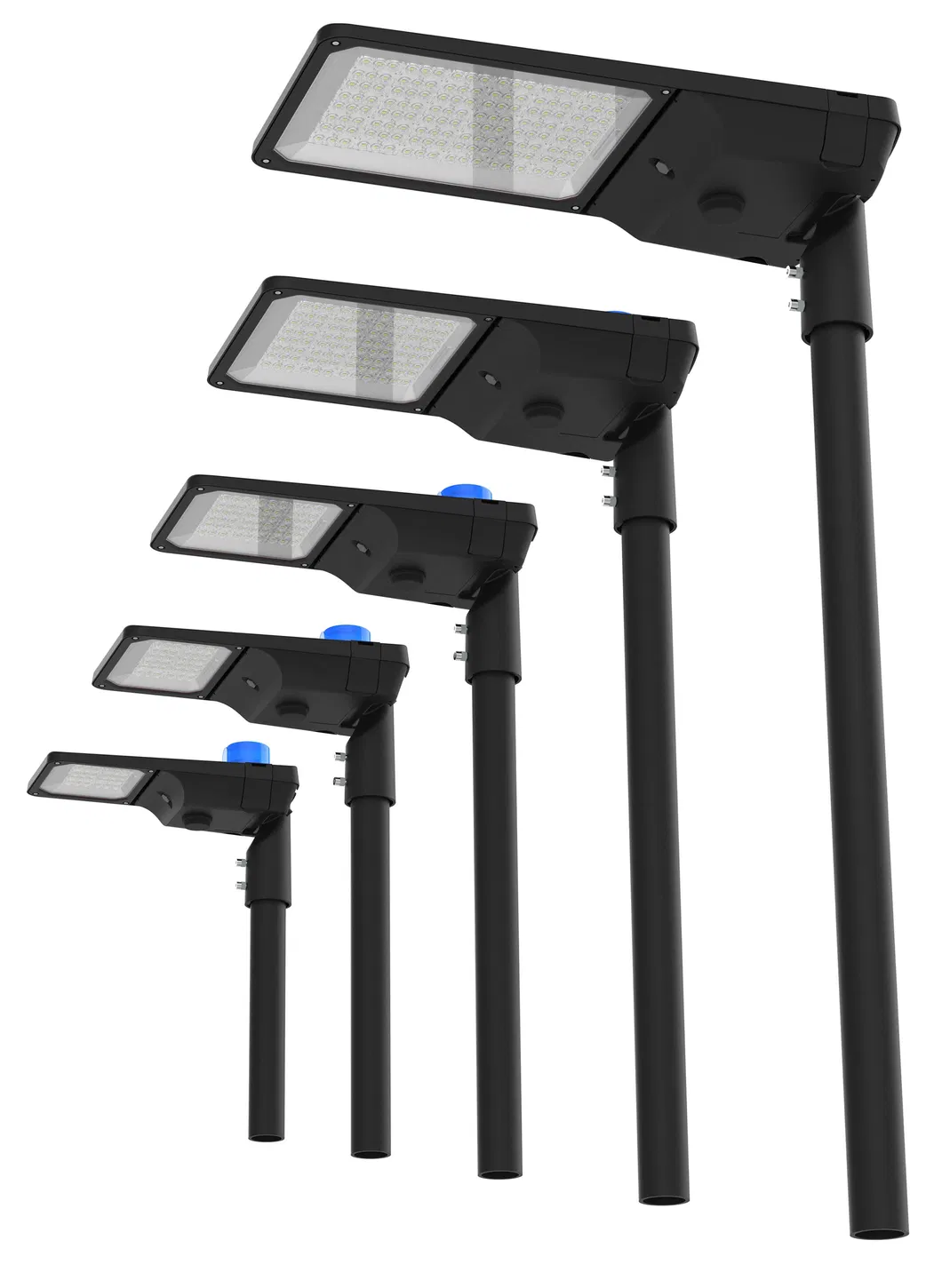

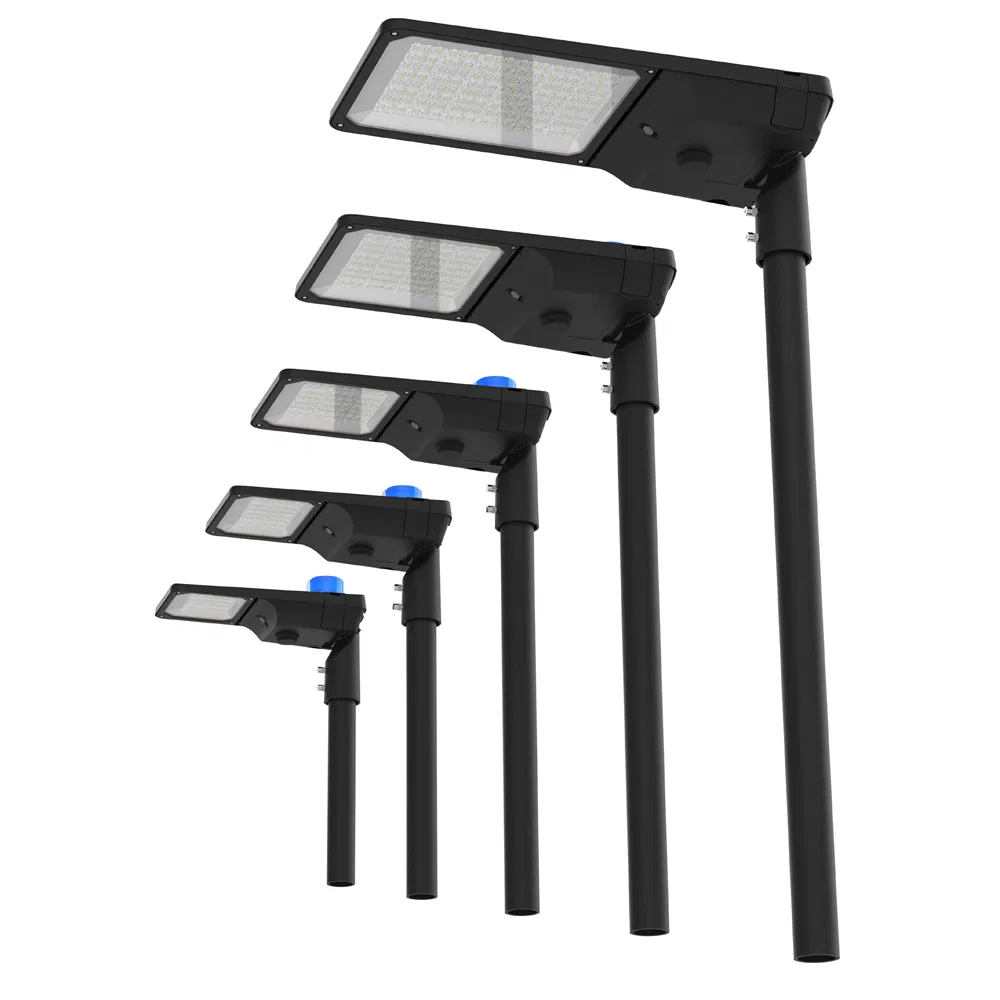

| Model NO. | Power(W) | Light Source | LED QTY (PCS) | Lens(PCS) | CCT(K) | Lumen (lm/W) | CRI |
| R29-13-30W | 30 | 3030(5050) | 64/24 | 4 | 4000k | 130/160 | >70 |
| R29-13-40W | 40 | 3030(5050) | 64/24 | 4 | 4000k | 130/150 | >70 |
| R29-15-50W | 50 | 3030(5050) | 96/36 | 6 | 4000k | 130/160 | >70 |
| R29-15-60W | 60 | 3030(5050) | 96/36 | 6 | 4000k | 130/150 | >70 |
| R29-110-80W | 80 | 3030(5050) | 144/54 | 9 | 4000k | 130/160 | >70 |
| R29-110-100W | 100 | 3030(5050) | 144/54 | 9 | 4000k | 130/160 | >70 |
| R29-110-120W | 120 | 3030(5050) | 144/72 | 9 | 4000k | 130/160 | >70 |
| R29-115-150W | 150 | 3030(5050) | 256/96 | 16 | 4000k | 130/160 | >70 |
| R29-115-200W | 200 | 3030(5050) | 256/96 | 16 | 4000k | 130/160 | >70 |
| R29-125-200W | 200 | 3030(5050) | 320/120 | 20 | 4000k | 130/160 | >70 |
| R29-125-240W | 240 | 3030(5050) | 384/144 | 24 | 4000k | 130/160 | >70 |

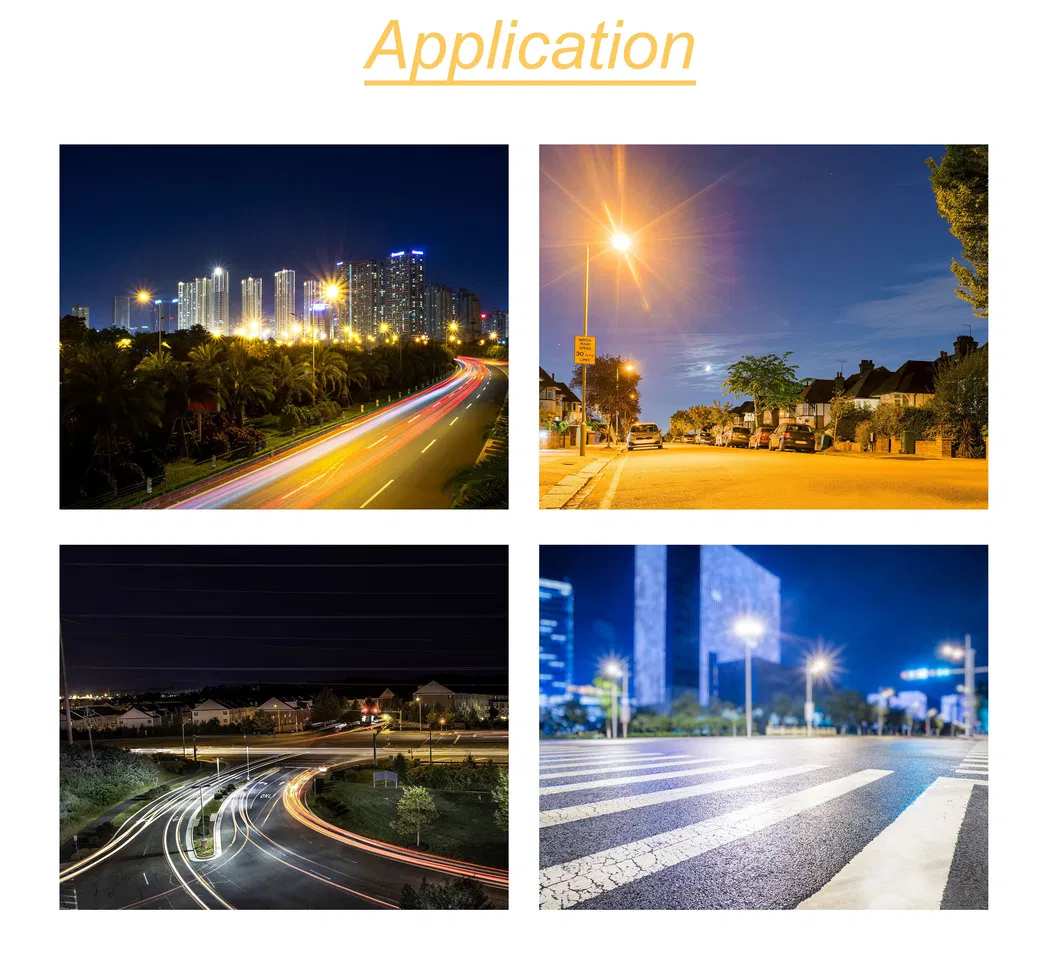

📍 Application Sites
✓ City road / tunnel lighting
✓ Commercial lighting control
✓ Solar street smart lighting control

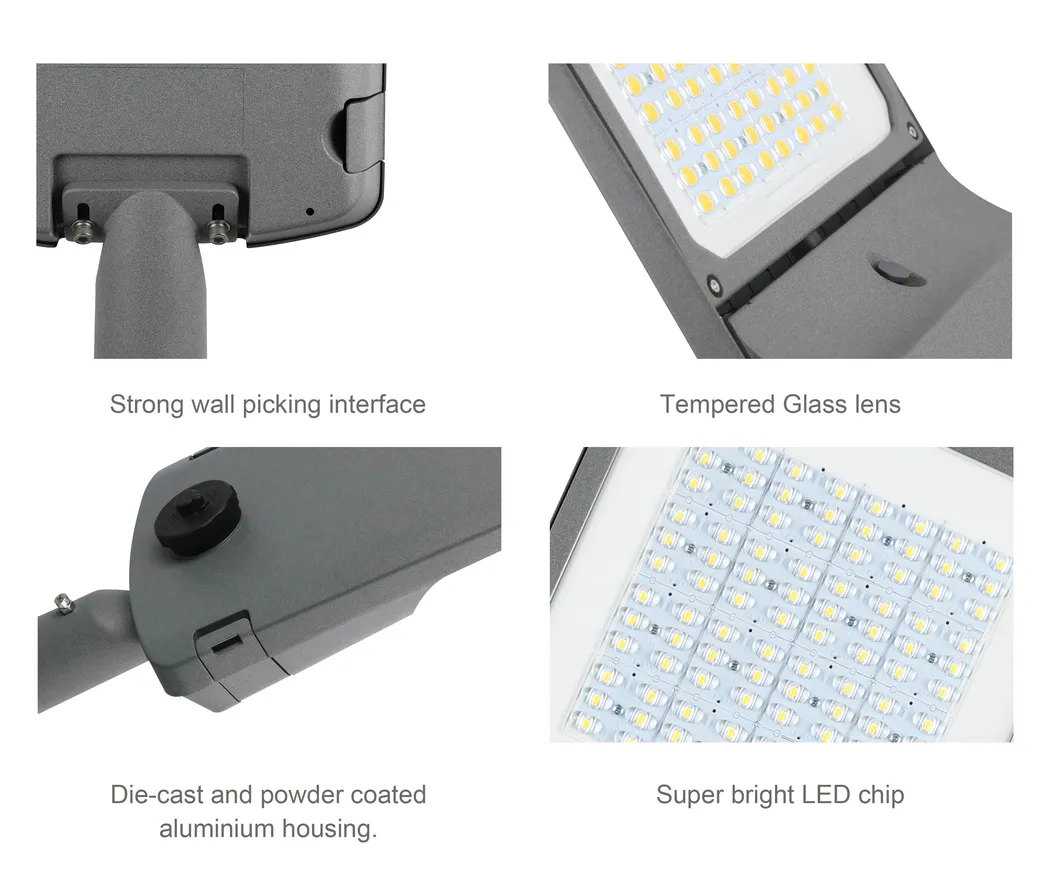

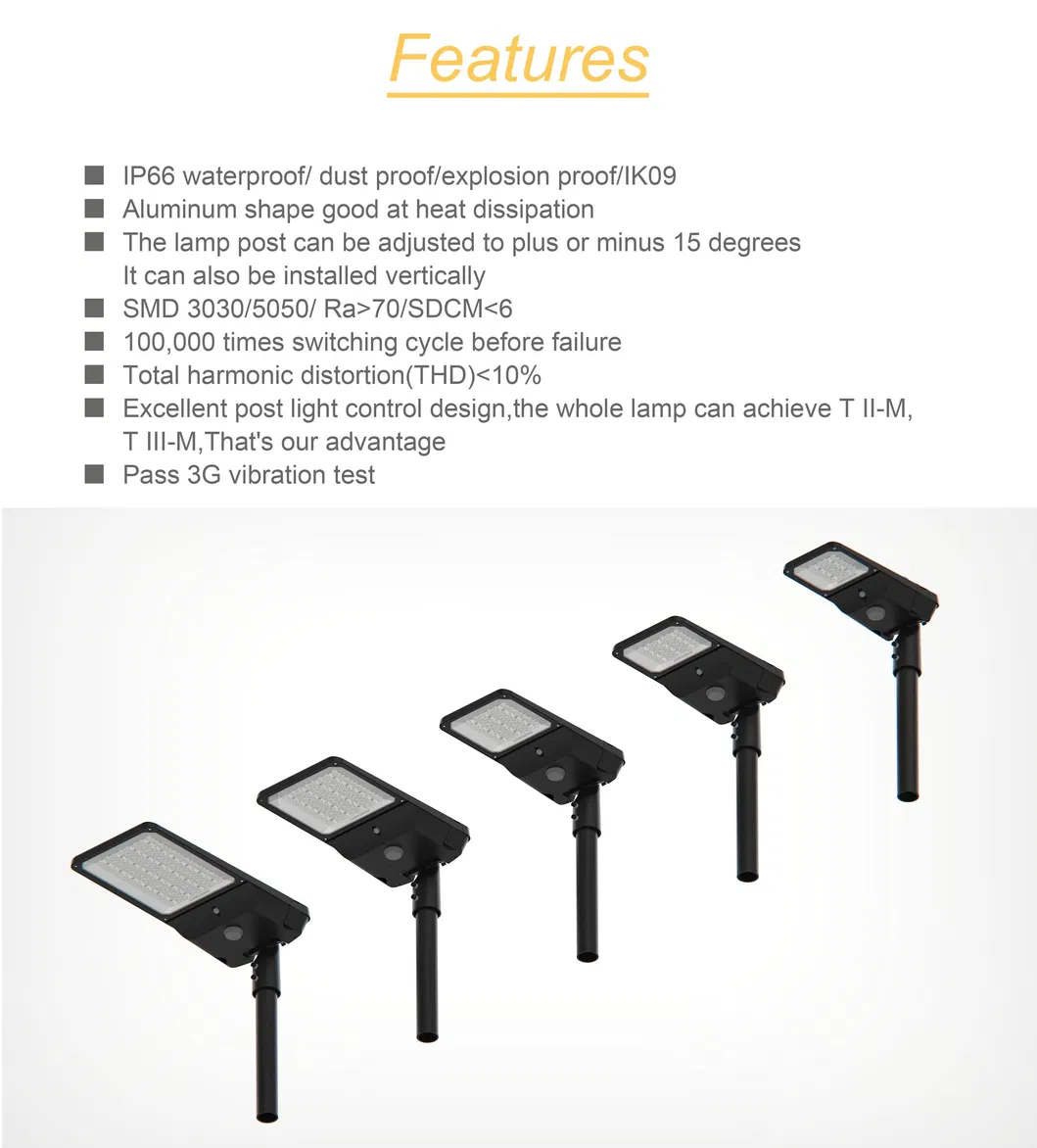

✨ Key Features
✓ IP66 waterproof/dust proof/explosion proof/IK09
✓ Aluminum shape good at heat dissipation
✓ The lamp post can be adjusted to plus or minus 15 degrees
✓ Vertical installation support
✓ SMD 3030/ 5050/ Ra>70/SDCM<6
✓ 100,000 times switching cycle before failure
✓ Total harmonic distortion (THD) < 10%

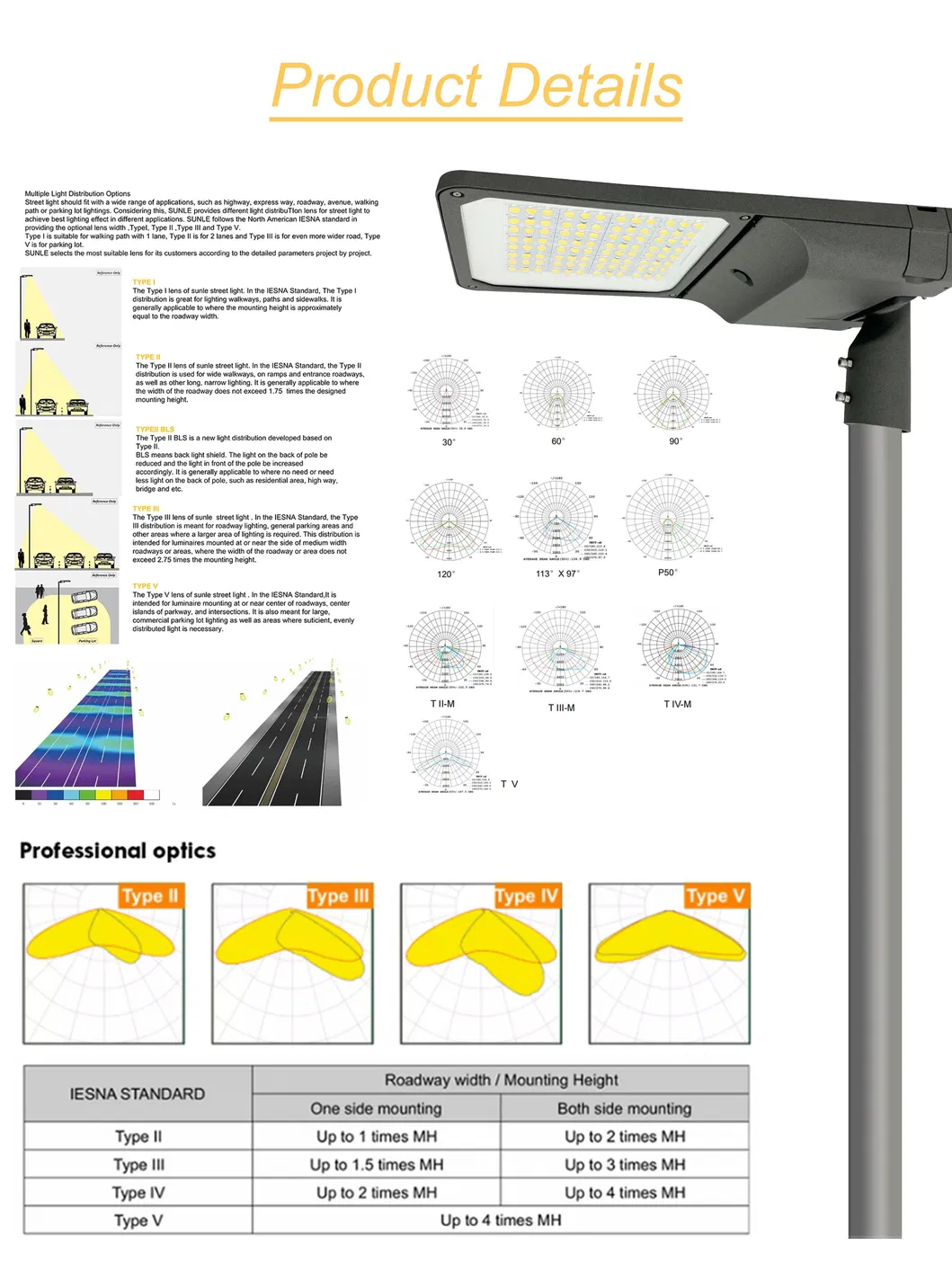

✓ Excellent post light control design (T II-M, T III-M)
✓ Passed 3G vibration test
💎 Product Advantages
★ Easy to install
★ Strong system expansion ability for additional sensor devices
★ Low power consumption, large capacity, high stability
⚠️ Matters Needing Attention:
- Read the instruction manual carefully before installation.
- Must be installed and tested by a certified electrician based on local regulations.
- Check local voltage requirements before proceeding.
- Maintenance should only be performed when power is off and the lamp has cooled.
- Clean with a soft cloth and PH neutral detergent; maintain stainless steel regularly.
- Do not cover fixtures with flammable materials.
Frequently Asked Questions
Q1: What is the protection rating of this street light?
A1: This LED street light features an IP66 rating, making it completely waterproof and dustproof, suitable for harsh outdoor environments.
Q2: Can the installation angle be adjusted?
A2: Yes, the lamp post connection can be adjusted by plus or minus 15 degrees, and it can also be installed vertically.
Q3: What is the expected lifespan and warranty?
A3: The average life of the lamp is over 50,000 hours, and it comes with a 5-year quality warranty.
Q4: Is the lamp body durable?
A4: Absolutely. The body is made of high-quality aluminum for excellent heat dissipation and has passed the 3G vibration test and IK09 impact test.
Q5: Does it support smart city applications?
A5: Yes, it has strong system expansion capabilities, supporting sensor device integration and solar smart lighting control systems.
Q6: What light sources are used in this series?
A6: Depending on the model, it utilizes high-efficiency SMD 3030 or 5050 LED chips with a CRI > 70 and efficacy up to 160lm/W.
