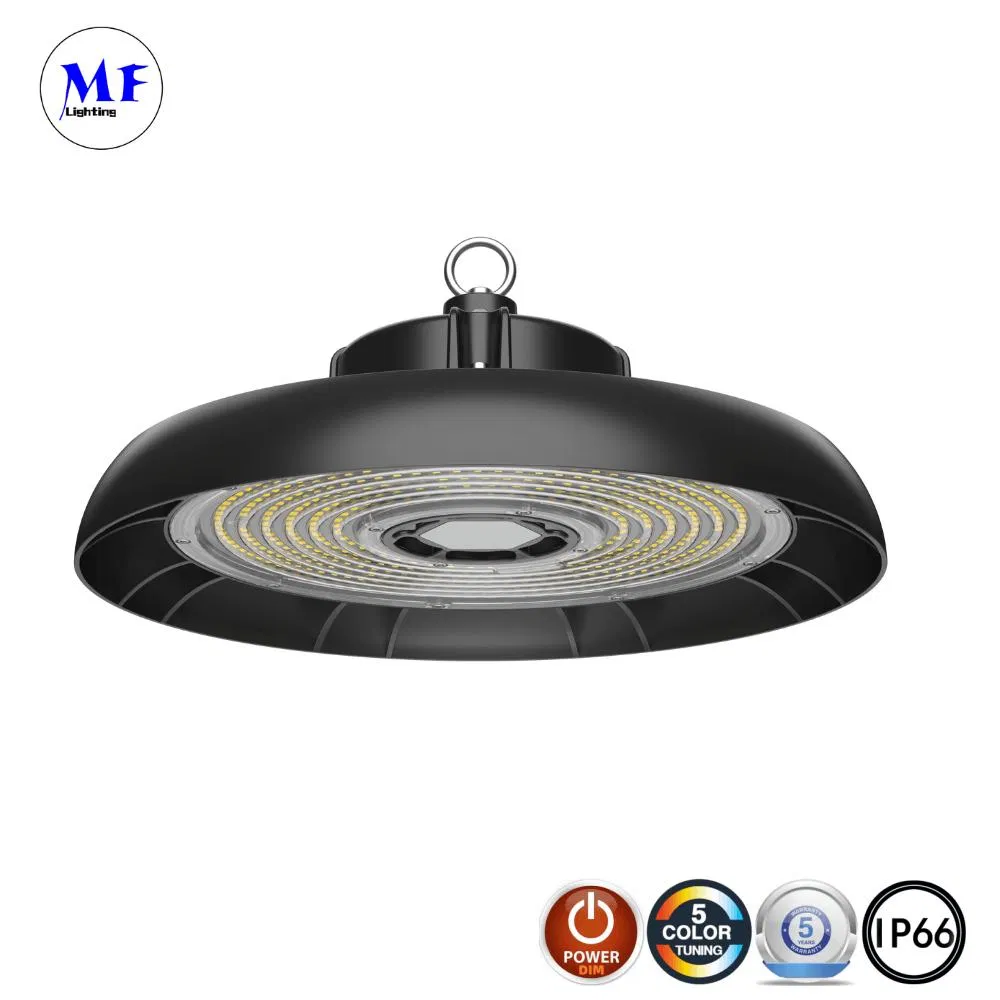

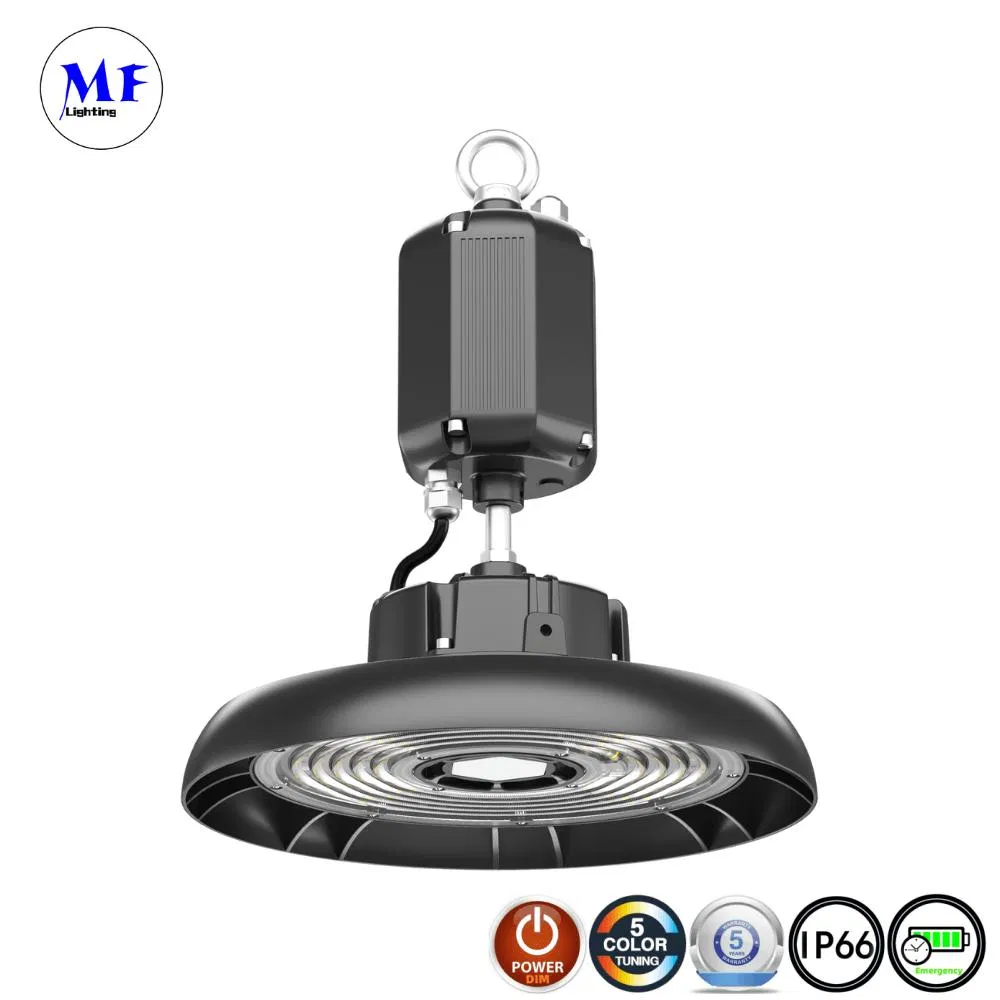

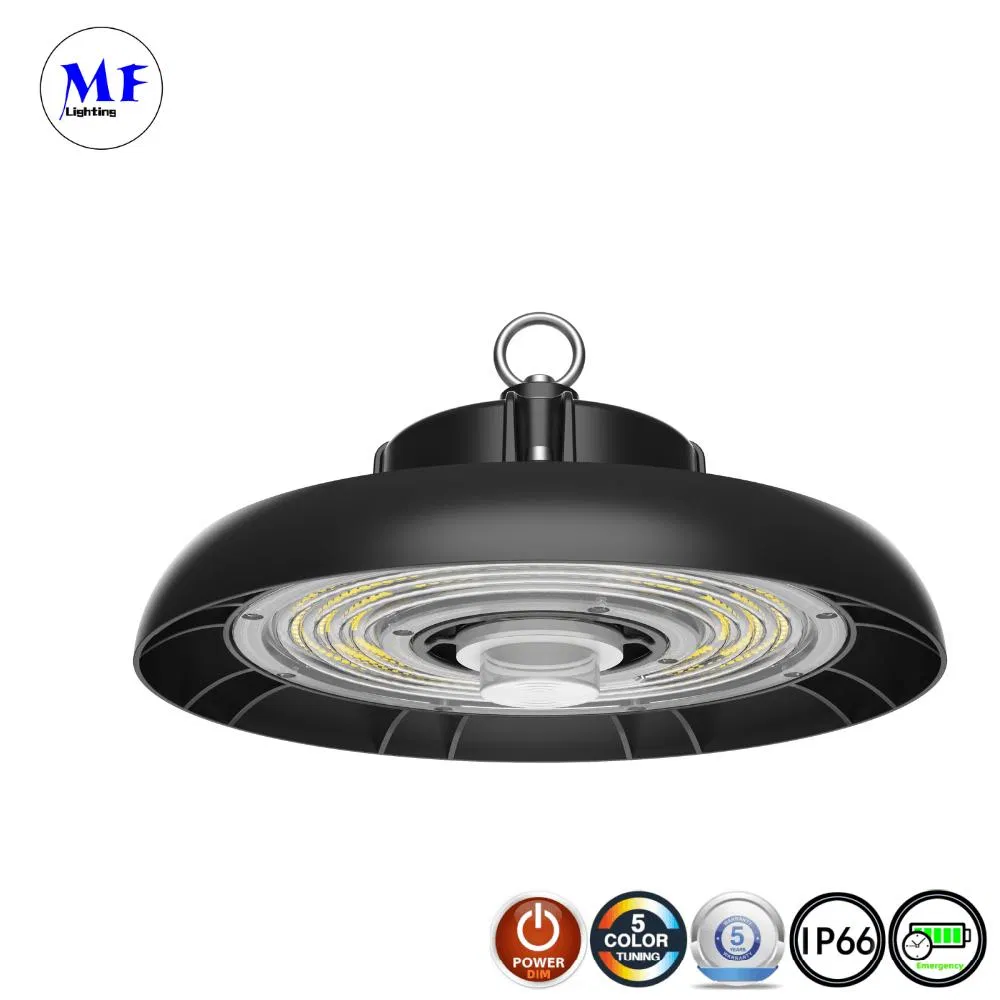

Factory Price 5 Years Warranty 100W 150W 200W 240W 300W IP66 150lm/W Isolated Emergency Light LED Highbay Light Workshop Lighting UFO LED High Bay Light
Product Description
Model
MF-UFO-KxxxW
IP Rating
IP66
Certification
CCC, CE, EMC, ETL, LVD, RoHS, SAA
Input Voltage
AC100-277VAC 50Hz/60Hz
Emergency
10W for 3hrs / 20W for 1.5hrs
IK Rating
IK10
Luminous Flux
140lm/W - 150lm/W
Dimming
1-10V / Dali
Sensor
Microwave
Warranty
5 Years
Isolated Emergency LED Highbay Light - Workshop Lighting UFO LED
| Specifications | 100W | 150W | 200W | 240W |
|---|---|---|---|---|
| Input Voltage | AC100-277V 50/60Hz | |||
| LED Brand | Lumiled | |||
| Luminous Flux | 15000lm±5% | 22500lm±5% | 30000lm±5% | 36000lm±5% |
| CCT | 3000-6500K | |||
| Beam Angle | 60° / 90° / 120° | |||
| Driver Brand | MW / SOSEN / ZH | |||
| IP / IK Rating | IP66 / IK08 | |||

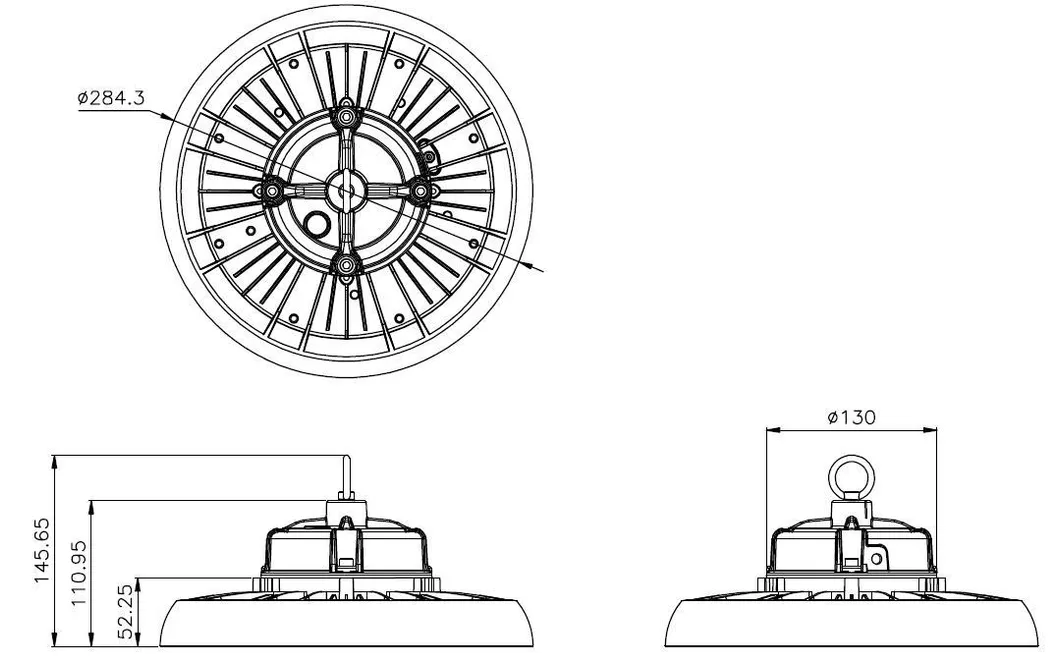

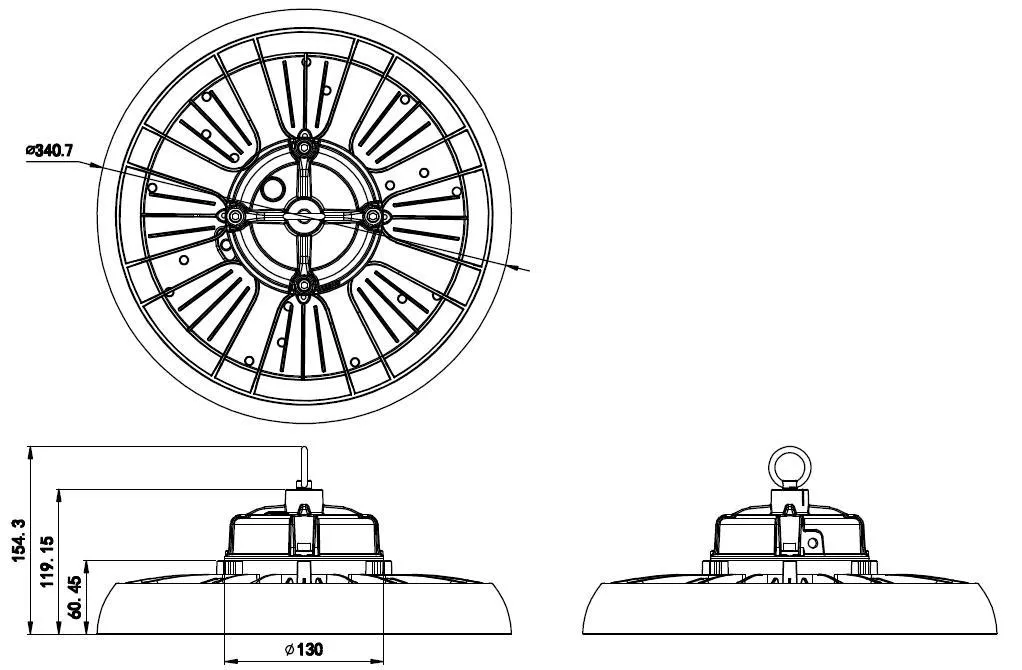

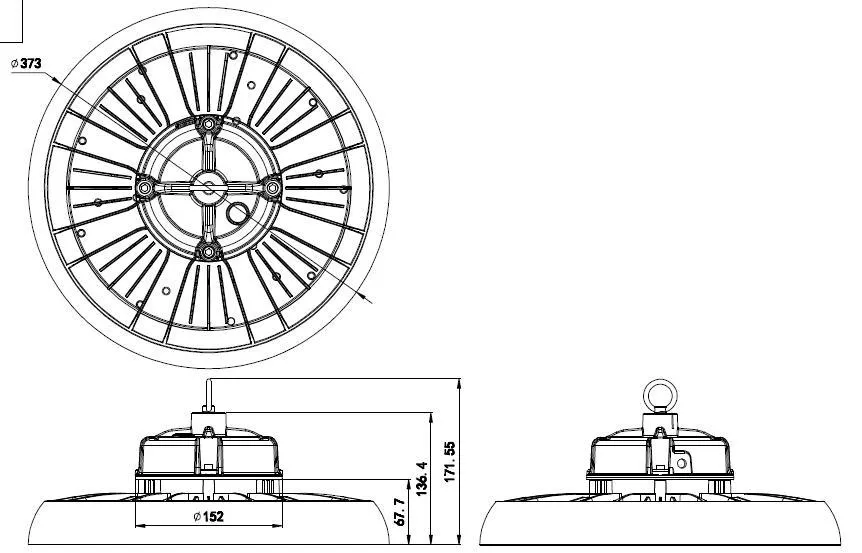

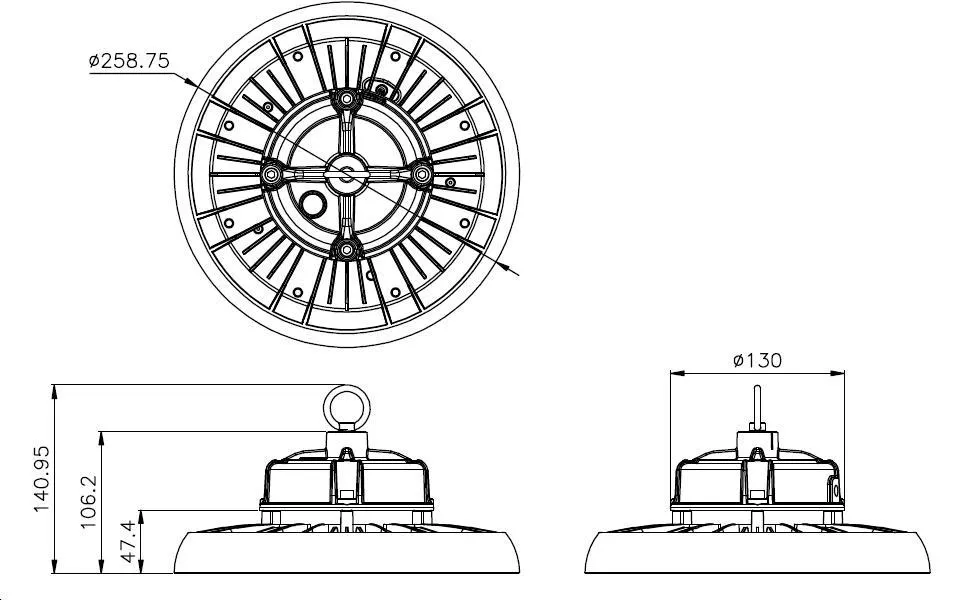

| Size (mm) | 270*149 | 300*158 | 330*164 | 330*164 |
| Certification | ETL, DLC, CE, SAA, FCC, RoHS, CCC | |||

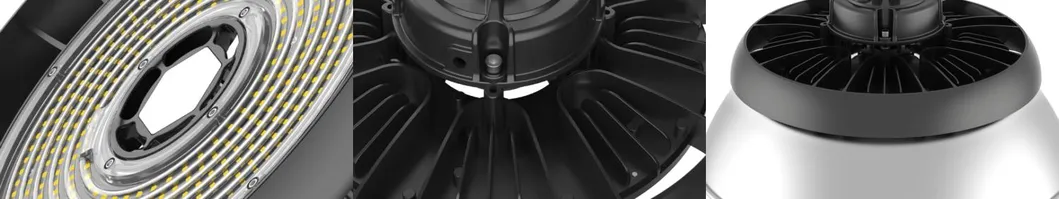

- Premium Thermal Management: Die-casting ADC12 technology ensures excellent heat dissipation and low lumen depreciation.
- High Durability: High-strength polycarbonate lens, achieving IK08 impact resistance and Anti-UV properties (transmittance > 94%).

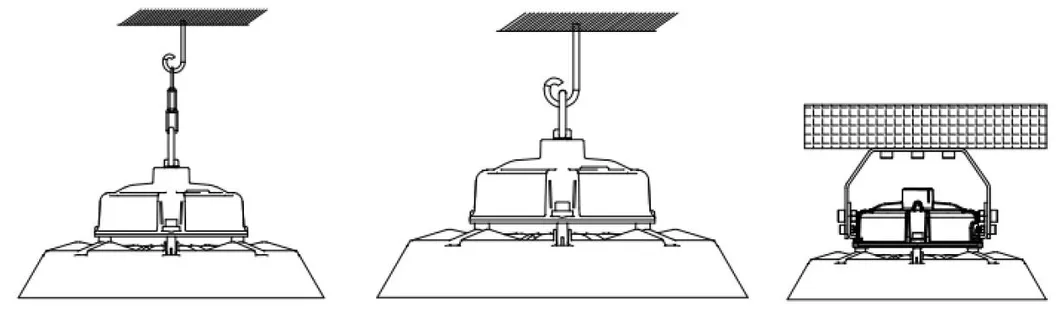

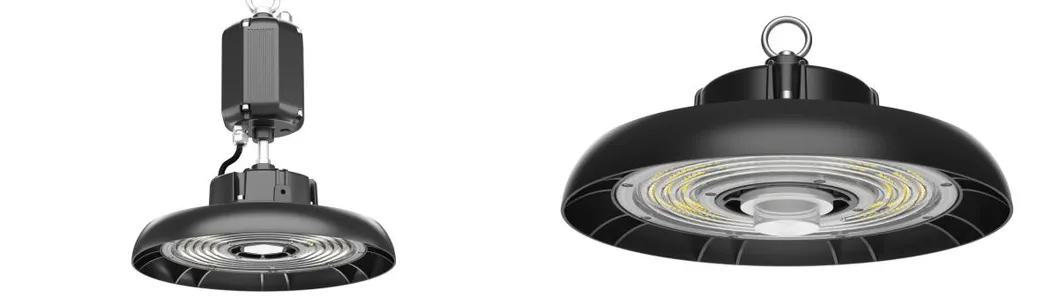

- Versatile Mounting: Supports pendant and loop mounting for diverse industrial applications.
- Top-Tier Components: Equipped with top-brand LED chips and drivers to maximize lifespan (50,000+ hours).
- Superior Protection: IP66 ingress protection rating, suitable for harsh environments from -35°C to +50°C.

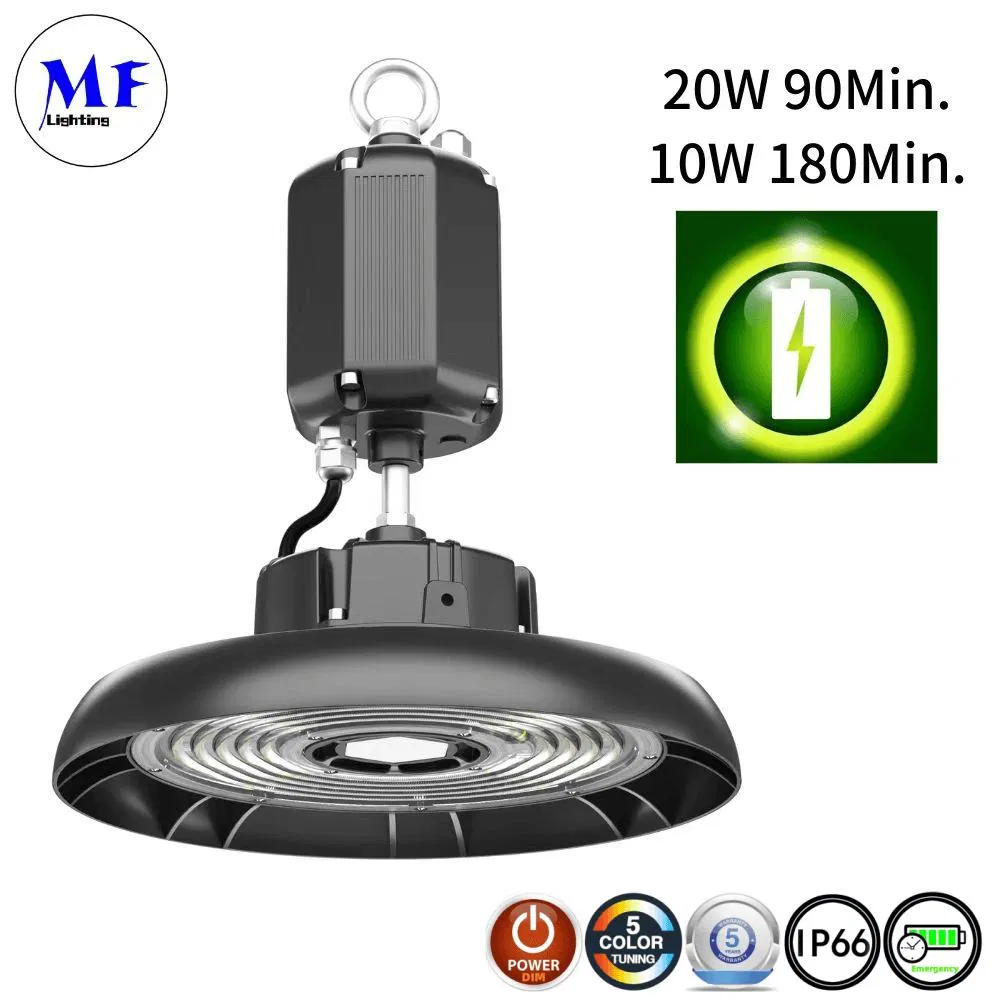

Emergency Options:
10W for 3 hours or 20W for 1.5 hours.
Optional Accessories:

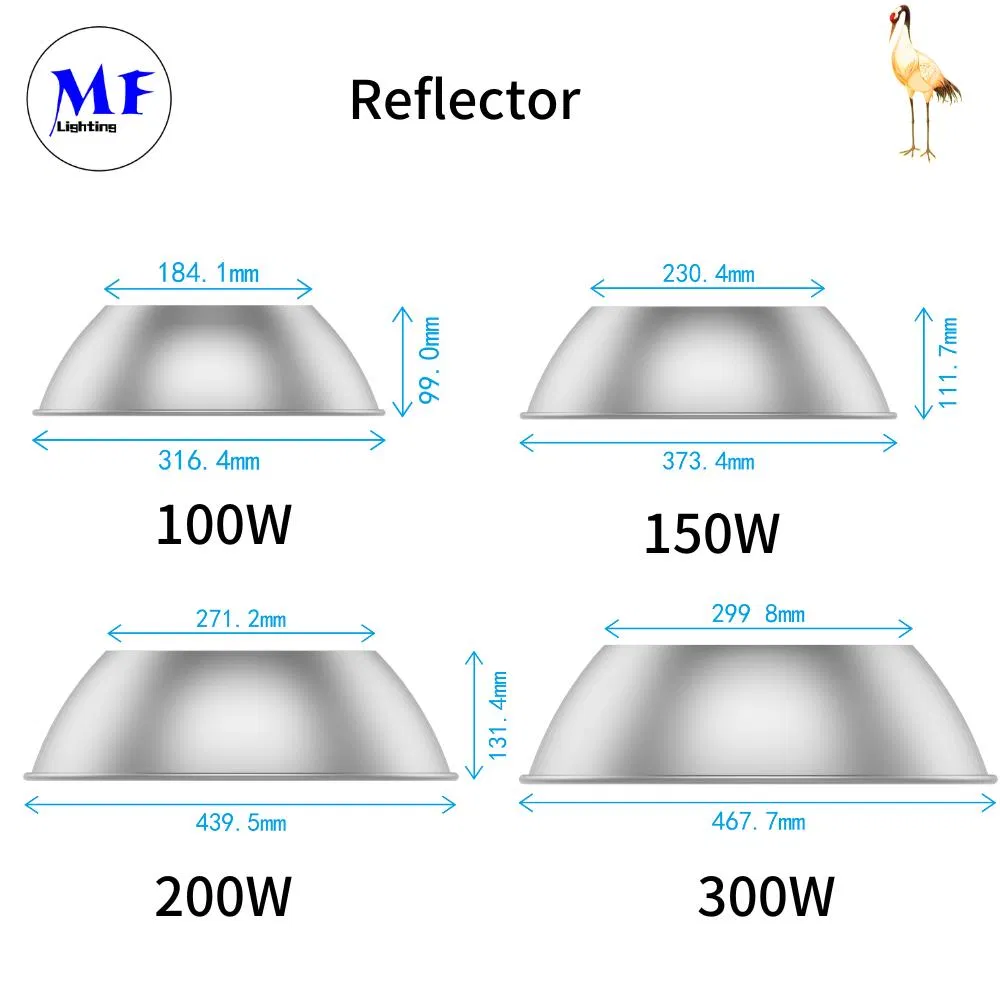

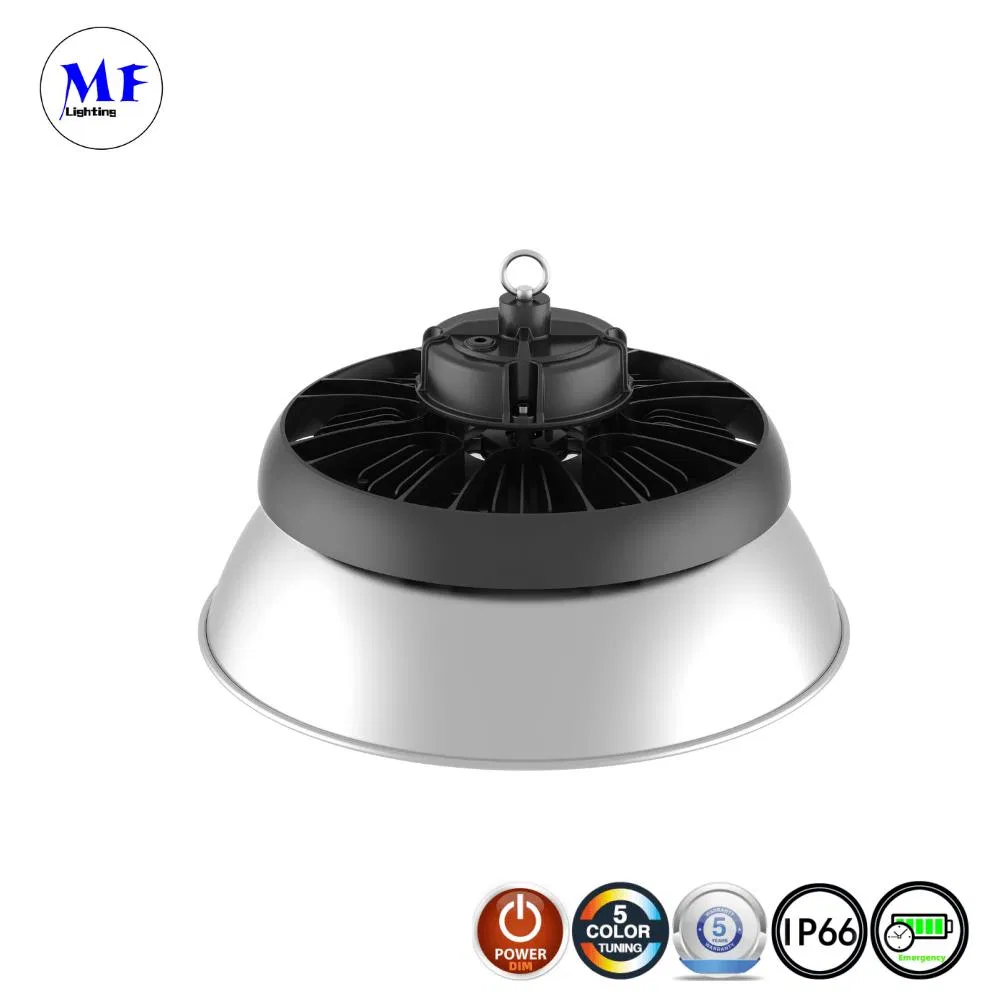

Aluminum Reflector
1-10V / DALI Dimming
Microwave Sensor
Emergency Kits
Adjustable Bracket
Safety Steel Rope

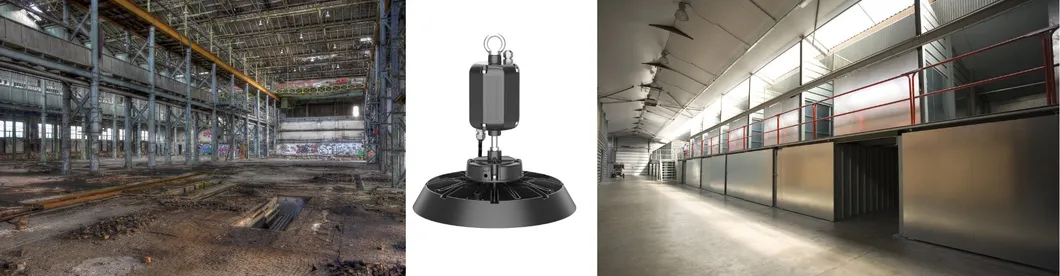

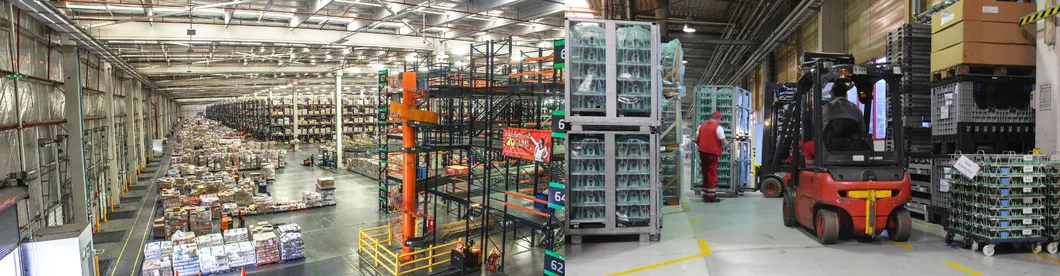

Ideal for: Warehouses, Manufacturing Plants, Gymnasiums, Retail Stores, Parking Garages, and Exhibition Halls.
Frequently Asked Questions
What is the lifespan and warranty of this UFO LED High Bay?
The light is designed for a lifespan of over 50,000 hours and comes with a 5-year warranty for peace of mind.
Is the light suitable for outdoor or wet environments?
Yes, it features an IP66 rating, meaning it is dust-tight and protected against powerful water jets, making it suitable for damp and harsh conditions.
How does the emergency function work?
The light offers two emergency options: 10W for up to 3 hours of illumination or 20W for 1.5 hours during a power outage.
Can these lights be dimmed?
Yes, they support 1-10V and DALI dimming options for better energy management and control.

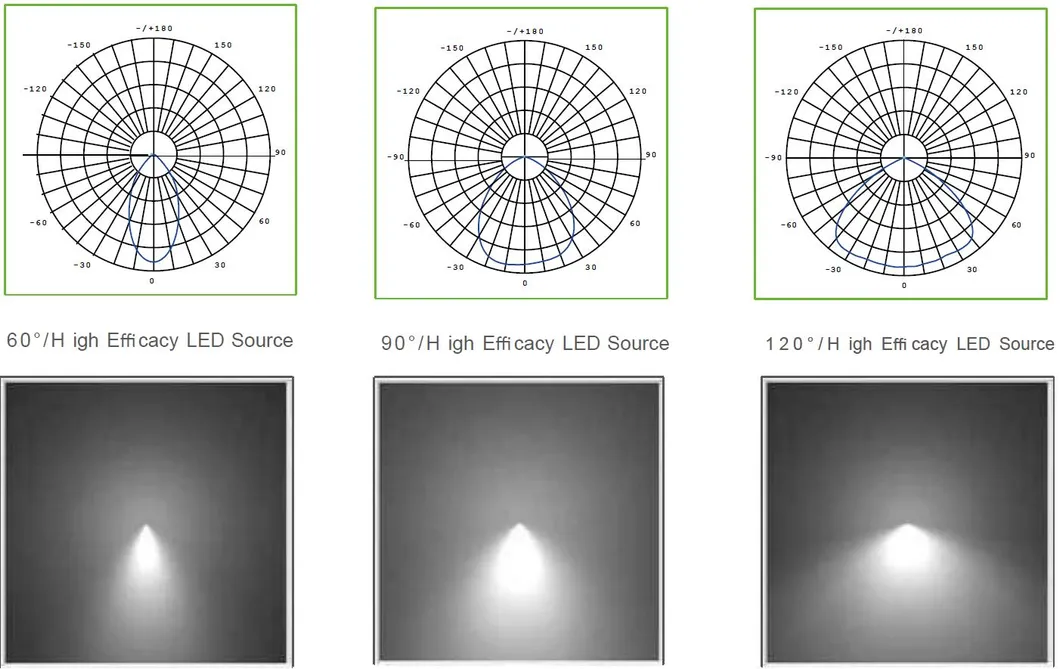

What are the available beam angles?
The product offers 60°, 90°, and 120° lighting distributions to meet different ceiling heights and lighting requirements.
What mounting options are available?
It supports pendant and loop mounting, and an adjustable mounting bracket is available as an accessory.
