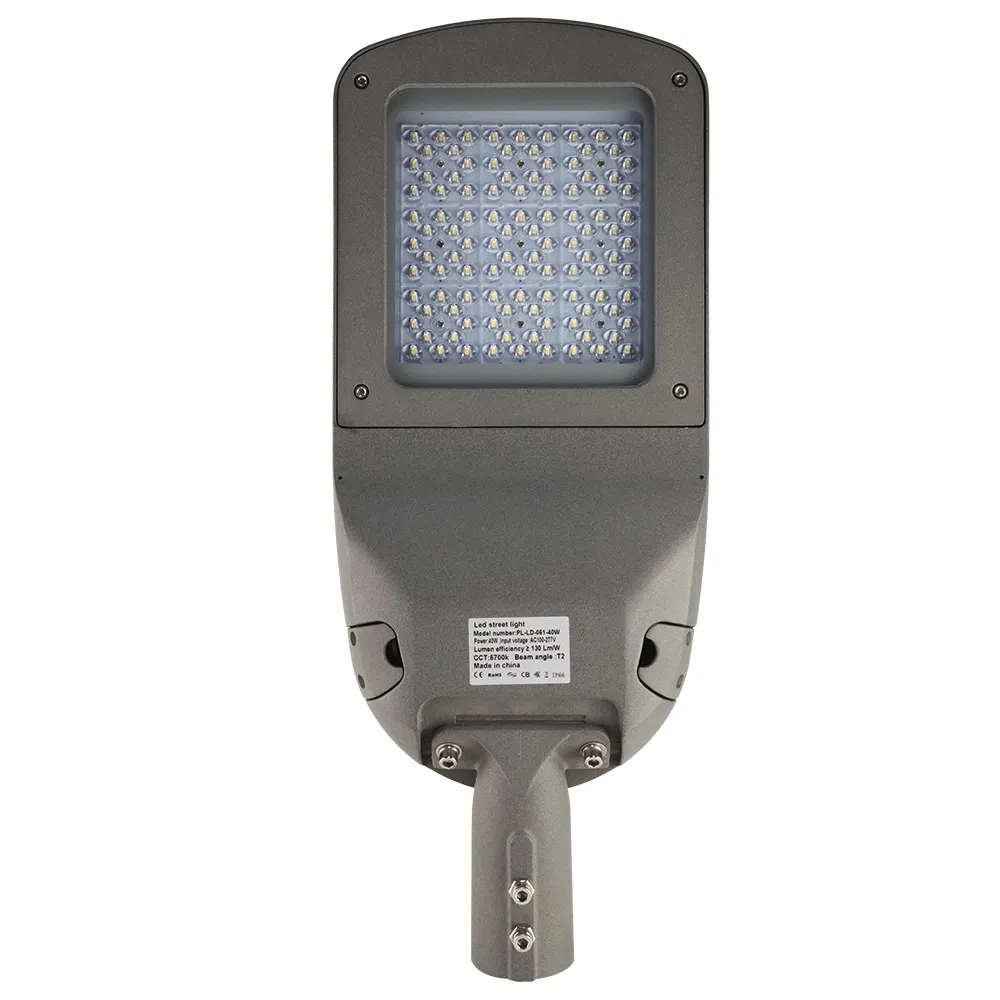

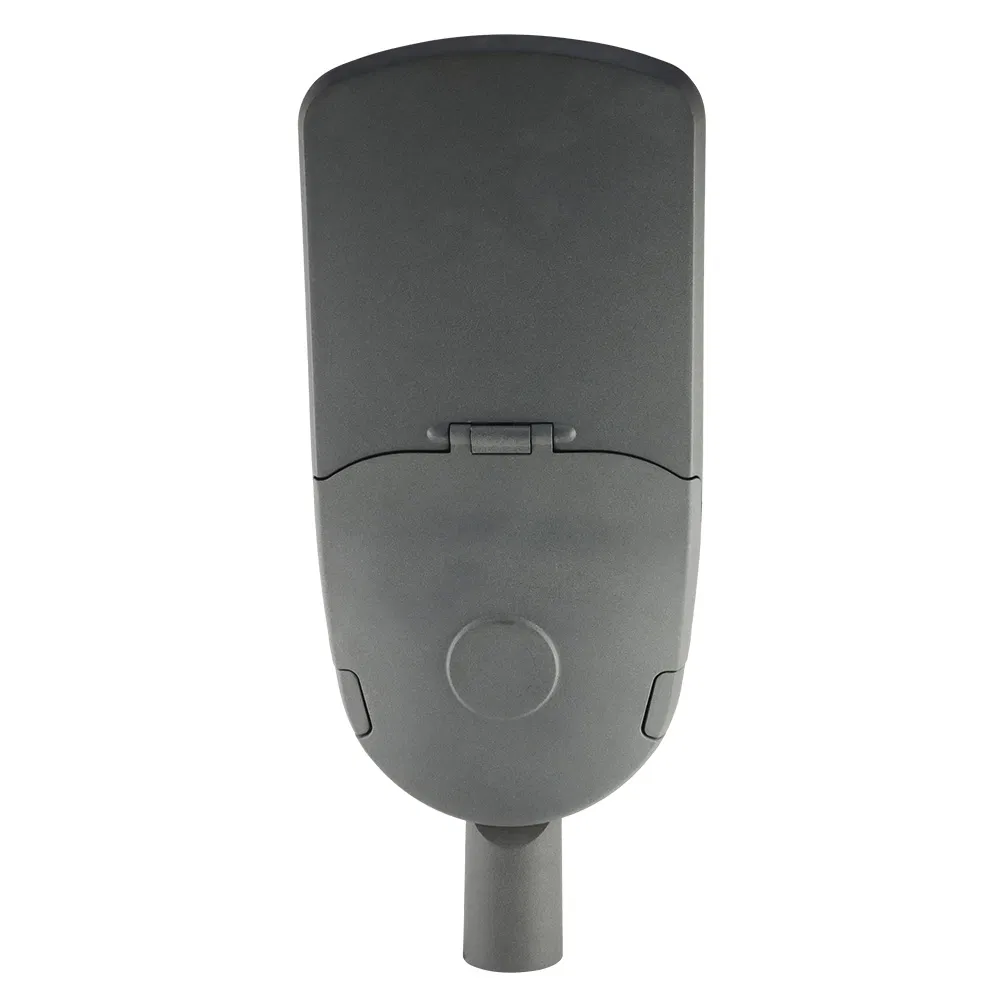

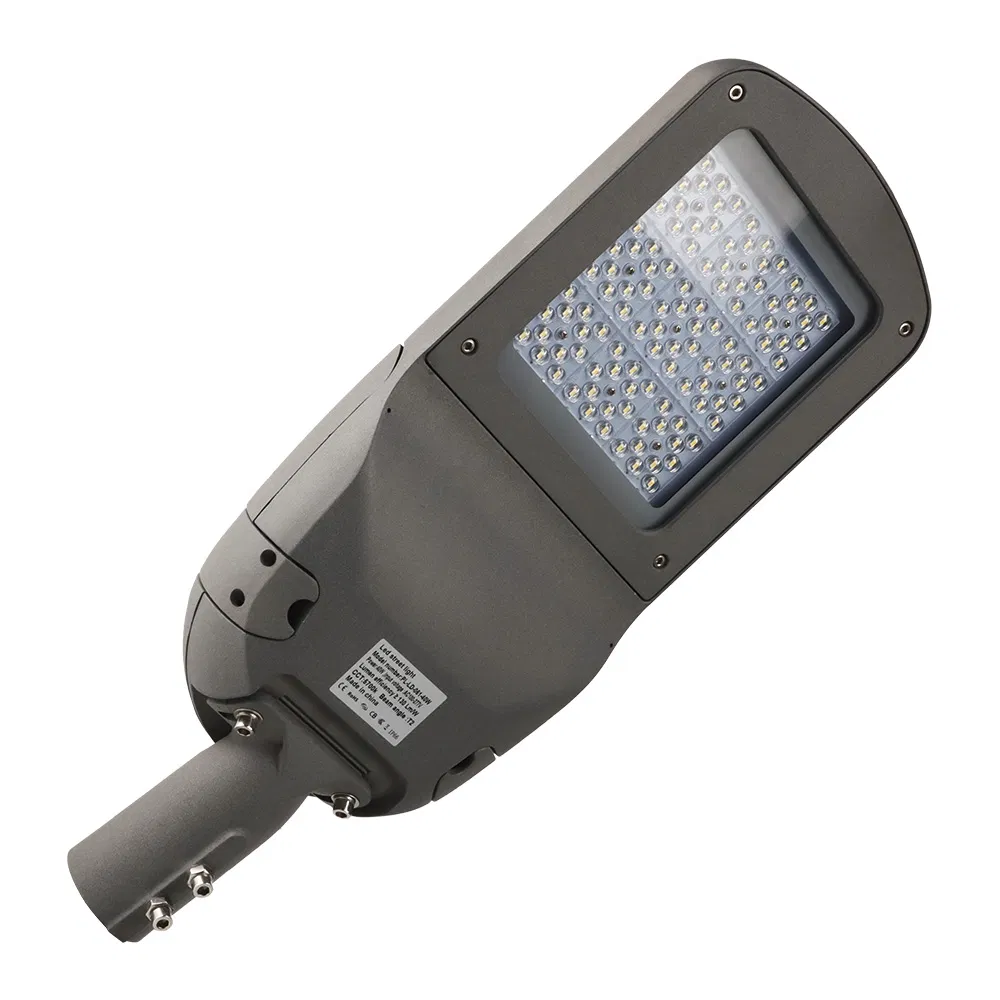

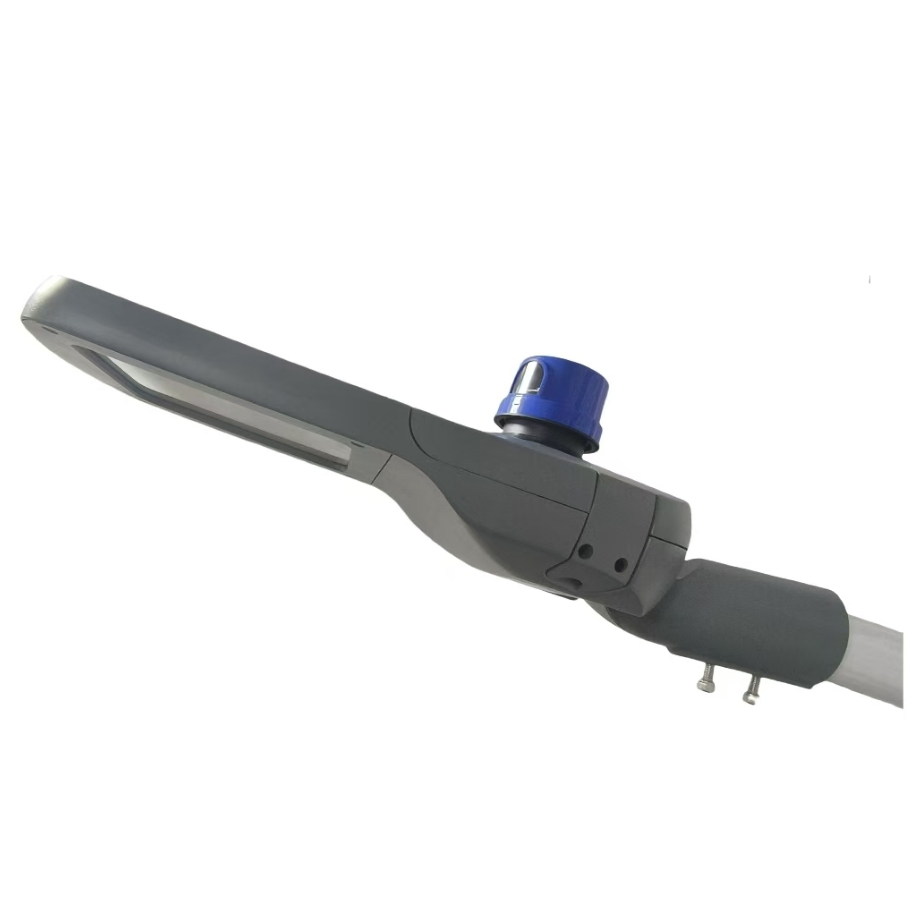

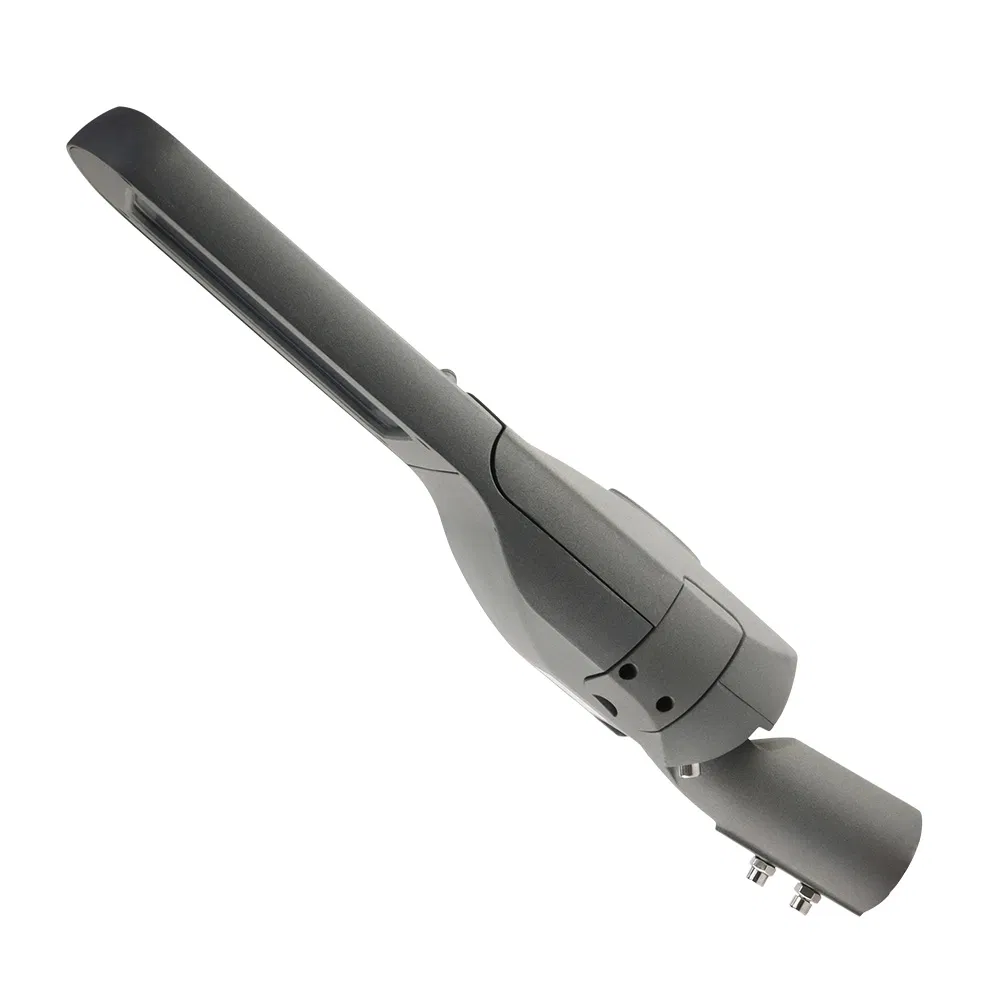

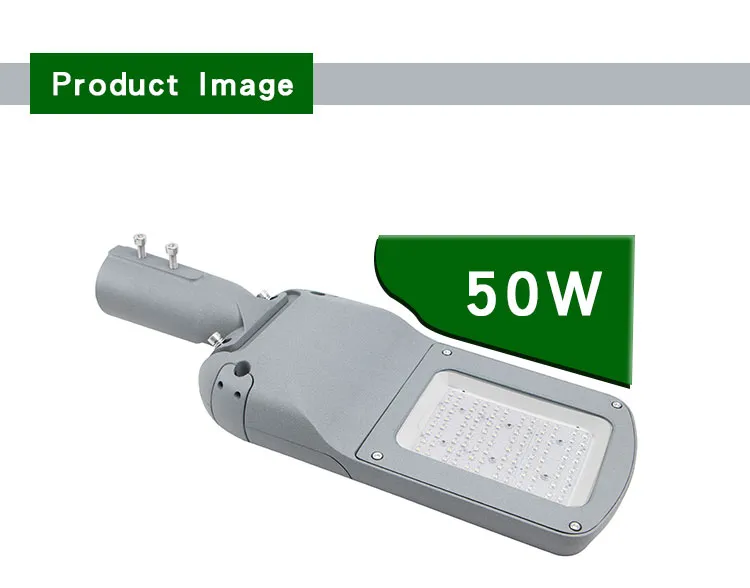

Good Quality Aluminum Waterproof IP66 Outdoor 30W-240W LED Street Light 120W
Product Description
Basic Specifications
Model NO.
PL-LD-061
Material
Aluminium + Tempered Glass
Power
60W
IP Rating
IP66
Input Voltage
AC100-305V
LED Chips
Lumileds 3030SMD
Efficiency
150LM/W±5%
Application
Highway, Garden, Road, Parking Lot

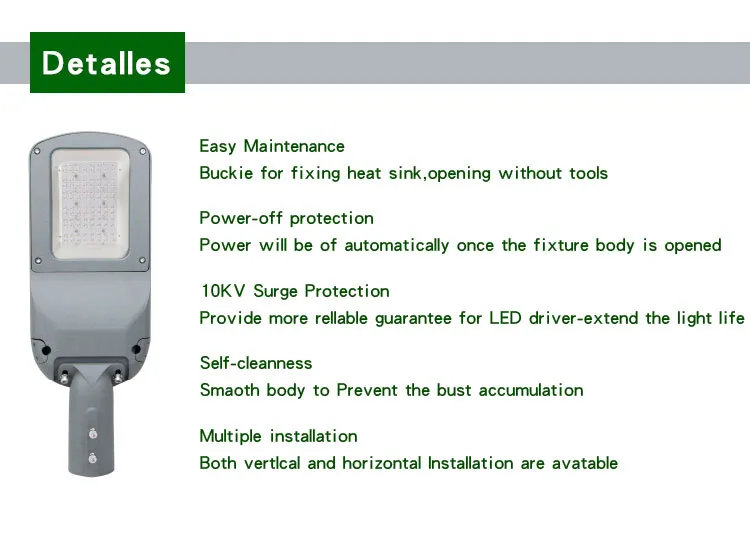

Key Product Features
💡
High Efficiency Light Source: Adopting imported Lumileds 3030SMD chips. Energy-saving and long life.
🛡️
Durable Protection: 5mm toughened transparent glass, high temperature resisting, transmittance up to 92%.
❄️
Advanced Thermal Design: Aluminium alloy radiator with high thermal coefficient and oxidation technology.
⚡
Stable Performance: Constant current supply, high security, and energy saving up to 80%.
Technical Parameters
| Parameter | Specification Details |
|---|---|
| Model | PL-LD-061 Series |
| Available Power | 30W / 60W / 100W / 150W / 200W |
| Luminous Efficiency | 150LM/W±5% |
| CRI | Ra > 70/80 |
| Power Factor | > 0.95 |

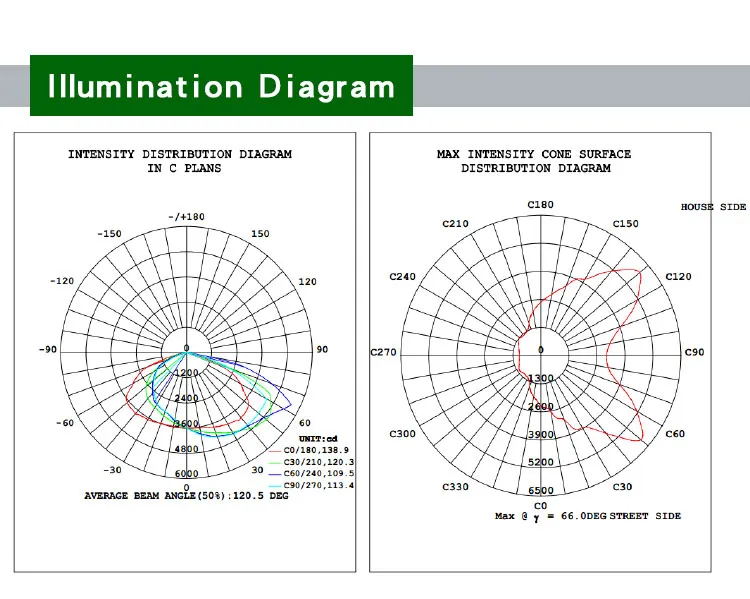

| Beam Angle | TYPE II / TYPE III / TYPE IV |

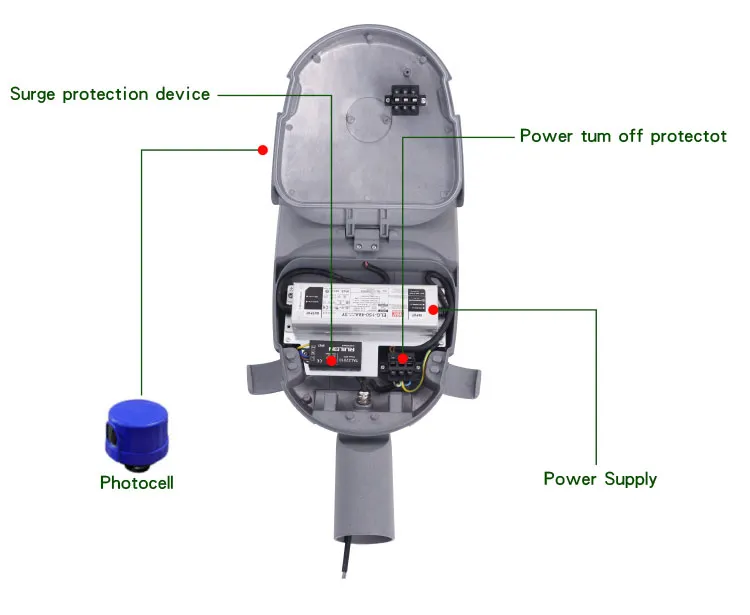

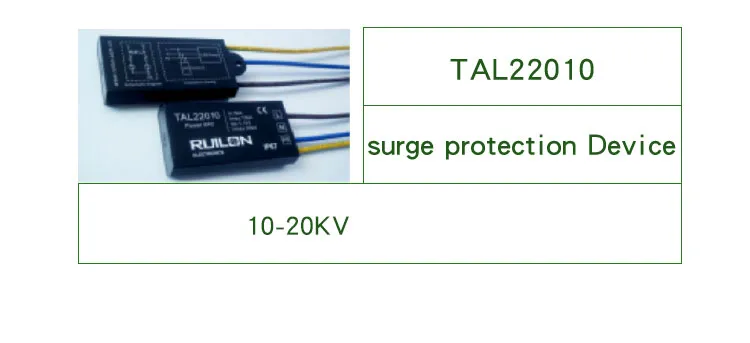

| Surge Protection | 4KV-20KV (Customizable) |

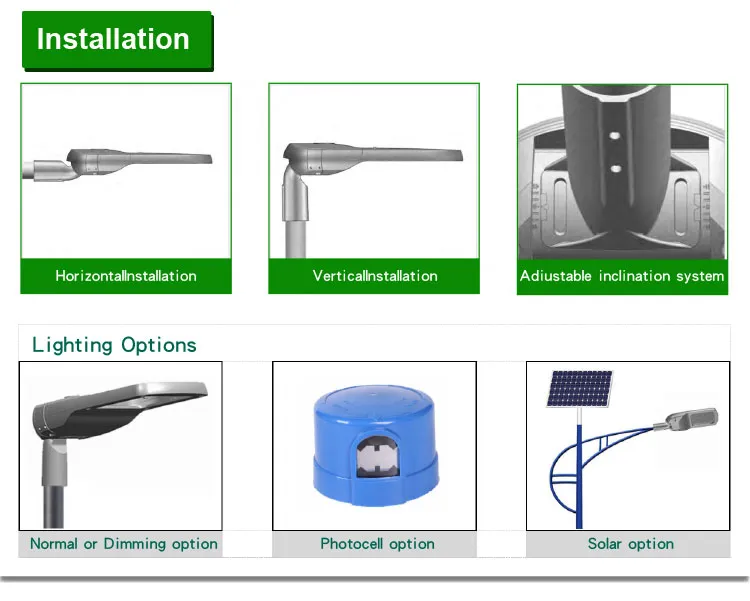

| Lamppost Diameter | 48mm / 52mm / 60mm / 76mm |
| Waterproof & IK | IP66 & IK09 |
| Lifespan | 100,000 Hours (L80B10) |
| Warranty | 5 - 7 Years |
Frequently Asked Questions
Do LED lights really have a 50,000-hour lifespan?
50,000 hours or longer is a theoretical value from lab tests. Actual lifespan in varied working environments is typically around 30,000 hours, though it can reach 50,000 hours with premium quality materials.
Why do different suppliers have different brightness for the same power?
Brightness depends on the quality of the chips or the specific chip version used. Even with the same chip, different brightness versions exist. It is also important to distinguish between raw LED brightness and the total output of the lamp fixture.
What is Colour Temperature (CCT)?
Measured in Kelvin (K), CCT defines the color appearance of the light. Lower temperatures (warmer) are used in public areas for relaxation, while higher temperatures (cooler) are used in offices to enhance concentration.
What is CRI?
CRI (Color Rendering Index) measures how accurately the light source reveals the true colors of objects. A higher CRI generally results in higher quality light and cost.
What do PF and Efficiency represent?
Power Factor (PF) and Efficiency reflect the electrical performance of the LED driver. Higher PF and higher efficiency mean better driver performance, which typically involves higher quality components.
What is the application and waterproof rating?

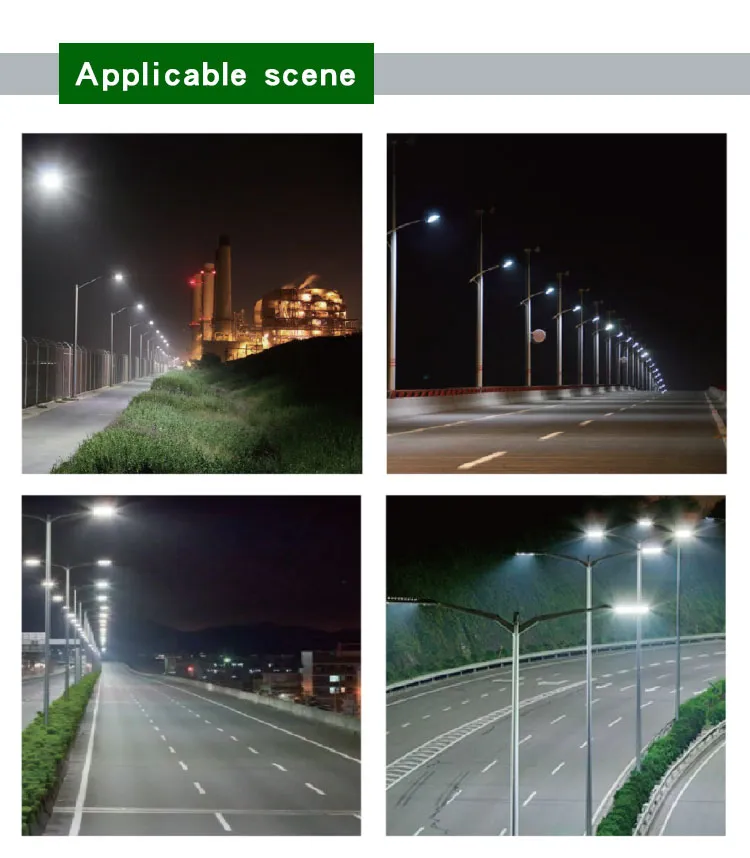

This street light is IP66 rated, meaning it is dust-tight and protected against powerful water jets. It is ideal for expressways, downtown roads, bridges, ports, and factory lighting.
