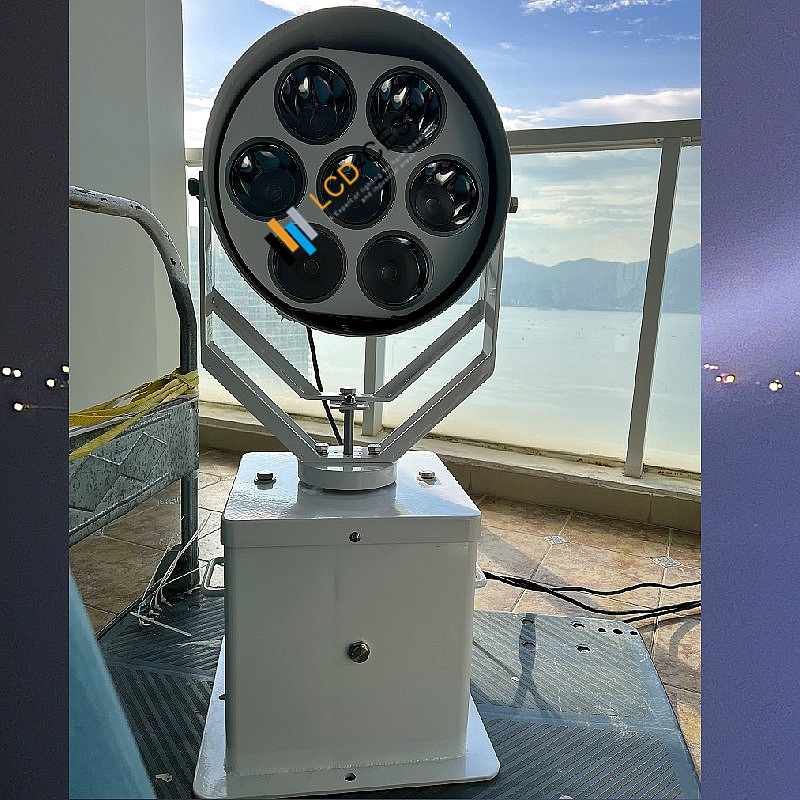

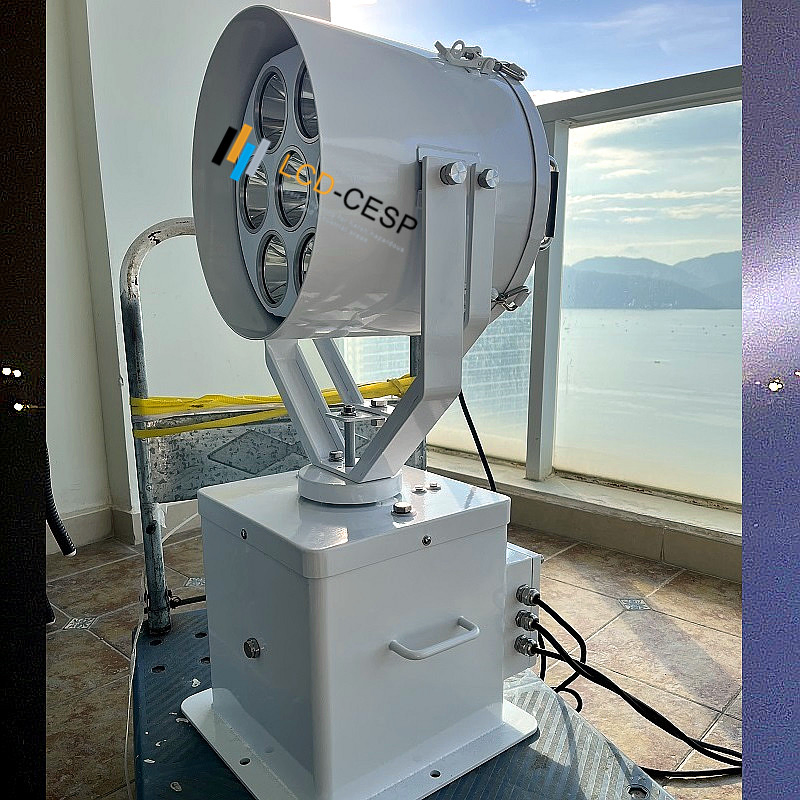

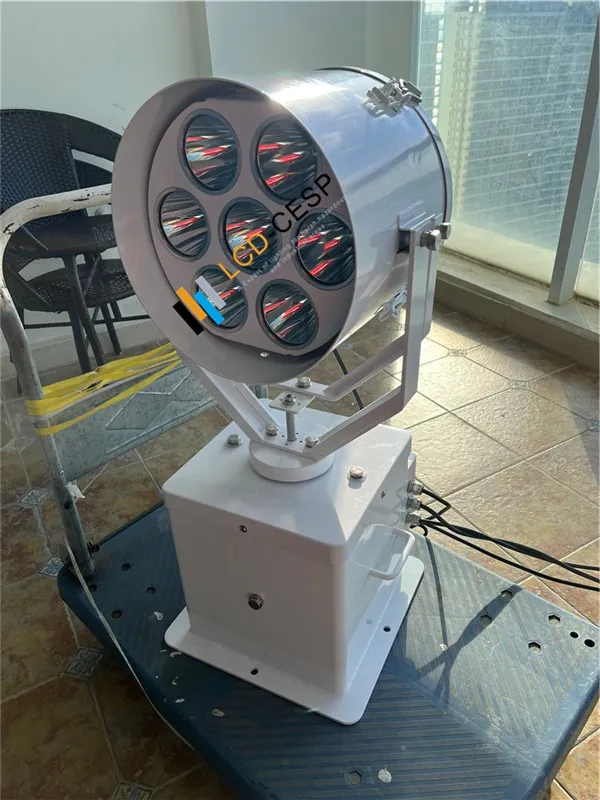

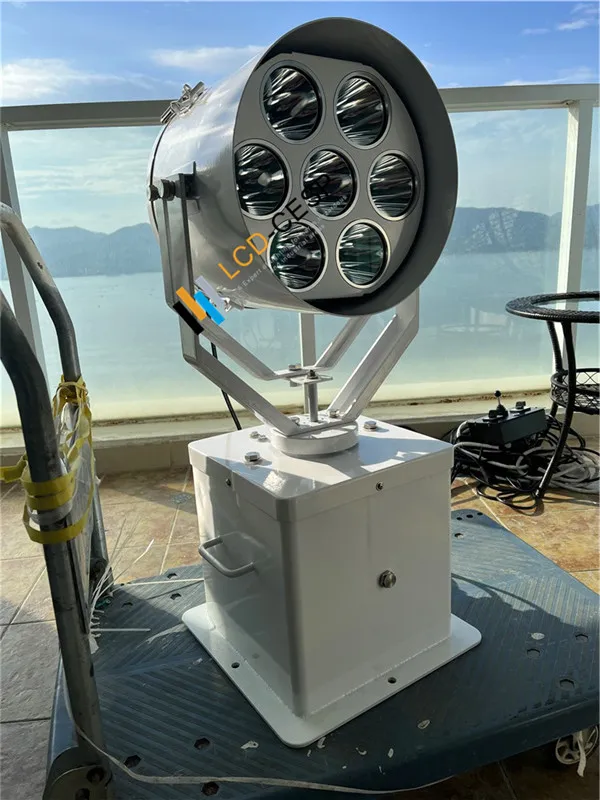

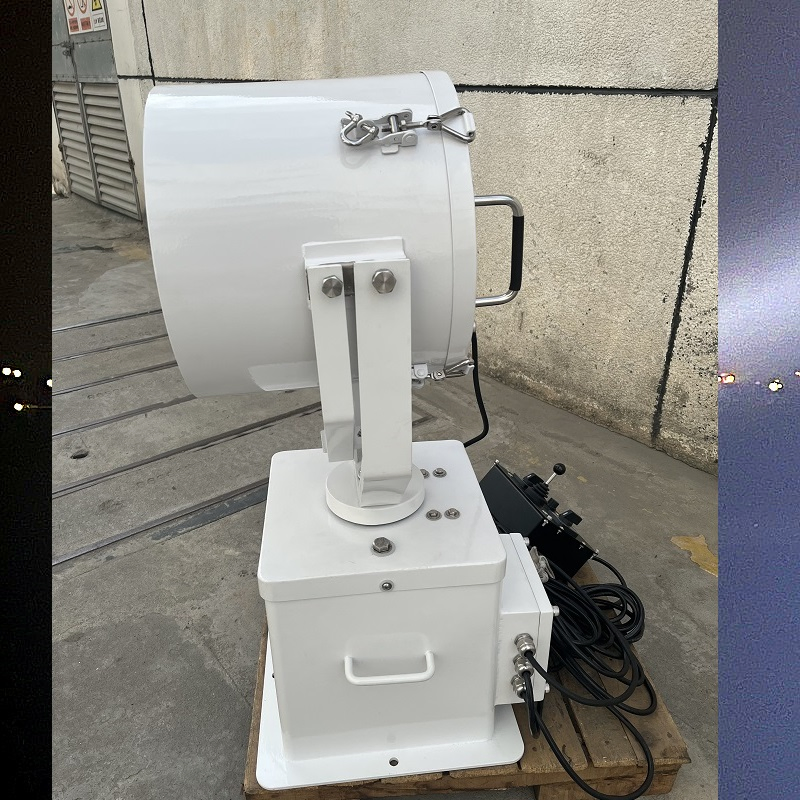

80W 100W 150W 200W 300W 350W LED Marine Searchlight 230V 24V 1500-6000 Meters 5 Years Warranty for Emergency Search & Rescue (SAR) Port & Harbor Lighting
Product Description
Basic Specifications
Model:SST-100-LN2-65K
Color Temp:Cool White
IP Rating:IP67 / IP68
Light Source:High-Power LED
Power Range:80W - 350W
Voltage:AC100-277V / DC 12V-32V
Light Intensity:> 5,000 Lumens
Total Output:11,250 Lm - 33,560 Lm
Divergence:2° - 2.5° FWHM
Range:1,500m - 5,000m
IK Rating:IK10
Material:Stainless Steel + Aluminum
High Performance Marine Searchlights
Advanced LED technology (80W-350W) serves as a superior replacement for traditional Halogen and Xenon lamps (1000W-5000W). These searchlights deliver powerful illumination with versatile beam options for demanding environments.
- Wide Beam Models: Ideal for close-range operations such as man overboard rescue.
- Narrow 2° Beam Models: Provide extreme long-distance visibility for navigation.
- Arctic Ready: Strong blue spectrum light output is perfect for harsh and icy environments.
- Superior Efficiency: Longer lifespan with minimal maintenance compared to halogen.
- Durable Construction: Corrosion-resistant Marine-grade Pure Aluminum and stainless steel hardware.

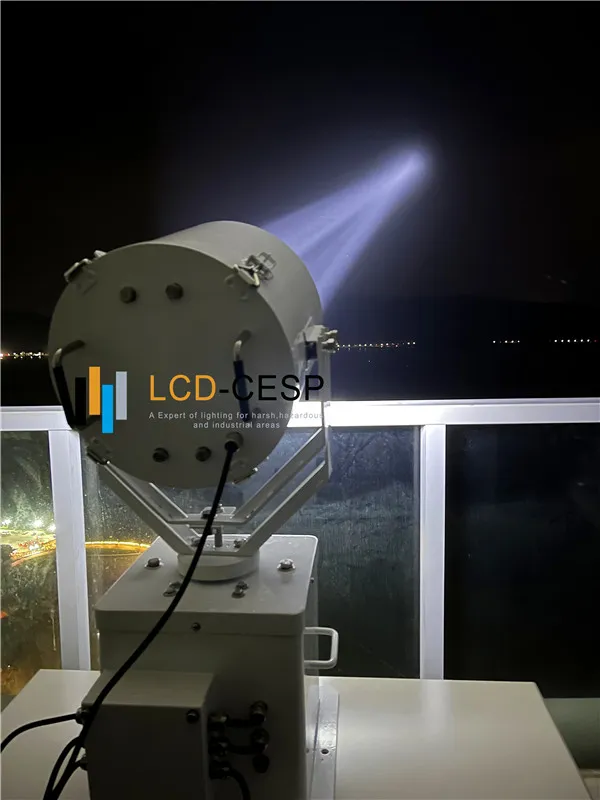

Our searchlights utilize cutting-edge optics to create laser-style parallel light rays. This makes them a perfect solution for patrol boats, SAR vessels, workboats, and superyachts where high visibility in darkness is critical.
Technical Specifications
| Feature | Detail Specification |
|---|---|
| Module Configuration | 4 / 5 / 7 / 9 / 12 Modules Available |
| Lumen Output | Up to 16,080 LM (Standard Test) |
| Candlepower | 3,673,851 cd |
| Beam Angle | High-precision 2.5° |
| Operating Temp | -30°C to +50°C |
| Pan/Tilt Range | Pan 0°~ 350° , Tilt -30°~ +30° (MC & EC Types) |
| Protection | Salt water proof, UV-resistant toughened glass lens |
| Vibration Resistance | 5-6G standard resistance |
Frequently Asked Questions
?What are the advantages of LED over Xenon searchlights?
LED searchlights offer significantly longer lifespans, lower energy consumption, and lower operating costs while being maintenance-free compared to traditional Xenon or Halogen lamps.

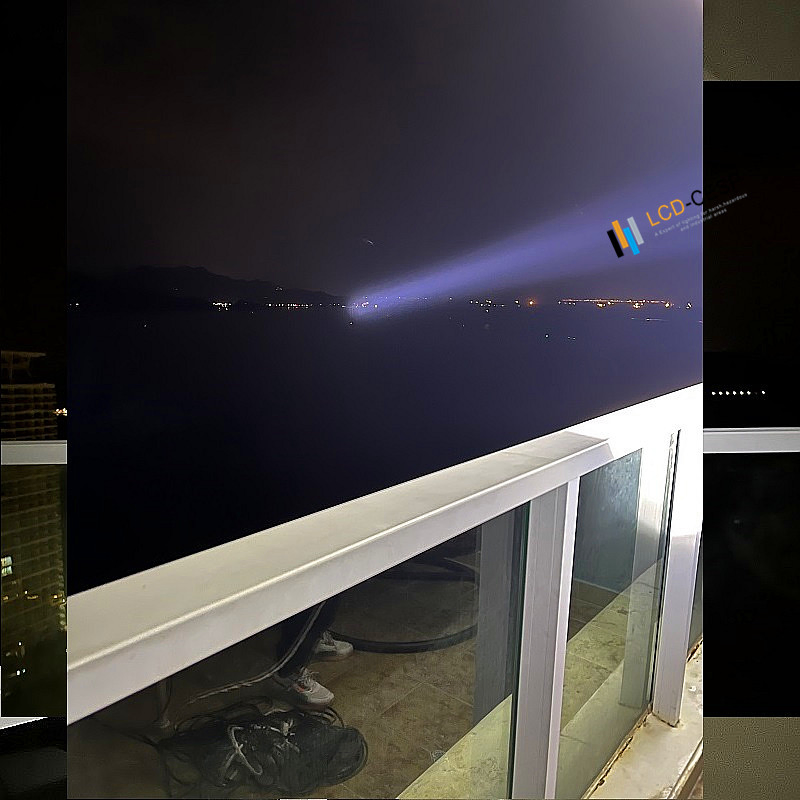

?How far can the beam reach?
Depending on the model and power (80W-350W), the narrow 2° beam can achieve an effective range of approximately 1,500 to 5,000 meters in clear conditions.
?Is the housing resistant to salt water?
Yes, the searchlights feature IP67/IP68 ratings and are constructed from marine-grade 1070 pure aluminum and stainless steel hardware, making them salt-water proof.
?What power sources are compatible?
The units support wide input voltages including AC 100-277V for standard mounting and DC options (12V, 24V, 28V, 32V) for various vessel power systems.
?Can these lights withstand heavy vibrations?
Absolutely. These marine lights are tested to resist vibrations of 5-6G standards and have high impact resistance ratings of IK08-IK09.
?What is the typical warranty period?
These searchlights come with a 5-year warranty specifically tailored for performance and durability in marine applications.
