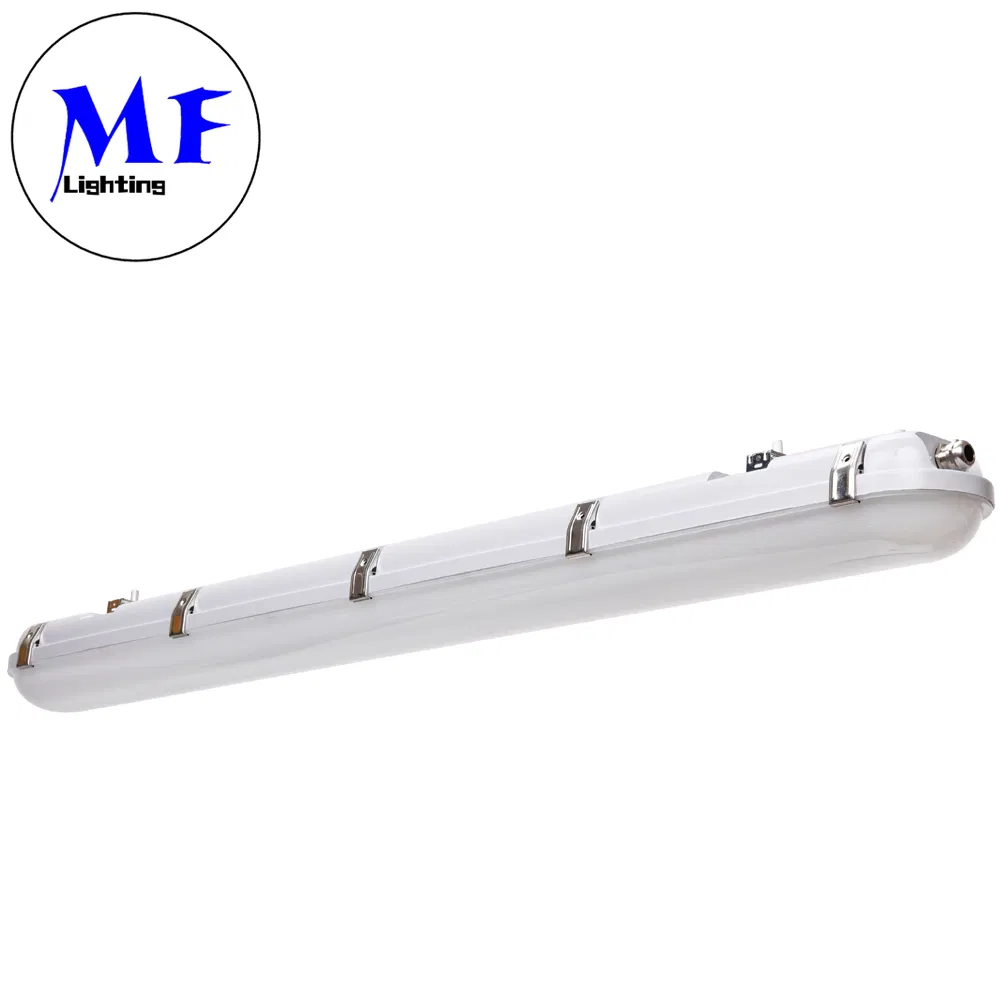

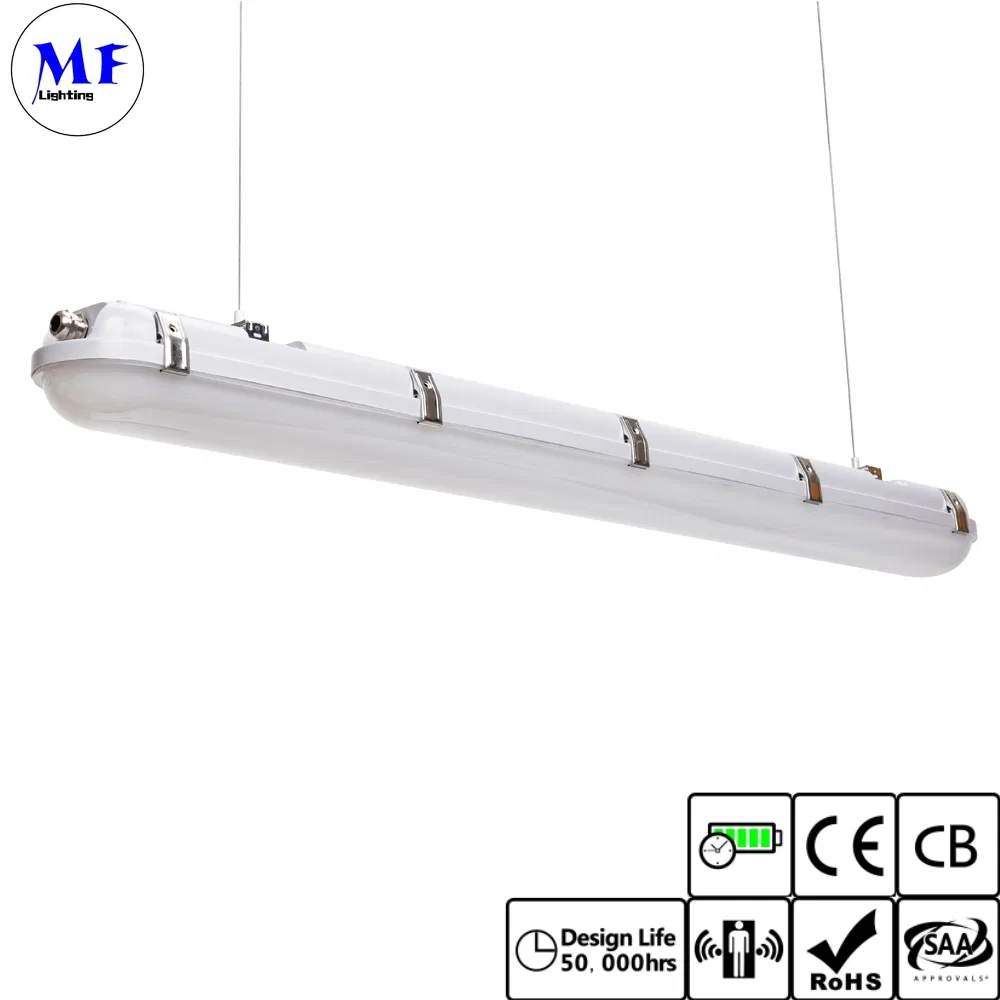

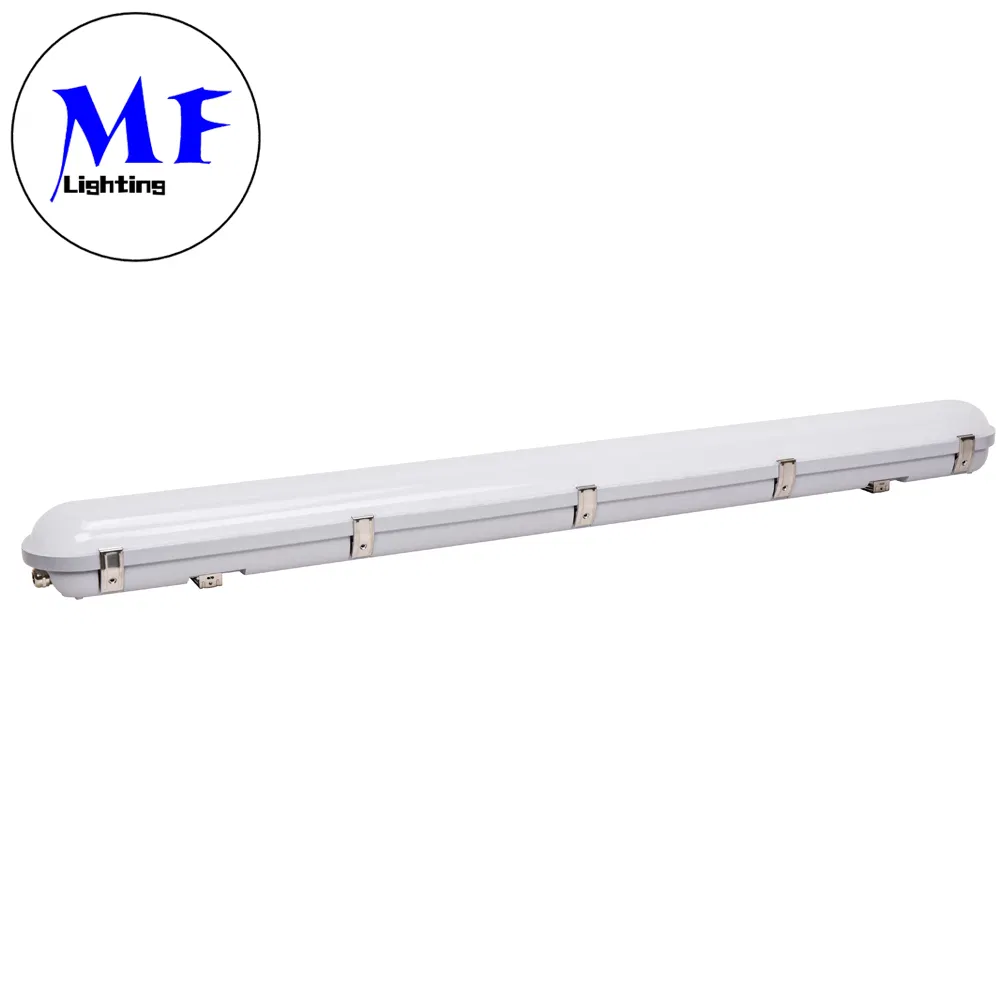

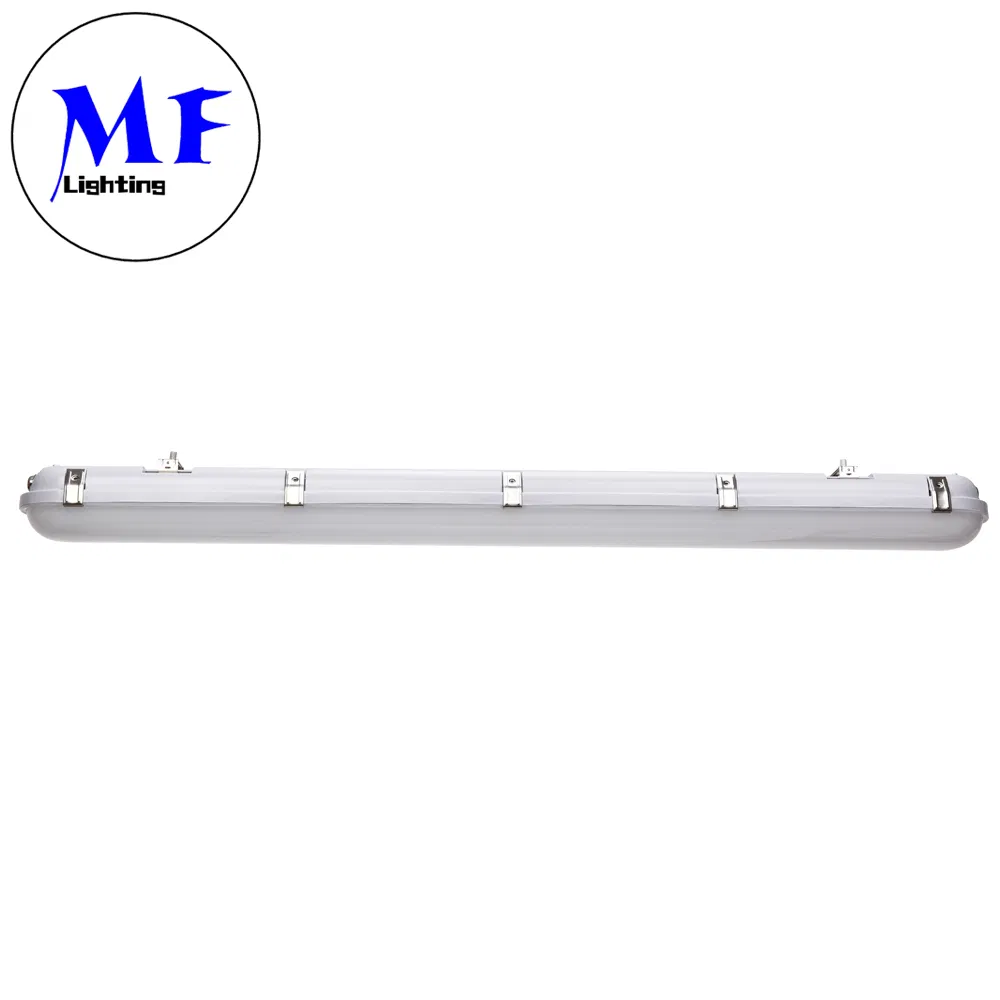

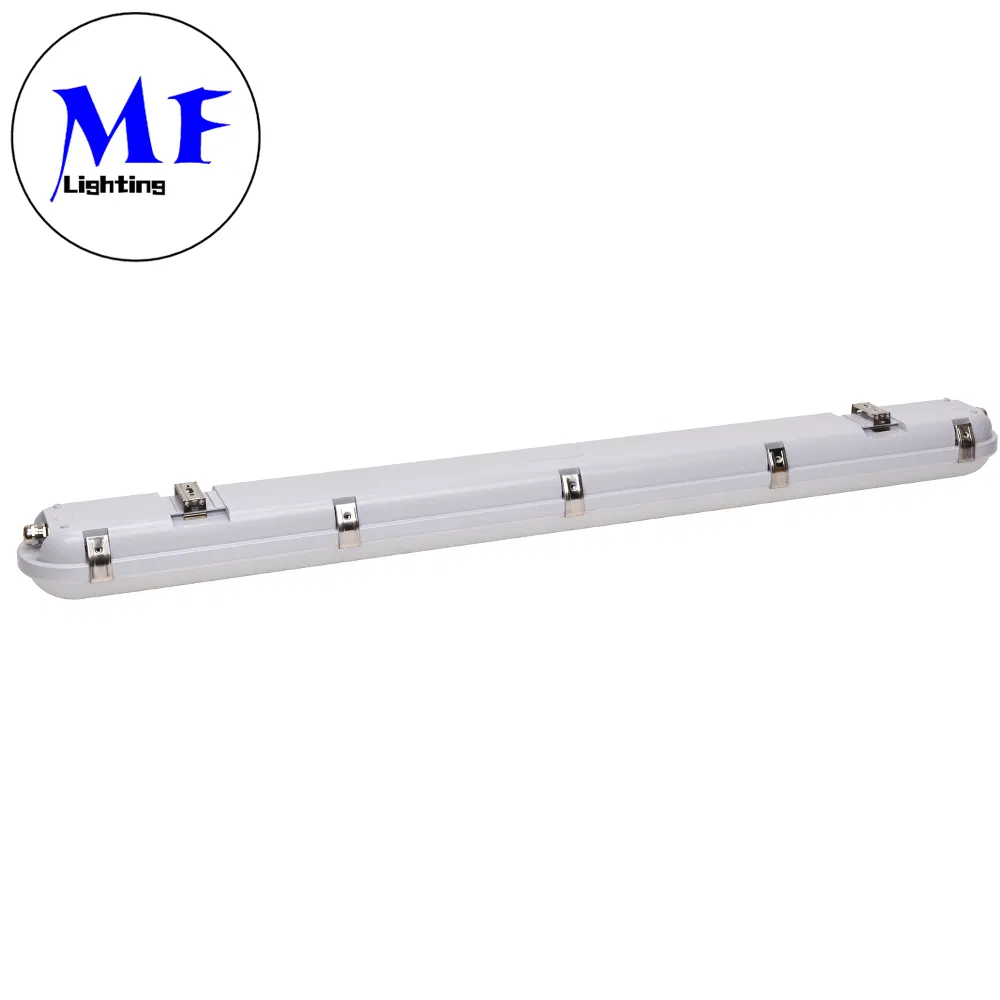

2FT 4FT 5FT Waterproof IP66 20W 40W 60W Linkable Tunnel Railway Train Station Vapor Tight Tube Batten Motion Sensor 90min Emergency RGBW LED Tri Proof Light
Product Description
Basic Information
Model NO.MF-T218/MF-T236/MF-T258/MF-T270
FeatureAnti-corrosion, Dust-Proof, Waterproof
MaterialPlastic + Aluminum + PC
Beam Angle120°
Input VoltageAC100-277VAC 50Hz/60Hz
LED ChipSamsung
Lifespan≥50000hrs
IP / IK RateIP66 / IK08
Luminous Flux140lm/W±10%
Warranty5 Years
OriginChina
HS Code9405499000
Product Description
2ft 4ft 5ft 140lm/W Waterproof IP66 LED Tunnel Lighting - Linkable Weather Proof Light with Motion Sensor & 90min Emergency Mode

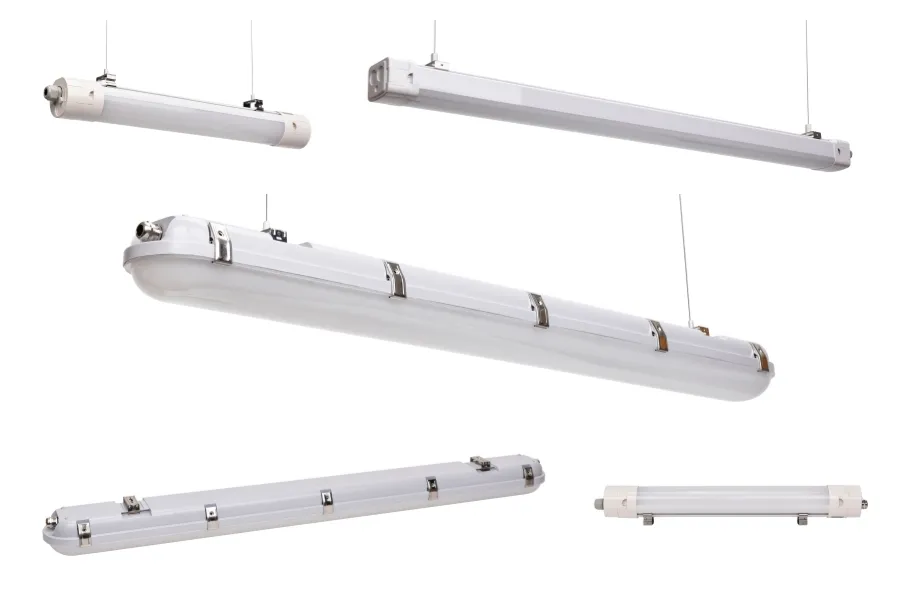

- IP66 Tri-proof LED Light Fixture
- Luminous Flux: 140lm/w±10%
- CRI: >85 | PF: >0.95
- Lifespan: >=50000Hrs

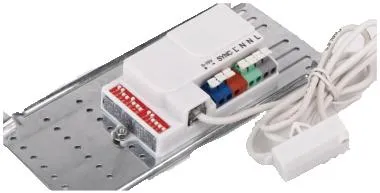

- Sensor: Motion Sensor

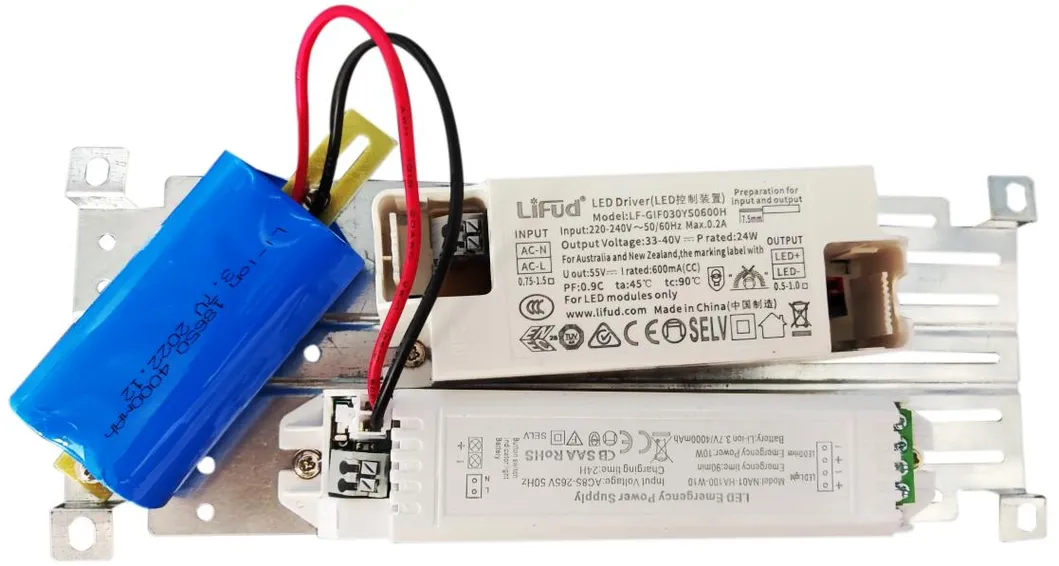

- Emergency Time: 90min
Technical Specifications
| Parameter | Details |
|---|---|
| Input voltage | AC100-277Vac 50hz/60hz |
| Power (Watt) | 20W / 40W / 60W / 80W |
| Product Size | 2ft(600mm) / 4ft(1200mm) / 5ft(1500mm) / 6ft(1800mm) |
| Color Temperature | Warm White(3000K-4500K), Pure White(5000K-5500K), Cold White(6000K-6500K) |

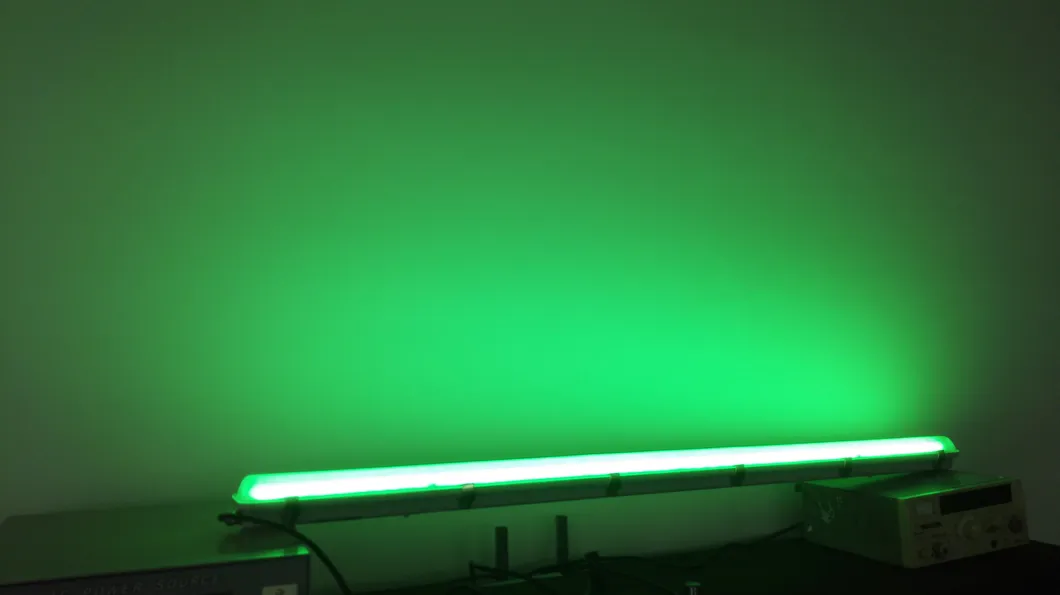

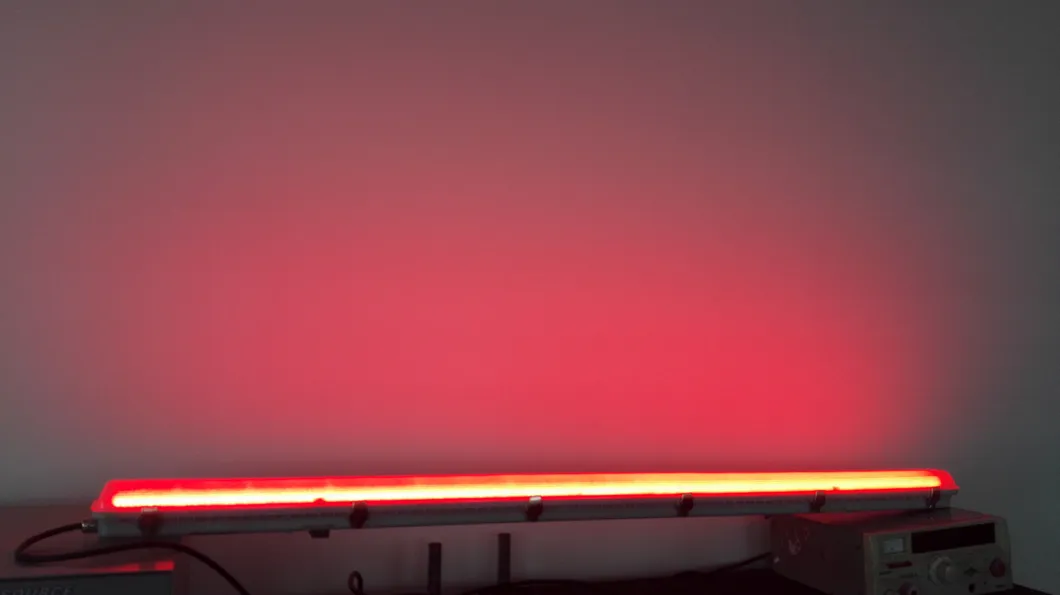

| RGB | RGB Optional |
| Material | Aluminum + PC |
| Operating Temp | -20°C ~ 40°C |
| Certificate | CE/RoHS |

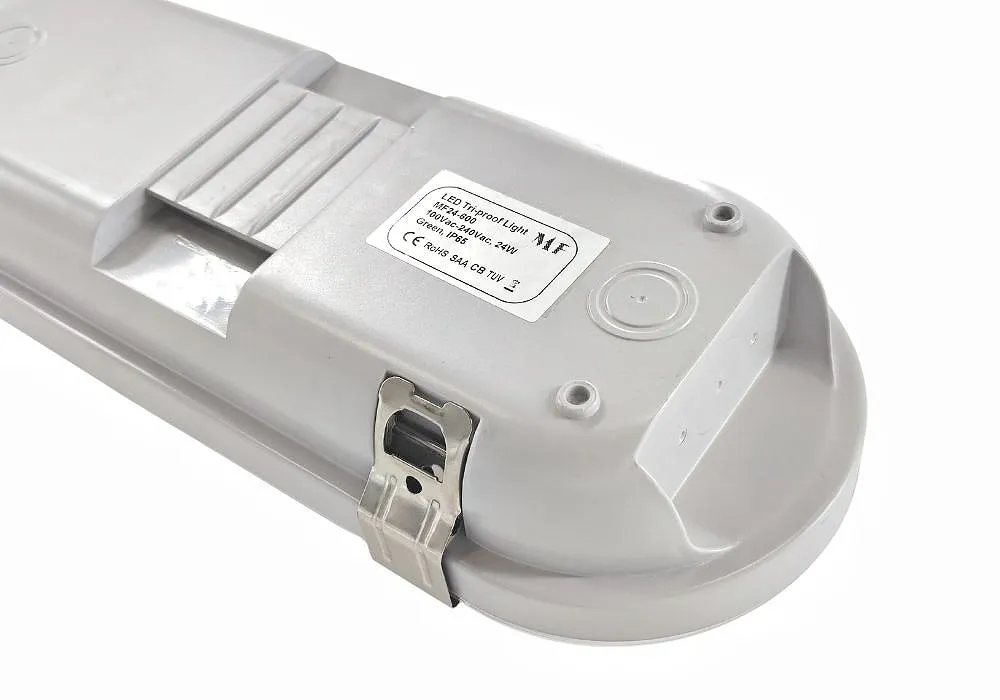

Detailed Product Features

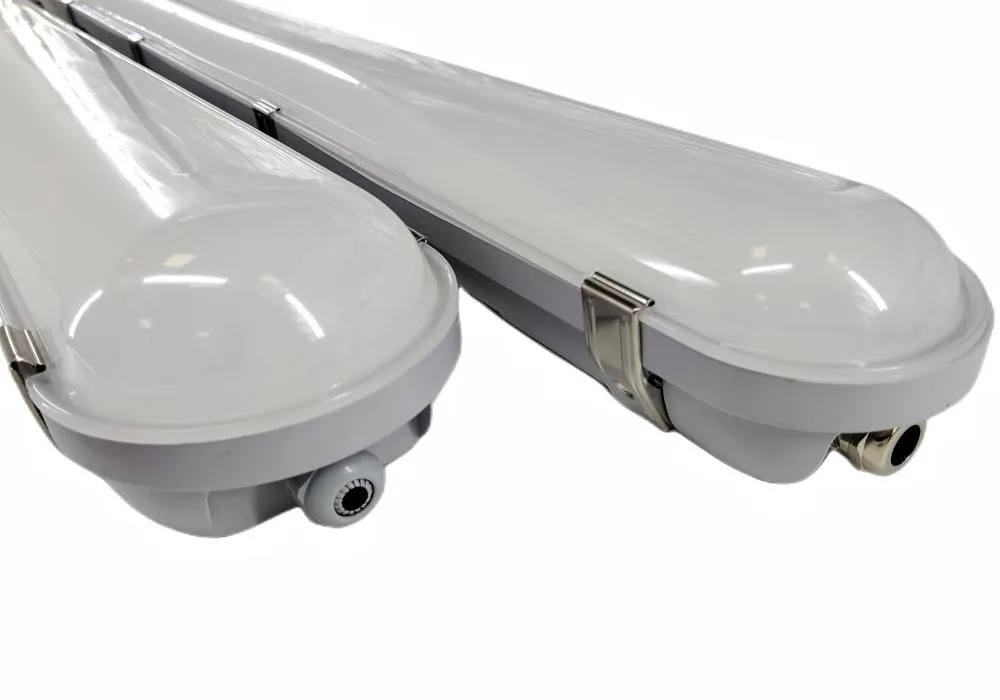

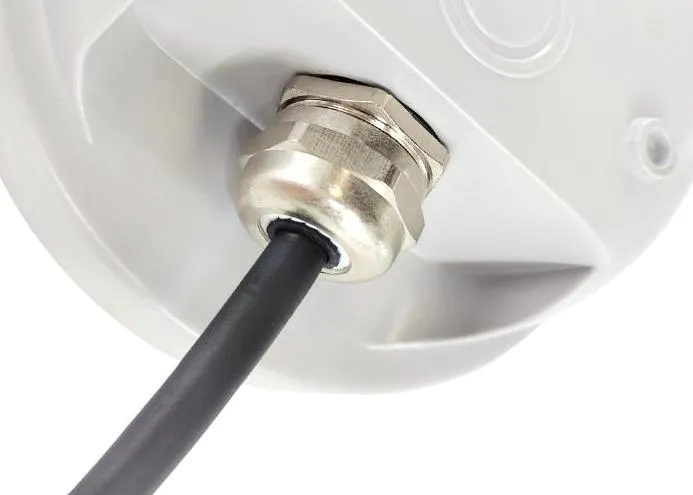

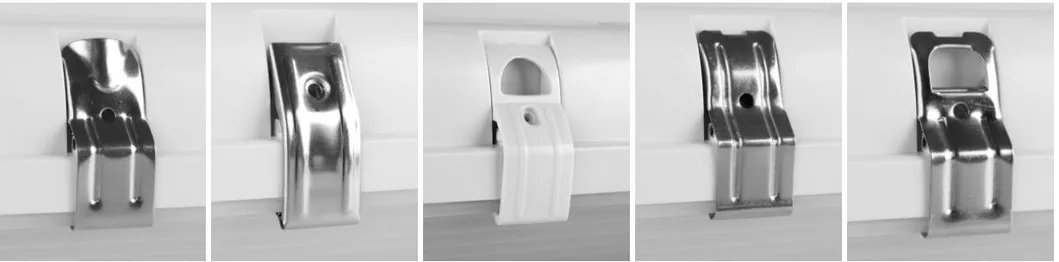

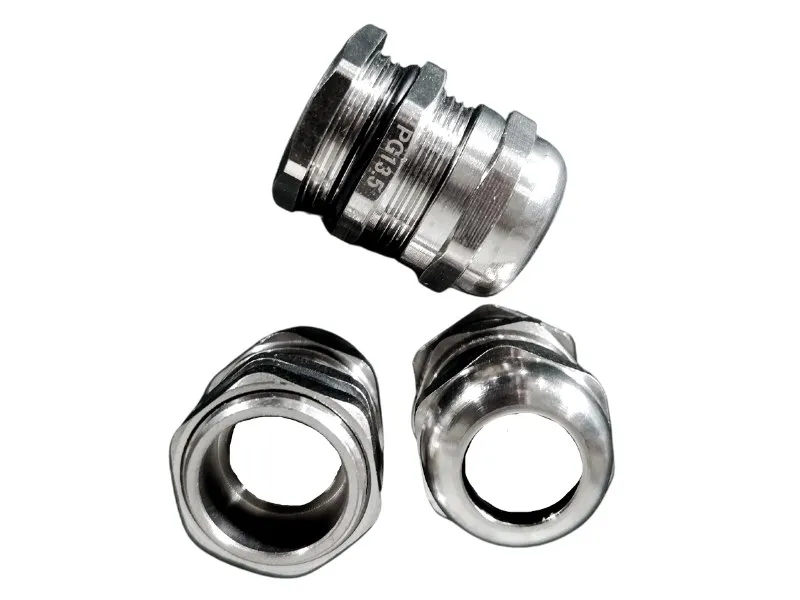

Clasp Type & Connectors

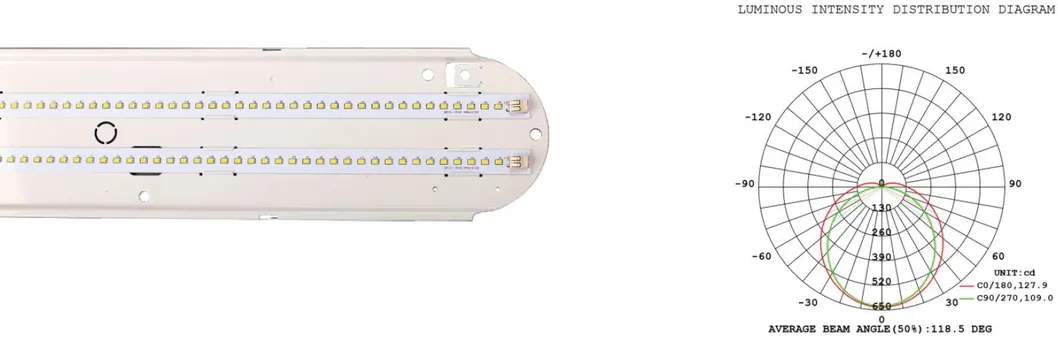

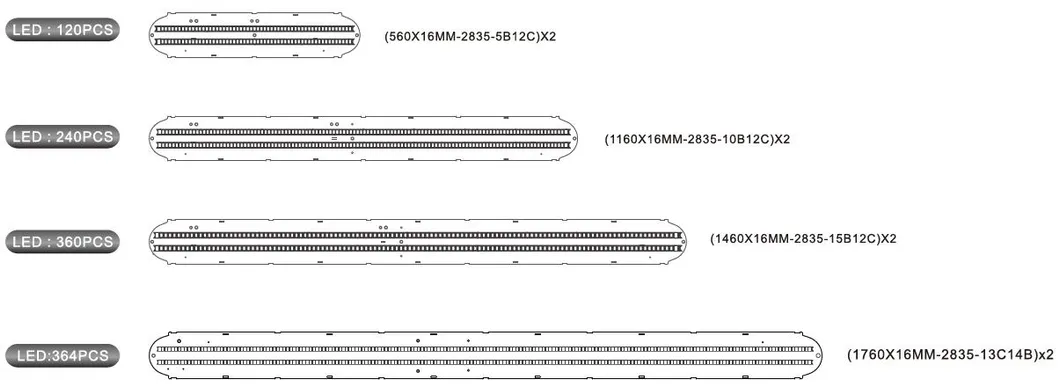

Lighting Components

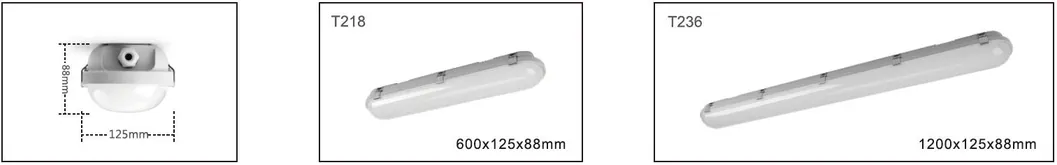

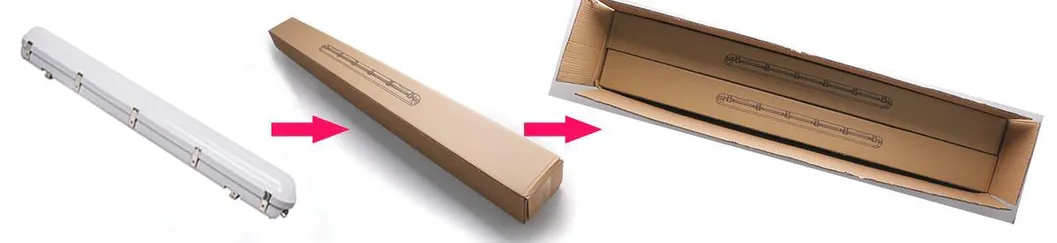

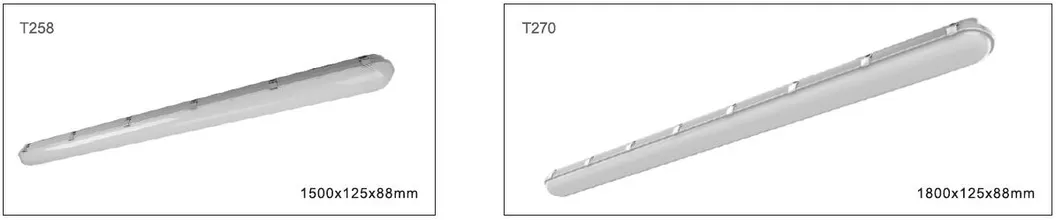

Dimensions & Packaging
| Product Code | Dimentions (mm) | Qty/Ctn | G.W./CTN |
|---|---|---|---|
| MF-T218 | 600x125x88 | 6 | 8.5kg |
| MF-T236 | 1200x125x88 | 6 | 14.6kg |
| MF-T258 | 1500x125x88 | 6 | 17kg |
| MF-T270 | 1800x125x88 | 4 | 14kg |

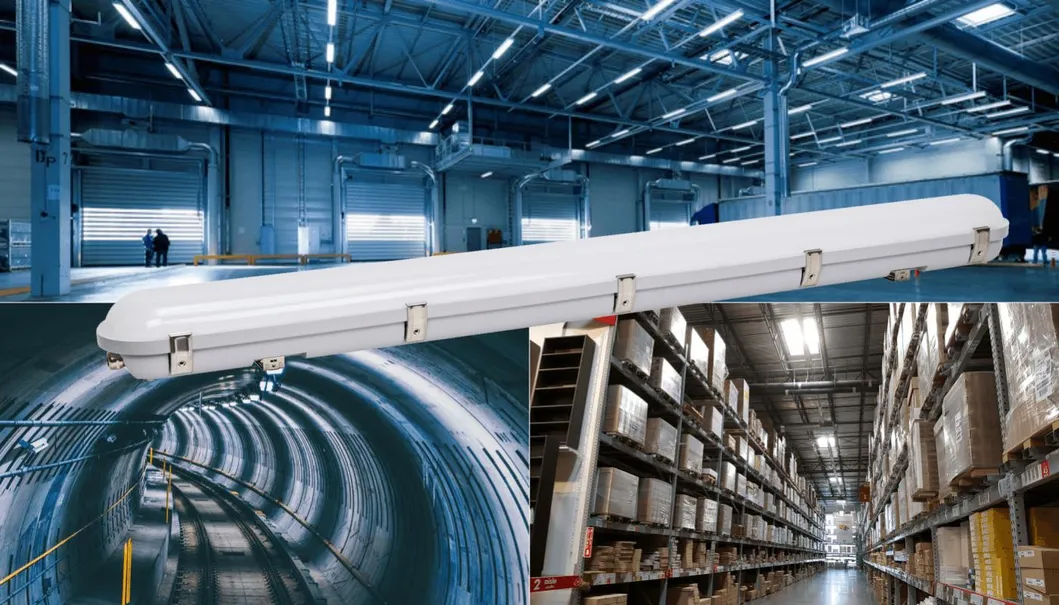

Wide Applications
Industrial Lighting
Perfect for warehouses, factories, and production facilities to enhance visibility and safety.
Outdoor Lighting
Suitable for car parks, walkways, and building perimeters, withstanding harsh weather.
Commercial Lighting
Ideal for supermarkets and shopping malls to provide optimal lighting for displays.
Public Lighting
Commonly used in airports, train stations, and bus terminals for commuter safety.
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with 16 years of experience in high-quality waterproof lighting solutions.
What are your main products?
Our core range includes LED Triproof lights, Vapor Tight lights, High Bay lights, Flood lights, and specialized outdoor landscape lighting.
What is the Minimum Order Quantity (MOQ)?
We have no strict MOQ request. For customized models, we offer free customization for orders exceeding 1000 pieces.
What are the payment and shipping terms?
We accept T/T, Western Union, and Paypal. Terms include EXW, FOB, CIF, CNF, and DDP. Standard terms are 50% advance and 50% balance.
What is the typical delivery time?
Samples are usually ready in 5-7 working days, while mass production takes approximately 20-30 working days depending on order size.
Why should we choose your products?
We offer comprehensive OEM/ODM services, have a dedicated design team, provide high-quality products at competitive prices, and our sales team has extensive industry experience.
