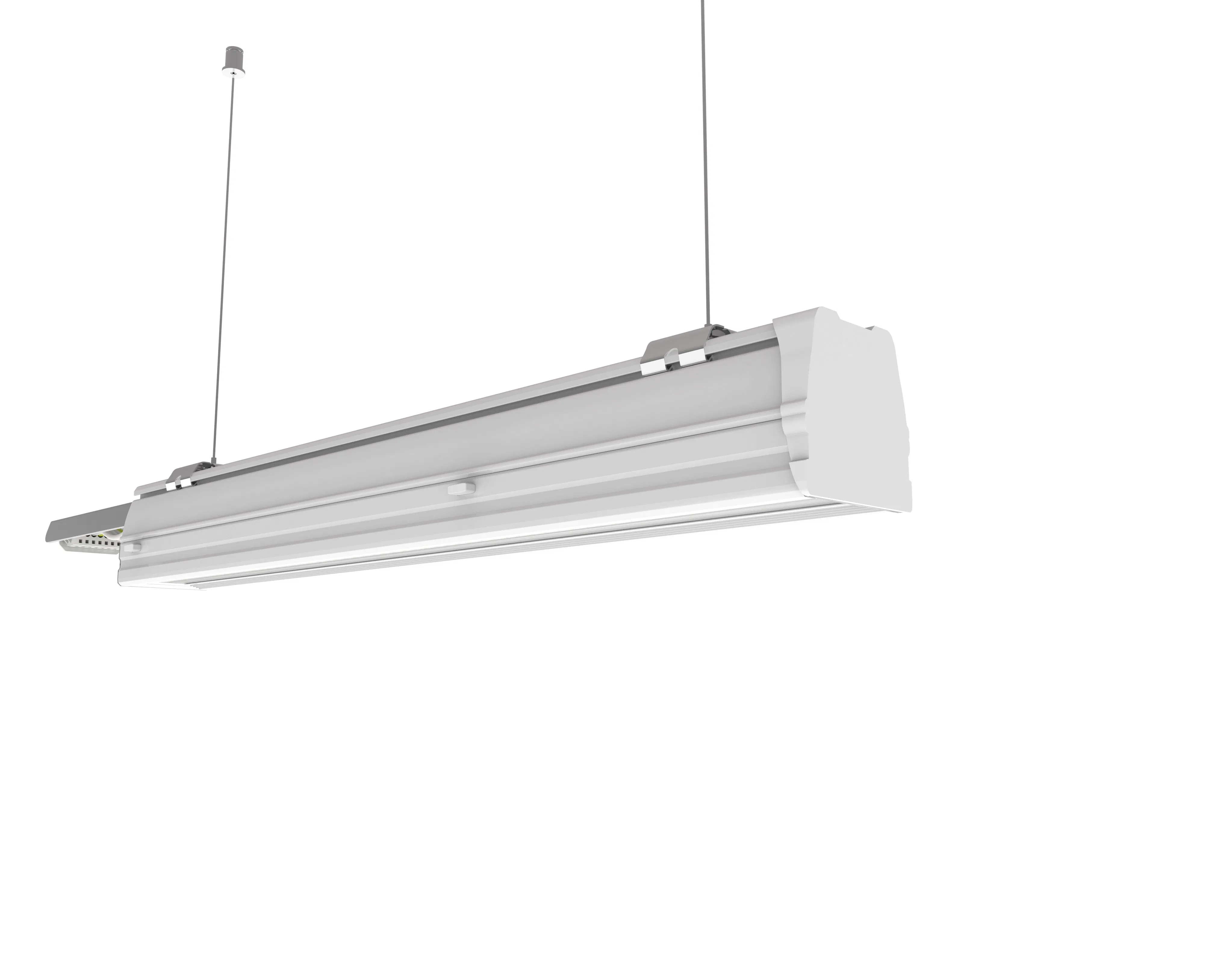

Supermarket Warehouse Trunking Line Linkable LED Track Linear Lights LED Shoplight
Product Description
Basic Information
Model NO.
YB01Z Series
IP Rating
IP20
Material
Aluminum
Style
European
Certification
CE, EMC, Energy Star, FCC, GS, RoHS, Saso, UL
LED Chips
CREE
Color Temp
3000K-6000K
Voltage
100V-277V
Beam Angle
30°/60°/90°/120°/Asymmetric
CRI
80
PF
0.9
Efficiency
130lm-180lm/W
Product Overview

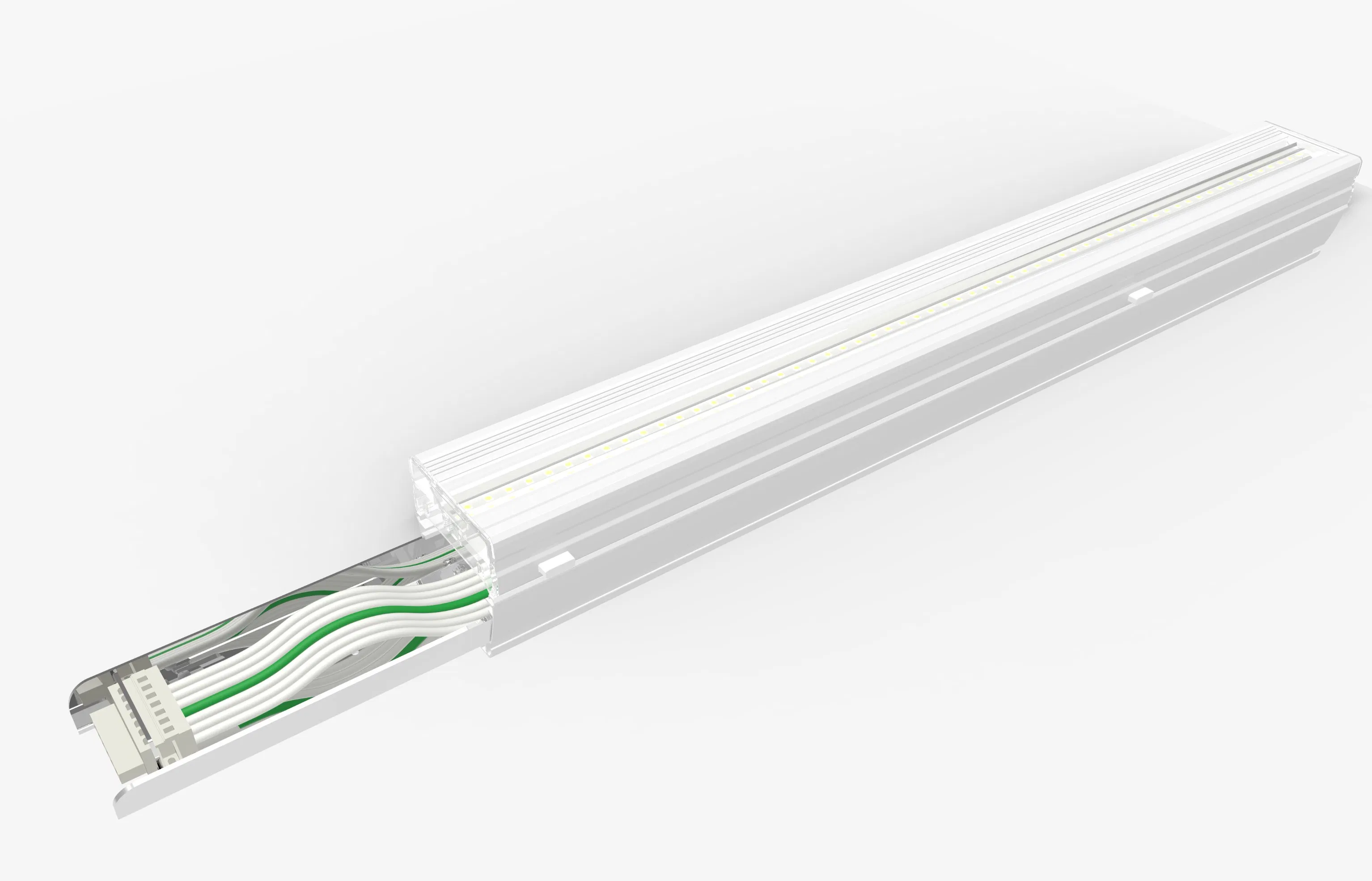

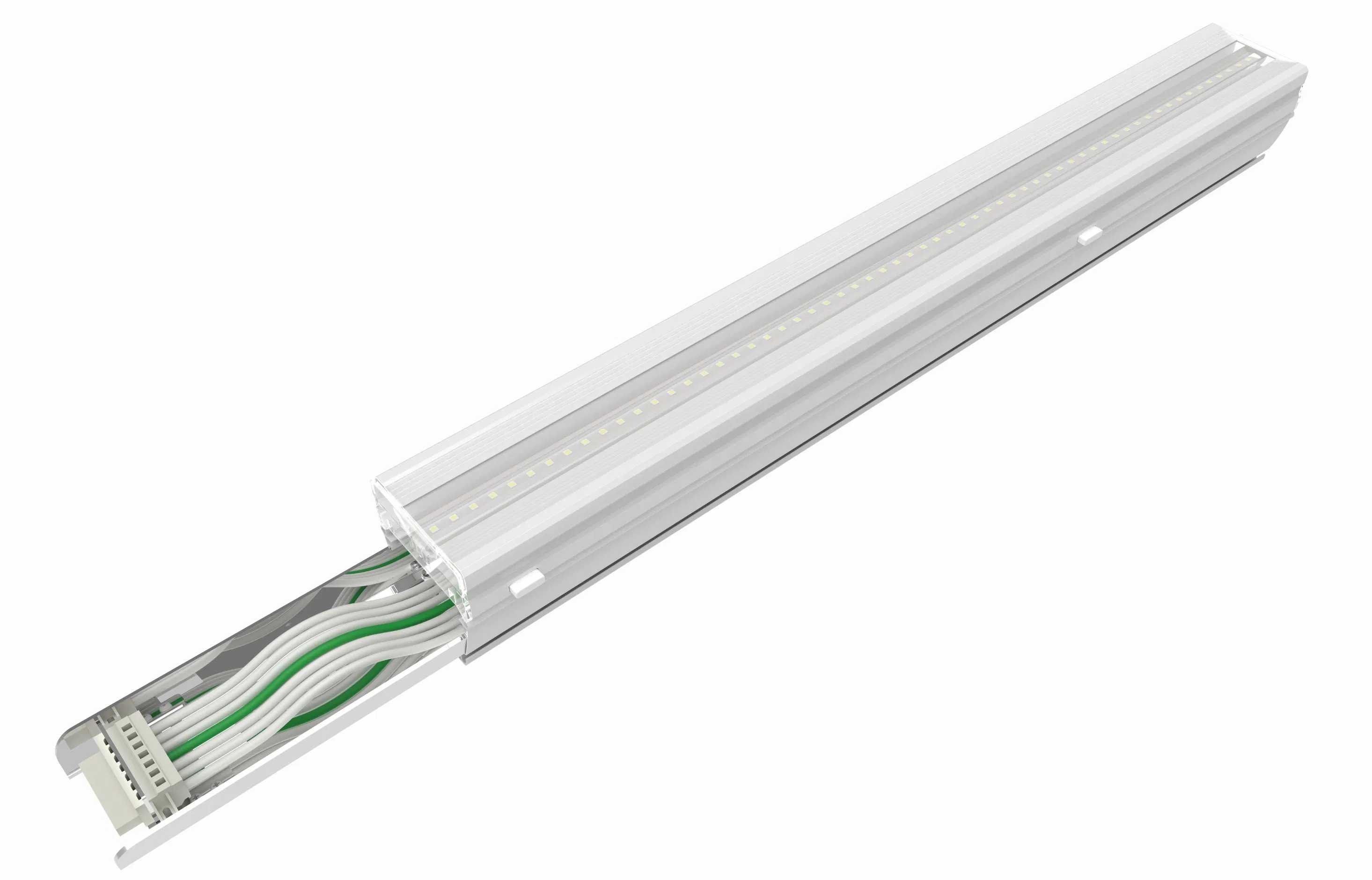

A continuous-row LED lighting system created by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.
- Power Range: 28W - 150W
- Rated Voltage: 100-277V
- Rendering Index: Ra > 80 (CRI 95 optional)
- Dimming Options: NON / 1-10V / DALI / 3CCT

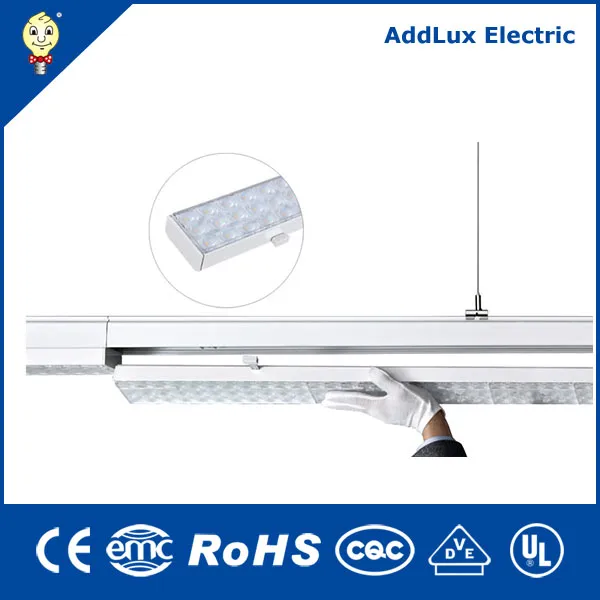

- Tool-less installation for reduced labor costs
Technical Specifications
| Item No. | Length | Power | Lumen |
| YB01Z0632 | 577mm | 28W | 4160Lm |
| YB01Z1575 | 1432mm | 75W | 9750Lm |
| YB01Z30150 | 2861mm | 150W | 19500Lm |
| YB01Z45225 | 4297mm | 225W | 29250Lm |
System Components & Installation

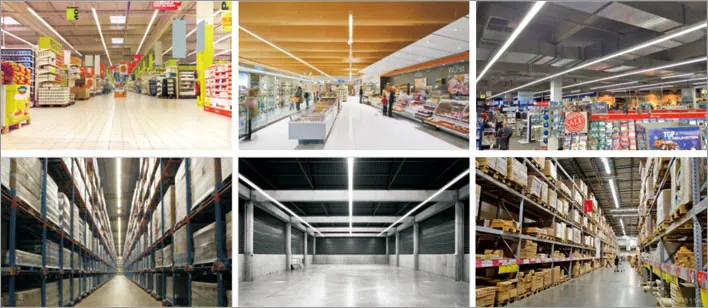

Applications
Business Lighting
- Offices & Retail Stores
- Warehouses & Workshops
- Museums & Showrooms
- Lobbies & Task Stations
Home Lighting
- Living Rooms & Kitchens
- Study Rooms & Closets
- Outdoor & Dining Areas

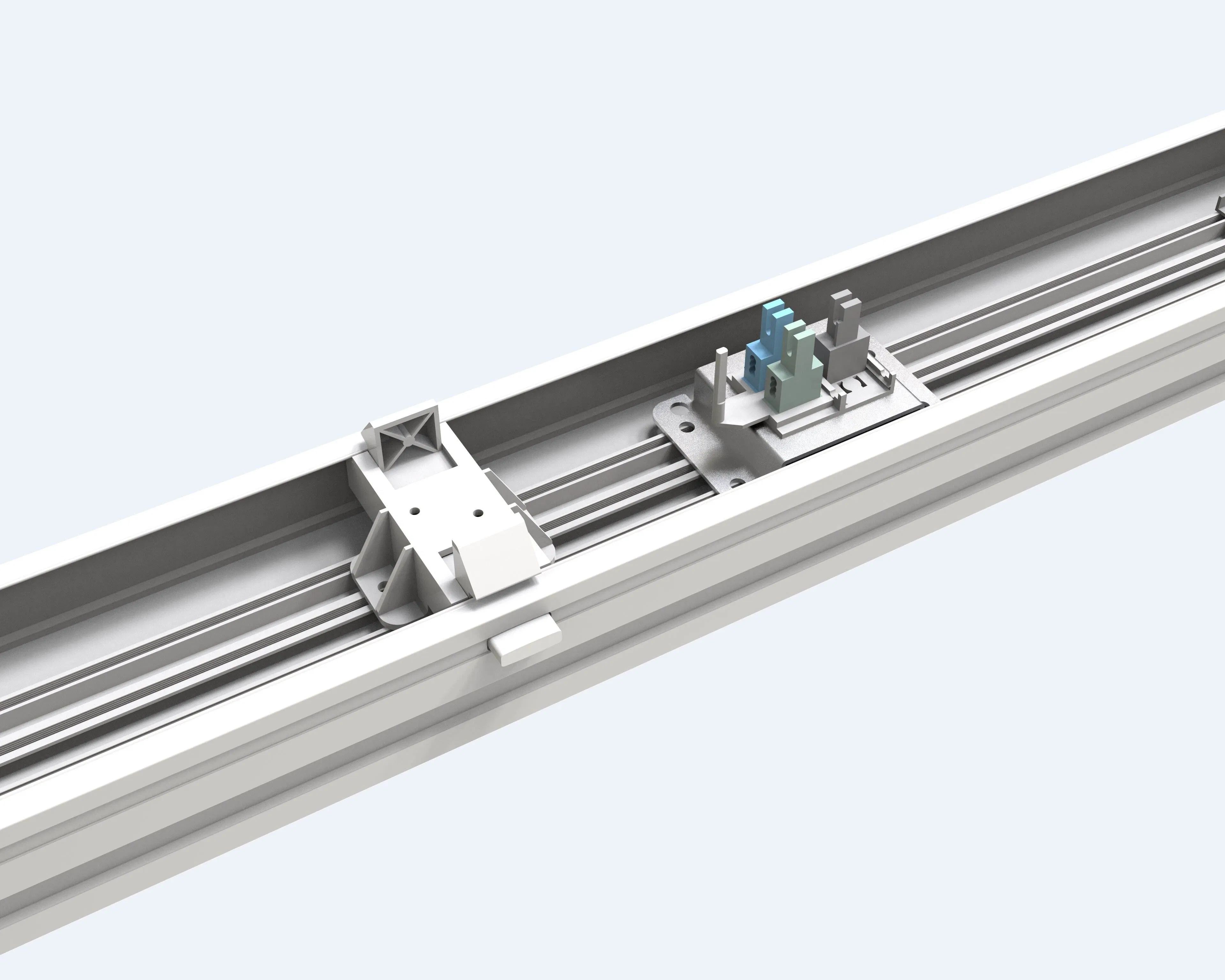

Flexible Trunking Rail

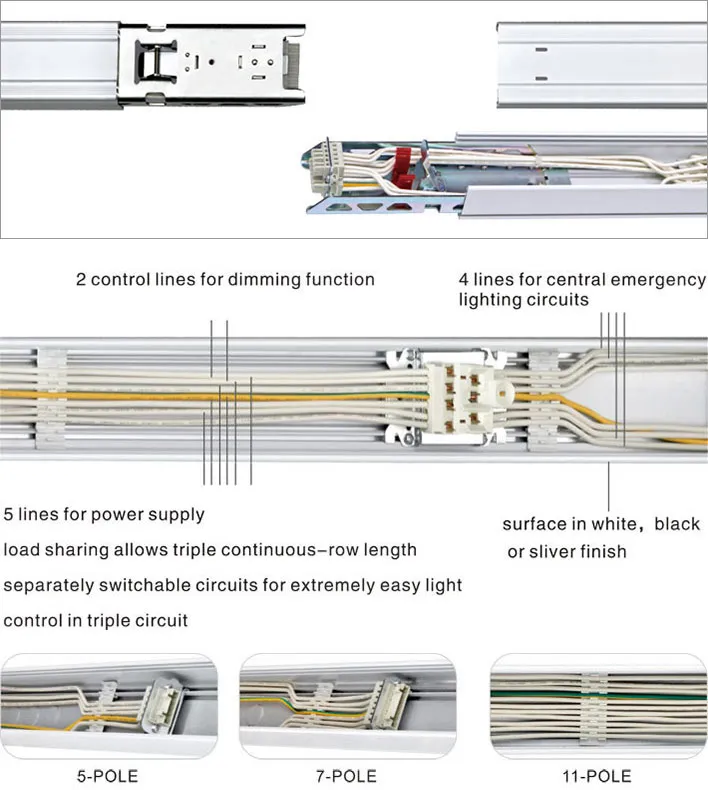

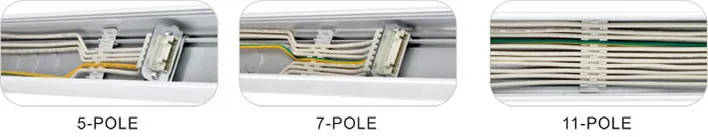

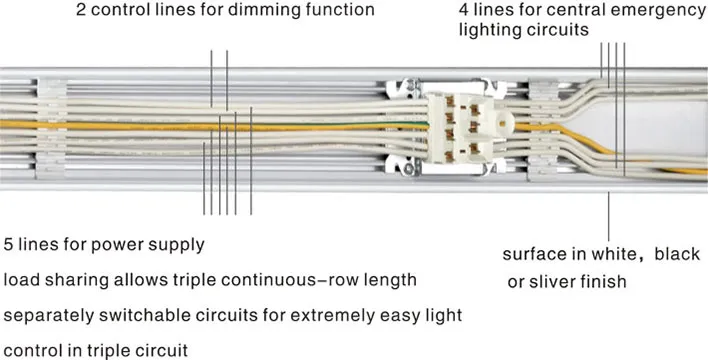

The system features an 11-pole current conducting section built into its trunking. It supports functions such as power supply, lighting control, and emergency lighting seamlessly. Luminaires can be positioned flexibly and the system adapts to structural alterations easily.

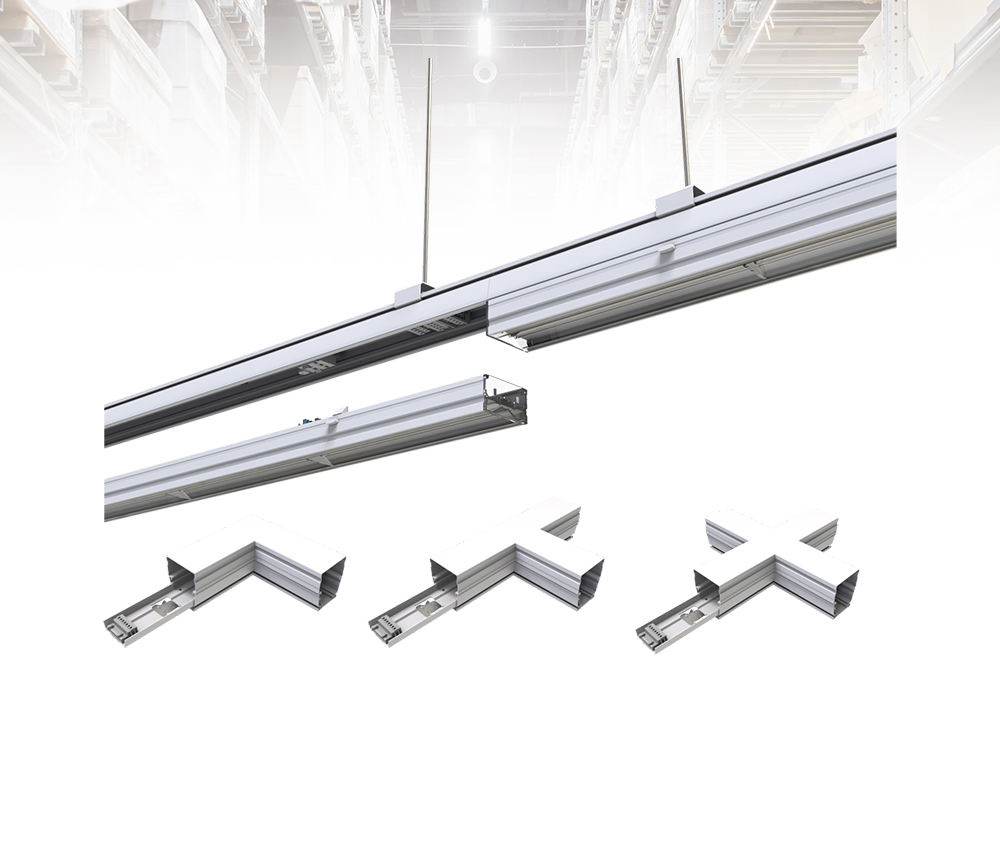

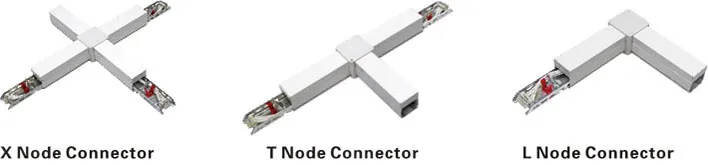

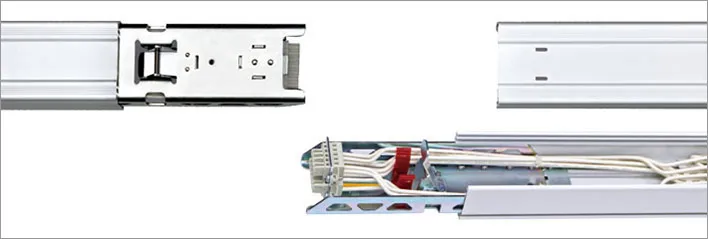

Node Connectors

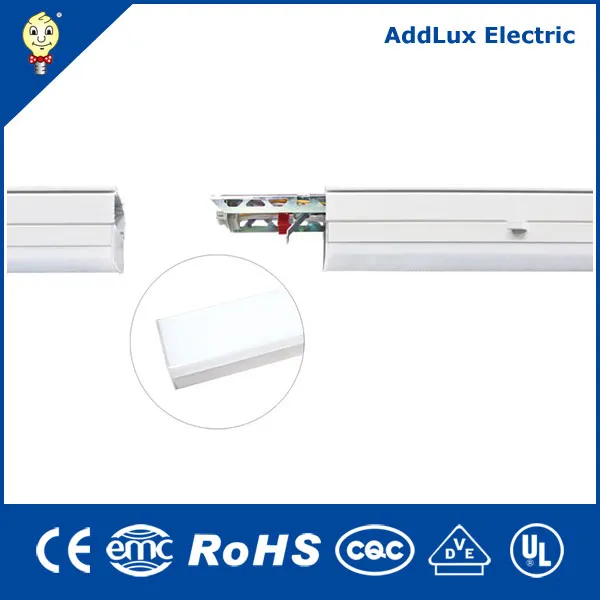

All components combine without tools. L, T, and X connectors expand the application range, providing diverse electrical feed-in and feed-out points.

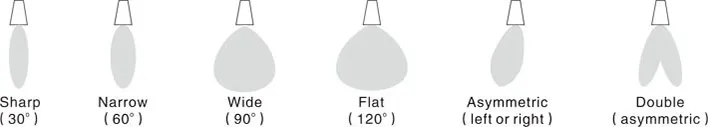

Optical Distribution
- Sharp: 30° / Narrow: 60° / Wide: 90°
- Flat: 120° / Asymmetric: Left, Right, or Double
Emergency & Sensor Systems
Emergency systems orientation during power failure with Ni-MH high-temperature resistant batteries (1.5h to 3h duration). Multi-sensor systems combine motion and daylight sensing for maximum energy savings.

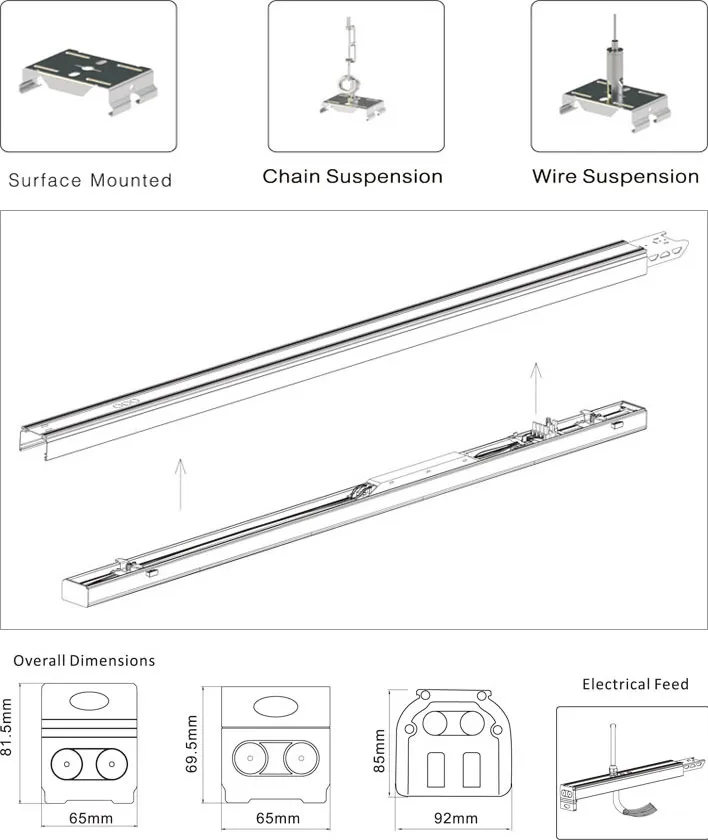

Installation Methods
- Ceiling, Wall, and Pendant mounted
- Surface mounted, Chain or Wire suspension
Frequently Asked Questions
What are the primary benefits of this continuous-row LED system?
It provides a seamless visual line without interruptions, offers high energy efficiency, and features tool-less installation which significantly reduces labor costs compared to traditional fluorescent systems.
Which dimming protocols are supported?
The system supports various dimming technologies, including DALI, 1-10V, and DIM switch options, allowing for daylight-dependent and dynamic light control.
Can the beam angle be customized?
Yes, we offer a wide range of optics: 30°, 60°, 90°, 120°, as well as single and double asymmetric distributions to suit specific environment needs.
Is there an emergency lighting option?
Absolutely. The system can be equipped with self-contained batteries or connected to central battery/generator systems, providing up to 3 hours of emergency light.
How long can a single trunking line be?
In a 3-phase power supply system, the trunking length can reach up to 200 meters with a maximum current of 16A.
What is the color rendering capability?
Standard models feature Ra>80. For high-accuracy applications like museums or jewelry stores, a CRI 95 series is also available.
