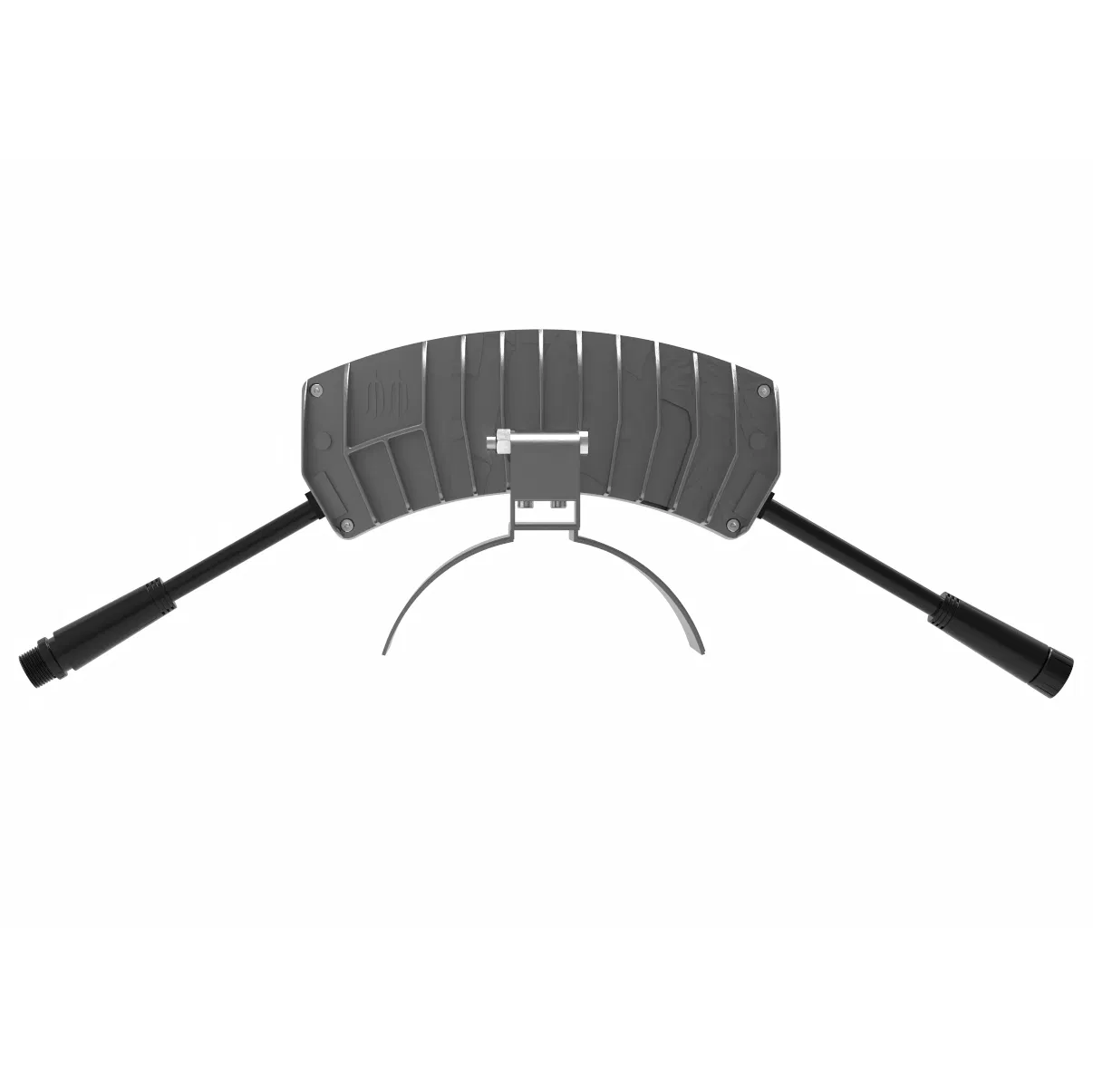

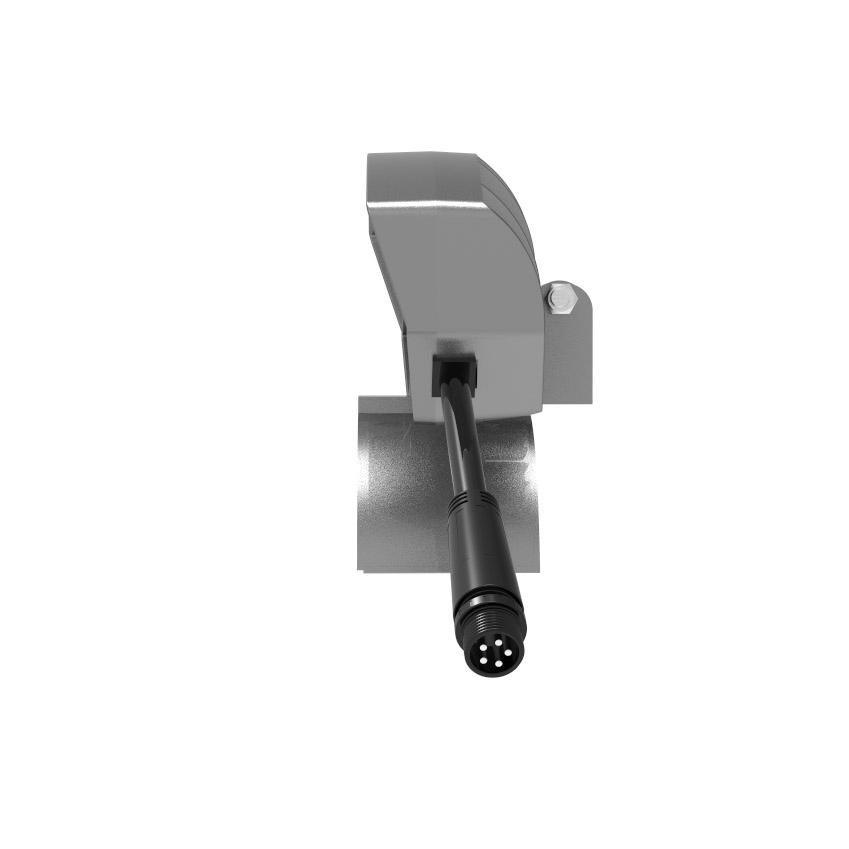

15W 18W RGB Crescent Light LED Outdoor Corrugated Lamp Project Special Roof Tile Projection Lamp
Product Description
Basic Information
M
Model NO.
JYFW01
P
Power
18W
D
Projection Distance
<12m
I
IP Rating
IP65
V
Input Voltage
220V / 24V
C
LED Chips
Osram
Product Description
15W 18W RGB Crescent Light LED Outdoor Corrugated Lamp Project Special Roof Tile Projection Lamp

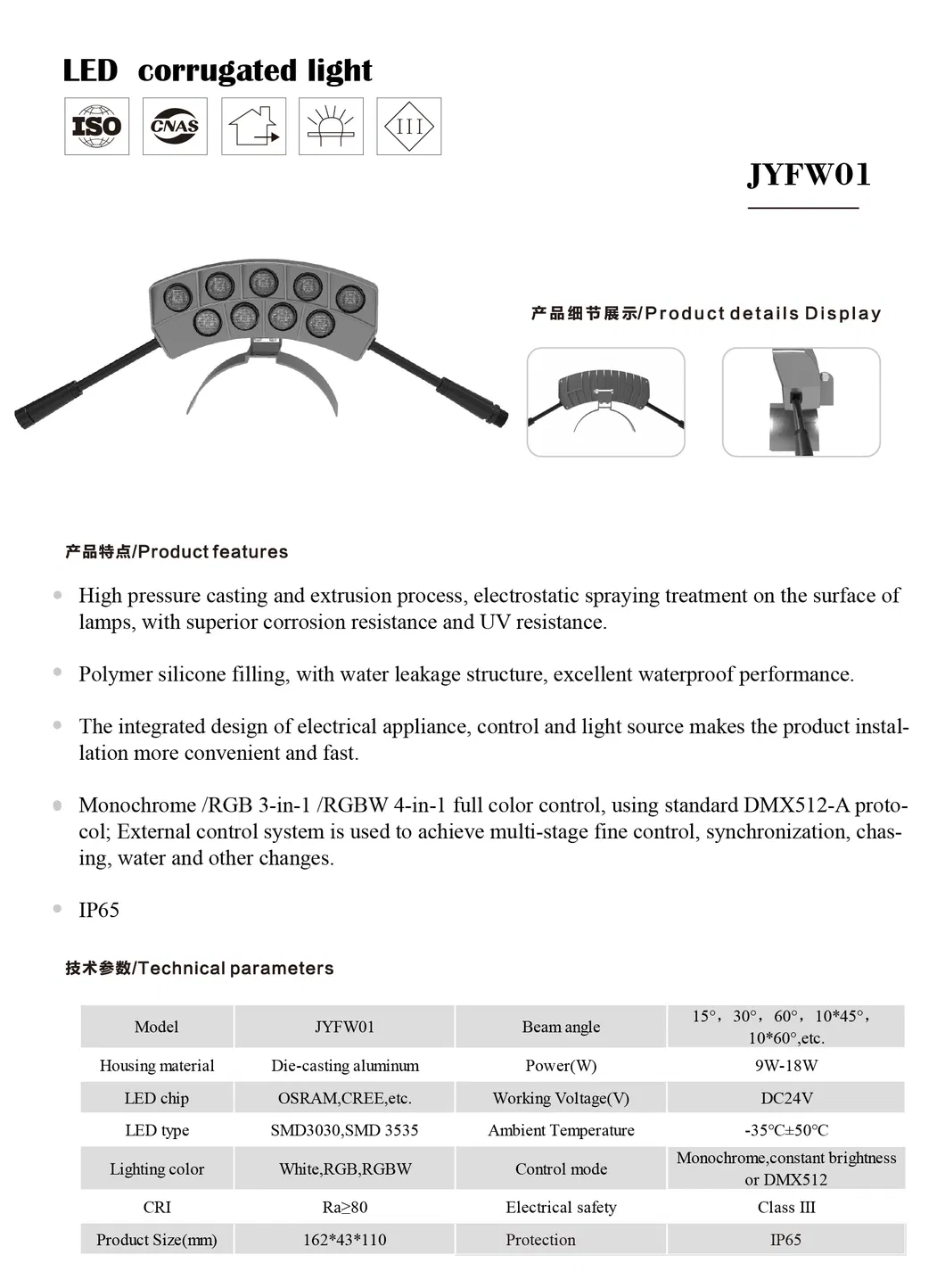

Key Features & Specifications:

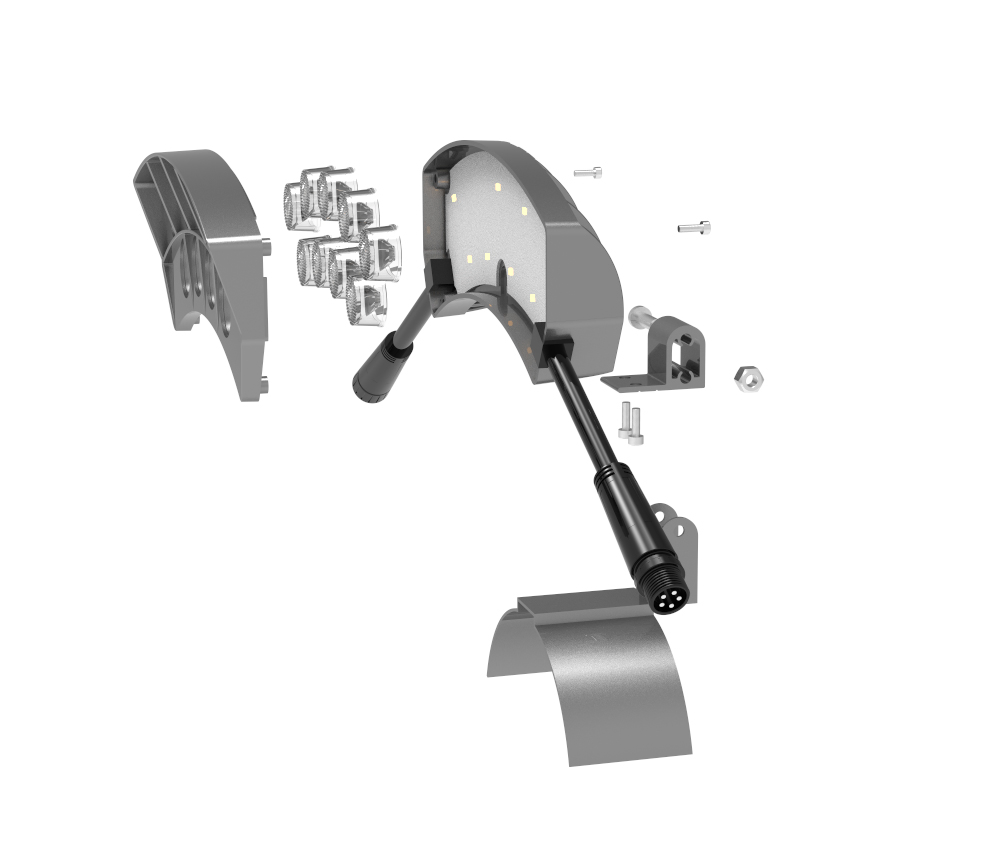

- High pressure casting and extrusion process with electrostatic spraying treatment for superior corrosion and UV resistance.
- Polymer silicone filling with water leakage structure ensures excellent waterproof performance.
- Integrated design of electrical appliance, control, and light source for fast and convenient installation.
- Supports Monochrome / RGB 3-in-1 / RGBW 4-in-1 full color control using standard DMX512-A protocol.
- Multi-stage control for synchronization, chasing, water flow, and other dynamic lighting effects.
Technical Parameters
| Model | JYFW01 | Beam angle | 15°, 30°, 60°, 10*45°, 10*60°, etc. |
| Housing material | Die-casting aluminum | Power(W) | 9W-18W |
| LED type | SMD3030, SMD 3535 | Working Voltage | DC24V |
| Lighting color | White, RGB, RGBW | Control mode | Monochrome or DMX512 |
| CRI | Ra≥80 | Protection Class | IP65 |

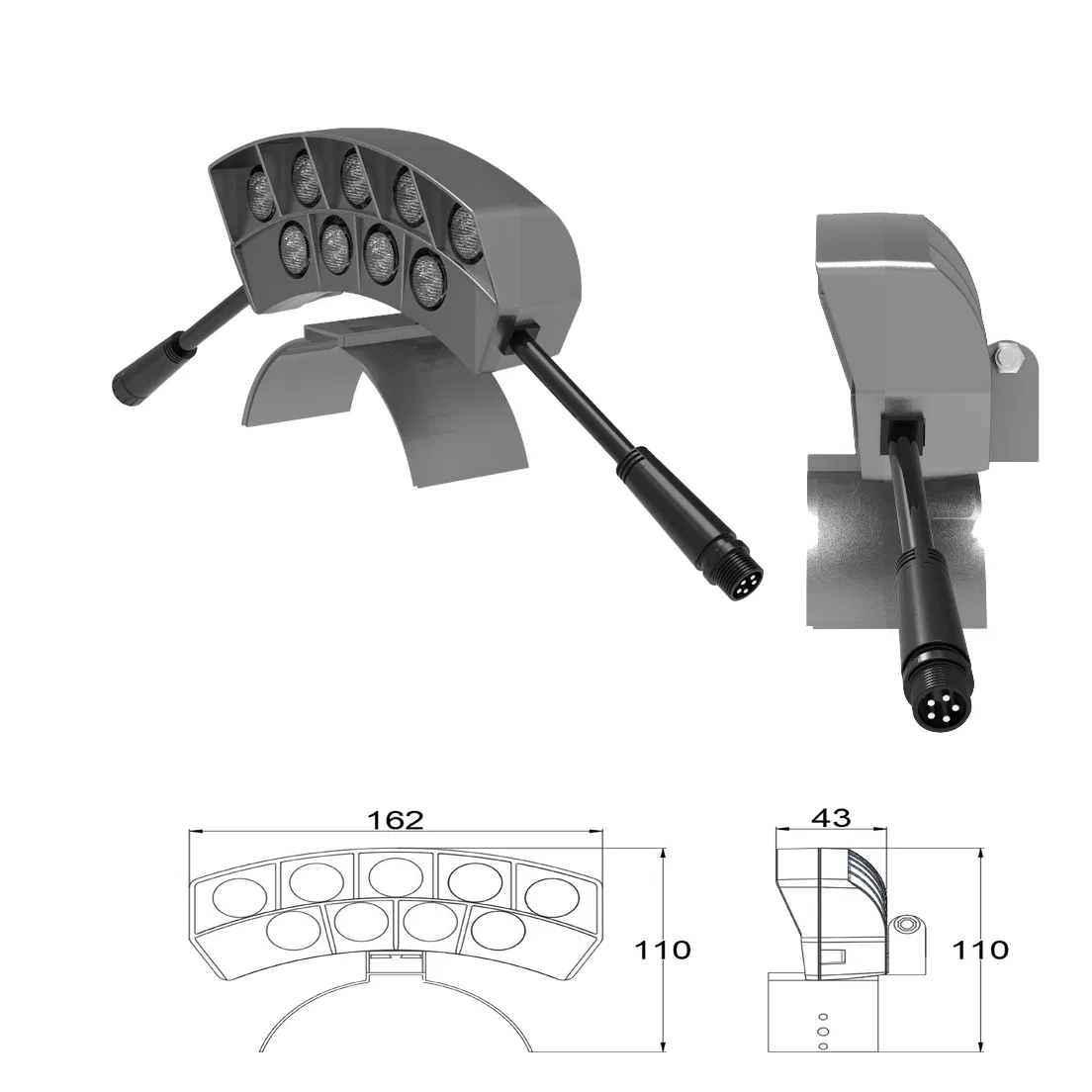

| Product Size | 162*43*110 mm | Ambient Temp | -35ºC ± 50ºC |

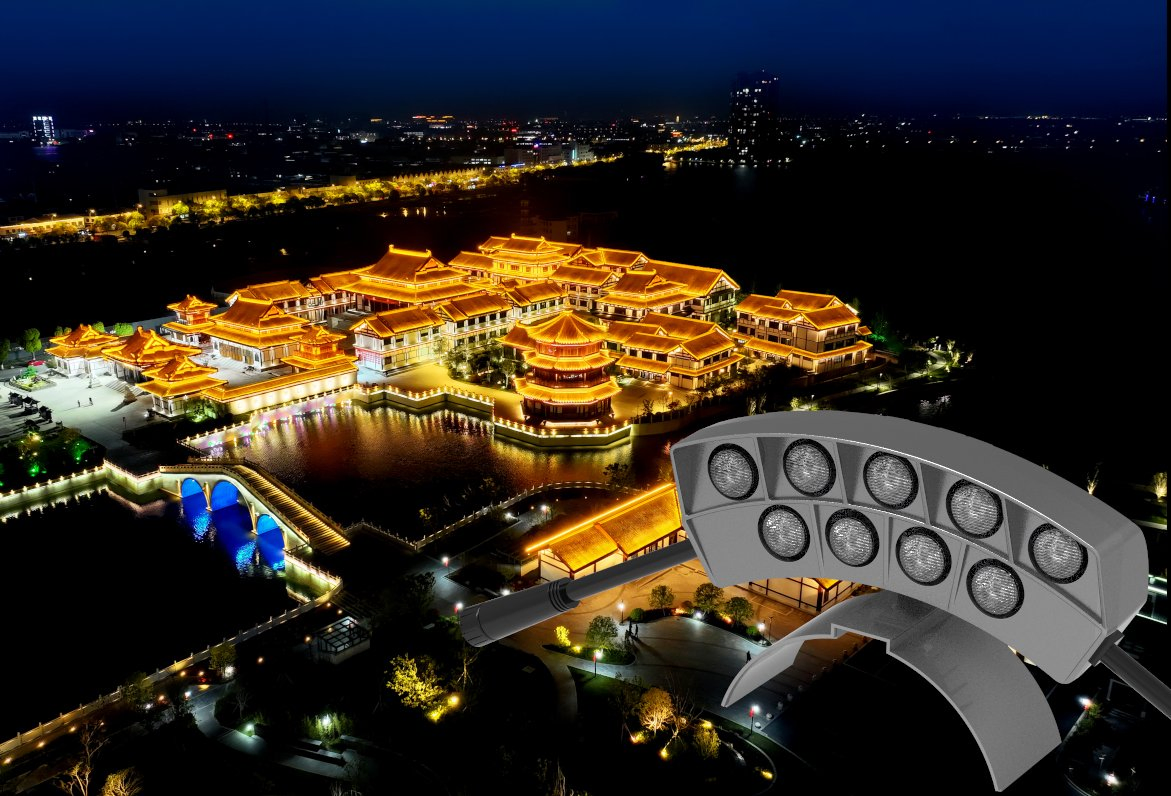

Applications
Ideally suited for architectural lighting projects including Parks, Factories, Gardens, and special roof tile projection for traditional or modern buildings.

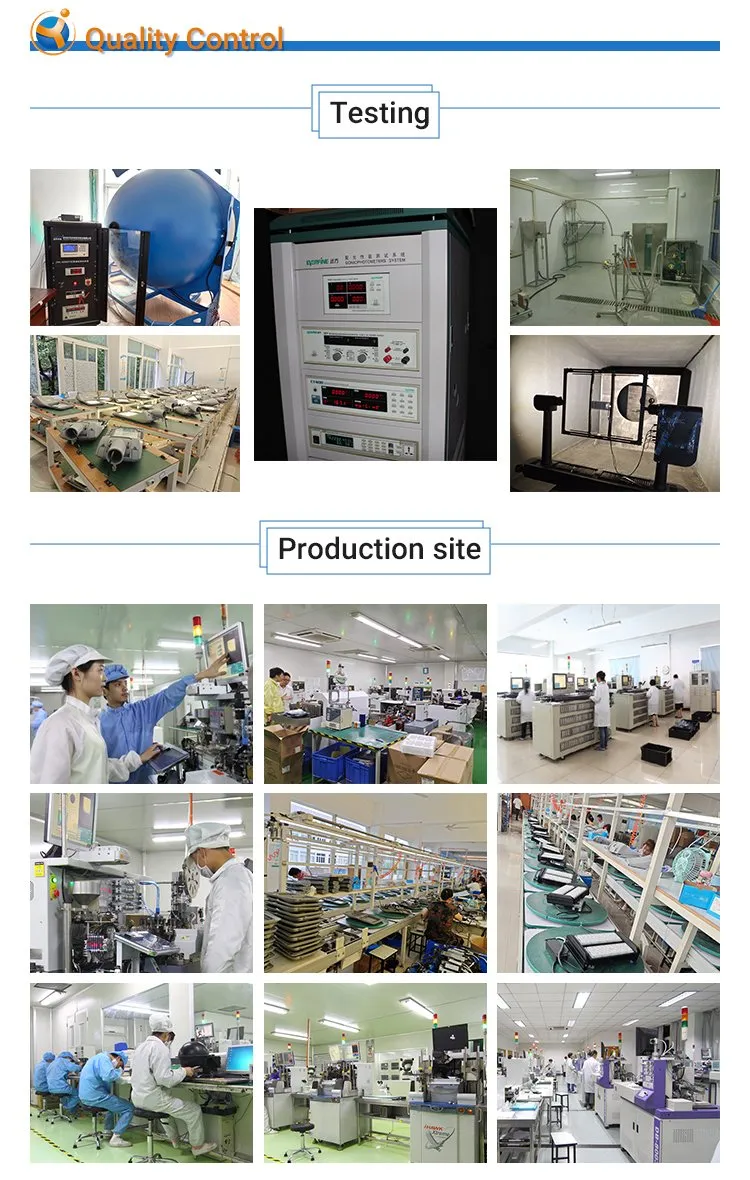

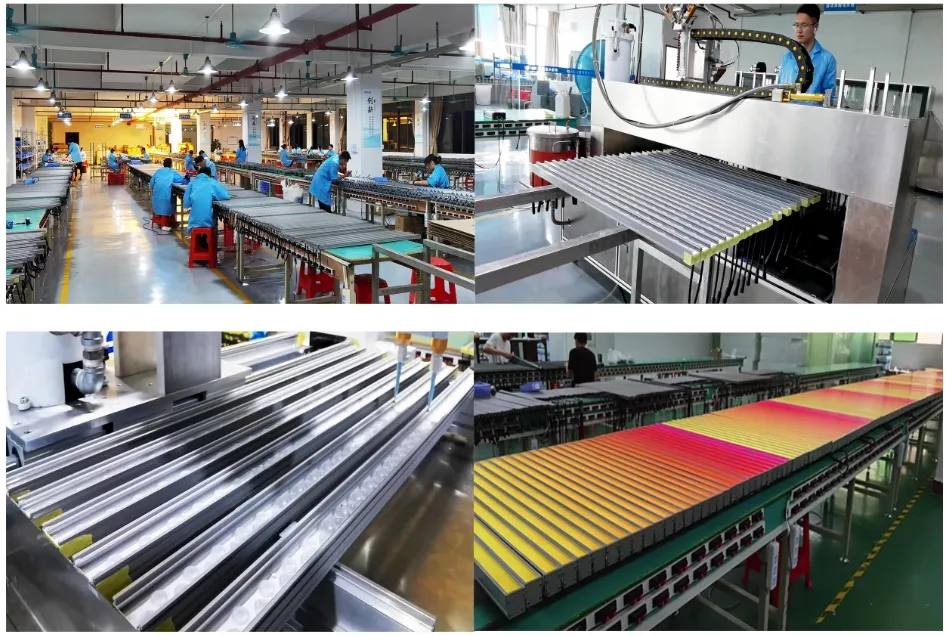

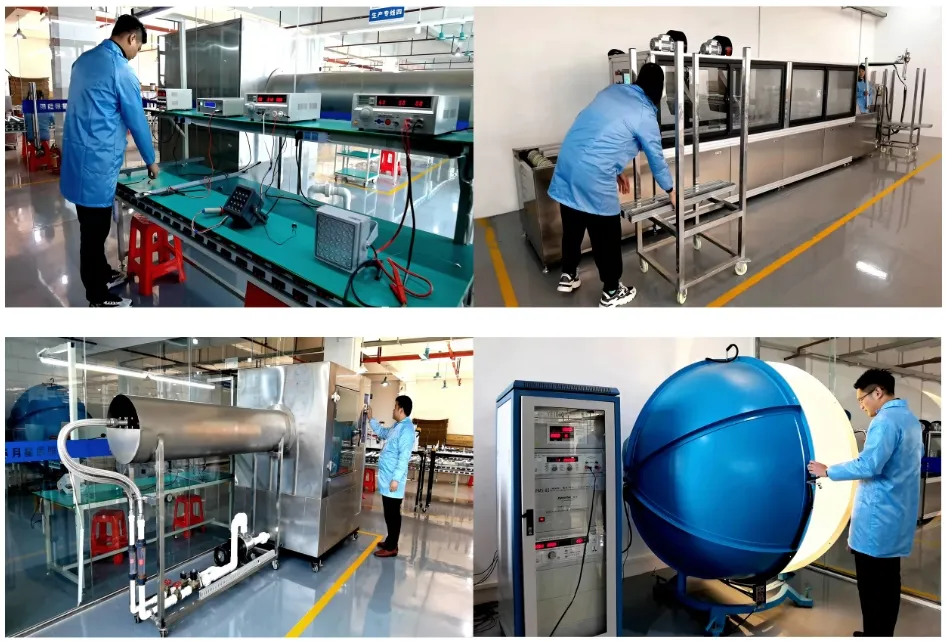

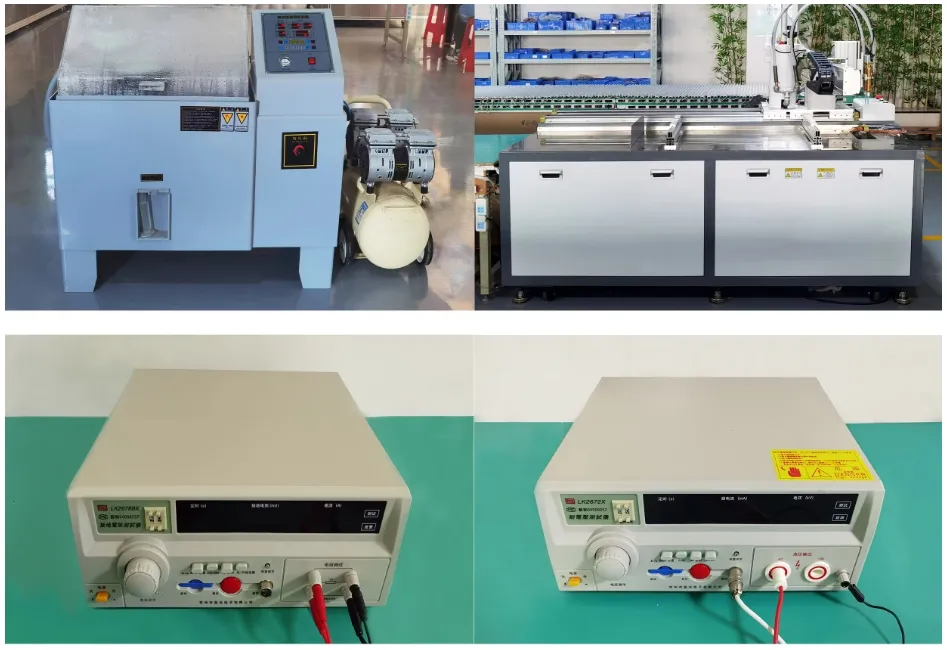

Factory & Production
Explore our exceptional collection of LED outdoor lighting, including poles, streetlights, floodlights, path lights, wall washer lights, and garden lights—each engineered for outstanding professional performance.
Frequently Asked Questions
What is the waterproof rating of this crescent lamp?
The lamp features an IP65 rating, utilizing polymer silicone filling and a specialized water leakage structure to ensure excellent outdoor performance.
Which LED chips are used in the JYFW01 model?
This model primarily uses high-quality Osram LED chips, available in SMD3030 or SMD 3535 types for optimal brightness and durability.
Can I control the color of the lighting?
Yes, the lamp supports Monochrome, RGB 3-in-1, and RGBW 4-in-1 full-color control via the standard DMX512-A protocol.
What is the input voltage for installation?
The product is designed to work with a DC24V working voltage, with support for standard 220V input through the integrated electrical system.
What materials are used for the lamp housing?
The housing is made of die-casting aluminum with an electrostatic spraying treatment, providing high resistance to corrosion and UV rays.
Where can this lamp be applied?
It is specifically designed for outdoor projection on roof tiles, gardens, parks, and industrial factory landscaping.
