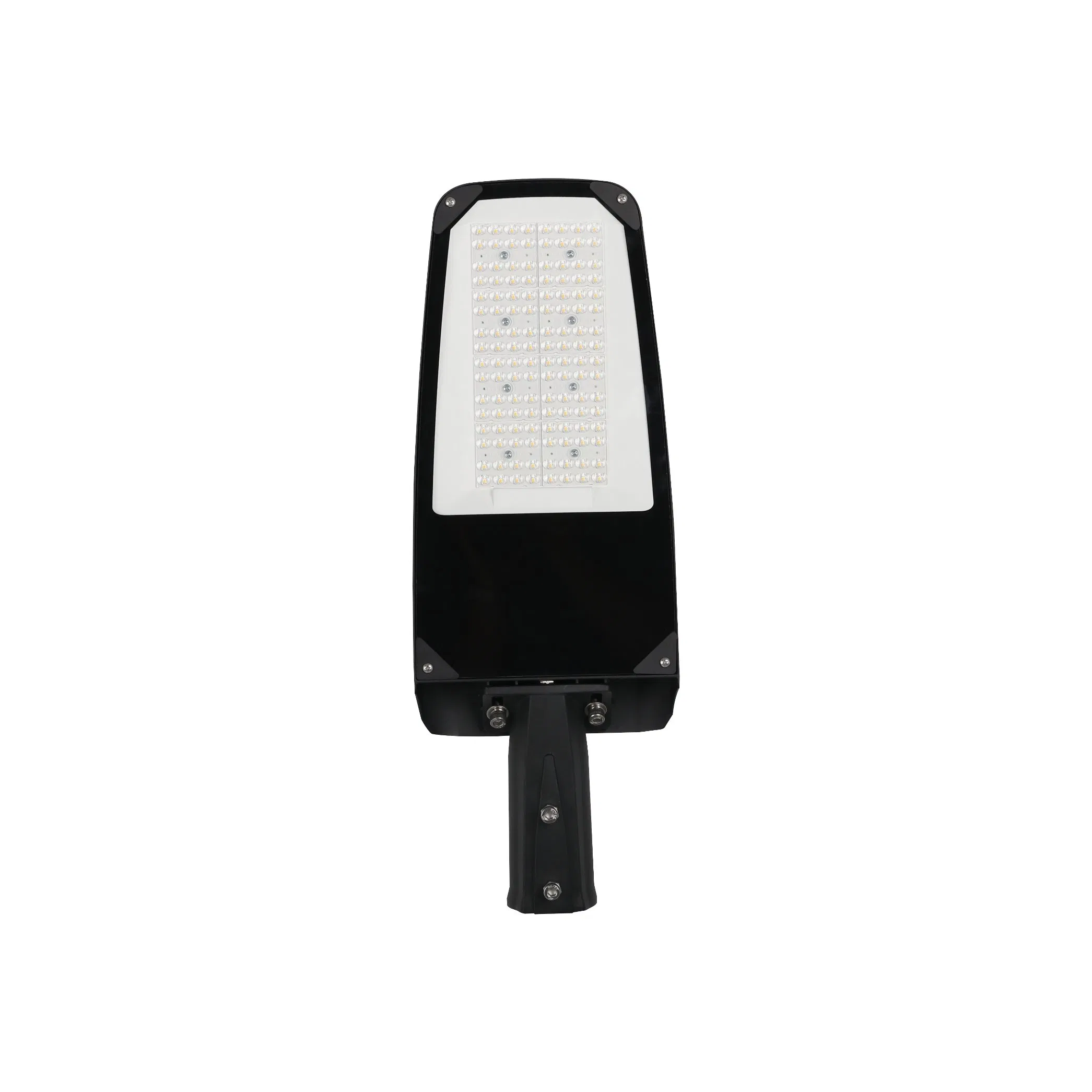

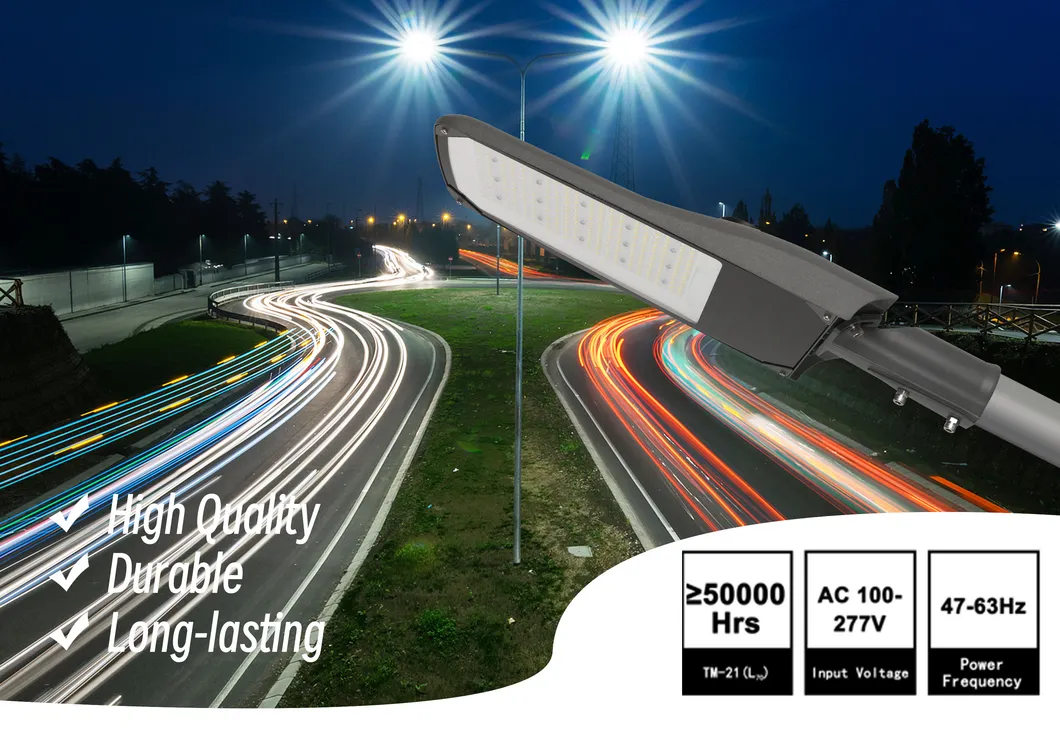

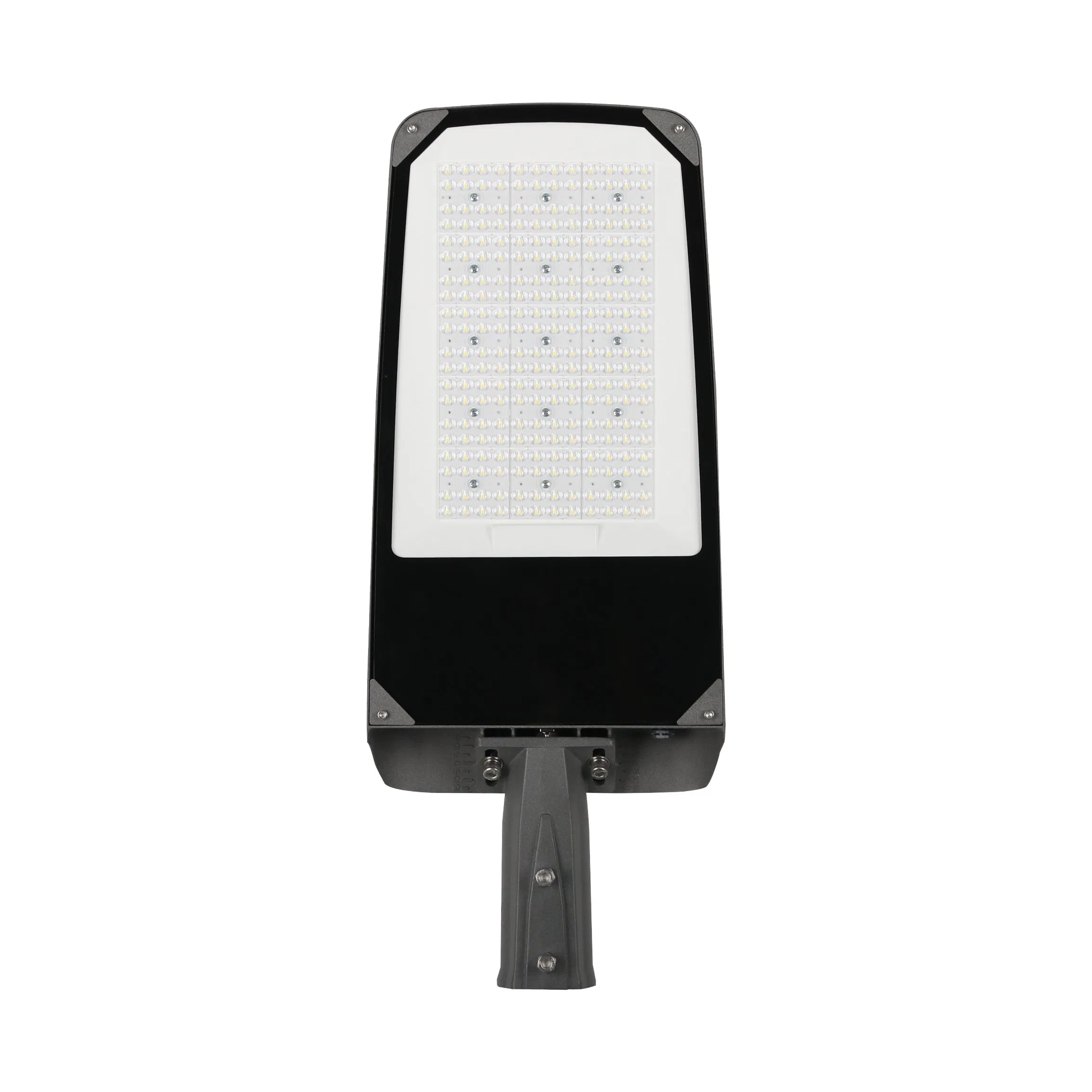

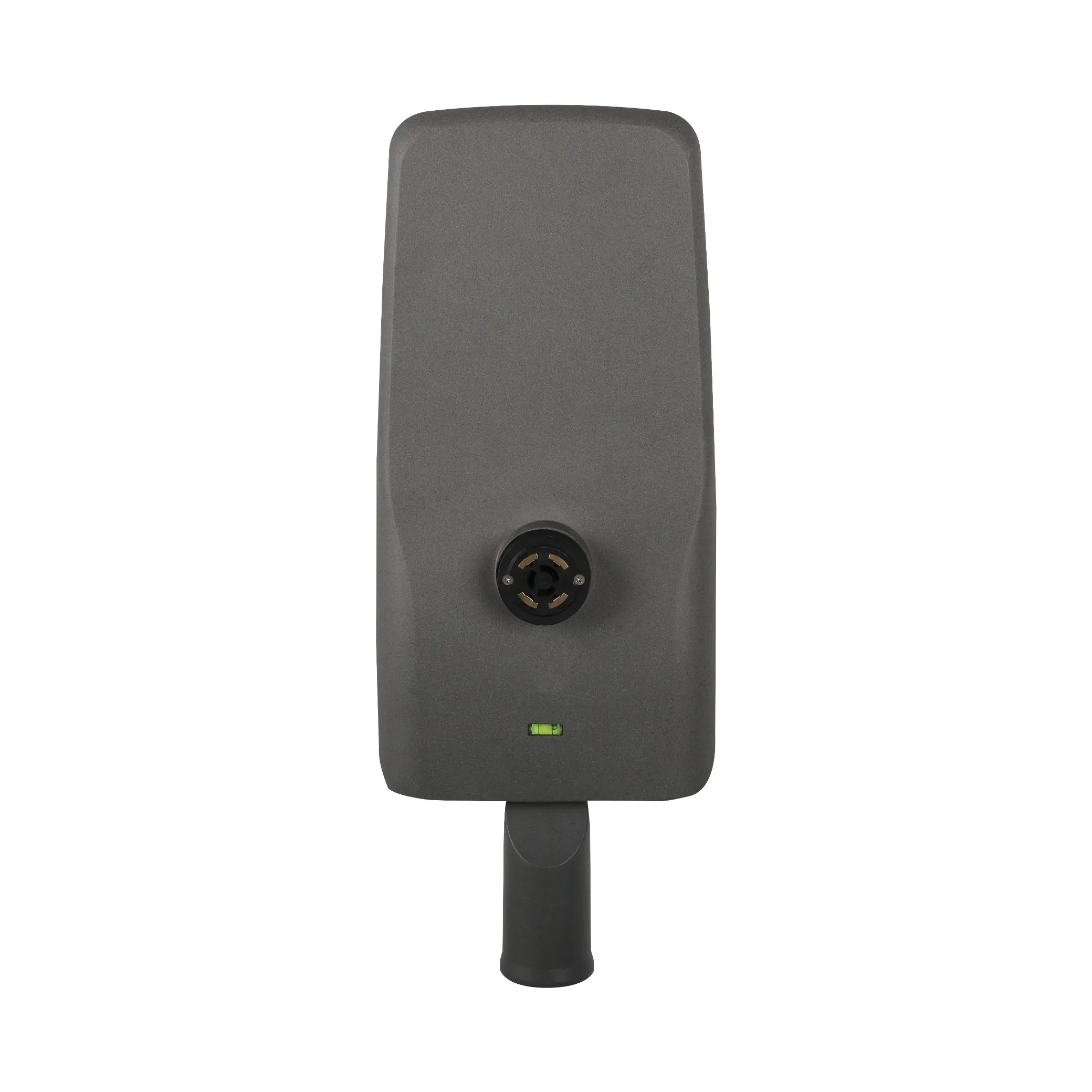

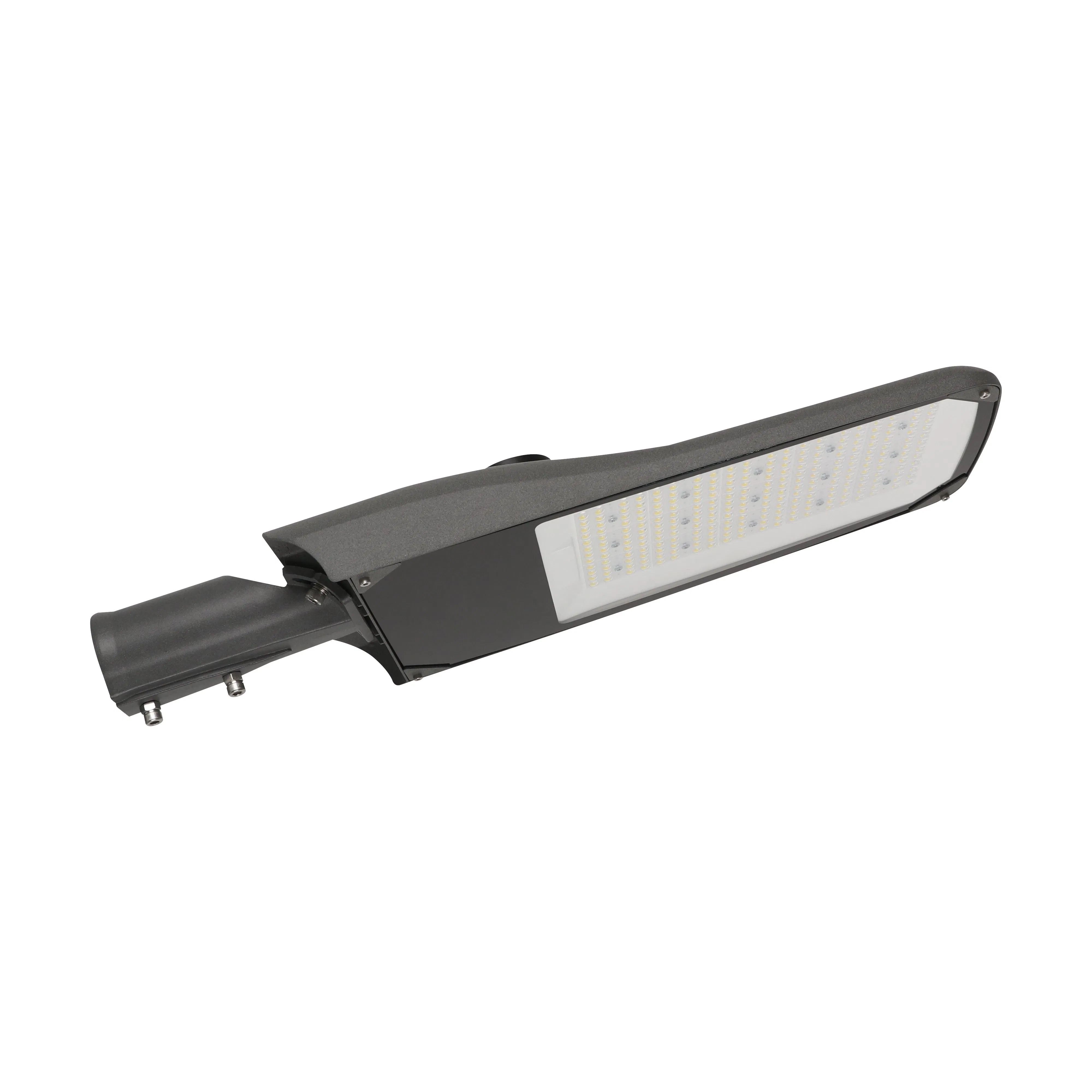

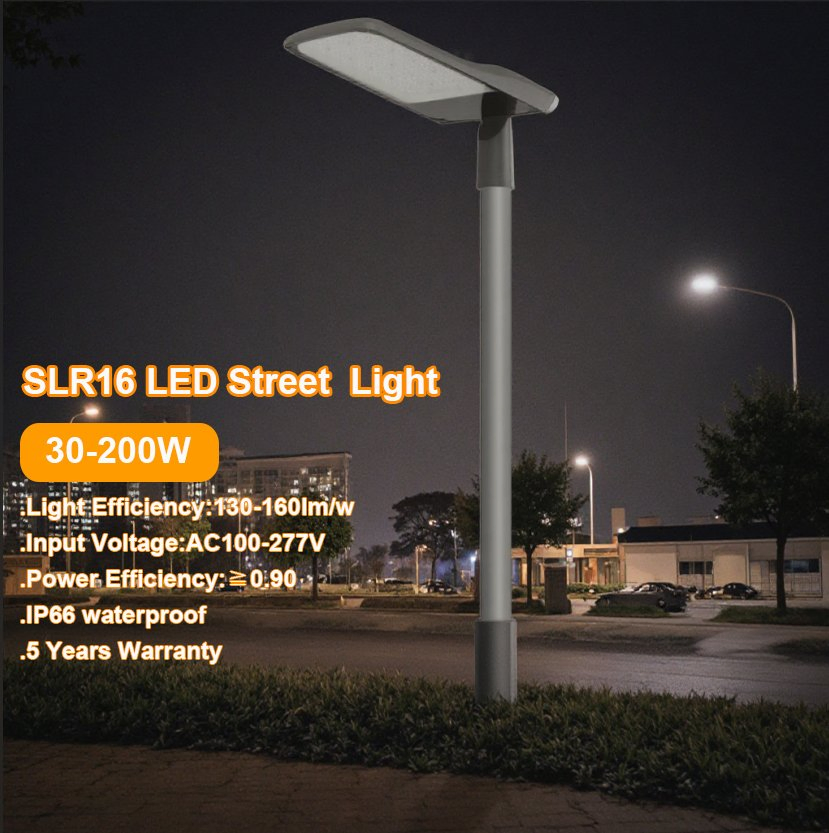

Energy-Saving 4000K Outdoor Smart LED Street Lighting Intelligent Control IP66 Waterproof Road Lamp Solution LED Parking Lot Light
Product Description
Basic Information
Lamp Body Material
Aluminum
Power
40W
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP65
Certification
CCC, CE, EMC, FCC, GS, LVD, RoHS, SAA, SASO
Input Voltage
100-277V
With Light Source
With Light Source
System Light Effect
130 Lm/W
LED Junction Temp
IP66
Power Efficiency
>90%

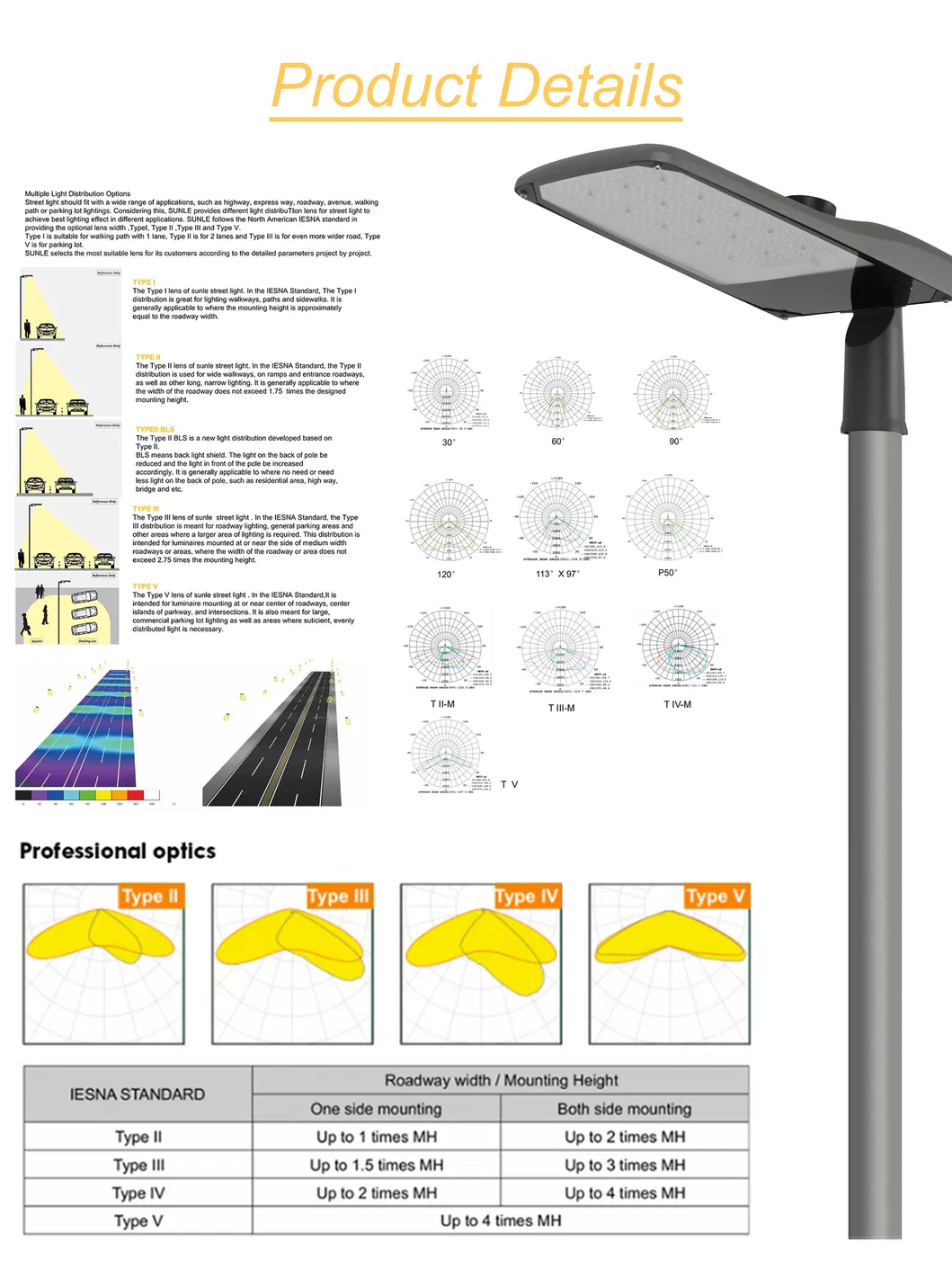

Light Distribution
Symmetry Light Distribution
CRI
70ra
Luminous Efficacy
130--160 Lm/W
LED Qty (PCS)
64/24
Production Capacity
100000/Week
Packaging & Delivery
Package Size
48.00cm * 20.00cm * 10.00cm
Package Gross Weight
1.650kg
Lead Time
30 days (1 - 10 Pieces); To be negotiated (> 10 Pieces)
Product Description
Specification Matrix
| Model NO. | Power(W) | Light Source | LED QTY (PCS) | Lens(PCS) | CCT(K) | Lumen(lm/W) | CRI |
|---|---|---|---|---|---|---|---|
| R16-13-30W | 30 | 3030(5050) | 64/24 | 4 | 4000k | 130/160 | >70 |
| R16-13-40W | 40 | 3030(5050) | 64/24 | 4 | 4000k | 130/150 | >70 |
| R16-15-50W | 50 | 3030(5050) | 96/36 | 6 | 4000k | 130/160 | >70 |
| R16-15-60W | 60 | 3030(5050) | 96/36 | 6 | 4000k | 130/150 | >70 |
| R16-110-80W | 80 | 3030(5050) | 96/48 | 8 | 4000k | 130/160 | >70 |
| R16-110-100W | 100 | 3030(5050) | 128/48 | 8 | 4000k | 130/160 | >70 |
| R16-115-120W | 120 | 3030(5050) | 192/72 | 12 | 4000k | 130/160 | >70 |
| R16-115-150W | 150 | 3030(5050) | 192/72 | 12 | 4000k | 130/160 | >70 |
| R27-120-180W | 180 | 3030(5050) | 240/90 | 15 | 4000k | 130/160 | >70 |
| R27-120-200W | 200 | 3030(5050) | 240/90 | 15 | 4000k | 130/160 | >70 |
Frequently Asked Questions
● What is the IP rating for this street lighting solution?
The lighting system is rated IP65/IP66, ensuring excellent waterproof and dustproof protection for outdoor highway and parking lot environments.

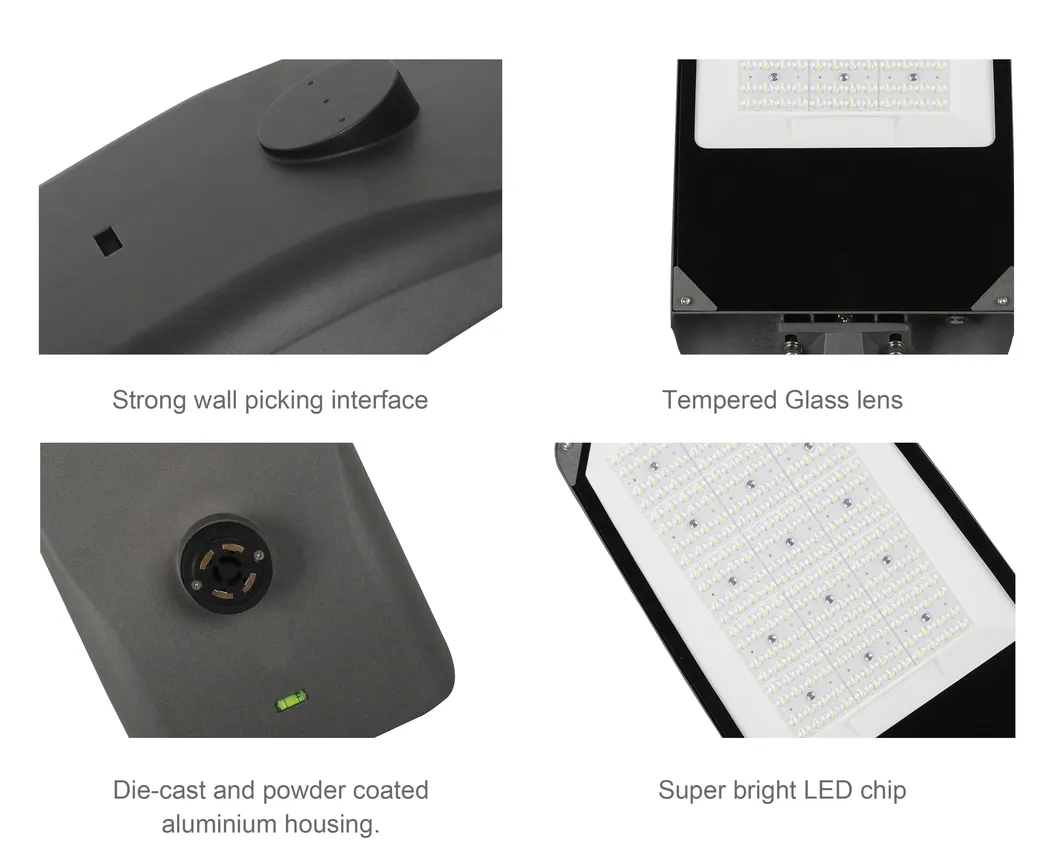

● What kind of material is used for the lamp body?
The lamp body is constructed from high-grade Aluminum, providing superior heat dissipation and long-term durability.
● What is the luminous efficacy of these LED lights?
This energy-saving solution provides high luminous efficacy ranging from 130 to 160 Lm/W, depending on the specific model and LED chip choice.

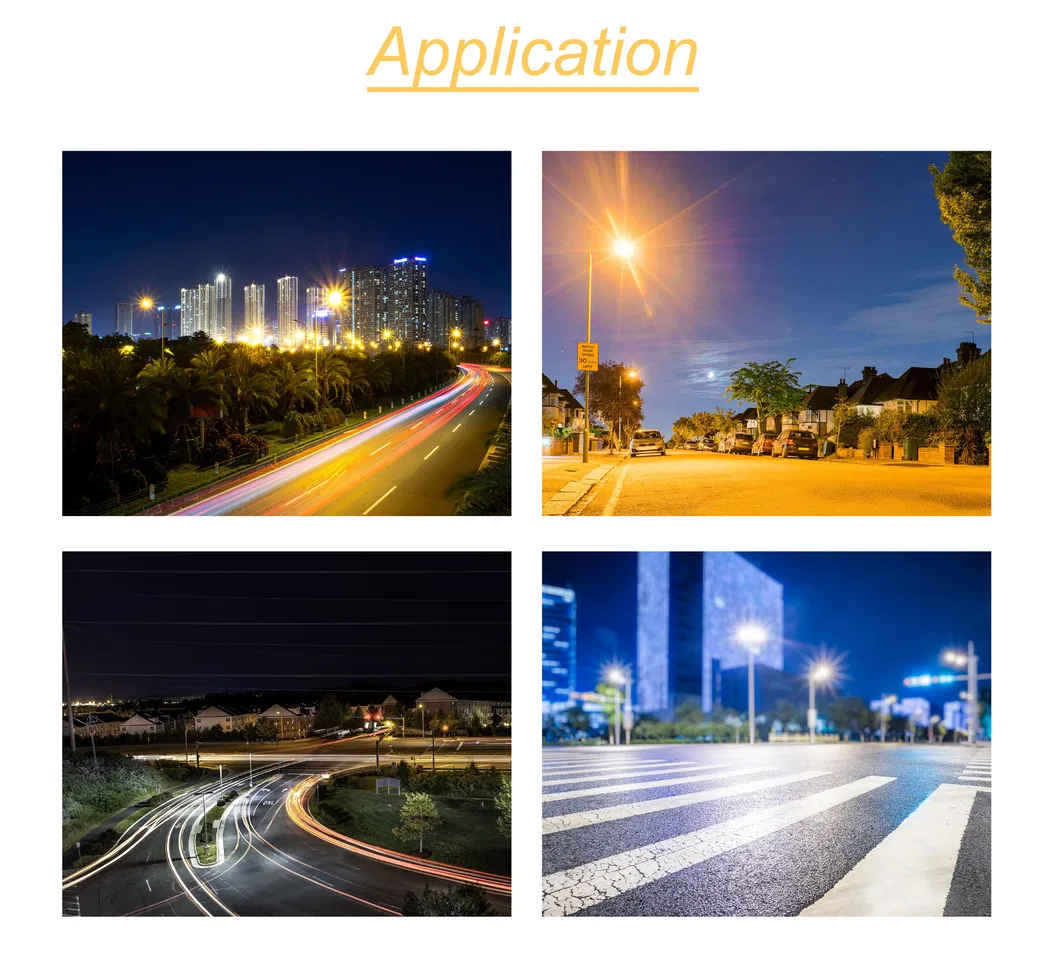

● Which applications are best suited for this lamp?
It is designed for versatile outdoor use, including highways, public squares, gardens, and commercial parking lots.

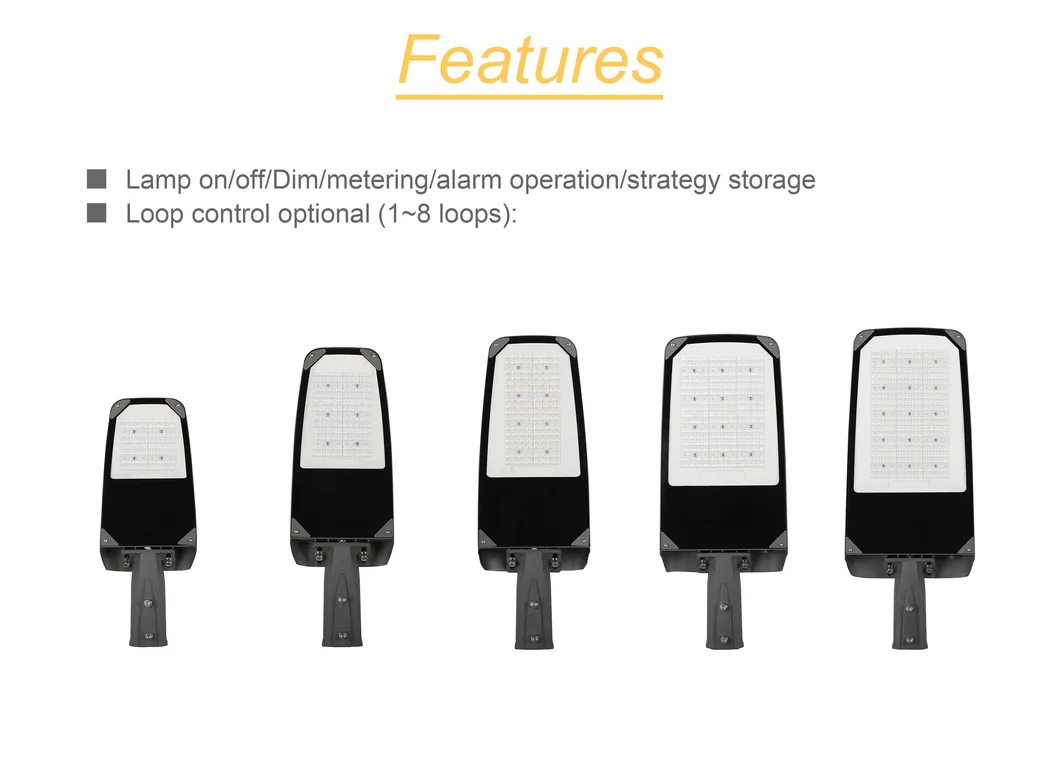

● Does the light come with an intelligent control system?
Yes, this is an Intelligent Control road lamp solution designed for smart outdoor lighting management and energy efficiency.
● What is the standard lead time for small orders?
For small orders between 1 to 10 pieces, the standard lead time is approximately 30 days.
