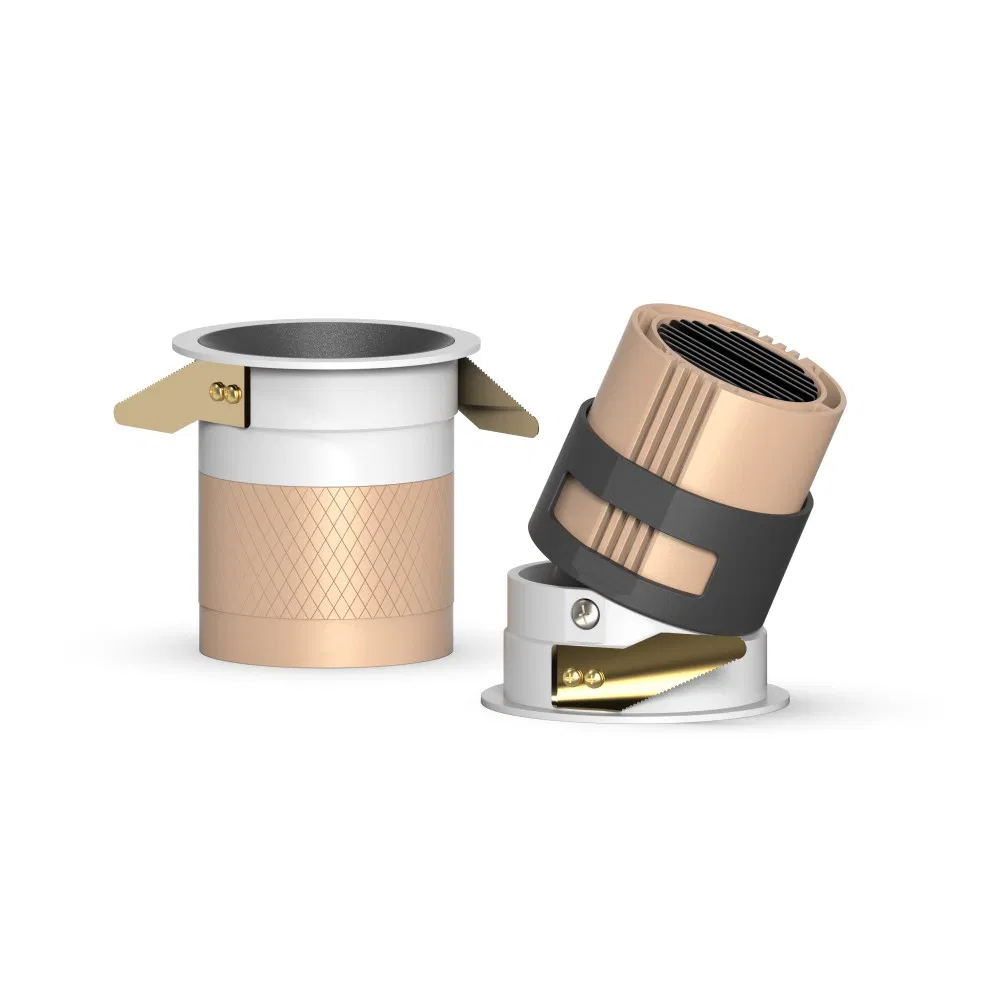

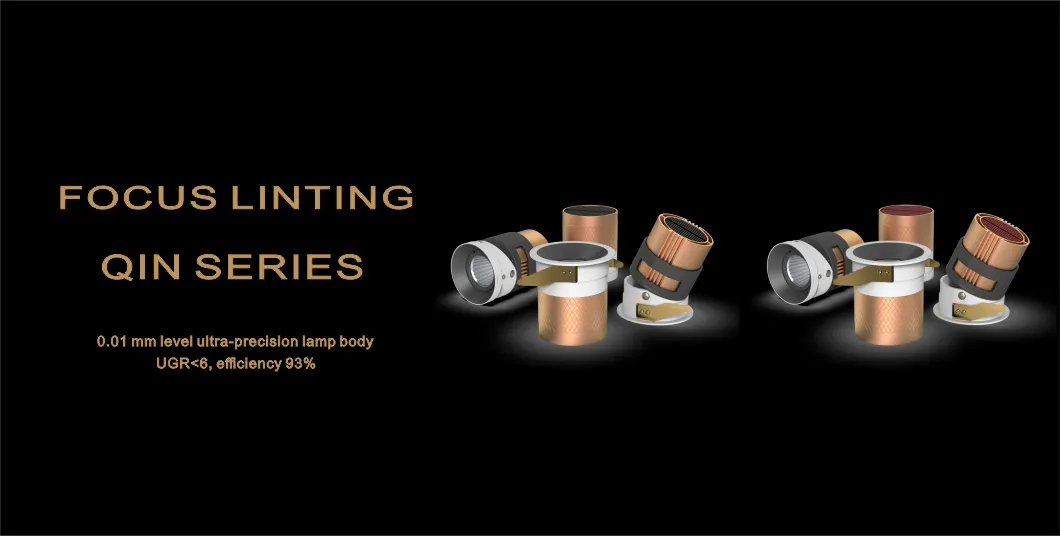

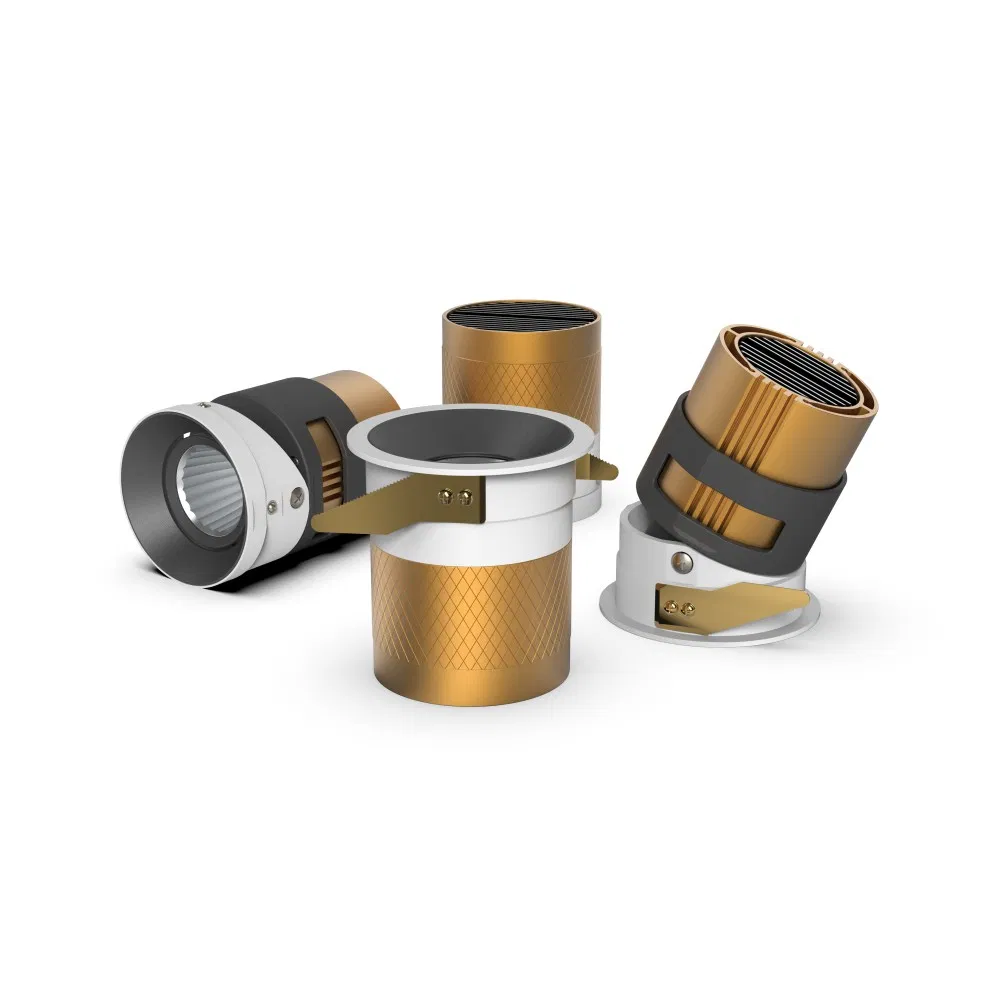

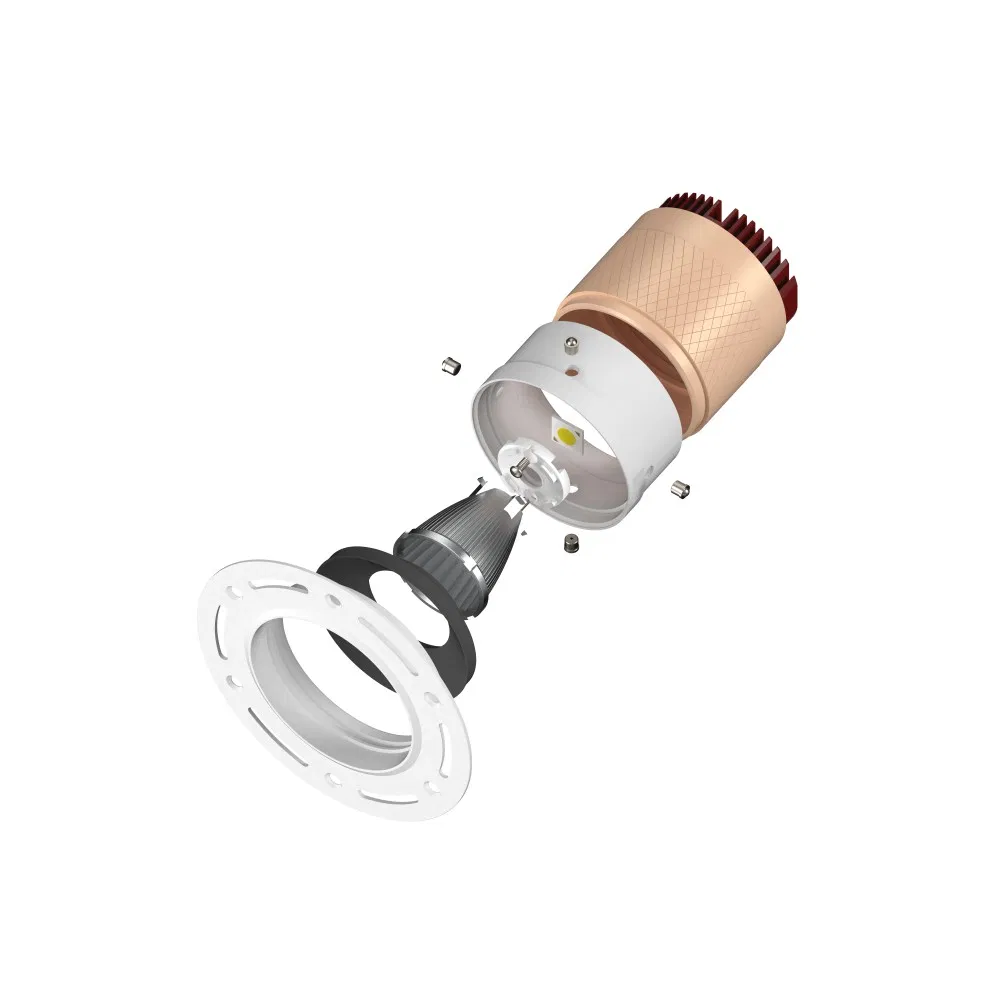

Commercial Architectural Prices Indoor Round Square Adjustable Recessed Mounted Anti Glare Trimless LED Die Cast Aluminium Profile Ceiling Downlight
Product Description
📋 Basic Info.
Model NO.
FL-QIN-SERIES
Power
12W
Color Temperature
Soft White, Warm White, Natural White, Cool White
Material
Aluminum
Installation
Recessed Mounted
Warranty
5 Years
Lumen
140lm/W
CRI
80/90/97
Certification
CE, FCC, RoHS
Working Time
50000h
💡 Product Description
| Recessed Mounted Trim/Trimless LED Downlight | |
|---|---|
| Power | 12W |
| Input Voltage | AC110V, AC220V, DC24V, DC48V |
| Lighting Efficiency | 140lm/W |
| CCT | 2700K, 3000K, 3500K, 4000K, 5000K, CCT tunable |
| Working Lifetime | 50,000h |
| IP Rating | IP20 (IP65 customized) |

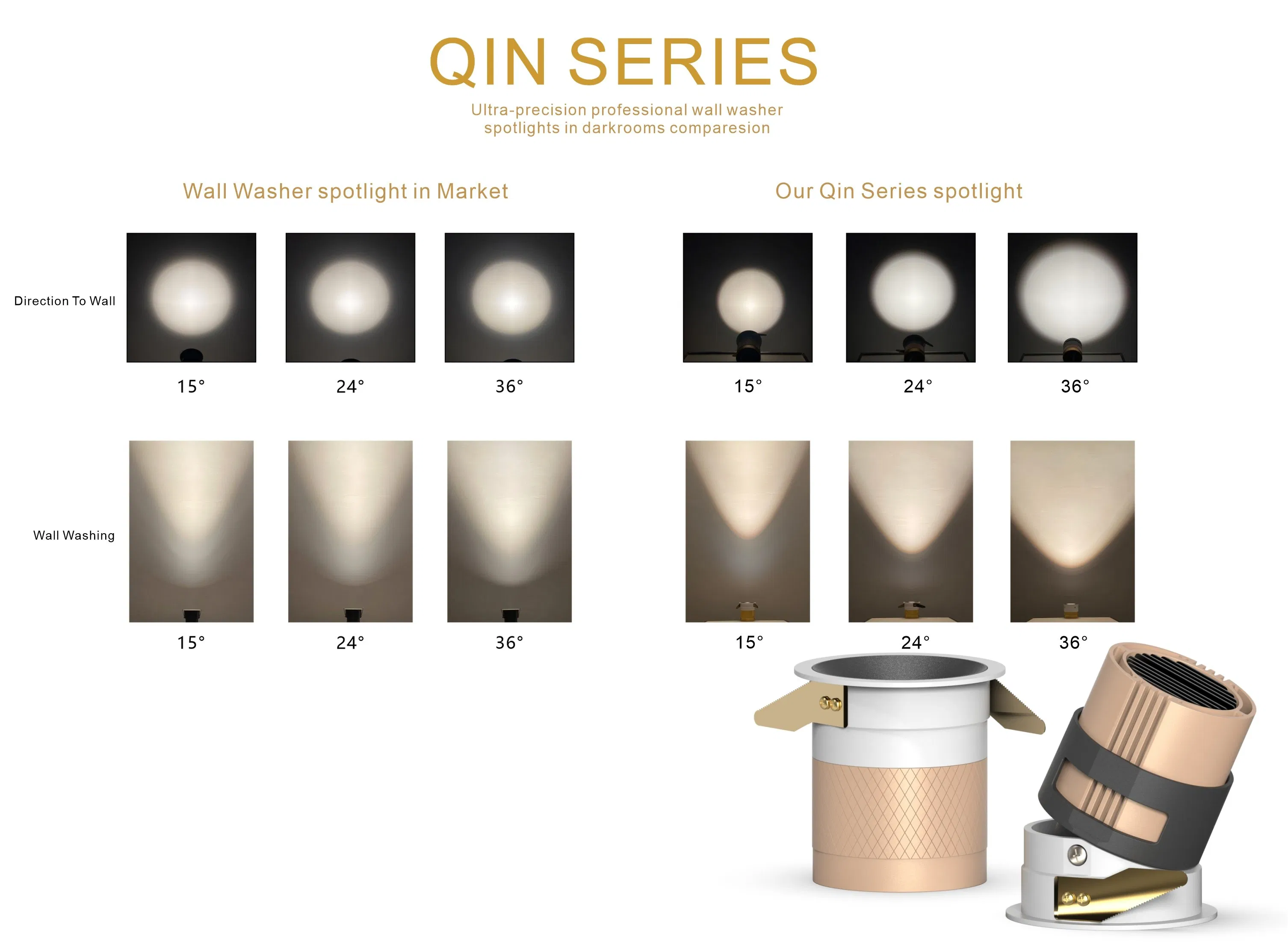

| Beam Angle | 15°, 24°, 36° |
| Function | ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee dimming |
📊 Technical Datasheet
| Power Type | Dimension | Cuthole | Direction | Beam Angle |
|---|---|---|---|---|
| 12W (Trim) | φ82*H83/72/63mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trimless) | φ70*H83/72/63mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trim) | φ82*H105/89/80mm | φ75mm | Adjustable | 15°/24°/36° |
| 12W (Trimless) | φ70*H105/89/80mm | φ75mm | Adjustable | 15°/24°/36° |

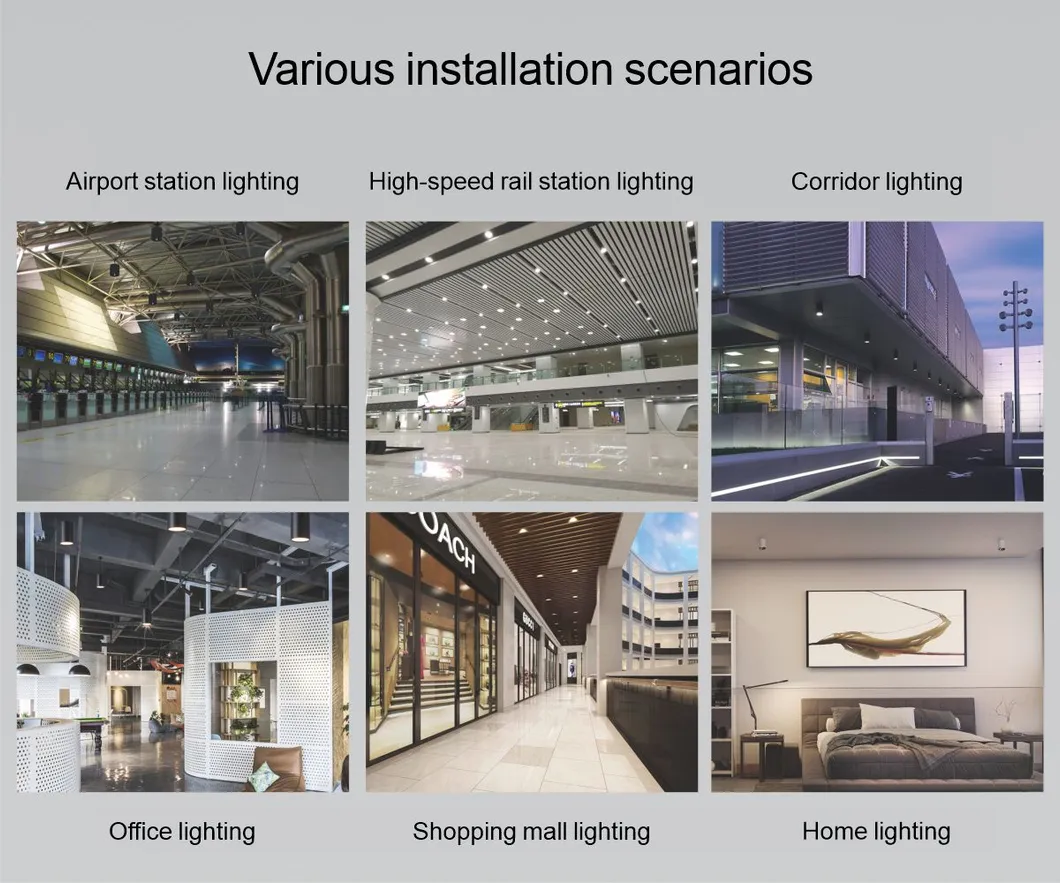

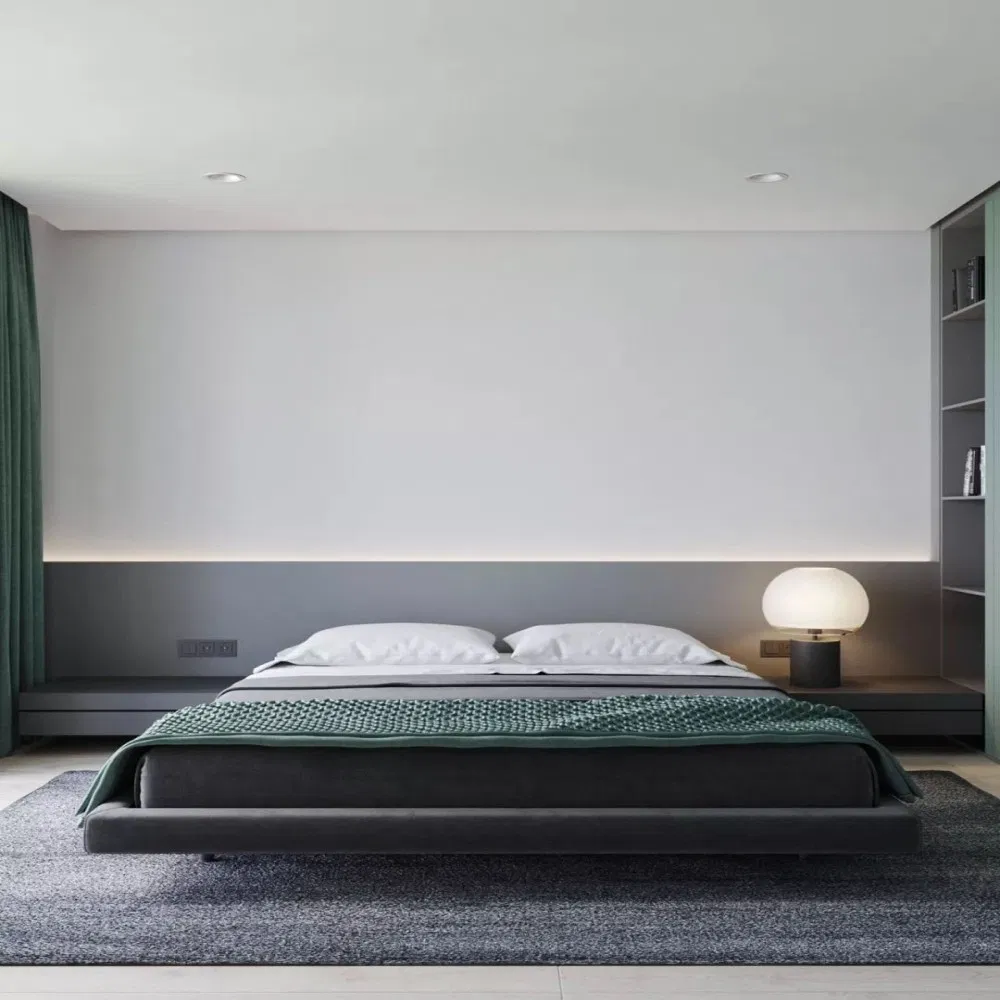

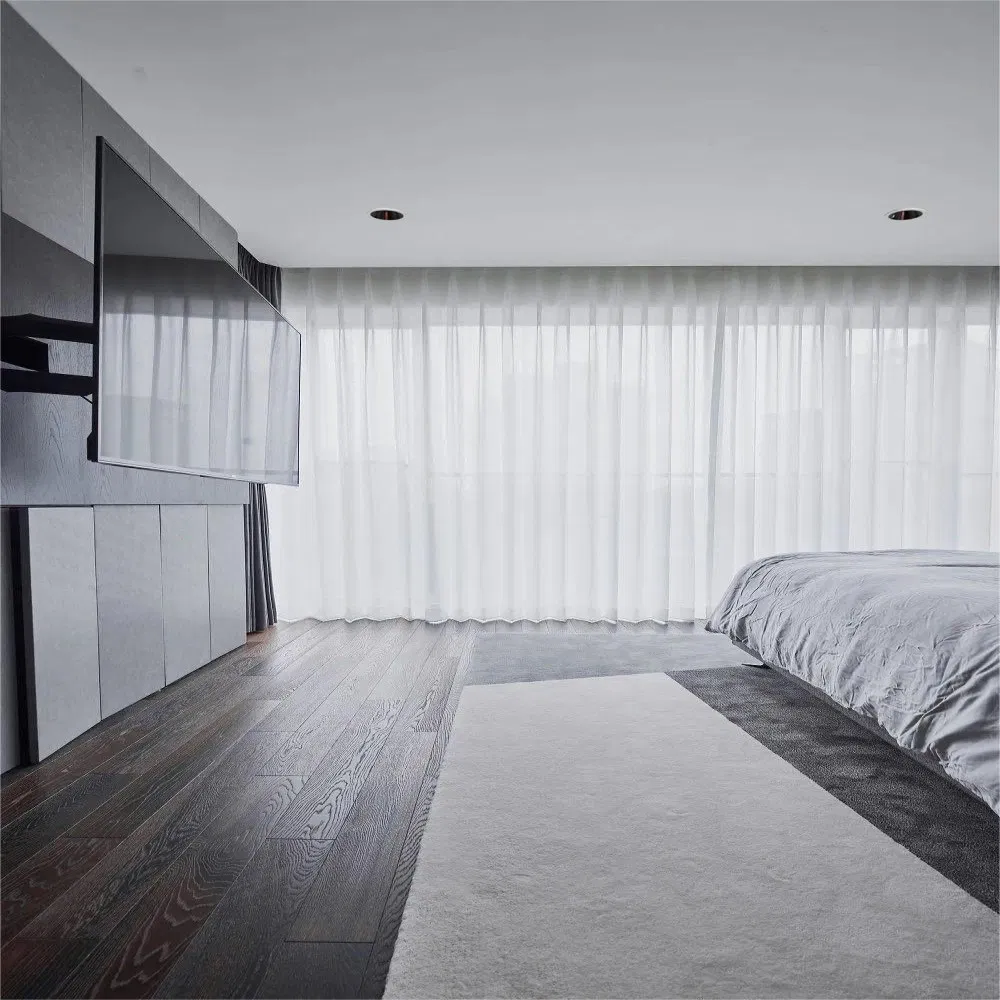

🏠 Application Scenarios
🏢 Company Profile

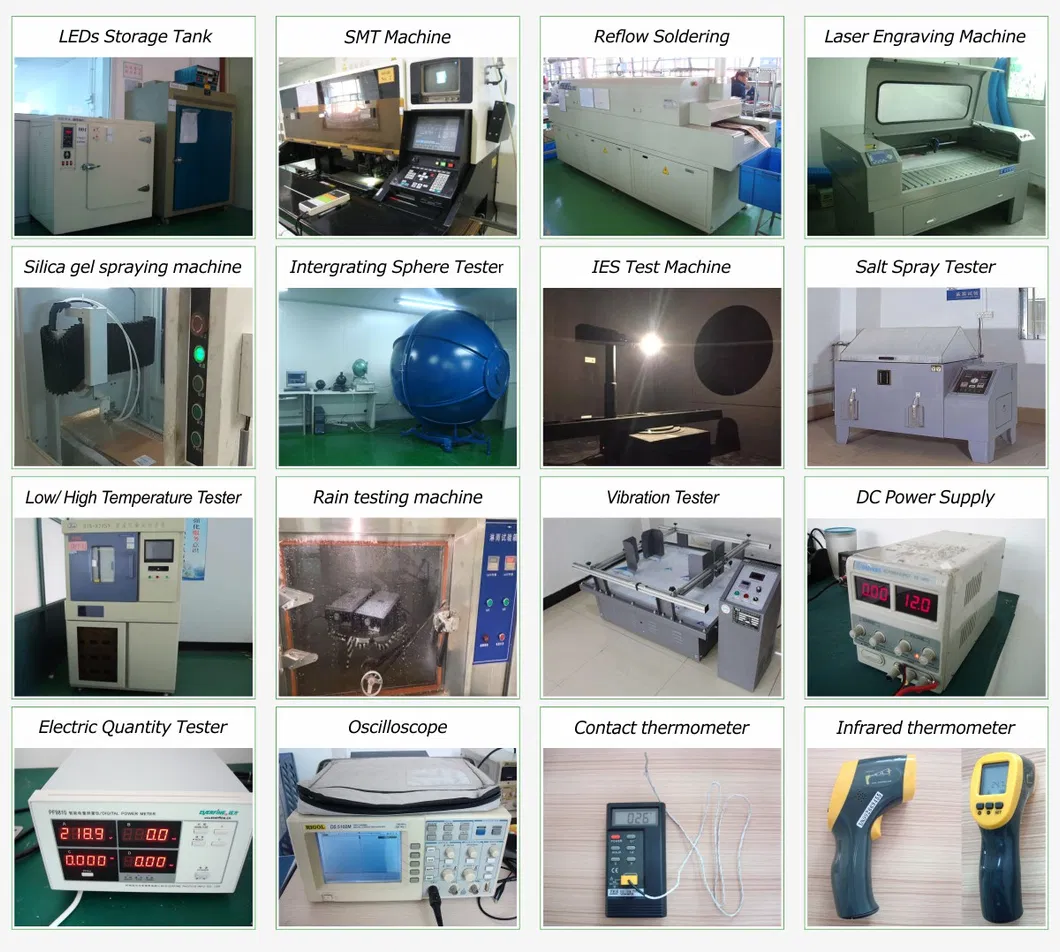

Specializing in LED lighting with an experienced R&D team and professional testing equipment. We operate a complete produce quality control system from R&D and production to testing and final delivery.
Our main product lines include LED track lights, LED downlights, and commercial/industrial lighting. Since 2010, we have provided extensive LED Lighting OEM services, particularly in designing custom LED drivers to satisfy specific functional requirements. Our products are recognized across global markets including Europe, America, Britain, Canada, Australia, and Singapore.
❓ FAQ
Are you a factory or trading company?
We are a professional LED Lighting products factory, producing LED lighting since 2010 and exporting globally since 2012.
Do you have a minimum order quantity (MOQ)?
Yes, we require a minimum order quantity for international orders, though smaller quantities for initial reselling are acceptable.
Can you provide OEM or ODM services?
Yes, we have a strong development team and products can be customized according to your requests.
What is the product warranty?
We provide a 5-year warranty on materials and workmanship, committed to resolving all customer issues to satisfaction.
Do you guarantee safe and secure delivery?
We use high-quality packaging to ensure products are not damaged during transportation.
What documentation can you supply?
We provide Certificates of Analysis / Conformance, Insurance, Origin, and other necessary export documents.
