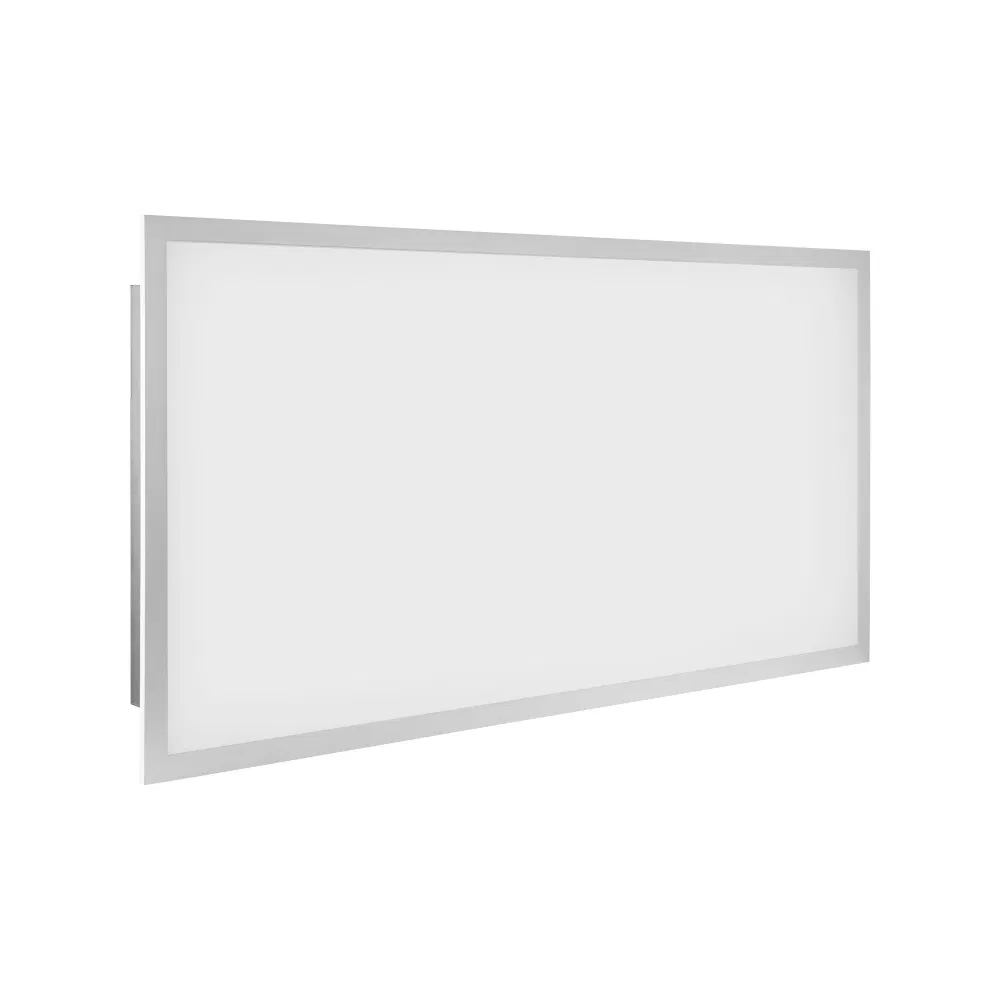

UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
Product Description
Basic Specifications
Product Overview
UL/DLC Approved 100/130lpw LED Panel Light designed for commercial and residential applications. These panels feature world-class LED technology for superior brightness and light uniformity, making them an ideal choice for ceiling fixtures.
Product Advantages
- High efficiency at 125lm/W, eligible for government rebates.

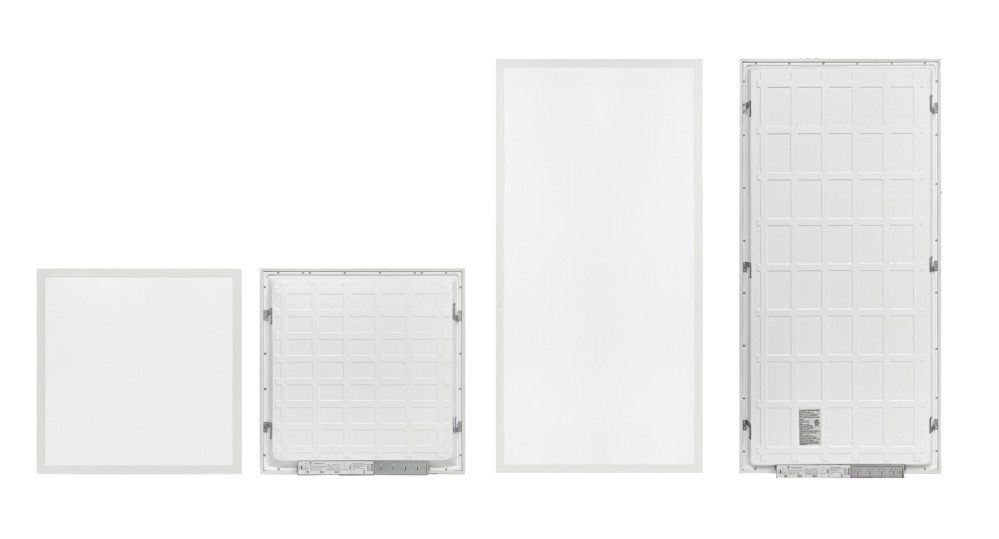

- Available in multiple sizes: 2x2ft, 1x4ft, 2x4ft, and 1x1ft.
- Reinforced frame with thermoplastic coating for scratch resistance and durability.
- Fire-rated junction box design ensures safe and easy installation.
- Smooth illumination without hot spots via transparent polycarbonate lens.
- Energy-efficient performance lasting 5 times longer than fluorescent panels.

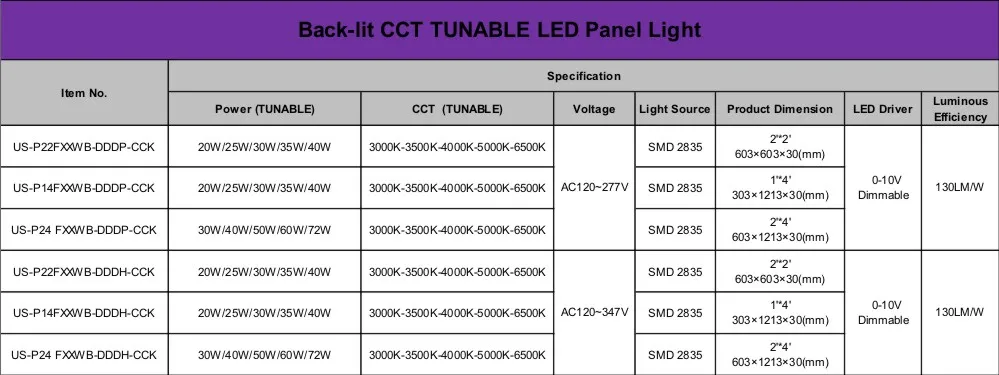

Technical Specifications
| Light Source | 2835, LM80 |
| System Efficiency | 130lm/w |
| Parameters | CRI(Ra)>83, PF>0.95, THD<15%, UGR<19 |

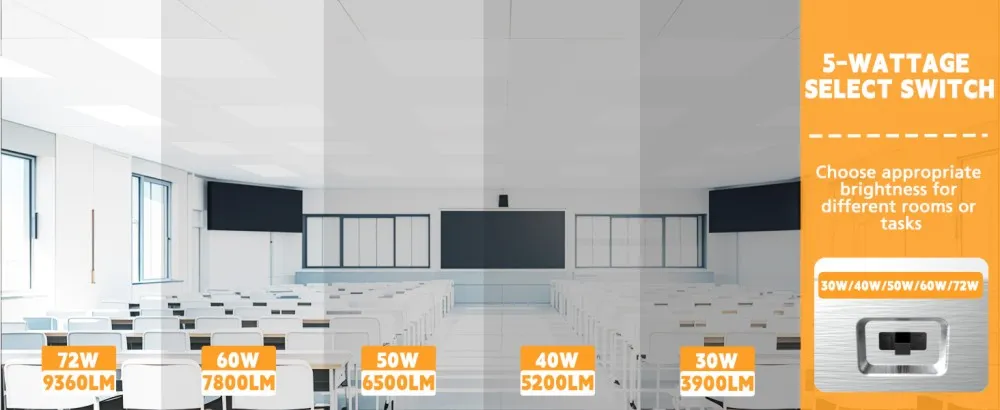

| Power Options | 20W / 30W / 40W / 50W / 60W / 72W / 75W |
| Dimmable Mode | 0-10V, PWM |
| Material | AL+PMMA Diffuser |
| Installation | Embedded, Suspending, Roof mount, Latch catches |
| Warranty | 5 Years |
Installation & Applications
Quality Assurance
- Stability Test: 100% aging test for at least 48 hours.
- Lighting Test: 100% functionality check before packing.
- Drop Test: Ensuring packaging integrity for safe transport.
Frequently Asked Questions

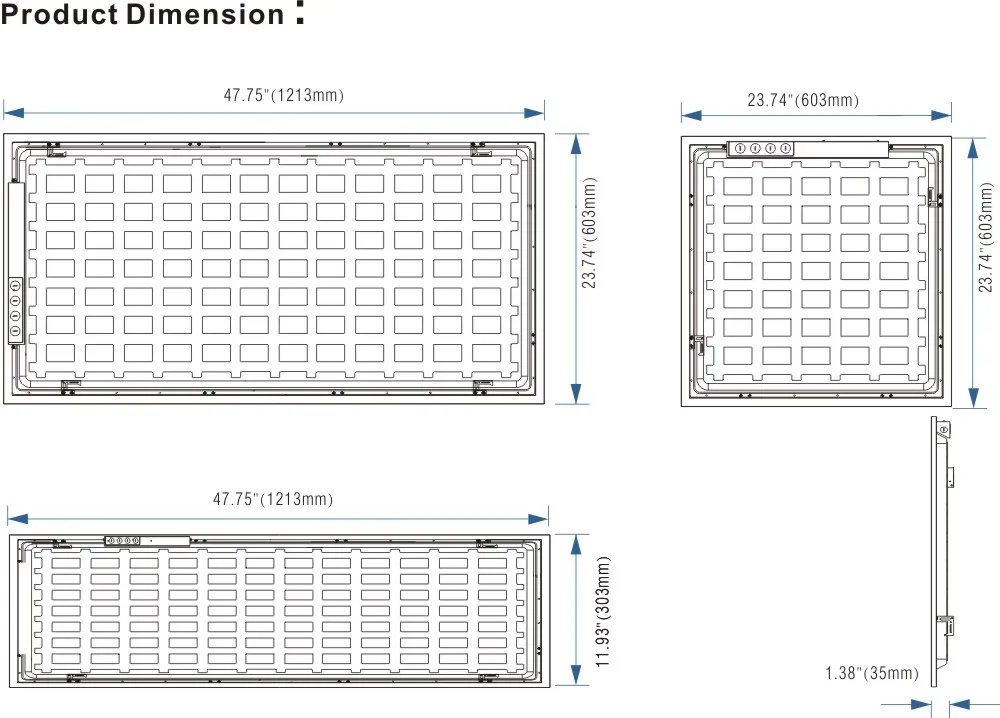

We offer a variety of standard sizes including 1x1ft (297x297mm), 2x2ft (603x603mm), 1x4ft (303x1213mm), and 2x4ft (603x1213mm).
Yes, these LED panel lights support 0-10V dimming and PWM modes for flexible brightness control.

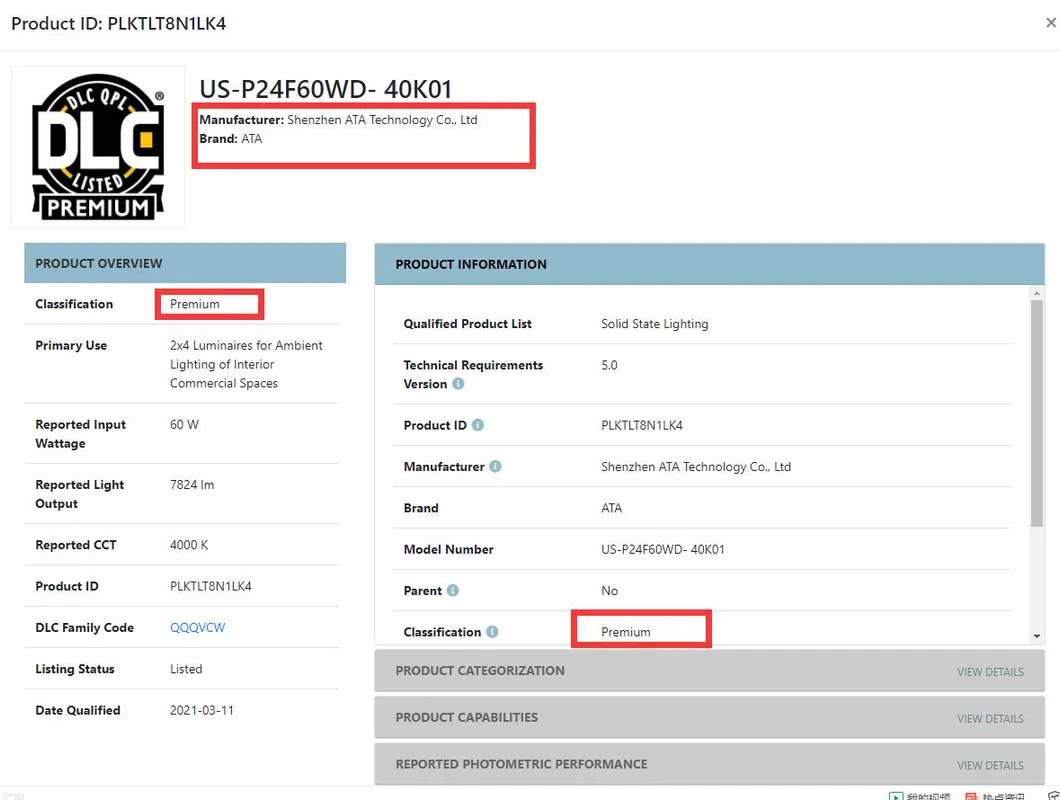

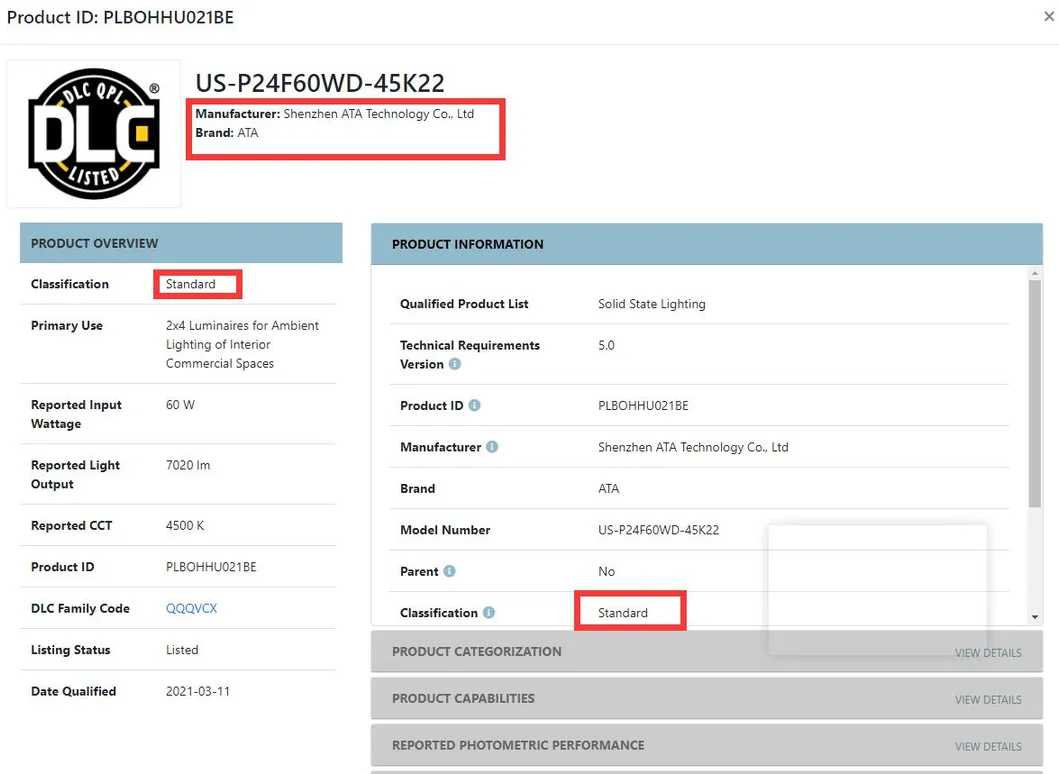

Our panels are highly certified with UL, cUL, DLC 5.2, TUV, GS, CB, SAA, FCC, CE, and RoHS compliance.
The panels feature high-quality SMD 2835 LEDs and come with a 5-year warranty for peace of mind.

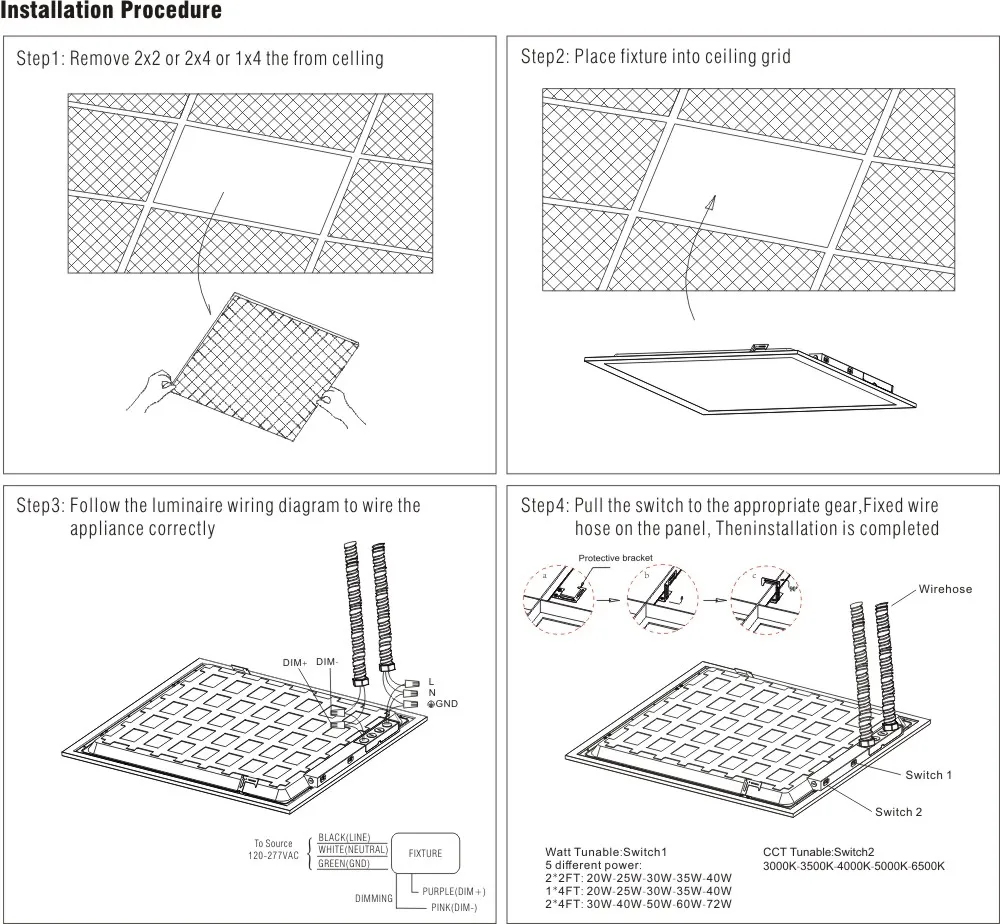

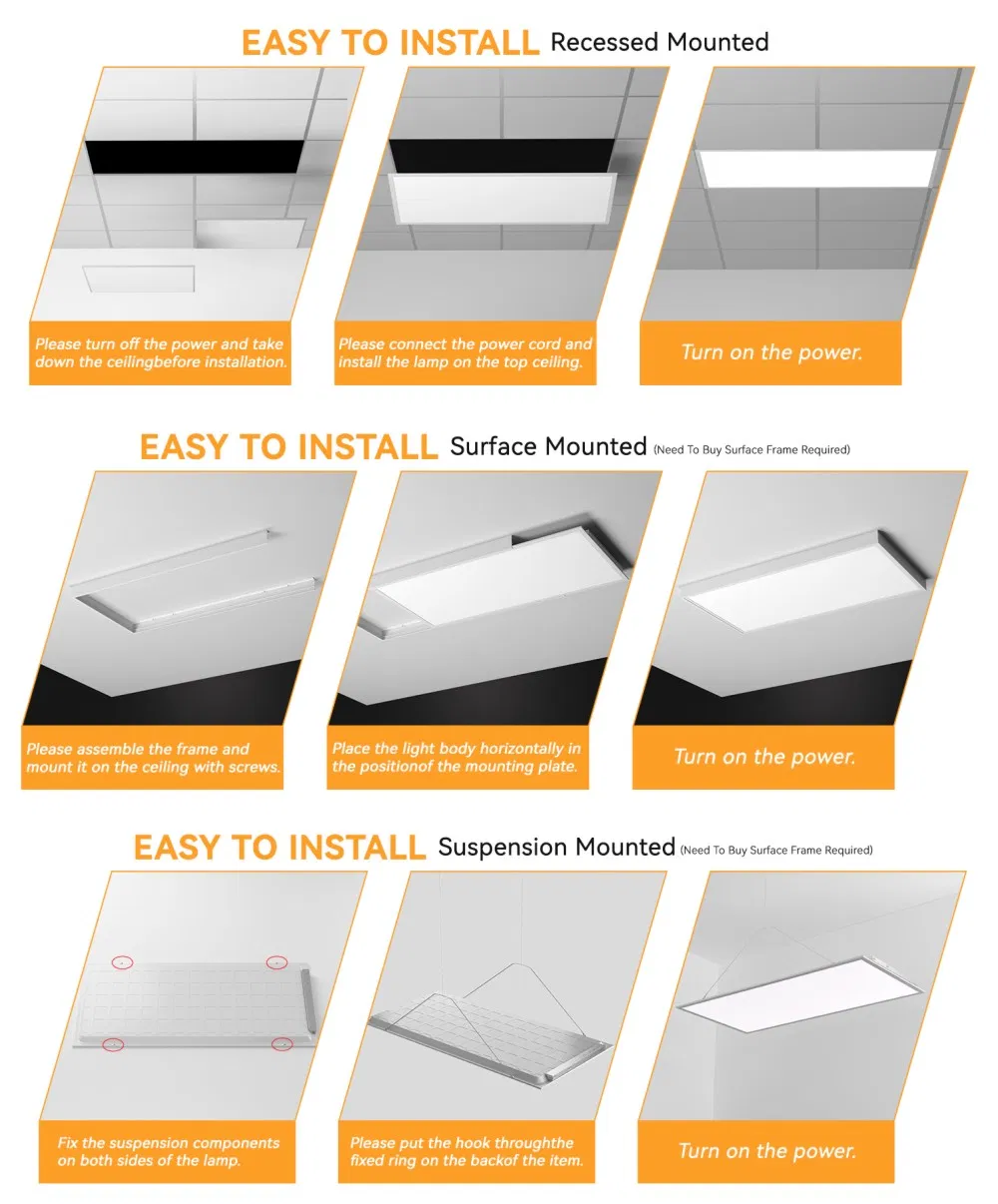

They support multiple installation methods: Embedded (no accessories needed), Suspending (with wire rope), Surface mounting (with frame), and Earthquake proof with hooks.

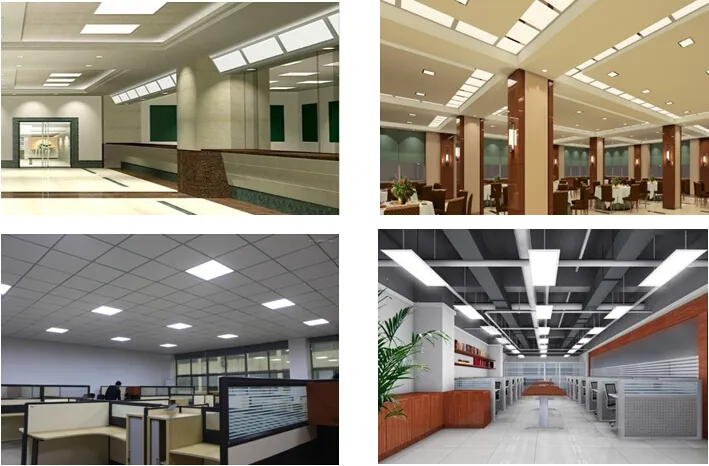

They are perfect for high-end offices, hospitals, schools, hotels, restaurants, retail shops, and residential spaces requiring uniform, high-efficiency lighting.
