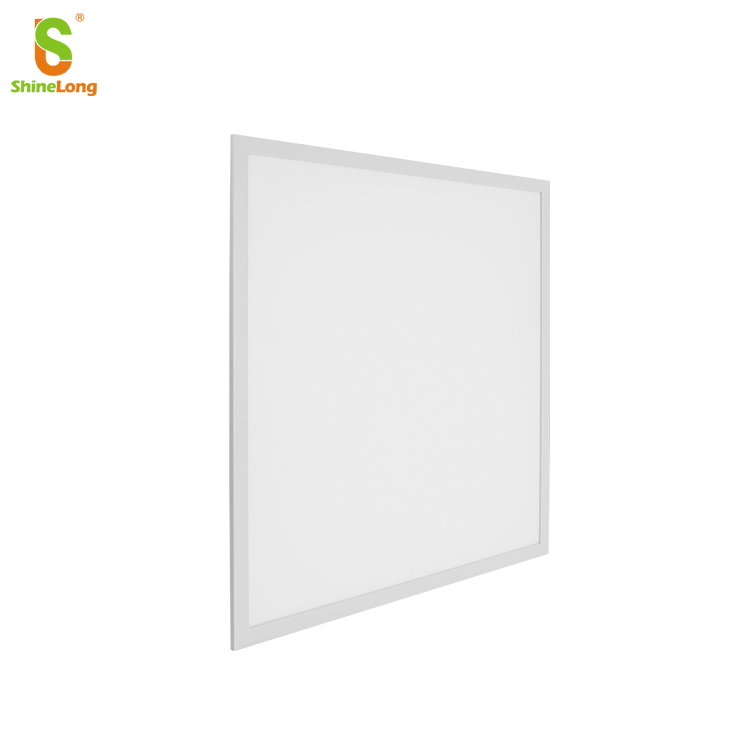

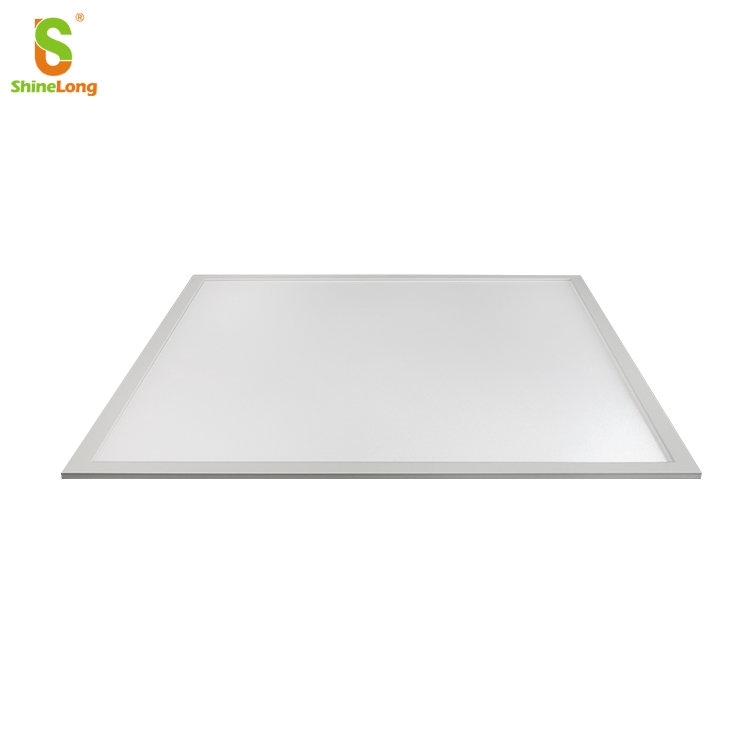

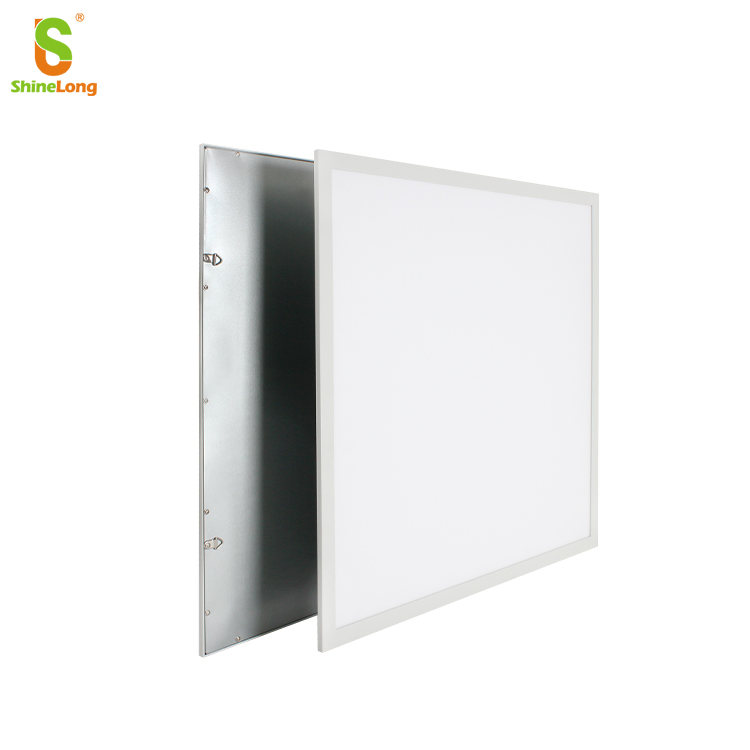

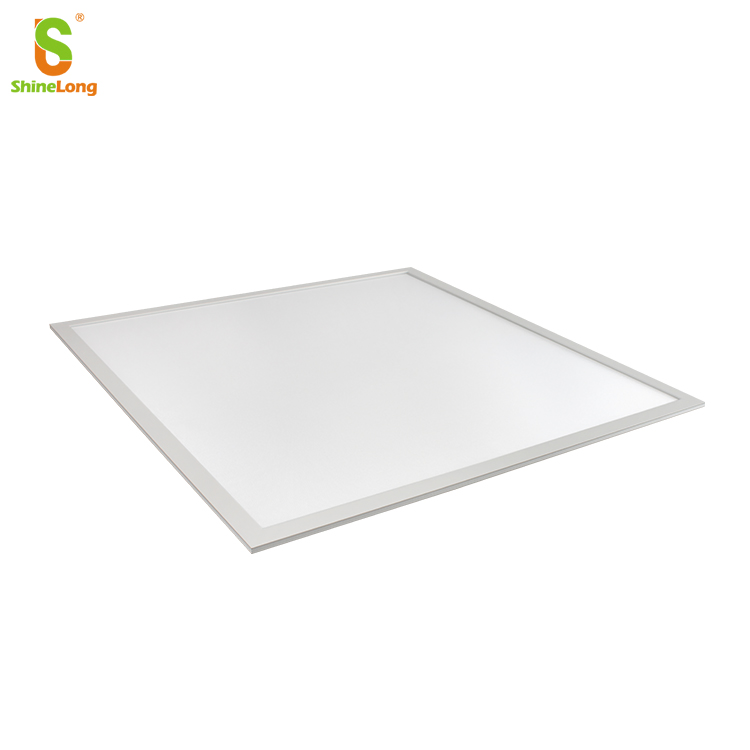

Cost-Effective 25W 40W Ultra-Slim Panel Light 125lm/W for Office and Retail
Product Description
Basic Specifications
Model NO.
SL-P1112-X-26B
Emitting Color
White
Dimmable
Support 1-10V/DALI
Appearance
Square / Rectangle
Mounting Type
Suspending & Ceiling & Recessed
Material
Aluminum + PMMA
Voltage
100-240V / DC30-42V
Beam Angle
120°
Wattage
12W / 25W / 40W / 60W
Luminous Efficacy
100-125lm/W
CRI / SDCM
Ra>80 / SDCM<4
Warranty
5 Years

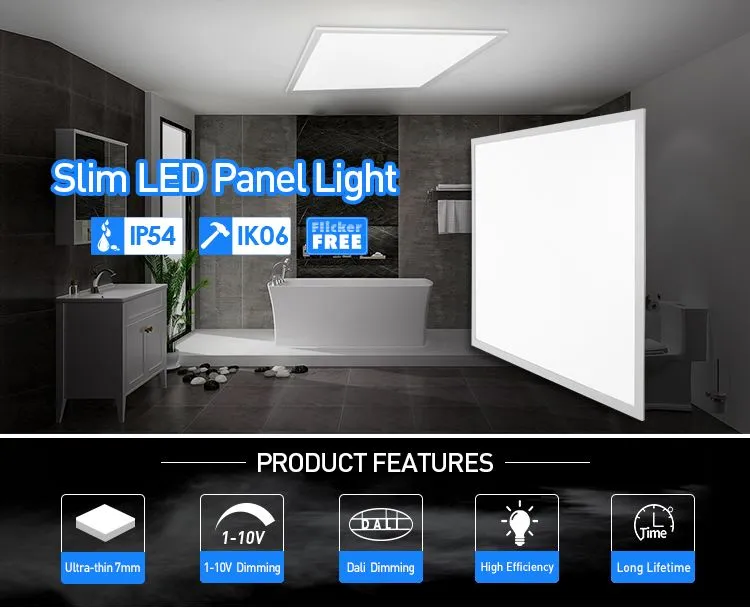

IP54 IK06 Ultra-Slim LED Panel Light
Product Features

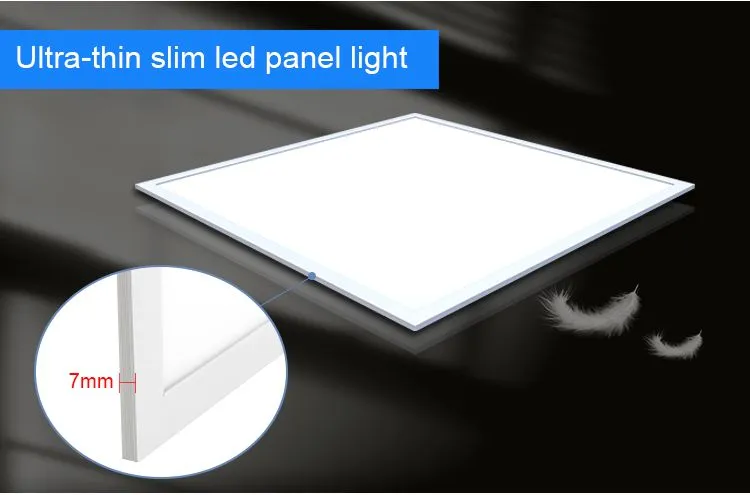

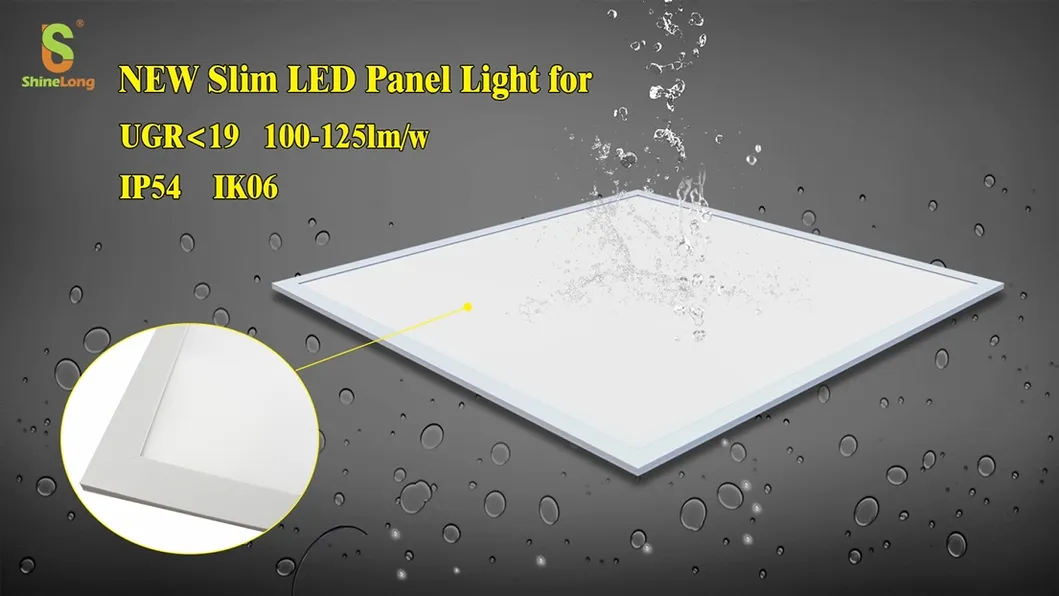

- Superior Protection: Ultra-thin slice design with IK06 impact resistance and IP54 splash-proof rating.

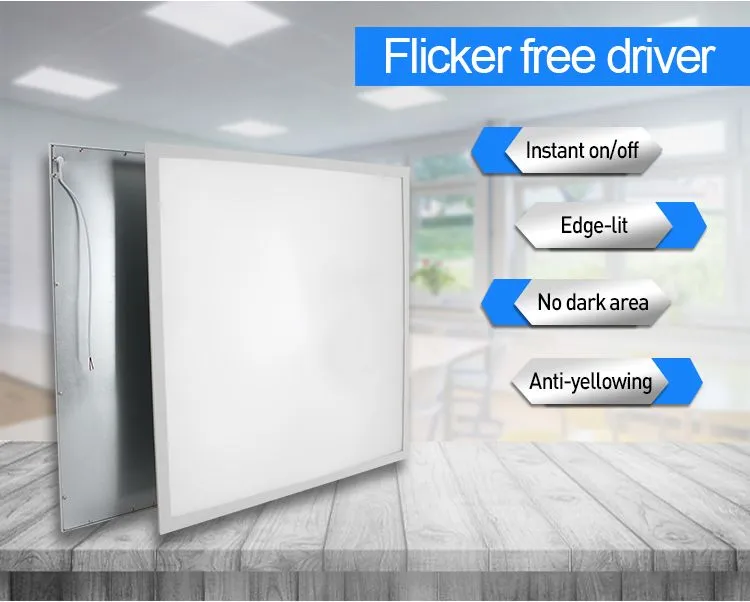

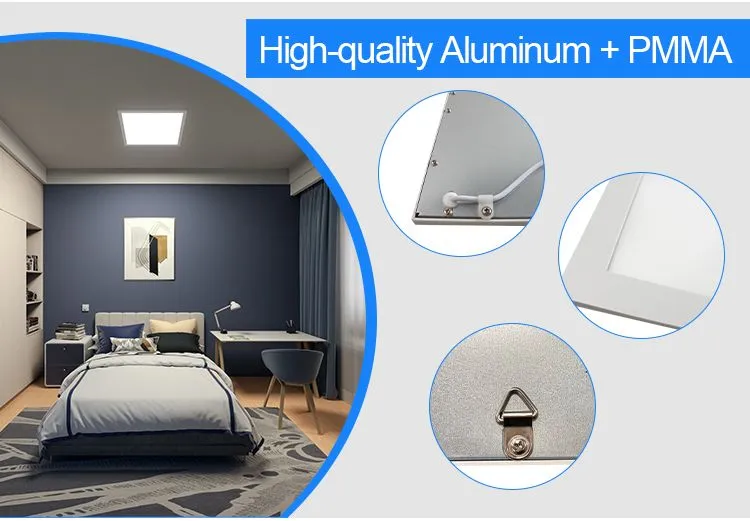

- Premium Materials: High-quality Aluminum frame and anti-yellowing PMMA guide plate for resilience.
- Exceptional Efficacy: Standard 100lm/w ±10%, with premium versions reaching up to 125lm/w.

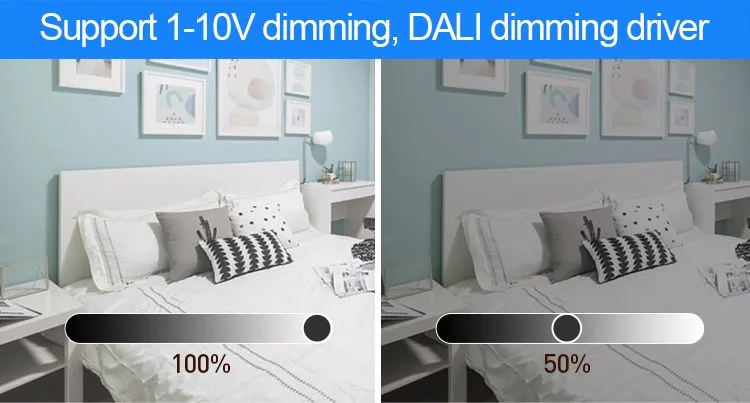

- Advanced Dimming: Compatible with 1-10V dimming and DALI dimming protocols.

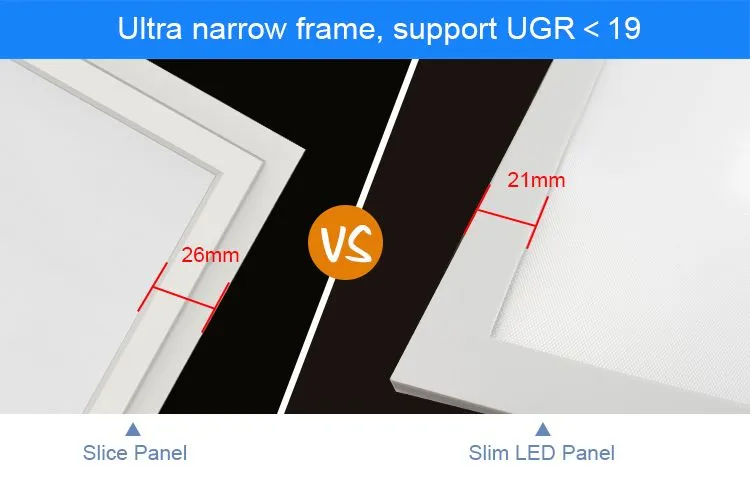

- Visual Comfort: Ultra-narrow frame with UGR<19 ensures glare-free, uniform illumination.
- Long Service Life: Rated for 50,000 hours (L80B10) with a comprehensive 5-year warranty.

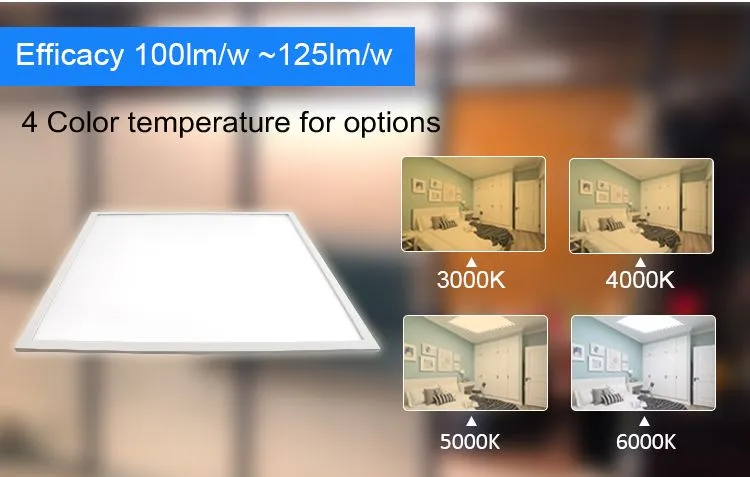

- Flexible CCT: Available in 3000K, 4000K, 5000K, and 6000K to suit any environment.

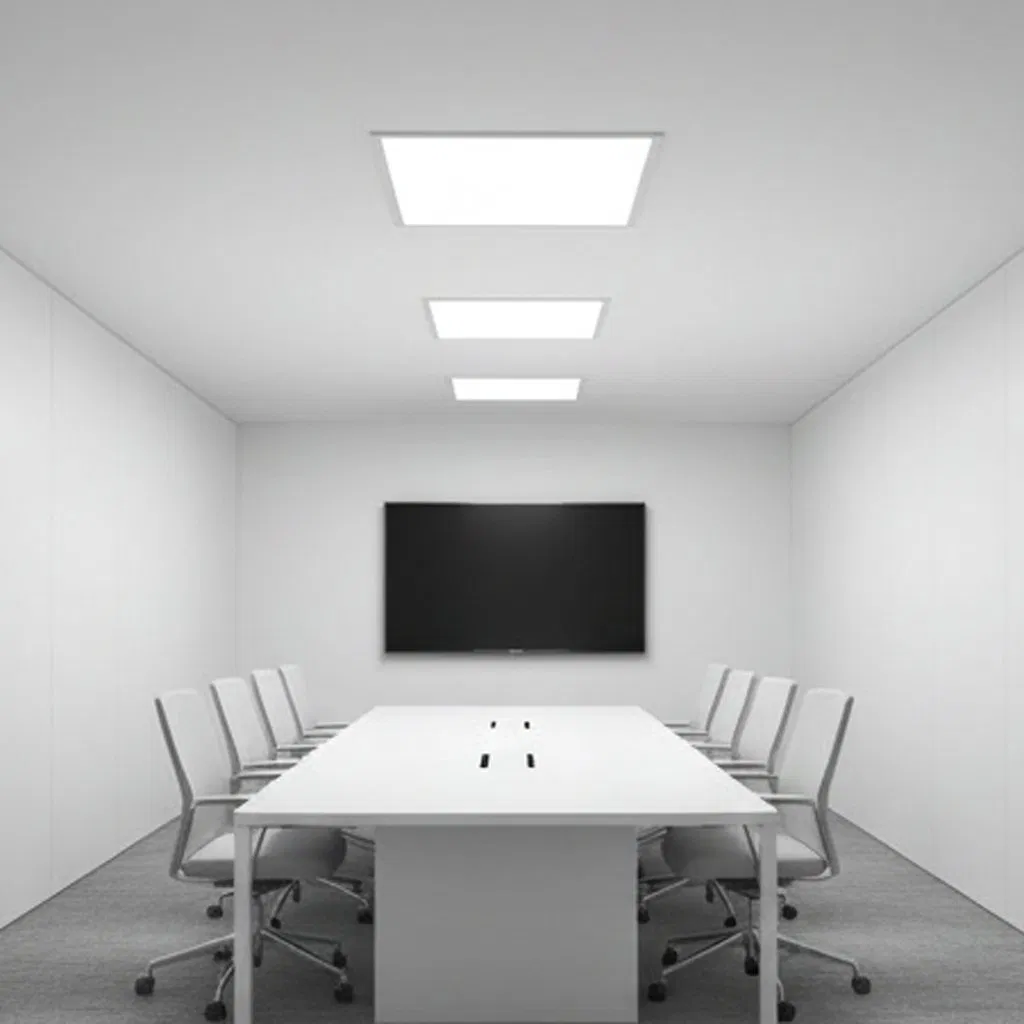

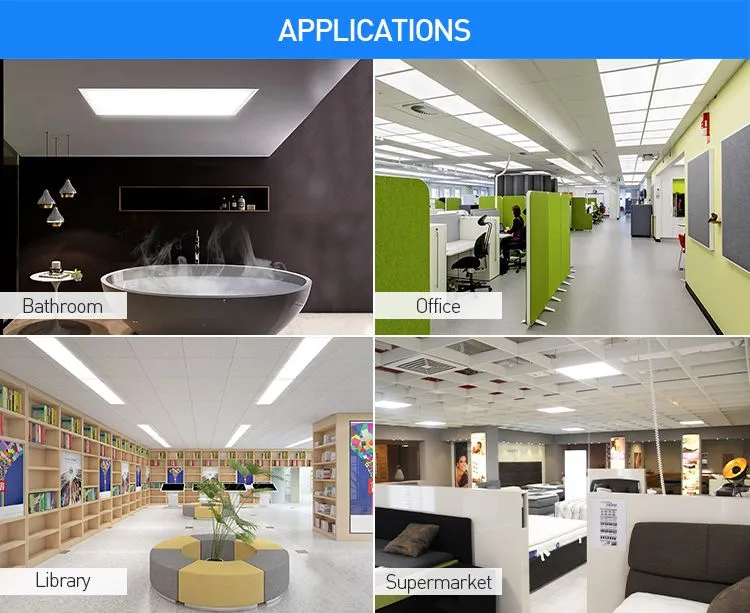

- Versatile Use: Suitable for offices, hospitals, universities, showrooms, and retail spaces.

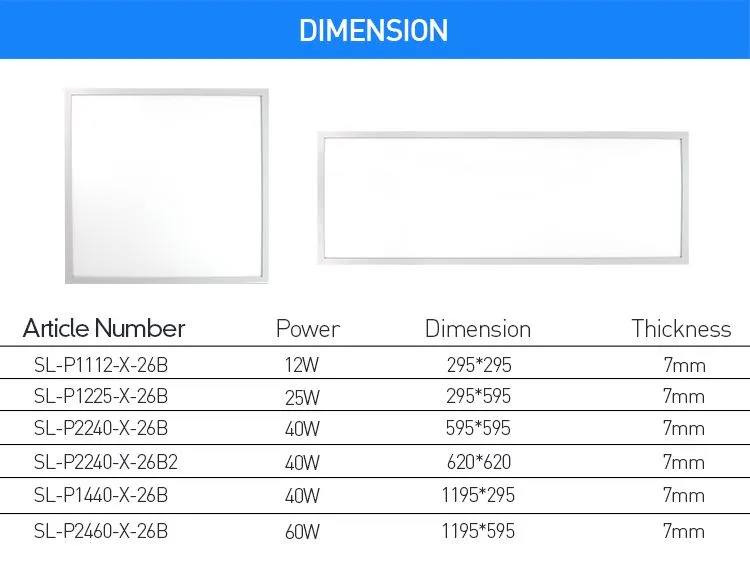

Product Dimensions
Technical Data Sheet
| Article Number | Dimension (mm) | Power (W) | Lumen (lm) |
|---|---|---|---|
| SL-P1112-X-26B | 295*295*7 | 12 | 1100 |
| SL-P1225-X-26B | 295*295*7 | 25 | 2500 |
| SL-P2240-X-26B | 595*595*7 | 40 | 4000 |
| SL-P2240-X-26B2 | 620*620*7 | 40 | 4000 |
| SL-P1440-X-26B | 1195*295*7 | 40 | 4000 |
| SL-P2460-X-26B | 1195*595*7 | 60 | 6000 |
* "X" denotes Color Temperature (CCT): W(3000K/4000K), P(5000K), C(6000K).
Visual Showcase

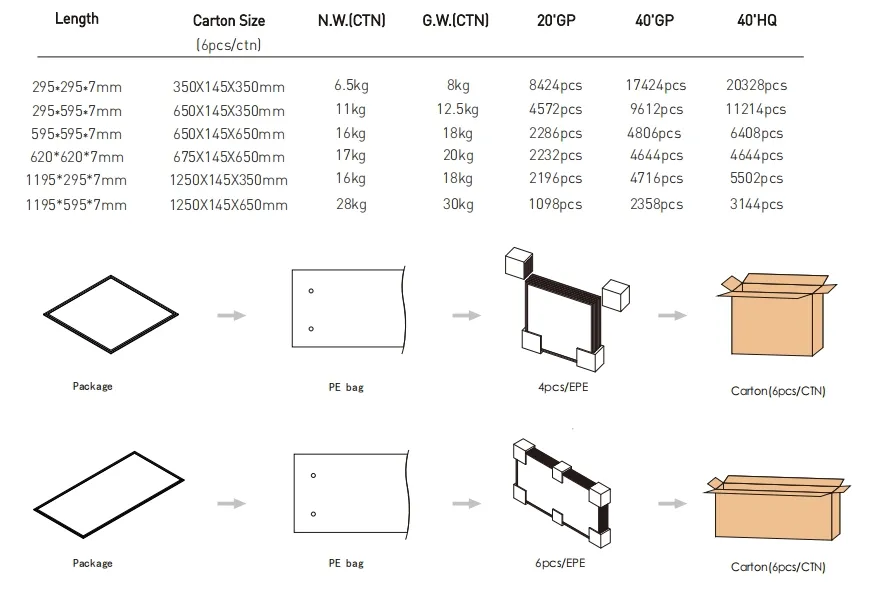

Packaging & Shipping

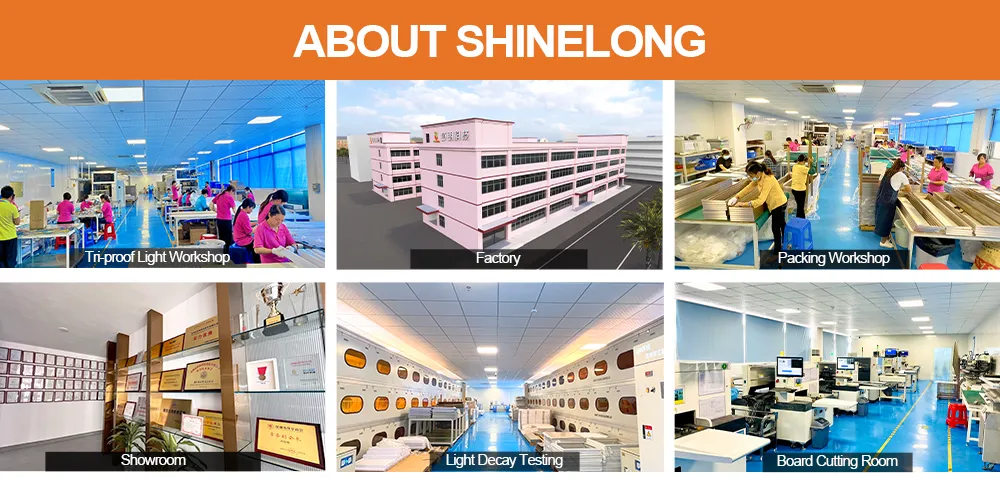

Professional Production Capability
With a massive 20,000 square meter facility and a monthly output exceeding a million pieces, our manufacturing process integrates SMT, injection molding, and power supply production. All products meet global standards including TUV, VDE, UL, DLC, and CE.
Frequently Asked Questions
What is the luminous efficacy of these panel lights?
We offer two versions: a Standard version at 100lm/W and a Premium version that reaches up to 125lm/W, ensuring high brightness with low energy consumption.
What dimming options are supported?
Our slim panel lights are highly versatile and support both 1-10V dimming and DALI dimming drivers for intelligent lighting control.

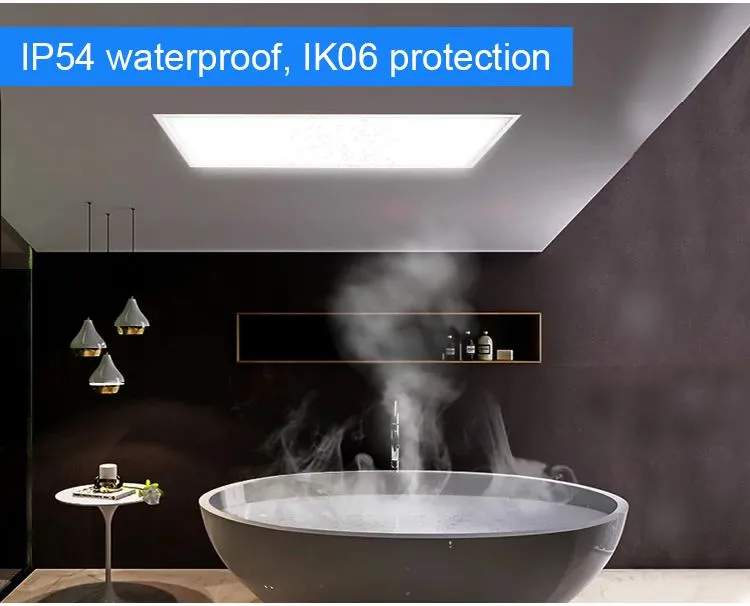

Can these lights be installed in humid environments?
Yes, these lights feature an IP54 rating, which provides protection against dust and water splashes, making them suitable for various indoor environments including hospitals and schools.
How long is the product lifespan and warranty?
The lights have an L80B10 lifespan of 50,000 hours at 25ºC. We provide a full 5-year warranty to guarantee long-term performance and peace of mind.
What are the available installation methods?
The ultra-slim design allows for three flexible installation options: Suspending, Ceiling Mounted, or Recessed installation.
What is the typical production lead time?
For regular orders, the production cycle is typically 15-20 days after receiving the advance payment. Expedited services may be available for urgent requirements.
