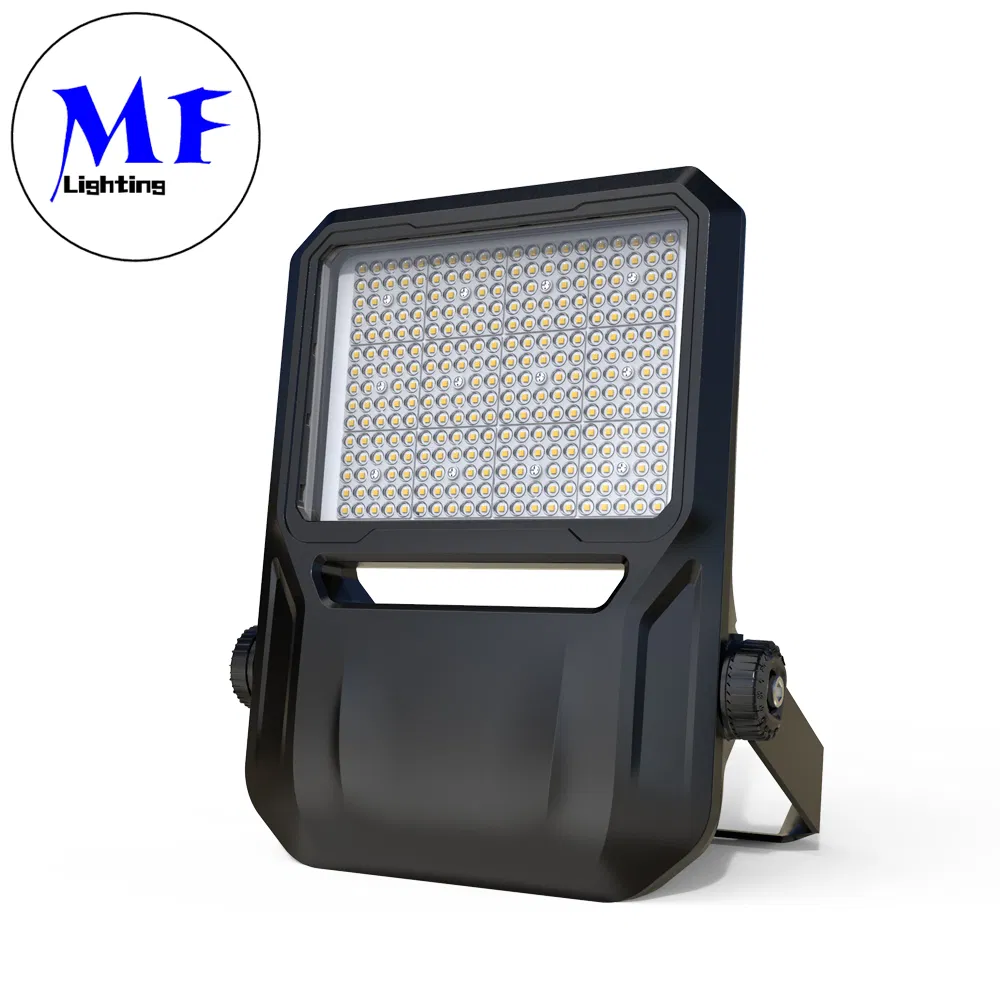

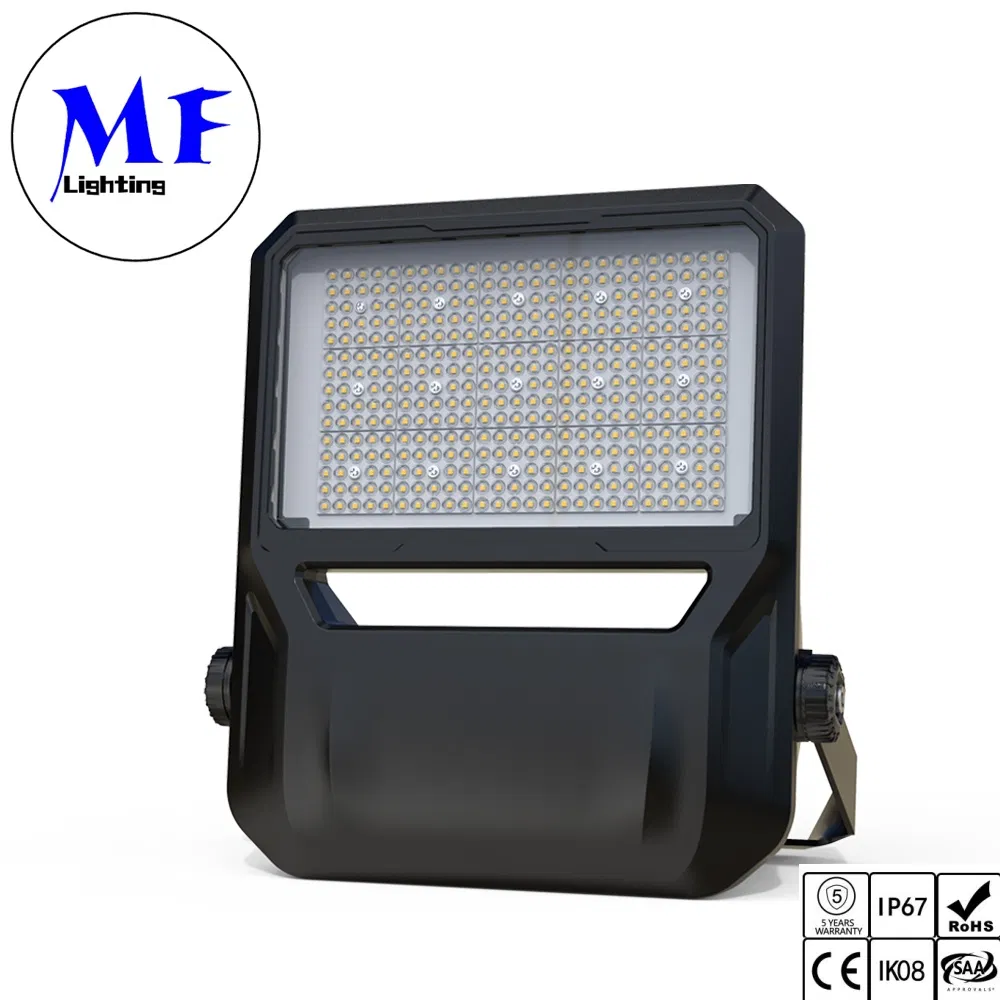

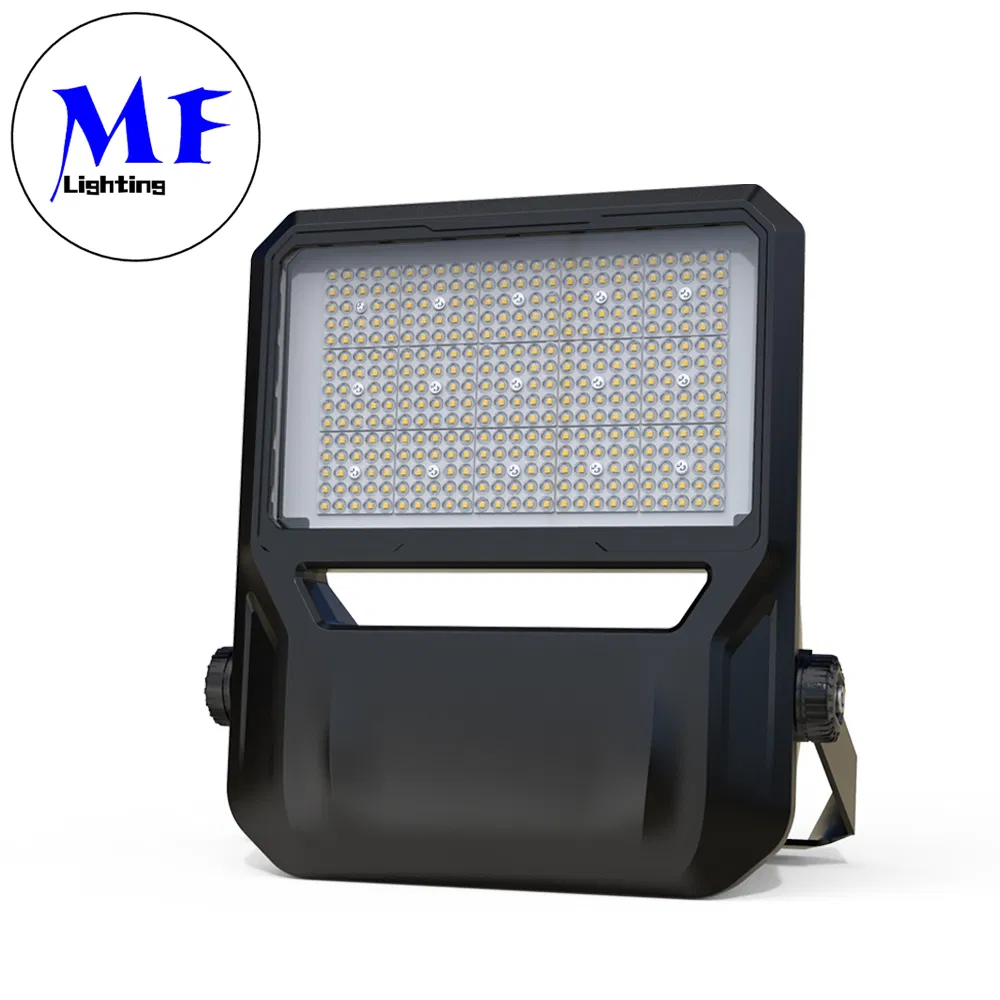

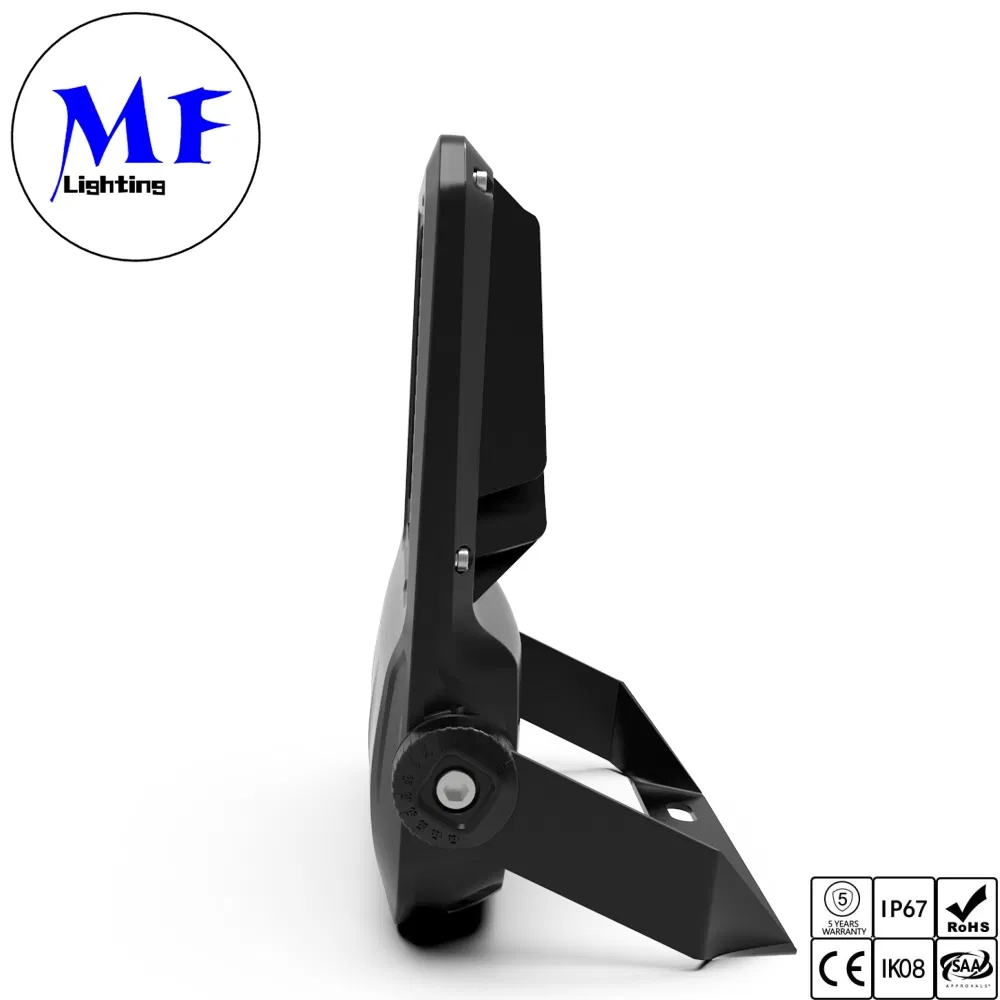

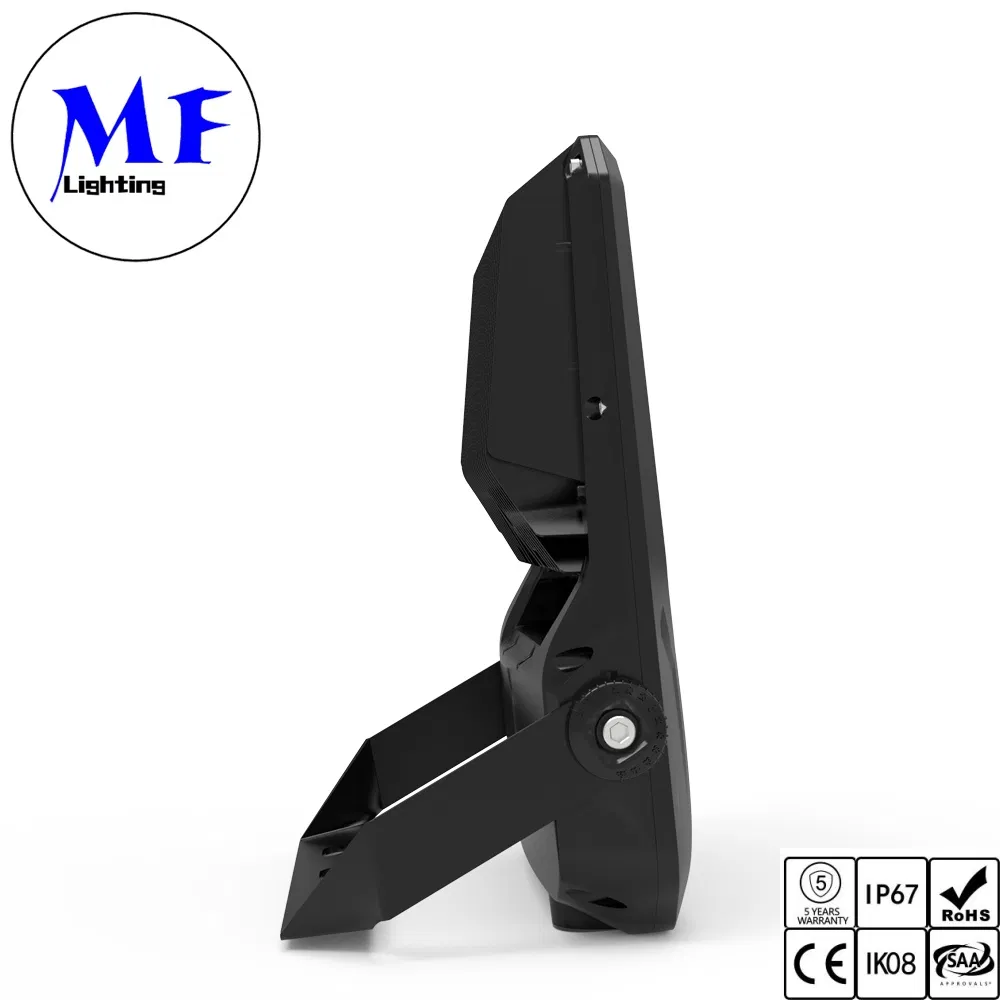

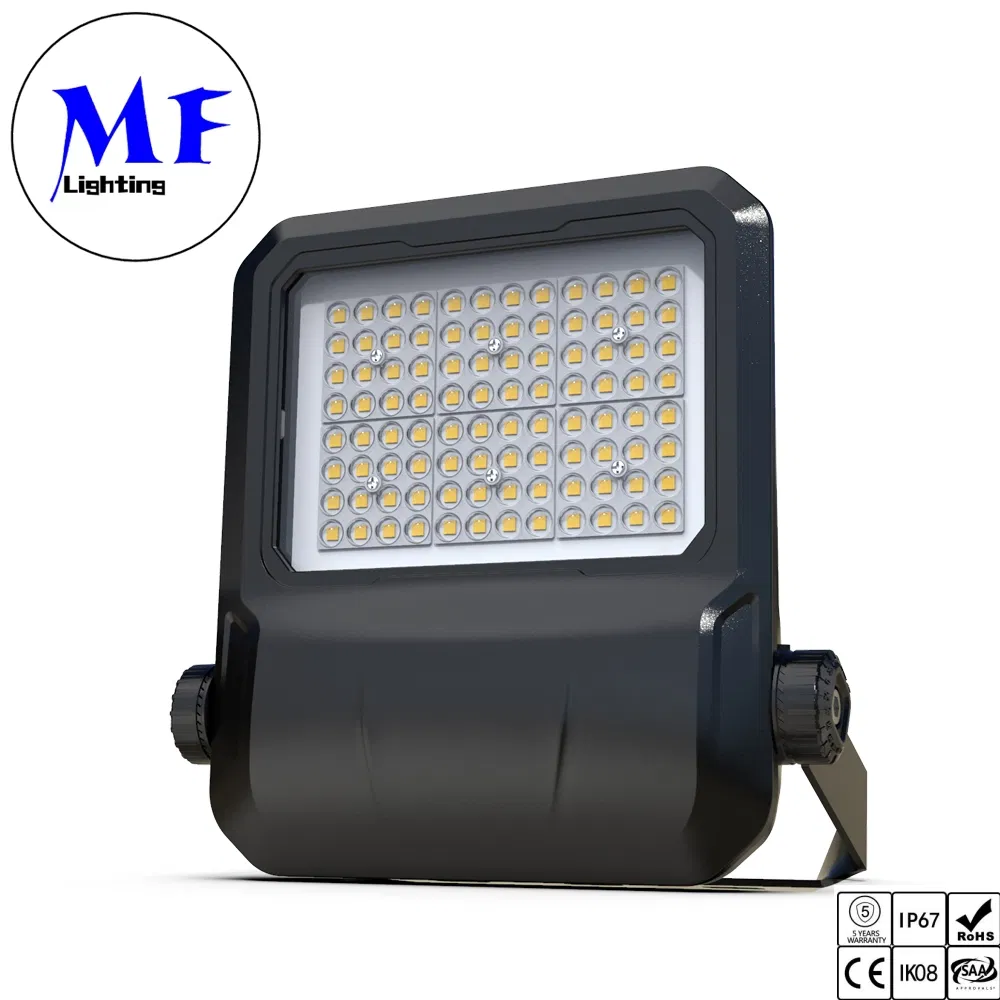

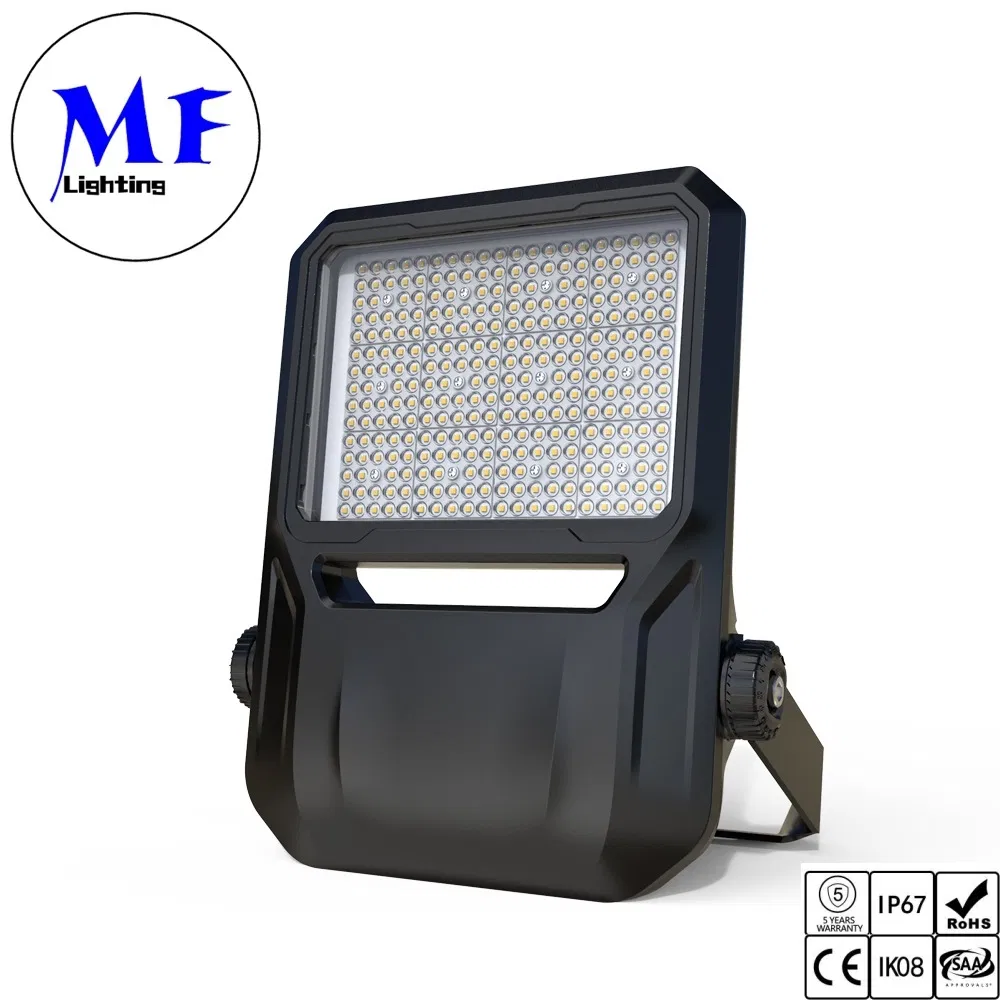

Factory Price 100W 150W 200W 300W 400W Sport Filed Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light
Product Description
📋 Basic Information
Model
SKY series Flood light
Power
20W-400W
IP Rating
IP67
Input Voltage
AC 100-277V
Luminous Flux
130lm/W-150lm/W
Material
Aluminum
CRI
>80ra
Warranty
5 Years
Certifications
CCC, CE, RoHS, SAA
IK Rate
IK08

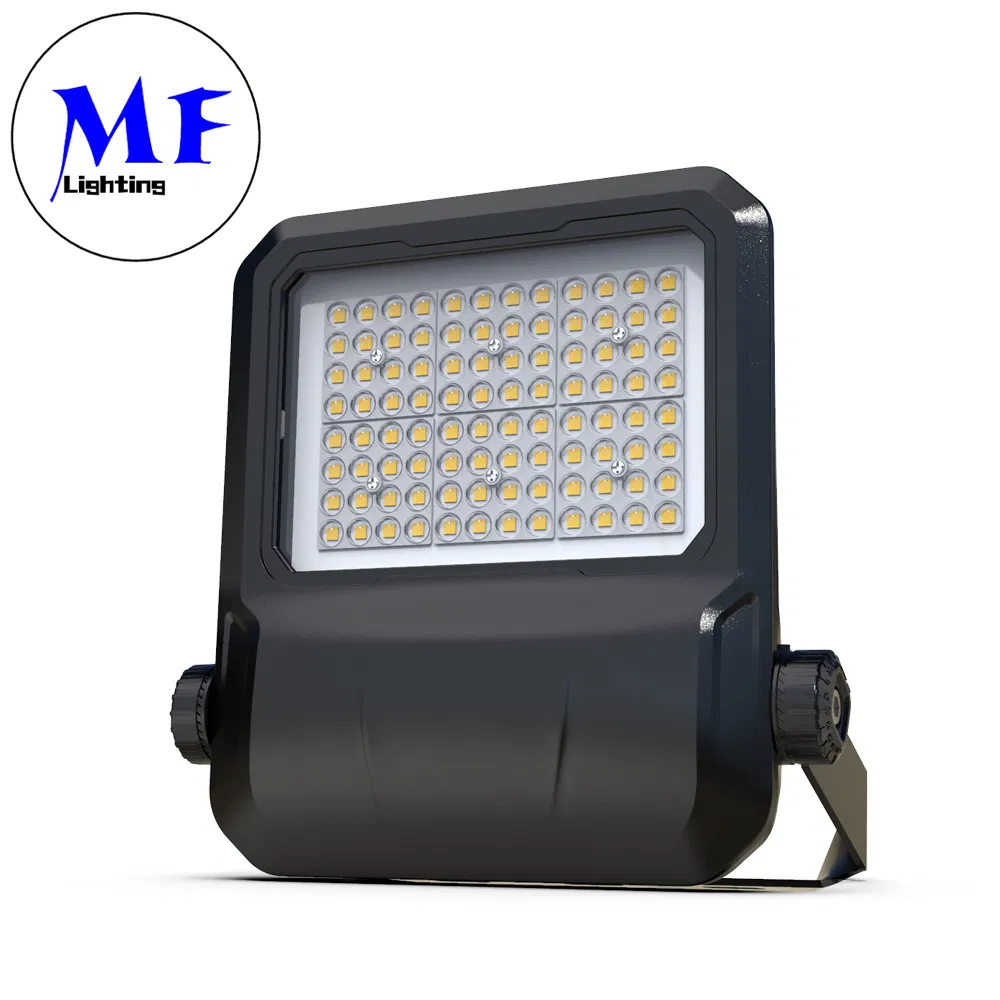

💡 Product Overview
Factory Price 100W 150W 200W 300W 400W Sport Field Outdoor Stadium Garden Landscape Tennis Court Yard IP66 Waterproof Dustproof Roadway Square LED Flood Light.
🚀 Key Features
- Massive light output of up to 39,200lm
- Ultra-high system efficiency of up to 140lm/W
- High quality LED Chip and Driver
- Long >102,000 hours lifespan to L70
- Professionally Designed True Asymmetric Flat Optics
- Tough IP67 and IK09 construction
- Suitable for coastal areas (with optional 304 stainless steel bracket)

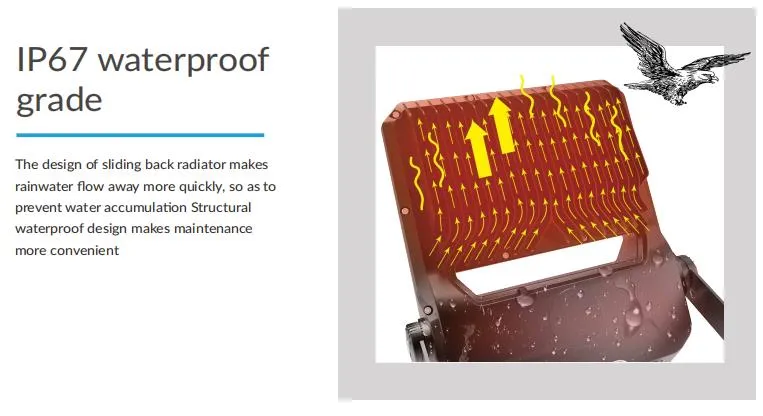

- IP67 Waterproof and Dustproof

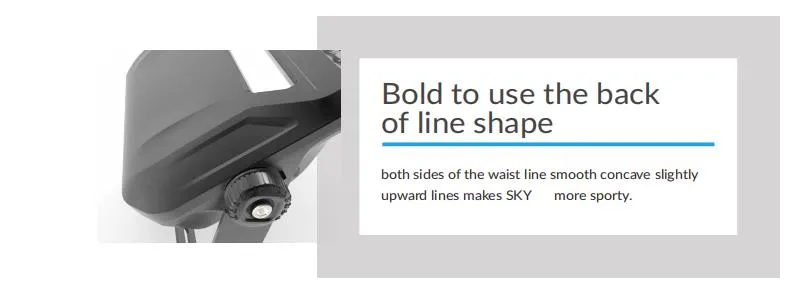

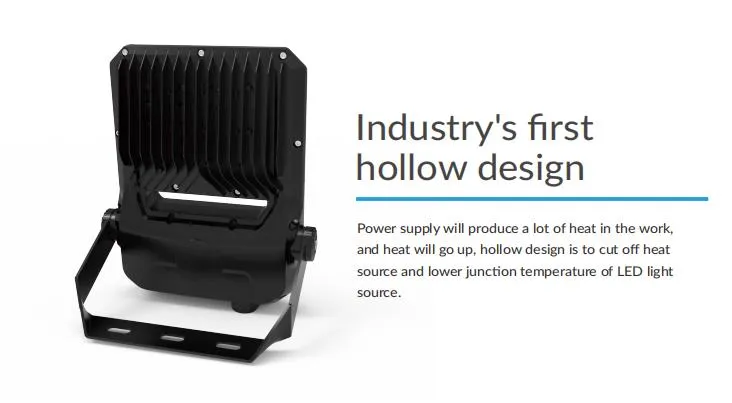

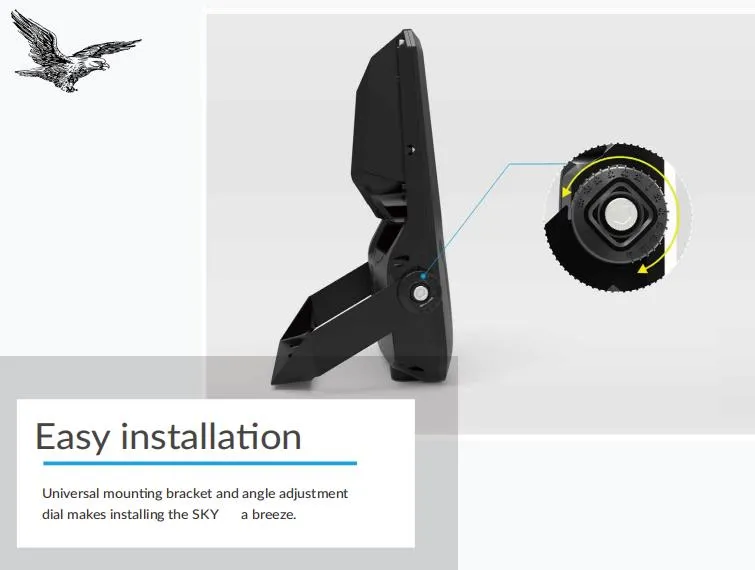

⚙️ Product Characteristics
📊 Technical Specifications
| CODE | POWER | LUMEN OUTPUT | EFFICACY |
|---|---|---|---|
| SKY-50 | 50W | 7,000lm | 140lm/W +10 |
| SKY-75 | 75W | 10,500lm | 140lm/W +10 |
| SKY-100 | 100W | 14,000lm | 140lm/W +10 |
| SKY-150 | 150W | 21,000lm | 140lm/W +10 |
| SKY-180 | 180W | 25,200lm | 140lm/W +10 |
| SKY-200 | 200W | 28,000lm | 140lm/W +10 |
| SKY-240 | 240W | 33,600lm | 140lm/W +10 |
| SKY-280 | 280W | 39,200lm | 140lm/W +10 |
| LIGHTING DATA | ELECTRICAL DATA | ||
|---|---|---|---|
| LIGHT SOURCE | SMD 5050 | POWER SUPPLY | Inven-tronics / Mean-Well |
| LIFETIME | >102,000hrs | INPUT VOLTAGE | 100-277V/AC |
| CCT | 5000K (3000K-6500K) | POWER FACTOR | ≥0.97 |
| CRI | >70 (>80, >90) | SURGE PROTECTION | 6kV |

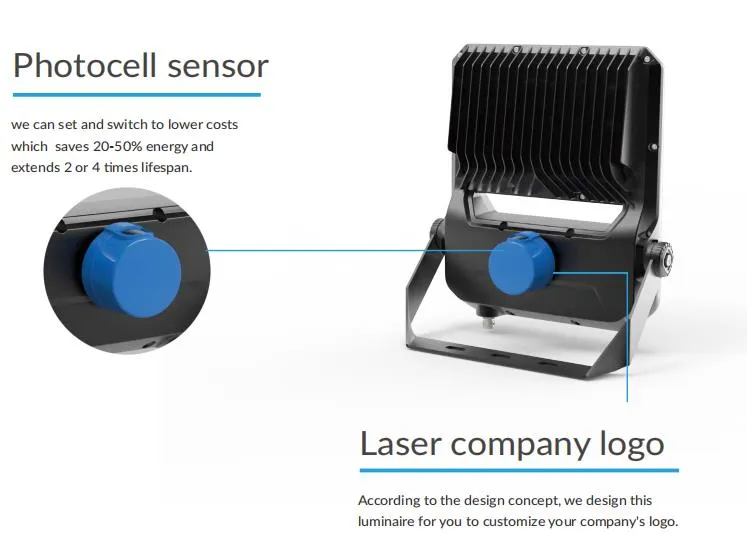

| ASYMMETRIC | P45° | DIMMABLE | 0-10V, Dali, Sensor |

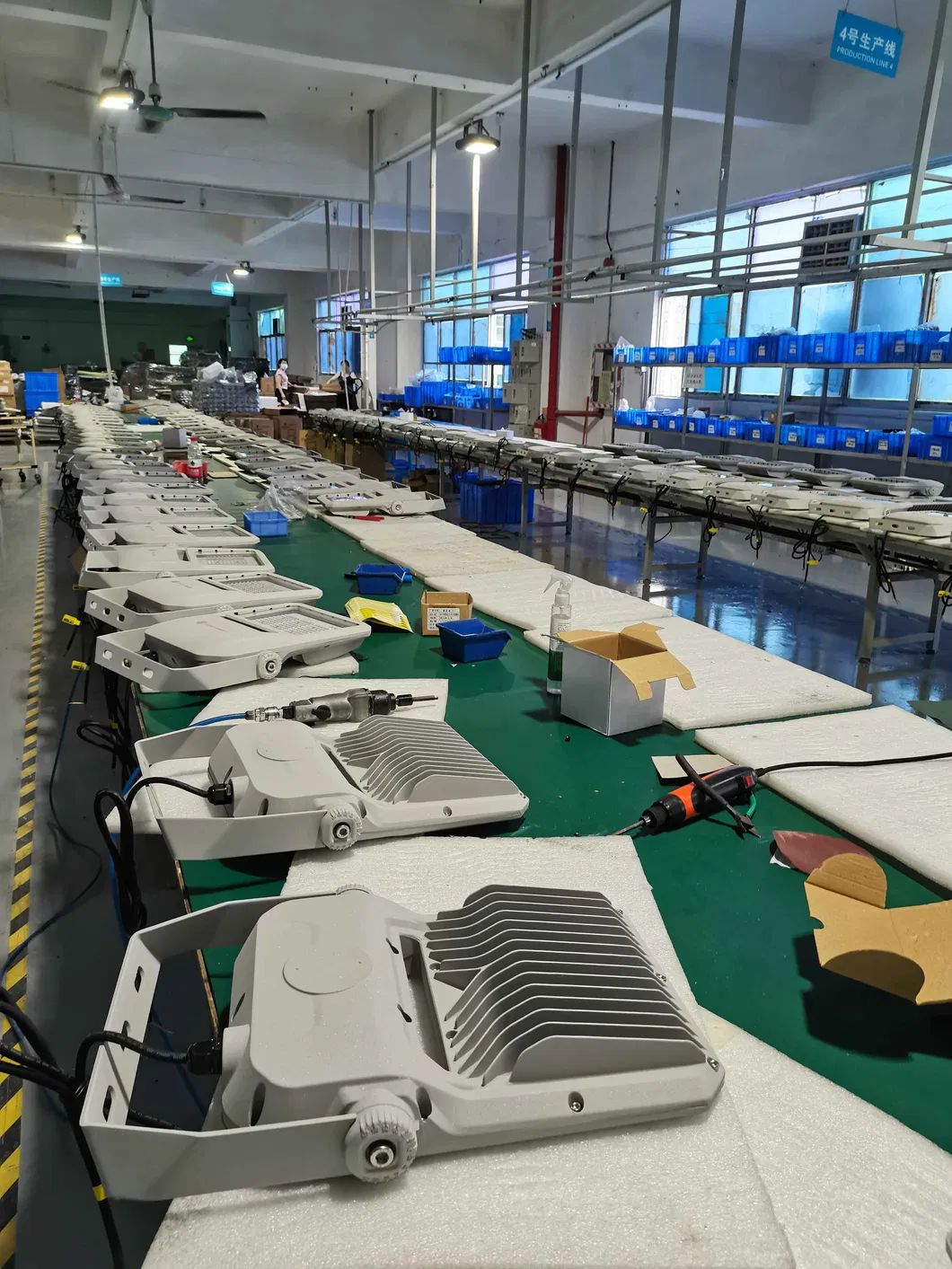

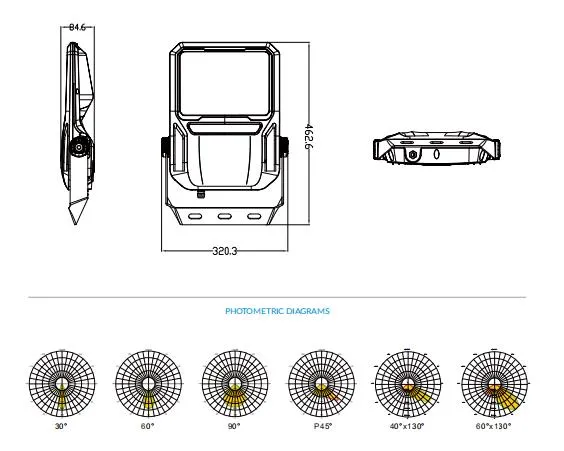

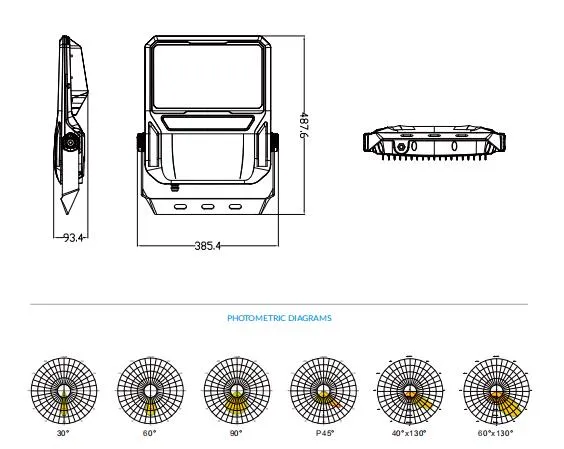

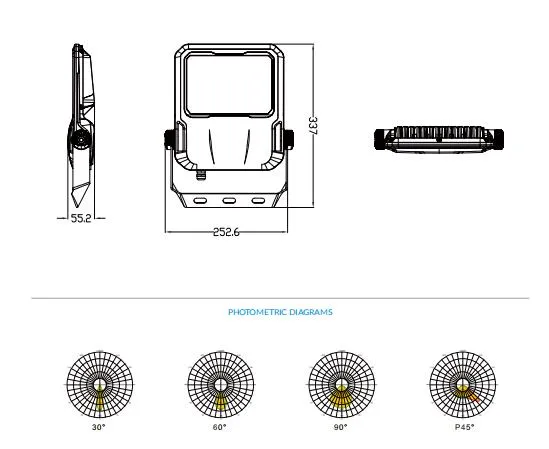

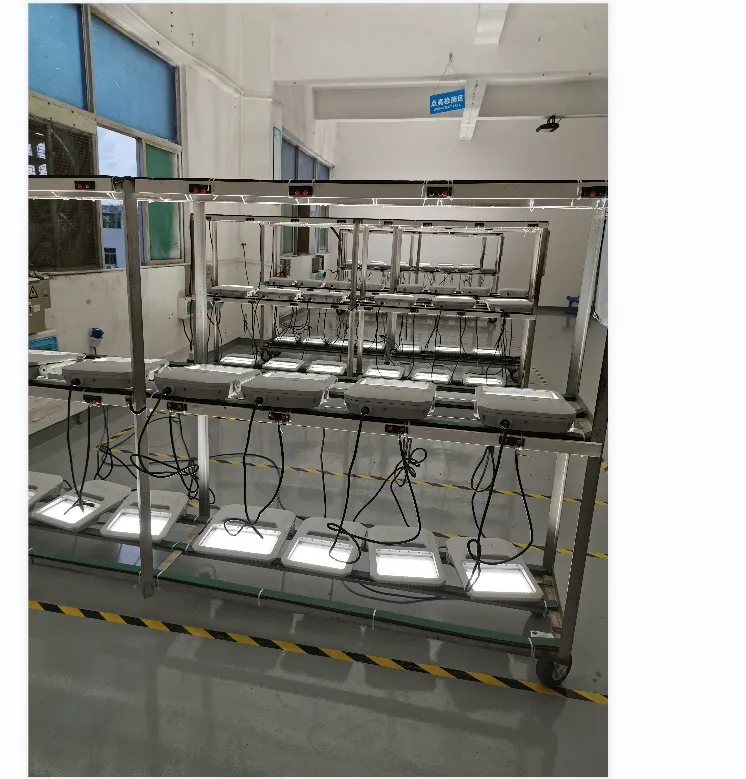

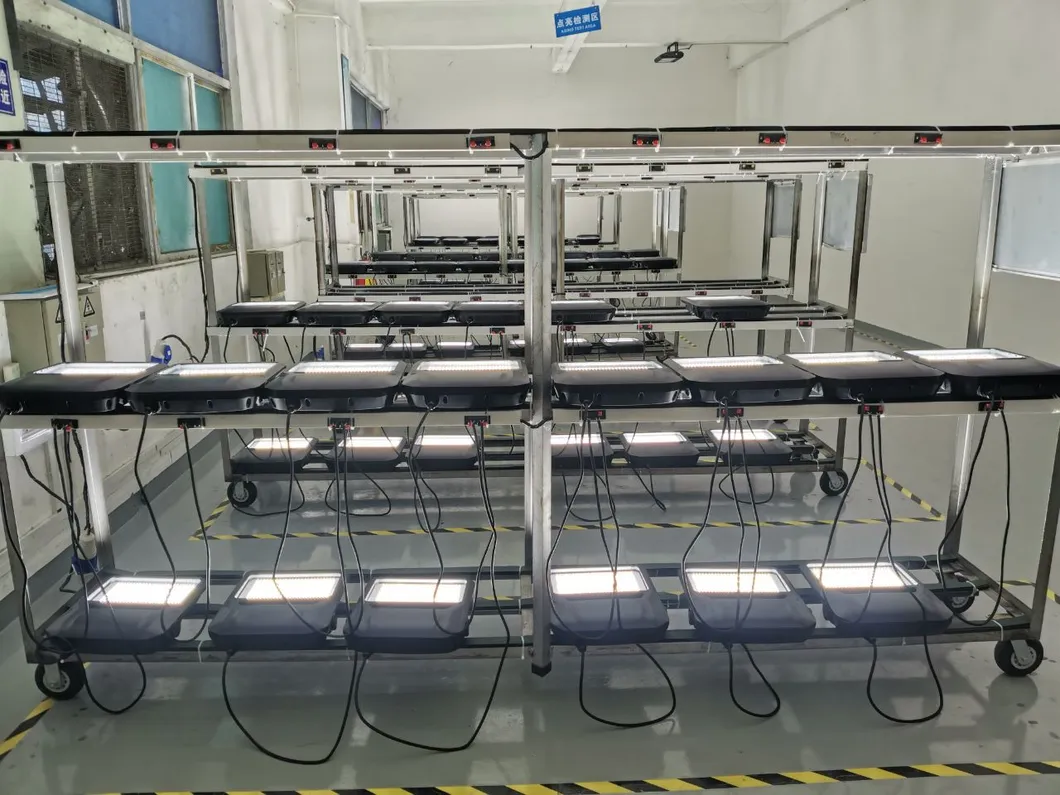

🏗️ Production & Dimensions

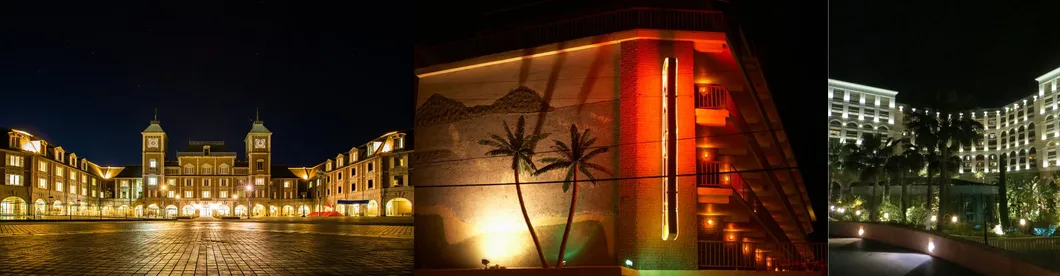

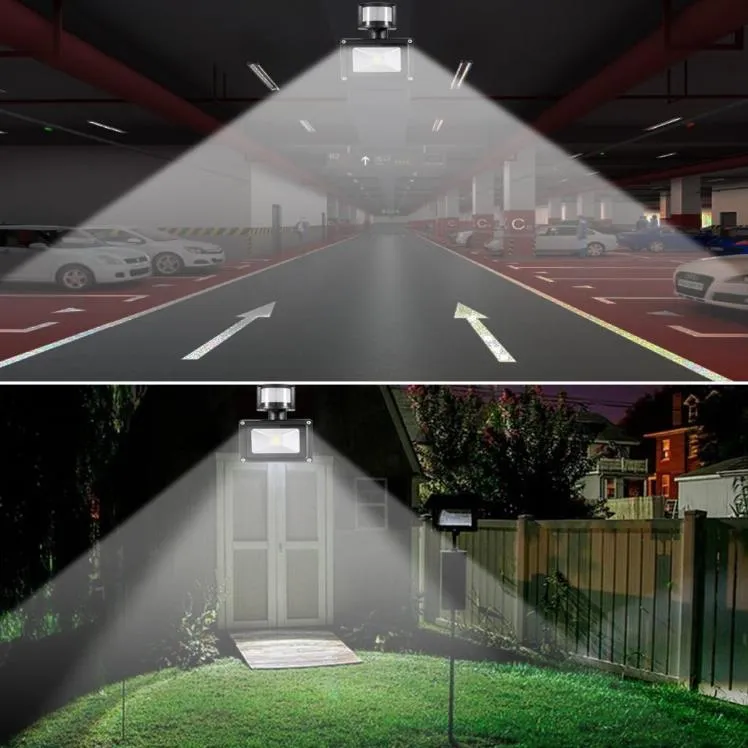

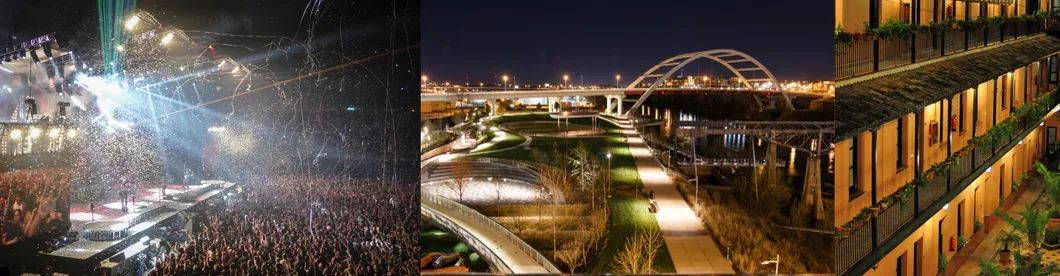

🏠 Applications
| COMMERCIAL | PUBLIC | INDUSTRIAL |
|---|---|---|
| Supermarkets | Airports | Manufacture |
| Large Retailers | Stadiums | Warehouses |
| Schools | Train Stations | Parking Lots |
| Billboards | Bus Stations | Exhibition Centers |
| Buildings | Tunnels | Gas Stations |

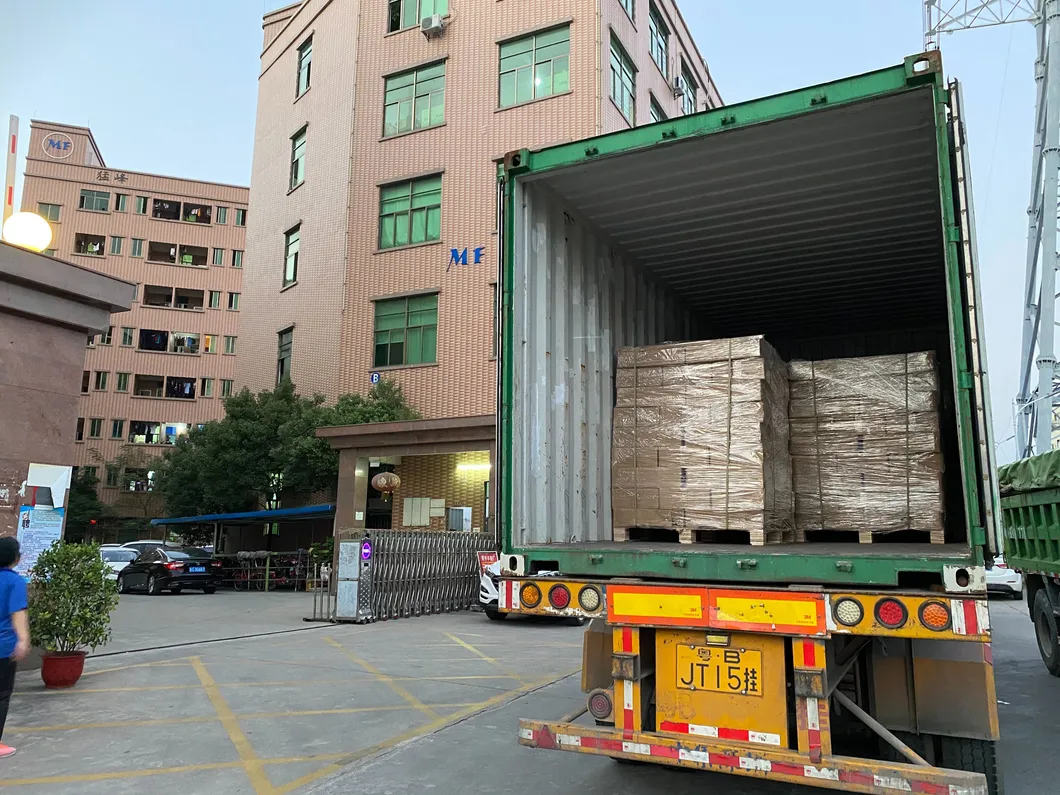

📦 Packaging & Safety
Matters Needing Attention:
- Fixtures should be installed by a certified electrician.
- Check local voltage compatibility before installation.
- Ensure power is OFF and the lamp is cooled before maintenance.
- Clean with a soft cloth and PH neutral detergent.
- Do not cover fixtures with flammable materials.
❓ Frequently Asked Questions
Q1: What is the waterproof rating of the SKY series flood light?
A: The SKY series features an IP67 rating, making it completely dustproof and highly resistant to powerful water jets, ideal for heavy outdoor use.
Q2: How long is the warranty period for this product?
A: We provide a comprehensive 5-year warranty for the SKY series LED flood lights, ensuring long-term reliability and performance.
Q3: Is this light suitable for high-vibration or high-impact environments?
A: Yes, it has an IK09 impact rating, which means it can withstand significant physical impact, suitable for sports stadiums and industrial sites.
Q4: What is the expected lifespan of the LEDs?
A: The high-quality LED chips are designed to last over 102,000 hours (L70), which greatly reduces maintenance costs over time.
Q5: Can these lights be used in coastal or salty environments?
A: Yes, with an optional 304 stainless steel bracket, the aluminum body construction is well-suited for coastal applications.
Q6: What power options are available for the SKY series?
A: The series is versatile, offering a power range from 20W all the way up to 400W to meet different lighting requirements.
