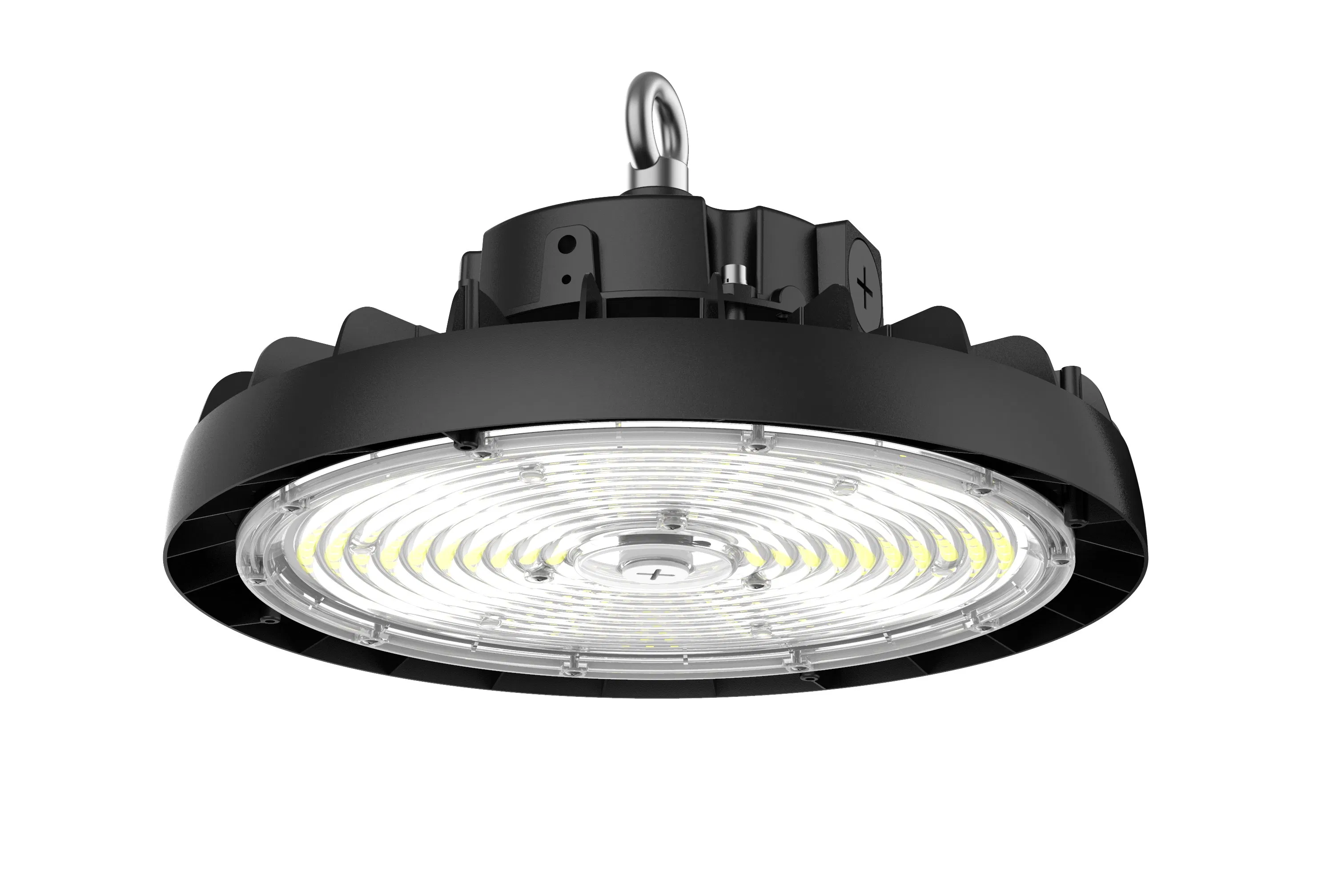

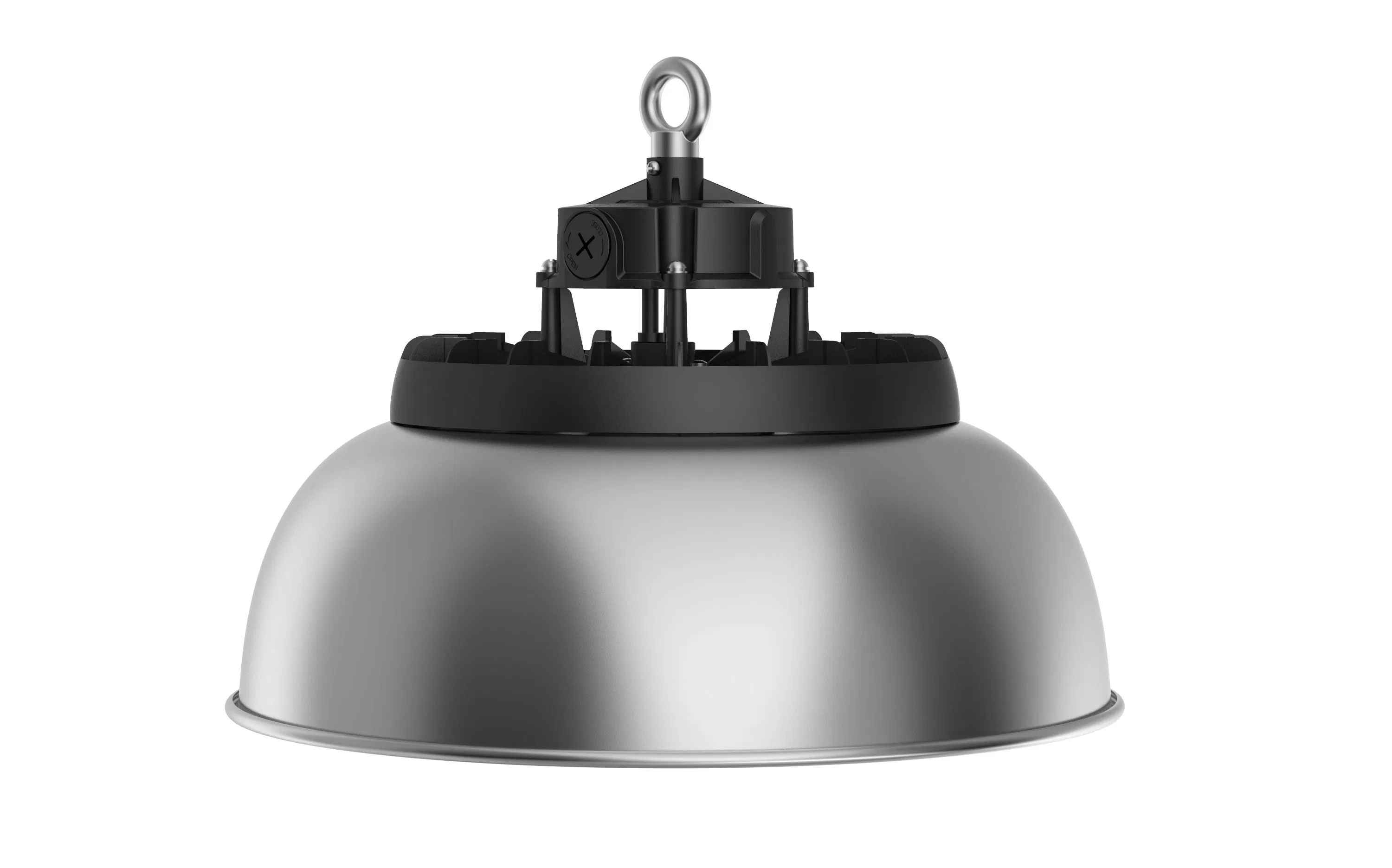

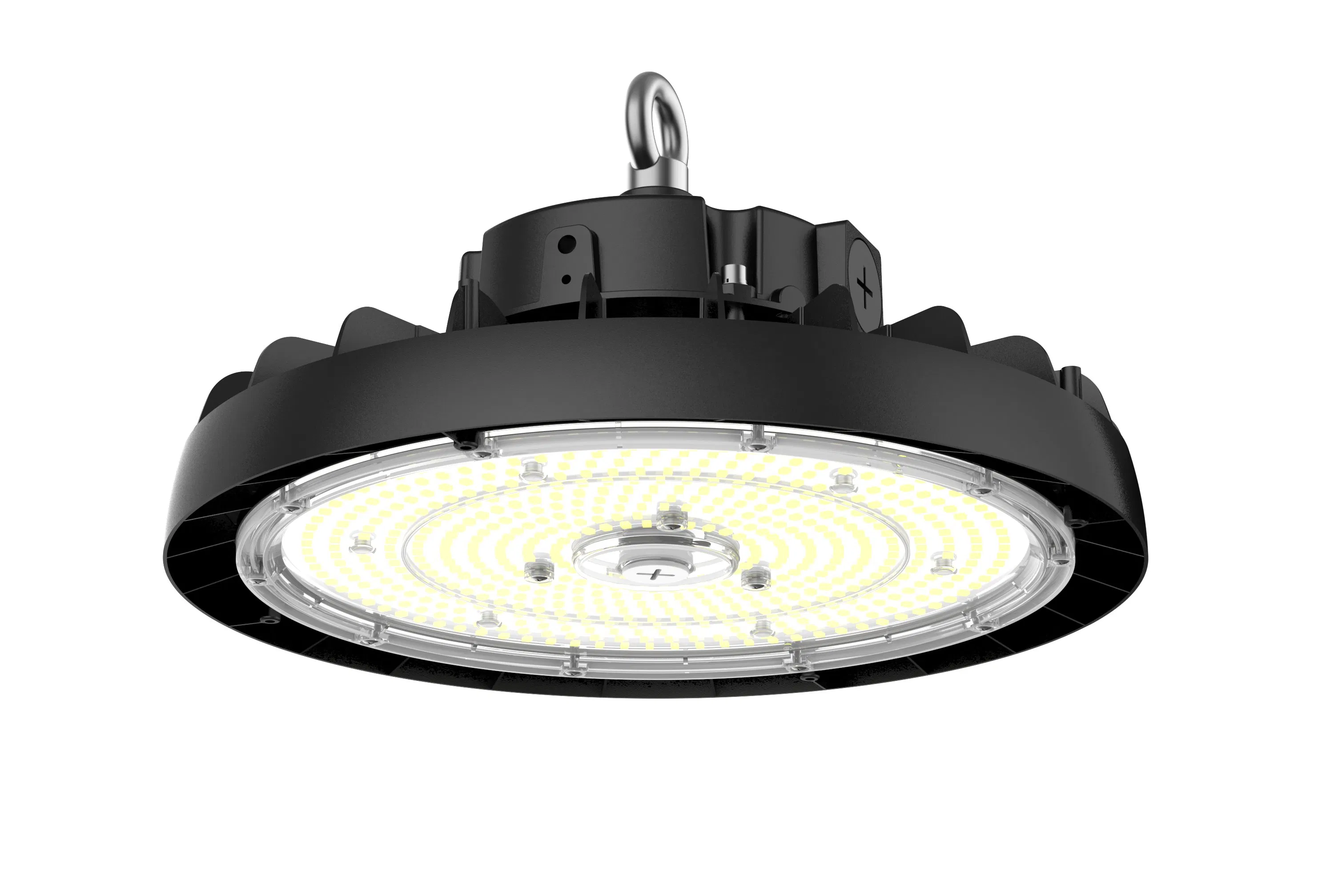

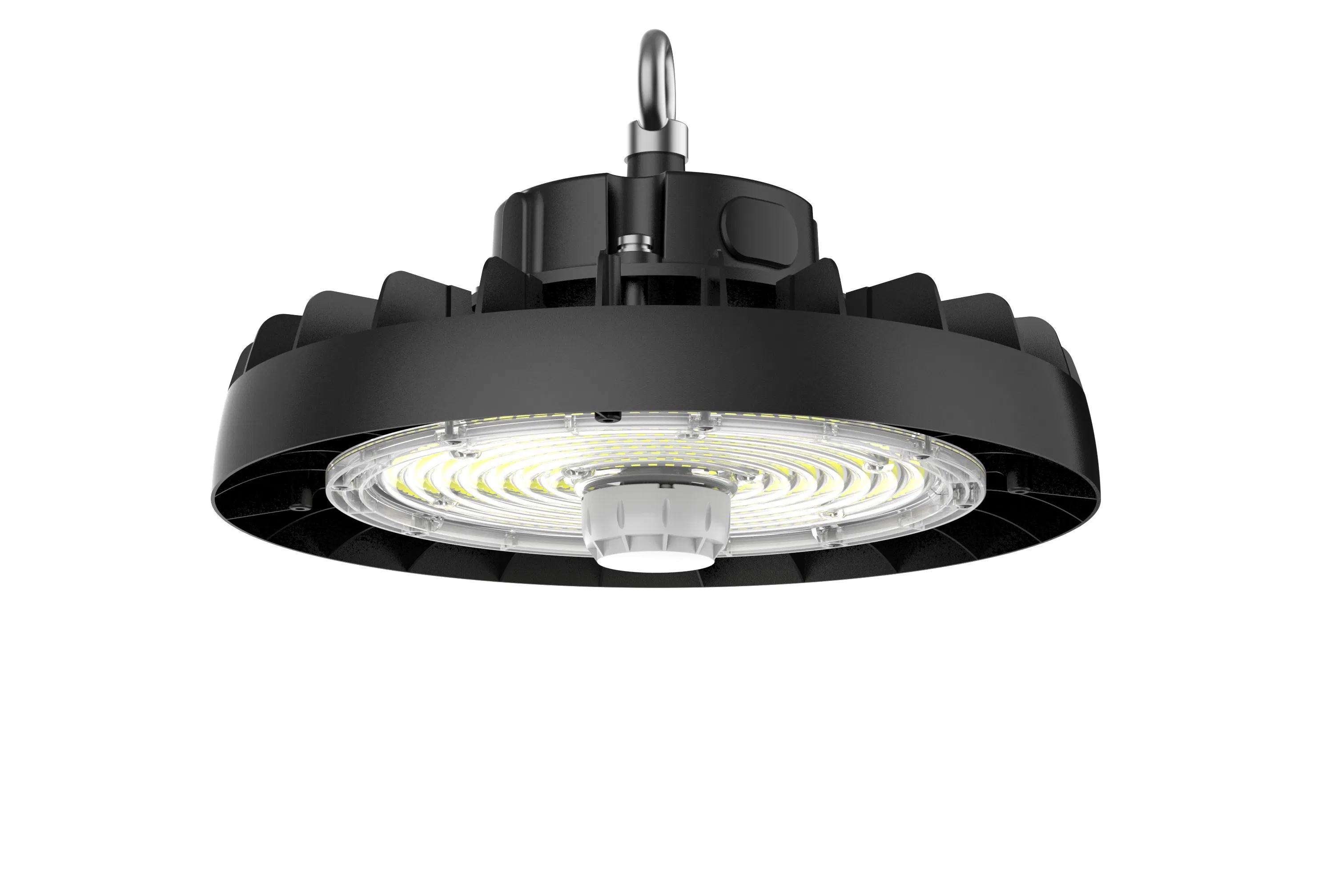

UL/Etlip65/IP66/IP67 CE/RoHS 150W 160lm/W 170lm/W Wattage Selectable CCT Tunableindustrial LED High Bay Light
Product Description
Basic Information
Product Name
UFO LED High Bay Light
Power
200W
Lifespan
≥50000H
IP Rating
IP65/IP67/IP68
Beam Angle
120°
LED Chips
Nichia / SMD2835
LED Driver
Meanwell HBG Series
Certification
UL, ETL, DLC, SAA, CE, RoHS, FCC, GS, CB
Material
Die-Cast Aluminum
Warranty
5 Years (Meanwell), 3 Years (UL CE)
Product Advantages
- High Efficiency: SMD2835 LED, 150-200LM/W.
- Robust Design: Simple and elegant appearance, anodized housing, durable.
- Freight Saving: Unique UFO shape, lighter and smaller, no reflector needed.

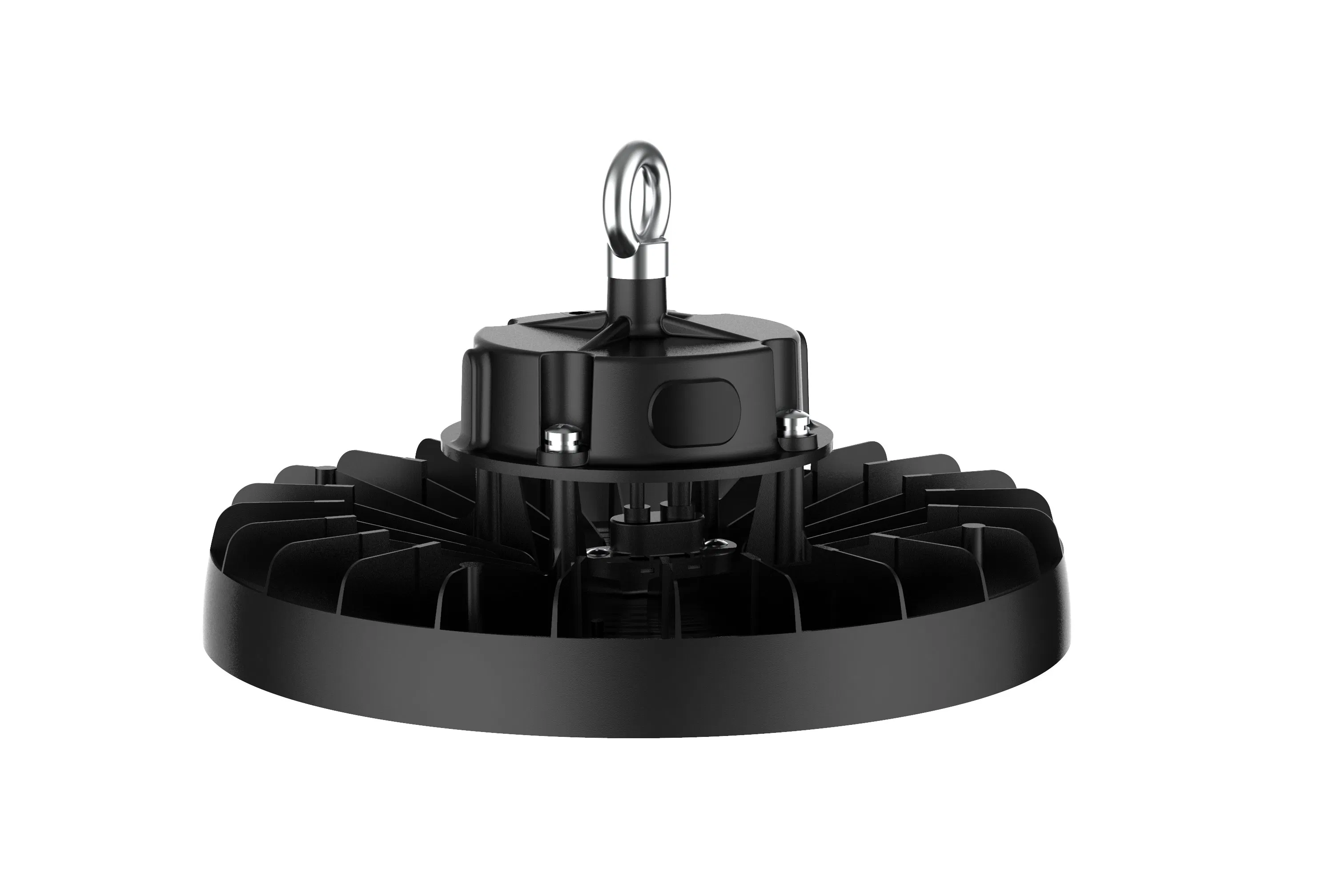

- Heat Dissipation: Wide aluminium plate + large diameter PCB for fast and even heat cooling.
- Versatile Functions: Optional 1-10V dimmable, daylight sensor, motion sensor, microwave sensor.

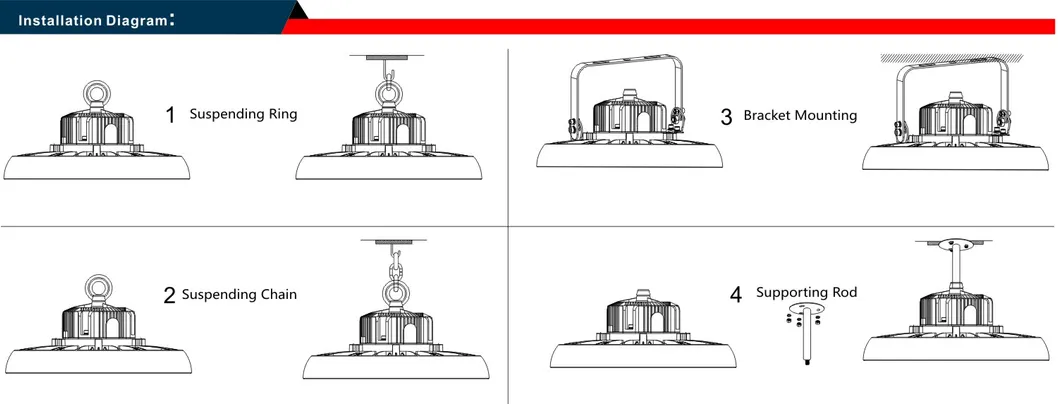

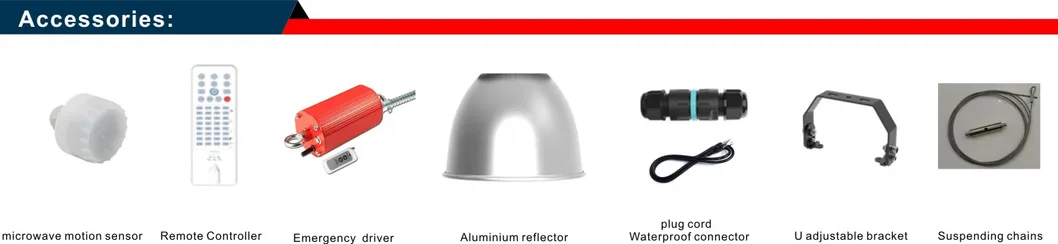

- Multiple Installation: Suspending ring, chain, supporting rod, hook, or 180° adjustable bracket.

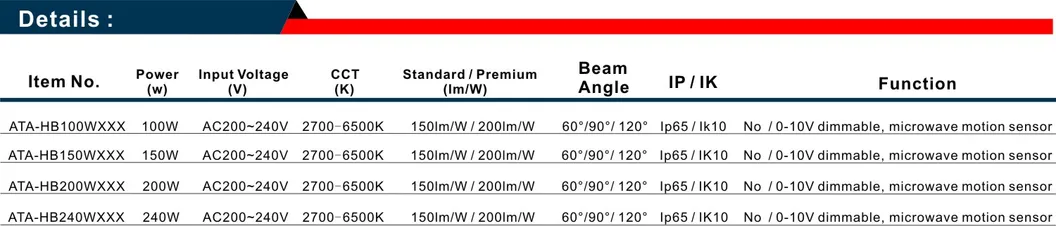

Technical Specifications
| Power | 100W | 150W | 200W | 240W | 300W |
|---|---|---|---|---|---|
| Wattage Selectable | 100W-80W-60W | 150W-120W-80W | 200W-150W-120W | 240W-200W-150W | 300W-240W-200W |
| Luminous Flux | 160lm/w, 170lm/w | ||||
| Input Voltage | AC100-277V (50-60Hz) | ||||
| CCT | 3000K, 4000K, 5000K, 6000K | ||||
| Beam Angle | 60/90/120° | ||||
| Operating Temp | -30~+50ºC | ||||
Product Performance:
PF > 0.95 | CRI > 80Ra | THD < 15% | Anti-thunder: 4KV | IK Grade: IK10 | Surge Protection: 10KV
Product Display
Applications

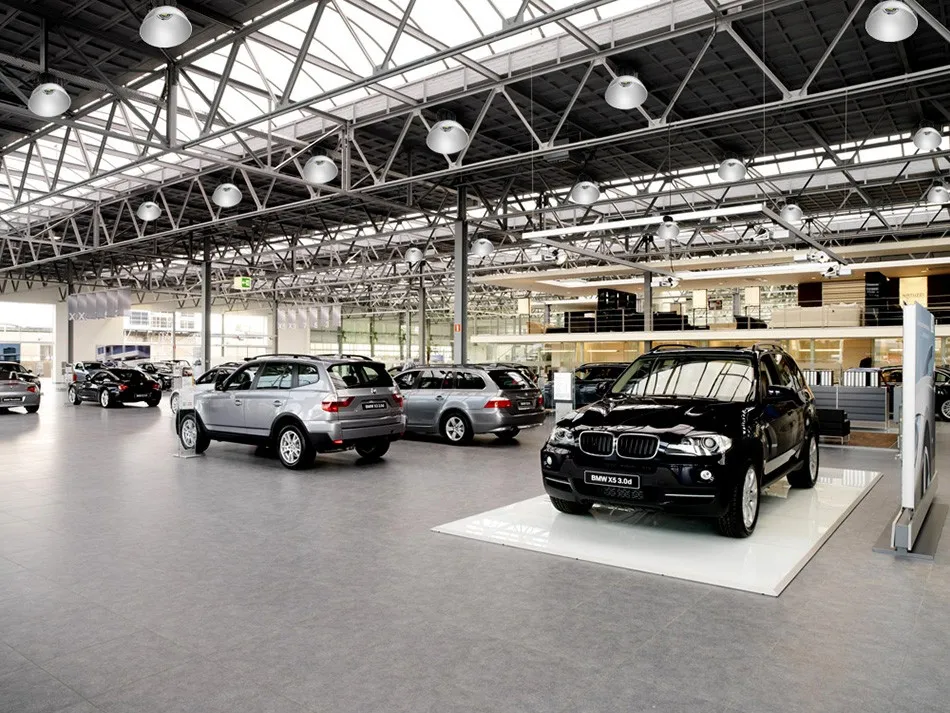

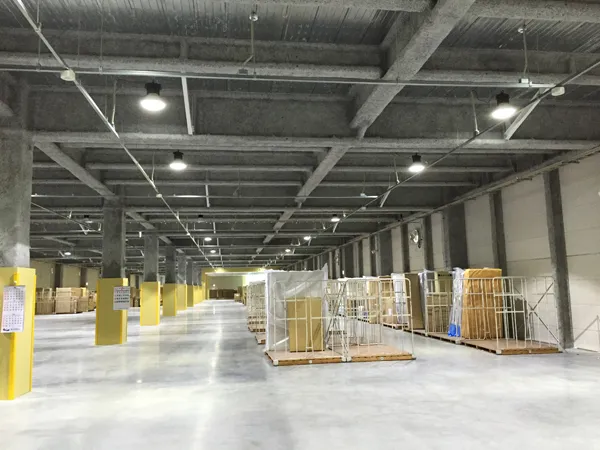

Industrial: Factories, Workshops, Warehouses
Sports: Gyms, Stadiums, Golf courses
Commercial: Supermarkets, Shopping malls, Exhibition halls
Transport: Airports, Subways, Train stations, Toll stations
Outdoor: Squares, Parks, Gas stations, Docks
Quality & Safety

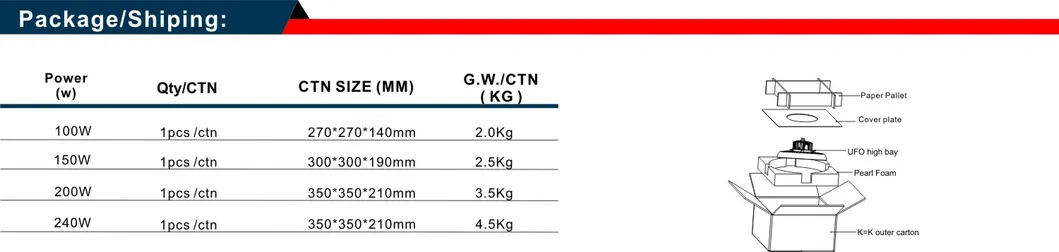

Quality Control: All lamps undergo a 48-hour aging test and a 100% lighting test before packing. Drop tests are conducted to ensure packaging protection.
Installation Note: Always switch off mains supply before installation. Mounting must be on a stable, even surface and performed by a professional electrical expert.
Frequently Asked Questions
What is the expected lifespan of this UFO LED High Bay Light?
The product is designed for longevity with a lifespan of ≥50,000 hours, supported by high-quality SMD2835 chips and efficient heat dissipation.
Is the light waterproof for outdoor use?
Yes, it features an IP65 rating (with options for IP67/IP68), making it suitable for wet locations, heavy rain, and dusty environments like tunnels or outdoor yards.
What is the warranty period for this industrial light?
We offer a 5-year warranty for units equipped with Meanwell drivers and a 3-year warranty for UL CE certified drivers.
Can the brightness be controlled or dimmed?
Yes, the light supports 1-10V dimming. Optional daylight, motion, and microwave sensors are also available for smart energy management.
What is the ideal mounting height for these lights?
The recommended mounting height is between 8 to 15 meters, depending on the specific wattage and required lux levels of the facility.
Which certifications does this product hold?
The product is fully certified with UL, ETL, DLC, SAA, TUV-GS, CB, FCC, CE, and RoHS, ensuring compliance with international safety and quality standards.
