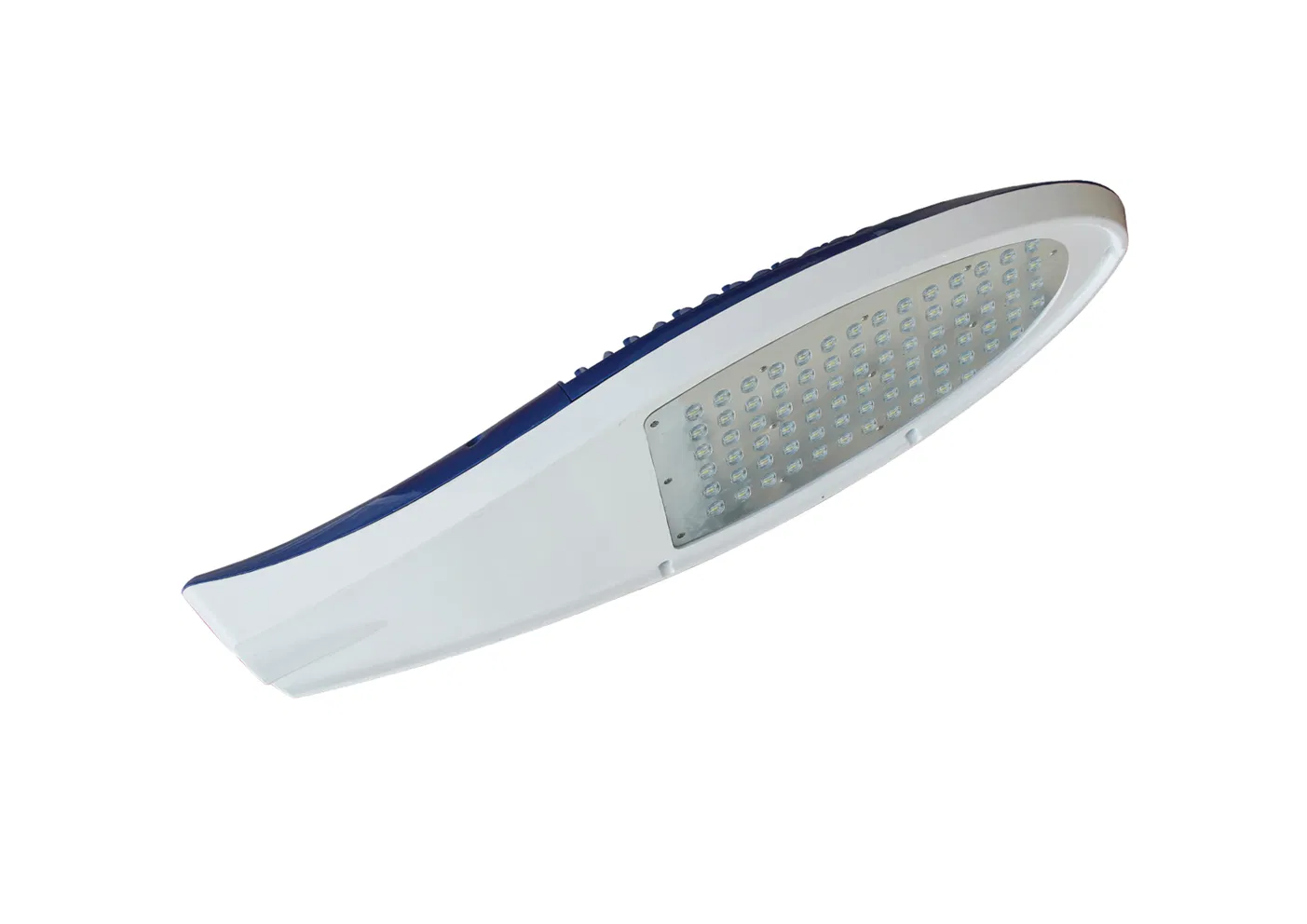

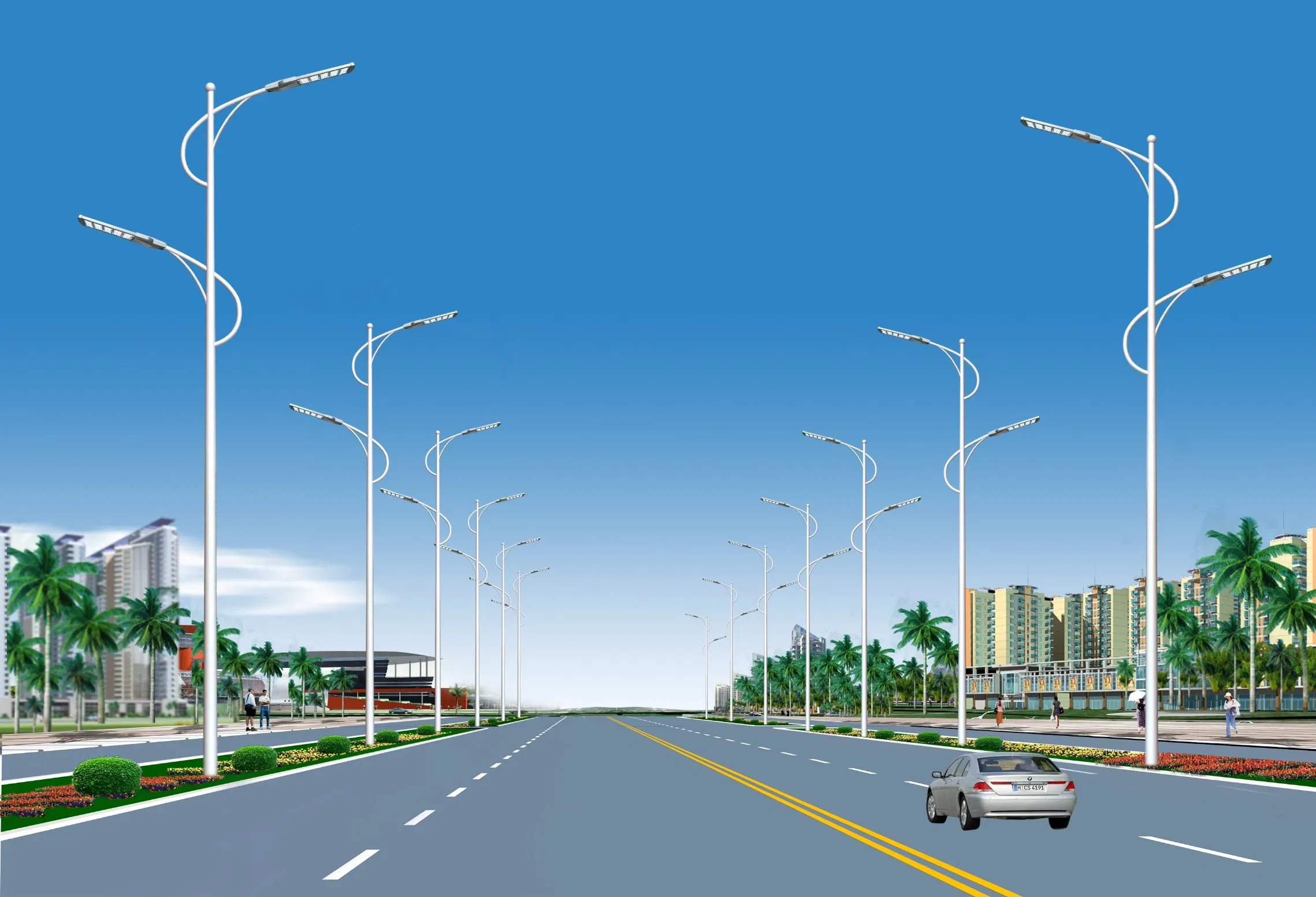

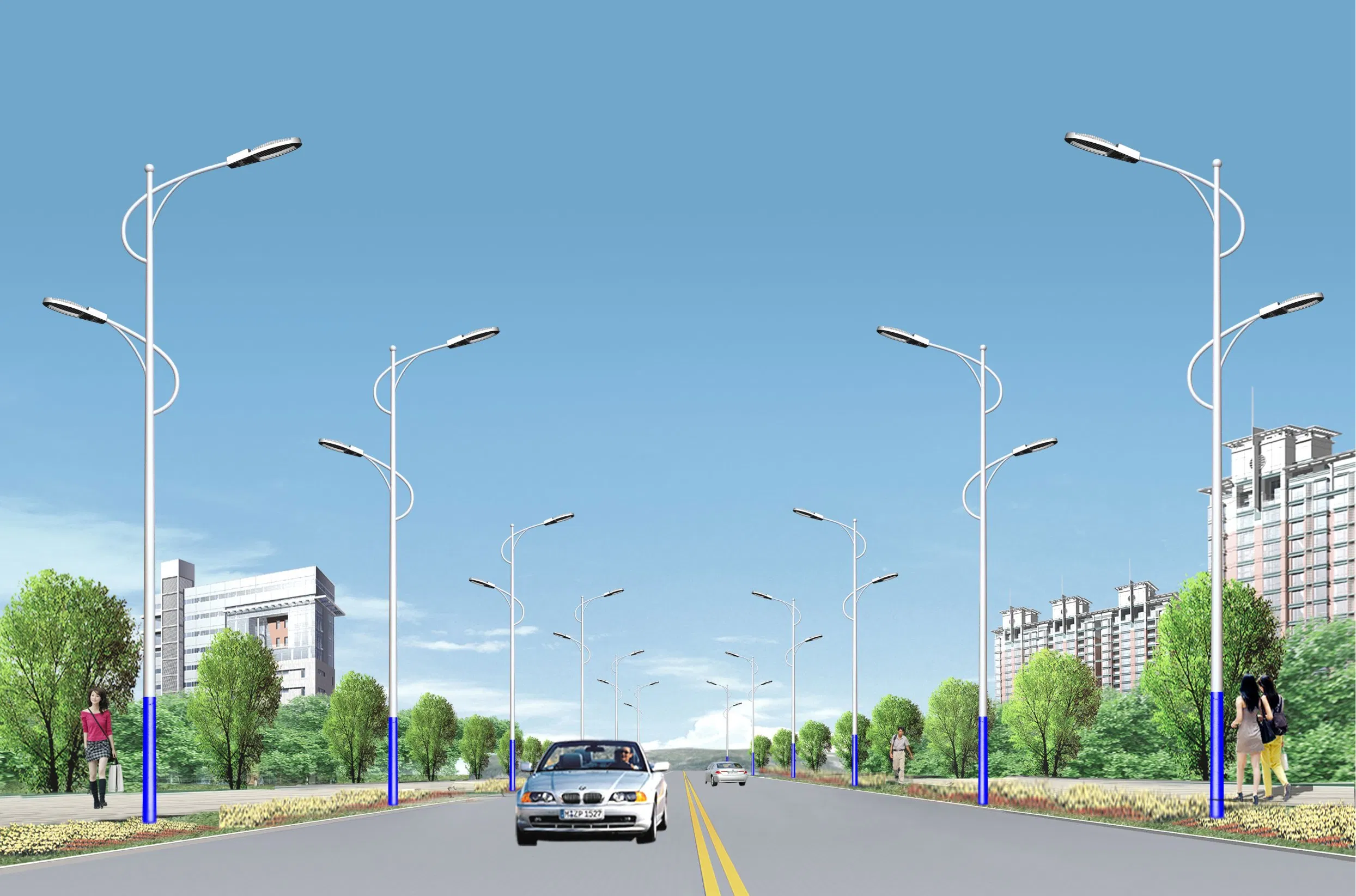

China AC Znkj Carton + Foam LED Street Light Garden Lights
Product Description
📋
Basic Information
Model NO.:ZN-LEDLD-01
Material:Aluminum
Power:60-100W
IP Rating:IP65 / IP66
Certification:CCC, CE, CQC, RoHS
Input Voltage:100-240V
LED Brand:CREE, Osram, Puri
Application:Square, Highway, Garden, Parking Lot
⚙️
Detailed Parameters
| Product Model | ZN-LD-04-LED-50W-200W | Power Brand | Meanwell, Maoshuo, Songsheng |
| Lighting Effect | 110-150LM/W | Surge Protection | 10KV |
| Warranty | 2-5 Years | Power Efficiency | >0.97 |
| Dimmable | 1-10V / PWM Optional | Operating Temp | -40ºC ~ +70ºC |
| Color Temp | 3000K, 4000K, 5000K, 6500K | CRI | >80 |
| Lifespan | >50,000 Hours | Material | Die-cast Aluminum |
📏
Product Dimensions
| Model Details | 60W Series | 90W-150W Series | 120W-200W Series |
|---|---|---|---|
| Product Size (mm) | 540*290*100 | 640*290*100 | 740*290*100 |
| Net Weight | 2.7kg | 3.3kg | 3.9kg |
| Package Size (mm) | 580*320*100 | 670*320*100 | 760*320*100 |
✨
Features & Advantages
- 🔄 Adjustable Angle: Designed to accommodate various lamp poles with efficient heat dissipation via die-cast aluminum.
- 💡 High Brightness: Utilizes 3030 SMD LEDs reaching 150 LM/Watt for superior visibility.
- 🛡️ Reliable Protection: IP66 rated, CE/RoHS certified with built-in 10KV surge protection.
- 🤖 Smart Control: Supports Lora intelligent systems, PLC, and automatic dusk-to-dawn switching.
🖼️

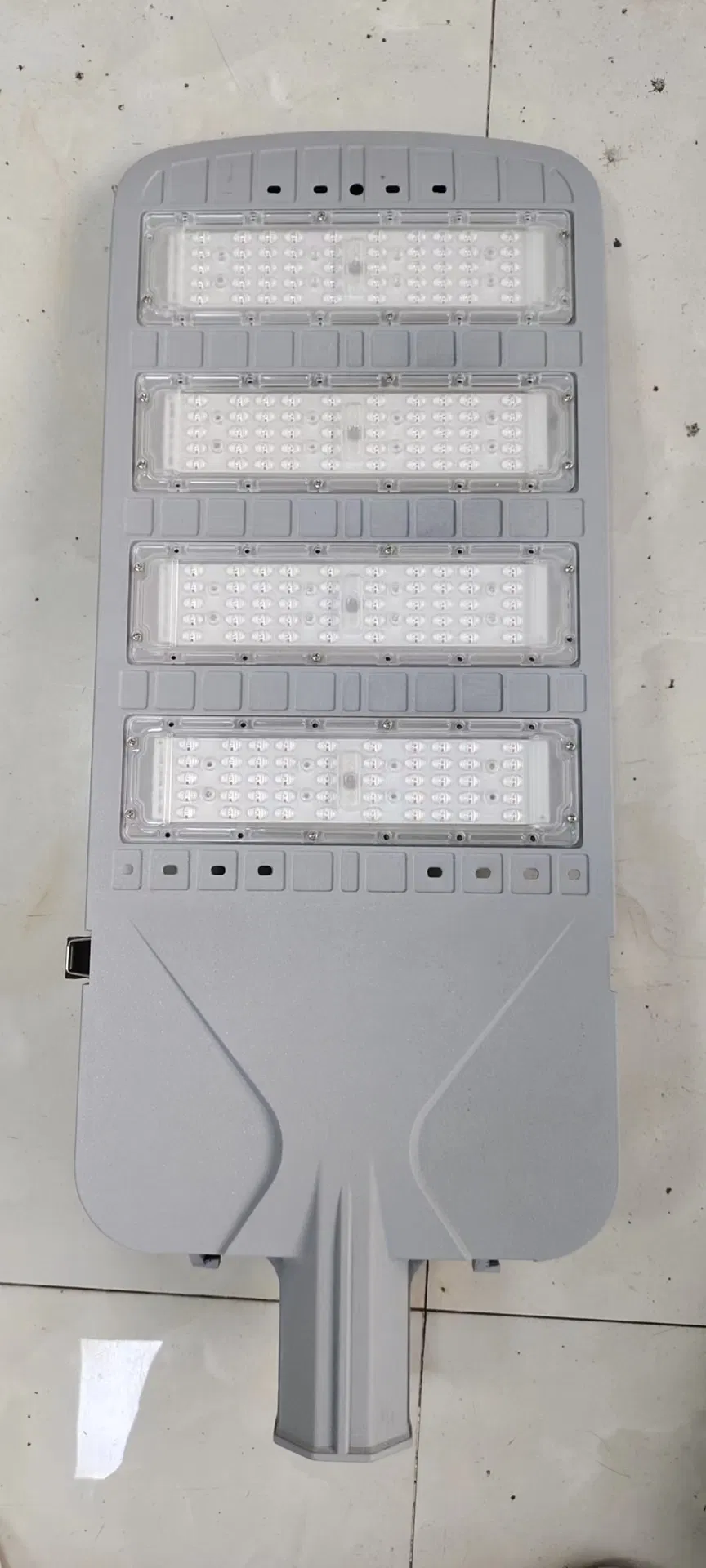

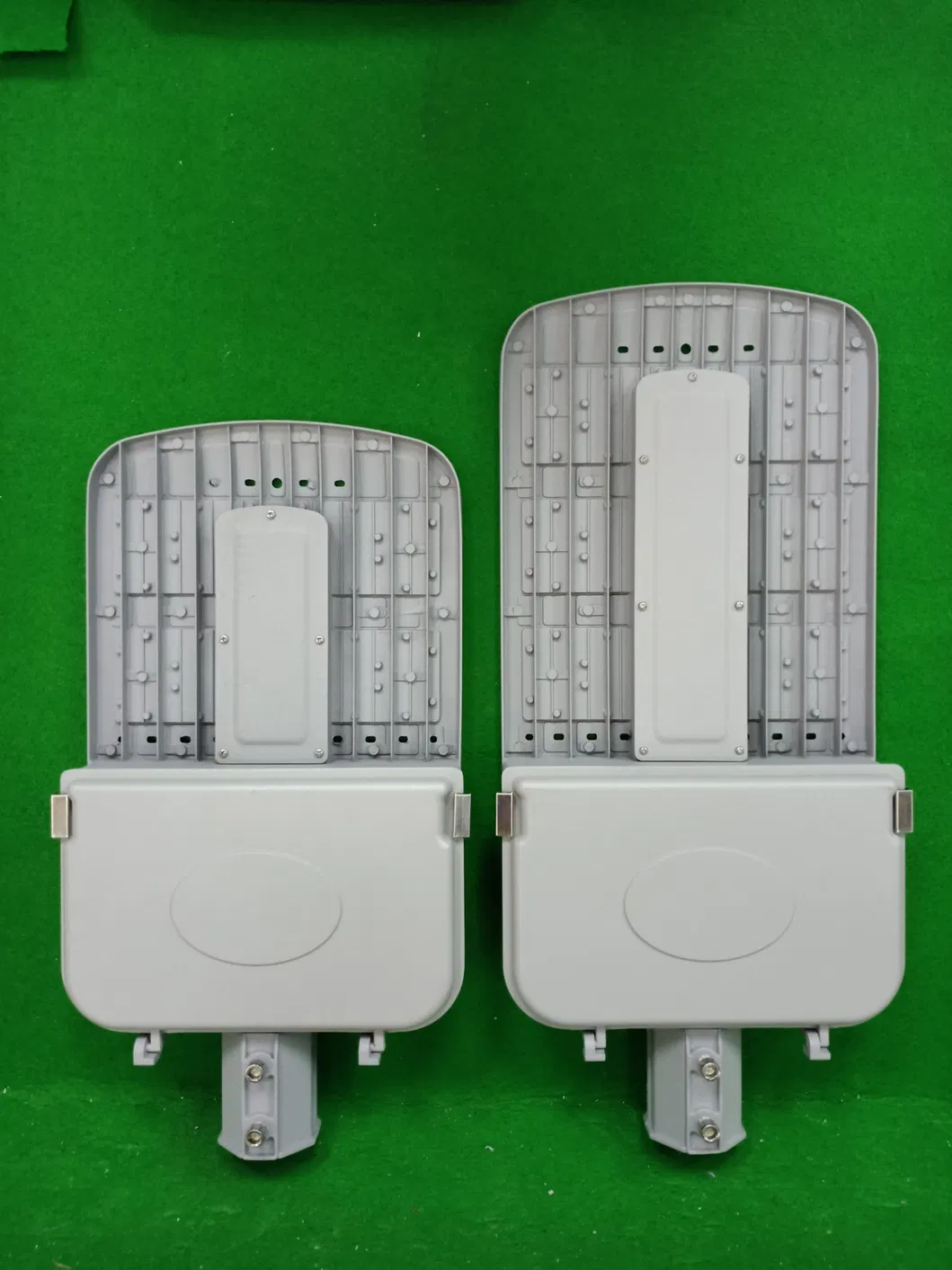

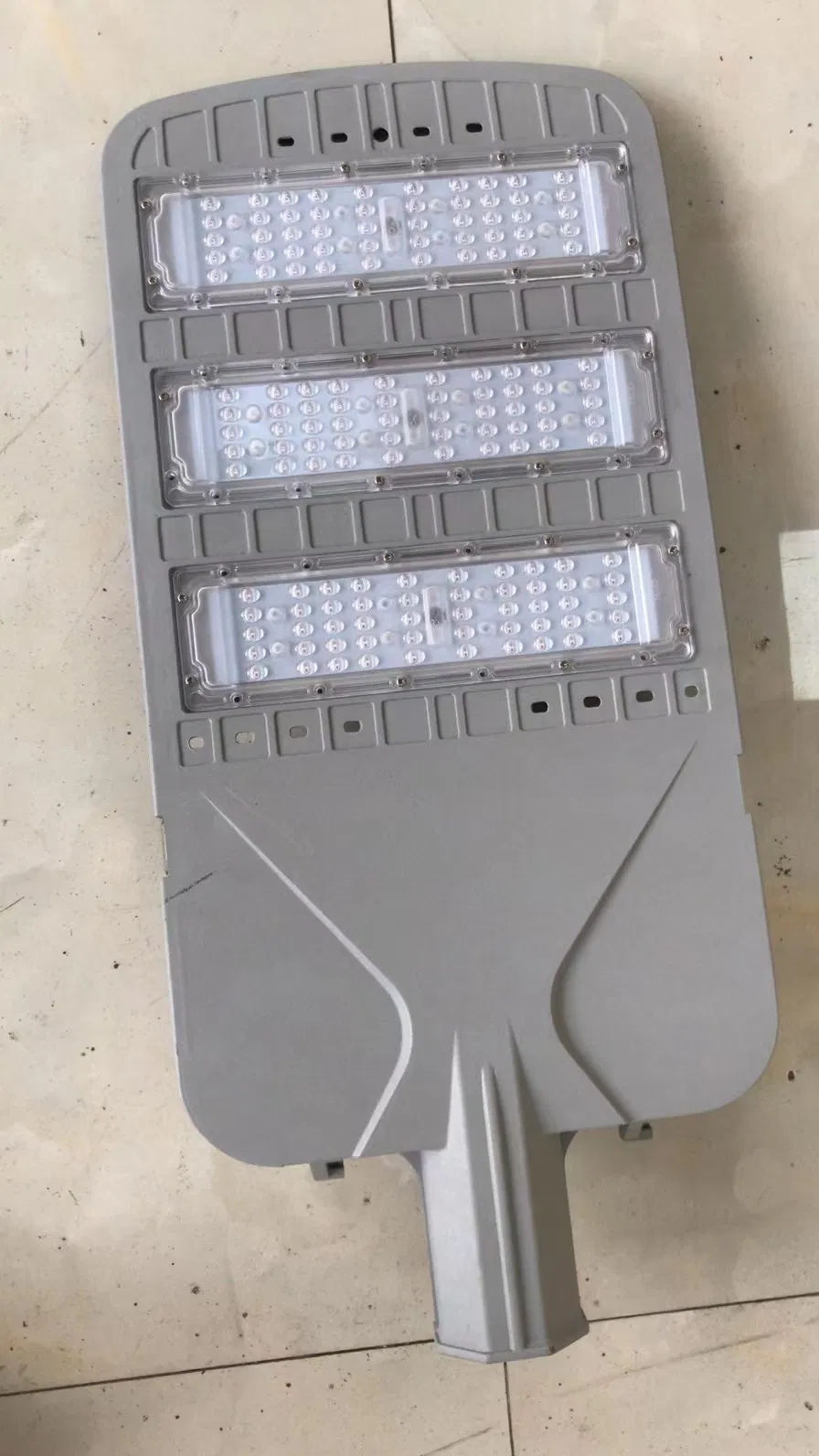

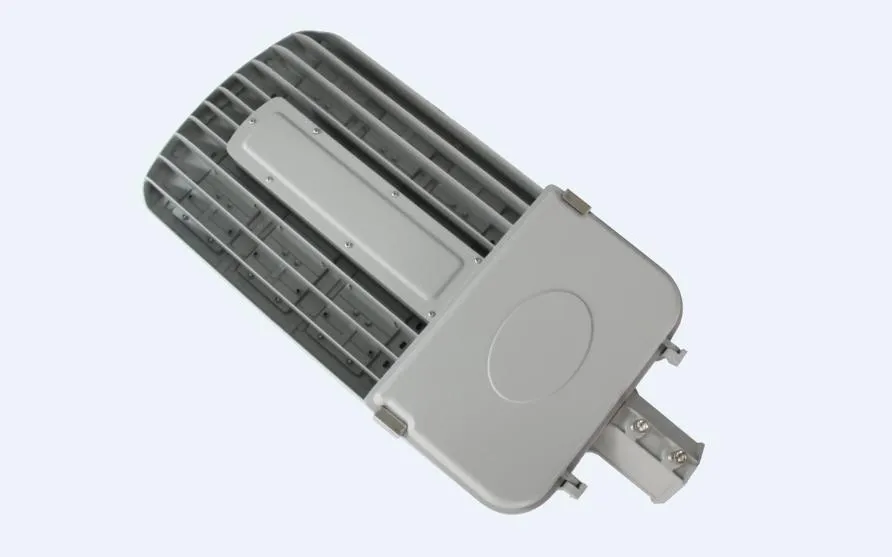

Product Showcase
🛣️

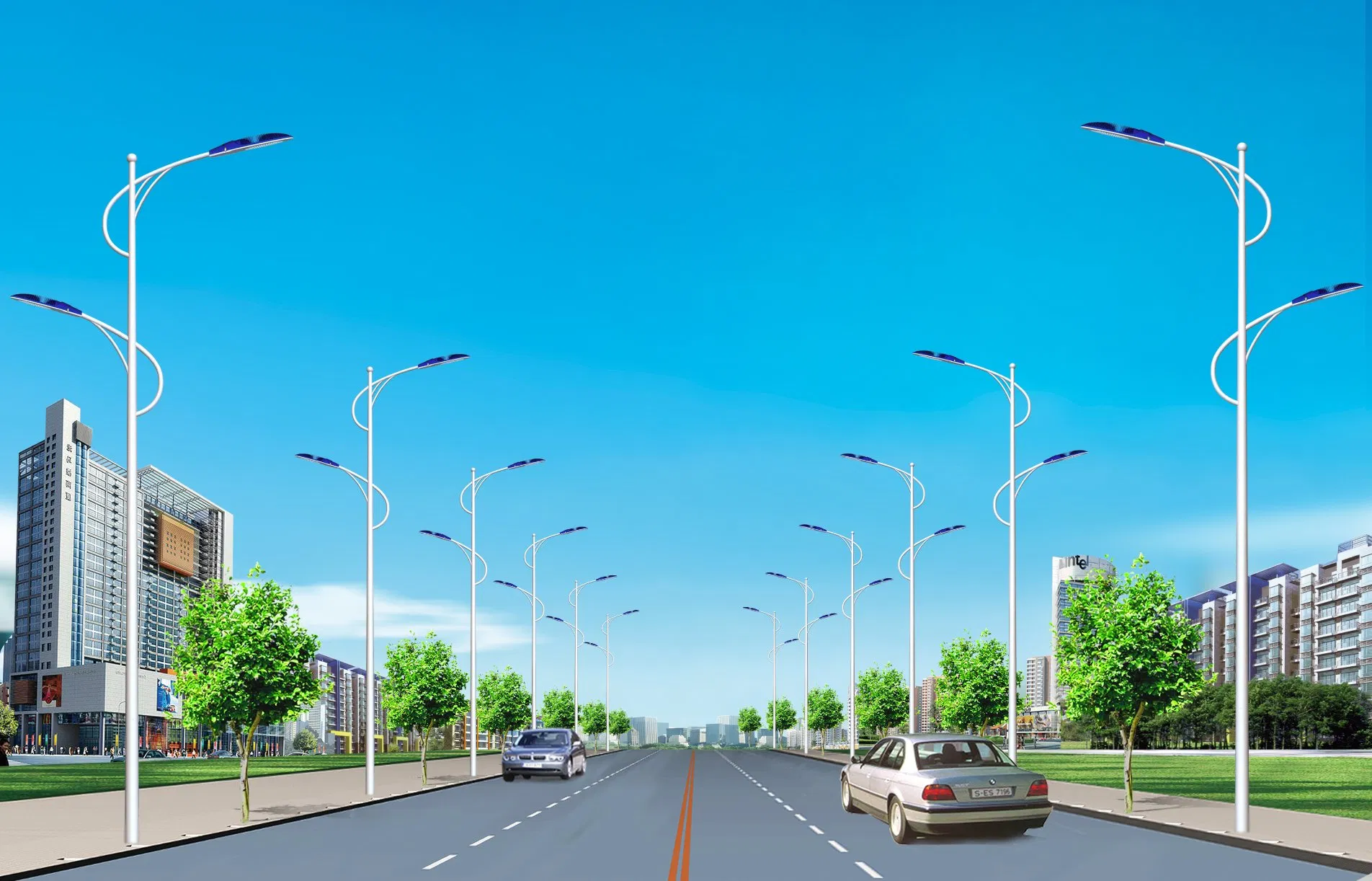

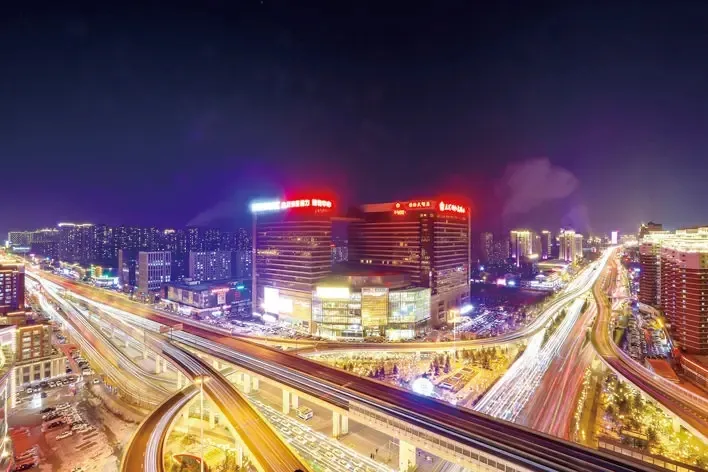

Scope of Application

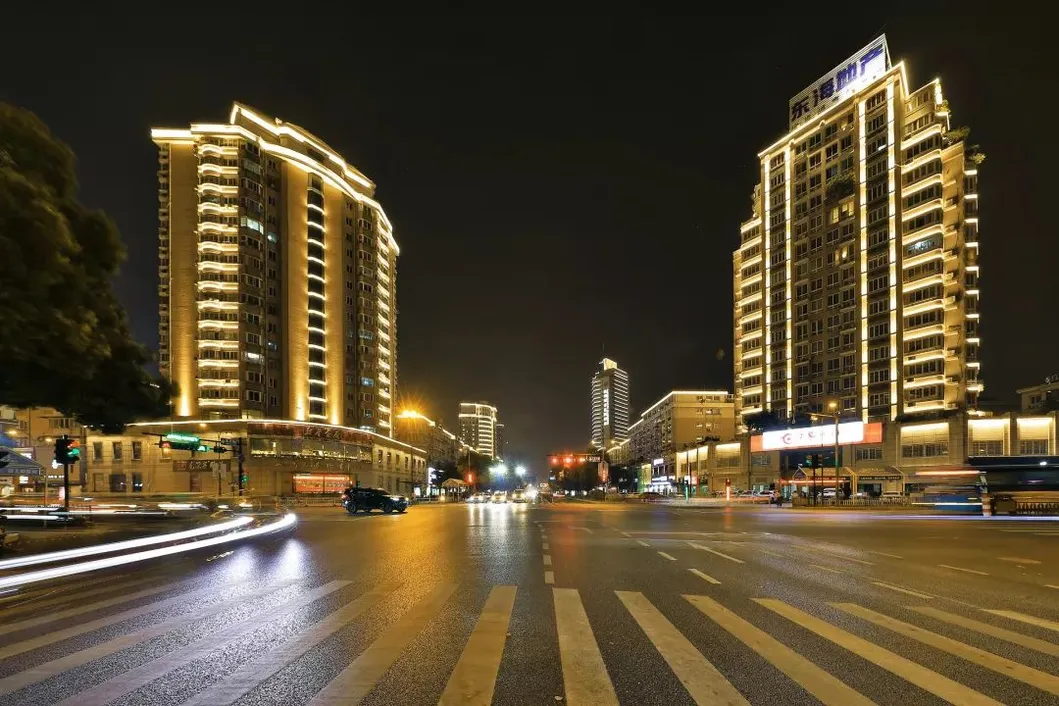

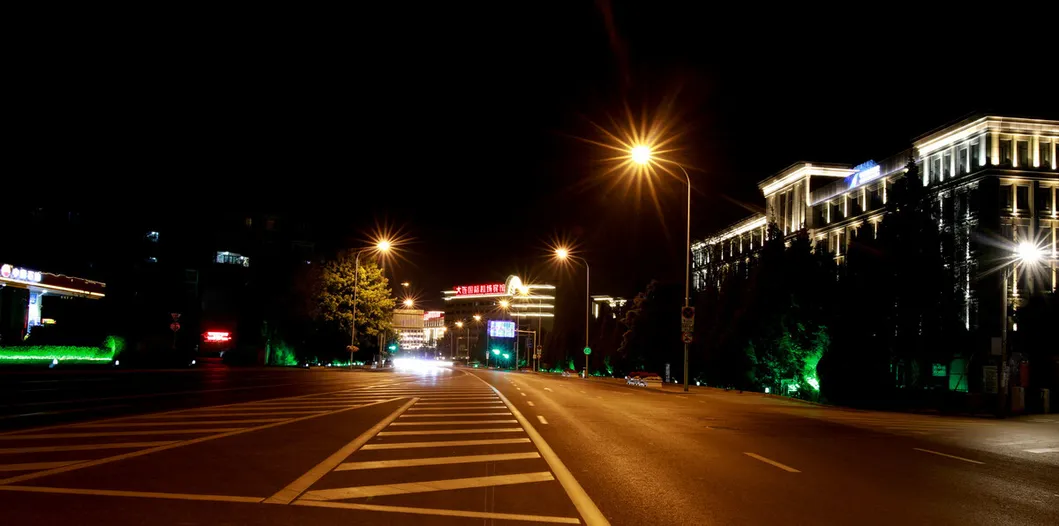

Ideal for urban expressways, main roads, welcome roads, commercial centers, and large public building perimeters.
❓
Frequently Asked Questions
What is the weather resistance rating of these street lights?
The lights are IP66 rated, making them completely dust-tight and protected against powerful water jets, suitable for harsh outdoor environments.
What is the expected lifespan and warranty?
These LED street lamps have a service life of over 50,000 hours and come with a comprehensive warranty of 2 to 5 years depending on the configuration.
Can these lights be integrated into a Smart City system?
Yes, they support Lora intelligent systems and PLC/Mobile phone control for single group or area management.
Are different color temperatures available?
Yes, we offer a range of color temperatures including 3000K (Warm White), 4000K (Natural White), 5000K, and 6500K (Cool White).
How does the automatic switching work?
The system features an intelligent light sensor that automatically switches the lamp on at dusk and off at dawn to maximize energy efficiency.

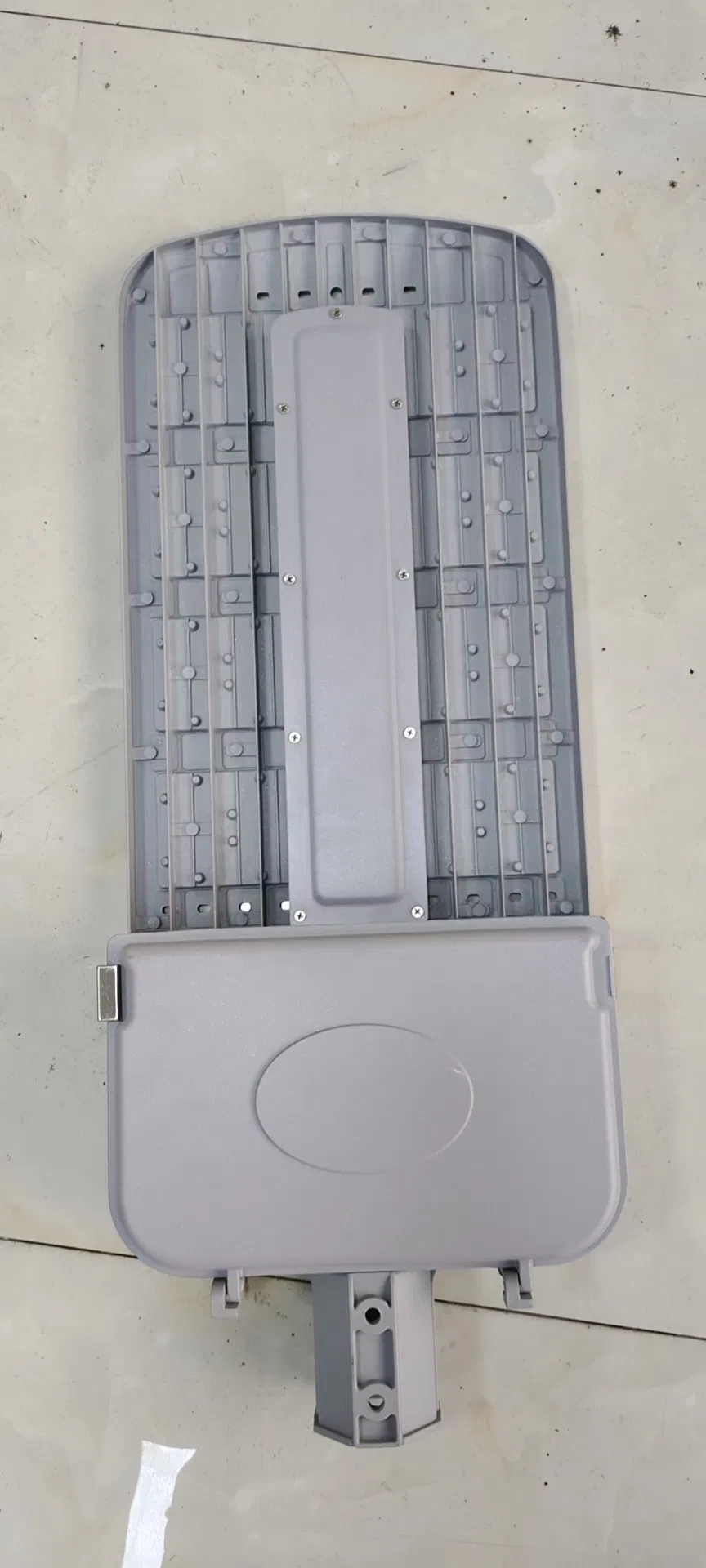

What materials are used for heat dissipation?
The lamp body is constructed from high-grade die-cast aluminum, specifically engineered for optimal thermal management and durability.
