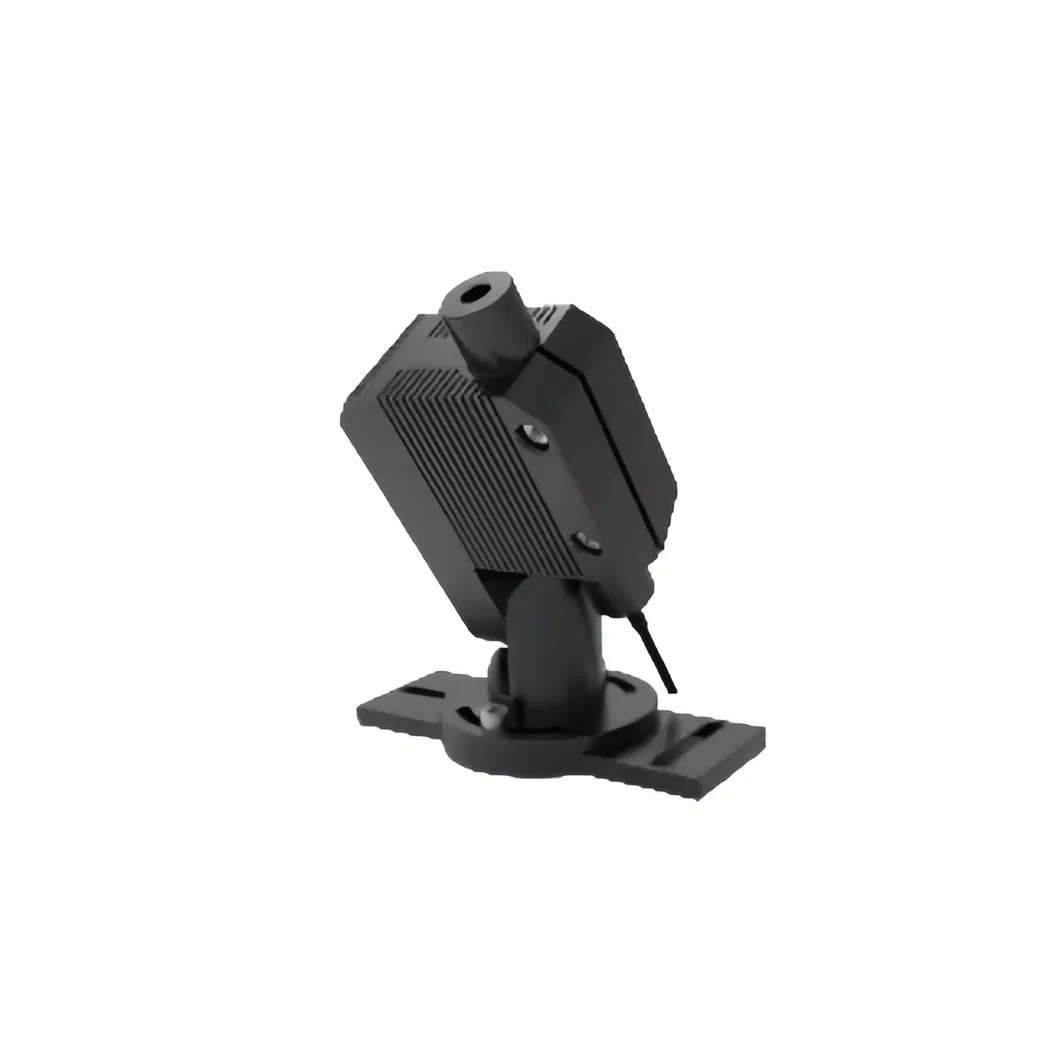

DC10-80V LED Warehouse Sidewalk Green Industrial Virtual Laser Line Light Strip Floor Marking Projector
Product Description
Basic Information
Model NO.
MXFSL
Power
1W / 1000mW
Application
Industrial / Warehouse
Voltage
DC 10-80V / AC 100-240V
Certification
CCC, CE, ISO9001
IEC Safety
Class 3R
Material
Aluminum
IP Grade
IP67
Product Overview
DC10-80V LED Warehouse Sidewalk Green Industrial Virtual Laser Line Light Strip Floor Marking Projector creates durable floor lines in your warehouse, eliminating the need for ongoing maintenance required with floor tape and paint.
The laser projector is easy to set up and maintain. Install the projector at the desired height, plug it in, and make it a smart solution for meeting your warehouse operation needs. No specialized tools or training are required. Maintenance is minimal; regular checks and occasional cleaning of the projection lens are all that is needed to ensure optimal performance.
Product Parameters
| Angle | Installation Distance | Approx Line Length |
|---|---|---|
| 45° | 5M | 4M |
| 60° | 5M | 6.6M |
| 90° | 5M | 8M |
| 110° | 5M | 10M |
| 135° | 5M | 12M |
| Item | 24 ft. @ 12 ft. dist | 30 ft. @ 15 ft. dist | 40 ft. @ 20 ft. dist |
|---|---|---|---|
| Green 1000mW | 5952 lux | 3810 lux | 2142 lux |
| Red 1000mW | 2002 lux | 1280 lux | 721 lux |
Key Features & Benefits
1High Visibility
Projects clearly visible Red, Blue, or Green laser lines for maximum clarity in all lighting conditions, particularly at dawn and dusk.
2Low Maintenance
Unaffected by forklift traffic or foot traffic. Eliminates the need to repaint or re-tape worn-out floor markings.
3Smart Sensing
Features ambient light sensing (dusk to dawn) and can be integrated with motion sensors to detect vehicle presence.
4Robust Design
Engineered with an IP67 rating and aluminum housing to withstand heavy-duty industrial environments.
Applications
This system is widely utilized for industrial safety and organization in various sectors:
- Warehouses & Staging Lanes
- Pedestrian Walkways & Safety Zones
- Manufacturing Plants & Heavy Machinery Areas
- Indoor/Outdoor Docks & Rough Surfaces
- Crane Operation Zones
Professional Manufacturing
Established in 2016, our enterprise integrates R&D, production, sales, and service. With over 200 dedicated staff including a specialized technical engineering team, we operate more than 28 production lines. Our monthly output reaches up to 30,000 units. We implement strict quality management and advanced automation to deliver precision lighting solutions for sectors including oil, chemical, logistics, and heavy industry.
Frequently Asked Questions
1. How does the virtual floor laser projector work?
The projector uses advanced laser technology to project high-intensity beams onto the floor. Once mounted at height, it creates a precise, adjustable line that serves as a permanent marking.
2. Can these projectors be installed in outdoor areas?
Yes. Our laser projectors feature an IP67 rating, ensuring they are fully protected against dust and water, making them ideal for outdoor docks and rugged environments.
3. What is the expected maintenance schedule?
Maintenance is rarely needed. The units have a lifespan of over 30,000 to 100,000 hours. Occasional cleaning of the lens is usually the only requirement.
4. What are the power supply requirements?
We offer versatile power options including 10-80V DC for vehicle/industrial systems and 100-240V AC for standard building power.
5. Which beam colors are available for selection?
Our virtual marking products are available in three high-visibility colors: Green, Red, and Blue to suit different safety protocols.
6. Is the laser beam safe for eyes?
The projectors carry an IEC 3R safety rating, meaning they are eye-safe under normal operating conditions. However, looking directly into the beam for long periods should be avoided.
